MCP4706/4716/4726
8-/10-/12-Bit Voltage Output Digital-to-Analog Converter
with EEPROM and I2C™ Interface
Features:
• Output Voltage Resolutions:
- 12-bit: MCP4726
- 10-bit: MCP4716
- 8-bit: MCP4706
• Rail-to-Rail Output
• Fast Settling Time of 6 µs (typical)
• DAC Voltage Reference Options:
- VDD
- VREF Pin
• Output Gain Options:
- Unity (1x)
- 2x, only when VREF pin is used as voltage
source
• Nonvolatile Memory (EEPROM):
- Auto Recall of Saved DAC register setting
- Auto Recall of Saved Device Configuration
(Voltage Reference, Gain, Power-Down)
• Power-Down modes:
- Disconnects output buffer
- Selection of VOUT pull-down resistors
(640 kΩ, 125 kΩ, or 1 kΩ)
• Low-Power Consumption:
- Normal Operation: 210 µA typical
- Power-Down Operation: 60 nA typical
(PD1:PD0 = 11)
• Single-Supply Operation: 2.7V to 5.5V
• I2C™ Interface:
- Eight Available Addresses
- Standard (100 kbps), Fast (400 kbps), and
High-Speed (3.4 Mbps) modes

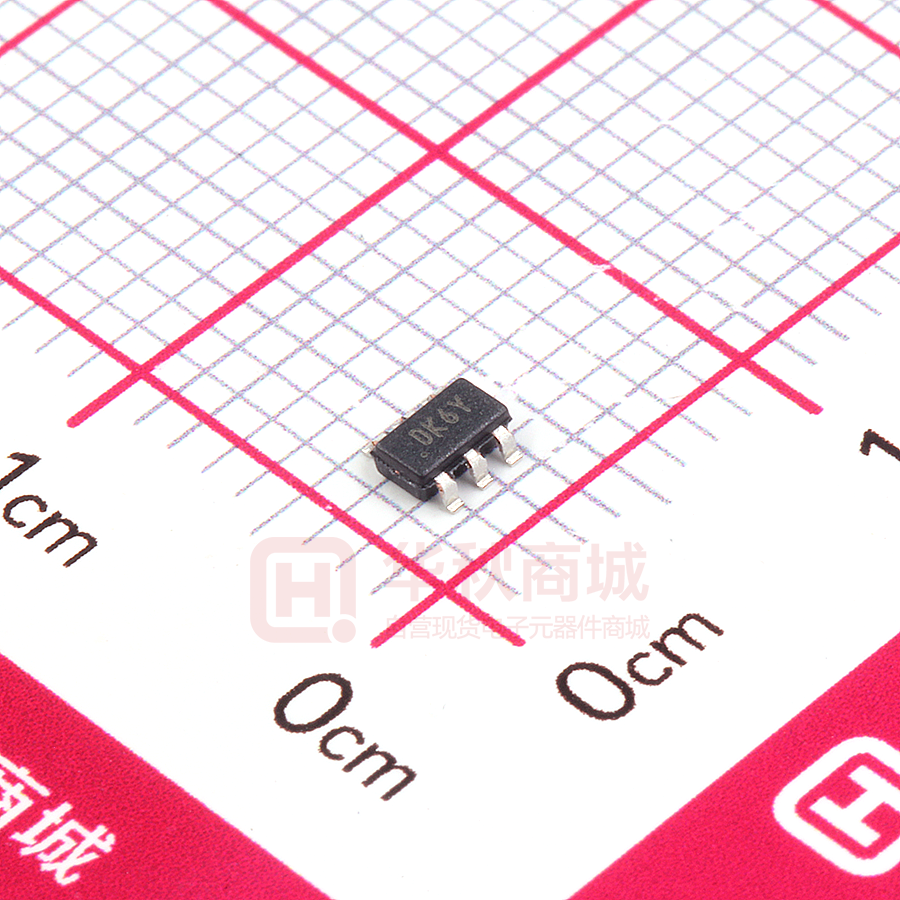

• Small 6-lead SOT-23 and DFN (2x2) Packages
• Extended Temperature Range: -40°C to +125°C
Applications:
•
•
•
•
•
•
Set Point or Offset Trimming
Sensor Calibration
Low-Power Portable Instrumentation
PC Peripherals
Data Acquisition Systems
Motor Control
© 2011-2012 Microchip Technology Inc.
Package Types
MCP4706/16/26
2x2 DFN-6*
SOT-23-6
VOUT 1
6 VREF
VSS 2
5 SCL
VDD 3
4 SDA
VREF 1
SCL 2
SDA 3
6 VOUT
EP
7
5 VSS
4 VDD
* Includes Exposed Thermal Pad (EP); see Table 3-1.
Description:
The MCP4706/4716/4726 are single channel 8-bit,
10-bit, and 12-bit buffered voltage output Digital-toAnalog Converters (DAC) with nonvolatile memory and
an I2C serial interface. This family will also be referred
to as MCP47X6.
The VREF pin or the device VDD can be selected as the
DAC’s reference voltage. When VDD is selected, VDD is
connected internally to the DAC reference circuit.
When the VREF pin is used, the user can select the
output buffer’s gain to 1 or 2. When the gain is 2, the
VREF pin voltage should be limited to a maximum of
VDD/2.
The DAC register value and Configuration bits can be
programmed to nonvolatile memory (EEPROM). The
nonvolatile memory holds the DAC register and
Configuration bit values when the device is powered
off. A device Reset (such as a Power-on Reset) latches
these stored values into the volatile memory.
Power-Down modes enable system current reduction
when the DAC output voltage is not required. The VOUT
pin can be configured to present a low, medium, or high
resistance load.
These devices have a two-wire I2C™ compatible serial
interface for standard (100 kHz), fast (400 kHz), or
High-Speed (3.4 MHz) mode.
These devices are available in small 6-pin SOT-23 and
DFN 2x2 mm packages.
DS22272C-page 1
MCP4706/4716/4726
Block Diagram
VREF
PD1:PD0
SCL
DS22272C-page 2
DAC
Register
EEPROM
Control
Logic
Resistor Ladder
SDA
I2C™ Interface Logic
Buffer
VOUT
Op
Amp
PD1:PD0
VW
640 kΩ
VSS
125 kΩ
VDD
Gain (1x or 2x)
(G = 0 or 1)
VRL
1 kΩ
VDD
Reference
Selection
VREF1:VREF0
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
1.0
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings †
Voltage on VDD with respect to VSS .......................................................................................................... -0.6V to +6.5V
Voltage on all pins with respect to VSS ..............................................................................................-0.3V to VDD + 0.3V
Input clamp current, IIK (VI < 0, VI > VDD) ............................................................................................................ ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) .................................................................................................. ±20 mA
Maximum input current source/sunk by SDA, SCL pins ..........................................................................................2 mA
Maximum output current sunk by SDA Output pin .................................................................................................25 mA
Maximum current out of VSS pin .............................................................................................................................50 mA
Maximum current into VDD pin ................................................................................................................................50 mA
Maximum current sourced by the VOUT pin ............................................................................................................40 mA
Maximum current sunk by the VOUT pin..................................................................................................................40 mA
Maximum current sunk by the VREF pin ...................................................................................................................40 µA
Package power dissipation (TA = +50°C, TJ = +150°C)
SOT-23-6...................................................................................................................................................452 mW
DFN-6......................................................................................................................................................1098 mW
Storage temperature ...............................................................................................................................-65°C to +150°C
Ambient temperature with power applied ...............................................................................................-55°C to +125°C
ESD protection on all pins............................................................................................................................≥ 6 kV (HBM)
......................................................................................................................................................................≥ 400V (MM)
Maximum Junction Temperature (TJ) ................................................................................................................... +150°C
† Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This
is a stress rating only and functional operation of the device at those or any other conditions above those indicated in
the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 3
MCP4706/4716/4726
ELECTRICAL CHARACTERISTICS
Electrical Specifications: Unless otherwise indicated, VDD = 2.7V to 5.5V, VSS = 0V, RL = 5 kΩ from VOUT to GND, CL = 100 pF,
TA = -40°C to +125°C. Typical values at +25°C.
Parameters
Power Requirements
Input Voltage
Input Current
Symbol
Min
Typical
Max
Units
VDD
IDD
2.7
—
—
210
5.5
400
V
µA
—
210
400
µA
Power-Down Current
IDDP
—
0.09
2
µA
Power-On Reset
Threshold
Power-Up Ramp Rate
DC Accuracy
Offset Error
VPOR
—
2.2
—
V
VRAMP
1
—
—
V/S
±0.02
0.75
Offset Error
Temperature Coefficient
Zero-Scale Error
Full-Scale Error
Gain Error
(Note 2)
VOS
VOS/°C
EZS
EFS
gE
Gain Error Drift
Resolution
ΔG/°C
n
INL Error
(Note 7)
INL
DNL Error
(Note 7)
DNL
Note 1:
2:
3:
4:
5:
6:
7:
Conditions
VREF1:VREF0 = 00,
SCL = SDA = VSS, VOUT is unloaded,
volatile DAC Register = 0x000
VREF1:VREF0 = 11, VREF = VDD,
SCL = SDA = VSS, VOUT is unloaded,
volatile DAC Register = 0x000
PD1:PD0 = 01 (Note 6),
VOUT not connected
RAM retention voltage, (VRAM) < VPOR
(Note 1, Note 4)
% of FSR Code = 0x000h
VREF1:VREF0 = 00, G = 0
—
±1
—
ppm/°C -40°C to +25°C
—
±2
—
ppm/°C +25°C to +85°C
—
0.13
2.0
LSb
MCP4706, Code = 0x00h
—
0.52
7.7
LSb
MCP4716, Code = 0x000h
—
2.05
30.8
LSb
MCP4726, Code = 0x000h
—
0.3
5.2
LSb
MCP4706, Code = 0xFFh
—
1.1
20.5
LSb
MCP4716, Code = 0x3FFh
—
4.1
82.0
LSb
MCP4726, Code = 0xFFFh
-2
-0.10
2
% of FSR MCP4706, Code = 0xFFh
VREF1:VREF0 = 00, G = 0
-2
-0.10
2
% of FSR MCP4716, Code = 0x3FFh
VREF1:VREF0 = 00, G = 0
-2
-0.10
2
% of FSR MCP4726, Code = 0xFFFh
VREF1:VREF0 = 00, G = 0
—
-3
—
ppm/°C
8
bits
MCP4706
10
bits
MCP4716
12
bits
MCP4726
-0.907 ±0.125 +0.907
LSb
MCP4706 (codes: 6 to 250)
-3.625
±0.5
+3.625
LSb
MCP4716 (codes: 25 to 1000)
-14.5
±2
+14.5
LSb
MCP4726 (codes: 100 to 4000)
-0.05 ±0.0125 +0.05
LSb
MCP4706 (codes: 6 to 250)
-0.188 ±0.05 +0.188
LSb
MCP4716 (codes: 25 to 1000)
-0.75
±0.2
+0.75
LSb
MCP4726 (codes: 100 to 4000)
This parameter is ensured by design and is not 100% tested.
This Gain error does not include Offset error. See Section 1.0 “Electrical Characteristics” for more details in plots.
Within 1/2 LSb of final value when code changes from 1/4 to 3/4 of FSR. (Example: 400h to C00h in 12-bit device).
The power-up ramp rate affects on uploading the EEPROM contents to the DAC register. It measures the rise of VDD
over time.
This parameter is ensured by characterization, and not 100% tested.
The PD1:PD0 = 10, and ‘11’ configurations should have the same current.
VDD = VREF = 5.5V.
DS22272C-page 4
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
ELECTRICAL CHARACTERISTICS (CONTINUED)
Electrical Specifications: Unless otherwise indicated, VDD = 2.7V to 5.5V, VSS = 0V, RL = 5 kΩ from VOUT to GND, CL = 100 pF,
TA = -40°C to +125°C. Typical values at +25°C.
Parameters
Output Amplifier
Minimum Output
Voltage
Maximum Output
Voltage
Phase Margin
Slew Rate
Short Circuit Current
Settling Time
Power-Down Output
Disable Time Delay
Power-Down Output
Enable Time Delay
Symbol
Min
Typical
Max
Units
VOUT(MIN)
—
0.01
—
V
Output Amplifier’s minimum drive
VOUT(MAX)
—
—
V
Output Amplifier’s maximum drive
PM
—
VDD –
0.04
66
—
SR
ISC
tSETTLING
TPDD
—
7
—
—
0.55
15
6
1
—
24
—
—
Degree
(°)
V/µs
mA
µs
µs
TPDE
—
10.5
—
µs
—
V
V
kΩ
pF
kHz
External Reference (VREF) (Note 1)
Input Range
VREF
0.04
Input Impedance
Input Capacitance
-3 dB Bandwidth
Total Harmonic
Distortion
RVREF
C_REF
THD
Dynamic Performance (Note 1)
Major Code Transition
Glitch
Digital Feedthrough
Note 1:
2:
3:
4:
5:
6:
7:
0
—
—
—
—
210
29
86.5
VDD 0.04
VDD
—
—
—
—
67.7
—
kHz
—
-73
—
dB
—
45
—
nV-s
—
11, ‘10’, or ‘01’
started from falling edge SCL at end of
ACK bit.
VOUT = VOUT - 10 mV. VOUT not
connected.
PD1:PD0 = 11, ‘10’, or ‘01’ -> “00”
started from falling edge SCL at end of
ACK bit.
Volatile DAC Register = FFh,
VOUT = 10 mV. VOUT not connected.
Buffered mode
Unbuffered mode
Unbuffered mode
Unbuffered mode
VREF = 2.048V ± 0.1V,
VREF1:VREF0 = 10, G = 0
VREF = 2.048V ± 0.1V,
VREF1:VREF0 = 10, G = 1
VREF = 2.048V ± 0.1V,
VREF1:VREF0 = 10, G = 0,
Frequency = 1 kHz
1 LSb change around major carry
(800h to 7FFh)
This parameter is ensured by design and is not 100% tested.
This Gain error does not include Offset error. See Section 1.0 “Electrical Characteristics” for more details in plots.
Within 1/2 LSb of final value when code changes from 1/4 to 3/4 of FSR. (Example: 400h to C00h in 12-bit device).
The power-up ramp rate affects on uploading the EEPROM contents to the DAC register. It measures the rise of VDD
over time.
This parameter is ensured by characterization, and not 100% tested.
The PD1:PD0 = 10, and ‘11’ configurations should have the same current.
VDD = VREF = 5.5V.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 5
MCP4706/4716/4726
ELECTRICAL CHARACTERISTICS (CONTINUED)
Electrical Specifications: Unless otherwise indicated, VDD = 2.7V to 5.5V, VSS = 0V, RL = 5 kΩ from VOUT to GND, CL = 100 pF,
TA = -40°C to +125°C. Typical values at +25°C.
Parameters
Digital Interface
Output Low Voltage
Input High Voltage
(SDA and SCL Pins)
Input Low Voltage
(SDA and SCL Pins)
Input Leakage
Pin Capacitance
EEPROM
EEPROM Write Time
Data Retention
Endurance
Note 1:
2:
3:
4:
5:
6:
7:
Symbol
Min
Typical
Max
Units
VOL
VIH
—
0.7VDD
—
—
0.4
—
V
V
VIL
—
—
0.3VDD
V
ILI
—
—
±1
µA
CPIN
—
—
3
pF
TWRITE
—
—
1
25
200
—
50
—
—
ms
Years
Million
Cycles
Conditions
IOL = 3 mA
SCL = SDA = VSS or
SCL = SDA = VDD
(Note 5)
At +25°C, (Note 1)
At +25°C, (Note 1)
This parameter is ensured by design and is not 100% tested.
This Gain error does not include Offset error. See Section 1.0 “Electrical Characteristics” for more details in plots.
Within 1/2 LSb of final value when code changes from 1/4 to 3/4 of FSR. (Example: 400h to C00h in 12-bit device).
The power-up ramp rate affects on uploading the EEPROM contents to the DAC register. It measures the rise of VDD
over time.
This parameter is ensured by characterization, and not 100% tested.
The PD1:PD0 = 10, and ‘11’ configurations should have the same current.
VDD = VREF = 5.5V.
DS22272C-page 6
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
I2C Mode Timing Waveforms and Requirements
1.1
VPOR (VBOR)
VDD
tPORD
SCL
tBORD
VIH
VIH
SDA
VOUT pulled down by internal
500 kΩ (typical) resistor
VOUT
I2C™ Interface is operational
FIGURE 1-1:
Power-On and Brown-Out Reset Waveforms.
Stop
ACK
Start
ACK
SDA
SCL
tPDE
tPDD
VOUT
I2C Power-Down Command Timing.
FIGURE 1-2:
TABLE 1-1:
RESET TIMING
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (extended)
Timing Characteristics
All parameters apply across the specified operating ranges unless noted.
VDD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.
Typical specifications represent values for VDD = 5.5V, TA = +25°C.
Parameters
Sym
Min
Typ
Max
Units
Conditions
Power-Up Reset
Delay
tPORD
—
60
—
µs
Monitor ACK bit response to ensure device
responds to command.
Brown-Out Reset
Delay
tBORD
—
1
—
µs
VDD transitions from VDD(MIN) → > VPOR
VOUT driven to VOUT disabled
Power-Down
Disable Time Delay
TPDD
—
2.5
—
µs
VDD = 5V
PD1:PD0 → 00 (from ‘01’, ‘10’, or ‘11’),
from falling edge SCL at end of ACK bit.
—
5
—
µs
VDD = 3V
PD1:PD0 → 00 (from ‘01’, ‘10’, or ‘11’),
from falling edge SCL at end of ACK bit.
—
10.5
—
µs
PD1:PD0 → 01, ‘10’, or ‘11’ (from ‘00’),
from falling edge SCL at end of ACK bit.
Power-Down Enable
Time Delay
TPDE
© 2011-2012 Microchip Technology Inc.
DS22272C-page 7
MCP4706/4716/4726
VIH
SCL
93
91
90
92
111
SDA
VIL
Start
Condition
Stop
Condition
I2C Bus Start/Stop Bits Timing Waveforms.
FIGURE 1-3:
I2C BUS START/STOP BITS REQUIREMENTS
TABLE 1-2:
I2C™ AC Characteristics
Param.
Symbol
No.
FSCL
D102
90
91
92
93
Cb
TSU:STA
THD:STA
TSU:STO
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (Extended)
Operating Voltage VDD range is described in Electrical Characteristics
Characteristic
SCL pin Frequency
Bus capacitive
loading
Min
Max
Units
Standard mode
0
100
kHz
Cb = 400 pF, 2.7V - 5.5V
Fast mode
0
400
kHz
Cb = 400 pF, 2.7V - 5.5V
High-Speed 1.7
0
1.7
MHz
Cb = 400 pF, 4.5V - 5.5V
High-Speed 3.4
0
3.4
MHz
Cb = 100 pF, 4.5V - 5.5V
100 kHz mode
—
400
pF
400 kHz mode
—
400
pF
1.7 MHz mode
—
400
pF
3.4 MHz mode
—
100
pF
Start condition
100 kHz mode
4700
—
ns
Setup time
400 kHz mode
600
—
ns
1.7 MHz mode
160
—
ns
3.4 MHz mode
160
—
ns
Start condition
100 kHz mode
4000
—
ns
Hold time
400 kHz mode
600
—
ns
1.7 MHz mode
160
—
ns
3.4 MHz mode
160
—
ns
Stop condition
100 kHz mode
4000
—
ns
Setup time
400 kHz mode
600
—
ns
1.7 MHz mode
160
—
ns
3.4 MHz mode
160
—
ns
THD:STO Stop condition
Hold time
Conditions
100 kHz mode
4000
—
ns
400 kHz mode
600
—
ns
1.7 MHz mode
160
—
ns
3.4 MHz mode
160
—
ns
Only relevant for repeated
Start condition
After this period, the first
clock pulse is generated
94
THVCSU
HVC to SCL Setup time
25
—
uS
High Voltage Commands
95
THVCHD
SCL to HVC Hold time
25
—
uS
High Voltage Commands
DS22272C-page 8
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
103
102
100
101
SCL
90
106
91
92
107
SDA
In
110
109
109
SDA
Out
I2C Bus Data Timing.
FIGURE 1-4:
TABLE 1-3:
I2C BUS DATA REQUIREMENTS (SLAVE MODE)
I2C™ AC Characteristics
Param.
No.
Sym
Characteristic
100
THIGH
Clock high time
101
Note 1:
2:
3:
4:
5:
6:
7:
8:
TLOW
Clock low time
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (Extended)
Operating Voltage VDD range is described in Electrical Characteristics
Min
Max
Units
100 kHz mode
4000
—
ns
2.7V-5.5V
400 kHz mode
600
—
ns
2.7V-5.5V
1.7 MHz mode
120
ns
4.5V-5.5V
3.4 MHz mode
60
—
ns
4.5V-5.5V
100 kHz mode
4700
—
ns
2.7V-5.5V
400 kHz mode
1300
—
ns
2.7V-5.5V
1.7 MHz mode
320
ns
4.5V-5.5V
3.4 MHz mode
160
ns
4.5V-5.5V
—
Conditions
As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region
(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions.
A Fast mode (400 kHz) I2C™ bus device can be used in a Standard mode (100 kHz) I2C bus system, but
the requirement tSU;DAT ≥ 250 ns must then be met. This will automatically be the case if the device does
not stretch the Low period of the SCL signal. If such a device does stretch the Low period of the SCL
signal, it must output the next data bit to the SDA line.
TR max.+tSU;DAT = 1000 + 250 = 1250 ns (according to the Standard mode I2C bus specification) before
the SCL line is released.
The MCP47X6 device must provide a data hold time to bridge the undefined part between VIH and VIL of
the falling edge of the SCL signal. This specification is not a part of the I2C specification, but must be tested
in order to ensure that the output data will meet the setup and hold specifications for the receiving device.
Use Cb in pF for the calculations.
Not Tested. This parameter ensured by characterization.
A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do
not unintentionally create a Start or Stop condition.
If this parameter is too short, it can create an unintentional Start or Stop condition to other devices on the
I2C bus line. If this parameter is too long, the Data Input Setup (TSU:DAT) or Clock Low time (TLOW) can be
affected.
Data Input: This parameter must be longer than tSP.
Data Output: This parameter is characterized, and tested indirectly by testing TAA parameter.
Ensured by the TAA 3.4 MHz specification test.
The specification is not part of the I2C specification. TAA = THD:DAT + TFSDA (or TRSDA).
© 2011-2012 Microchip Technology Inc.
DS22272C-page 9
MCP4706/4716/4726
I2C BUS DATA REQUIREMENTS (SLAVE MODE) (CONTINUED)
TABLE 1-3:
I2C™ AC Characteristics
Param.
No.
Sym
102A(5)
TRSCL
102B(5)
103A
103B
(5)
(5)
Note 1:
2:
3:
4:
5:
6:
7:
8:
TRSDA
TFSCL
TFSDA
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (Extended)
Operating Voltage VDD range is described in Electrical Characteristics
Characteristic
SCL rise time
SDA rise time
SCL fall time
SDA fall time
Min
Max
Units
100 kHz mode
—
1000
ns
400 kHz mode
20 + 0.1Cb
300
ns
1.7 MHz mode
20
80
ns
1.7 MHz mode
20
160
ns
Conditions
Cb is specified to be from
10 to 400 pF (100 pF
maximum for 3.4 MHz
mode)
After a Repeated Start
condition or an
Acknowledge bit
3.4 MHz mode
10
40
ns
3.4 MHz mode
10
80
ns
After a Repeated Start
condition or an
Acknowledge bit
100 kHz mode
—
1000
ns
Cb is specified to be from
10 to 400 pF (100 pF max
for 3.4 MHz mode)
400 kHz mode
20 + 0.1Cb
300
ns
1.7 MHz mode
20
160
ns
3.4 MHz mode
10
80
ns
100 kHz mode
—
300
ns
400 kHz mode
20 + 0.1Cb
300
ns
1.7 MHz mode
20
80
ns
3.4 MHz mode
10
40
ns
100 kHz mode
—
300
ns
400 kHz mode
20 + 0.1Cb(4)
300
ns
1.7 MHz mode
20
160
ns
3.4 MHz mode
10
80
ns
Cb is specified to be from
10 to 400 pF (100 pF max
for 3.4 MHz mode)
Cb is specified to be from
10 to 400 pF (100 pF max
for 3.4 MHz mode)
As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region
(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions.
A Fast mode (400 kHz) I2C™ bus device can be used in a Standard mode (100 kHz) I2C bus system, but
the requirement tSU;DAT ≥ 250 ns must then be met. This will automatically be the case if the device does
not stretch the Low period of the SCL signal. If such a device does stretch the Low period of the SCL
signal, it must output the next data bit to the SDA line.
TR max.+tSU;DAT = 1000 + 250 = 1250 ns (according to the Standard mode I2C bus specification) before
the SCL line is released.
The MCP47X6 device must provide a data hold time to bridge the undefined part between VIH and VIL of
the falling edge of the SCL signal. This specification is not a part of the I2C specification, but must be tested
in order to ensure that the output data will meet the setup and hold specifications for the receiving device.
Use Cb in pF for the calculations.
Not Tested. This parameter ensured by characterization.
A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do
not unintentionally create a Start or Stop condition.
If this parameter is too short, it can create an unintentional Start or Stop condition to other devices on the
I2C bus line. If this parameter is too long, the Data Input Setup (TSU:DAT) or Clock Low time (TLOW) can be
affected.
Data Input: This parameter must be longer than tSP.
Data Output: This parameter is characterized, and tested indirectly by testing TAA parameter.
Ensured by the TAA 3.4 MHz specification test.
The specification is not part of the I2C specification. TAA = THD:DAT + TFSDA (or TRSDA).
DS22272C-page 10
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
TABLE 1-3:
I2C BUS DATA REQUIREMENTS (SLAVE MODE) (CONTINUED)
I2C™ AC Characteristics
Param.
No.
106
107
109
110
Note 1:
2:
3:
4:
5:
6:
7:
8:
Sym
Characteristic
THD:DAT Data input hold
time
TSU:DAT Data input setup
time
TAA
TBUF
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (Extended)
Operating Voltage VDD range is described in Electrical Characteristics
Output valid
from clock
Bus free time
Min
Max
Units
Conditions
100 kHz mode
0
—
ns
2.7V-5.5V, Note 6
400 kHz mode
0
—
ns
2.7V-5.5V, Note 6
1.7 MHz mode
0
—
ns
4.5V-5.5V, Note 6
3.4 MHz mode
0
—
ns
4.5V-5.5V, Note 6
100 kHz mode
250
—
ns
Note 2
400 kHz mode
100
—
ns
1.7 MHz mode
10
—
ns
3.4 MHz mode
10
—
ns
100 kHz mode
—
3750
ns
400 kHz mode
—
1200
ns
1.7 MHz mode
—
150
ns
Cb = 100 pF,
Note 1, Note 7, Note 8
—
310
ns
Cb = 400 pF,
Note 1, Note 5, Note 8
3.4 MHz mode
—
150
ns
Cb = 100 pF,
Note 1, Note 8
100 kHz mode
4700
—
ns
Time the bus must be free
before a new transmission
can start
400 kHz mode
1300
—
ns
1.7 MHz mode
N/A
—
ns
3.4 MHz mode
N/A
—
ns
Note 1, Note 8
As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region
(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions.
A Fast mode (400 kHz) I2C™ bus device can be used in a Standard mode (100 kHz) I2C bus system, but
the requirement tSU;DAT ≥ 250 ns must then be met. This will automatically be the case if the device does
not stretch the Low period of the SCL signal. If such a device does stretch the Low period of the SCL
signal, it must output the next data bit to the SDA line.
TR max.+tSU;DAT = 1000 + 250 = 1250 ns (according to the Standard mode I2C bus specification) before
the SCL line is released.
The MCP47X6 device must provide a data hold time to bridge the undefined part between VIH and VIL of
the falling edge of the SCL signal. This specification is not a part of the I2C specification, but must be tested
in order to ensure that the output data will meet the setup and hold specifications for the receiving device.
Use Cb in pF for the calculations.
Not Tested. This parameter ensured by characterization.
A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do
not unintentionally create a Start or Stop condition.
If this parameter is too short, it can create an unintentional Start or Stop condition to other devices on the
I2C bus line. If this parameter is too long, the Data Input Setup (TSU:DAT) or Clock Low time (TLOW) can be
affected.
Data Input: This parameter must be longer than tSP.
Data Output: This parameter is characterized, and tested indirectly by testing TAA parameter.
Ensured by the TAA 3.4 MHz specification test.
The specification is not part of the I2C specification. TAA = THD:DAT + TFSDA (or TRSDA).
© 2011-2012 Microchip Technology Inc.
DS22272C-page 11
MCP4706/4716/4726
I2C BUS DATA REQUIREMENTS (SLAVE MODE) (CONTINUED)
TABLE 1-3:
I2C™ AC Characteristics
Param.
No.
Sym
Characteristic
111
TSP
Input filter spike
suppression
(SDA and SCL)
Note 1:
2:
3:
4:
5:
6:
7:
8:
Standard Operating Conditions (unless otherwise specified)
Operating Temperature
-40°C ≤ TA ≤ +125°C (Extended)
Operating Voltage VDD range is described in Electrical Characteristics
Min
Max
Units
Conditions
100 kHz mode
—
50
ns
400 kHz mode
—
50
ns
1.7 MHz mode
—
10
ns
Spike suppression
3.4 MHz mode
—
10
ns
Spike suppression
NXP Spec states N/A
As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region
(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions.
A Fast mode (400 kHz) I2C™ bus device can be used in a Standard mode (100 kHz) I2C bus system, but
the requirement tSU;DAT ≥ 250 ns must then be met. This will automatically be the case if the device does
not stretch the Low period of the SCL signal. If such a device does stretch the Low period of the SCL
signal, it must output the next data bit to the SDA line.
TR max.+tSU;DAT = 1000 + 250 = 1250 ns (according to the Standard mode I2C bus specification) before
the SCL line is released.
The MCP47X6 device must provide a data hold time to bridge the undefined part between VIH and VIL of
the falling edge of the SCL signal. This specification is not a part of the I2C specification, but must be tested
in order to ensure that the output data will meet the setup and hold specifications for the receiving device.
Use Cb in pF for the calculations.
Not Tested. This parameter ensured by characterization.
A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do
not unintentionally create a Start or Stop condition.
If this parameter is too short, it can create an unintentional Start or Stop condition to other devices on the
I2C bus line. If this parameter is too long, the Data Input Setup (TSU:DAT) or Clock Low time (TLOW) can be
affected.
Data Input: This parameter must be longer than tSP.
Data Output: This parameter is characterized, and tested indirectly by testing TAA parameter.
Ensured by the TAA 3.4 MHz specification test.
The specification is not part of the I2C specification. TAA = THD:DAT + TFSDA (or TRSDA).
DS22272C-page 12
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
TEMPERATURE CHARACTERISTICS
Electrical Specifications: Unless otherwise indicated, VDD = +2.7V to +5.5V, VSS = GND.
Parameters
Symbol
Min
Typical
Max
Units
Specified Temperature Range
TA
-40
—
+125
°C
Operating Temperature Range
TA
-40
—
+125
°C
Storage Temperature Range
TA
-65
—
+150
°C
Thermal Resistance, 6L-SOT-23
θJA
—
190
—
°C/W
Thermal Resistance, 6L-DFN (2 x 2)
θJA
—
91
—
°C/W
Conditions
Temperature Ranges
Note 1
Thermal Package Resistances
Note 1:
The MCP47X6 devices operate over this extended temperature range, but with reduced performance.
Operation in this range must not cause TJ to exceed the Maximum Junction Temperature of +150°C.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 13
MCP4706/4716/4726
NOTES:
DS22272C-page 14
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
2.0
TYPICAL PERFORMANCE CURVES
Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
12
8
-40C
+25C
+85C
+125C
8
4
INL Error (LSb)
INL Error (LSb)
12
-40C
+25C
+85C
+125C
0
-4
-8
4
0
-4
-8
-12
-12
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
FIGURE 2-1:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 00.
-40C
+25C
+85C
+125C
2
1
INL Error (LSb)
INL Error (LSb)
4096
3
-40C
+25C
+85C
+125C
0
-1
-2
1
0
-1
-2
-3
-3
0
128
256
384
512
640
768
896
1024
0
128
Volatile DAC Register Code
256
384
512
640
768
896
1024
Volatile DAC Register Code
FIGURE 2-2:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 00.
FIGURE 2-5:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 00.
1.0
1.0
-40C
+25C
+85C
+125C
-40C
+25C
+85C
+125C
0.5
0.5
INL Error (LSb)
INL Error (LSb)
3072
FIGURE 2-4:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 00.
3
2
2048
Volatile DAC Register Code
0.0
-0.5
0.0
-0.5
-1.0
-1.0
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-3:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 00.
© 2011-2012 Microchip Technology Inc.
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-6:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 00.
DS22272C-page 15
MCP4706/4716/4726
0.4
0.4
0.3
0.3
0.2
0.2
DNL Error (LSb)
DNL Error (LSb)
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
0.1
0.0
-0.1
-0.2
0.1
0.0
-0.1
-0.2
-40C
+25C
+85C
+125C
-0.3
-40C
+25C
+85C
+125C
-0.3
-0.4
-0.4
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
0.3
0.3
0.2
0.2
0.1
0.1
0.0
-0.1
-40C
+25C
+85C
+125C
4096
0.0
-0.1
-40C
+25C
+85C
+125C
-0.2
-0.3
-0.3
0
128
256
384
512
640
768
896
0
1024
128
256
384
512
640
768
896
1024
Volatile DAC Register Code
Volatile DAC Register Code
FIGURE 2-8:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 00.
FIGURE 2-11:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 00.
0.20
0.20
0.15
0.15
0.10
0.10
DNL Error (LSb)
DNL Error (LSb)
3072
FIGURE 2-10:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 00.
DNL Error (LSb)
DNL Error (LSb)
FIGURE 2-7:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 00.
-0.2
2048
Volatile DAC Register Code
0.05
0.00
-0.05
-0.10
0.05
0.00
-0.05
-0.10
-40C
+25C
+85C
+125C
-0.15
-40C
+25C
+85C
+125C
-0.15
-0.20
-0.20
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-9:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 00.
DS22272C-page 16
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-12:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 00.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
-18.0
2.7V
5.0V
5.5V
-20.0
Full Scale Error (LSb)
Zero Scale Error (LSb)
2.0
1.5
1.0
0.5
-22.0
-24.0
-26.0
-28.0
2.7V
5.0V
5.5V
-30.0
0.0
-32.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
FIGURE 2-13:
Zero-Scale Error (ZSE) vs.
VDD and Temperature (MCP4726).
VREF1:VREF0 = 00.
80
100
120
-4.0
2.7V
5.0V
5.5V
0.4
0.3
0.2
-5.0
-6.0
-7.0
0.1
2.7V
5.0V
5.5V
0.0
-8.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
0.20
40
60
80
100
120
Temperature (°C)
FIGURE 2-14:
Zero-Scale Error (ZSE) vs.
VDD and Temperature (MCP4716).
VREF1:VREF0 = 00.
FIGURE 2-17:
Full-Scale Error (FSE) vs.
VDD and Temperature (MCP4716).
VREF1:VREF0 = 00.
0.0
2.7V
5.0V
5.5V
Full Scale Error (LSb)
Zero Scale Error (LSb)
60
FIGURE 2-16:
Full-Scale Error (FSE) vs.
VDD and Temperature (MCP4726).
VREF1:VREF0 = 00.
Full Scale Error (LSb)
Zero Scale Error (LSb)
0.5
40
Temperature (°C)
0.15
0.10
0.05
-0.5
-1.0
-1.5
2.7V
5.0V
5.5V
0.00
-2.0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-15:
Zero-Scale Error (ZSE) vs.
VDD and Temperature (MCP4706).
VREF1:VREF0 = 00.
© 2011-2012 Microchip Technology Inc.
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-18:
Full-Scale Error (FSE) vs.
VDD and Temperature (MCP4706).
VREF1:VREF0 = 00.
DS22272C-page 17
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
12
12
-40C
+25C
+85C
+125C
8
4
INL Error (LSb)
INL Error (LSb)
8
-40C
+25C
+85C
+125C
0
-4
-8
4
0
-4
-8
-12
-12
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
FIGURE 2-19:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
4096
3
-40C
+25C
+85C
+125C
2
-40C
+25C
+85C
+125C
2
1
INL Error (LSb)
INL Error (LSb)
3072
FIGURE 2-22:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
3
0
-1
-2
1
0
-1
-2
-3
-3
0
128
256
384
512
640
768
896
1024
0
128
Volatile DAC Register Code
256
384
512
640
768
896
1024
Volatile DAC Register Code
FIGURE 2-20:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
FIGURE 2-23:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
1.0
1.0
-40C
+25C
+85C
+125C
-40C
+25C
+85C
+125C
0.5
INL Error (LSb)
0.5
INL Error (LSb)
2048
Volatile DAC Register Code
0.0
-0.5
0.0
-0.5
-1.0
-1.0
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-21:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
DS22272C-page 18
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-24:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
0.4
0.4
0.3
0.3
0.2
0.2
DNL Error (LSb)
DNL Error (LSb)
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
0.1
0.0
-0.1
-0.2
0.1
0.0
-0.1
-0.2
-40C
+25C
+85C
+125C
-0.3
-40C
+25C
+85C
+125C
-0.3
-0.4
-0.4
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
0.3
0.3
0.2
0.2
0.1
0.1
0.0
-0.1
-40C
+25C
+85C
+125C
4096
0.0
-0.1
-40C
+25C
+85C
+125C
-0.2
-0.3
-0.3
0
128
256
384
512
640
768
896
0
1024
128
256
384
512
640
768
896
1024
Volatile DAC Register Code
Volatile DAC Register Code
FIGURE 2-26:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
FIGURE 2-29:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
0.20
0.20
0.15
0.15
0.10
0.10
DNL Error (LSb)
DNL Error (LSb)
3072
FIGURE 2-28:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
DNL Error (LSb)
DNL Error (LSb)
FIGURE 2-25:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
-0.2
2048
Volatile DAC Register Code
0.05
0.00
-0.05
-0.10
0.05
0.00
-0.05
-0.10
-40C
+25C
+85C
+125C
-0.15
-40C
+25C
+85C
+125C
-0.15
-0.20
-0.20
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-27:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-30:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
DS22272C-page 19
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
-18.0
2.7V
5.0V
5.5V
-20.0
Full Scale Error (LSb)
Zero Scale Error (LSb)
2.0
1.5
1.0
0.5
-22.0
-24.0
-26.0
-28.0
2.7V
5.0V
5.5V
-30.0
0.0
-32.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
FIGURE 2-31:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
80
100
120
-4.0
2.7V
5.0V
5.5V
0.4
0.3
0.2
-5.0
-6.0
-7.0
0.1
2.7V
5.0V
5.5V
0.0
-8.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
0.20
40
60
80
100
120
Temperature (°C)
FIGURE 2-32:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
FIGURE 2-35:
Full-Scale Error (FSE) vs.
Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
0.0
2.7V
5.0V
5.5V
Full Scale Error (LSb)
Zero Scale Error (LSb)
60
FIGURE 2-34:
Full-Scale Error (FSE) vs.
Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
Full Scale Error (LSb)
Zero Scale Error (LSb)
0.5
40
Temperature (°C)
0.15
0.10
0.05
-0.5
-1.0
-1.5
2.7V
5.0V
5.5V
0.00
-2.0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-33:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
DS22272C-page 20
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-36:
Full-Scale Error (FSE) vs.
Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
12
12
-40C
+25C
+85C
+125C
8
4
INL Error (LSb)
INL Error (LSb)
8
-40C
+25C
+85C
+125C
0
-4
-8
4
0
-4
-8
-12
-12
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
FIGURE 2-37:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
4096
3
-40C
+25C
+85C
+125C
2
-40C
+25C
+85C
+125C
2
1
INL Error (LSb)
INL Error (LSb)
3072
FIGURE 2-40:
INL vs. Code (code = 100 to
4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
3
0
-1
-2
1
0
-1
-2
-3
-3
0
128
256
384
512
640
768
896
1024
0
128
Volatile DAC Register Code
256
384
512
640
768
896
1024
Volatile DAC Register Code
FIGURE 2-38:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
FIGURE 2-41:
INL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
1.0
1.0
-40C
+25C
+85C
+125C
-40C
+25C
+85C
+125C
0.5
INL Error (LSb)
0.5
INL Error (LSb)
2048
Volatile DAC Register Code
0.0
-0.5
0.0
-0.5
-1.0
-1.0
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-39:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-42:
INL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
DS22272C-page 21
MCP4706/4716/4726
0.4
0.4
0.3
0.3
0.2
0.2
DNL Error (LSb)
DNL Error (LSb)
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
0.1
0.0
-0.1
-0.2
0.1
0.0
-0.1
-0.2
-40C
+25C
+85C
+125C
-0.3
-40C
+25C
+85C
+125C
-0.3
-0.4
-0.4
0
1024
2048
3072
4096
0
1024
Volatile DAC Register Code
0.3
0.3
0.2
0.2
0.1
0.1
0.0
-0.1
-40C
+25C
+85C
+125C
4096
0.0
-0.1
-40C
+25C
+85C
+125C
-0.2
-0.3
-0.3
0
128
256
384
512
640
768
896
0
1024
128
256
384
512
640
768
896
1024
Volatile DAC Register Code
Volatile DAC Register Code
FIGURE 2-44:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
FIGURE 2-47:
DNL vs. Code (code = 25 to
1000) and Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
0.20
0.20
0.15
0.15
0.10
0.10
DNL Error (LSb)
DNL Error (LSb)
3072
FIGURE 2-46:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
DNL Error (LSb)
DNL Error (LSb)
FIGURE 2-43:
DNL vs. Code (code = 100
to 4000) and Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
-0.2
2048
Volatile DAC Register Code
0.05
0.00
-0.05
-0.10
0.05
0.00
-0.05
-0.10
-40C
+25C
+85C
+125C
-0.15
-40C
+25C
+85C
+125C
-0.15
-0.20
-0.20
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-45:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
DS22272C-page 22
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-48:
DNL vs. Code (code = 6 to
250) and Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
-18.0
2.7V
5.0V
5.5V
-20.0
Full Scale Error (LSb)
Zero Scale Error (LSb)
2.0
1.5
1.0
0.5
-22.0
-24.0
-26.0
-28.0
2.7V
5.0V
5.5V
-30.0
0.0
-32.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
FIGURE 2-49:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4726).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
80
100
120
-4.0
2.7V
5.0V
5.5V
0.4
0.3
0.2
-5.0
-6.0
-7.0
0.1
2.7V
5.0V
5.5V
0.0
-8.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
Temperature (°C)
0.20
40
60
80
100
120
Temperature (°C)
FIGURE 2-50:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4716).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
FIGURE 2-53:
Full-Scale Error (FSE) vs.
Temperature (MCP4716).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
0.0
2.7V
5.0V
5.5V
Full Scale Error (LSb)
Zero Scale Error (LSb)
60
FIGURE 2-52:
Full-Scale Error (FSE) vs.
Temperature (MCP4726).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
Full Scale Error (LSb)
Zero Scale Error (LSb)
0.5
40
Temperature (°C)
0.15
0.10
0.05
-0.5
-1.0
-1.5
2.7V
5.0V
5.5V
0.00
-2.0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-51:
Zero-Scale Error (ZSE) vs.
Temperature (MCP4706).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
© 2011-2012 Microchip Technology Inc.
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-54:
Full-Scale Error (FSE) vs.
Temperature (MCP4706).
VDD = 2.7V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
DS22272C-page 23
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
16
0.5
2.7V
5.0V
5.5V
0.4
0.3
0.2
8
DNL Error (LSb)
INL Error (LSb)
12
4
0
0.1
0.0
-0.1
-0.2
-0.3
-4
2.7V
5.0V
5.5V
-0.4
-8
-0.5
0
1024
2048
3072
0
4096
1024
Volatile DAC Register Code
FIGURE 2-55:
INL vs. Code (code = 100 to
4000) and VDD (2.7V, 5V, 5.5V) (MCP4726).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
3
2048
3072
4096
Volatile DAC Register Code
FIGURE 2-58:
DNL vs. Code (code = 100
to 4000) and VDD (2.7V, 5V, 5.5V) (MCP4726).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
0.4
2.7V
5.0V
5.5V
0.3
2
DNL Error (LSb)
INL Error (LSb)
0.2
1
0
-1
-2
0.1
0.0
-0.1
2.7V
5.0V
5.5V
-0.2
-3
-0.3
0
128
256
384
512
640
768
896
1024
0
128
Volatile DAC Register Code
384
512
640
768
896
1024
Volatile DAC Register Code
FIGURE 2-56:
INL vs. Code (code = 25 to
1000) and VDD (2.7V, 5V, 5.5V) (MCP4716).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
1.0
256
FIGURE 2-59:
DNL vs. Code (code = 25 to
1000) and VDD (2.7V, 5V, 5.5V) (MCP4716).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
0.30
2.7V
5.0V
5.5V
0.25
0.20
0.15
DNL Error (LSb)
INL Error (LSb)
0.5
0.0
0.10
0.05
0.00
-0.05
-0.10
-0.15
-0.5
-0.20
2.7V
5.0V
5.5V
-0.25
-1.0
-0.30
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-57:
INL vs. Code (code = 6 to
250) and VDD (2.7V, 5V, 5.5V) (MCP4706).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
DS22272C-page 24
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-60:
DNL vs. Code (code = 6 to
250) and VDD (2.7V, 5V, 5.5V) (MCP4706).
VREF1:VREF0 = 10, G = 1, VREF = VDD/2,
Temp = +25°C.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
16
0.5
2.7V
5.0V
5.5V
0.4
0.3
0.2
8
DNL Error (LSb)
INL Error (LSb)
12
4
0
0.1
0.0
-0.1
-0.2
-0.3
-4
2.7V
5.0V
5.5V
-0.4
-8
-0.5
0
1024
2048
3072
0
4096
1024
Volatile DAC Register Code
FIGURE 2-61:
INL vs. Code (code = 100 to
4000) and VDD (2.7V, 5V, 5.5V) (MCP4726).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
3
2048
3072
4096
Volatile DAC Register Code
FIGURE 2-64:
DNL vs. Code (code = 100
to 4000) and VDD (2.7V, 5V, 5.5V) (MCP4726).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
0.4
2.7V
5.0V
5.5V
0.3
2
DNL Error (LSb)
INL Error (LSb)
0.2
1
0
-1
-2
0.1
0.0
-0.1
2.7V
5.0V
5.5V
-0.2
-3
-0.3
0
128
256
384
512
640
768
896
1024
0
128
256
Volatile DAC Register Code
384
512
640
768
896
1024
Volatile DAC Register Code
FIGURE 2-62:
INL vs. Code (code = 25 to
1000) and VDD (2.7V, 5V, 5.5V) (MCP4716).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
FIGURE 2-65:
DNL vs. Code (code = 25 to
1000) and VDD (2.7V, 5V, 5.5V) (MCP4716).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
0.30
1.0
2.7V
5.0V
5.5V
0.25
0.20
0.15
DNL Error (LSb)
INL Error (LSb)
0.5
0.0
-0.5
0.10
0.05
0.00
-0.05
-0.10
-0.15
-0.20
2.7V
5.0V
5.5V
-0.25
-1.0
-0.30
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-63:
INL vs. Code (code = 6 to
250) and VDD (2.7V, 5V, 5.5V) (MCP4706).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
© 2011-2012 Microchip Technology Inc.
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-66:
DNL vs. Code (code = 6 to
250) and VDD (2.7V, 5V, 5.5V) (MCP4706).
VREF1:VREF0 = 11, G = 1, VREF = VDD/2,
Temp = +25°C.
DS22272C-page 25
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
1.0
16
1V
2V
3V
4V
5V
2V
5V
3V
0.5
8
DNL Error (LSb)
INL Error (LSb)
12
1V
4V
4
0
0.0
-0.5
-4
-8
-1.0
0
1024
2048
3072
0
4096
1024
Volatile DAC Register Code
FIGURE 2-67:
INL vs. Code (code = 100 to
4000) and VREF (MCP4726).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
0.5
1V
2V
3V
4V
5V
1V
4V
0.4
4096
2V
5V
3V
0.3
0.2
2
DNL Error (LSb)
INL Error (LSb)
3072
FIGURE 2-70:
DNL vs. Code (code = 100
to 4000) and VREF (MCP4726).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
4
3
2048
Volatile DAC Register Code
1
0
0.1
0.0
-0.1
-0.2
-0.3
-1
-0.4
-0.5
-2
0
128
256
384
512
640
768
896
0
1024
128
256
384
512
640
768
896
1024
Volatile DAC Register Code
Volatile DAC Register Code
FIGURE 2-68:
INL vs. Code (code = 25 to
1000) and VREF (MCP4716).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
FIGURE 2-71:
DNL vs. Code (code = 25 to
1000) and VREF (MCP4716).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
1.0
0.5
1V
4V
0.4
2V
5V
3V
0.3
0.5
DNL Error (LSb)
INL Error (LSb)
0.2
0.0
-0.5
1V
2V
3V
4V
5V
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-1.0
0
0.1
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-69:
INL vs. Code (code = 6 to
250) and VREF (MCP4706).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
DS22272C-page 26
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-72:
DNL vs. Code (code = 6 to
250) and VREF (MCP4706).
VDD = 5V, VREF1:VREF0 = 10, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
1.0
16
1V
2V
3V
4V
5V
2V
5V
3V
0.5
8
DNL Error (LSb)
INL Error (LSb)
12
1V
4V
4
0
0.0
-0.5
-4
-8
-1.0
0
1024
2048
3072
0
4096
1024
Volatile DAC Register Code
FIGURE 2-73:
INL vs. Code (code = 100 to
4000) and VREF (MCP4726).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
0.5
1V
2V
3V
4V
5V
1V
4V
0.4
4096
2V
5V
3V
0.3
0.2
2
DNL Error (LSb)
INL Error (LSb)
3072
FIGURE 2-76:
DNL vs. Code (code = 100
to 4000) and VREF (MCP4726).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
4
3
2048
Volatile DAC Register Code
1
0
0.1
0.0
-0.1
-0.2
-0.3
-1
-0.4
-0.5
-2
0
128
256
384
512
640
768
896
0
1024
128
256
384
512
640
768
896
1024
Volatile DAC Register Code
Volatile DAC Register Code
FIGURE 2-74:
INL vs. Code (code = 25 to
1000) and VREF (MCP4716).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
FIGURE 2-77:
DNL vs. Code (code = 25 to
1000) and VREF (MCP4716).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
1.0
0.5
1V
4V
0.4
2V
5V
3V
0.3
0.5
DNL Error (LSb)
INL Error (LSb)
0.2
0.0
-0.5
1V
2V
3V
4V
5V
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-1.0
0
0.1
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-75:
INL vs. Code (code = 6 to
250) and VREF (MCP4706).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
© 2011-2012 Microchip Technology Inc.
0
32
64
96
128
160
192
224
256
Volatile DAC Register Code
FIGURE 2-78:
DNL vs. Code (code = 6 to
250) and VREF (MCP4706).
VDD = 5V, VREF1:VREF0 = 11, G = 0,
VREF = 1V, 2V, 3V, 4V, and 5V, Temp = +25°C.
DS22272C-page 27
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
-20.0
2.7V
5.0V
5.5V
-22.0
Output Error (LSb)
-22.0
Output Error (LSb)
-20.0
2.7V
5.0V
5.5V
-24.0
-26.0
-28.0
-30.0
-24.0
-26.0
-28.0
-30.0
-32.0
-32.0
-34.0
-34.0
-36.0
-36.0
-40
-20
0
20
40
60
80
100
120
-40
-20
0
20
FIGURE 2-79:
Output Error vs.
Temperature (MCP4726). VDD = 2.7V and 5V,
VREF1:VREF0 = 00, Code = 4000.
Output Error (LSb)
Output Error (LSb)
80
100
120
2.7V
5.0V
5.5V
2.7V
5.0V
5.5V
-5.0
-6.0
-5.0
-6.0
-7.0
-7.0
-8.0
-8.0
-40
-20
0
20
40
60
80
100
-40
120
-20
0
20
FIGURE 2-80:
Output Error vs.
Temperature (MCP4716). VDD = 2.7V and 5V,
VREF1:VREF0 = 00, Code = 1000.
60
80
100
120
FIGURE 2-83:
Output Error vs.
Temperature (MCP4716). VDD = 2.7V and 5V,
VREF1:VREF0 = 10, G = 0, VREF = VDD,
Code = 1000.
-0.4
-0.4
40
Temperature (°C)
Temperature (°C)
2.7V
5.0V
5.5V
2.7V
5.0V
5.5V
-0.6
Output Error (LSb)
Output Error (LSb)
60
FIGURE 2-82:
Output Error vs.
Temperature (MCP4726). VDD = 2.7V and 5V,
VREF1:VREF0 = 10, G = 0, VREF = VDD,
Code = 4000.
-4.0
-4.0
40
Temperature (°C)
Temperature (°C)
-0.8
-1.0
-0.6
-0.8
-1.0
-1.2
-1.2
-1.4
-1.4
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-81:
Output Error vs.
Temperature (MCP4706). VDD = 2.7V and 5V,
VREF1:VREF0 = 00, Code = 250.
DS22272C-page 28
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-84:
Output Error vs.
Temperature (MCP4706). VDD = 2.7V and 5V,
VREF1:VREF0 = 10, G = 0, VREF = VDD,
Code = 250.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
-20.0
2.7V
5.0V
5.5V
Output Error (LSb)
-22.0
-24.0
-26.0
-28.0
-30.0
-32.0
-34.0
-36.0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-85:
Output Error vs.
Temperature (MCP4726). VDD = 2.7V and 5V,
VREF1:VREF0 = 11, G = 0, VREF = VDD,
Code = 4000.
Output Error (LSb)
-4.0
2.7V
5.0V
5.5V
-5.0
-6.0
-7.0
-8.0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-86:
Output Error vs.
Temperature (MCP4716). VDD = 2.7V and 5V,
VREF1:VREF0 = 11, G = 0, VREF = VDD,
Code = 1000.
-0.4
2.7V
5.0V
5.5V
Output Error (LSb)
-0.6
-0.8
-1.0
-1.2
-1.4
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-87:
Output Error vs.
Temperature (MCP4706). VDD = 2.7V and 5V,
VREF1:VREF0 = 11, G = 0, VREF = VDD,
Code = 250.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 29
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
250
500
2.7V
3.3V
4.5V
5.0V
5.5V
225
2.7V
3.3V
4.5V
5.0V
5.5V
400
IPowerDown (nA)
IDD (uA)
200
175
150
300
200
100
125
100
0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-88:
IDD vs. Temperature.
VDD = 2.7V and 5V, VREF1:VREF0 = 00.
FIGURE 2-91:
Power-down Current vs.
Temperature.
VDD = 2.7V, 3.3V, 4.5V, 5.0V and 5.5V,
PD1:PD0 = 11.
250
2.7V
3.3V
4.5V
5.0V
5.5V
225
IDD (uA)
200
175
150
125
100
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-89:
IDD vs. Temperature.
VDD = 2.7V and 5V, VREF1:VREF0 = 10, G = 0,
VREF = VDD.
250
2.7V
3.3V
4.5V
5.0V
5.5V
225
IDD (uA)
200
175
150
125
100
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-90:
IDD vs. Temperature.
VDD = 2.7V and 5V, VREF1:VREF0 = 11, G = 0,
VREF = VDD.
DS22272C-page 30
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VRL = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
70
6
Code = FFFh
2.7V
5.0V
5.5V
5
VOUT (V)
VIH (% VDD)
65
60
4
3
2
55
1
0
50
-40
-20
0
20
40
60
80
100
0
120
Temperature (°C)
FIGURE 2-92:
VIH Threshold of SDA/SCL
Inputs vs. Temperature and VDD.
1000
2000
3000
4000
Load Resistance (RL) (:)
FIGURE 2-94:
VDD = 5.0V.
50
5000
VOUT vs. Resistive Load.
6
Code = FFFh
2.7V
5.0V
5.5V
Code = 000h
5
45
VOUT (V)
VIL (% VDD)
4
40
3
2
35
1
0
30
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
FIGURE 2-93:
VIL Threshold of SDA/SCL
Inputs vs. Temperature and VDD.
© 2011-2012 Microchip Technology Inc.
0
3
6
9
ISOURCE/SINK (mA)
12
15
FIGURE 2-95:
VOUT vs. Source/Sink
Current. VDD = 5.0V.
DS22272C-page 31
MCP4706/4716/4726
Note: Unless otherwise indicated, TA = +25°C, VDD = 5V, VSS = 0V, VREF = Internal, Gain = x1, RL = 5 kΩ, CL = 100 pF.
FIGURE 2-96:
Full-Scale Settling Time
(000h to FFFh) (MCP4726).
FIGURE 2-98:
Half-Scale Settling Time
(400h to C00h) (MCP4726).
FIGURE 2-97:
Full-Scale Settling Time
(FFFh to 000h) (MCP4726).
FIGURE 2-99:
Half-Scale Settling Time
(C00h to 400h) (MCP4726).
FIGURE 2-100:
Exiting Power-Down Mode
(MCP4726, Volatile DAC Register = FFFh).
DS22272C-page 32
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
3.0
PIN DESCRIPTIONS
An overview of the pin functions are described in
Section 3.1 “Analog Output Voltage Pin (VOUT)”
through Section 3.7 “Exposed Pad (EP)”. The
descriptions of the pins are listed in Table 3-1.
TABLE 3-1:
SOT-23
MCP47X6 PINOUT DESCRIPTION
DFN
Symbol
I/O
Buffer
Type
Standard Function
6L
6L
1
6
VOUT
A
Analog
2
5
VSS
—
P
Ground reference pin for all circuitries on the device
Supply Voltage Pin
Buffered analog voltage output pin
3
4
VDD
—
P
4
3
SDA
I/O
ST
I2C™ Serial Data Pin
5
2
SCL
I
ST
I2C Serial Clock Pin
6
1
VREF
A
Analog
—
7
EP
—
—
Legend:
Note 1:
A = Analog pins
O = Digital output
P = Power
Voltage Reference Input Pin
Exposed Pad (Note 1)
I = Digital input (high Z)
I/O = Input / Output
The DFN package has a contact on the bottom of the package. This contact is conductively connected to
the die substrate, and therefore should be unconnected or connected to the same ground as the device’s
VSS pin.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 33
MCP4706/4716/4726
3.1
Analog Output Voltage Pin (VOUT)
3.5
Serial Clock Pin (SCL)
In Normal mode, the DC impedance of the output pin is
about 1Ω. In Power-Down mode, the output pin is
internally connected to a known pull-down resistor of
1 kΩ, 125 kΩ, or 640 kΩ. The power-down selection
bits settings are shown in Table 4-2.
SCL is the serial clock pin of the I2C interface. The
MCP47X6 devices act only as a slave and the SCL pin
accepts only external serial clocks. The input data from
the master device is shifted into the SDA pin on the
rising edges of the SCL clock and output from the
device occurs at the falling edges of the SCL clock. The
SCL pin is an open-drain N-channel driver. Therefore,
it needs a pull-up resistor from the VDD line to the SCL
pin. Refer to Section 5.0 “I2C Serial Interface” for
more details about I2C serial interface communication.
3.2
3.6
VOUT is the DAC analog output pin. The DAC output
has an output amplifier. VOUT can swing from
approximately 0V to approximately VDD. The full-scale
range of the DAC output is from VSS to G * VRL, where
G is the gain selection option (1x or 2x).
Positive Power Supply Input (VDD)
VDD is the positive supply voltage input pin. The input
supply voltage is relative to VSS.
Voltage Reference Pin (VREF)
This pin is used for the external voltage reference input.
The user can select VDD voltage or the VREF pin
voltage as the reference resistor ladder’s voltage
reference.
The power supply at the VDD pin should be as clean as
possible for a good DAC performance. It is
recommended to use an appropriate bypass capacitor
of about 0.1 µF (ceramic) to ground. An additional
10 µF capacitor (tantalum) in parallel is also
recommended to further attenuate high-frequency
noise present in application boards.
When the VREF pin signal is selected, there is an option
for this voltage to be buffered or unbuffered. This is
offered in cases where the reference voltage does not
have the current capability not to drop its voltage when
connected to the internal resistor ladder circuit.
3.3
When the VDD is selected as reference voltage, this pin
is disconnected from the internal circuit.
Ground (VSS)
The VSS pin is the device ground reference.
The user must connect the VSS pin to a ground plane
through a low-impedance connection. If an analog
ground path is available in the application Printed
Circuit Board (PCB), it is highly recommended that the
VSS pin be tied to the analog ground path or isolated
within an analog ground plane of the circuit board.
3.4
Serial Data Pin (SDA)
SDA is the serial data pin of the I2C interface. The SDA
pin is used to write or read the DAC registers and Configuration bits. The SDA pin is an open-drain N-channel
driver. Therefore, it needs a pull-up resistor from the
VDD line to the SDA pin. Except for Start and Stop
conditions, the data on the SDA pin must be stable
during the high period of the clock. The high or low
state of the SDA pin can only change when the clock
signal on the SCL pin is low. Refer to Section 5.0 “I2C
Serial Interface” for more details of I2C serial interface
communication.
DS22272C-page 34
See Section 4.2 “DAC’s (Resistor Ladder)
Reference Voltage” and Table 4-4 for more details on
the Configuration bits.
3.7
Exposed Pad (EP)
This pad is conductively connected to the device's
substrate. This pad should be tied to the same potential
as the VSS pin (or left unconnected). This pad could be
used to assist as a heat sink for the device when
connected to a PCB heat sink.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
4.0
GENERAL DESCRIPTION
4.1
The MCP4706, MCP4716, and MCP4726 devices are
single channel voltage output 8-bit, 10-bit, and 12-bit
DAC devices with nonvolatile memory (EEPROM) and
an I2C serial interface. This family will be referred to as
MCP47X6.
The devices use a resistor ladder architecture. The
resistor ladder DAC is driven from a software
selectable voltage reference source. The source can
be either the device’s internal VDD or the external VREF
pin voltage.
The DAC output is buffered with a low power and
precision output amplifier (op amp). This output
amplifier provides a rail-to-rail output with low offset
voltage and low noise. The gain of the output buffer is
software configurable.
This device also has user programmable nonvolatile
memory (EEPROM), which allows the user to save the
desired POR/BOR value of the DAC register and
device Configuration bits.
The devices use a two-wire I2C serial communication
interface and operate with a single supply voltage from
2.7V to 5.5V.
Power-On Reset/Brown-Out Reset
(POR/BOR)
The internal Power-on Reset (POR)/Brown-out Reset
(BOR) circuit monitors the power supply voltage (VDD)
during operation. This circuit ensures correct device
start-up at system power-up and power-down events.
VRAM is the RAM retention voltage and is always lower
than the POR trip point voltage.
POR occurs as the voltage is rising (typically from 0V),
while BOR occurs as the voltage is falling (typically
from VDD(MIN) or higher).
When the rising VDD voltage crosses the VPOR trip
point, the following occurs:
• Nonvolatile DAC register value latched into
volatile DAC register
• Nonvolatile Configuration bit values latched into
volatile Configuration bits
• POR Status bit is set (“1”)
• The Reset delay timer starts; when timer times
out (tPORD), the I2C interface is operational.
The analog output (VOUT) state will be determined by
the state of the volatile Configuration bits and the DAC
register. This is called a POR Reset (event).
When the falling VDD voltage crosses the VPOR trip
point, the following occurs:
• Device is forced into a power-down state
(PD1:PD0 = 11). Analog circuitry is turned off.
• Volatile DAC register is forced to 000h
• Volatile Configuration bits VREF1, VREF0 and G
are forced to ‘0’
Figure 4-1 illustrates the conditions for power-up and
power-down events under typical conditions.
Volatile memory
POR starts Reset Delay Timer.
retains data value When timer times out, I2C™ interface
can operate (if VDD >= VDD(MIN))
Volatile memory
becomes corrupted
VDD(MIN)
VPOR
VBOR
TPORD
(60 µs max.)
VRAM
Normal Operation
Device in
unknown
state
Device in
POR state
EEPROM data latched into volatile
Configuration bits and DAC register.
POR Reset forced active POR Status bit is set (“1”)
FIGURE 4-1:
Below
minimum
operating
voltage
Device Device in
in power unknown
down
state
state
BOR Reset,
volatile DAC Register = 000h
volatile VREF1:VREF0 = 00
volatile G = 0
volatile PD1:PD0 = 11
Power-on Reset Operation.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 35
MCP4706/4716/4726
4.2
DAC’s (Resistor Ladder)
Reference Voltage
The device can be configured to use one of three
voltage sources for the resistor ladder’s reference
voltage (VRL) (see Figure 4-2). These are:
1.
2.
3.
VDD pin voltage
VREF pin voltage internally buffered
VREF pin voltage unbuffered
The selection of the voltage is specified with the volatile
VREF1:VREF0 Configuration bits (see Table 4-4). There
are nonvolatile and volatile VREF1:VREF0 Configuration
bits. On a POR/BOR event, the state of the nonvolatile
VREF1:VREF0 Configuration bits are latched into the
volatile VREF1:VREF0 Configuration bits.
When the user selects the VDD as reference, the VREF
pin voltage is not connected to the resistor ladder.
If the VREF pin is selected, then select between the
Buffered or Unbuffered mode.
In Unbuffered mode, the VREF pin voltage may be from
VSS to VDD.
Note:
In Unbuffered mode, the voltage source
should have a low output impedance. If
the voltage source has a high output
impedance, then the voltage on the
VREF’s pin would be lower than expected.
The resistor ladder has a typical
impedance of 210 kΩ and a typical
capacitance of 29 pF.
4.3
The resistor ladder is a digital potentiometer with the B
Terminal internally grounded and the A terminal
connected to the selected reference voltage (see
Figure 4-3). The volatile DAC register controls the
wiper position. The wiper voltage (VW) is proportional to
the DAC register value divided by the number of
resistor elements (RS) in the ladder (256, 1024, or
4096) related to the VRL voltage.
Note:
Any variation or noises on the reference
source can directly affect the DAC output.
The reference voltage needs to be as
clean as possible for accurate DAC
performance.
The maximum wiper position is 2n - 1,
while the number of resistors in the
resistor ladder is 2n. This means that
when the DAC register is at full scale,
there is one resistor element (RS)
between the wiper and the VRL voltage.
The resistor ladder (RRL) has a typical impedance of
approximately 210 kΩ. This resistor ladder resistance
(RRL) may vary from device to device up to ±20%.
Since this is a voltage divider configuration, the actual
RRL resistance does not effect the output given a fixed
voltage at VRL.
If the unbuffered VREF pin is used as the VRL voltage
source, this voltage source should have a low output
impedance.
When the DAC is powered down, the resistor ladder is
disconnected from the selected reference voltage.
PD1:PD0
In Buffered mode, the VREF pin voltage may be from
0.01V to VDD-0.04V. The input buffer (amplifier) provides low offset voltage, low noise, and a very high
input impedance, with only minor limitations on the
input range and frequency response.
DAC
Register
2n - 1
RS(2n - 1)
RRL
2n - 2
RS(2n - 2)
VW
1
RS(1)
VDD
0
VRL
Buffer
FIGURE 4-2:
Resistor Ladder Reference
Voltage Selection Block Diagram.
VW =
DAC Register Value
* VRL
# Resistors in Resistor Ladder
Where:
# Resistors in Resistor Ladder = 256 (MCP4706)
1024 (MCP4716)
4096 (MCP4726)
FIGURE 4-3:
DS22272C-page 36
VRL
RS(2n)
VREF1:VREF0
VREF
Reference
Selection
Note:
Resistor Ladder
Resistor Ladder.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
4.4
Output Buffer/VOUT Operation
The DAC output is buffered with a low power and
precision output amplifier (op amp). Figure 4-4 shows
a block diagram.
This amplifier provides a rail-to-rail output with low
offset voltage and low noise. The user can select the
output gain of the output amplifier. Gain options are:
a)
b)
Gain of 1, with either VDD or VREF pin used as
reference voltage
Gain of 2, only when VREF pin is used as
reference voltage. The VREF pin voltage should
be limited to VDD/2.
The amplifier’s output can drive the resistive and high
capacitive loads without oscillation. The amplifier
provides a maximum load current which is enough for
most programmable voltage reference applications.
Refer to Section 1.0 “Electrical Characteristics” for
the specifications of the output amplifier.
Note:
The load resistance must stay higher than
5 kΩ for the stable and expected analog
output to meet electrical specifications.
In any of the three Power-Down modes, the op amp is
powered down and its output becomes a highimpedance to the VOUT pin.
VW
FIGURE 4-4:
Diagram.
4.4.1
VOUT
Output Buffer Block
PROGRAMMABLE GAIN
The amplifier’s gain is controlled by the Gain (G)
Configuration bit (See Table 4-4) and the VRL reference
selection. When the VRL reference selection is the
device’s VDD voltage, the G bit is ignored and a gain of
1 is used. The volatile G bit value can be modified by:
•
•
•
•
OUTPUT VOLTAGE
The volatile DAC register’s value controls the analog
VOUT voltage, along with the device’s five Configuration
bits. The volatile DAC register’s value is unsigned
binary.
The formula for the output voltage is given in
Equation 4-1. Table 4-1 shows examples of volatile
DAC register values and the corresponding theoretical
VOUT voltage for the MCP47X6 devices.
Note:
When Gain = 2 (VRL = VREF),
if VREF > VDD/2, the VOUT voltage will be
limited to VDD. So if VREF = VDD, then the
VOUT voltage will not change for volatile
DAC register values mid-scale and
greater, since the op amp is at its full scale
output.
EQUATION 4-1:
VOUT =
CALCULATING OUTPUT
VOLTAGE (VOUT)
VRL * DAC Register Value
* Gain
# Resistors in Resistor Ladder
# Resistors in Resistor Ladder = 4096 (MCP4726)
1024 (MCP4716)
256 (MCP4706)
The DAC register value will be latched on the falling
edge of the Acknowledge pulse of the Write
command’s last byte. Then the VOUT voltage will start
driving to the new value.
Gain (1x or 2x)
(G = 0 or 1)
Op
Amp
4.4.2
The following events update the analog voltage output
(VOUT):
• Power-on Reset or General Call Reset command:
Output is updated with EEPROM data.
• Falling edge of the Acknowledge pulse of the last
Write command byte.
4.4.2.1
Resolution/Step Voltage
The Step voltage is dependent on the device resolution
and the output voltage range. One LSb is defined as
the ideal voltage difference between two successive
codes. The step voltage can easily be calculated by
using Equation 4-1 where the DAC register value is
equal to 1.
POR event
BOR event
I2C Write commands
I2C General Call Reset command
© 2011-2012 Microchip Technology Inc.
DS22272C-page 37
MCP4706/4716/4726
4.4.3
OUTPUT SLEW RATE
Figure 4-5 shows an example of the slew rate of the
VOUT pin. The slew rate can be affected by the
characteristics of the circuit connected to the VOUT pin.
VOUT(B)
Wiper = A
Wiper = B
Time
Slew Rate =
FIGURE 4-5:
4.4.4
| VOUT(B) - VOUT(A) |
ΔT
VOUT pin Slew Rate.
SMALL CAPACITIVE LOAD
With a small capacitive load, the output buffer’s current
is not affected by the capacitive load (CL). However, the
VOUT pin’s voltage is not a step transition from one
output value (wiper code value) to the next output
value. The change of the VOUT voltage is limited by the
output buffer’s characteristics, so the VOUT pin voltage
will have a slope from the old voltage to the new
voltage. This slope is fixed for the output buffer, and is
referred to as the buffer slew rate (SRBUF).
4.4.5
DRIVING RESISTIVE AND
CAPACITIVE LOADS
The VOUT pin can drive up to 100 pF of capacitive load
in parallel with a 5 kΩ resistive load (to meet electrical
specifications). Figure 2-94 shows the VOUT vs.
Resistive Load.
VOUT drops slowly as the load resistance decreases
after about 3.5 kΩ. It is recommended to use a load
with RL greater than 5 kΩ.
VOUT
VOUT(A)
4.4.6
Driving large capacitive loads can cause stability
problems for voltage feedback op amps. As the load
capacitance increases, the feedback loop’s phase
margin decreases and the closed-loop bandwidth is
reduced. This produces gain peaking in the frequency
response with overshoot and ringing in the step
response. That is, since the VOUT pin’s voltage does
not quickly follow the buffer’s input voltage (due to the
large capacitive load), the output buffer will overshoot
the desired target voltage. Once the driver detects this
overshoot, it compensates by forcing it to a voltage
below the target. This causes voltage ringing on the
VOUT pin.
So, when driving large capacitive loads with the output
buffer, a small series resistor (RISO) at the output (see
Figure 4-6) improves the output buffer’s stability
(feedback loop’s phase margin) by making the output
load resistive at higher frequencies. The bandwidth will
be generally lower than the bandwidth with no
capacitive load.
LARGE CAPACITIVE LOAD
With a larger capacitive load, the slew rate is determined by two factors:
VW
• The output buffer’s short circuit current (ISC)
• The VOUT pin’s external load
IOUT cannot exceed the output buffer’s short circuit
current (ISC) which fixes the output buffer slew rate
(SRBUF). The voltage on the capacitive load (CL), VCL,
changes at a rate proportional to IOUT, which fixes a
capacitive load slew rate (SRCL).
So the VCL voltage slew rate is limited to the slower of
the output buffer’s internally set slew rate (SRBUF) and
the capacitive load slew rate (SRCL).
Op
Amp
VCL
VOUT
RISO
RL
CL
FIGURE 4-6:
Circuit to Stabilize Output
Buffer for Large Capacitive Loads (CL).
The RISO resistor value for your circuit needs to be
selected. The resulting frequency response peaking
and step response overshoot for this RISO resistor
value should be verified on the bench. Modify the
RISO’s resistance value until the output characteristics
meet your requirements.
A method to evaluate the system’s performance is to
inject a step voltage on the VREF pin and observe the
VOUT pin’s characteristics.
Note:
DS22272C-page 38
Additional insight into circuit design for
driving capacitive loads can be found in
AN884 “Driving Capacitive Loads With Op
Amps” (DS00884).
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
TABLE 4-1:
Device
DAC INPUT CODE VS. ANALOG OUTPUT (VOUT) (VDD = 5.0V)
Volatile DAC
Register Value
LSb
VRL
5.0V
1111 1111 1111
0111 1111 1111
MCP4726
(12-bit)
0011 1111 1111
0000 0000 0000
11 1111 1111
01 1111 1111
MCP4716
(10-bit)
00 1111 1111
00 0000 0000
1111 1111
0111 1111
MCP4706
(8-bit)
0011 1111
0000 0000
Note 1:
2:
3:
4:
Gain
Selection
(1)
VOUT (4)
Equation
uV
(2)
5.0V/4096
1,220.7
1x
VRL * (4095/4096) * 1
4.998779
1x
VRL * (4095/4096) * 1
2.499390
2x(3)
VRL * (4095/4096) * 2)
4.998779
1x
VRL * (2047/4096) * 1)
2.498779
2.5V
2.5V/4096
610.4
5.0V
5.0V/4096
1,220.7
2.5V
2.5V/4096
610.4
5.0V
5.0V/4096
1,220.7
2.5V
2.5V/4096
610.4
5.0V
5.0V/4096
1,220.7
2.5V
2.5V/4096
610.4
5.0V
5.0V/1024
4,882.8
2.5V
2.5V/1024
2,441.4
5.0V
5.0V/1024
4,882.8
2.5V
2.5V/1024
2,441.4
5.0V
5.0V/1024
4,882.8
2.5V
2.5V/1024
2,441.4
5.0V
5.0V/1024
4,882.8
2.5V
2.5V/1024
2,441.4
5.0V
5.0V/256
19,531.3
2.5V
2.5V/256
9,765.6
5.0V
5.0V/256
19,531.3
2.5V
2.5V/256
9,765.6
5.0V
5.0V/256
19,531.3
2.5V
2.5V/256
9,765.6
5.0V
5.0V/256
19,531.3
2.5V
2.5V/256
9,765.6
Equation
V
1x
VRL * (2047/4096) * 1)
1.249390
2x(3)
VRL * (2047/4096) * 2)
2.498779
1x
VRL * (1023/4096) * 1)
1.248779
1x
VRL * (1023/4096) * 1)
0.624390
2x(3)
VRL * (1023/4096) * 2)
1.248779
1x
VRL * (0/4096) * 1)
0
1x
VRL * (0/4096) * 1)
0
2x(3)
VRL * (0/4096) * 2)
0
1x
VRL * (1023/1024) * 1
4.995117
1x
VRL * (1023/1024) * 1
2.497559
2x(3)
VRL * (1023/1024) * 2
4.995117
1x
VRL * (511/1024) * 1
2.495117
1x
VRL * (511/1024) * 1
1.247559
2x(3)
VRL * (511/1024) * 2
2.495117
1x
VRL * (255/1024) * 1
1.245117
1x
VRL * (255/1024) * 1
0.622559
2x(3)
VRL * (255/1024) * 2
1.245117
1x
VRL * (0/1024) * 1
0
1x
VRL * (0/1024) * 1
0
2x(3)
VRL * (0/1024) * 1
0
1x
VRL * (255/256) * 1
4.980469
1x
VRL * (255/256) * 1
2.490234
2x(3)
VRL * (255/256) * 2
4.980469
1x
VRL * (127/256) * 1
2.480469
1x
VRL * (127/256) * 1
1.240234
2x(3)
VRL * (127/256) * 2
2.480469
1x
VRL * (63/256) * 1
1.230469
1x
VRL * (63/256) * 1
0.615234
2x(3)
VRL * (63/256) * 2
1.230469
1x
VRL * (0/256) * 1
0
1x
VRL * (0/256) * 1
0
2x(3)
VRL * (0/256) * 2
0
VRL is the resistor ladder’s reference voltage. It is independent of VREF1:VREF0 selection.
Gain selection of 2x requires voltage reference source to come from VREF pin and
requires VREF pin voltage ≤ VDD / 2.
Requires G = 1, VREF1:VREF0 = 10 or ‘11’, and VRL ≤ VDD/2.
These theoretical calculations do not take into account the Offset and Gain errors.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 39
MCP4706/4716/4726
Power-Down Operation
Gain (1x or 2x)
(Gx = 0 or 1)
To allow the application to conserve power when the
DAC operation is not required, three Power-Down
modes are available. The Power-Down Configuration
bits (PD1:PD0) control the power-down operation
(Figure 4-7). All Power-Down modes do the following:
VW
Depending on the selected Power-Down mode, the
following will occur:
FIGURE 4-7:
Diagram.
• VOUT pin is switched to one of three resistive pulldowns (See Table 4-2)
- 640kΩ (typical)
- 125kΩ (typical)
- 1kΩ (typical)
4.5.1
There is a delay (TPDE) between the PD1:PD0 bits
changing from ‘00’ to either ‘01’, ‘10’, or ‘11’ and the op
amp no longer driving the VOUT output and the pulldown resistors are sinking current.
In any of the Power-Down modes, where the VOUT pin
is not externally connected (sinking or sourcing
current), the power-down current will typically be 60 nA
(see Section 1.0 “Electrical Characteristics”).
Section 6.0 “MCP47X6 I2C Commands” describes
the I2C commands for writing the power-down bits. The
commands that can update the volatile PD1:PD0 bits
are:
•
•
•
•
•
•
Write Volatile DAC Register
Write Volatile Memory
Write All Memory
Write Volatile Configuration Bits
General Call Reset
General Call Wake-up
Note:
The I2C serial interface circuit is not
affected by the Power-Down mode. This
circuit remains active in order to receive
any command that might come from the
I2C master device.
TABLE 4-2:
POWER-DOWN BITS AND
OUTPUT RESISTIVE LOAD
PD1
PD0
Function
0
0
Normal operation
0
1
1 kΩ resistor to ground
1
0
125 kΩ resistor to ground
1
1
640 kΩ resistor to ground
DS22272C-page 40
640 kΩ
PD1:PD0
1 kΩ
• Turn off most of its internal circuits (op amp, resistor ladder, ...)
• Op amp output becomes high-impedance to the
VOUT pin
• Disconnects resistor ladder from reference
voltage (VRL)
• Retains the value of the volatile DAC register and
Configuration bits, and the nonvolatile (EEPROM)
DAC register and Configuration bits
VOUT
Op
Amp
125 kΩ
4.5
Op Amp to VOUT Pin Block
EXITING POWER-DOWN
When the device exits the Power-Down mode, the
following occurs:
• Disabled circuits (op amp, resistor ladder, ...) are
turned on
• Resistor ladder is connected to selected
reference voltage (VRL)
• Selected pull-down resistor is disconnected
• The VOUT output will be driven to the voltage
represented by the volatile DAC register’s value
and Configuration bits
The VOUT output signal will require time as these
circuits are powered up and the output voltage is driven
to the specified value as determined by the volatile
DAC register and Configuration bits.
Note:
Since the op amp and resistor ladder were
powered off (0V), the op amp’s input
voltage (VW) can be considered 0V. There
is a delay (TPDD) between the PD1:PD0
bits updated to ‘00’ and the op amp driving
the VOUT output. The op amp’s settling
time (from 0V) needs to be taken into
account to ensure the VOUT voltage
reflects the selected value.
The following events will change the PD1:PD0 bits to
‘00’ and therefore exit the Power-Down mode. These
are:
• Any I2C Write command for where the PD1:PD0
bits are ‘00’
• I2C General Call Wake-up Command
• I2C General Call Reset Command
(if nonvolatile PD1:PD0 bits are ‘00’)
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
4.6
Device Resets
4.7
Device Resets can be grouped into two types: Resets
due to change in voltage (POR/BOR Reset), and
Resets caused by the system master (such as a
microcontroller).
The MCP47X6 devices have both volatile and
nonvolatile (EEPROM) memory. Figure 4-8 shows the
volatile and nonvolatile memory and their interaction
due to a POR event.
After a device Reset, and when VDD ≥ VDD(MIN), the
device memory may be written or read.
4.6.1
There are five Configuration bits in both the volatile and
nonvolatile memory, the DAC registers in both the
volatile and nonvolatile memory, and two volatile Status
bits. The DAC registers (volatile and nonvolatile) will be
either 12-bits (MCP4726), 10-bits (MCP4716), or 8-bits
(MCP4706) wide.
POR/BOR RESET OPERATION
The POR and BOR trip points are at the same voltage,
and are determined if the VDD voltage is rising or falling
(see Figure 4-1). What occurs is different, depending if
the Reset is a POR or BOR Reset.
When the device is first powered up, it automatically
uploads the EEPROM memory values to the volatile
memory. The volatile memory determines the analog
output (VOUT) pin voltage. After the device is powered
up, the user can update the device memory.
POR Reset (VDD Rising)
On a POR Reset, the nonvolatile memory values (DAC
register and Configuration bits) are latched into the
volatile memory. This configures the analog output
(VOUT) circuitry. A Reset delay timer also starts. During
this delay time, the I2C interface will not accept
commands.
The I2C interface is how this memory is read and
written. Refer to Section 5.0 “I2C Serial Interface”
and Section 6.0 “MCP47X6 I2C Commands” for
more details on the reading and writing the device’s
memory.
When the nonvolatile memory is written (using the I2C
Write All Memory command), the volatile memory is
written with the same values. The device starts writing
the EEPROM cell at the Acknowledge pulse of the
EEPROM Write command.
BOR Reset (VDD Falling)
On a BOR Reset, the device is forced into a powerdown state. The volatile PD1:PD0 bits are forced to ‘11’
and all other volatile memory forced to ‘0’. The I2C
interface will not accept commands.
4.6.2
DAC Registers, Configuration
Bits, and Status Bits
Table 4-3 shows the operation of the device Status bits,
Table 4-4 shows the operation of the device Configuration bits, and Table 4-5 shows the factory default value
of a POR/BOR event for the device Configuration bits.
RESET COMMANDS
When the MCP47X6 is in the valid operating voltage,
the I2C General Call Reset command will force a
Reset event. This is similar to the POR Reset, except
that the Reset delay timer is not started.
There are two Status bits. These are only in volatile
memory and give indication on the status of the device.
The POR bit indicates if the device VDD is above or
below the POR trip point. During normal operation, this
bit should be ‘1’. The RDY/BSY bit indicates if an
EEPROM write cycle is in progress. While the
RDY/BSY bit is low (during the EEPROM writing), all
commands are ignored, except for the Read command.
In the case where the I2C interface bus does not seem
to be responsive, the technique shown in Section 8.9
“Software I2C Interface Reset Sequence” can be
used to force the I2C interface to be reset.
DAC Register Value (1)
Config Bits
VREF1 VREF0
PD1
PD0
DMAX
G
D1
D0
POR Event
Status Bits (2)
VREF1 VREF0
PD1
PD0
G
RDY/BSY
POR
N.V. Memory
DMAX
D1
D0
Vol. Memory
Note 1: The DMAX value depends on the device. For the MCP4706: DMAX = D7, MCP4716: DMAX = D9,
and the MCP4726: DMAX = D11.
2: Status bits are read-only.
FIGURE 4-8:
DAC Memory and POR Interaction.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 41
MCP4706/4716/4726
TABLE 4-3:
STATUS BITS OPERATION
Name
Function
This bit indicates the state of the EEPROM program memory
1 = EEPROM is not in a programming cycle
0 = EEPROM is in a programming cycle
RDY/BSY
POR
Power-on Reset Status Indicator (flag)
1 = Device is powered on with VDD > VPOR.
Ensure that VDD is above VDD(MIN) to ensure proper operation.
0 = Device is in powered off state. If this value is read, VDD < VDD(MIN) < VPOR.
Unreliable device operation should be expected.
TABLE 4-4:
CONFIGURATION BITS
Name
Function
VREF1:VREF0
Resistor Ladder Voltage Reference (VRL) Selection bits
0x = VDD (Unbuffered)
10 = VREF pin (Unbuffered)
11 = VREF pin (Buffered)
PD1:PD0
Power-Down Selection bits
When the DAC is powered down, most of the internal circuits are powered off and the op amp is
disconnected from the VOUT pin.
00 = Not Powered Down (Normal operation)
01 = Powered Down – VOUT is loaded with 1 kΩ resistor to ground.
10 = Powered Down – VOUT is loaded with 100 kΩ resistor to ground.
11 = Powered Down – VOUT is loaded with 500 kΩ resistor to ground.
Note:
G
See Table 4-2 and Figure 4-7 for more details.
Gain Selection bit
0 = 1x (gain of 1)
1 = 2x (gain of 2). Not applicable when VDD is used as VRL
Note:
TABLE 4-5:
If VREF = VDD, the device uses a gain of 1 only, regardless of the gain selection bit (G)
setting.
CONFIGURATION BIT VALUES AFTER POR/BOR EVENT
R/W
R/W
R/W
R/W
R/W
Comment
Bit Name
VREF1
VREF0
PD1
PD0
G
POR Event
0(1)
0(1)
0(1)
0(1)
0(1)
When VDD transitions from VDD < VPOR to VDD > VPOR
BOR Event
0
0
1
1
0
When VDD transitions from VDD > VBOR to VDD < VBOR
Note 1:
Default configuration when the device is shipped to customer. The POR/BOR value may be modified by
writing the corresponding nonvolatile Configuration bit.
REGISTER 4-1:
Bit Name
POR/BOR Event
Note 1:
2:
DAC REGISTER BITS
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
—(2)
—(2)
—(2)
—(2)
D7
D6
D5
D4
D3
D2
D1
—(2)
—(2)
D9
D8
D7
D6
D5
D4
D3
D2
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0(1)
0
R/W Comment
D0
MCP4706
D1
D0
MCP4716
D1
D0
MCP4726
Default configuration when the device is shipped to customer. The POR/BOR value may be modified by
writing the corresponding nonvolatile Configuration bit.
This device does not implement this bit, so there is no corresponding POR/BOR value.
DS22272C-page 42
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
I2C SERIAL INTERFACE
5.0
The MCP47X6 devices support the I2C serial protocol.
The MCP47X6 I2C’s module operates in Slave mode
(does not generate the serial clock).
5.1
5.2
Signal Descriptions
The I2C interface uses up to two pins (signals). These
are:
• SDA (Serial Data)
• SCL (Serial Clock)
Overview
2
This I C interface is a two-wire interface. Figure 5-1
shows a typical I2C interface connection.
The I2C interface specifies different communication bit
rates. These are referred to as Standard, Fast or HighSpeed modes. The MCP47X6 supports these three
modes. The bit rates of these modes are:
• Standard mode: bit rates up to 100 kbit/s
• Fast mode: bit rates up to 400 kbit/s
• High-Speed mode (HS mode): bit rates up to
3.4 Mbit/s
A device that sends data onto the bus is defined as a
transmitter, and a device receiving data as a receiver.
The bus has to be controlled by a master device which
generates the serial clock (SCL), controls the bus
access and generates the Start and Stop conditions.
The MCP47X6 device works as slave. Both master and
slave can operate as transmitter or receiver, but the
master device determines which mode is activated.
Communication is initiated by the master
(microcontroller) which sends the Start bit, followed by
the slave address byte. The first byte transmitted is
always the slave address byte, which contains the
device code, the address bits, and the R/W bit.
5.2.1
SERIAL DATA (SDA)
The Serial Data (SDA) signal is the data signal of the
device. The value on this pin is latched on the rising
edge of the SCL signal when the signal is an input.
With the exception of the Start and Stop conditions, the
high or low state of the SDA pin can only change when
the clock signal on the SCL pin is low. During the high
period of the clock, the SDA pin’s value (high or low)
must be stable. Changes in the SDA pin’s value while
the SCL pin is High will be interpreted as a Start or a
Stop condition.
5.2.2
SERIAL CLOCK (SCL)
The Serial Clock (SCL) signal is the clock signal of the
device. The rising edge of the SCL signal latches the
value on the SDA pin.
The MCP47X6 will not stretch the clock signal (SCL)
since memory read access occurs fast enough.
Depending on the clock rate mode, the interface will
display different characteristics.
Typical I2C™ Interface Connections
MCP4XXX
Host
Controller
SCL
SCL
SDA
SDA
FIGURE 5-1:
Typical I2C Interface.
The I2C serial protocol only defines the field types, field
lengths, timings, etc. of a frame. The frame content
defines the behavior of the device. For details on the
frame content (commands/data) refer to Section 6.0
“MCP47X6 I2C Commands”.
Refer to the NXP I2C document for more details on the
I2C specifications.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 43
MCP4706/4716/4726
5.3
I2C Operation
5.3.1.3
The MCP47X6’s I2C module is compatible with the
NXP I2C specification. The following lists some of the
module’s features:
• 7-bit slave addressing
• Supports three clock rate modes:
- Standard mode, clock rates up to 100 kHz
- Fast mode, clock rates up to 400 kHz
- High-speed mode (HS mode), clock rates up
to 3.4 MHz
• Support multi-master applications
• General call addressing (Reset and Wake-Up
commands)
The I2C 10-bit Addressing mode is not supported.
The NXP I2C specification only defines the field types,
field lengths, timings, etc. of a frame. The frame
content defines the behavior of the device. The frame
content for the MCP47X6 is defined in Section 6.0
“MCP47X6 I2C Commands”.
5.3.1
I2C BIT STATES AND SEQUENCE
Figure 5-8 shows the I2C transfer sequence. The serial
clock is generated by the master. The following
definitions are used for the bit states:
The Start bit (see Figure 5-2) indicates the beginning of
a data transfer sequence. The Start bit is defined as the
SDA signal falling when the SCL signal is “High”.
1st Bit
2nd Bit
SCL
SCL
FIGURE 5-4:
FIGURE 5-2:
Start Bit.
Data Bit
The SDA signal may change state while the SCL signal
is Low. While the SCL signal is High, the SDA signal
MUST be stable (see Figure 5-3).
SDA
1st Bit
D0
A
8
9
Acknowledge Waveform.
Not A (A) Response
The A bit has the SDA signal high. Table 5-1 shows
some of the conditions where the slave device will
issue a Not A (A).
If an error condition occurs (such as an A instead of A),
then a Start bit must be issued to reset the command
state machine.
MCP47X6 A/A RESPONSES
Acknowledge
Bit
Response
General Call
A
Slave Address
valid
A
Slave Address
not valid
A
Communication
during
EEPROM write
cycle
A
Bus Collision
S
5.3.1.2
SDA
Event
Start Bit
SDA
The A bit (see Figure 5-4) is typically a response from
the receiving device to the transmitting device.
Depending on the context of the transfer sequence, the
A bit may indicate different things. Typically, the slave
device will supply an A response after the Start bit and
8 “data” bits have been received. An A bit has the SDA
signal low.
TABLE 5-1:
• Start bit (S)
• Data bit
• Acknowledge (A) bit (driven low) /
No Acknowledge (A) bit (not driven low)
• Repeated Start bit (Sr)
• Stop bit (P)
5.3.1.1
Acknowledge (A) Bit
N/A
Comment
After device has
received address
and command,
and valid
conditions for
EEPROM write
I2C module
Resets, or a
“Don’t Care” if
the collision
occurs on the
Master’s “Start
bit”
2nd Bit
SCL
Data Bit
FIGURE 5-3:
DS22272C-page 44
Data Bit.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
5.3.1.4
5.3.1.5
Repeated Start Bit
The Repeated Start bit (see Figure 5-5) indicates the
current master device wishes to continue
communicating with the current slave device without
releasing the I2C bus. The Repeated Start condition is
the same as the Start condition, except that the
Repeated Start bit follows a Start bit (with the Data bits
+ A bit) and not a Stop bit.
Stop Bit
The Stop bit (see Figure 5-6) Indicates the end of the
I2C Data Transfer Sequence. The Stop bit is defined as
the SDA signal rising when the SCL signal is “High”.
A Stop bit resets the I2C interface of all MCP47X6
devices.
SDA A / A
The Start bit is the beginning of a data transfer
sequence and is defined as the SDA signal falling when
the SCL signal is “High”.
SCL
P
Note 1: A bus collision during the Repeated Start
condition occurs if:
FIGURE 5-6:
Transmit Mode.
• SDA is sampled low when SCL goes
from low to high.
5.3.2
• SCL goes low before SDA is asserted
low. This may indicate that another
master is attempting to transmit a
data "1".
Stop Condition Receive or
CLOCK STRETCHING
“Clock Stretching” is something that the receiving
Device can do, to allow additional time to “respond” to
the “data” that has been received.
The MCP47X6 will not stretch the clock signal (SCL)
since memory read access occurs fast enough.
1st Bit
SDA
5.3.3
If any part of the I2C transmission does not meet the
command format, it is aborted. This can be intentionally
accomplished with a Start or Stop condition. This is
done so that noisy transmissions (usually an extra Start
or Stop condition) are aborted before they corrupt the
device.
SCL
Sr = Repeated Start
FIGURE 5-5:
Waveform.
ABORTING A TRANSMISSION
Repeat Start Condition
SDA
SCL
S
FIGURE 5-7:
1st Bit
2nd Bit 3rd Bit
4th Bit
5th Bit
6th Bit
7th Bit
8th Bit
A/A
P
Typical 8-Bit I2C Waveform Format.
SDA
SCL
Start
Condition
FIGURE 5-8:
Data allowed
to change
Data or
A valid
Stop
Condition
I2C Data States and Bit Sequence.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 45
MCP4706/4716/4726
5.3.4
SLOPE CONTROL
TABLE 5-2:
I2C ADDRESS/ORDER CODE
The MCP47X6 implements slope control on the SDA
output.
7-bit I2C™
Device Order Code
Address
As the device transitions from HS mode to FS mode,
the slope control parameter will change from the HS
specification to the FS specification.
‘1100000’
For Fast (FS) and High-Speed (HS) modes, the device
has a spike suppression and a Schmidt Trigger at SDA
and SCL inputs.
‘1100001’
‘1100010’
5.3.5
DEVICE ADDRESSING
The address byte is the first byte received following the
Start condition from the master device. The
MCP47X6’s slave address consists of a 4-bit fixed code
(‘1100’) and a 3-bit code that is user specified when the
device is ordered. This allows up to eight MCP47X6
devices on a single I2C bus.
Figure 5-9 shows the I2C slave address byte format,
which contains the seven address bits and a read/write
(R/W) bit. Table 5-2 shows the eight I2C slave address
options and their respective device order code.
‘1100011’
‘1100100’
‘1100101’
‘1100110’
‘1100111’
Acknowledge bit
Note 1:
Start bit
Read/Write bit
R/W
Slave Address
ACK
Address Byte
2:
Comment
MCP47x6A0-E/xx
MCP47x6A0T-E/xx
Tape and Reel
MCP47x6A1-E/xx
MCP47x6A1T-E/xx
Tape and Reel
MCP47x6A2-E/xx
MCP47x6A2T-E/xx
Tape and Reel
MCP47x6A3-E/xx
MCP47x6A3T-E/xx
Tape and Reel
MCP47x6A4-E/xx
MCP47x6A4T-E/xx
Tape and Reel
MCP47x6A5-E/xx
MCP47x6A5T-E/xx
Tape and Reel
MCP47x6A6-E/xx
MCP47x6A6T-E/xx
Tape and Reel
MCP47x6A7-E/xx
MCP47x6A7T-E/xx
Tape and Reel
The sample center will generally stock I2C
address ‘1100000’, other addresses may
be available.
‘xx’ in the order code is the device
package code (CH for SOT-23 and MAY
for DFN)
Slave Address (7-bits)
Fixed
1
1
User Specified
0
0
A2
A1
A0
Note: Address Bits (A2:A0) specified at time of device
order, see Table 5-2.
FIGURE 5-9:
I2C Control Byte.
DS22272C-page 46
Slave Address Bits in the
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
5.3.6
HS MODE
After switching to the High-Speed mode, the next
transferred byte is the I2C control byte, which specifies
the device to communicate with, and any number of
data bytes plus acknowledgements. The master device
can then either issue a Repeated Start bit to address a
different device (at High-Speed) or a Stop bit to return
to Fast/Standard bus speed. After the Stop bit, any
other master device (in a multi-master system) can
arbitrate for the I2C bus.
2
The I C specification requires that a High-Speed mode
device must be ‘activated’ to operate in High-Speed
(3.4 Mbit/s) mode. This is done by the master sending
a special address byte following the Start bit. This byte
is referred to as the High-Speed Master Mode Code
(HSMMC).
The MCP47X6 device does not acknowledge this byte.
However, upon receiving this command, the device
switches to HS mode. The device can now
communicate at up to 3.4 Mbit/s on SDA and SCL
lines. The device will switch out of the HS mode on the
next Stop condition.
See Figure 5-10 for illustration of HS mode command
sequence.
For more information on the HS mode, or other I2C
modes, please refer to the NXP I2C specification.
The master code is sent as follows:
1.
2.
3.
5.3.6.1
Start condition (S)
High-Speed Master Mode Code (0000 1XXX),
The XXX bits are unique to the High-Speed (HS)
mode master.
No Acknowledge (A)
Slope Control
The slope control on the SDA output is different
between the Fast/Standard Speed and the High-Speed
clock modes of the interface.
5.3.6.2
Pulse Gobbler
The pulse gobbler on the SCL pin is automatically
adjusted to suppress spikes < 10 ns during HS mode.
F/S-mode
HS mode
S ‘0 0 0 0 1 X X X’b
P
A Sr ‘Slave Address’ R/W A
HS Select Byte
Control Byte
“Data”
Command/Data Byte(s)
S = Start bit
Sr = Repeated Start bit
A = Acknowledge bit
A = Not Acknowledge bit
R/W = Read/Write bit
P = Stop bit (Stop condition terminates HS mode)
FIGURE 5-10:
A/A
F/S mode
HS mode continues
Sr ‘Slave Address’ R/W A
Control Byte
HS Mode Sequence.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 47
MCP4706/4716/4726
5.3.7
GENERAL CALL
The MCP47X6 has two General Call commands. The
function of these commands are:
The General Call is a method that the “master” device
can communicate with all other “slave” devices. In a
multi-master application, the other master devices are
operating in Slave mode. The General Call address
has two documented formats. These are shown in
Figure 5-11.
• Reset the device(s) (Software Reset)
• Wake-Up the device(s)
For details on the operation of the MCP47X6’s General
Call commands, see Section 6.6 “I2C General Call
Commands”.
Note:
Only one General Call command per issue
of the General Call control byte. Any
additional General Call commands are
ignored and Not Acknowledged.
Second Byte
S 0 0 0 0
0 0 0 0
General Call Address
A x
x x x
X x
x 0 A P
“7-bit Command”
Reserved 7-bit Commands (By I2C Specification – NXP specification # UM10204, Rev. 03 19 June 2007)
‘0000 011’b - Reset and write programmable part of slave address by hardware
‘0000 010’b - Write programmable part of slave address by hardware
‘0000 000’b - NOT Allowed
The Following is a “Hardware General Call” Format
Second Byte
S 0 0 0 0
0
0
0 0
General Call Address
FIGURE 5-11:
DS22272C-page 48
A x
x x
x X
x x 1
“Master Address”
n occurrences of (Data + A)
A x
x x
x X
x x X
A P
This indicates a “Hardware General Call”
General Call Formats.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
MCP47X6 I2C COMMANDS
6.0
TABLE 6-1:
The I2C protocol does not specify how commands are
formatted, so this section specifies the MCP47X6’s I2C
command formats and operation.
Operation
Write Volatile Memory
Command
The supported commands are shown in Table 6-2.
Many of these commands allow for continuous
operation. This means that the I2C master does not
generate a Stop bit but repeats the required
data/clocks. This allows faster updates since the
overhead of the I2C control byte is removed. Table 6-1
shows the supported commands and the required
number of bit clocks for both single and continuous
commands.
0
X
1
0
38
27n + 11
Read Command (12 and
10-bit DAC Register) (2)
Single
Read Command
(8-bit DAC Register) (2)
Single
6.0.1
Continuous
Continuous
Continuous
38
27n + 11
20
9n + 11
65
54n + 11
47
36n + 11
“n” indicates the number of times the command
operation is to be repeated.
This command is useful to determine when an
EEPROM programming cycle has completed
(RDY/BSY Status bit)
ABORTING A TRANSMISSION
A Restart or Stop condition in an expected data bit
position will abort the current command sequence and
data will not be written to the MCP47X6.
MCP47X6 SUPPORTED COMMANDS
Command Name
Writes Volatile
Memory?
Config.
Write Volatile DAC Register
Command (Note 2)
0
Single
2:
The General Call commands utilize the I
specification reserved General Call command address
and command codes.
0
Continuous
Write Volatile Configuration
Bits Command
Note 1:
2C
C0
18n + 11
Single
Continuous
The Read command is strictly determined by the R/W
bit = 1. There are two formats of the command, one for
12-bit and 10-bit devices and a second for 8-bit
devices.
C1
29
Write All Memory Command Single
Write commands, determined by the R/W bit = 0, use
up to three command codes bits (C2:C0) to determine
the write’s operation.
C2
Mode
Write Volatile DAC Register Single
Command (2)
Continuous
• Write memory
• Read memory
• General Call commands
Command
Code
(Note 1)
# of Bit
Clocks (1)
Command
The commands can be grouped into the following
categories:
TABLE 6-2:
I2C COMMANDS - NUMBER
OF CLOCKS
Write Volatile Memory
Writes
EEPROM
Memory?
DAC Config. DAC
Command
during
EEPROM
Write
Cycle?
PD1:PD0
only
Yes
No
No
No
Yes
Yes
No
No
No
Comment
Writes volatile power-down bits
so can also be used to exit a
power-down state.
Command
0
1
1
Write All Memory Command
Yes
Yes
Yes
Yes
No
1
0
0
Write Volatile Configuration
Bits Command
Yes
No
No
No
No
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
1
0
1
1
1
0
1
1
1
Reserved
Read Command
N/A
Note
1:
2:
3:
General Call Reset
General Call Wake-up
N/A
Reserved (Note 3)
Reserved (Note 3)
Yes
Determined by R/W bit in I2C™
Control byte
N/A
No
N/A
No
Determined by General Call
command byte after the I2C
General Call address.
These bits are the MSb of the 2nd byte in the I2C Write command. See Figure 6-1 to Figure 6-4.
X = Don’t Care bit. This command format does not use C0 bit.
Device operation is not specified.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 49
MCP4706/4716/4726
6.1
Write Volatile DAC Register
(C2:C0 = 00x)
This command is used to update the volatile DAC
register value and the two Power-down Configuration
bits (PD1:PD0). This command is typically used for a
quick update of the analog output by modifying the
minimum parameters. The EEPROM values are not
affected by this command.
Figure 6-1 shows an example of the command format,
where a Stop bit completes the command.
After this ACK bit, the I2C master should generate a
Stop bit or the I2C master can repeat the 2nd
(2 command bits + 2 power-down bits + 4 data bits
(b11:b08)) and the 3rd byte (8 data bits (b07:b00)).
Repeating the 2nd and 3rd bytes allows a continuous
command where the volatile DAC register can be
updated without the communication overhead of the
device addressing byte (1st byte).
The device updates the VOUT at the falling edge of the
Acknowledge pulse of the 3rd byte.
The volatile DAC register and Power-down
Configuration bits are updated with the written date at
the completion of the ACK bit (falling edge of SCL).
Read/Write bit (Write)
ACK bit (3)
Start bit
S
SDA
ACK bit (3)
R/W A
1
1
0
0 A2 A1 A0
0
0
ACK bit (3)
A
0
0
PD1 PD0 b11 b10 b09 b08
0
Stop bit
A
b07 b06 b05 b04 b03 b02 b01 b00
P
0
SCL
Device Addressing
Command Power Data bits (4 bits)
bits
Down
bits
Data bits (8 bits)
Note 1
Note 2
Data bits (12 bits)
b11 b10 b09 b08 b07 b06 b05 b04 b03 b02 b01 b00
MCP4726
MCP4716
MCP4706
D11 D10 D09 D08 D07 D06 D05 D04 D03 D02 D01 D00
D09 D08 D07 D06 D05 D04 D03 D02 D01 D00 X
X
X
X
X
X D07 D06 D05 D04 D03 D02 D01 D00
Note 1: The device updates VOUT at the falling edge of the SCL at the end of this ACK pulse.
2: The 2nd-3rd bytes can be repeated after the 3rd byte by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
Legend:
X = don’t care
D11:D00 = 12-bit data for MCP4726 device
D09:D00 = 10-bit data for MCP4716 device
D07:D00 = 8-bit data for MCP4706 device
FIGURE 6-1:
DS22272C-page 50
Write Volatile DAC Register Command.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
6.2
Write Volatile Memory
(C2:C0 = 010)
This Write command is used to update the volatile DAC
register value and Configuration bits. The EEPROM is
not affected by this command. Figure 6-2 shows an
example of this Write command.
The volatile DAC register and Configuration bits are
updated with the written date at the completion of the
ACK bit (falling edge of SCL).
After this ACK bit, the I2C master should generate a
Stop bit or the I2C master can repeat the 2nd
(3 command bits + 5 Configuration bits), and the 3rd
byte (8 data bits (b15:b08)), and the 4th byte (8 data
bits (b07:b00)). Repeating the 2nd through 4th bytes
allows a continuous command where the volatile DAC
register and Configuration bits can be updated without
the communication overhead of the device addressing
byte (1st byte).
Read/Write bit (Write)
ACK bit (3)
Start bit
S
SDA
R/W A
1
1
0 A2 A1 A0
0
0
0
ACK bit (3)
VREF1
0
1
0
A
VREF0
PD1 PD0
ACK bit (3)
G
0
A
b15 b14 b13 b12 b11 b10 b09 b08
0
SCL
Device Addressing
Command Ref.
Power- Gain
Voltage Down bit
bits
Select bits
bits
Data bits (8 bits) (3rd byte)
ACK bit (3)
Stop bit
A
b07 b06 b05 b04 b03 b02 b01 b00
P
0
Data bits (8 bits) (4th byte)
Data bits (16 bits) (3rd + 4th bytes)
b15 b14 b13 b12 b11 b10 b09 b08 b07 b06 b05 b04 b03 b02 b01 b00
MCP4726
MCP4716
MCP4706
D11 D10 D09 D08 D07 D06 D05 D04 D03 D02 D01 D00
D09 D08 D07 D06 D05 D04 D03 D02 D01 D00 X
X
D07 D06 D05 D04 D03 D02 D01 D00 X
X
X
X
X
X
X
X
X
X
X
X
X
Note 1
Note 2
X
X
X
Note 1: The device updates VOUT at the falling edge of the SCL at the end of this ACK pulse.
2: The 2nd-4th bytes can be repeated after the 4th byte by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
Legend:
X = don’t care
D11:D00 = 12-bit data for MCP4726 device
D09:D00 = 10-bit data for MCP4716 device
D07:D00 = 8-bit data for MCP4706 device
FIGURE 6-2:
Write Volatile Memory Command.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 51
MCP4706/4716/4726
6.3
Write All Memory
(C2:C0 = 011)
Note:
This Write command is used to update the volatile and
nonvolatile (EEPROM) DAC register value and
Configuration bits. Figure 6-3 shows an example of this
Write command.
• VOUT update: At the falling edge of the
Acknowledge pulse of the 4th byte.
• EEPROM update: At the falling edge of the
Acknowledge pulse of the 4th byte.
RDY/BSY bit toggles to “low” and back to
“high” after the EEPROM write is
completed. The state of the RDY/BSY bit
can be monitored by a Read command.
Write commands which only update volatile memory
(C2:C0 = 00x or ‘010’) can be issued. Read
commands and the General Call commands may not
be issued.
The DAC register and Power-down Configuration bits
(volatile and EEPROM) are updated with the written
date at the completion of the ACK bit (falling edge of
SCL). The EEPROM memory requires time (TWC) for
the values to be written. Another Write All Memory
command should not be issued until the EEPROM
write is complete.
Read/Write bit (Write)
ACK bit (3)
Start bit
S
SDA
R/W A
1
1
0 A2 A1 A0
0
0
0
ACK bit (3)
VREF1
0
1
1
A
VREF0
PD1 PD0
ACK bit (3)
G
0
A
b15 b14 b13 b12 b11 b10 b09 b08
0
SCL
Device Addressing
Command Ref.
Power- Gain
bits
Voltage Down bit
Select bits
bits
Data bits (8 bits) (3rd byte)
ACK bit (3)
Stop bit
A
b07 b06 b05 b04 b03 b02 b01 b00
P
0
Data bits (8 bits) (4th byte)
Data bits (16 bits) (3rd + 4th bytes)
b15 b14 b13 b12 b11 b10 b09 b08 b07 b06 b05 b04 b03 b02 b01 b00
MCP4726
MCP4716
MCP4706
D11 D10 D09 D08 D07 D06 D05 D04 D03 D02 D01 D00
D09 D08 D07 D06 D05 D04 D03 D02 D01 D00 X
X
D07 D06 D05 D04 D03 D02 D01 D00 X
X
X
X
X
X
X
X
X
X
X
X
X
Note 1
Note 2
X
X
X
Note 1: The device updates VOUT at the falling edge of the SCL at the end of this ACK pulse.
2: The 2nd-4th bytes can be repeated after the 4th byte by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
Legend:
X = don’t care
D11:D00 = 12-bit data for MCP4726 device
D09:D00 = 10-bit data for MCP4716 device
D07:D00 = 8-bit data for MCP4706 device
FIGURE 6-3:
DS22272C-page 52
Write All Memory Command.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
6.4
Write Volatile Configuration Bits
(C2:C0 = 100)
This Write command is used to update the volatile
Configuration register bits only. This command is a
quick method to modify the configuration of the DAC,
such as the selection of the resistor ladder reference
voltage, the op amp gain, and the power-down state.
Figure 6-4 shows an example of this Write command.
Read/Write bit (Write)
ACK bit (3)
Start bit
S
SDA
ACK bit (3)
R/W A
1
1
0
0 A2 A1 A0
0
0
VREF1
1
0
0
A
VREF0
PD1 PD0
G
Stop bit
P
0
SCL
Device Addressing
Command
bits
Configuration bits
Note 1
Note 2
Note 1: The device updates VOUT at the falling edge of the SCL at the end of this ACK pulse.
2: The 2nd byte can be repeated after the 2nd by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
FIGURE 6-4:
Write Volatile Configuration Bits Command.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 53
MCP4706/4716/4726
6.5
READ COMMAND
This command reads all the device memory. This
includes the volatile and nonvolatile (EEPROM) DAC
register values and Configuration bits, and the volatile
status bits.
This command is executed when the I2C control byte’s
Read/Write bit is a ‘1’ (read).
This command has two different formats based on the
resolution of the device. The 12-bit and 10-bit devices
use the format in Figure 6-5, while the 8-bit device uses
the format in Figure 6-6.
The 2nd byte (Configuration bits) indicates the current
condition of the device operation. The RDY/BSY bit
indicates EEPROM writing status.
Read/Write bit (Read)
ACK bit (2)
Start bit
S
R/W A
1
SDA
1
0
0 A2 A1 A0
1
0
SCL
Device Addressing
ACK bit (3)
VREF1
RDY POR
0
Vol.
Status
bits
A
VREF0
PD1 PD0
G
0
b15 b14 b13 b12 b11 b10 b09 b08
ACK bit (3)
VREF1
Vol.
Status
bits
1
PD1 PD0
G
NV Configuration
bits
A
0
0
b07 b06 b05 b04 b03 b02 b01 b00
ACK/NACK bit (4) Stop bit
A
b15 b14 b13 b12 b11 b10 b09 b08
A/N
0
NV Data bits (8 bits) (6th byte)
b07 b06 b05 b04 b03 b02 b01 b00
D11 D10 D09 D08 D07 D06 D05 D04 D03 D02 D01 D00
D09 D08 D07 D06 D05 D04 D03 D02 D01 D00 0
0
P
0/1
NV Data bits (8 bits) (7th byte)
Data bits (16 bits) (3rd + 4th bytes, and 6th + 7th bytes)
b15 b14 b13 b12 b11 b10 b09 b08 b07 b06 b05 b04 b03 b02 b01 b00
MCP4726
MCP4716
0
Vol. Data bits (8 bits) (4th byte)
ACK bit (3)
A
VREF0
ACK bit (3)
A
Vol. Data bits (8 bits) (3rd byte)
Vol. Configuration
bits
RDY POR
ACK bit (3)
0
0
0
0
0
0
Note 1
0
0
Note 1: The 2nd-7th bytes can be repeated after the 7th byte by continued clocking before issuing Stop bit.
2: ACK bit generated by MCP47X6.
3: ACK bit generated by I2C Master.
4: ACK/NACK bit generated by I2C Master.
Legend:
D11:D00 = 12-bit data for MCP4726 device
D09:D00 = 10-bit data for MCP4716 device
FIGURE 6-5:
DS22272C-page 54
Read Command Format for 12-bit DAC (MCP4726) and 10-bit DAC (MCP4716).
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
Read/Write bit (Read)
ACK bit (2)
Start bit
S
SDA
ACK bit (3)
R/W A
1
1
0
0 A2 A1 A0
1
0
VREF1
RDY POR
0
ACK bit (3)
A
VREF0
PD1 PD0
G
0
A
b07 b06 b05 b04 b03 b02 b01 b00
0
SCL
Device Addressing
Vol.
Status
bits
Vol. Configuration
bits
Vol. Data bits (8 bits) (3rd byte)
ACK/NACK bit (4) Stop bit
ACK bit (3)
VREF1
RDY POR
1
Vol.
Status
bits
A
VREF0
PD1 PD0
NV Configuration
bits
G
0
A/N
b07 b06 b05 b04 b03 b02 b01 b00
NV Data bits (8 bits) (5th byte)
Data bits (8 bits) (3rd and 5th bytes)
b07 b06 b05 b04 b03 b02 b01 b00
MCP4706
P
0/1
Note 1
D07 D06 D05 D04 D03 D02 D01 D00
Note 1: The 2nd-5th bytes can be repeated after the 5th byte by continued clocking before issuing Stop bit.
2: ACK bit generated by MCP47X6.
3: ACK bit generated by I2C™ master.
4: ACK/NACK bit generated by I2C™ master.
Legend:
D07:D00 = 8-bit data for MCP4706 device
FIGURE 6-6:
Read Command Format for 8-bit DAC (MCP4706).
© 2011-2012 Microchip Technology Inc.
DS22272C-page 55
MCP4706/4716/4726
6.6
I2C General Call Commands
6.6.1
GENERAL CALL RESET
The device performs General Call Reset if the second
byte is “00000110” (06h). At the acknowledgement of
this byte, the device will abort the current conversion
and perform the following tasks:
The device acknowledges the General Call Address
command (0x00 in the first byte). The meaning of the
general call address is always specified in the second
byte. The I2C specification does not allow “00000000”
(00h) in the second byte. Please refer to the Phillips I2C
document for more details on the General Call
specifications.
• Internal Reset similar to a Power-on Reset (POR).
The contents of the EEPROM are loaded into the
DAC registers and analog output is available
immediately.
• This is a similar event to the POR. The VOUT will
be available immediately, but after a short time
delay following the Acknowledgement pulse. The
VOUT value is determined by the EEPROM
contents.
The MCP47X6 devices support the following I2C
general calls:
• General Call Reset
• General Call Wake-Up
This command allows multiple MCP47X6 devices to be
reset synchronously.
Read/Write bit (Write)
ACK bit (3)
Start bit
S
R/W A
0
SDA
ACK bit (3)
0
0
0
0
0
0
0
0
A
0
0
0
0
0
1
1
0
Stop bit
P
0
SCL
General Call Address
General Call Reset Command
Note 1
Note 2
Note 1: At the falling edge of the SCL at the end of this ACK pulse a Reset occurs (start-up timer starts and DAC register
latched).
2: The 2nd byte can be repeated after the 2nd by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
FIGURE 6-7:
DS22272C-page 56
General Call Reset Command.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
6.6.2
GENERAL CALL WAKE-UP
This command does not adhere to the I2C
specification where if the LSb of the 2nd
byte is a ‘1’, it is a ‘Hardware General Call’
(see the NXP I2C Specification).
Note:
If the second byte is “00001001” (09h), the device
forces the volatile power-down bits to ‘00’. The
nonvolatile (EEPROM) power-down bit values are not
affected by this command.
This command allows multiple MCP47X6 devices to
wake-up synchronously.
Read/Write bit (Write)
ACK bit (3)
Start bit
S
SDA
ACK bit (3)
R/W A
0
0
0
0
0
0
0
0
0
A
0
0
0
0
1
0
0
1
Stop bit
P
0
SCL
General Call Address
General Call Wake-Up
Command
Note 1
Note 2
Note 1: At the falling edge of the SCL, at the end of this ACK pulse, the volatile PD1:PD0 bits are forced to ‘00’.
2: The 2nd byte can be repeated after the 2nd by continued clocking before issuing Stop bit.
3: ACK bit generated by MCP47X6.
FIGURE 6-8:
General Call Wake-Up Command.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 57
MCP4706/4716/4726
NOTES:
DS22272C-page 58
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
7.0
TERMINOLOGY
7.1
Resolution
The resolution is the number of DAC output states that
divide the full-scale range. For the 12-bit DAC, the
resolution is 212, meaning the DAC code ranges from 0
to 4095.
7.2
For a given output voltage range, which is typically the
voltage between the Full-Scale voltage and the ZeroScale voltage (VOUT(FS) - VOUT(ZS)), it is divided by the
resolution of the device (Equation 7-1).
EQUATION 7-1:
VLSb =
LSb VOLTAGE
CALCULATION
VOUT(FS) - VOUT(ZS)
2N - 1
2N = 4096 (MCP4726)
1024 (MCP4716)
256 (MCP4706)
The Zero-Scale error (see Figure 7-4) is the difference
between the ideal and measured VOUT voltage with the
volatile DAC register equal to 000h. The Zero-Scale
error is the same as the Offset error for this case
(volatile DAC register = 000h).
EQUATION 7-3:
ZSE =
ZERO-SCALE ERROR
VOUT(@ZS)
VLSb
Where:
FSE is expressed in LSb
VOUT(@ZS) is the VOUT voltage when the DAC
register code is at Zero-scale.
VLSb is the delta voltage of one DAC register code
step (such as code 000h to code 001h).
7.6
Offset Error
The Offset error (see Figure 7-1) is the deviation from
zero voltage output when the volatile DAC register
value = 000h (zero scale voltage). This error affects all
codes by the same amount. The Offset error can be
calibrated by software in application circuits.
Monotonicity
Normally this is thought of as the VOUT voltage never
decreasing, as the DAC register code is continuously
incremented by 1 code step (LSb).
7.4
Zero-Scale Error (ZSE)
Least Significant bit (LSb)
Normally this is thought of as the ideal voltage
difference between two successive codes. This bit has
the smallest value or weight of all bits in the register.
7.3
7.5
Actual Transfer Function
Analog
Output
Full-Scale Error (FSE)
The Full-Scale error (see Figure 7-4) is the sum of
Offset error plus Gain error. It is the difference between
the ideal and measured DAC output voltage with all bits
set to one (DAC input code = FFFh for 12-bit DAC).
EQUATION 7-2:
FSE =
Ideal Transfer Function
Offset
Error
(ZSE)
0
FIGURE 7-1:
DAC Input Code
Offset Error Example.
FULL-SCALE ERROR
VOUT(@FS) - VIDEAL(@FS)
VLSb
Where:
FSE is expressed in LSb
VOUT(@FS) is the VOUT voltage when the DAC
register code is at Full-scale.
VIDEAL(@FS) is the ideal output voltage when the
DAC register code is at Full-scale.
VLSb is the delta voltage of one DAC register code
step (such as code 000h to code 001h).
© 2011-2012 Microchip Technology Inc.
DS22272C-page 59
MCP4706/4716/4726
7.7
Integral Nonlinearity (INL)
The Integral Nonlinearity (INL) error is the maximum
deviation of an actual transfer function from an ideal
transfer function (straight line).
In the MCP47X6, INL is calculated using two end points
(zero and full scale). INL can be expressed as a percentage of full scale range (FSR) or in a fraction of an
LSb. INL is also called relative accuracy. Equation 7-4
shows how to calculate the INL error in LSb and
Figure 7-2 shows an example of INL accuracy.
EQUATION 7-4:
Where:
INL is expressed in LSb.
=
Code*LSb
VIdeal
=
Differential Nonlinearity (DNL)
The Differential Nonlinearity (DNL) error (see Figure 7-3)
is the measure of step size between codes in actual
transfer function. The ideal step size between codes is
1 LSb. A DNL error of zero would imply that every code
is exactly 1 LSb wide. If the DNL error is less than 1 LSb,
the DAC ensures monotonic output and no missing
codes. The DNL error between any two adjacent codes
is calculated as follows:
EQUATION 7-5:
INL ERROR
( V OUT – V Ideal )
INL = --------------------------------------LSb
VOUT
7.8
The output voltage measured with
a given DAC input code
DNL ERROR
ΔV OUT – LSb
DNL = ---------------------------------LSb
Where:
DNL is expressed in LSb.
ΔVOUT
=
The measured DAC output
voltage difference between two
adjacent input codes
7
7
DNL = 0.5 LSb
6
INL = < -1 LSb
6
5
INL = - 1 LSb
5
Analog 4
Output
(LSb) 3
DNL = 2 LSb
Analog 4
Output
(LSb) 3
INL = 0.5 LSb
2
2
1
1
0
000 001 010
0
000 001 010
011 100 101 110 111
DAC Input Code
Ideal Transfer Function
Actual Transfer Function
Ideal Transfer Function
Actual Transfer Function
FIGURE 7-2:
DS22272C-page 60
011 100 101 110 111
DAC Input Code
FIGURE 7-3:
DNL Accuracy Example.
INL Accuracy Example.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
7.9
Gain Error
7.10
The Gain error (see Figure 7-4) is the difference
between the actual full-scale output voltage from the
ideal output voltage of the DAC transfer curve. The
Gain error is calculated after nullifying the Offset error,
or Full-Scale error minus the Offset error.
The Gain error indicates how well the slope of the
actual transfer function matches the slope of the ideal
transfer function. The Gain error is usually expressed
as percent of full-scale range (% of FSR) or in LSb.
In the MCP4706/4716/4726, the Gain error is not
calibrated at the factory and most of the Gain error is
contributed by the output buffer (op amp) saturation
near the code range beyond 4000d. For the
applications that need the Gain error specification less
than 1% maximum, the user may consider using the
DAC code range between 100d and 4000d instead of
using full code range (code 0 to 4095d). The DAC
output of the code range between 100d and 4000d is
much more linear than full-scale range (0 to 4095d).
The Gain error can be calibrated out by software in the
application.
Actual Transfer Function
Full-Scale
Error
Gain Error
Analog
The Gain error drift is the variation in Gain error due to
a change in ambient temperature. The Gain error drift
is typically expressed in ppm/oC.
7.11
Actual Transfer Function
after Offset Error is removed
Zero-Scale
Error
0
FIGURE 7-4:
Error Example.
Ideal Transfer Function
DAC Input Code
Offset Error Drift
The Offset error drift is the variation in Offset error due
to a change in ambient temperature. The Offset error
drift is typically expressed in ppm/oC.
7.12
Settling Time
The Settling time is the time delay required for the VOUT
voltage to settle into its new output value. This time is
measured from the start of code transition, to when the
VOUT voltage is within the specified accuracy.
In the MCP47X6, the settling time is a measure of the
time delay until the VOUT voltage reaches within 0.5
LSb of its final value, when the volatile DAC register
changes from 400h to C00h.
7.13
Major-Code Transition Glitch
Major-code transition glitch is the impulse energy
injected into the DAC analog output when the code in
the DAC register changes state. It is normally specified
as the area of the glitch in nV-Sec, and is measured
when the digital code is changed by 1 LSb at the major
carry transition (Example: 011...111 to 100...
000, or 100... 000 to 011 ... 111).
7.14
Output
Gain Error Drift
Digital Feedthrough
The digital feedthrough is the glitch that appears at the
analog output caused by coupling from the digital input
pins of the device. The area of the glitch is expressed
in nV-Sec, and is measured with a full scale change
(Example: all 0s to all 1s and vice versa) on the digital
input pins. The digital feedthrough is measured when
the DAC is not being written to the output register.
Gain Error and Full-Scale
7.15
Power-Supply Rejection Ratio
(PSRR)
PSRR indicates how the output of the DAC is affected
by changes in the supply voltage. PSRR is the ratio of
the change in VOUT to a change in VDD for full-scale
output of the DAC. The VOUT is measured while the
VDD is varied +/- 10%, and expressed in dB or µV/V.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 61
MCP4706/4716/4726
NOTES:
DS22272C-page 62
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
TYPICAL APPLICATIONS
The MCP47X6 family of devices are general purpose,
single channel voltage output DACs for various
applications where a precision operation with
low-power and nonvolatile EEPROM memory is
needed.
Since the devices include a nonvolatile EEPROM
memory, the user can utilize these devices for
applications that require the output to return to the
previous set-up value on subsequent power-ups.
8.1.1
The user can test the presence of the device on the I2C
bus line using a simple I2C command. This test can be
achieved by checking an acknowledge response from
the device after sending a Read or Write command.
Figure 8-1 shows an example with a Read command.
The steps are:
a)
b)
Applications generally suited for the devices are:
•
•
•
•
Set Point or Offset Trimming
Sensor Calibration
Portable Instrumentation (Battery Powered)
Motor Control
8.1
Connecting to I2C BUS using
Pull-Up Resistors
The SCL and SDA pins of the MCP47X6 devices are
open-drain configurations. These pins require a pull-up
resistor as shown in Figure 8-2.
The pull-up resistor values (R1 and R2) for SCL and
SDA pins depend on the operating speed (standard,
fast, and high speed) and loading capacitance of the
I2C bus line. A higher value of the pull-up resistor
consumes less power, but increases the signal
transition time (higher RC time constant) on the bus
line. Therefore, it can limit the bus operating speed.
The lower resistor value, on the other hand, consumes
higher power, but allows higher operating speed. If the
bus line has higher capacitance due to long metal
traces or multiple device connections to the bus line, a
smaller pull-up resistor is needed to compensate the
long RC time constant. The pull-up resistor is typically
chosen between 1 kΩ and 10 kΩ ranges for Standard
and Fast modes, and less than 1 kΩ for High-Speed
mode.
© 2011-2012 Microchip Technology Inc.
DEVICE CONNECTION TEST
c)
Set the R/W bit “High” in the device’s address
byte.
Check the ACK bit of the address byte.
If the device acknowledges (ACK = 0) the
command, then the device is connected,
otherwise it is not connected.
Send Stop bit.
Address Byte
SCL
1
2
SDA
1
1 0
Start
Bit
3
4
5
6
7
8
1 A2 A1 A0 1
9
ACK
8.0
Stop
Bit
Device Code Address bits
R/W
Device
Response
FIGURE 8-1:
I2C Bus Connection Test.
DS22272C-page 63
MCP4706/4716/4726
Power Supply Considerations
VDD
The power source should be as clean as possible. The
power supply to the device is also used for the DAC
voltage reference internally if the internal VDD is
selected as the resistor ladder’s reference voltage
(VREF1:VREF0 = 00 or 01).
Analog
C3 Output
VOUT 1
VSS
VDD
2
3
MCP47X6
Any noise induced on the VDD line can affect the DAC
performance. Typical applications will require a bypass
capacitor in order to filter out high-frequency noise on
the VDD line. The noise can be induced onto the power
supply’s traces or as a result of changes on the DAC
output. The bypass capacitor helps to minimize the
effect of these noise sources on signal integrity.
Figure 8-2 shows an example of using two bypass
capacitors (a 10 µF tantalum capacitor and a 0.1 µF
ceramic capacitor) in parallel on the VDD line. These
capacitors should be placed as close to the VDD pin as
possible (within 4 mm). If the application circuit has
separate digital and analog power supplies, the VDD
and VSS pins of the device should reside on the analog
plane.
Optional
6 VREF
5
4
R1 R2
SCL
To MCU
SDA
C1 C2
(a) Circuit when VDD is selected as reference
(Note: VDD is connected to the reference circuit internally.)
VDD
Optional
Optional
Analog
C3 Output
VOUT 1
VSS 2
VDD
3
MCP47X6
8.2
VREF
C4 C5
6 VREF
5
4
SCL
R1 R2
To MCU
SDA
C1 C2
(b) Circuit when external reference is used.
R1 and R2 are I2C™ pull-up resistors:
R1 and R2:
5 kΩ - 10 kΩ for fSCL = 100 kHz to 400 kHz
~700Ω for fSCL = 3.4 MHz
C1:
0.1 µF capacitor
Ceramic
C2:
10 µF capacitor
Tantalum
C3:
~ 0.1 µF
Optional to reduce noise
in VOUT pin.
C4:
0.1 µF capacitor
Ceramic
C5:
10 µF capacitor
Tantalum
Note: Pin assignment is opposite in DFN-6 package.
FIGURE 8-2:
Example MCP47X6 Circuit
with SOT-23 package.
DS22272C-page 64
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
8.3
Application Examples
The MCP47X6 devices are rail-to-rail output DACs
designed to operate with a VDD range of 2.7V to 5.5V.
The internal output op amplifier is robust enough to
drive common, small-signal loads directly, thus
eliminating the cost and size of external buffers for
most applications. The user can use gain of 1 or 2 of
the output op amplifier by setting the Configuration
register bits. Also, the user can use internal VDD as the
reference or use external reference. Various user
options and easy-to-use features make the devices
suitable for various modern DAC applications.
Application examples include:
•
•
•
•
•
•
•
•
•
•
Decreasing Output Step Size
Building a “Window” DAC
Bipolar Operation
Selectable Gain and Offset Bipolar Voltage Output
Designing a Double-Precision DAC
Building Programmable Current Source
Serial Interface Communication Times
Software I2C Interface Reset Sequence
Power Supply Considerations
Layout Considerations
8.3.1
DC SET POINT OR CALIBRATION
A common application for the devices is a
digitally-controlled set point and/or calibration of
variable parameters, such as sensor offset or slope.
For example, the MCP4726 provides 4096 output
steps. If voltage reference is 4.096V, the LSb size is
1 mV. If a smaller output step size is desired, a lower
external voltage reference is needed.
8.3.1.1
Decreasing Output Step Size
If the application is calibrating the bias voltage of a
diode or transistor, a bias voltage range of 0.8V may be
desired with about 200 µV resolution per step. Two
common methods to achieve small step size are using
lower VREF pin voltage or using a voltage divider on the
DAC’s output.
Using an external voltage reference (VREF) is an
option, if the external reference is available with the
desired output voltage range. However, occasionally,
when using a low-voltage reference voltage, the noise
floor causes a SNR error that is intolerable. Using a
voltage divider method is another option, and provides
some advantages when external voltage reference
needs to be very low, or when the desired output
voltage is not available. In this case, a larger value
reference voltage is used, while two resistors scale the
output range down to the precise desired level.
Figure 8-3 illustrates this concept. A bypass capacitor
on the output of the voltage divider plays a critical
function in attenuating the output noise of the DAC and
the induced noise from the environment.
VDD
Optional
VREF VDD
RSENSE
VCC+
R1
MCP47X6
VTRIP Comp.
VO
C1
R2
I2C™
VOUT
VCC–
2-wire
FIGURE 8-3:
Example Circuit Of Set Point
or Threshold Calibration.
EQUATION 8-1:
VOUT AND VTRIP
CALCULATIONS
VOUT = VREF • G •
DAC Register Value
2N
⎛ R2 ⎞
V trip = V OUT ⎜ --------------------⎟
⎝ R 1 + R 2⎠
© 2011-2012 Microchip Technology Inc.
DS22272C-page 65
MCP4706/4716/4726
8.3.1.2
Building a “Window” DAC
8.4
When calibrating a set point or threshold of a sensor,
typically only a small portion of the DAC output range is
utilized. If the LSb size is adequate enough to meet the
application’s accuracy needs, the unused range is
sacrificed without consequences. If greater accuracy is
needed, then the output range will need to be reduced
to increase the resolution around the desired threshold.
If the threshold is not near VREF, 2 • VREF, or VSS, then
creating a “window” around the threshold has several
advantages. One simple method to create this “window”
is to use a voltage divider network with a pull-up and
pull-down resistor. Figure 8-4 and Figure 8-6 illustrate
this concept.
Bipolar Operation
Bipolar operation is achievable by utilizing an external
operational amplifier. This configuration is desirable
due to the wide variety and availability of op amps. This
allows a general purpose DAC, with its cost and
availability advantages, to meet almost any desired
output voltage range, power and noise performance.
Figure 8-5 illustrates a simple bipolar voltage source
configuration. R1 and R2 allow the gain to be selected,
while R3 and R4 shift the DAC's output to a selected
offset. Note that R4 can be tied to VDD, instead of VSS,
if a higher offset is desired.
Optional
VREF VDD
VCC+
Optional
VREF VDD
VCC+
RSENSE
MCP47X6
VCC+
R1
MCP47X6
R3
R3
VTRIP Comp.
VOUT
I2C™
2-wire
C1
R2
VOA+
VOUT
C1
R4
VO
VO
I2C™
VCC–
2-wire
VCC–
R2
VIN
R1
VCC–
FIGURE 8-4:
DAC.
Single-Supply “Window”
FIGURE 8-5:
Digitally-Controlled Bipolar
Voltage Source Example Circuit.
EQUATION 8-2:
VOUT AND VTRIP
CALCULATIONS
EQUATION 8-3:
VOUT = VREF • G •
DAC Register Value
VOUT = VREF • G •
2N
V OUT R23 + V 23 R1
V TRIP = --------------------------------------------R 1 + R23
Thevenin
Equivalent
VOUT, VOA+, AND VO
CALCULATIONS
VOA+ =
R2R3
R23 = ------------------R2 + R3
DAC Register Value
VOUT • R4
R3 + R4
VO = VOA+ • ( 1 +
( VCC+ R2 ) + ( V CC- R 3 )
V23 = -----------------------------------------------------R 2 + R3
2N
R2
R1
) - VDD • (
R2
R1
)
R1
VOUT
VTRIP
R23
V23
DS22272C-page 66
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
8.5
Selectable Gain and Offset Bipolar
Voltage Output
In some applications, precision digital control of the
output range is desirable. Figure 8-6 illustrates how to
use the DAC devices to achieve this in a bipolar or
single-supply application.
This circuit is typically used for linearizing a sensor
whose slope and offset varies.
The equation to design a bipolar “window” DAC would
be utilized if R3, R4 and R5 are populated.
8.5.1
BIPOLAR DAC EXAMPLE USING
MCP4726
Optional
VCC+
Optional
VREF VDD
R5
MCP4726
I2C™
2-wire
Since 212 = 4096, 12-bit resolution is desired.
Step 3: The amplifier gain (R2/R1), multiplied by
full-scale VOUT (4.096V), must be equal to the
desired minimum output to achieve bipolar
operation. Since any gain can be realized by
choosing resistor values (R1+R2), the VREF value
must be selected first. If a VREF of 4.096V is used,
solve for the amplifier’s gain by setting the DAC to
0, knowing that the output needs to be -2.05V.
The equation can be simplified to:
– R2
– 2.05
--------- = ----------------R1
4.096V
R2
VIN
R1
C1 = 0.1 µF
FIGURE 8-6:
Bipolar Voltage Source with
Selectable Gain and Offset.
EQUATION 8-4:
VOUT, VOA+, AND VO
CALCULATIONS
VOUT = VREF • G •
VOA+ =
DAC Register Value
R4
2
2.05V + ( 0.5 ⋅ 4.096V )
------------------------ = ------------------------------------------------------- = --( R3 + R 4 )
1.5 ⋅ 4.096V
3
If R4 = 20 kΩ, then R3 = 10 kΩ
2N
VOUT • R4 + VCC- • R5
R3 + R4
R2
1
------ = --R1
2
Step 4: Next, solve for R3 and R4 by setting the DAC to
4096, knowing that the output needs to be +2.05V.
VCC–
VCC–
VO = VOA+ • ( 1 +
If R1 = 20 kΩ and R2 = 10 kΩ, the gain will be 0.5.
VOUT
C1
R4
Step 1: Calculate the range: +2.05V – (-2.05V) = 4.1V.
4.1V/1 mV = 4100
VOA+
VO
An output step size of 1 mV, with an output range of
±2.05V, is desired for a particular application.
Step 2: Calculate the resolution needed:
VCC+
R3
R2
R1
) - VIN • (
Offset Adjust
EQUATION 8-5:
Thevenin
Equivalent
R2
R1
)
Gain Adjust
BIPOLAR “WINDOW” DAC
USING R4 AND R5
V CC+ R 4 + VCC- R5
V 45 = --------------------------------------------R 4 + R5
VOUT R 45 + V 45 R 3
VIN+ = --------------------------------------------R3 + R 45
R4R5
R45 = ------------------R4 + R5
R2
R2
V O = V IN+ ⎛⎝ 1 + ------⎞⎠ – V A ⎛⎝ ------⎞⎠
R1
R1
Offset Adjust Gain Adjust
© 2011-2012 Microchip Technology Inc.
DS22272C-page 67
MCP4706/4716/4726
8.6
Designing a Double-Precision
DAC
8.7
Building Programmable Current
Source
Figure 8-7 shows an example design of a single-supply
voltage output capable of up to 24-bit resolution. This
requires two 12-bit DACs. This design is simply a
voltage divider with a buffered output.
Figure 8-8 shows an example of building a
programmable current source using a voltage follower.
The current sensor resistor is used to convert the DAC
voltage output into a digitally-selectable current source.
As an example, if a similar application to the one
developed in Section 8.5.1 “Bipolar DAC Example
Using MCP4726” required a resolution of 1 µV instead
of 1 mV, and a range of 0V to 4.1V, then 12-bit
resolution would not be adequate.
The smaller RSENSE is, the less power dissipated
across it. However, this also reduces the resolution that
the current can be controlled.
Step 1: Calculate the resolution needed:
VDD
(or VREF)
Optional
4.1V/1 µV = 4.1 x 106. Since 222 = 4.2 x 106,
22-bit
resolution
is
desired.
Since
DNL = ±0.75 LSb, this design can be attempted
with the 12-bit DAC.
Step 2: Since DACB’s VOUTB has a resolution of 1 mV,
its output only needs to be “pulled” 1/1000 to meet
the 1 µV target. Dividing VOUTA by 1000 would
allow the application to compensate for DACB’s
DNL error.
Step 3: If R2 is 100Ω, then R1 needs to be 100 kΩ.
Step 4: The resulting transfer function is shown in the
equation of Example 8-6.
VREF
VDD
Load
VCC+
VOUT
IL
MCP47X6
Ib
VCC–
I2C™
2-wire
IL
Ib = ----
RSENSE
β
V OUT
β
I L = --------------- × ------------R sense β + 1
where β = Common-Emitter Current Gain.
Optional
VDD
VREF
MCP4726 (A)
FIGURE 8-8:
Source.
VOA
R1
I2C™
2-wire
Digitally-Controlled Current
VCC+
VOUT
Optional
VREF
VDD
0.1 µF
R2
MCP4726 (B)
VCC–
VOB
I2C™
2-wire
FIGURE 8-7:
Simple Double Precision
DAC using MCP4726.
EQUATION 8-6:
VOUT =
VOUT CALCULATION
VOA * R2 + VOB * R1
R1 + R2
Where:
VOA = (VREF * G * DAC A Register Value)/4096
VOB = (VREF * G * DAC B Register Value)/4096
G = Selected Op Amp Gain
DS22272C-page 68
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
8.8
Serial Interface Communication
Times
Table 8-1 shows time/frequency of the supported
operations of the I2C serial interface for the different
serial interface operational frequencies. This, along
with the VOUT output performance (such as slew rate),
would be used to determine your application’s volatile
DAC register update rate.
TABLE 8-1:
SERIAL INTERFACE TIMES / FREQUENCIES
Command
Code
C2 C1 C0
Function
# of
Serial
Interface Bits
Writes Volatile
Memory?
Writes EEPROM
Memory?
Config.
DAC
Config.
DAC
(2)
100
kHz
400k
Hz
3.4
MHz
100
kHz
400
kHz
3.4
MHz
Yes(1)
Yes
No
No
29
290
72.5
8.5
3.4
13.8
117.2
Command Time (uS)
Command Frequency
(kHz)
0
0
X
Write
Volatile DAC
0
1
0
Write
Volatile
Memory
Yes
Yes
No
No
38
380
95
11.2
2.6
10.5
89.5
0
1
1
Write All
Memory
Yes
Yes
Yes
Yes
38
380
95
11.2
2.6
10.5
89.5
1
0
0
Write NV
Configuration Bits
Yes
No
No
No
20
200
50
5.9
5.0
20.0
170.0
Read
N/A
N/A
N/A
N/A
77
750
187.5
22.1
1.3
5.3
45.3
N/A
Note 1:
2:
Only the volatile PD1:PD0 bits of the Configuration bits are written.
Includes the Start or Stop bits.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 69
MCP4706/4716/4726
Software I2C Interface Reset
Sequence
8.9
Note:
This technique is documented in AN1028.
At times, it may become necessary to perform a
Software Reset Sequence to ensure the MCP47X6
device is in a correct and known I2C interface state.
This technique only resets the I2C state machine.
This is useful if the MCP47X6 device powers up in an
incorrect state (due to excessive bus noise, etc), or if
the master device is reset during communication.
Figure 8-9 shows the communication sequence to
software reset the device.
S
‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’
Start
bit
S
P
Nine bits of ‘1’
Start bit
Stop bit
FIGURE 8-9:
Format.
Software Reset Sequence
The 1st Start bit will cause the device to reset from a
state in which it is expecting to receive data from the
master device. In this mode, the device is monitoring
the data bus in Receive mode and can detect if the
Start bit forces an internal Reset.
DS22272C-page 70
The nine bits of ‘1’ are used to force a Reset of those
devices that could not be reset by the previous Start bit.
This occurs only if the MCP47X6 is driving an A bit on
the I2C bus, or is in Output mode (from a Read
command) and is driving a data bit of ‘0’ onto the I2C
bus. In both of these cases, the previous Start bit could
not be generated due to the MCP47X6 holding the bus
low. By sending out nine ‘1’ bits, it is ensured that the
device will see an A bit (the master device does not
drive the I2C bus low to acknowledge the data sent by
the MCP47X6), which also forces the MCP47X6 to
reset.
The 2nd Start bit is sent to address the rare possibility
of an erroneous write. This could occur if the master
device was reset while sending a Write command to the
MCP47X6, AND then as the master device returns to
normal operation and issues a Start condition, while the
MCP47X6 is issuing an acknowledge. In this case, if
the 2nd Start bit is not sent (and the Stop bit was sent)
the MCP47X6 could initiate a write cycle.
Note:
The potential for this erroneous write
ONLY occurs if the master device is reset
while sending a Write command to the
MCP47X6.
The Stop bit terminates the current I2C bus activity. The
MCP47X6 waits to detect the next Start condition.
This sequence does not effect any other I2C devices
which may be on the bus, as they should disregard this
as an invalid command.
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
8.10.2
• Power Supply Considerations
• Layout Considerations
8.10.1
The typical application will require a bypass capacitor
in order to filter high-frequency noise, which can be
induced onto the power supply's traces. The bypass
capacitor helps to minimize the effect of these noise
sources on signal integrity. Figure 8-10 illustrates an
appropriate bypass strategy.
In this example, the recommended bypass capacitor
value is 0.1 µF. This capacitor should be placed as
close (within 4 mm) to the device power pin (VDD) as
possible.
The power source supplying these devices should be
as clean as possible. If the application circuit has
separate digital and analog power supplies, VDD and
VSS should reside on the analog plane.
VDD
0.1 µF
VDD
0.1 µF
Noise
Inductively-coupled AC transients and digital switching
noise can degrade the input and output signal integrity,
potentially masking the MCP47X6’s performance.
Careful board layout minimizes these effects and
increases the Signal-to-Noise Ratio (SNR). Multi-layer
boards utilizing a low-inductance ground plane,
isolated inputs, isolated outputs and proper decoupling
are critical to achieving the performance that the silicon
is capable of providing. Particularly harsh
environments may require shielding of critical signals.
Separate digital and analog ground planes are
recommended. In this case, the VSS pin and the ground
pins of the VDD capacitors should be terminated to the
analog ground plane.
Note:
Breadboards and wire-wrapped boards
are not recommended.
8.10.2.2
PCB Area Requirements
In some applications, PCB area is a criteria for device
selection. Table 8-2 shows the typical package
dimensions and area for the different package options.
The table also shows the relative area factor compared
to the smallest area. For space critical applications, the
DFN package would be the suggested package.
PACKAGE FOOTPRINT (1)
SCL
SDA
PIC® Microcontroller
TABLE 8-2:
MCP47X6
VOUT
• Noise
• PCB Area Requirements
8.10.2.1
POWER SUPPLY
CONSIDERATIONS
VREF
Several layout considerations may be applicable to
your application. These may include:
Package
Package Footprint
Relative Area
In the design of a system with the MCP4706/4716/4726
devices, the following considerations should be taken
into account:
LAYOUT CONSIDERATIONS
Area (mm2)
Design Considerations
Pins
8.10
CH
2.90
2.70
7.83
1.96
MAY
2.00
2.00
4.00
1
Dimensions
(mm)
Type
Code
Length Width
6
6
SOT-23
DFN
Note 1: Does not include recommended land
pattern dimensions. Dimensions are
typical values.
VSS
FIGURE 8-10:
Connections.
VSS
Typical Microcontroller
© 2011-2012 Microchip Technology Inc.
DS22272C-page 71
MCP4706/4716/4726
NOTES:
DS22272C-page 72
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
9.0
DEVELOPMENT SUPPORT
Development support can be classified into two groups.
These are:
• Development Tools
• Technical Documentation
9.1
Development Tools
Several development tools are available to assist in
your design and evaluation of the MCP47X6 devices.
The currently available tools are shown in Table 9-1.
These boards may be purchased directly from the
Microchip web site at www.microchip.com.
9.1.1
Explorer 16
MCP47X6 PICtail™ Plus
Development Board
Daughter Board
inserted into PICtail™ Connector
MCP47X6 PICtail™ PLUS
DAUGHTER BOARD
The MCP47X6 PICtail™ Plus Daughter Board (order
number: ADM00317) is available from Microchip
Technology Inc. This board works with Microchip’s
PICkit™ Serial Analyzer and PIC® Explorer 16
Development Board. The firmware example is also
available for the Explorer 16 Development Board with
PIC24FJ128.
FIGURE 9-1:
MCP47X6 PICtail™ Plus
Daughter Board with PIC® Explorer 16
Development Board.
MCP47X6 PICtail™ Plus Daughter Board
Figure 9-1 shows the MCP47X6 PICtail™ Plus
Daughter Board being used with a PIC® Explorer 16
Development Board (order number: ADM00317), while
Figure 9-2 shows the MCP47X6 PICtail™ Plus
Daughter Board being used with a PICkit™ Serial
Analyzer. The PICkit™ Serial Analyzer allows the user
to quickly evaluate the DAC operation. Refer to the
“MCP47X6 PICtail™ Plus Daughter Board User’s
Guide” (DS51932) for detailed descriptions on
operating the daughter board.
Refer to www.microchip.com for further information on
this product and related material for the users.
FIGURE 9-2:
MCP47X6 PICtail™ Plus
Daughter Board with PICkit™ Serial Analyzer.
TABLE 9-1:
DEVELOPMENT TOOLS
Board Name
Part #
SC70-6 and SOT-23-6/8 to DIP-8 Evaluation Board
SC70EV
MCP47X6 PICtail™ Plus Daughter Board Evaluation ADM00317
Board(1, 2)
Supported Devices
MCP4706, MCP4716, MCP4726
MCP47X6
Note 1: Requires a PICDEM™ Demo board. See the User’s Guide for additional information and requirements.
2: Requires a PICkit™ Serial Analyzer. See the User’s Guide for additional information and requirements.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 73
MCP4706/4716/4726
9.2
Technical Documentation
Several additional technical documents are available to
assist you in your design and development. These
technical documents include Application Notes,
Technical Briefs, and Design Guides. Table 9-2 shows
some of these documents.
TABLE 9-2:
Application
Note Number
TECHNICAL DOCUMENTATION
Title
Literature #
AN1326
Using the MCP4728 12-Bit DAC for LDMOS Amplifier Bias Control Applications
DS01326
—
Signal Chain Design Guide
DS21825
—
Analog Solutions for Automotive Applications Design Guide
DS01005
DS22272C-page 74
© 2011-2012 Microchip Technology Inc.
MCP4706/4716/4726
10.0
PACKAGING INFORMATION
10.1
Package Marking Information
6-Lead SOT-23
Example
XXNN
DC25
PIN 1
PIN 1
Address
Option
Code
MCP4706A0T-E/CH MCP4716A0T-E/CH MCP4726A0T-E/CH
A0 (00)
DBNN
DFNN
DKNN
A1 (01)
DCNN
DGNN
DLNN
A2 (10)
DDNN
DHNN
DMNN
A3 (11)
DENN
DJNN
DPNN
6-Lead DFN (2x2x0.9 mm)
Example
AAB
256
Address
Option
Code
MCP4706A0T-E/MAY
MCP4716A0T-E/MAY
A0 (00)
AAA
AAE
AAP
MCP4726A0T-E/MAY
A1 (01)
AAB
AAF
AAQ
A2 (10)
AAC
AAG
AAR
A3 (11)
AAD
AAH
AAS
Legend: XX...X
Y
YY
WW
NNN
e3
*
Note:
Customer-specific information
Year code (last digit of calendar year)
Year code (last 2 digits of calendar year)
Week code (week of January 1 is week ‘01’)
Alphanumeric traceability code
Pb-free JEDEC designator for Matte Tin (Sn)
This package is Pb-free. The Pb-free JEDEC designator ( e3 )
can be found on the outer packaging for this package.
In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for customer-specific information.
© 2011-2012 Microchip Technology Inc.
DS22272C-page 75
MCP4706/4716/4726
/$
!$%
$
0
" . !1
!
!
$
2 0
& $ $
" $
$$
,33...
3
0
b
4
N
E
E1
PIN 1 ID BY
LASER MARK
1
2
3
e
e1
D
A
A2
c
φ
L
A1
L1
4$!
!5 $!
6% 9
&2!
55 ##
6
6
67
8
2$
)*+
7%$!"
5
"2$
*+
7-
:
$
;
"
"2 0
0
!!
工商网监
湘ICP备2023018690号
