AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
AM26LV31E Low-Voltage High-Speed Quadruple Differential Line Driver
With ±15-kV IEC ESD Protection
1 Features
3 Description
•
The AM26LV31E is a quadruple differential line driver
with 3-state outputs. This driver has ±15-kV ESD
(HBM and IEC61000-4-2, Air-Gap Discharge) and
±8-kV ESD (IEC61000-4-2, Contact Discharge)
protection. This device is designed to meet
TIA/EIA-422-B and ITU Recommendation V.11
drivers with reduced supply voltage.
1
•
•
•
•
•
•
•
•
•
•
•
•
•
Meets or Exceeds Standards TIA/EIA-422-B and
ITU Recommendation V.11
Operates From a Single 3.3-V Power Supply
ESD Protection for RS422 Bus Pins
– ±15-kV Human-Body Model (HBM)
– ±8-kV IEC61000-4-2, Contact Discharge
– ±15-kV IEC61000-4-2, Air-Gap Discharge
Switching Rates Up to 32 MHz
Propagation Delay Time: 8 ns Typical
Pulse Skew Time: 500 ps Typical
High Output-Drive Current: ±30 mA
Controlled Rise and Fall Times: 5 ns Typical
Differential Output Voltage With 100-Ω
Load: 2.6 V Typical
Accepts 5-V Logic Inputs With 3.3-V Supply
Ioff Supports Partial-Power-Down Mode Operation
Driver Output Short-Protection Circuit
Glitch-Free Power-Up and Power-Down Protection
Package Options: SO, SOIC, TSSOP, VQFN
The AM26LV31EI is characterized for operation from
–40°C to +85°C.
Device Information(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
AM26LV31EID
SOIC (16)
9.90 mm × 3.91 mm
AM26LV31EINS
SO (16)
10.30 mm × 5.30 mm

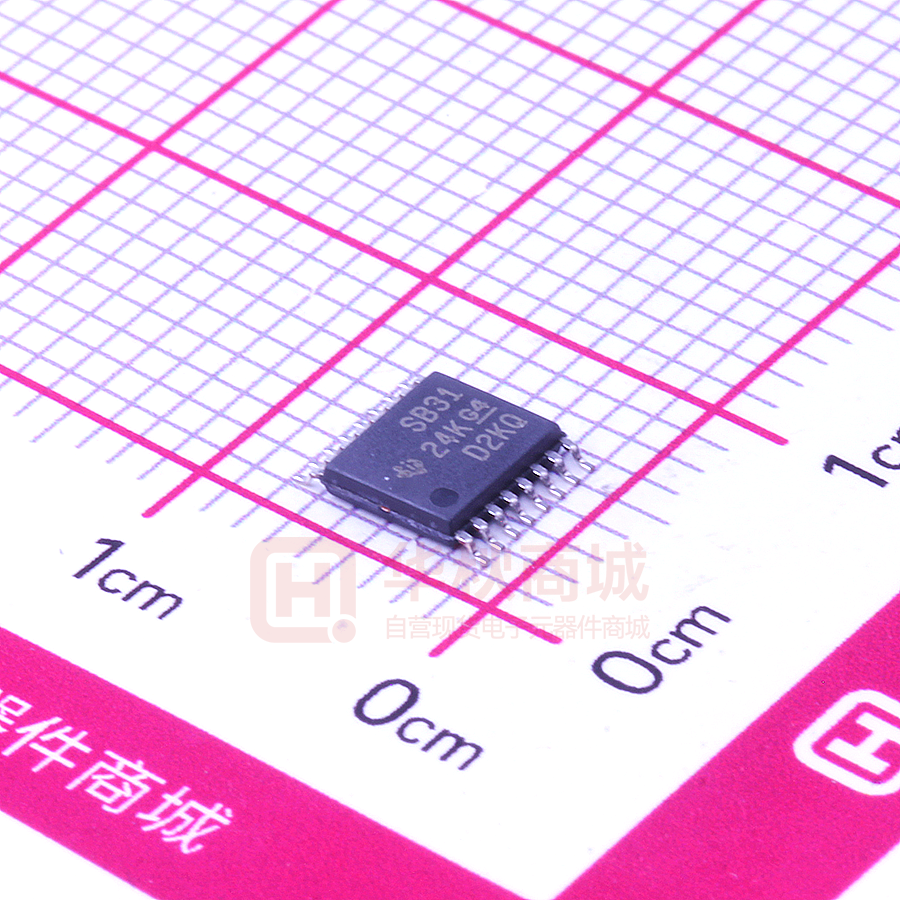

AM26LV31EIPW
TSSOP (16)
5.00 mm × 4.40 mm
AM26LV31EIRGY
VQFN (16)
4.00 mm × 3.50 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
2 Applications
•
•
•
•
•
The device is optimized for balanced-bus
transmission at switching rates up to 32 MHz. The
outputs have high current capability for driving
balanced lines, such as twisted-pair transmission
lines, and provide a high impedance in the power-off
condition.
Motor Drives
Space Avionics and Defense
Medical Healthcare and Fitness
Wireless Infrastructure
Factory Automation and Control
Logic Diagram
G
G
1A
2A
3A
4A
4
12
1
2
3
7
6
5
9
10
11
15
14
13
1Y
1Z
2Y
2Z
3Y
3Z
4Y
4Z
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
6.7
4
4
4
5
5
6
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Parameter Measurement Information .................. 7
Detailed Description ............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 11
9
Application and Implementation ........................ 12
9.1 Application Information............................................ 12
9.2 Typical Application .................................................. 12
10 Power Supply Recommendations ..................... 14
11 Layout................................................................... 14
11.1 Layout Guidelines ................................................. 14
11.2 Layout Example .................................................... 14
12 Device and Documentation Support ................. 15
12.1
12.2
12.3
12.4
12.5
12.6
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resource............................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
15
15
15
15
15
15
13 Mechanical, Packaging, and Orderable
Information ........................................................... 15
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (May 2008) to Revision B
Page
•
Added Applications section, Thermal Information table, Feature Description section, Device Functional Modes,
Application and Implementation section, Power Supply Recommendations section, Layout section, Device and
Documentation Support section, and Mechanical, Packaging, and Orderable Information section ..................................... 1
•
Deleted Ordering Information table, see Mechanical, Packaging, and Orderable Information at the end of the datasheet.. 1
•
Changed ESD PROTECTION to ESD Ratings table ............................................................................................................. 4
•
Changed RθJA for PW package from 108°C/W: to 99.5°C/W ................................................................................................. 5
•
Changed RθJA for NS package from 64°C/W: to 74.5°C/W .................................................................................................... 5
•
Changed RθJA for RGY package from 39°C/W: to 39.3°C/W ................................................................................................. 5
2
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
5 Pin Configuration and Functions
D, NS, or PW Package
16-Pin SOIC, SO, TSSOP
Top View
2
15
4A
1Z
3
14
4Y
G
4
13
4Z
2Z
5
12
G
2Y
6
11
3Z
2A
7
10
3Y
GND
8
9
3A
VCC
1Y
16
VCC
1Y
2
15
4A
1Z
3
14
4Y
G
4
13
4Z
Thermal
Pad
2Z
5
12
G
2Y
6
11
3Z
2A
7
10
3Y
9
16
1A
1
8
1A
1
RGY Package
16-Pin VQFN With Thermal Pad
Top View
3A
GND
Not to scale
Not to scale
Pin Functions
PIN
NAME
SOIC, SO,
TSSOP, VQFN
I/O
DESCRIPTION
1A
1
I
Logic data input to RS422 driver 1
1Y
2
O
RS-422 data line for driver 1
1Z
3
O
RS-422 data line for driver 1
2A
7
I
Logic data input to RS422 driver 2
2Y
6
O
RS-422 data line for driver 2
2Z
5
O
RS-422 data line for driver 2
3A
9
I
Logic data input to RS422 driver 3
3Y
10
O
RS-422 data line for driver 3
3Z
11
O
RS-422 data line for driver 3
4A
15
I
Logic data input to RS422 driver 4
4Y
14
O
RS-422 data line for driver 4
4Z
13
O
RS-422 data line for driver 4
G
4
I
Driver enable (active high)
G
12
I
Driver enable (active low)
GND
8
—
Device ground pin
VCC
16
—
Power input (5 V)
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
3
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VCC
Supply voltage (2)
–0.5
6
V
VI
Input voltage
–0.5
6
V
VO
Output voltage
–0.5
6
V
IIK
Input clamp current
VI < 0
–20
mA
IOK
Output clamp current
VO < 0
–20
mA
lO
Continuous output current
±150
mA
Continuous current through VCC or GND
±200
mA
TJ
Operating virtual junction temperature
150
°C
TA
Operating free-air temperature
–40
85
°C
Tstg
Storage temperature
–65
150
°C
(1)
(2)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values except differential input voltage are with respect to the network GND.
6.2 ESD Ratings
VALUE
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
V(ESD)
(1)
(2)
Electrostatic
discharge
Bus pins 2, 3, 5, 6, 10, 11, 13, and 14
±15000
All pins except 2, 3, 5, 6, 10, 11, 13, and 14
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±1000
IEC 61000-4-2 contact discharge
Bus pins 2, 3, 5, 6, 10, 11, 13, and 14
±8000
IEC 61000-4-2 air-gap discharge
Bus pins 2, 3, 5, 6, 10, 11, 13, and 14
±15000
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
MIN
NOM
MAX
UNIT
3.3
3.6
V
5.5
V
VCC
Supply voltage
3
VI
Input voltage
0
VIH
High-level input voltage
2
VIL
Low-level input voltage
0.8
V
IOH
High-level output current
–30
mA
IOL
Low-level output current
30
mA
TA
Operating free-air temperature
85
°C
4
–40
Submit Documentation Feedback
V
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
6.4 Thermal Information
AM26LV31E
THERMAL METRIC (1)
D (SOIC)
PW (TSSOP)
NS (SO)
RGY (VQFN)
UNIT
16 PINS
16 PINS
16 PINS
16 PINS
RθJA
Junction-to-ambient thermal resistance
73.0
99.5
74.5
39.3
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
32.8
34.9
31.6
31.9
°C/W
RθJB
Junction-to-board thermal resistance
31.0
44.4
35.3
14.8
°C/W
ψJT
Junction-to-top characterization parameter
5.1
2.4
5.3
0.4
°C/W
ψJB
Junction-to-board characterization parameter
30.7
43.8
35.0
14.8
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
n/a
n/a
3.4
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
6.5 Electrical Characteristics
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP (1)
2.4
3
VOH
High-level output voltage
VIH = 2 V, VIL = 0.8 V, IOH = –20 mA
VOL
Low-level output voltage
VIH = 2 V, VIL = 0.8 V, IOL = 20 mA
|VOD1|
Differential output voltage
IO = 0 mA
2
|VOD2|
Differential output voltage
RL = 100 Ω (see Figure 3)
2
Δ|VOD|
Change in magnitude of
differential output voltage
RL = 100 Ω (see Figure 3)
VOC
Common-mode output voltage
RL = 100 Ω (see Figure 3)
Δ|VOC|
Change in magnitude of
common-mode output voltage
IO(OFF)
IOZ
MAX
UNIT
V
0.2
0.4
V
4
V
2.6
V
±0.4
V
2
V
RL = 100 Ω (see Figure 3)
±0.4
V
Output current with power off
VCC = 0, VO = –0.25 V or 5.5 V
±100
μA
High-impedance state output current
VO = –0.25 V or 5.5 V, G = 0.8 V or G = 2 V
±100
μA
II
Input current
VCC = 0 or 3.6 V, VI = 0 or 5.5 V
IOS
Short-circuit output current
VO = VCC or GND (2)
ICC
Supply current (total package)
VI = VCC or GND, No load, enable
Cpd
Power dissipation capacitance
No load (3)
(1)
(2)
(3)
1.5
–30
±10
μA
–150
mA
100
μA
160
pF
All typical values are at VCC = 3.3 V, TA = 25°C.
Not more than one output should be shorted at a time, and the duration of the short circuit should not exceed one second.
Cpd determines the no-load dynamic current consumption. IS = Cpd × VCC × f + ICC
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
5
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
6.6 Switching Characteristics
over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP (1)
MAX
4
8
12
ns
4
8
12
ns
UNIT
tPHL
Propagation delay time, high- to low-level output
tPLH
Propagation delay time, low- to high-level output
tt
Transition time (tr or tf)
See Figure 4
5
10
ns
tPZH
Output-enable time to high level
See Figure 5
10
20
ns
tPZL
Output-enable time to low level
See Figure 6
10
20
ns
tPHZ
Output-disable time from high level
See Figure 5
10
20
ns
tPLZ
Output-disable time from low level
See Figure 6
10
20
ns
tsk(p)
Pulse skew
0.5
1.5
ns
tsk(o)
Skew limit (pin to pin)
1.5
ns
tsk(lim)
Skew limit (device to device)
3
ns
f(max)
Maximum operating frequency
(1)
(2)
(3)
See Figure 4
See Figure 4 (2) (3)
See Figure 4
32
MHz
All typical values are at VCC = 3.3 V, TA = 25°C.
Pulse skew is defined as the |tPLH – tPHL| of each channel of the same device.
Skew limit (device to device) is the maximum difference in propagation delay times between any two channels of any two devices.
6.7 Typical Characteristics
Figure 1 and Figure 2 below show typical ICC values at various frequencies/data rates for various termination
conditions.
300
250
300
100 Ohms 1000pF
100 Ohms 100pF
100 Ohms
No termination
250
200
ICC (mA)
ICC (mA)
200
150
150
100
100
50
50
0
0.0001
0.001
0.01
0.1
Frequency (MHz)
1
10
50
0
0.0001
D001
Figure 1. ICC vs. Frequency
6
100 Ohms 1000pF
100 Ohms 100pF
100 Ohms
No termination
0.001
0.01
0.1
0.5
Data Rate (Mbps)
2 3 5 10 20
100
D001
Figure 2. ICC vs. Data Rate
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
7 Parameter Measurement Information
RL/2
VOD
VOC
RL/2
Figure 3. Test Circuit, VOD and VOC
C2 = 40 pF
Y
Input
C1 = 40 pF
Z
RL = 100 Ω
C3 = 40 pF
See Note A
VCC
Input
50%
50%
A
0V
tPHL
tPLH
Z
Output, V O
Y
PROPAGATION DELAY TIMES
90%
10%
Y
VOH
90%
10%
tr
tf
tf
tr
VOL
Output, V O
Z
90%
90%
10%
10%
VOH
VOL
RISE AND FALL TIMES
NOTES: A. CL includes probe and jig capacitance.
B.
tr and tf ≤ 2 ns.
Figure 4. Test Circuit and Voltage Waveforms, tPHL and tPLH
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
7
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
Parameter Measurement Information (continued)
Y
A
VCC
S1
Z
Output
CL = 40 pF
(see Note A)
RL = 110 Ω
G
Generator
(see Note B)
G
50 Ω
VCC
(see Note C)
TEST CIRCUIT
VCC
50%
Input
50%
0V
tPHZ
tPZH
0.3 V
VOH
Output
50%
Voff ≈ 0
VOLTAGE WAVEFORMS
NOTES: A. CL includes probe and jig capacitance.
B.
C. To test the active-low enable G, ground G and apply an inverted waveform to G.
r and tf
≤ 2 ns.
Figure 5. Test Circuit and Voltage Waveforms, tPZH and tPHZ
8
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
Parameter Measurement Information (continued)
VCC
Y
A
VCC
RL = 110 Ω
S1
Z
Output
CL = 40 pF
(see Note A)
G
Generator
(see Note B)
50 Ω
G
VCC
(see Note C)
TEST CIRCUIT
VCC
Input
50%
50%
0V
tPLZ
tPZL
Voff ≈ VCC
Output
50%
VOL
VOLTAGE WAVEFORMS
0.3 V
NOTES: A. CL includes probe and jig capacitance.
B.
C. To test the active-low enable G, ground G and apply an inverted waveform to G.
r and tf
≤ 2 ns.
Figure 6. Test Circuit and Voltage Waveforms, tPZL and tPLZ
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
9
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
8 Detailed Description
8.1 Overview
The AM26LV31E is a quadruple differential line driver with 3-state outputs. The device is designed to meet
TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage. The high current capability of
the outputs allow for driving balanced lines, such as twisted-pair transmission lines, and proved a high
impedance in the power-off condition. The AM26LV31E is optimized for balanced-bus transmission line at
switching rates up to 32 MHz.
From a single 3.3-V power supply, the device operates four 3-state differential line drivers with integrated active
high and active low enables for precise control. The device is capable of accepting 5-V logic inputs with a 3.3-V
supply. The driver is designed to handle loads of a minimum of ±30 mA of sink or source current.
8.2 Functional Block Diagram
G
G
1A
2A
3A
4A
4
12
2
1
3
6
7
5
10
9
11
15
14
13
1Y
1Z
2Y
2Z
3Y
3Z
4Y
4Z
Copyright © 2016, Texas Instruments Incorporated
Figure 7. Logic Diagram
8.3 Feature Description
8.3.1 Complementary Out-Enable Inputs
The AM26LV31E transmitter outputs can be configured using the G and G logic inputs. The transmitter outputs
are enabled when either G is set to logic HIGH or G is set to logic LOW. The reverse disables the outputs
(G = LOW, G = HIGH). See Table 1 for the complete truth table.
8.3.2 High Output Impedance for Specific Driver Enable Inputs
When the AM26LV31E transmitter outputs are disabled using G and G logic inputs, the outputs are set to a high
impedance state.
10
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
8.4 Device Functional Modes
Table 1 lists the functional modes of the AM26LV31E.
Table 1. Function Table (1)
(1)
ENABLES
OUTPUTS
INPUT
A
G
G
Y
Z
H
H
X
H
L
H
L
H
X
L
H
X
L
H
L
L
X
L
L
H
X
L
H
Z
Z
H = high level, L = low level, X = irrelevant,
Z = high impedance (off)
SPACE
SPACE
VCC
VCC
Output
Input
GND
GND
Figure 8. Equivalent of Each Input (A, G, or G)
Schematic
Figure 9. Typical of Each Driver Output Schematic
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
11
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
x
x
x
x
x
x
x
x
xxxxxxxxxxxxxx
x
x
When designing a system that uses drivers, receivers, and transceivers that comply with RS-422 or RS-485,
proper cable termination is essential for highly reliable applications with reduced reflections in the transmission
line. Because RS-422 allows only one driver on the bus, if termination is used, it is placed only at the end of the
cable near the last receiver. In general, RS-485 requires termination at both ends of the cable. Factors to
consider when determining the type of termination usually are performance requirements of the application and
the ever-present factor, cost. The different types of termination techniques discussed are unterminated lines,
parallel termination, AC termination, and multipoint termination. Laboratory waveforms for each termination
technique (except multipoint termination) illustrate the usefulness and robustness of RS-422 (and indirectly, RS485). Similar results can be obtained if 485-compliant devices and termination techniques are used. For
laboratory experiments, 100 feet of 100-Ω, 24-AWG, twisted-pair cable (Bertek) was used. A single driver and
receiver, TI AM26LV31E and AM26LV32E, respectively, were tested at room temperature with a 3.3-V supply
voltage. To show voltage waveforms related to transmission-line reflections, the first plot shows output
waveforms from the driver at the start of the cable (A/B); the second plot shows input waveforms to the receiver
at the far end of the cable (Y).
x
x
x xx
x xx
x
9.2 Typical Application
Servo Drive
Encoder
Interpolation
Electronics
A
Motion Controller
D
R
Encoder Phase A
D
R
Encoder Phase B
D
R
Encoder Index
D
R
Status
B
Z
Status
AM26LV32E
AM26LV31E
Copyright © 2016, Texas Instruments Incorporated
Figure 10. Encoder Application
12
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
Typical Application (continued)
9.2.1 Design Requirements
This example requires the following:
• 3.3-V power source
• RS-485 bus operating at speed compatible with cable length
• Connector that ensures the correct polarity for port pins
9.2.2 Detailed Design Procedure
Place the device close to bus connector to keep traces (stub) short to prevent adding reflections to the bus
line. If desired, add external fail-safe biasing to ensure 200 mV on the A-B port, if the drive is in high
impedance state (see Failsafe in RS-485 data buses, SLYT080).
9.2.3 Application Curve
5
4
Voltage (V)
3
2
1
0
±1
±2
Y
A/B
±3
0
0.1
0.2
0.3
Time ( s)
0.4
0.5
C001
Figure 11. Differential 120-Ω Terminated Output Waveforms (Cat 5E Cable)
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
13
AM26LV31E
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
www.ti.com
10 Power Supply Recommendations
Place 0.1-µF bypass capacitors close to the power-supply pins to reduce errors coupling in from noisy or high
impedance power supplies.
11 Layout
11.1 Layout Guidelines
For best operational performance of the device, use good PCB layout practices, including:
• Noise can often propagate into analog circuitry through the power supply of the circuit. Bypass capacitors are
used to reduce the coupled noise by providing low impedance power sources local to the analog circuitry.
– Connect low-ESR, 0.1-μF ceramic bypass capacitors between each supply pin and ground, placed as
close to the device as possible. A single bypass capacitor from V+ to ground is applicable for singlesupply applications.
• Separate grounding for analog and digital portions of circuitry is one of the simplest and most-effective
methods of noise suppression. One or more layers on multilayer PCBs are usually devoted to ground planes.
A ground plane helps distribute heat and reduces EMI noise pickup. Make sure to physically separate digital
and analog grounds, paying attention to the flow of the ground current.
• To reduce parasitic coupling, run the input traces as far away from the supply or output traces as possible. If
it is not possible to keep them separate, it is much better to cross the sensitive trace perpendicular as
opposed to in parallel with the noisy trace.
• Place the external components as close to the device as possible. Keeping RF and RG close to the inverting
input minimizes parasitic capacitance.
• Keep the length of input traces as short as possible. Always remember that the input traces are the most
sensitive part of the circuit.
11.2 Layout Example
For all Y and Z outputs, make sure the traces are impedance matched to cable used.
Differential
Output 1
0.1 PF
Input 1
VCC
1
1A
VCC 16
2
1Y
4A 15
3
1Z
4Y 14
4
G
4Z 13
AM26LV31E
Differential
Output 2
Input 2
5
2Z
G 12
6
2Y
3Z 11
7
2A
3Y 10
8
GND
3A
Active Low
Enable
9
Figure 12. Layout Recommendation
14
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
AM26LV31E
www.ti.com
SLLS848B – APRIL 2008 – REVISED SEPTEMBER 2016
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
Failsafe in RS-485 data buses, SLYT080
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Community Resource
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2008–2016, Texas Instruments Incorporated
Product Folder Links: AM26LV31E
15
PACKAGE OPTION ADDENDUM
www.ti.com
13-Aug-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
AM26LV31EIDR
ACTIVE
SOIC
D
16
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AM26LV31EI
AM26LV31EIDRG4
ACTIVE
SOIC
D
16
2500
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AM26LV31EI
AM26LV31EINSR
ACTIVE
SO
NS
16
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
26LV31EI
AM26LV31EIPWR
ACTIVE
TSSOP
PW
16
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
SB31
AM26LV31EIPWRG4
ACTIVE
TSSOP
PW
16
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
SB31
AM26LV31EIRGYR
ACTIVE
VQFN
RGY
16
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
SB31
AM26LV31EIRGYRG4
ACTIVE
VQFN
RGY
16
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
SB31
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
