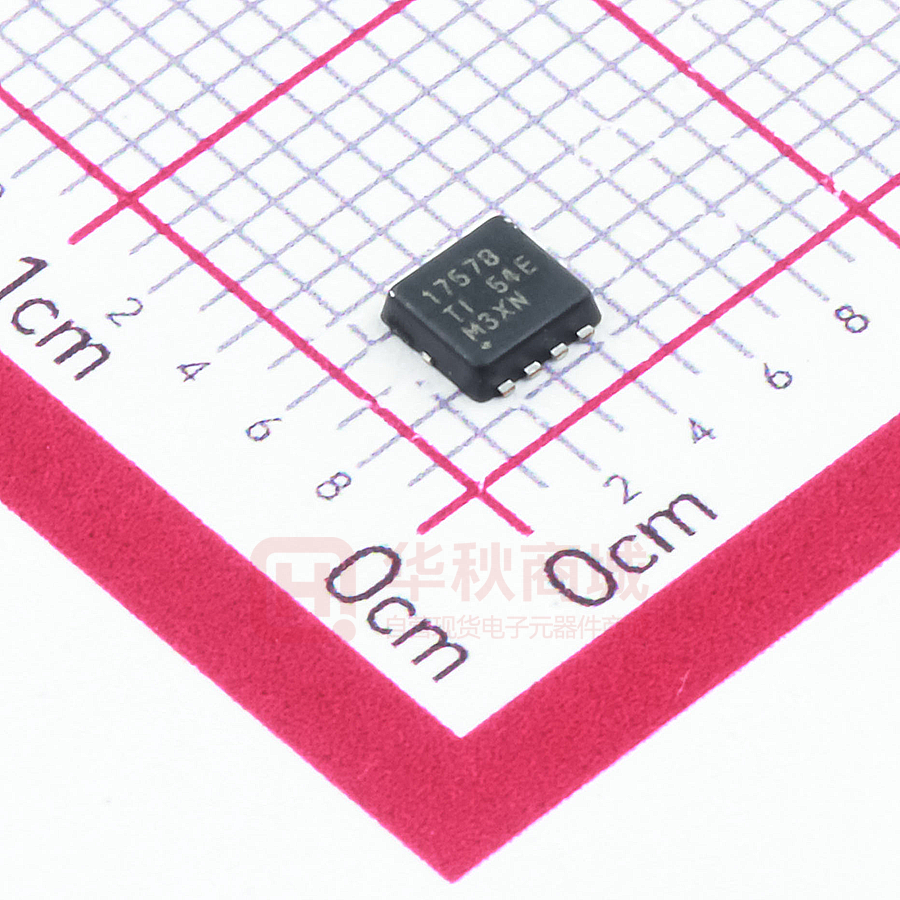

CSD17578Q3A
SLPS525A – SEPTEMBER 2014 – REVISED JANUARY 2016
CSD17578Q3A 30 V N-Channel NexFET™ Power MOSFETs
1 Features
•
•
•
•
•
•
•
•
Product Summary
Low Qg and Qgd
Low RDS(on)
Low Thermal Resistance
Avalanche Rated
Pb-Free
RoHS Compliant
Halogen Free
SON 3.3 mm × 3.3 mm Plastic Package
1
TA = 25°C
30
V
Qg
Gate Charge Total (4.5 V)
7.9
nC
Qgd
Gate Charge Gate to Drain
RDS(on)
Drain-to-Source On-Resistance
VGS(th)
Threshold Voltage
mΩ
VGS = 10 V
6.3
mΩ
1.5
V
DEVICE
MEDIA
QTY
PACKAGE
SHIP
13-Inch Reel
2500
CSD17578Q3AT
7-Inch Reel
250
SON 3.3 x 3.3 mm
Plastic Package
Tape and
Reel
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Absolute Maximum Ratings
This 30 V, 6.3 mΩ, SON 3.3 mm × 3.3 mm
NexFET™ power MOSFET is designed to minimize
losses in power conversion applications.
Top View
TA = 25°C
VALUE
UNIT
VDS
Drain-to-Source Voltage
30
V
VGS
Gate-to-Source Voltage
±20
V
Continuous Drain Current (Package limited)
20
Continuous Drain Current (Silicon limited),
TC = 25°C
54
ID
8
1
(1)
D
IDM
S
2
7
D
S
3
6
D
PD
D
G
nC
8.2
CSD17578Q3A
3 Description
S
1.7
VGS = 4.5 V
.
Ordering Information(1)
Point-of-Load Synchronous Buck Converter for
Applications in Networking, Telecom, and
Computing Systems
Optimized for Control FET Applications
•
UNIT
Drain-to-Source Voltage
2 Applications
•
TYPICAL VALUE
VDS
5
4
D
P0093-01
Continuous Drain Current
14
Pulsed Drain Current(2)
142
Power Dissipation(1)
2.5
Power Dissipation, TC = 25°C
37
A
A
W
TJ,
Tstg
Operating Junction Temperature,
Storage Temperature
–55 to 150
°C
EAS
Avalanche Energy, single pulse
ID = 22 A, L = 0.1 mH, RG = 25 Ω
24
mJ
(1) Typical RθJA = 50°C/W on a 1 inch2, 2 oz. Cu pad on a
0.06 inch thick FR4 PCB.
(2) Max RθJC = 4.2 °C/W, pulse duration ≤100 μs, duty cycle ≤1%
.
.
RDS(on) vs VGS
Gate Charge
10
TC = 25°C, I D = 10 A
TC = 125°C, I D = 10 A
18
VGS - Gate-to-Source Voltage (V)
RDS(on) - On-State Resistance (m:)
20
16
14
12
10
8
6
4
2
0
ID = 10 A, VDS = 15V
9
8
7
6
5
4
3
2
1
0
0
2
4
6
8
10
12
14
16
VGS - Gate-to-Source Voltage (V)
18
20
D007
0
2
4
6
8
10
12
Qg - Gate Charge (nC)
14
16
18
D004
1
