DRV8428E/P Dual H-Bridge Motor Drivers With Integrated Current Sense and Smart
Tune Technology
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Dual H-bridge motor driver
– One bipolar stepper motor
– Dual bidirectional brushed-DC motors
– Four unidirectional brushed-DC motors
Integrated current sense functionality
– No sense resistors required
– ±6% Full-scale current accuracy
4.2-V to 33-V Operating supply voltage range
Multiple control interface options
– PHASE/ENABLE (PH/EN)
– PWM (IN/IN)
Smart tune, and mixed decay options
1500 mΩ HS + LS RDS(ON) at 24 V, 25°C
Current Capacity: 1.7-A peak, 0.7-A rms
Configurable Off-Time PWM Chopping
– 7, 16 or 32 μs
Supports 1.8-V, 3.3-V, 5.0-V logic inputs
Low-current sleep mode (2 µA)
Spread spectrum clocking for low EMI
Inrush current limiting in brushed-DC applications
Small package and footprint
Protection features
– VM undervoltage lockout (UVLO)
– Overcurrent protection (OCP)
– Thermal shutdown (OTSD)
The output stage of the driver consists of N-channel
power MOSFETs configured as two full H-bridges,
current sensing and regulation, and protection
circuitry. The integrated current sensing uses an
internal current mirror architecture, removing the need
for a large power shunt resistor, saving board area
and reducing system cost. A low-power sleep mode is
provided to achieve ultra- low quiescent current draw
by shutting down most of the internal circuitry. Internal
protection features are provided for supply
undervoltage lockout (UVLO), output overcurrent
(OCP), and device overtemperature (TSD).
ADVANCE INFORMATION
1 Features
Device Information (1)
PART NUMBER
PACKAGE

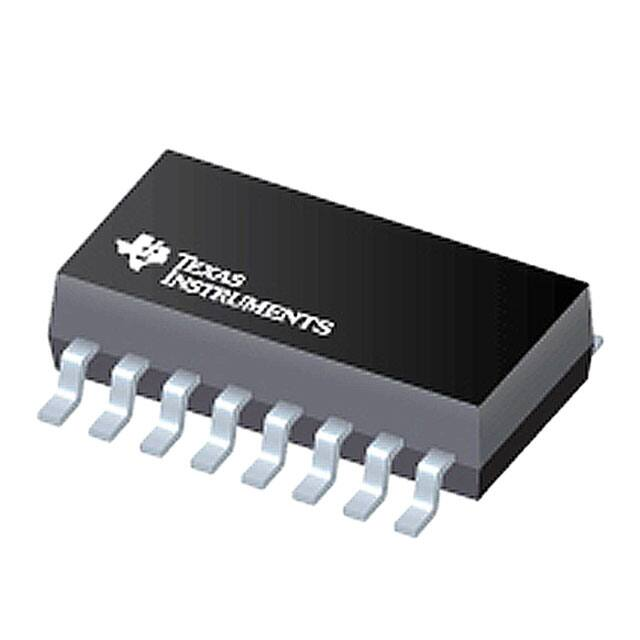

DRV8428EPWPR
HTSSOP (16)
5mm x 4.4mm
DRV8428ERTER
WQFN (16)
3.0mm x 3.0mm
DRV8428PPWPR
HTSSOP (16)
5mm x 4.4mm
DRV8428PRTER
WQFN (16)
3.0mm x 3.0mm
(1)
BODY SIZE (NOM)
For all available packages, see the orderable addendum at
the end of the data sheet.
2 Applications
•
•
•
•
•
•
•
•
•
Brushed DC Motors
Printers and scanners
Currency counters, and EPOS
Office and home automation
Factory automation and robotics
Small home appliances
Sewing Machines
Vacuum, humanoid, and toy robotics
Smart Meters
DRV8428E Simplified Schematic
3 Description
The DRV8428E/P devices are dual H-bridge motor
drivers for a wide variety of industrial applications.
The devices can be used for driving two DC motors,
or a bipolar stepper motor. The DRV8428E/P are
capable of driving up to 1-A full scale or 0.7-A rms
output current (dependent on PCB design).
DRV8428P Simplified Schematic
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2021 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. ADVANCE INFORMATION for preproduction products; subject to change
Product Folder Links: DRV8428E
without notice.
1
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
Table of Contents
ADVANCE INFORMATION
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
5.1 Pin Functions.............................................................. 4
6 Specifications.................................................................. 5
6.1 Absolute Maximum Ratings........................................ 5
6.2 ESD Ratings............................................................... 5
6.3 Recommended Operating Conditions.........................6
6.4 Thermal Information....................................................6
6.5 Electrical Characteristics.............................................7
7 Detailed Description......................................................10
7.1 Overview................................................................... 10
7.2 Functional Block Diagrams....................................... 11
7.3 Feature Description...................................................13
7.4 Device Functional Modes..........................................22
8 Application and Implementation.................................. 23
8.1 Application Information............................................. 23
8.2 Typical Application.................................................... 23
8.3 Alternate Application................................................. 26
9 Power Supply Recommendations................................28
9.1 Bulk Capacitance...................................................... 28
10 Layout...........................................................................29
10.1 Layout Guidelines................................................... 29
11 Device and Documentation Support..........................31
11.1 Related Links.......................................................... 31
11.2 Receiving Notification of Documentation Updates.. 31
11.3 Community Resources............................................31
11.4 Trademarks............................................................. 31
12 Mechanical, Packaging, and Orderable
Information.................................................................... 32
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision * (June 2020) to Revision A (December 2020)
Page
• Changed device status to production data......................................................................................................... 1
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
5 Pin Configuration and Functions
ADVANCE INFORMATION
Figure 5-1. PWP PowerPAD™ Package 16-Pin HTSSOP Top View DRV8428E
Figure 5-2. RTE Package 16-Pin WQFN with Exposed Thermal PAD Top View DRV8428E
Figure 5-3. PWP PowerPAD™ Package 16-Pin HTSSOP Top View DRV8428P
Figure 5-4. RTE Package 16-Pin WQFN with Exposed Thermal PAD Top View DRV8428P
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
3
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
5.1 Pin Functions
PIN
TYPE
DESCRIPTION
9
I
Decay mode and off-time setting pin; sevenlevel pin.
13
—
I
Bridge A enable input. Logic high enables
bridge A; logic low disables the bridge Hi-Z.
15
—
13
I
Bridge A PWM input. Logic controls the state
of H-bridge A; internal pulldown.
—
14
—
12
I
Bridge B PWM input. Logic controls the state
of H-bridge B; internal pulldown.
AOUT1
3
3
1
1
O
Winding A output. Connect to motor winding.
AOUT2
4
4
2
2
O
Winding A output. Connect to motor winding.
APH
14
—
12
—
I
Bridge A phase input. Logic high drives
current from AOUT1 to AOUT2.
VREFA
10
10
8
8
I
Reference voltage input. Voltage on this pin
sets the full scale chopping current in Hbridge A.
BEN
13
—
11
—
I
Bridge B enable input. Logic high enables
bridge B; logic low disables the bridge Hi-Z.
BIN1
—
13
—
11
I
Bridge B PWM input. Logic controls the state
of H-bridge B; internal pulldown.
BIN2
—
12
—
10
I
Bridge B PWM input. Logic controls the state
of H-bridge B; internal pulldown.
BOUT1
6
6
4
4
O
Winding B output. Connect to motor winding.
BOUT2
5
5
3
3
O
Winding B output. Connect to motor winding.
BPH
12
—
10
—
I
Bridge B phase input. Logic high drives
current from BOUT1 to BOUT2.
VREFB
9
9
7
7
I
Reference voltage input. Voltage on this pin
sets the full scale chopping current in Hbridge B.
GND
7
7
5
5
PWR
Device ground. Connect to system ground.
DVDD
8
8
6
6
PWR
Logic supply voltage. Connect a X7R, 0.47μF to 1-μF, 6.3-V or 10-V rated ceramic
capacitor to GND.
NAME
RTE
DRV8428P
DRV8428E
DRV8428P
DECAY/
TOFF
11
11
9
AEN
15
—
AIN1
—
AIN2
ADVANCE INFORMATION
VM
1
1
15
15
PWR
Power supply. Connect to motor supply
voltage and bypass to PGND with a 0.01-μF
ceramic capacitor plus a bulk capacitor rated
for VM.
PGND
2
2
16
16
PWR
Power ground. Connect to system ground.
nSLEEP
PAD
4
PWP
DRV8428E
16
16
14
14
I
Sleep mode input. Logic high to enable
device; logic low to enter low-power sleep
mode; internal pulldown resistor. An nSLEEP
low pulse clears faults.
-
-
-
-
-
Thermal pad. Connect to system ground.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range referenced with respect to GND (unless otherwise noted) (1)
MIN
MAX
UNIT
Power supply voltage (VM)
–0.3
35
V
nSLEEP pin voltage (nSLEEP)
–0.3
VVM
V
Internal regulator voltage (DVDD)
–0.3
5.75
V
Control pin voltage (APH, AEN, BPH, BEN, AIN1, AIN2, BIN1, BIN2, DECAY/TOFF)
–0.3
5.75
V
Reference input pin voltage (VREFA, VREFB)
–0.3
5.75
V
Continuous phase node pin voltage (AOUT1, AOUT2, BOUT1, BOUT2)
–1
VVM + 1
V
Transient 100 ns phase node pin voltage (AOUT1, AOUT2, BOUT1, BOUT2)
–3
VVM + 3
V
Internally Limited
A
Operating ambient temperature, TA
–40
125
°C
Operating junction temperature, TJ
–40
150
°C
Storage temperature, Tstg
–65
150
°C
(1)
ADVANCE INFORMATION
Peak drive current (AOUT1, AOUT2, BOUT1, BOUT2)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
6.2 ESD Ratings
VALUE
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
V(ESD)
Electrostatic
discharge
Charged-device model (CDM), per JEDEC specification JESD22C101
UNIT
±2000
Corner pins
±750
Other pins
±500
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
V
5
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
UNIT
4.2
33
V
0
5.5
V
VVM
Supply voltage range for normal (DC) operation
VI
Logic level input voltage
VREF
Reference rms voltage range (VREFA, VREFB)
0.05
3
V
ƒPWM
Applied PWM signal (APH, AEN, BPH, BEN, AIN1, AIN2, BIN1, BIN2)
0
100
kHz
IFS
Motor full-scale current (xOUTx)
0
1
A
Irms
Motor RMS current (xOUTx)
0
0.7
A
TA
Operating ambient temperature
–40
125
°C
TJ
Operating junction temperature
–40
150
°C
ADVANCE INFORMATION
6.4 Thermal Information
THERMAL METRIC(1)
RθJA
6
RTE (WQFN)
16 PINS
16 PINS
UNIT
46.4
47
°C/W
RθJC(top) Junction-to-case (top) thermal resistance
39.8
46.1
°C/W
RθJB
Junction-to-board thermal resistance
19.9
19.9
°C/W
ψJT
Junction-to-top characterization parameter
1.3
1.1
°C/W
ψJB
Junction-to-board characterization parameter
19.9
19.8
°C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance
6.3
8.5
°C/W
(1)
Junction-to-ambient thermal resistance
PWP (HTSSOP)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
6.5 Electrical Characteristics
Typical values are at TA = 25°C and VVM = 24 V. All limits are over recommended operating conditions, unless otherwise
noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
3.8
5.6
mA
2
4
μA
0.8
1.2
ms
POWER SUPPLIES (VM, DVDD)
VM operating supply current
nSLEEP = 1, No motor load
VM sleep mode supply current
nSLEEP = 0
tSLEEP
Sleep time
nSLEEP = 0 to sleep-mode
tWAKE
Wake-up time
nSLEEP = 1 to output transition
tON
Turn-on time
VM > UVLO to output transition
VDVDD
Internal regulator voltage
120
μs
0.8
1.2
ms
No external load, 6 V < VVM < 33 V
4.5
5
5.5
V
No external load, VVM = 4.2 V
3.9
4.05
V
ADVANCE INFORMATION
IVM
IVMQ
LOGIC-LEVEL INPUTS (APH, AEN, BPH, BEN, AIN1, AIN2, BIN1, BIN2, nSLEEP)
VIL
Input logic-low voltage
0
0.6
V
VIH
Input logic-high voltage
1.5
5.5
V
VHYS
Input logic hysteresis
IIL
Input logic-low current
VIN = 0 V
IIH
Input logic-high current
VIN = 5 V
tPD
Propagation delay
xPH, xEN, xINx input to current change
150
–1
mV
1
μA
100
μA
750
ns
SEVEN-LEVEL INPUT (DECAY/TOFF)
VI1
Voltage level 1
Tied to GND
0
0.1
V
VI2
Voltage level 2
14.7kΩ ± 1% to GND
0.2
0.35
V
VI3
Voltage level 3
44.2kΩ ± 1% to GND
0.55
0.8
V
VI4
Voltage level 4
100kΩ ± 1% to GND
1
1.25
V
VI5
Voltage level 5
249kΩ ± 1% to GND
1.5
1.75
V
2.1
2.4
V
3
5.5
V
VI6
Voltage level 6
Hi-Z
VI7
Voltage level 7
Tied to DVDD
IO
Output pull-up current
22.5
μA
MOTOR DRIVER OUTPUTS (AOUT1, AOUT2, BOUT1, BOUT2)
TJ = 25 °C, IO = -0.5 A
RDS(ONH)
RDS(ONL)
tSR
High-side FET on resistance
750
875
mΩ
TJ = 125 °C, IO = -0.5 A
1130
1350
mΩ
TJ = 150 °C, IO = -0.5 A
1250
1450
mΩ
TJ = 25 °C, IO = 0.5 A
750
875
mΩ
Low-side FET on resistance
TJ = 125 °C, IO = 0.5 A
1130
1350
mΩ
TJ = 150 °C, IO = 0.5 A
1250
1450
mΩ
Output slew rate
VM = 24V, IO = 0.5 A, Between 10%
and 90%
240
V/µs
PWM CURRENT CONTROL (VREFA, VREFB)
KV
Transimpedance gain
VREF = 3 V
2.805
3
DECAY/TOFF = 14.7kΩ to GND
7
PWM off-time, mixed 30% decay DECAY/TOFF = 44.2kΩ to GND
16
DECAY/TOFF = 100kΩ to GND
32
DECAY/TOFF = 249kΩ to GND
7
DECAY/TOFF = Hi-Z
16
DECAY/TOFF = DVDD
32
tOFF
PWM off-time, smart tune
dynamic decay
3.195
V/A
μs
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
7
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
Typical values are at TA = 25°C and VVM = 24 V. All limits are over recommended operating conditions, unless otherwise
noted.
PARAMETER
ΔITRIP
Current trip accuracy
IO,CH
AOUT and BOUT current
matching
TEST CONDITIONS
MIN
TYP
MAX
IO = 1 A, 10% to 20% current setting
–15
15
IO = 1 A, 20% to 67% current setting
–10
10
IO = 1 A, 68% to 100% current setting
-6
6
IO = 1 A
–2.5
2.5
VM falling, UVLO falling
3.8
3.95
4.05
VM rising, UVLO rising
3.9
4.05
4.15
UNIT
%
%
PROTECTION CIRCUITS
ADVANCE INFORMATION
VUVLO
VM UVLO lockout
VUVLO,HYS
Undervoltage hysteresis
Rising to falling threshold
IOCP
Overcurrent protection
Current through any FET
tOCP
Overcurrent deglitch time
tRETRY
Overcurrent retry time
TOTSD
Thermal shutdown
Die temperature TJ
THYS_OTSD
Thermal shutdown hysteresis
Die temperature TJ
100
mV
1.7
150
V
A
1.8
μs
4
ms
165
20
180
°C
°C
6.5.1 Typical Characteristics
8
Figure 6-1. Sleep Current over Supply Voltage
Figure 6-2. Sleep Current over Temperature
Figure 6-3. Operating Current over Supply Voltage
Figure 6-4. Operating Current over Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
Figure 6-5. Low-Side RDS(ON) over Supply Voltage
Figure 6-6. Low-Side RDS(ON) over Temperature
Figure 6-7. High-Side RDS(ON) over Supply Voltage
Figure 6-8. High-Side RDS(ON) over Temperature
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
ADVANCE INFORMATION
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
9
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7 Detailed Description
7.1 Overview
The DRV8428E/P are integrated motor driver solutions for bipolar stepper motors or dual brushed-DC motors.
The devices integrate two N-channel power MOSFET H-bridges, integrated current sense and regulation
circuitry. The DRV8428E/P can be powered with a supply voltage between 4.2 V and 33 V. The DRV8428E/P
are capable of providing an output current up to 1.7-A peak, 1-A full-scale, or 0.7-A root mean square (rms). The
actual full-scale and rms current depends on the ambient temperature, supply voltage, and PCB thermal
capability.
ADVANCE INFORMATION
The DRV8428E/P devices use an integrated current-sense architecture which eliminates the need for two
external power sense resistors, hence saving significant board space, BOM cost, design efforts and reduces
significant power consumption. This architecture removes the power dissipated in the sense resistors by using a
current mirror approach and using the internal power MOSFETs for current sensing. The current regulation set
point is adjusted by the voltage at the VREFA and VREFB pins.
A simple PH/EN (DRV8428E) or PWM (DRV8428P) interface allows easy interfacing to the controller circuit.
The current regulation is highly configurable, with several decay modes of operation. The decay mode can be
selected as a smart tune Dynamic Decay, smart tune Ripple Control, or mixed decay. The smart tune decay
modes automatically adjust the decay setting to minimize current ripple while still reacting quickly to step
changes. This feature greatly simplifies stepper driver integration into a motor drive system. The PWM off-time,
tOFF, can be adjusted to 7, 16, or 32 μs.
A low-power sleep mode is included which allows the system to save power when not driving the motor.
10
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
ADVANCE INFORMATION
7.2 Functional Block Diagrams
Figure 7-1. DRV8428E Block Diagram
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
11
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
ADVANCE INFORMATION
Figure 7-2. DRV8428P Block Diagram
12
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3 Feature Description
Table 7-1 shows the recommended values of the external components for the driver.
ADVANCE INFORMATION
Figure 7-3. Resistor divider connected to the VREF pins
Table 7-1. External Components
COMPONENT
PIN 1
PIN 2
RECOMMENDED
CVM1
VM
PGND
X7R, 0.01-µF, VM-rated ceramic capacitor
CVM2
VM
PGND
Bulk, VM-rated capacitor
CDVDD
DVDD
GND
X7R, 0.47-µF to 1-µF, 6.3-V or 10-V rated ceramic capacitor
RREF1
VREFx
VCC
RREF2 (Optional)
VREFx
GND
Resistor to limit chopping current. It is recommended that the value of parallel
combination of RREF1 and RREF2 should be less than 50-kΩ.
VCC is not a pin on the DRV8428E/P device. VCC can either be an external supply voltage or DVDD.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
13
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.1 PWM Motor Drivers
The DRV8428E and DRV8428P contain drivers for two full H-bridges. Figure 7-4 shows a block diagram of the
circuitry.
ADVANCE INFORMATION
Figure 7-4. PWM Motor Driver Block Diagram
7.3.2 Bridge Control
The DRV8428E is controlled using a PH/EN interface. Table 7-2 gives the full H-bridge state. Note that this table
does not take into account the current control built into the DRV8428E. Positive current is defined in the direction
of xOUT1 to xOUT2.
Table 7-2. DRV8428E (PH/EN) Control Interface
nSLEEP
14
xEN
xPH
xOUT1
xOUT2
DESCRIPTION
0
X
X
Hi-Z
Hi-Z
Sleep mode; H-bridge disabled Hi-Z
1
0
X
Hi-Z
Hi-Z
H-bridge disabled Hi-Z
1
1
0
L
H
Reverse (current xOUT2 to xOUT1)
1
1
1
H
L
Forward (current xOUT1 to xOUT2)
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
The DRV8428P is controlled using a PWM interface. Table 7-3 gives the full H-bridge state. Note that this table
does not take into account the current control built into the DRV8428P. Positive current is defined in the direction
of xOUT1 to xOUT2.
Table 7-3. DRV8428P (PWM) Control Interface
nSLEEP
xIN1
xIN2
xOUT1
xOUT2
DESCRIPTION
0
X
X
Hi-Z
Hi-Z
1
0
0
L
L
Sleep mode; H-bridge disabled Hi-Z
Brake; low-side slow decay
1
0
1
L
H
Reverse (current xOUT2 to xOUT1)
1
1
0
H
L
Forward (current xOUT1 to xOUT2)
1
1
1
H
H
Brake; high-side slow decay
ADVANCE INFORMATION
7.3.3 Current Regulation, Off-time and Decay Modes
During PWM current chopping, the H-bridge is enabled to drive through the motor winding until the PWM current
chopping threshold is reached. This is shown in Figure 7-5, Item 1.
The current through the motor windings is regulated by an adjustable, off-time PWM current-regulation circuit.
When an H-bridge is enabled, current rises through the winding at a rate dependent on the DC voltage,
inductance of the winding, and the magnitude of the back EMF present. When the current hits the current
regulation threshold, the bridge enters a decay mode for a period of time determined by the seven-level DECAY/
TOFF pin setting to decrease the current. After the off-time expires, the bridge is re-enabled, starting another
PWM cycle.
Once the chopping current threshold is reached, the H-bridge can operate in two different states, fast decay or
slow decay. In fast decay mode, once the PWM chopping current level has been reached, the H-bridge reverses
state to allow winding current to flow in a reverse direction. The opposite FETs are turned on; as the winding
current approaches zero, the bridge is disabled to prevent any reverse current flow. Fast decay mode is shown
in Figure 7-5, item 2. In slow decay mode, winding current is re-circulated by enabling both of the low-side FETs
in the bridge. This is shown in Figure 7-5, Item 3.
The PWM chopping current is set by a comparator which monitors the voltage across the current sense
MOSFETs in parallel with the low-side power MOSFETs. To generate the reference voltage for the current
chopping comparator, the VREFx input is attenuated by a factor of Kv.
The chopping current (IFS) can be calculated as IFS (A) = VREFx (V) / KV (V/A) = VREFx (V) / 3 (V/A).
Figure 7-5. Decay Modes
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
15
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
The decay mode and off time for each bridge is selected by setting the seven-level DECAY/TOFF pin as shown
in Table 7-4.
Table 7-4. Decay Mode Settings
DECAY/TOFF
DECAY MODE
0
Smart tune Ripple
Control
14.7kΩ to GND
Mixed 30% Decay
OFF TIME
44.2kΩ to GND
Hi-Z
7µs
16µs
100kΩ to GND
249kΩ to GND
-
32µs
Smart tune
Dynamic Decay
DVDD
7µs
16µs
32µs
ADVANCE INFORMATION
16
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.3.1 Mixed Decay
Increasing Phase Current (A)
ITRIP
tBLANK
tOFF
tBLANK
tDRIVE
Decreasing Phase Current (A)
tDRIVE
ADVANCE INFORMATION
tOFF
tDRIVE
ITRIP
tBLANK
tDRIVE
tFAST
tBLANK
tOFF
tFAST
tDRIVE
tOFF
Figure 7-6. Mixed Decay Mode
Mixed decay begins as fast decay for 30% of tOFF, followed by slow decay for the remainder of tOFF.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
17
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.3.2 Smart tune Dynamic Decay
The smart tune current regulation scheme is an advanced current-regulation control method compared to
traditional fixed off-time current regulation schemes. Smart tune current regulation scheme helps the stepper
motor driver adjust the decay scheme based on operating factors such as the ones listed as follows:
•
•
•
•
•
Motor winding resistance and inductance
Motor aging effects
Motor dynamic speed and load
Motor supply voltage variation
Low-current versus high-current dI/dt
tBLANK
tBLANK
tOFF
tBLANK
tOFF
tDRIVE
tDRIVE
tDRIVE
ITRIP
Decreasing Phase Current (A)
ADVANCE INFORMATION
Increasing Phase Current (A)
ITRIP
tBLANK
tOFF
tDRIVE
tBLANK
tDRIVE
tBLANK
tOFF
tFAST
tDRIVE
tFAST
Figure 7-7. Smart tune Dynamic Decay Mode
Smart tune Dynamic Decay greatly simplifies the decay mode selection by automatically configuring the decay
mode between slow, mixed, and fast decay. In mixed decay, smart tune dynamically adjusts the fast decay
percentage of the total mixed decay time. This feature eliminates motor tuning by automatically determining the
best decay setting that results in the lowest ripple for the motor.
The decay mode setting is optimized iteratively each PWM cycle. If the motor current overshoots the target trip
level, then the decay mode becomes more aggressive (add fast decay percentage) on the next cycle to prevent
regulation loss. If a long drive time must occur to reach the target trip level, the decay mode becomes less
aggressive (remove fast decay percentage) on the next cycle to operate with less ripple and more efficiently. On
falling steps, smart tune Dynamic Decay automatically switches to fast decay to reach the next step quickly.
Smart tune Dynamic Decay is optimal for applications that require minimal current ripple but want to maintain a
fixed frequency in the current regulation scheme.
18
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.3.3 Smart tune Ripple Control
Increasing Phase Current (A)
ITRIP
IVALLEY
tBLANK
tOFF
tBLANK
tOFF
tDRIVE
Decreasing Phase Current (A)
tDRIVE
tBLANK
tOFF
tDRIVE
tDRIVE
ITRIP
IVALLEY
tBLANK
tOFF
tBLANK
tOFF
tDRIVE
tDRIVE
tBLANK
tOFF
tDRIVE
Figure 7-8. Smart tune Ripple Control Decay Mode
Smart tune Ripple Control operates by setting an IVALLEY level alongside the ITRIP level. When the current level
reaches ITRIP, instead of entering slow decay until the t OFF time expires, the driver enters slow decay until I VALLEY
is reached. Slow decay operates similar to mode 1 in which both low-side MOSFETs are turned on allowing the
current to recirculate. In this mode, tOFF varies depending on the current level and operating conditions.
This method allows much tighter regulation of the current level increasing motor efficiency and system
performance. Smart tune Ripple Control can be used in systems that can tolerate a variable off-time regulation
scheme to achieve small current ripple in the current regulation.
The ripple current in this decay mode is 7.5mA + 1% of the ITRIP at a specific microstep level.
7.3.3.4 Blanking time
After the current is enabled (start of drive phase) in an H-bridge, the current sense comparator is ignored for a
period of time (tBLANK) before enabling the current-sense circuitry. The blanking time also sets the minimum drive
time of the PWM. The blanking time is approximately 1 µs.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
19
ADVANCE INFORMATION
tBLANK
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.4 Linear Voltage Regulators
A linear voltage regulator is integrated in the device. The DVDD regulator can be used to provide a reference
voltage. DVDD can supply a maximum of 2 mA load. For proper operation, bypass the DVDD pin to GND using
a ceramic capacitor.
The DVDD output is nominally 5-V. When the DVDD LDO current load exceeds 2 mA, the output voltage drops
significantly.
ADVANCE INFORMATION
Figure 7-9. Linear Voltage Regulator Block Diagram
If DECAY/TOFF pin must be tied permanently high, tying it to the DVDD pin instead of an external regulator is
preferred. This method saves power when the VM pin is not applied or in sleep mode: the DVDD regulator is
disabled and current does not flow through the input pulldown resistors. For reference, logic level inputs have a
typical pulldown of 200 kΩ.
The nSLEEP pin cannot be tied to DVDD, else the device will never exit sleep mode.
20
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.5 Logic and Seven-Level Pin Diagrams
ADVANCE INFORMATION
Figure 7-10 gives the input structure for logic-level pins APH, AEN, BPH, BEN, AIN1, AIN2, BIN1, BIN2 and
nSLEEP:
Figure 7-10. Logic-level Input Pin Diagram
Seven-level logic pin DECAY/TOFF has the following structure as shown in Figure 7-11.
Figure 7-11. Seven-Level Input Pin Diagram
7.3.6 Protection Circuits
The devices are fully protected against supply undervoltage, output overcurrent, and device overtemperature
events.
7.3.6.1 VM Undervoltage Lockout (UVLO)
If at any time the voltage on the VM pin falls below the UVLO-threshold voltage for the voltage supply, all the
outputs are disabled. Normal operation resumes when the VM undervoltage condition is removed.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
21
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
7.3.6.2 Overcurrent Protection (OCP)
An analog current-limit circuit on each FET limits the current through the FET by removing the gate drive. If this
current limit persists for longer than the tOCP time, the FETs in both H-bridges are disabled. Normal operation
resumes automatically after the tRETRY time has elapsed and the fault condition is removed.
7.3.6.3 Thermal Shutdown (OTSD)
If the die temperature exceeds the thermal shutdown limit (TOTSD), all MOSFETs in the H-bridge are disabled.
Normal operation resumes when the junction temperature falls below the overtemperature threshold limit minus
the hysteresis (TOTSD – THYS_OTSD).
7.3.6.4 Fault Condition Summary
Table 7-5. Fault Condition Summary
FAULT
CONDITION
H-BRIDGE
LOGIC
RECOVERY
ADVANCE INFORMATION
VM undervoltage (UVLO)
VM < VUVLO
Disabled
Reset
(VDVDD < 3.6 V)
Automatic: VM > VUVLO
Overcurrent (OCP)
IOUT > IOCP
Disabled
Operating
Automatic retry: tRETRY
TJ > TTSD
Disabled
Operating
Automatic: TJ < TOTSD THYS_OTSD
Thermal Shutdown (OTSD)
7.4 Device Functional Modes
7.4.1 Sleep Mode (nSLEEP = 0)
The state of the device is managed by the nSLEEP pin. When the nSLEEP pin is low, the device enters a lowpower sleep mode. In sleep mode, all the internal MOSFETs are disabled. The tSLEEP time must elapse after a
falling edge on the nSLEEP pin before the device enters sleep mode. The device is brought out of sleep
automatically if the nSLEEP pin is brought high. The tWAKE time must elapse before the device is ready for
inputs.
7.4.2 Operating Mode (nSLEEP = 1)
When the nSLEEP pin is high, and VM > UVLO, the device enters the active mode. The tWAKE time must elapse
before the device is ready for inputs.
7.4.3 Functional Modes Summary
Table 7-6 lists a summary of the functional modes.
Table 7-6. Functional Modes Summary
CONDITION
CONFIGURATION
H-BRIDGE
DVDD Regulator
Logic
Sleep mode
4.2 V < VM < 33 V
nSLEEP pin = 0
Disabled
Disbaled
Disabled
Operating
4.2 V < VM < 33 V
nSLEEP pin = 1
Operating
Operating
Operating
22
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
8 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes. Customers should validate and test their design
implementation to confirm system functionality.
8.1 Application Information
The DRV8428E/P is used in brushed or stepper motor control.
8.2 Typical Application
ADVANCE INFORMATION
In this application, the device is configured to drive bidirectional currents through two external loads (such as two
brushed DC motors) using H-bridge configuration. The H-bridge polarity and duty cycle are controlled from the
external controller to the xEN/xIN1 and xPH/xIN2 pins.
Figure 8-1. Typical Application Schematic
8.2.1 Design Requirements
Table 8-1 lists the design input parameters for system design.
Table 8-1. Design Parameters
DESIGN PARAMETER
REFERENCE
EXAMPLE VALUE
Supply voltage
VM
24 V
Motor winding resistance
RL
6Ω
Motor winding inductance
LL
4.1 mH
Switching Frequency
fPWM
40 kHz
Regulated Current for Each Motor
IREG
500 mA
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
23
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
8.2.2 Detailed Design Procedure
8.2.2.1 Current Regulation
The regulated current (IREG) is set by the VREFx analog voltage. When starting a brushed-DC motor, a large
inrush current may occur because there is no back-EMF. Current regulation will act to limit this inrush current
and prevent high current on startup. The regulated current (IREG) can be calculated as IREG (A) = VREFx (V) / KV
(V/A) = VREFx (V) / 3 (V/A).
8.2.2.2 Power Dissipation and Thermal Calculation
The output current and power dissipation capabilities of the device are heavily dependent on the PCB design
and external system conditions. This section provides some guidelines for calculating these values.
ADVANCE INFORMATION
Total power dissipation (PTOT) for the device is composed of three main components. These are the power
MOSFET RDS(ON) (conduction) losses, the power MOSFET switching losses and the quiescent supply current
dissipation. While other factors may contribute additional power losses, these other items are typically
insignificant compared to the three main items.
PTOT = PCOND + PSW + PQ
PCOND for each brushed-DC motor can be calculated from the device RDS(ON) and regulated output current
(IREG). Assuming same IREG for both brushed-DC motors,
PCOND = 2 x (IREG)2 x (RDS(ONH) + RDS(ONL))
It should be noted that RDS(ON) has a strong correlation with the device temperature. A curve showing the
normalized RDS(ON) with temperature can be found in the Typical Characteristics curves.
PCOND = 2 x (0.5-A)2 x (0.75-Ω + 0.75-Ω) = 0.75-W
PSW can be calculated from the nominal supply voltage (VM), regulated output current (IREG), switching
frequency (fPWM) and the device output rise (tRISE) and fall (tFALL) time specifications.
PSW = 2 x (PSW_RISE + PSW_FALL)
PSW_RISE = 0.5 x VM x IREG x tRISE x fPWM
PSW_FALL = 0.5 x VM x IREG x tFALL x fPWM
PSW_RISE = 0.5 x 24 V x 0.5 A x 100 ns x 40 kHz = 0.024 W
PSW_FALL = 0.5 x 24 V x 1.5 A x 100 ns x 40 kHz = 0.024 W
PSW = 2 x (0.024W + 0.024W) = 0.096 W
PQ can be calculated from the nominal supply voltage (VM) and the IVM current specification.
PQ = VM x IVM = 24 V x 3.8 mA = 0.0912 W
The total power dissipation (PTOT) is calculated as the sum of conduction loss, switching loss and the quiescent
power loss.
PTOT = PCOND + PSW + PQ = 0.75-W + 0.096-W + 0.0912-W = 0.9372-W
For an ambient temperature of TA and total power dissipation (PTOT), the junction temperature (TJ) is calculated
as
TJ = TA + (PTOT x RθJA)
Considering a JEDEC standard 4-layer PCB, the junction-to-ambient thermal resistance (RθJA) is 46.4 °C/W for
the HTSSOP package, 47 °C/W for the WQFN package and 90.6 °C/W for the TSOT package.
Assuming 25°C ambient temperature, the junction temperature for the HTSSOP package is calculated as shown
below TJ = 25°C + (0.9372-W x 46.4°C/W) = 68.49 °C
24
Submit Document Feedback
(1)
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
The junction temperature for the WQFN package is calculated as shown below TJ = 25°C + (0.9372-W x 47°C/W) = 69.05 °C
(2)
Therefore, the HTSSOP and the WQFN packages result in almost identical junction temperature. It should be
ensured that the device junction temperature is within the specified operating region.
8.2.2.2.1 Application Curves
ADVANCE INFORMATION
CH1 = IN1 (3V/div), CH7 = IREG (0.5A/div), CH3 = AOUT1 (24V/div), CH2 = AOUT2 (24V/div)
Figure 8-2. Driver Full On Operation with Current Regulation
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
25
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
8.3 Alternate Application
The following design procedure can be used to configure the DRV8428E/P to drive a stepper motor.
ADVANCE INFORMATION
Figure 8-3. Typical Application Schematic
8.3.1 Design Requirements
Table 8-2 gives design input parameters for system design.
Table 8-2. Design Parameters
DESIGN PARAMETER
REFERENCE
EXAMPLE VALUE
Supply voltage
VM
24 V
Motor winding resistance
RL
6 Ω/phase
Motor winding inductance
LL
4.1 mH/phase
Motor Full Step Angle
θstep
1.8°/step
Target microstepping level
nm
1/2 step
Target motor speed
v
90 rpm
Target full-scale current
IFS
500 mA
8.3.2 Detailed Design Procedure
8.3.2.1 Current Regulation
In a stepper motor, the full-scale current (IFS) is the maximum current driven through either winding. This quantity
depends on the VREFx voltage. The maximum allowable voltage on the VREFx pins is 3 V. DVDD can be used
to provide VREFx through a resistor divider.
IFS (A) = VREF (V) / 3 (V/A)
Note
The IFS current must also follow Equation 3 to avoid saturating the motor. VM is the motor supply
voltage, and RL is the motor winding resistance.
26
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
IFS (A)
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
RL (:)
VM (V)
2 u RDS(ON) (:)
(3)
8.3.2.1.1 Stepper Motor Speed
Next, the driving waveform needs to be planned. In order to command the correct speed, determine the
frequency of the input waveform.If the target motor speed is too high, the motor will not spin. Make sure that the
motor can support the target speed.For a desired motor speed (v), microstepping level (nm), and motor full step
angle (θstep),
v (rpm) u 360 (q / rot)
Tstep (q / step) u nm (steps / microstep) u 60 (s / min)
ADVANCE INFORMATION
¦step VWHSV V
θstep can be found in the stepper motor data sheet or written on the motor itself.The frequency ƒstep gives the
frequency of input change on the device. For the design parameters mentioned in Design Parameters, ƒstep can
be calculated as 600 Hz.
8.3.2.1.1.1 Decay Modes
The device supports mixed decay, and smart tune. The current through the motor windings is regulated using an
adjustable fixed-time-off scheme. This means that after any drive phase, when a motor winding current has hit
the current chopping threshold (ITRIP), the device will place the winding in one of the decay modes for TOFF.
After TOFF, a new drive phase starts.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
27
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
9 Power Supply Recommendations
The device is designed to operate from an input voltage supply (VM) range from 4.2 V to 33 V. A 0.01-µF
ceramic capacitor rated for VM must be placed at VM pin as close to the device as possible. In addition, a bulk
capacitor must be included on VM.
9.1 Bulk Capacitance
Having appropriate local bulk capacitance is an important factor in motor drive system design. It is generally
beneficial to have more bulk capacitance, while the disadvantages are increased cost and physical size.
The amount of local capacitance needed depends on a variety of factors, including:
ADVANCE INFORMATION
•
•
•
•
•
•
The highest current required by the motor system
The power supply’s capacitance and ability to source current
The amount of parasitic inductance between the power supply and motor system
The acceptable voltage ripple
The type of motor used (brushed DC, brushless DC, stepper)
The motor braking method
The inductance between the power supply and motor drive system will limit the rate current can change from the
power supply. If the local bulk capacitance is too small, the system will respond to excessive current demands or
dumps from the motor with a change in voltage. When adequate bulk capacitance is used, the motor voltage
remains stable and high current can be quickly supplied.
The data sheet generally provides a recommended value, but system-level testing is required to determine the
appropriate sized bulk capacitor.
The voltage rating for bulk capacitors should be higher than the operating voltage, to provide margin for cases
when the motor transfers energy to the supply.
Power Supply
Parasitic Wire
Inductance
Motor Drive System
VM
+
±
+
Motor
Driver
GND
Local
Bulk Capacitor
IC Bypass
Capacitor
Copyright © 2016, Texas Instruments Incorporated
Figure 9-1. Example Setup of Motor Drive System With External Power Supply
28
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
10 Layout
10.1 Layout Guidelines
The VM pin should be bypassed to PGND using a low-ESR ceramic bypass capacitor with a recommended
value of 0.01 µF rated for VM. This capacitor should be placed as close to the VM pin as possible with a thick
trace or ground plane connection to the device PGND pin.
The VM pin must be bypassed to ground using a bulk capacitor rated for VM. This component can be an
electrolytic capacitor.
Bypass the DVDD pin to ground with a low-ESR ceramic capacitor. A value of 0.47 µF rated for 6.3 V is
recommended. Place this bypassing capacitor as close to the pin as possible.
The thermal PAD must be connected to system ground.
ADVANCE INFORMATION
10.1.1 Layout Example
Figure 10-1. HTSSOP Layout Example
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
29
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
ADVANCE INFORMATION
Figure 10-2. QFN Layout Example
30
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
11 Device and Documentation Support
11.1 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to order now.
Table 11-1. Related Links
PARTS
PRODUCT FOLDER
ORDER NOW
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
DRV8428E
Click here
Click here
Click here
Click here
Click here
DRV8428P
Click here
Click here
Click here
Click here
Click here
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
11.3 Community Resources
11.4 Trademarks
All trademarks are the property of their respective owners.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
31
ADVANCE INFORMATION
11.2 Receiving Notification of Documentation Updates
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
ADVANCE INFORMATION
32
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
PACKAGE OUTLINE
RTE0016J
WQFN - 0.8 mm max height
SCALE 3.600
PLASTIC QUAD FLATPACK - NO LEAD
3.15
2.85
A
B
PIN 1 INDEX AREA
ADVANCE INFORMATION
3.15
2.85
0.8
0.7
C
SEATING PLANE
0.05
0.00
0.08
1.66 0.1
(0.1) TYP
5
8
EXPOSED
THERMAL PAD
12X 0.5
4
9
4X
1.5
SYMM
17
1
12
16X
PIN 1 ID
(OPTIONAL)
16
SYMM
16X
13
0.30
0.18
0.1
0.05
C A B
0.5
0.3
4224278/A 05/2018
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
33
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
EXAMPLE BOARD LAYOUT
RTE0016J
WQFN - 0.8 mm max height
PLASTIC QUAD FLATPACK - NO LEAD
( 1.66)
SYMM
13
16
16X (0.6)
1
ADVANCE INFORMATION
12
16X (0.24)
SYMM
17
(2.8)
(0.58)
TYP
12X (0.5)
9
4
( 0.2) TYP
VIA
5
(R0.05)
ALL PAD CORNERS
8
(0.58) TYP
(2.8)
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE:20X
0.07 MIN
ALL AROUND
0.07 MAX
ALL AROUND
SOLDER MASK
OPENING
METAL
EXPOSED
METAL
SOLDER MASK
OPENING
EXPOSED
METAL
NON SOLDER MASK
DEFINED
(PREFERRED)
METAL UNDER
SOLDER MASK
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
4224278/A 05/2018
NOTES: (continued)
4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature
number SLUA271 (www.ti.com/lit/slua271).
5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown
on this view. It is recommended that vias under paste be filled, plugged or tented.
www.ti.com
34
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
EXAMPLE STENCIL DESIGN
RTE0016J
WQFN - 0.8 mm max height
PLASTIC QUAD FLATPACK - NO LEAD
( 1.51)
16
ADVANCE INFORMATION
13
16X (0.6)
1
12
16X (0.24)
17
SYMM
(2.8)
12X (0.5)
9
4
METAL
ALL AROUND
5
SYMM
8
(R0.05) TYP
(2.8)
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
EXPOSED PAD 17:
84% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE
SCALE:25X
4224278/A 05/2018
NOTES: (continued)
6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
35
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
PACKAGE OUTLINE
PWP0016C
TM
PowerPAD TSSOP - 1.2 mm max height
SCALE 2.500
SMALL OUTLINE PACKAGE
6.6
TYP
6.2
A
C
PIN 1 INDEX
AREA
0.1 C
SEATING
PLANE
14X 0.65
16
1
2X
ADVANCE INFORMATION
5.1
4.9
NOTE 3
4.55
8
9
4.5
4.3
B
16X
0.30
0.19
0.1
C A B
SEE DETAIL A
(0.15) TYP
2X 0.95 MAX
NOTE 5
4X (0.3)
8
9
2X 0.23 MAX
NOTE 5
2.31
1.75
17
0.25
GAGE PLANE
16
1
0 -8
1.2 MAX
0.15
0.05
0.75
0.50
DETAIL A
A 20
THERMAL
PAD
2.46
1.75
TYPICAL
4224559/B 01/2019
PowerPAD is a trademark of Texas Instruments.
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. Reference JEDEC registration MO-153.
5. Features may differ or may not be present.
www.ti.com
36
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
EXAMPLE BOARD LAYOUT
PWP0016C
TM
PowerPAD TSSOP - 1.2 mm max height
SMALL OUTLINE PACKAGE
(3.4)
NOTE 9
(2.46)
16X (1.5)
METAL COVERED
BY SOLDER MASK
SYMM
1
16
(1.2) TYP
ADVANCE INFORMATION
16X (0.45)
(R0.05) TYP
SYMM
(2.31)
17
(5)
NOTE 9
(0.6)
14X (0.65)
( 0.2) TYP
VIA
9
8
SOLDER MASK
DEFINED PAD
(1) TYP
SEE DETAILS
(5.8)
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 10X
SOLDER MASK
OPENING
METAL UNDER
SOLDER MASK
METAL
SOLDER MASK
OPENING
EXPOSED METAL
EXPOSED METAL
0.05 MIN
ALL AROUND
0.05 MAX
ALL AROUND
NON-SOLDER MASK
DEFINED
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
15.000
4224559/B 01/2019
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
8. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature
numbers SLMA002 (www.ti.com/lit/slma002) and SLMA004 (www.ti.com/lit/slma004).
9. Size of metal pad may vary due to creepage requirement.
10. Vias are optional depending on application, refer to device data sheet. It is recommended that vias under paste be filled, plugged
or tented.
www.ti.com
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
37
DRV8428E
www.ti.com
SLOSE51A – JUNE 2020 – REVISED DECEMBER 2020
EXAMPLE STENCIL DESIGN
PWP0016C
TM
PowerPAD TSSOP - 1.2 mm max height
SMALL OUTLINE PACKAGE
(2.46)
BASED ON
0.125 THICK
STENCIL
16X (1.5)
1
METAL COVERED
BY SOLDER MASK
16
16X (0.45)
ADVANCE INFORMATION
(R0.05) TYP
SYMM
(2.31)
BASED ON
0.125 THICK
STENCIL
17
14X (0.65)
9
8
SYMM
(5.8)
SEE TABLE FOR
DIFFERENT OPENINGS
FOR OTHER STENCIL
THICKNESSES
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE: 10X
STENCIL
THICKNESS
SOLDER STENCIL
OPENING
0.1
0.125
0.15
0.175
2.75 X 2.58
2.46 X 2.31 (SHOWN)
2.25 X 2.11
2.08 X 1.95
4224559/B 01/2019
NOTES: (continued)
11. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
12. Board assembly site may have different recommendations for stencil design.
www.ti.com
38
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: DRV8428E
PACKAGE OPTION ADDENDUM
www.ti.com
27-Aug-2021
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
DRV8428EPWPR
ACTIVE
HTSSOP
PWP
16
3000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
8428E
DRV8428ERTER
ACTIVE
WQFN
RTE
16
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
8428E
DRV8428PPWPR
ACTIVE
HTSSOP
PWP
16
3000
RoHS & Green
NIPDAU
Level-3-260C-168 HR
-40 to 125
8428P
DRV8428PRTER
ACTIVE
WQFN
RTE
16
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
8428P
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
