ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
ISO722x Dual-Channel Digital Isolators
1 Features
•
1
•
•
•
•
•
•
•
1, 5, 25, and 150-Mbps Signaling Rate Options
– Low Channel-to-Channel Output Skew;
1-ns Max
– Low Pulse-Width Distortion (PWD); 1-ns Max
– Low Jitter Content; 1 ns Typ at 150 Mbps
50 kV/μs Typical Transient Immunity
Operates with 2.8-V (C-Grade),
3.3-V, or 5-V Supplies
4-kV ESD Protection
High Electromagnetic Immunity
–40°C to +125°C Operating Range
Typical 28-Year Life at Rated Voltage
(see High-Voltage Lifetime of the ISO72x Family
of Digital Isolators and Isolation Capacitor Lifetime
Projection)
Safety-Related Certifications
– VDE Basic Insulation with 4000-VPK VIOTM, 560
VPK VIORM per DIN V VDE V 0884-10 (VDE V
0884-10):2006-12 and DIN EN 61010-1 (VDE
0411-1)
– 2500 VRMS Isolation per UL 1577
– CSA Approved for Component Acceptance
Notice 5A and IEC 60950-1
2 Applications
•
•
•
•
Industrial Fieldbus
– Modbus
– Profibus™
– DeviceNet™ Data Buses
Computer Peripheral Interface
Servo Control Interface
Data Acquisition
A binary input signal is conditioned, translated to a
balanced signal, then differentiated by the capacitive
isolation barrier. Across the isolation barrier, a
differential comparator receives the logic transition
information, then sets or resets a flip-flop and the
output circuit accordingly. A periodic update pulse is
sent across the barrier to ensure the proper dc level
of the output. If this dc-refresh pulse is not received
every 4 μs, the input is assumed to be unpowered or
not being actively driven, and the failsafe circuit
drives the output to a logic high state.
The small capacitance and resulting time constant
provide fast operation with signaling rates available
from 0 Mbps (DC) to 150 Mbps (The signaling rate of
a line is the number of voltage transitions that are
made per second expressed in the units bps). The Aoption, B-option, and C-option devices have TTL
input thresholds and a noise filter at the input that
prevents transient pulses from being passed to the
output of the device. The M-option devices have
CMOS VCC/2 input thresholds and do not have the
input noise filter and the additional propagation delay.
The ISO7220x and ISO7221x family of devices
require two supply voltages of 2.8 V (C-Grade), 3.3 V,
5 V, or any combination. All inputs are 5-V tolerant
when supplied from a 2.8-V or 3.3-V supply and all
outputs are 4-mA CMOS.
The ISO7220x and ISO7221x family of devices are
characterized for operation over the ambient
temperature range of –40°C to +125°C.
Device Information(1)
PART NUMBER
ISO7220x

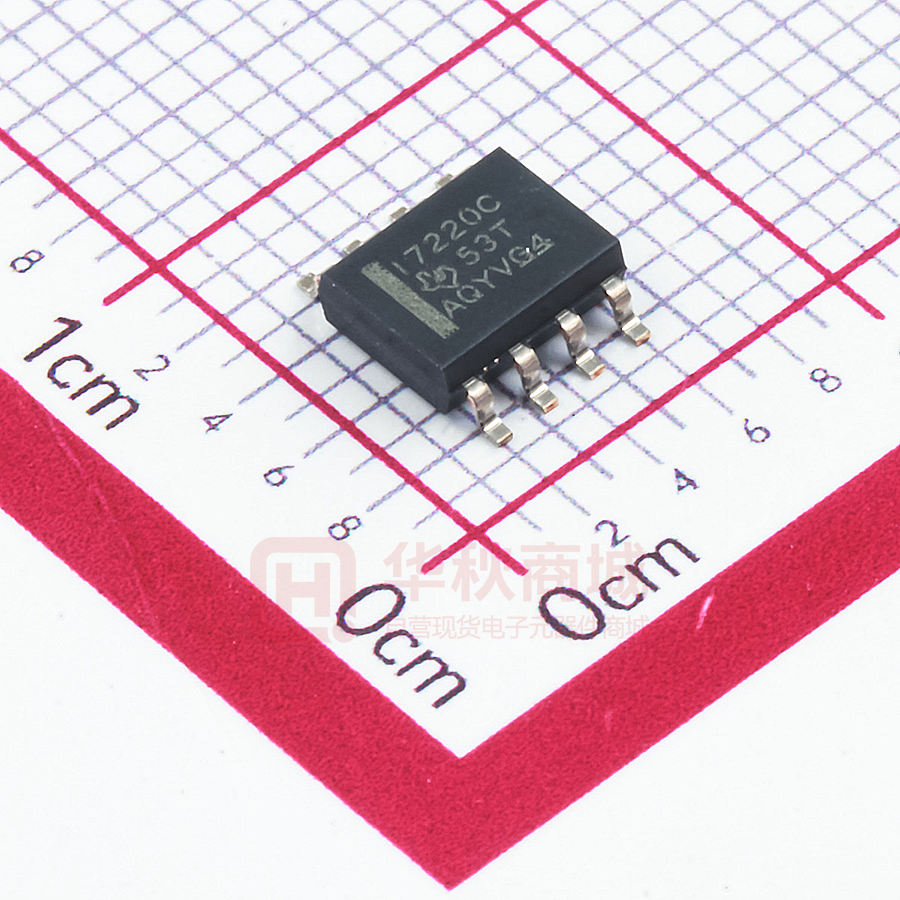

SOIC (8)
ISO7221x
BODY SIZE (NOM)
4.90 mm × 3.91 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Simplified Schematic
3 Description
The ISO7220x and ISO7221x family devices are
dual-channel digital isolators. To facilitate PCB layout,
the channels are oriented in the same direction in the
ISO7220x and in opposite directions in the ISO7221x.
These devices have a logic input and output buffer
separated by TI’s silicon-dioxide (SiO2) isolation
barrier, providing galvanic isolation of up to 4000 VPK
per VDE. Used in conjunction with isolated power
supplies, these devices block high voltage and isolate
grounds, as well as prevent noise currents on a data
bus or other circuits from entering the local ground
and interfering with or damaging sensitive circuitry.
PACKAGE
VCCI
Isolation
Capacitor
VCCO
INx
OUTx
GNDI
GNDO
VCCI and GNDI are supply and ground
connections respectively for the input
channels.
VCCO and GNDO are supply and ground
connections respectively for the output
channels.
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
6
6
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
Absolute Maximum Ratings ...................................... 6
ESD Ratings.............................................................. 6
Recommended Operating Conditions....................... 7
Thermal Information .................................................. 7
Power Ratings........................................................... 7
Insulation Specifications............................................ 8
Safety-Related Certifications..................................... 9
Safety Limiting Values .............................................. 9
Electrical Characteristics—5-V VCC1 and V CC2
Supplies ................................................................... 10
6.10 Electrical Characteristics—5-V VCC1 and 3.3-V VCC2
Supply ...................................................................... 11
6.11 Electrical Characteristics—3.3-V VCC1 and 5-V VCC2
Supply ..................................................................... 12
6.12 Electrical Characteristics—3.3-V VCC1 and VCC2
Supplies ................................................................... 13
6.13 Electrical Characteristics—2.8-V VCC1 and VCC2
Supplies ................................................................... 13
6.14 Switching Characteristics—5-V VCC1 and VCC2
Supplies ................................................................... 14
6.15 Switching Characteristics—5-V VCC1 and 3.3-V
VCC2 Supply ............................................................. 15
6.16 Switching Characteristics—3.3-V CC1 and 5-V VCC2
Supplies ................................................................... 16
6.17 Switching Characteristics—3.3-V VCC1 and VCC2
Supplies ...................................................................
6.18 Switching Characteristics—2.8-V VCC1 and VCC2
Supplies ...................................................................
6.19 Insulation Characteristics Curves .........................
6.20 Typical Characteristics ..........................................
7
8
17
18
19
Parameter Measurement Information ................ 21
Detailed Description ............................................ 23
8.1
8.2
8.3
8.4
9
17
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
23
23
24
24
Application and Implementation ........................ 25
9.1 Application Information............................................ 25
9.2 Typical Application .................................................. 25
10 Power Supply Recommendations ..................... 27
11 Layout................................................................... 27
11.1 Layout Guidelines ................................................. 27
11.2 Layout Example .................................................... 27
12 Device and Documentation Support ................. 28
12.1
12.2
12.3
12.4
12.5
12.6
12.7
Documentation Support ........................................
Related Links ........................................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
28
28
28
28
28
29
29
13 Mechanical, Packaging, and Orderable
Information ........................................................... 29
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision N (September 2015) to Revision O
Page
•
Changed the Dissipation Characteristics table to Power Ratings. Combined the DIN V VDE V 0884-10 (VDE V
0884-10):2006-12 Insulation Characteristics table IEC Package Characteristics, and IEC 60664-1 Ratings Table in
the Insulation Specifications table. Changed the Regulatory Information table to Safety-Related Certifications .................. 7
•
Deleted the maximum surge voltage, 4000 VPK for VDE in the Safety-Related Certifications table...................................... 9
•
Changed the CSA information in the Safety-Related Certifications table .............................................................................. 9
•
Added the Receiving Notification of Documentation Updates section ................................................................................ 28
•
Changed the Electrostatic Discharge Caution section ......................................................................................................... 28
Changes from Revision M (October 2014) to Revision N
Page
•
Changed the VDE Cerification from: DIN EN 60747-5-5 (VDE 0884-5) to: DIN V VDE V 0884-10 (VDE V 088410):2006-12 throughout the document ................................................................................................................................... 1
•
Updated the Simplified Schematic to a higher quality version. .............................................................................................. 1
•
Changed the max value of the IN and OUT voltage from 6 to VCC + 0.5 in the Absolute Maximum Ratings table............... 6
•
Changed L(I01) MIN value from 4.8 to 4 in the IEC Package Characteristics table. ............................................................. 8
•
Added the JEDEC package dimensions note in the IEC Package Characteristics table....................................................... 8
•
Changed L(I01) MIN value from 4.8 to 4 in the IEC Package Characteristics table. ............................................................. 8
2
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
•
Added the DTI parameter to the IEC Package Characteristics table. .................................................................................... 8
•
Changed the DTI test condition From: IEC 60112 / VDE 0303 Part 1 To: DIN EN 60112 (VDE 0303-11); IEC 60112 ........ 8
•
Added = 150°C to insulation resistance test condition in the DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
Insulation Characteristics table. ............................................................................................................................................. 8
•
Added table row with input side VCC = X to the ISO7220x or ISO7221x Function table...................................................... 24
Changes from Revision L (January 2012) to Revision M
Page
•
Changed the title of this data sheet to ISO722x Dual Channel Digital Isolators ................................................................... 1
•
Added Pin Configuration and Functions section, Handling Rating table, Dissipation Ratings table, Feature
Description section, Device Functional Modes, Application and Implementation section, Power Supply
Recommendations section, Layout section, Device and Documentation Support section, and Mechanical,
Packaging, and Orderable Information section, changed Thermal Information table ........................................................... 1
•
Updated the Features section ............................................................................................................................................... 1
•
Added per VDE to 4000 VPK in second sentence of Description .......................................................................................... 1
•
Updated the Regulatory Information Table............................................................................................................................. 6
•
Added the min and max values to the Storage temperature parameter in the Absolute Maximum Ratings table. ............... 6
•
Changed in ROC table Max col, VIH row from VCC to 5.5 .................................................................................................... 7
•
Changed the L(I01) parameter name to external clearance (CLR) and L(I02) to external creepage (CPG). Also
changed the input-to-output test voltage (VPR) parameter name to apparent charge (qpd) ................................................... 8
•
Changed the Device Options table, Input Threshold column from ≠ symbol to ~ symbol 6 places .................................... 24
•
Changed Isolation Glossary ................................................................................................................................................ 28
Changes from Revision K (January 2010) to Revision L
Page
•
Changed Feature From: Operates with 3.3-V or 5-V Supplies To: Operates with 2.8-V (C-Grade), 3.3-V or 5-V Supplies . 1
•
Changed Feature From: 4000-Vpeak Isolation, 560 Vpeak VIORM To: 4000-VPK VIOTM, 560 VPK VIORM per IEC 60747-5-2
(VDE 0884, Rev2) ................................................................................................................................................................. 1
•
Added device options to VCC in the RECOMMENDED OPERATING CONDITIONS table ................................................... 7
•
Changed Note: (1) in the RECOMMENDED OPERATING CONDITIONS table ................................................................... 7
•
Changed the CTI MIN value From: ≥175 V To: ≥400 V ......................................................................................................... 8
•
Updated the Regulatory Information table.............................................................................................................................. 9
•
Changed ICC1 and ICC2 test conditions in the 5-V table......................................................................................................... 10
•
Changed Table Note: (1) ...................................................................................................................................................... 10
•
Changed ICC1 and ICC2 test conditions in the VCC1 at 5 V, VCC2 at 3.3 V table...................................................................... 11
•
Changed Table Note: (1) ...................................................................................................................................................... 11
•
Changed ICC1 and ICC2 test conditions in the VCC1 at 3.3 V, VCC2 at 5 V table...................................................................... 12
•
Changed Table Note (1) ....................................................................................................................................................... 12
•
Changed ICC1 and ICC2 test conditions in the VCC1 and VCC2 at 3.3 V table .......................................................................... 13
•
Changed Table Note (1) ....................................................................................................................................................... 13
•
Added ELECTRICAL and Switching CHARACTERISTICS table for VCC1 and VCC2 at 2.8 V (ISO722xC-Only) ................. 13
•
Changed VCC Undervoltage Threshold vs Free-Air Temperature ........................................................................................ 19
•
Changed Failsafe Delay Time Test Circuit and Voltage Waveforms ................................................................................... 21
Changes from Revision J (May 2009) to Revision K
Page
•
Changed the RECOMMENDED OPERATING CONDITIONS so that Note (2) is associated with all device options in
the Input pulse width and Signaling rate ................................................................................................................................ 7
•
Changed Note (2) From: Typical signaling rate under ideal conditions at 25°C. To: Typical signaling rate and Input
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
3
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
pulse width are measured at ideal conditions at 25°C. .......................................................................................................... 7
•
Changed column 2 of the AVAILABLE OPTIONS table From: Signaling Rate To: Max Signaling Rate ............................. 24
Changes from Revision I (December 2008) to Revision J
•
Page
Changed ISO7221C Marked As column From: TI7221C To: I7221C in the AVAILABLE OPTIONS table ......................... 24
Changes from Revision H (May 2008) to Revision I
•
Page
Added "IEC 61010-1, IEC 60950-1 and CSA Approved" to the UL 1577 FEATURES bullet ................................................ 1
Changes from Revision G (March 2008) to Revision H
Page
•
Added Note: (1) to the RECOMMENDED OPERATING CONDITIONS table ....................................................................... 7
•
Added Note: (1) to the ELECTRICAL CHARACTERISTICS: VCC1 and VCC2 at 5-V table.................................................... 10
•
Added Note: (1) to the ELECTRICAL CHARACTERISTICS: VCC1 at 5 V, VCC2 at 3.3 V table ............................................ 11
•
Added Note (1): to the ELECTRICAL CHARACTERISTICS: VCC1 at 3.3 V, VCC2 at 5 V table ............................................ 12
•
Added Note (1): to the ELECTRICAL CHARACTERISTICS: VCC1 and VCC2 at 3.3 V.......................................................... 13
Changes from Revision F (August 2007) to Revision G
Page
•
Added Part Numbers ISO7220B and ISO7221B to the data sheet........................................................................................ 1
•
Added 5-Mbps Signaling rate to the FEATURES list ............................................................................................................. 1
•
Added Part Numbers ISO7220B and ISO7221B to the ELECTRICAL CHARACTERISTICS: VCC1 and VCC2 at 5-V table . 10
•
Added Part Numbers ISO7220B and ISO7221B to the ELECTRICAL CHARACTERISTICS: VCC1 at 5 V, VCC2 at 3.3
V table................................................................................................................................................................................... 11
•
Added Part Numbers ISO7220B and ISO7221B to the ELECTRICAL CHARACTERISTICS: VCC1 at 3.3 V, VCC2 at 5
V table................................................................................................................................................................................... 12
•
Added Part Numbers ISO7220B and ISO7221B to the ELECTRICAL CHARACTERISTICS: VCC1 and VCC2 at 3.3 V ....... 13
•
Added PROPAGATION DELAY vs FREE-AIR TEMPERATURE, ISO722xB, Propagation Delay vs Free-Air
Temperature, ISO722xB....................................................................................................................................................... 19
•
Added Part Numbers ISO7220B and ISO7221B to the AVAILABLE OPTIONS table......................................................... 24
Changes from Revision E (July 2007) to Revision F
Page
•
Added tsk(pp) footnote to the SWITCHING CHARACTERISTICS: VCC1 and VCC2 at 5-V OPERATION table ....................... 14
•
Added tsk(o) footnote to the SWITCHING CHARACTERISTICS: VCC1 and VCC2 at 5-V OPERATION table......................... 14
•
Added tsk(pp) footnote to the SWITCHING CHARACTERISTICS: VCC1 at 5 V, VCC2 at 3.3 V OPERATION table................ 15
•
Added tsk(o) footnote to the SWITCHING CHARACTERISTICS: VCC1 at 5 V, VCC2 at 3.3 V OPERATION table ................. 15
•
Added tsk(pp) footnote to the SWITCHING CHARACTERISTICS: VCC1 at 3.3 V, VCC2 at 5 V OPERATION table................ 16
•
Added tsk(o) footnote to the SWITCHING CHARACTERISTICS: VCC1 at 3.3 V, VCC2 at 5 V OPERATION table ................. 16
•
Added tsk(pp) footnote to the SWITCHING CHARACTERISTICS table................................................................................. 17
•
Changed 3.3-VRMS Supply Current vs Signaling Rate - Re-scaled the Y-axis ..................................................................... 19
•
Changed 5-VRMS Supply Current vs Signaling Rate - New Curves...................................................................................... 19
Changes from Revision D (June 2007) to Revision E
Page
•
Changed 3.3-VRMS Supply Current vs Signaling Rate - New Curves................................................................................... 19
•
Changed 5-VRMS Supply Current vs Signaling Rate - Re-scaled the Y-axis ....................................................................... 19
4
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
Changes from Revision C (May 2007) to Revision D
•
Page
Changed Typical ISO7220x Circuit Hook-Up - Pin 2 (INA) label From: OUTPUT to INPUT ............................................... 26
Changes from Revision B (May 2007) to Revision C
Page
•
Added the Signaling rate values to the RECOMMENDED OPERATING CONDITIONS table.............................................. 7
•
Changed the IEC 60664-1 RATINGS TABLE - Specification I-III test conditions From: Rated mains voltage ≤150
VRMS To: Rated mains voltage ≤300 VRMS. Added a row for the I-II specifications........................................................... 8
•
Added ISO722xM Jitter vs Signaling Rate cross reference to the Peak-to-peak eye-pattern jitter of the SWITCHING
CHARACTERISTICS table ................................................................................................................................................... 14
•
Added Time-Dependent Dielectric Breakdown Test Results ............................................................................................... 26
Changes from Revision A (August 2006) to Revision B
Page
•
Added the TYPICAL CHARACTERISTIC CURVES to the data sheet. ............................................................................... 19
•
Added the PARAMETER MEASUREMENT INFORMATION to the data sheet .................................................................. 21
•
Added the APPLICATION INFORMATION section to the data sheet.................................................................................. 25
•
Added the ISOLATION GLOSSARY section to the data sheet ........................................................................................... 28
Changes from Original (July 2006) to Revision A
Page
•
Deleted "and CSA Apporved" from the UL 1577 FEATURES bullet...................................................................................... 1
•
Added option A to the AVAILABLE OPTIONS table ............................................................................................................ 24
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
5
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
Pin Configuration and Functions
ISO7220x D Package
8-Pin SOIC
Top View
INA 2
INB 3
8 VCC2
ISOLATION
VCC1 1
ISO7221x D Package
8-Pin SOIC
Top View
GND1 4
VCC1 1
7 OUTA
OUTA 2
6 OUTB
INB 3
5 GND2
GND1 4
8 VCC2
ISOLATION
5
www.ti.com
7 INA
6 OUTB
5 GND2
Pin Functions
PIN
NAME
I/O
DESCRIPTION
ISO7220x
ISO7221x
INA
2
7
I
Input, channel A
INB
3
3
I
Input, channel B
GND1
4
4
—
Ground connection for VCC1
GND2
5
5
—
Ground connection for VCC2
OUTA
7
2
O
Output, channel A
OUTB
6
6
O
Output, channel B
VCC1
1
1
—
Power supply, VCC1
VCC2
8
8
—
Power supply, VCC2
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VCC
Supply voltage (2), VCC1, VCC2
–0.5
6
V
VI
Voltage at IN, OUT
–0.5
VCC + 0.5 (3)
V
IO
Output current
–15
15
mA
TJ
Maximum junction temperature
170
°C
Tstg
Storage temperature
150
°C
(1)
(2)
(3)
–65
Stresses beyond those listed under Absolute Maximum Ratings can cause permanent damage to the device. These ratings are stress
ratings only and functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods can affect device reliability.
All voltage values except differential I/O bus voltages are with respect to network ground pin and are peak voltage values.
Maximum voltage must not exceed 6 V.
6.2 ESD Ratings
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins
V(ESD)
(1)
(2)
6
Electrostatic
discharge
(1)
VALUE
UNIT
±4000
V
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2)
±1000
V
Machine Model, ANSI/ESDS5.2-1996
±200
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.3 Recommended Operating Conditions
MIN
VCC
Supply voltage (1), VCC1, VCC2
IOH
High-level output current
IOL
Low-level output current
tui
Input pulse width
ISO722xA, ISO722xB, ISO722xM
ISO722xC
MAX
5.5
2.8
5.5
–4
(2)
UNIT
V
mA
4
Signaling rate (2)
1/tui
NOM
3
ISO722xA
1
0.67
ISO722xB
200
100
ISO722xC
40
33
ISO722xM
6.67
5
ISO722xA
0
1500
1000
ISO722xB
0
10
5
ISO722xC
0
30
25
ISO722xM
0
200
150
mA
μs
ns
kbps
Mbps
VIH
High-level input voltage
ISO722xA, ISO722xB, ISO722xC
2
5.5
V
VIL
Low-level input voltage
ISO722xA, ISO722xB, ISO722xC
0
0.8
V
VIH
High-level input voltage
ISO722xM
0.7 VCC
VCC
V
VIL
Low-level input voltage
ISO722xM
0
0.3 VCC
V
TJ
Junction temperature
–40
150
°C
H
External magnetic field-strength immunity per IEC 61000-4-8 and IEC 61000-4-9 certification
1000
A/m
(1)
For the 5-V operation, VCC1 or VCC2 is specified from 4.5 V to 5.5 V.
For the 3.3-V operation, VCC1 or VCC2 is specified from 3 V to 3.6 V.
For the 2.8-V operation, VCC1 or VCC2 is specified at 2.8 V.
Typical signaling rate and Input pulse width are measured at ideal conditions at 25°C.
(2)
6.4 Thermal Information
ISO7220x
ISO7221x
THERMAL METRIC (1)
UNIT
D (SOIC)
8 PINS
Low-K Thermal Resistance (2)
212
High-K Thermal Resistance
122
RθJA
Junction-to-ambient thermal resistance
RθJC(top)
Junction-to-case (top) thermal resistance
69.1
°C/W
RθJB
Junction-to-board thermal resistance
47.7
°C/W
ψJT
Junction-to-top characterization parameter
15.2
°C/W
ψJB
Junction-to-board characterization parameter
47.2
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
—
°C/W
(1)
(2)
°C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report (SPRA953).
Tested in accordance with the Low-K or High-K thermal metric definitions of EIA/JESD51-3 for leaded surface mount packages.
6.5 Power Ratings
VCC1 = VCC2 = 5.5 V, TJ = 150°C, CL = 15 pF, Input a 150 Mbps 50% duty cycle square wave
PARAMETER
PD
Device power dissipation, ISO722xM
Copyright © 2006–2017, Texas Instruments Incorporated
TEST CONDITIONS
MIN
TYP MAX
UNIT
390
mW
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
7
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.6 Insulation Specifications
PARAMETER
TEST CONDITIONS
VALUE
UNIT
GENERAL
External clearance (1)
Shortest terminal-to-terminal distance through air
4
mm
CPG
External creepage (1)
Shortest terminal-to-terminal distance across the
package surface
4
mm
DTI
Distance through the insulation
Minimum internal gap (internal clearance)
0.008
mm
CTI
Comparative tracking index
DIN EN 60112 (VDE 0303-11); IEC 60112
400
V
Rated mains voltage ≤150 VRMS
I-IV
Rated mains voltage ≤300 VRMS
I-III
Rated mains voltage ≤400 VRMS
I-II
CLR
Material group
Overvoltage category
II
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 (2)
VIORM
Maximum repetitive peak isolation voltage AC voltage (bipolar)
VIOTM
Maximum transient isolation voltage
Apparent charge (3)
qpd
Barrier capacitance, input to output (4)
CIO
Isolation resistance, input to output (4)
RIO
VTEST = VIOTM
t = 60 s (qualification), t = 1 s (100% production)
560
VPK
4000
VPK
Method a: After I/O safety test subgroup 2/3, Vini =
VIOTM, tini = 60 s; Vpd(m) = 1.2 × VIORM , tm = 10 s
≤5
Method a: After environmental tests subgroup 1,
Vini = VIOTM, tini = 60 s; Vpd(m) = 1.3 × VIORM, tm =
10 s
≤5
Method b1: At routine test (100% production) and
preconditioning (type test) Vini = VIOTM, tini = 1 s;
Vpd(m) = 1.5 × VIORM, tm = 1 s
≤5
VIO = 0.4 sin (4E6πt)
1
VIO = 500 V, TA = 25°C
>1012
VIO = 500 V, 100°C ≤ TA ≤ 125°C
>1011
VIO = 500 V at TS = 150°C
>109
Pollution degree
2
Climatic category
40/125/21
pC
pF
Ω
UL 1577
VISO
(1)
(2)
(3)
(4)
8
Withstand isolation voltage
VTEST = VISO = 2500 VRMS, t = 60 s (qualification);
VTEST = 1.2 × VISO = 3000 VRMS, t = 1 s (100%
production)
2500
VRMS
Creepage and clearance requirements should be applied according to the specific equipment isolation standards of an application. Care
should be taken to maintain the creepage and clearance distance of a board design to ensure that the mounting pads of the isolator on
the printed-circuit board do not reduce this distance. Creepage and clearance on a printed-circuit board become equal in certain cases.
Techniques such as inserting grooves and/or ribs on a printed circuit board are used to help increase these specifications.
This coupler is suitable for basic electrical insulation only within the maximum operating ratings. Compliance with the safety ratings shall
be ensured by means of suitable protective circuits.
Apparent charge is electrical discharge caused by a partial discharge (pd).
All pins on each side of the barrier tied together creating a two-terminal device
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.7 Safety-Related Certifications
VDE
CSA
UL
Certified according to DIN V VDE V 0884-10
(VDE V 0884-10):2006-12 and DIN EN
61010-1 (VDE 0411-1):2011-07
Approved under CSA Component Acceptance
Notice 5A, IEC 60950-1
Recognized under UL 1577
Component Recognition Program
Basic Insulation
Maximum Transient Overvoltage, 4000 VPK;
Maximum Repetitive Peak Isolation Voltage,
560 VPK
2000 VRMS Isolation rating
400 VRMS Basic insulation and 148 VRMS
Reinforced insulation working voltage per CSA
60950-1-07+A1+A2 and IEC 60950-1 2nd Ed.
+A1+A2.
Single protection, 2500 VRMS
Certificate number: 40016131
Master contract number: 220991
File number: E181974
6.8 Safety Limiting Values
Safety limiting (1) intends to minimize potential damage to the isolation barrier upon failure of input or output circuitry. A failure
of the I/O can allow low resistance to ground or the supply and, without current limiting, dissipate sufficient power to overheat
the die and damage the isolation barrier, potentially leading to secondary system failures.
PARAMETER
IS
TS
(1)
Safety input, output, or supply
current
TEST CONDITIONS
MIN
TYP
MAX
RθJA = 212°C/W, VI = 5.5 V, TJ = 170°C, TA = 25°C,
see Figure 1
124
RθJA = 212°C/W, VI = 3.6 V, TJ = 170°C, TA = 25°C,
see Figure 1
190
Safety temperature
UNIT
mA
150
°C
The safety-limiting constraint is the maximum junction temperature specified in the data sheet. The power dissipation and junction-to-air
thermal impedance of the device installed in the application hardware determines the junction temperature. The assumed junction-to-air
thermal resistance in the Thermal Information table is that of a device installed on a high-K test board for leaded surface-mount
packages. The power is the recommended maximum input voltage times the current. The junction temperature is then the ambient
temperature plus the power times the junction-to-air thermal resistance.
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
9
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.9 Electrical Characteristics—5-V VCC1 and V CC2 Supplies
VCC1 and V CC2 at 5 V ± 10% (over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
MIN
ISO7220x quiescent, VI = VCC or 0 V, no load
1
2
17
2
3
10
18
4
9
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz
input clock signal, no load
12
22
ISO7220x quiescent, VI = VCC or 0 V, no load
16
31
ISO7221x quiescent, VI = VCC or 0 V, no load
8.5
17
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz
input clock signal, no load
17
32
ISO7221A, ISO7221B 1 Mbps, 0.5-MHz input
clock signal, no load
10
18
ISO7220C, ISO7220M 25 Mbps, 12.5-MHz
input clock signal, no load
20
34
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz
input clock signal, no load
12
22
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz
input clock signal, no load
VCC1 supply current
VCC2 supply current
VOH
High-level output voltage
VOL
Low-level output voltage
mA
VCC – 0.8
4.6
VCC – 0.1
5
0.2
0.4
IOL = 20 μA, See Figure 14
0
0.1
VI(HYS) Input voltage hysteresis
150
IN from 0 V to VCC
Low-level input current
IN from 0 V to VCC
CI
Input capacitance to ground
IN at VCC, VI = 0.4 sin (4E6πt)
CMTI
Common-mode transient immunity
VI = VCC or 0 V, See Figure 16
10
Submit Documentation Feedback
V
IOL = 4 mA, See Figure 14
High-level input current
mA
mA
IOH = –20 μA, See Figure 14
IIL
mA
mA
IOH = –4 mA, See Figure 14
IIH
UNIT
mA
ISO7221A, ISO7221B 1 Mbps, 0.5-MHz input
clock signal, no load
ISO7220C, ISO7220M 25 Mbps, 12.5-MHz
input clock signal, no load
ICC2
MAX
8.5
ISO7221 quiescent, VI = VCC or 0 V, no load
ICC1
TYP
mV
10
–10
25
V
μA
μA
1
pF
50
kV/μs
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.10 Electrical Characteristics—5-V VCC1 and 3.3-V VCC2 Supply
VCC1 at 5 V ± 10%, VCC2 at 3.3 V ± 10% (over recommended operating conditions unless otherwise noted.)
PARAMETER
ICC1
ICC2
VOH
VCC1 supply current
VCC2 supply current
High-level output voltage
TYP
MAX
ISO7220x quiescent, VI = VCC or 0 V, no load
TEST CONDITIONS
MIN
1
2
ISO7221x quiescent, VI = VCC or 0 V, no load
8.5
17
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input
clock signal, no load
2
3
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input
clock signal, no load
10
18
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz
input clock signal, no load
4
9
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz
input clock signal, no load
12
22
mA
8
18
ISO7221x quiescent, VI = VCC or 0 V, no load
4.3
9.5
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input
clock signal, no load
9
19
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input
clock signal, no load
5
11
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz
input clock signal, no load
10
20
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz
input clock signal, no load
6
12
mA
VCC – 0.4
ISO7221x (5-V side), IOH = –4 mA, See Figure 14
VCC – 0.8
All devices, IOH = –20 μA, See Figure 14
VCC – 0.1
V
IOL = 4 mA, See Figure 14
0.4
IOL = 20 μA, See Figure 14
0.1
VI(HYS)
Input voltage hysteresis
IIH
High-level input current
IN from 0 V to VCC
IIL
Low-level input current
IN from 0 V to VCC
CI
Input capacitance to ground
IN at VCC, VI = 0.4 sin (4E6πt)
CMTI
Common-mode transient immunity
VI = VCC or 0 V, See Figure 16
150
Copyright © 2006–2017, Texas Instruments Incorporated
mA
mA
ISO7220x, ISO7221x (3.3-V side), IOH = –4 mA,
See Figure 14
Low-level output voltage
mA
mA
ISO7220x quiescent, VI = VCC or 0 V, no load
VOL
UNIT
mV
10
–10
15
V
μA
μA
1
pF
40
kV/μs
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
11
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.11 Electrical Characteristics—3.3-V VCC1 and 5-V VCC2 Supply
VCC1 at 3.3 V ± 10%, VCC2 at 5 V ± 10% (over recommended operating conditions unless otherwise noted.)
PARAMETER
ICC1
ICC2
VOH
VCC1 supply current
VCC2 supply current
High-level output voltage
TYP
MAX
ISO7220x quiescent, VI = VCC or 0 V, no load
TEST CONDITIONS
0.6
1
ISO7221x quiescent, VI = VCC or 0 V, no load
4.3
9.5
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input clock signal,
no load
1
2
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input clock signal,
no load
5
11
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz input clock
signal, no load
2
4
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz input clock
signal, no load
6
12
ISO7220x quiescent, VI = VCC or 0 V, no load
16
31
ISO7221x quiescent, VI = VCC or 0 V, no load
8.5
17
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input clock signal,
no load
18
32
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input clock signal,
no load
10
18
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz input clock
signal, no load
20
34
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz input clock
signal, no load
12
22
VCC – 0.4
VCC – 0.1
V
IOL = 4 mA, See Figure 14
IIH
High-level input current
IN from 0 V or VCC
IIL
Low-level input current
IN from 0 V or VCC
CI
Input capacitance to ground
IN at VCC, VI = 0.4 sin (4E6πt)
CMTI
Common-mode transient immunity
VI = VCC or 0 V, See Figure 16
Submit Documentation Feedback
mA
All devices, IOH = –20 μA, See Figure 14
Input threshold voltage hysteresis
mA
mA
ISO7221x (3.3-V side), IOH = –4 mA, See Figure 14
VI(HYS)
mA
mA
VCC – 0.8
Low-level output voltage
UNIT
mA
ISO7220x and ISO7221x (5-V side), IOH = –4 mA, See
Figure 14
VOL
12
MIN
0.4
IOL = 20 μA, See Figure 14
0
0.1
150
mV
10
–10
15
μA
μA
1
pF
40
kV/μs
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.12 Electrical Characteristics—3.3-V VCC1 and VCC2 Supplies
VCC1 and VCC2 at 3.3 V ± 10% (over recommended operating conditions unless otherwise noted.) (1)
PARAMETER
ICC1
VCC2 supply current
ICC2
VCC2 supply current
TYP
MAX
ISO7220x quiescent, VI = VCC or 0 V, no load
TEST CONDITIONS
0.6
1
ISO7221x quiescent, VI = VCC or 0 V, no load
4.3
9.5
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input clock signal,
no load
1
2
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input clock signal,
no load
5
11
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz input clock
signal, no load
2
4
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz input clock
signal, no load
6
12
8
18
4.3
9.5
ISO7220A and ISO7220B 1 Mbps, 0.5-MHz input clock signal,
no load
9
19
ISO7221A and ISO7221B 1 Mbps, 0.5-MHz input clock signal,
no load
5
11
ISO7220C and ISO7220M 25 Mbps, 12.5-MHz input clock
signal, no load
10
20
ISO7221C and ISO7221M 25 Mbps, 12.5-MHz input clock
signal, no load
6
12
mA
VCC – 0.4
3
IOH = –20 μA, See Figure 14
VCC – 0.1
3.3
Low-level output voltage
VI(HYS)
Input voltage hysteresis
IIH
High-level input current
IN from 0 V or VCC
IIL
Low-level input current
IN from 0 V or VCC
CI
Input capacitance to ground
IN at VCC, VI = 0.4 sin (4E6πt)
CMTI
Common-mode transient immunity
VI = VCC or 0 V, See Figure 16
mA
mA
IOH = –4 mA, See Figure 14
VOL
mA
mA
ISO7221x quiescent, VI = VCC or 0 V, no load
High-level output voltage
UNIT
mA
ISO7220x quiescent, VI = VCC or 0 V, no load
VOH
(1)
MIN
IOL = 4 mA, See Figure 14
IOL = 20 μA, See Figure 14
0.2
0.4
0
0.1
150
mV
10
–10
15
V
μA
μA
1
pF
40
kV/μs
For the 3.3-V operation, VCC1 or VCC2 is specified from 3 V to 3.6 V.
6.13 Electrical Characteristics—2.8-V VCC1 and VCC2 Supplies
VCC1 and VCC2 at 2.8 V (over recommended operating conditions unless otherwise noted.) 2.8-V operation is only specified for
ISO722xC with production screening starting in January 2012. The first two digits of the Lot Trace Code (YMSLLLLG4)
written on top of each device can be used to identify year and month of production respectively.
PARAMETER
ICC1
ICC2
VOH
VCC1 supply current
VCC2 supply current
High-level output voltage
TYP
MAX
ISO7220C quiescent, VI = VCC or 0 V, no load
TEST CONDITIONS
MIN
0.4
0.9
ISO7221C quiescent, VI = VCC or 0 V, no load
3.7
7.5
ISO7220C 25 Mbps, 12.5-MHz input clock signal, no load
1.5
3.5
ISO7221C 25 Mbps, 12.5-MHz input clock signal, no load
4.5
10
ISO7220C quiescent, VI = VCC or 0 V, no load
6.8
15
ISO7221C quiescent, VI = VCC or 0 V, no load
3.7
7.5
ISO7220C 25 Mbps, 12.5-MHz input clock signal, no load
9
17
ISO7221C 25 Mbps, 12.5-MHz input clock signal, no load
4.5
10
IOH = –4 mA, See Figure 14
VCC – 0.6
IOH = –20 μA, See Figure 14
VCC – 0.1
IOL = 4 mA, See Figure 14
VOL
Low-level output voltage
VI(HYS)
Input voltage hysteresis
IIH
High-level input current
IN from 0 V or VCC
IIL
Low-level input current
IN from 0 V or VCC
CI
Input capacitance to ground
IN at VCC, VI = 0.4 sin (4E6πt)
CMTI
Common-mode transient immunity
VI = VCC or 0 V, See Figure 16
IOL = 20 μA, See Figure 14
Copyright © 2006–2017, Texas Instruments Incorporated
mA
mA
mA
mA
2.55
2.8
0.25
0.6
0
0.1
150
V
mV
10
–10
10
UNIT
μA
μA
1
pF
30
kV/μs
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
13
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.14 Switching Characteristics—5-V VCC1 and VCC2 Supplies
VCC1 and VCC2 at 5 V (over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tsk(pp)
Part-to-part skew
(2)
ISO722xA, see Figure 14
MIN
TYP
MAX
UNIT
280
405
475
ns
1
14
ns
55
70
ns
1
3
ns
32
42
ns
1
2
ns
10
16
ns
0.5
1
ns
42
ISO722xB, see Figure 14
22
ISO722xC, see Figure 14
6
ISO722xM, see Figure 14
ISO722xA
180
ISO722xB
17
ISO722xC
10
ISO722xM
tsk(o)
Channel-to-channel output skew
(3)
tr
Output signal rise time
tf
Output signal fall time
tfs
Failsafe output delay time from input power
loss
tjit(pp)
Peak-to-peak eye-pattern jitter
(1)
(2)
(3)
14
ns
3
ISO722xA
3
15
ISO722xB
0.6
3
ISO722xC, ISO722xM
0.2
1
ns
1
ns
1
ns
See Figure 15
3
μs
ISO722xM, 150 Mbps PRBS NRZ data, 5-bit max same
polarity input, both channels, See Figure 17, Figure 13
1
ISO722xM, 150 Mbps unrestricted bit run length data
input, both channels, See Figure 17
2
See Figure 14
ns
Also referred to as pulse skew.
tsk(pp) is the magnitude of the difference in propagation delay times between any specified pins of two devices when both devices
operate with the same supply voltages, at the same temperature, and have identical packages and test circuits.
tsk(o) is the skew between specified outputs of a single device with all driving inputs connected together and the outputs switching in the
same direction while driving identical specified loads.
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.15 Switching Characteristics—5-V VCC1 and 3.3-V VCC2 Supply
VCC1 at 5 V ± 10%, VCC2 at 3.3 V ± 10%(over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tsk(pp)
Part-to-part skew
(2)
ISO722xA, see Figure 14
MIN
TYP
MAX
UNIT
285
410
480
ns
1
14
ns
58
75
ns
1
3
ns
36
48
ns
1
2
ns
12
20
ns
0.5
1
ns
45
ISO722xB, see Figure 14
25
ISO722xC, see Figure 14
7
ISO722xM, see Figure 14
ISO722xA
180
ISO722xB
17
ISO722xC
10
ISO722xM
tsk(o)
Channel-to-channel output skew
(3)
tr
Output signal rise time
tf
Output signal fall time
tfs
Failsafe output delay time from input power
loss
tjit(pp)
Peak-to-peak eye-pattern jitter
(1)
(2)
(3)
ns
5
ISO722xA
3
15
ISO722xB
0.6
3
ISO722xC, ISO722xM
0.2
1
ns
2
ns
2
ns
See Figure 15
3
μs
ISO722xM, 150 Mbps PRBS NRZ data, 5-bit max same
polarity input, both channels, See Figure 17, Figure 13
1
ISO722xM, 150 Mbps unrestricted bit run length data
input, both channels, See Figure 17
2
See Figure 14
ns
Also referred to as pulse skew.
tsk(pp) is the magnitude of the difference in propagation delay times between any specified pins of two devices when both devices
operate with the same supply voltages, at the same temperature, and have identical packages and test circuits.
tsk(o) is the skew between specified outputs of a single device with all driving inputs connected together and the outputs switching in the
same direction while driving identical specified loads.
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
15
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.16 Switching Characteristics—3.3-V CC1 and 5-V VCC2 Supplies
VCC1 at 3.3 V ± 10%, VCC2 at 5 V ± 10% (over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tsk(pp)
Part-to-part skew
(2)
ISO722xA, see Figure 14
MIN
TYP
MAX
UNIT
285
395
480
ns
1
18
ns
58
75
ns
1
4
ns
36
48
ns
1
3
ns
12
21
ns
0.5
1
ns
45
ISO722xB, see Figure 14
25
ISO722xC, see Figure 14
7
ISO722xM, see Figure 14
ISO722xA
190
ISO722xB
17
ISO722xC
10
ISO722xM
tsk(o)
Channel-to-channel output skew
(3)
tr
Output signal rise time
tf
Output signal fall time
tfs
Failsafe output delay time from input power
loss
tjit(pp)
Peak-to-peak eye-pattern jitter
(1)
(2)
(3)
16
ns
5
ISO722xA
3
15
ISO722xB
0.6
3
ISO722xC, ISO722xM
0.2
1
ns
1
ns
1
ns
See Figure 15
3
μs
ISO722xM, 150 Mbps PRBS NRZ data, 5-bit max same
polarity input, both channels, see Figure 17, Figure 13
1
ISO722xM, 150 Mbps unrestricted bit run length data
input, both channels, see Figure 17
2
See Figure 14
ns
Also referred to as pulse skew.
tsk(pp) is the magnitude of the difference in propagation delay times between any specified pins of two devices when both devices
operate with the same supply voltages, at the same temperature, and have identical packages and test circuits.
tsk(o) is the skew between specified outputs of a single device with all driving inputs connected together and the outputs switching in the
same direction while driving identical specified loads.
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.17 Switching Characteristics—3.3-V VCC1 and VCC2 Supplies
VCC1 and VCC2 at 3.3 V ± 10% (over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tsk(pp)
Part-to-part skew (2)
ISO722xA, see Figure 14
MIN
TYP
MAX
UNIT
290
400
485
ns
1
18
ns
62
78
ns
1
4
ns
40
52
ns
1
3
ns
16
25
ns
0.5
1
ns
46
ISO722xB, see Figure 14
26
ISO722xC, see Figure 14
8
ISO722xM, see Figure 14
ISO722xA
190
ISO722xB
17
ISO722xC
10
ISO722xM
tsk(o)
Channel-to-channel output skew
(3)
tr
Output signal rise time
tf
Output signal fall time
tfs
Failsafe output delay time from input power
loss
tjit(pp)
Peak-to-peak eye-pattern jitter
(1)
(2)
(3)
ns
5
ISO722xA
3
15
ISO722xB
0.6
3
ISO722xC, ISO722xM
0.2
1
ns
2
ns
2
ns
See Figure 15
3
μs
ISO722xM, 150 Mbps PRBS NRZ data, 5-bit max same
polarity input, both channels, See Figure 17, Figure 13
1
ISO722xM, 150 Mbps unrestricted bit run length data
input, both channels, See Figure 17
2
See Figure 14
ns
Also referred to as pulse skew.
tsk(pp) is the magnitude of the difference in propagation delay times between any specified pins of two devices when both devices
operate with the same supply voltages, at the same temperature, and have identical packages and test circuits.
tsk(o) is the skew between specified outputs of a single device with all driving inputs connected together and the outputs switching in the
same direction while driving identical specified loads.
6.18 Switching Characteristics—2.8-V VCC1 and VCC2 Supplies
VCC1 and VCC2 at 2.8 V (over recommended operating conditions unless otherwise noted.)
PARAMETER
TEST CONDITIONS
tPLH, tPHL
Propagation delay
PWD
Pulse-width distortion |tPHL – tPLH| (1)
tsk(pp)
Part-to-part skew (2)
tsk(o)
Channel-to-channel output skew
tr
Output signal rise time
tf
Output signal fall time
tfs
Failsafe output delay time from input power
loss
(1)
(2)
(3)
ISO722xC, see Figure 14
MIN
TYP
MAX
26
45
65
ns
1.5
5
ns
12
ns
5
ns
ISO722xC
(3)
ISO722xC
See Figure 14
See Figure 15
0.2
UNIT
2
ns
2
ns
4.6
μs
Also referred to as pulse skew.
tsk(pp) is the magnitude of the difference in propagation delay times between any specified pins of two devices when both devices
operate with the same supply voltages, at the same temperature, and have identical packages and test circuits.
tsk(o) is the skew between specified outputs of a single device with all driving inputs connected together and the outputs switching in the
same direction while driving identical specified loads.
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
17
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
6.19 Insulation Characteristics Curves
250
Safety Limiting Current - mA
225
VCC1,2 at 3.6 V
200
175
150
125
VCC1,2 at 5.5 V
100
75
50
25
0
0
50
100
150
TC - Case Temperature - °C
200
Figure 1. Thermal Derating Curve for Limiting Current per VDE
18
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
6.20 Typical Characteristics
20
30
TA = 25°C,
15 pF Load
18
26
16
ISO7220x ICC2
24
14
ICC - Supply Current - mA
ICC - Supply Current - mA
TA = 25°C,
15 pF Load
28
ISO7220x ICC2
12
10
ISO7221x ICC1&2
8
6
4
ISO7220x ICC1
22
20
ISO7221x ICC1&2
18
16
14
12
10
ISO7220x ICC1
8
6
4
2
2
0
0
0
25
50
75
100
Signaling Rate - Mbps
50
75
Signaling Rate - Mbps
Figure 2. 3.3-VRMS Supply Current vs Signaling Rate
(Mbps)
Figure 3. 5-VRMS Supply Current vs Signaling Rate
(Mbps)
450
25
100
70
TA = 25°C,
15 pF Load
15 pF Load
440
65
Propagation Delay - ns
430
Propagation Delay - ns
0
420
VCC = 3.3 V
410
tpLH & tpHL
400
VCC = 5 V
390
tpLH & tpHL
380
370
tPLH & tPHL
VCC = 3.3 V
60
VCC = 5 V
55
tPLH & tPHL
50
360
350
-40
-15
10
35
60
85
45
-40
110 125
25
Temperature - °C
Temperature - °C
Figure 4. Propagation Delay vs Free-Air Temperature,
ISO722xA
Figure 5. Propagation Delay vs Free-Air Temperature,
ISO722xB
30
20
VCC = 3.3 V
25
VCC = 3.3 V
tpLH & tpHL
15
Propagation Delay - ns
Propagation Delay - ns
125
20
15
tpLH & tpHL
VCC = 5 V
10
tpLH & tpHL
10
tpLH & tpHL
VCC = 5 V
5
5
0
-40
15 pF Load
-15
10
35
60
85
110 125
Temperature - °C
Figure 6. Propagation Delay vs Free-Air Temperature,
ISO722xC
Copyright © 2006–2017, Texas Instruments Incorporated
15 pF Load
0
-40
-15
10
35
60
85
110 125
Temperature - °C
Figure 7. Propagation Delay vs Free-Air Temperature,
ISO722xM
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
19
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
Typical Characteristics (continued)
2.5
1.4
2.4
5-V Vth+
1.35
5-V Vth+
1.3
Input Voltage Threshold - V
Input Voltage Threshold - V
2.3
3.3-V Vth+
1.25
15 pF Load
1.2
1.15
5-V Vth1.1
2.2
5-V Vth-
2.1
2
15 pF Load
1.9
1.8
3.3-V Vth+
1.7
1.6
1.05
1.5
3.3-V Vth-40 -25 -10
5
20
35
50
65
80
95
3.3-V Vth-
1.4
-40 -25 -10
1
110 125
5
20
35
50
65
80
95
110 125
Temperature - °C
Temperature - °C
Figure 8. ISO722xA, ISO722xB and ISO722xC Input Voltage
Low-to-High Switching Threshold vs Free-Air Temperature
Figure 9. ISO722xM Input Voltage High-to-Low
vs Free-Air Temperature
-80
15 pF Load
TA = 25°C
-70
2.64
-60
VCC = 5 V
VCC Rising
-50
2.6
IOUT - mA
Power Supply Undervoltage Threshold - V
2.68
2.56
-40
-30
VCC Falling
VCC = 3.3 V
-20
2.52
-10
2.48
-40 -25 -10
0
5
20
35
50
65
80
95
110 125
0
2
4
6
Free-Air Temperature - °C
VOUT - V
Figure 10. VCC Undervoltage Threshold vs Free-Air
Temperature
Figure 11. High-Level Output Current vs High-Level Output
Voltage
70
2000
15 pF Load
TA = 25°C
60
VCC = 5 V
1600
50
1400
1200
40
Jitter − ps
IOUT - mA
15 pF Load
TA = 25°C
1800
VCC = 3.3 V
30
VCC1 = VCC2 = 5 V
1000
800
600
20
VCC1 = VCC2 = 3.3 V
400
10
200
0
0
0
1
2
3
4
5
VOUT - V
Figure 12. Low-Level Output Current vs Low-Level Output
Voltage
20
Submit Documentation Feedback
0
50
100
150
200
Signaling Rate - Mbps
Figure 13. ISO722xM Jitter vs Signaling Rate
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
ISOLATION BARRIER
7 Parameter Measurement Information
IN
Input
Generator
VI
50 W
NOTE A
VCC
VI
VCC/2
VCC/2
OUT
0V
tPHL
tPLH
CL
NOTE B
VO
VO
VOH
90%
50%
50%
10%
tr
tf
A.
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3
ns, tf ≤ 3 ns, ZO = 50 Ω.
B.
CL = 15 pF and includes instrumentation and fixture capacitance within ± 20%.
VOL
Figure 14. Switching Characteristic Test Circuit and Voltage Waveforms
VI
ISOLATION BARRIER
VCC
IN = 0 V
A.
VCC
OUT
VI
2.7 V
VO
0V
VOH
tfs
CL
NOTE A
VO
50%
FAILSAFE HIGH
VOL
CL = 15 pF and includes instrumentation and fixture capacitance within ± 20%.
Figure 15. Failsafe Delay Time Test Circuit and Voltage Waveforms
VCCO
VCCI
S1
Isolation Barrier
C = 0.1 µF ±1%
IN
C = 0.1 µF ±1%
Pass-fail criteria:
The output must
remain stable.
OUT
+
EN
CL
See Note A
GNDI
+
VCM ±
VOH or VOL
±
GNDO
Copyright © 2016, Texas Instruments Incorporated
A.
CL = 15 pF and includes instrumentation and fixture capacitance within ± 20%.
Figure 16. Common-Mode Transient Immunity Test Circuit
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
21
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
Parameter Measurement Information (continued)
VCC
DUT
Tektronix
HFS9009
IN
OUT
0V
Tektronix
784D
PATTERN
GENERATOR
VCC/2
Jitter
NOTE: PRBS bit pattern run length is 2
16
– 1. Transition time is 800 ps.
Figure 17. Peak-to-Peak Eye-Pattern Jitter Test Circuit and Voltage Waveform
22
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
8 Detailed Description
8.1 Overview
The isolator in theFunctional Block Diagram is based on a capacitive isolation barrier technique. The I/O channel
of the ISO7220x and ISO7221x family of devices consists of two internal data channels, a high-frequency
channel (HF) with a bandwidth from 100 kbps up to 150 Mbps, and a low-frequency channel (LF) covering the
range from 100 kbps down to DC. In principle, a single-ended input signal entering the HF-channel is split into a
differential signal via the inverter gate at the input. The following capacitor-resistor networks differentiate the
signal into transients, which then are converted into differential pulses by two comparators. The comparator
outputs drive a NOR-gate flip-flop whose output feeds an output multiplexer. A decision logic (DCL) at the driving
output of the flip-flop measures the durations between signal transients. If the duration between two consecutive
transients exceeds a certain time limit, (as in the case of a low-frequency signal), the DCL forces the outputmultiplexer to switch from the high-frequency to the low-frequency channel.
Because low-frequency input signals require the internal capacitors to assume prohibitively large values, these
signals are pulse-width modulated (PWM) with the carrier frequency of an internal oscillator, thus creating a
sufficiently high frequency signal, capable of passing the capacitive barrier. As the input is modulated, a low-pass
filter (LPF) is needed to remove the high-frequency carrier from the actual data before passing it on to the output
multiplexer.
8.2 Functional Block Diagram
Isolation Barrier
OSC
LPF
Low t Frequency
Channel
(DC...100 kbps)
PWM
VREF
0
OUT
1 S
IN
DCL
High t Frequency
Channel
(100 kbps...150 Mbps)
VREF
Copyright © 2016, Texas Instruments Incorporated
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
23
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
8.3 Feature Description
Table 1 provides an overview of the device features.
Table 1. Device Features
PART NUMBER
MAXIMUM SIGNALING
RATE
INPUT
THRESHOLD
CHANNEL
DIRECTION
ISO7220A
1 Mbps
≈ 1.5 V (TTL)
(CMOS compatible)
ISO7220B
5 Mbps
≈ 1.5 V (TTL)
(CMOS compatible
ISO7220C
25 Mbps
≈ 1.5 V (TTL)
(CMOS compatible)
ISO7220M
150 Mbps
VCC/ 2 (CMOS)
ISO7221A
1 Mbps
≈ 1.5 V (TTL)
(CMOS compatible)
ISO7221B
5 Mbps
≈ 1.5 V (TTL)
(CMOS compatible)
ISO7221C
25 Mbps
≈ 1.5 V (TTL)
(CMOS compatible)
ISO7221M
150 Mbps
VCC/ 2 (CMOS)
Same direction
Opposite directions
8.4 Device Functional Modes
The ISO7220x and ISO7221x family of devices functional modes are listed in Table 2.
Table 2. ISO7220x or ISO7221x Function Table (1)
(1)
INPUT SIDE VCC
OUTPUT SIDE VCC
PU
PU
INPUT (IN)
OUTPUT (OUT)
H
H
L
L
Open
H
PD
PU
X
H
X
PD
X
Undetermined
PU = Powered Up (VCC ≥ 3.0 V), PD = Powered Down (VCC ≤ 2.5 V), X = Irrelevant, H = High Level,
L = Low Level
Input
VCC1
VCC1
VCC1
Output
VCC2
750 kW
IN
500 W
8W
OUT
13 W
Figure 18. Device I/O Schematics
24
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The ISO7220x and ISO7221x family devices use single-ended TTL or CMOS-logic switching technology. The
supply voltage range is from 3 V (2.8 V for C-grade) to 5.5 V for both supplies, VCC1 and VCC2. When designing
with digital isolators, because of the single-ended design structure, digital isolators do not conform to any specific
interface standard and are only intended for isolating single-ended CMOS or TTL digital signal lines. The isolator
is typically placed between the data controller (that is, μC or UART), and a data converter or a line transceiver,
regardless of the interface type or standard.
9.2 Typical Application
The ISO7221x family of devices can be used with Texas Instruments' mixed signal micro-controller, digital-toanalog converter, transformer driver, and voltage regulator to create an isolated 4- to 20-mA current loop.
VS
3.3 V
0.1 F
2
VCC D2 3
1:1.33
MBR0520L
1
SN6501
10 F
GND D1
0.1 F
IN
OUT
3.3VISO
5
10 F
TPS76333
3
1
EN
GND
2
10 F
MBR0520L
4, 5
0.1 F
ISO-BARRIER
0.1 F
20
LOOP+
0.1 F
0.1 F
15
0.1 F
10
1
8
2
5
6
VCC1
DVCC
XOUT
XIN
MSP430
G2132
8
VCC2
2 OUTA
P3.0 11
12
P3.1
INA
ISO7221
3 INB
GND1
DVSS
4
4
OUTB
GND2
5
7
5
6
4
3
VA
VD
LOW
BASE
ERRLVL
16
0.1 F
DAC161P997
22
DBACK
DIN
C1
14
3 × 22 nF
1 F
C2
13
C3 COMA
12
1
OUT
COMD
9
LOOP±
2
Figure 19. Isolated 4- to 20-mA Current Loop
9.2.1 Design Requirements
Unlike optocouplers, which require external components to improve performance, provide bias (or limit current),
the ISO7220x and ISO7221x devices require only two external bypass capacitors to operate.
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
25
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
Typical Application (continued)
9.2.2 Detailed Design Procedure
Figure 20 and Figure 21 show the hookup of a typical ISO7220x and ISO7221x circuit. The only external
components are two bypass capacitors.
V CC1
V CC 2
0.1mF
2 mm
max .
from
Vcc 1
INPUT
1
INA 2
INB
INPUT
3
4
8
OUTA
7
OUTB
6
5
2 mm
max .
from
Vcc 2
0.1mF
OUTPUT
OUTPUT
ISO7220
GND 1
GND 2
Figure 20. Typical ISO7220x Circuit Hook-Up
V CC1
V CC2
0.1mF
2 mm
max .
from
Vcc1
OUTPUT
1
OUTA
2
INB
INPUT
3
4
8
INA
7
OUTB
6
5
2 mm
max .
from
Vcc 2
0.1mF
INPUT
OUTPUT
ISO7221
GND 1
GND 2
Figure 21. Typical ISO7221x Circuit Hook-Up
9.2.3 Application Curve
At maximum working voltage, the isolation barrier of the ISO7220x and ISO7221x family of devices has more
than 28 years of life.
Working Life (Years)
100
VIORM at 560 VPK
28
10
0
120
250
500
750
880
1000
Working Voltage, VIORM (VPK)
Figure 22. Time-Dependent Dielectric Breakdown Test Results
26
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
10 Power Supply Recommendations
To help ensure reliable operation at all data rates and supply voltages, a 0.1-μF bypass capacitor is
recommended at input and output supply pins (VCC1 and VCC2). The capacitors should be placed as close to the
supply pins as possible. If only a single primary-side power supply is available in an application, isolated power
can be generated for the secondary-side with the help of a transformer driver such as Texas Instruments
SN6501 device. For such applications, detailed power supply design and transformer selection recommendations
are available in SN6501 Transformer Driver for Isolated Power Supplies.
11 Layout
11.1 Layout Guidelines
A minimum of four layers are required to accomplish a low EMI PCB design (see Figure 23). Layer stacking
should be in the following order (top-to-bottom): high-speed signal layer, ground plane, power plane and lowfrequency signal layer.
• Route the high-speed traces on the top layer to avoid the use of vias (and the introduction of the inductances)
and allow for clean interconnects between the isolator and the transmitter and receiver circuits of the data
link.
• Place a solid ground plane next to the high-speed signal layer to establish controlled impedance for
transmission line interconnects and provide an excellent low-inductance path for the return current flow.
• Place the power plane next to the ground plane to create additional high-frequency bypass capacitance of
approximately 100 pF/in2.
• Route the slower speed control signals on the bottom layer to allow for greater flexibility as these signal links
usually have margin to tolerate discontinuities such as vias.
If an additional supply voltage plane or signal layer is needed, add a second power or ground plane system to
the stack to keep it symmetrical. Adding a second plane system to the stack makes the stack mechanically
stable and prevents it from warping. The power and ground plane of each power system can be placed closer
together, thus increasing the high-frequency bypass capacitance significantly.
For detailed layout recommendations, refer to the Digital Isolator Design Guide.
11.1.1 PCB Material
For digital circuit boards operating at less than 150 Mbps, (or rise and fall times greater than 1 ns), and trace
lengths of up to 10 inches, use standard FR-4 UL94V-0 printed circuit board. This PCB is preferred over cheaper
alternatives because of lower dielectric losses at high frequencies, less moisture absorption, greater strength and
stiffness, and the self-extinguishing flammability-characteristics.
11.2 Layout Example
High-speed traces
10 mils
Ground plane
40 mils
Keep this
space free
from planes,
traces, pads,
and vias
FR-4
0r ~ 4.5
Power plane
10 mils
Low-speed traces
Figure 23. Recommended Layer Stack
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
27
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
SLLS755O – JULY 2006 – REVISED APRIL 2017
www.ti.com
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation, see the following:
• DAC161P997 Single-Wire 16-bit DAC for 4- to 20-mA Loops
• Digital Isolator Design Guide
• High-Voltage Lifetime of the ISO72x Family of Digital Isolators
• Isolation Glossary
• MSP430G2x32 Mixed Signal Microcontroller
• SN6501 Transformer Driver for Isolated Power Supplies
• TPS763xx Low-Power 150-mA Low-Dropout Linear Regulators
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 3. Related Links
PARTS
PRODUCT FOLDER
ORDER NOW
TECHNICAL
DOCUMENTS
TOOLS &
SOFTWARE
SUPPORT &
COMMUNITY
ISO7220A
Click here
Click here
Click here
Click here
Click here
ISO7220B
Click here
Click here
Click here
Click here
Click here
ISO7220C
Click here
Click here
Click here
Click here
Click here
ISO7220M
Click here
Click here
Click here
Click here
Click here
ISO7221A
Click here
Click here
Click here
Click here
Click here
ISO7221B
Click here
Click here
Click here
Click here
Click here
ISO7221C
Click here
Click here
Click here
Click here
Click here
ISO7221M
Click here
Click here
Click here
Click here
Click here
12.3 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.4 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.5 Trademarks
E2E is a trademark of Texas Instruments.
DeviceNet is a trademark of Open DeviceNet Vendors Association.
Profibus is a trademark of Profibus.
All other trademarks are the property of their respective owners.
28
Submit Documentation Feedback
Copyright © 2006–2017, Texas Instruments Incorporated
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
ISO7220A, ISO7220B, ISO7220C, ISO7220M
ISO7221A, ISO7221B, ISO7221C, ISO7221M
www.ti.com
SLLS755O – JULY 2006 – REVISED APRIL 2017
12.6 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
12.7 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2006–2017, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: ISO7220A ISO7220B ISO7220C ISO7220M ISO7221A ISO7221B ISO7221C ISO7221M
29
PACKAGE OPTION ADDENDUM
www.ti.com
31-Oct-2016
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
ISO7220AD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220A
ISO7220ADG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220A
ISO7220ADR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220A
ISO7220ADRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220A
ISO7220BD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220B
ISO7220BDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220B
ISO7220BDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220B
ISO7220BDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220B
ISO7220CD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220C
ISO7220CDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220C
ISO7220CDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220C
ISO7220CDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220C
ISO7220MD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220M
ISO7220MDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220M
ISO7220MDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220M
ISO7220MDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7220M
ISO7221AD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221A
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
31-Oct-2016
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
ISO7221ADG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221A
ISO7221ADR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221A
ISO7221ADRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221A
ISO7221BD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221B
ISO7221BDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221B
ISO7221BDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221B
ISO7221BDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221B
ISO7221CD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221C
ISO7221CDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221C
ISO7221CDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221C
ISO7221CDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221C
ISO7221MD
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221M
ISO7221MDG4
ACTIVE
SOIC
D
8
75
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221M
ISO7221MDR
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221M
ISO7221MDRG4
ACTIVE
SOIC
D
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
I7221M
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
Addendum-Page 2
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
31-Oct-2016
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5)
Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6)
Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF ISO7220A, ISO7221A, ISO7221C :
• Automotive: ISO7220A-Q1, ISO7221A-Q1, ISO7221C-Q1
NOTE: Qualified Version Definitions:
• Automotive - Q100 devices qualified for high-reliability automotive applications targeting zero defects
Addendum-Page 3
PACKAGE MATERIALS INFORMATION
www.ti.com
31-Oct-2016
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
ISO7220ADR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7220BDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7220CDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7220MDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7221ADR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7221BDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7221CDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
ISO7221MDR
SOIC
D
8
2500
330.0
12.4
6.4
5.2
2.1
8.0
12.0
Q1
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
31-Oct-2016
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
ISO7220ADR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7220BDR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7220CDR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7220MDR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7221ADR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7221BDR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7221CDR
SOIC
D
8
2500
367.0
367.0
38.0
ISO7221MDR
SOIC
D
8
2500
367.0
367.0
38.0
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated (TI) reserves the right to make corrections, enhancements, improvements and other changes to its
semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers
should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
TI’s published terms of sale for semiconductor products (http://www.ti.com/sc/docs/stdterms.htm) apply to the sale of packaged integrated
circuit products that TI has qualified and released to market. Additional terms may apply to the use or sale of other types of TI products and
services.
Reproduction of significant portions of TI information in TI data sheets is permissible only if reproduction is without alteration and is
accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such reproduced
documentation. Information of third parties may be subject to additional restrictions. Resale of TI products or services with statements
different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the
associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Buyers and others who are developing systems that incorporate TI products (collectively, “Designers”) understand and agree that Designers
remain responsible for using their independent analysis, evaluation and judgment in designing their applications and that Designers have
full and exclusive responsibility to assure the safety of Designers' applications and compliance of their applications (and of all TI products
used in or for Designers’ applications) with all applicable regulations, laws and other applicable requirements. Designer represents that, with
respect to their applications, Designer has all the necessary expertise to create and implement safeguards that (1) anticipate dangerous
consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that might cause harm and
take appropriate actions. Designer agrees that prior to using or distributing any applications that include TI products, Designer will
thoroughly test such applications and the functionality of such TI products as used in such applications.
TI’s provision of technical, application or other design advice, quality characterization, reliability data or other services or information,
including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to
assist designers who are developing applications that incorporate TI products; by downloading, accessing or using TI Resources in any
way, Designer (individually or, if Designer is acting on behalf of a company, Designer’s company) agrees to use any particular TI Resource
solely for this purpose and subject to the terms of this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources. TI has not conducted any testing other than that specifically
described in the published documentation for a particular TI Resource.
Designer is authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that
include the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE
TO ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY
RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or
endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR
REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO
ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL
PROPERTY RIGHTS. TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY DESIGNER AGAINST ANY CLAIM,
INCLUDING BUT NOT LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF
PRODUCTS EVEN IF DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL,
DIRECT, SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN
CONNECTION WITH OR ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Unless TI has explicitly designated an individual product as meeting the requirements of a particular industry standard (e.g., ISO/TS 16949
and ISO 26262), TI is not responsible for any failure to meet such industry standard requirements.
Where TI specifically promotes products as facilitating functional safety or as compliant with industry functional safety standards, such
products are intended to help enable customers to design and create their own applications that meet applicable functional safety standards
and requirements. Using products in an application does not by itself establish any safety features in the application. Designers must
ensure compliance with safety-related requirements and standards applicable to their applications. Designer may not use any TI products in
life-critical medical equipment unless authorized officers of the parties have executed a special contract specifically governing such use.
Life-critical medical equipment is medical equipment where failure of such equipment would cause serious bodily injury or death (e.g., life
support, pacemakers, defibrillators, heart pumps, neurostimulators, and implantables). Such equipment includes, without limitation, all
medical devices identified by the U.S. Food and Drug Administration as Class III devices and equivalent classifications outside the U.S.
TI may expressly designate certain products as completing a particular qualification (e.g., Q100, Military Grade, or Enhanced Product).
Designers agree that it has the necessary expertise to select the product with the appropriate qualification designation for their applications
and that proper product selection is at Designers’ own risk. Designers are solely responsible for compliance with all legal and regulatory
requirements in connection with such selection.
Designer will fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of Designer’s noncompliance with the terms and provisions of this Notice.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
