LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
LP5521 Three-Channel RGB, White-LED Driver With Internal Program Memory and
Integrated Charge Pump
1 Features
3 Description
•
The LP5521 is a three-channel LED driver designed
to produce variety of lighting effects for mobile
devices. A high-efficiency charge pump enables LED
driving over full Li-Ion battery voltage range. The
device has a program memory for creating variety of
lighting sequences. When program memory has been
loaded, LP5521 can operate autonomously without
processor control allowing power savings.
Adaptive Charge Pump With 1× and 1.5× Gain
Provides Up to 95% LED Drive Efficiency
Charge Pump with Soft Start and Overcurrent,
Short-Circuit Protection
Low Input Ripple and EMI
Very Small Solution Size, No Inductor or Resistors
Required
200-nA Typical Shutdown Current
Automatic Power Save Mode
I2C-Compatible Interface
Independently Programmable Constant Current
Outputs with 8-Bit Current Setting and 8-Bit PWM
Control
Typical LED Output Saturation Voltage 50 mV and
Current Matching 1%
Three Program Execution Engines with Flexible
Instruction Set
Autonomous Operation Without External Control
Large SRAM Program Memory
Two General Purpose Digital Outputs
1
•
•
•
•
•
•
•
•
•
•
•
•
2 Applications
•
•
•
•
•
•
•
•
Fun and Indicator Lights
LCD Sub-Display Backlighting
Keypad RGB Backlighting and Phone Cosmetics
Vibra, Speakers, Waveform Generator
Blood Glucose Meter
Handheld POS Terminals
Electronic Access Control
Where RGB Indication is Needed
The device maintains excellent efficiency over a wide
operating range by automatically selecting proper
charge pump gain based on LED forward voltage
requirements and is able to automatically enter
power-save mode, when LED outputs are not active
and thus lowering current consumption.
Three independent LED channels have accurate
programmable current sources and PWM control.
Each channel has program memory for creating
desired lighting sequences with PWM control.
The LP5521 has a flexible digital interface. Trigger
I/O and a 32-kHz clock input allow synchronization
between multiple devices. Interrupt output can be
used to notify processor, when LED sequence has
ended. The LP5521 has four pin selectable I2Ccompatible addresses. This allows connecting up to
four parallel devices in one I2C-compatible bus. GPO
and INT pins can be used as a digital control pin for
other devices.
The LP5521 requires only four small, low-cost
ceramic capacitors.
Comprehensive application tools are available,
including command compiler for easy LED sequence
programming.
Device Information(1)
PART NUMBER
Typical Application Circuit
CFLY1
CFLY2
0.47 µF
CFLY1P
+
CIN
1 µF
0.47 µF
CFLY1N
CFLY2P
VDD
CFLY2N
VOUT
-
EN
BODY SIZE
LP5521TM
DSBGA (20)
2.093 mm × 1.733 mm (MAX)
LP5521YQ
WQFN (24)
5.00 mm × 4.00 mm (NOM)
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
RGB LED 0...25.5 mA/LED
SCL
SDA
MCU
COUT
1 µF
PACKAGE
R
LP5521
G
CLK_32K
B
INT
TRIG
GPO
ADDR_SEL0
ADDR_SEL1
GNDs
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
5
6.1
6.2
6.3
6.4
6.5
6.6
6.7
5
5
5
6
6
7
Absolute Maximum Ratings .....................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Charge Pump Electrical Characteristics ...................
LED Driver Electrical Characteristics (R, G, B
Outputs) .....................................................................
6.8 Logic Interface Characteristics..................................
6.9 I2C Timing Requirements (SDA, SCL)......................
6.10 Typical Characteristics ............................................
7
7
7
8
9
Detailed Description ............................................ 11
7.1 Overview ................................................................. 11
7.2 Functional Block Diagram ....................................... 11
7.3 Feature Description................................................. 12
7.4 Device Functional Modes........................................ 18
7.5 Programming........................................................... 19
7.6 Register Maps ......................................................... 28
8
Application and Implementation ........................ 36
8.1 Application Information............................................ 36
8.2 Typical Applications ................................................ 36
8.3 Initialization Setup ................................................... 39
9 Power Supply Recommendations...................... 40
10 Layout................................................................... 40
10.1 Layout Guidelines ................................................. 40
10.2 Layout Example .................................................... 40
11 Device and Documentation Support ................. 41
11.1
11.2
11.3
11.4
11.5
11.6
11.7
Device Support......................................................
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
41
41
41
41
41
41
41
12 Mechanical, Packaging, and Orderable
Information ........................................................... 41
4 Revision History
Changes from Revision H (May 2016) to Revision I
•
Page
Changed wording of title ........................................................................................................................................................ 1
Changes from Revision G (September 2014) to Revision H
Page
•
Added several new Applications ............................................................................................................................................ 1
•
Changed Body Size of DSBGA package to MAX dimensions .............................................................................................. 1
•
Changed Handling Ratings to ESD Ratings table ................................................................................................................. 5
•
Changed RθJA value for DSBGA from 50 – 90°C/W to 70.7°C/W and WQFN from 37 – 90°C/W to 38.4°C/W; add
additional thermal information ................................................................................................................................................ 6
•
Added Community Resources ............................................................................................................................................. 41
Changes from Revision F (February 2013) to Revision G
•
2
Page
Added Pin Configuration and Functions section, Handling Rating table, Feature Description section, Device
Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout
section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information
section ................................................................................................................................................................................... 1
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
5 Pin Configuration and Functions

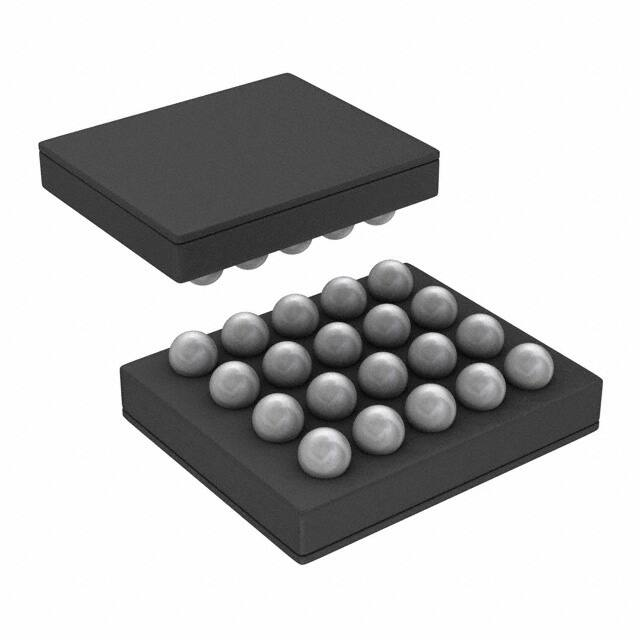

YFQ Package
20-Pin DSBGA
Top View
4
CFLY
2P
CFLY
1P
VDD
3
CFLY
2N
CFLY
1N
GND
2
VOUT
ADDR
SEL1
1
B
G
A
B
YFQ Package
20-Pin DSBGA
Bottom View
GND
TRIG
CLK
32K
INT
ADDR
SEL0
GPO
EN
R
SCL
C
TRIG
GND
VDD
CFLY
1P
CFLY
2P
4
INT
CLK
32K
GND
CFLY
1N
CFLY
2N
3
EN
GPO
ADDR
SEL0
ADDR
SEL1
VOUT
2
SDA
SCL
R
G
B
1
E
D
C
B
A
SDA
D
E
NJA Package
24-Pin WQFN
Top View
19
18
17
16
NJA Package
24-Pin WQFN
Bottom View
15
14
13
13
20
12
21
11
22
10
23
9
14
15
16
17
18
19
12
20
11
21
10
22
9
23
8
24
8
24
1
2
3
4
5
6
7
7
6
5
4
3
2
1
Pin 1
Pin 1
Pin Functions LP5521TM
PIN
NUMBER
NAME
TYPE (1)
DESCRIPTION
1A
B
A
Current source output
1B
G
A
Current source output
1C
R
A
Current source output
1D
SCL
I
I2C Serial interface clock input
1E
SDA
I/OD
2A
VOUT
A
Charge pump output
2B
ADDR_SEL1
I
I2C address select input
2C
ADDR_SEL0
I
I2C address select input
2D
GPO
O
General purpose output
2E
EN
I
Chip enable
3A
CFLY2N
A
Negative terminal of charge pump fly capacitor 2
3B
CFLY1N
A
Negative terminal of charge pump fly capacitor 1
3C
GND
G
Ground
3D
CLK_32K
I
32-kHz clock input
(1)
I2C Serial interface data input/output
A: Analog Pin, G: Ground Pin, P: Power Pin, I: Input Pin, I/O: Input/Output Pin, O: Output Pin, OD: Open Drain Pin
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
3
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Pin Functions LP5521TM (continued)
PIN
NUMBER
NAME
TYPE (1)
DESCRIPTION
3E
INT
OD/O
4A
CFLY2P
A
Interrupt output / General Purpose Output
Positive terminal of charge pump fly capacitor 2
4B
CFLY1P
A
Positive terminal of charge pump fly capacitor 1
4C
VDD
P
Power supply pin
4D
GND
G
Ground
4E
TRIG
I/OD
Trigger input/output
Pin Functions LP5521YQ
PIN
NUMBER
NAME
TYPE (1)
DESCRIPTION
1
CFLY2P
A
Positive pin of charge pump fly capacitor 2
2
CFLY1P
A
Positive pin of charge pump fly capacitor 1
3
VDD
P
Power supply pin
4
GND
G
Ground
5
CLK_32K
I
32-kHz clock input
6
INT
OD/O
Interrupt output / General purpose output
7
TRIG
I/OD
Trigger input/output
8
N/C
9
N/C
10
N/C
11
N/C
12
N/C
I2C serial interface data input/output
13
SDA
I/OD
14
EN
I
Chip enable
15
SCL
I
I2C Serial interface clock input
16
GPO
O
General purpose output
17
R
A
Current source output
18
G
A
Current source output
19
B
A
Current source output
20
ADDR_SEL0
I
I2C address select input
21
ADDR_SEL1
I
I2C address select input
22
VOUT
A
Charge pump output
23
CFLY2N
A
Negative pin of charge pump fly capacitor 2
24
CFLY1N
A
Negative pin of charge pump fly capacitor 1
(1)
4
A: Analog Pin, G: Ground Pin, P: Power Pin, I: Input Pin, I/O: Input/Output Pin, O: Output Pin, OD: Open Drain Pin
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1) (2) (2) (3)
MIN
MAX
UNIT
V (VDD , VOUT, R, G, B)
–0.3
6
V
Voltage on logic pins
–0.3
VDD + 0.3 with 6 V maximum
V
Continuous power dissipation (4)
Internally Limited
Junction temperature, TJ-MAX
Maximum lead temperature (soldering)
See
Storage temperature, Tstg
(1)
(2)
(3)
(4)
(5)
125
°C
150
°C
(5)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to the potential at the GND pins.
If Military/Aerospace specified devices are required, contact the Texas Instruments Sales Office/ Distributors for availability and
specifications.
Internal thermal shutdown circuitry protects the device from permanent damage. Thermal shutdown engages at TJ = 150°C (typical) and
disengages at TJ = 130°C (typical).
For detailed soldering specifications and information, please refer to DSBGA Wafer Level Chip Scale Package (SNVA009) or Leadless
Leadframe Package (LLP) (SNOA401).
6.2 ESD Ratings
VALUE
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
V(ESD)
(1)
(2)
Electrostatic discharge
(1)
UNIT
±2000
Charged-device model (CDM), per JEDEC specification JESD22C101 (2)
V
±200
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1) (2) (2)
MIN
VDD
Recommended charge pump load current IOUT
Junction temperature, TJ,
Ambient temperature, TA
(1)
(2)
(3)
(3)
MAX
UNIT
2.7
5.5
V
0
100
mA
–30
125
°C
–30
85
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to the potential at the GND pins.
In applications where high power dissipation and/or poor package thermal resistance is present, the maximum ambient temperature may
have to be derated. Maximum ambient temperature (TA-MAX) is dependent on the maximum operating junction temperature (TJ-MAX-OP =
125°C), the maximum power dissipation of the device in the application (PD-MAX), and the junction-to ambient thermal resistance of the
part/package in the application (RθJA), as given by the following equation: TA-MAX = TJ-MAX-OP – (RθJA × PD-MAX).
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
5
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
6.4 Thermal Information
LP5521
THERMAL METRIC (1)
YFQ (DSBGA)
NJA (WQFN)
20 PINS
24 PINS
UNIT
70.7
38.4
°C/W
RθJA
Junction-to-ambient thermal resistance
RθJC(top)
Junction-to-case (top) thermal resistance
0.5
27.3
°C/W
RθJB
Junction-to-board thermal resistance
12.1
15.4
°C/W
ψJT
Junction-to-top characterization parameter
0.2
0.2
°C/W
ψJB
Junction-to-board characterization parameter
12.0
15.4
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
n/a
3.1
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
6.5 Electrical Characteristics
Unless otherwise noted, specifications apply to the LP5521 Functional Block Diagram with: 2.7 V ≤ VDD ≤ 5.5 V, COUT= CIN =
1 μF, CFLY1 = CFLY2 = 0.47 μF; limits are for TJ = 25°C unless specified in the test conditions. (1) (2) (3)
SYMBOL
PARAMETER
Standby supply current
TEST CONDITIONS
MIN
EN = 0 (pin), CHIP_EN = 0 (bit), external 32
kHz clock running or not running
TYP
Normal mode supply current
Powersave mode supply
current
ƒOSC
(1)
(2)
(3)
6
Internal oscillator frequency
accuracy
UNIT
0.2
μA
EN = 0 (pin), CHIP_EN = 0 (bit), external 32kHz clock running or not running, –30°C < TA <
85°C
IVDD
MAX
2
EN = 1 (pin), CHIP_EN = 0 (bit), external 32kHz clock not running
1
μA
EN = 1 (pin), CHIP_EN = 0 (bit), external 32kHz clock running
1.4
μA
Charge pump and LED drivers disabled
0.25
mA
Charge pump in 1x mode, no load, LED drivers
disabled
0.7
mA
Charge pump in 1.5x mode, no load, LED
drivers disabled
1.5
mA
Charge pump in 1x mode, no load, LED drivers
enabled
1.2
mA
External 32-kHz clock running
10
μA
Internal oscillator running
–30°C < TA < 85°C
0.25
mA
–4%
4%
–7%
7%
All voltages are with respect to the potential at the GND pins.
Minimum and Maximum limits are specified by design, test, or statistical analysis.
Low-ESR Surface-Mount Ceramic Capacitors (MLCCs) used in setting electrical characteristics.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
6.6 Charge Pump Electrical Characteristics
Limits are for TJ = 25°C unless specified in the test conditions. (1)
SYMBOL
ROUT
PARAMETER
Charge pump output
resistance
fSW
TEST CONDITION
MIN
Gain = 1.5×
UNIT
Ω
Ω
1
1.25
–30°C < TA < 85°C
–7%
MHz
7%
Gain = 1.5×
1.2
mA
Gain = 1×
0.5
mA
tON
VOUT turn-on time from charge VDD = 3.6 V, CHIP_EN = H
pump off to 1.5x mode
IOUT = 60 mA
100
μs
VOUT
Charge pump output voltage
4.55
V
(1)
Ground current
MAX
3.5
Gain = 1×
Switching frequency
IGND
TYP
VDD = 3.6 V, no load, Gain = 1.5×
Input, output, and fly capacitors should be of the type X5R or X7R low ESR ceramic capacitor.
6.7 LED Driver Electrical Characteristics (R, G, B Outputs)
Limits are for TJ = 25°C unless specified in the test conditions.
SYMBOL
ILEAKAGE
PARAMETER
TEST CONDITION
MIN
TYP
R, G, B pin leakage current
MAX
UNIT
0.1
µA
–30°C < TA < 85°C
1
IMAX
Maximum source current
Outputs R, G, B
IOUT
Accuracy of output current
Output current set to 17.5 mA, VDD = 3.6 V
–4%
25.5
4%
mA
Output current set to 17.5 mA, VDD = 3.6 V,
–30°C < TA < 85°C
–5%
5%
IMATCH
Matching (1)
IOUT = 17.5 mA, VDD = 3.6 V
1%
fLED
LED PWM switching
frequency
PWM_HF = 1
Frequency defined by internal oscillator
558
Hz
PWM_HF = 0
Frequency defined by 32-kHz clock
(internal or external)
256
Hz
Saturation voltage (2)
VSAT
(1)
(2)
IOUT set to 17.5 mA
50
2%
100
mV
Matching is the maximum difference from the average of the three output's currents.
Saturation voltage is defined as the voltage when the LED current has dropped 10% from the value measured at VOUT – 1 V.
6.8 Logic Interface Characteristics
(V(EN) = 1.65 V...VDD, and limits apply through ambient temperature range –30°C < TA < +85°C, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
LOGIC INPUT EN
VIL
Input low level
VIH
Input high level
II
Logic input current
tDELAY
Input delay
(1)
(1)
0.5
1.2
V
–1
TJ = 25°C
V
1
2
µA
µs
2
The I C-compatible host should allow at least 1 ms before sending data to the LP5521 after the rising edge of the enable line.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
7
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Logic Interface Characteristics (continued)
(V(EN) = 1.65 V...VDD, and limits apply through ambient temperature range –30°C < TA < +85°C, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
LOGIC INPUT SCL, SDA, TRIG, CLK_32K
VIL
Input low level
VIH
Input high level
II
Input current
ƒCLK_32K
Clock frequency
ƒSCL
Clock frequency
0.2 × V(EN)
0.8 × V(EN)
V
–1
TJ = 25°C
V
1
32
µA
kHz
400
kHz
0.5
V
1
µA
0.2 × VDD
V
LOGIC OUTPUT SDA, TRIG, INT
IOUT = 3 mA (pullup current),
TJ = 25°C
VOL
Output low level
IL
Output leakage current
0.3
IOUT = 3 mA (pull-up current)
LOGIC INPUT ADDR_SEL0, ADDR_SEL1
VIL
Input low level
VIH
Input high level
II
Input current
0.8 × VDD
V
–1
1
µA
0.5
V
LOGIC OUTPUT GPO, INT (IN GPO STATE)
IOUT = 3 mA, TJ = 25°C
VOL
Output low level
0.3
IOUT = 3 mA
TJ = 25°C
VOH
Output high level
IL
Output leakage current
IOUT = –2 mA
VDD – 0.3
VDD – 0.5
V
1
µA
6.9 I2C Timing Requirements (SDA, SCL)
Limits are for TJ = 25°C (1)
MIN
MAX
UNIT
400
kHz
ƒSCL
Clock frequency
1
Hold time (repeated) START condition
0.6
µs
2
Clock low time
1.3
µs
3
Clock high time
600
ns
4
Setup time for a repeated START condition
600
ns
5
Data hold time
50
ns
6
Data set-up time
100
ns
7
Rise time of SDA and SCL
20+0.1Cb
300
ns
8
Fall time of SDA and SCL
15+0.1Cb
300
ns
9
Set-up time for STOP condition
600
ns
10
Bus-free time between a STOP and a START condition
1.3
µs
Cb
Capacitive load for each bus line
10
(1)
200
pF
Verified by design.
Figure 1. I2C Timing Diagram
8
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
6.10 Typical Characteristics
Unless otherwise specified: VDD = 3.6 V
Figure 2. LED Drive Efficiency vs Input Voltage Automatic
Gain Change
Figure 3. LED Current vs Output Pin Headroom Voltage
Figure 4. LED Current vs Current Register Code
Figure 5. LED Current vs Supply Voltage
Figure 6. Charge Pump Efficiency vs Load Current
Figure 7. Charge Pump Efficiency vs Input Voltage 1.5x
Mode
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
9
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Typical Characteristics (continued)
Unless otherwise specified: VDD = 3.6 V
10
Figure 8. Charge Pump Output Voltage vs Load Current
Figure 9. Charge Pump Output Voltage vs Input Voltage
Automatic Gain Change from 1x to 1.5x
Figure 10. Charge Pump Automatic Gain Change Hysteresis
Figure 11. Charge Pump Start-Up in 1.5× Mode: No Load
Figure 12. Charge Pump Automatic Gain Change
(LED VF = 3.6 V)
Figure 13. Standby Current vs Input Voltage
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7 Detailed Description
7.1 Overview
The LP5521 is a three-channel LED driver designed to produce variety of lighting effects for mobile devices. A
high-efficiency charge pump enables LED driving over full Li-Ion battery voltage range. The device has a
program memory for creating variety of lighting sequences. When program memory has been loaded, the
LP5521 can operate autonomously without processor control allowing power savings.
The device maintains excellent efficiency over a wide operating range by automatically selecting proper charge
pump gain based on LED forward voltage requirements. the LP5521 is able to automatically enter power-save
mode, when LED outputs are not active and thus lowering current consumption.
Three independent LED channels have accurate programmable current sources and PWM control. Each channel
has program memory for creating desired lighting sequences with PWM control.
The LP5521 has a flexible digital interface. A trigger I/O and 32-kHz clock input allow synchronization between
multiple devices. Interrupt output can be used to notify processor, when LED sequence has ended. LP5521 has
four pin-selectable I2C-compatible addresses. This allows connecting up to four parallel devices in one I2Ccompatible bus. GPO and INT pins can be used as a digital control pin for other devices.
The LP5521 requires only four small and low-cost ceramic capacitors.
Comprehensive application tools are available, including command compiler for easy LED sequence
programming.
7.2 Functional Block Diagram
CFLY1
CFLY2
0.47 µF
REF
TSD
POR
CLK
DET
BIAS
OSC
0.47 µF
CHARGE PUMP
1x/1.5x
VOUT
VDD
+
CIN
-
1 µF
COUT
1 µF
PROGRAM
MEMORY
Command based
PWM pattern generator
ADDR_SEL0
ADDR_SEL1
VDD_ IO
SCL
SDA
EN
MCU
CLK_32K
IDAC
I2C
VDD
Control
VOUT
R
VOUT
G
VOUT
B
D
A
INT
TRIG
GPO
LP5521
GND
Copyright © 2016, Texas Instruments Incorporated
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
11
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.3 Feature Description
7.3.1 Charge Pump Operational Description
The LP5521 includes a pre-regulated switched-capacitor charge pump with a programmable voltage
multiplication of 1 and 1.5×.
In 1.5× mode by combining the principles of a switched-capacitor charge pump and a linear regulator, the device
generates a regulated 4.5-V output from Li-Ion input voltage range. A two-phase non-overlapping clock
generated internally controls the operation of the charge pump. During the charge phase, both flying capacitors
(CFLY1 and CFLY2) are charged from input voltage. In the pump phase that follows, the flying capacitors are
discharged to output. A traditional switched capacitor charge pump operating in this manner uses switches with
very low on-resistance, ideally 0 Ω, to generate an output voltage that is 1.5× the input voltage. The LP5521
regulates the output voltage by controlling the resistance of the input-connected pass-transistor switches in the
charge pump.
7.3.1.1 Output Resistance
At lower input voltages, the charge pump output voltage may degrade due to effective output resistance (ROUT) of
the charge pump. The expected voltage drop can be calculated by using a simple model for the charge pump
shown in Figure 14.
Charge Pump
VIN
REG
9¶
1.5 [ 9¶
VOUT
1.5 x
ROUT
Copyright © 2016, Texas Instruments Incorporated
Figure 14. Charge Pump Block Diagram
The model shows a linear pre-regulation block (REG), a voltage multiplier (1.5×), and an output resistance
(ROUT). Output resistance models the output voltage drop that is inherent to switched capacitor converters. The
output resistance is 3.5 Ω (typical) and is function of switching frequency, input voltage, capacitance value of the
flying capacitors, internal resistances of switches, and ESR of flying capacitors. When the output voltage is in
regulation, the regulator in the model controls the voltage V’ to keep the output voltage equal to 4.5 V (typical).
With increased output current, the voltage drop across ROUT increases. To prevent drop in output voltage, the
voltage drop across the regulator is reduced, V’ increases, and VOUT remains at 4.5 V. When the output current
increases to the point that there is zero voltage drop across the regulator, V’ equals the input voltage, and the
output voltage is on the edge of regulation. Additional output current causes the output voltage to fall out of
regulation, so that the operation is similar to a basic open-loop 1.5× charge pump. In this mode, output current
results in output voltage drop proportional to the output resistance of the charge pump. The out-of-regulation
output voltage can be approximated by: VOUT= 1.5 × VIN – IOUT × ROUT.
7.3.1.2 Controlling Charge Pump
The charge pump is controlled with two CP_MODE bits in register 08H. When both bits are low, the charge pump
is disabled, and the output voltage is pulled down with 300 kΩ. Charge pump can be forced to bypass mode, so
that battery voltage is going directly to RGB outputs. In 1.5× mode output voltage is boosted to 4.5 V. In
automatic mode, charge pump operation mode is defined by LED outputs saturation described in LED Forward
Voltage Monitoring. Table 1 lists operation modes and selection bits.
Table 1. CONFIG Register (08H)
12
NAME
BIT
DESCRIPTION
CP_MODE
4:3
Charge pump operation mode
00b = OFF
01b = Forced to bypass mode (1×)
10b = Forced to 1.5× mode
11b = Automatic mode selection
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.3.1.3 LED Forward Voltage Monitoring
When charge pump automatic mode selection is enabled, voltages over LED drivers are monitored. If drivers do
not have enough headroom, charge pump gain is set to 1.5×. Driver saturation monitor does not have a fixed
voltage limit, since saturation voltage is a function of temperature and current. Charge pump gain is set to 1×,
when battery voltage is high enough to supply all LEDs.
In automatic gain change mode, charge pump is switched to bypass mode (1×), when LEDs are inactive for over
50 ms.
Charge pump gain control utilizes digital filtering to prevent supply voltage disturbances from triggering gain
changes. If the R driver current source is connected to a battery (address 08H, bit R_TO_BATT = 1), voltage
monitoring is disabled in R output, but still functional in B and G outputs.
LED forward voltage monitoring and gain control block diagram is shown in Figure 15.
Charge
Pump
VOUT
Current
Source
VOFS
PWM
MODE
-
Saturation
Monitor
R/G/B
+
Comparator
Digital
Filter
Control
Registers
Program
Memory
Command
Look-ahead
Mode
Control
Copyright © 2016, Texas Instruments Incorporated
Figure 15. Voltage Monitoring Block Diagram for One Output
7.3.2 LED Driver Operational Description
The LP5521 LED drivers are constant current sources with 8-bit PWM control. Output current can be
programmed with I2C register up to 25.5 mA. Current setting resolution is 100 μA (8-bit control).
R driver has two modes: current source can be connected to the battery (VDD) or to the charge pump output. If a
current source is connected to the battery, automatic charge pump gain control is not used for this output. This
approach provides better efficiency when LED with low VF is connected to R driver, and battery voltage is high
enough to drive this LED in all conditions. R driver mode can be selected with I2C register bit. When address
08H, bit R_TO_BATT = 1, R current source is connected to battery. When it is 0 (default), R current source is
connected to charge pump same way as in G and B drivers. G and B drivers are always connected to charge
pump output.
Some LED configuration examples are given in Table 2. When LEDs with low VF are used, charge pump can be
operating in bypass mode (1×). This eliminates the need of having double drivers for all outputs; one connected
to battery and another connected to charge pump output. When LP5521 is driving a RGB LED, R channel can be
configured to use battery power. This configuration increases power efficiency by minimizing the voltage drop
across the LED driver.
Table 2. LED Configuration Examples
CONFIGURATION
R OUTPUT TO BATT
RGB LED with low VF red
X
R OUTPUT TO CP
CP MODE
Auto (1× or 1.5×)
3 × low VF LED
X
1×
3 × white LED
X
Auto (1× or 1.5×)
1 × low VF LED (R output)
X
Disabled
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
13
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
PWM frequency is either 256 Hz or 558 Hz, frequency is set with PWM_HF bit in register 08H. When PWM_HF
is 0, the frequency is 256 Hz, and when bit is 1, the PWM frequency is 558 Hz. Brightness adjustment is either
linear or logarithmic. This can be set with register 00H LOG_EN bit. When LOG_EN = 0 linear adjustment scale
is used, and when LOG_EN = 1 logarithmic scale is used. By using logarithmic scale the visual effect seems
linear to the eye. Register control bits are presented in Table 3, Table 4, and Table 5:
Table 3. R_CURRENT Register (05H), G_CURRENT register (06H), B_CURRENT register (07H):
NAME
BIT
CURRENT
7:0
DESCRIPTION
Current setting
bin
hex
dec
mA
0000 0000
0000 0001
0000 0010
0000 0011
0000 0100
0000 0101
0000 0110
...
1010 1111
...
1111 1011
1111 1100
1111 1101
1111 1110
1111 1111
00
01
02
03
04
05
06
...
AF
...
FB
FC
FD
FE
FF
0
1
2
3
4
5
6
...
175
...
251
252
253
254
255
0.0
0.1
0.2
0.3
0.4
0.5
0.6
...
17.5 (def)
...
25.1
25.2
25.3
25.4
25.5
Table 4. ENABLE Register (00H):
NAME
BIT
LOG_EN
7
DESCRIPTION
Logarithmic PWM adjustment enable bit
0 = Linear adjustment
1 = Logarithmic adjustment
Table 5. CONFIG Register (08H):
NAME
BIT
PWM_HF
6
DESCRIPTION
PWM clock frequency
0 = 256 Hz, frequency defined by the 32-kHz clock (internal or external)
1 = 558 Hz, frequency defined by internal oscillator
100
95
90
85
80
75
70
BRIGHTNESS %
65
60
55
50
LOG_EN = 0
45
40
LOG_EN = 1
35
30
25
20
15
10
5
0
0
16
32
48
64
80
96 112 128 144 160 176 192 208 224 240 255
CONTROL (DEC)
Figure 16. Logarithmic and Linear PWM Adjustment Curves
14
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.3.3 Automatic Power Save
Automatic power save mode is enabled when PWRSAVE_EN bit in register address 08H is 1. Almost all analog
blocks are powered down in power save, if external clock is used. Only charge pump protection circuits remain
active. However if internal clock has been selected only charge pump and led drivers are disabled during power
save since digital part of the LED controller need to remain active. In both cases charge pump enters 'weak 1×'
mode. In this mode charge pump utilizes a passive current limited keep-alive switch, which keeps the output
voltage at battery level.
During program execution LP5521 can enter power save if there is no PWM activity in R, G and B outputs. To
prevent short power save sequences during program execution, LP5521 has command look-ahead filter. In every
instruction cycle R, G, B commands are analyzed, and if there is sufficient time left with no PWM activity, the
device enters power save. In power save program execution continues uninterruptedly. When a command that
requires PWM activity is executed, fast internal start-up sequence will be started automatically. Table 6 describe
commands and conditions that can activate power save. All channels (R,G,B) need to meet power save condition
in order to enable power save.
Table 6. LED Controller Operation
LED CONTROLLER OPERATION
MODE (R,G,B_MODE)
POWER SAVE CONDITION
00b
Disabled mode enables power save
01b
Load program to SRAM mode prevents power save
10b
Run program mode enables power save if there is no PWM activity and command
look-ahead filter condition is met
11b
Direct control mode enables power save if there is no PWM activity
COMMAND
Wait
POWER SAVE CONDITION
No PWM activity and current command wait time longer than 50 ms. If prescale = 1
then wait time needs to be longer than 80 ms.
Ramp
Ramp Command PWM value reaches minimum 0 and current command execution
time left more than 50 ms. If prescale = 1 then time left needs to be more than 80 ms.
Trigger
No PWM activity during wait for trigger command execution.
End
Set PWM
Other commands
No PWM activity or Reset bit = 1
Enables power save if PWM set to 0 and next command generates at least 50 ms wait
No effect to power save
See application note LP5521 Power Efficiency Considerations (SNVA185) for more information.
7.3.4 External Clock Detection
The presence of external clock can be detected by the LP5521. Program execution is clocked with internal 32
kHz clock or with external clock. Clocking is controlled with register address 08H bits, INT_CLK_EN and
CLK_DET_EN as seen on the following table.
External clock can be used if clock is present at CLK_32K pin. External clock frequency must be 32 kHz for the
program execution / PWM timing to be like specified. If higher or lower frequency is used, it will affect the
program engine execution speed. If other than 32 kHz clock frequency is used, the program execution timings
must be scaled accordingly. The external clock detector block only detects too low clock frequency (< 15 kHz). If
external clock frequency is higher than specified, the external clock detector notifies that external clock is
present. External clock status can be checked with read only bit EXT_CLK_USED in register address 0CH, when
the external clock detection is enabled (CLK_DET_EN bit = high). If EXT_CLK_USED = 1, then the external
clock is detected and it is used for timing, if automatic clock selection is enabled (see Table 7).
If external clock is stuck-at-zero or stuck-at-one, or the clock frequency is too low, the clock detector indicates
that external clock is not present.
If external clock is not used on the application, connect the CLK_32K pin to GND to prevent floating of this pin
and extra current consumption.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
15
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Table 7. CONFIG Register (08H):
NAME
CLK_DET_EN,
INT_CLK_EN
BIT
DESCRIPTION
LED controller clock source
00b = External clock source (CLK_32K)
01b = Internal clock
10b = Automatic selection
11b = Internal clock
1:0
7.3.5 Logic Interface Operational Description
LP5521 features a flexible logic interface for connecting to processor and peripheral devices. Communication is
done with I2C compatible interface and different logic input/output pins makes it possible to synchronize
operation of several devices.
7.3.5.1 I/O Levels
I2C interface, CLK_32K and TRIG pins input levels are defined by EN pin. Using EN pin as voltage reference for
logic inputs simplifies PWB routing and eliminates the need for dedicated VIO pin. Figure 17 describes EN pin
connections.
VDD
Input
Buffer
EN
SDA
SCL
Level
Shifter
Level
Shifter
Copyright © 2016, Texas Instruments Incorporated
Figure 17. Using EN Pin as Digital I/O Voltage Reference
ADDR_SEL0/1 are referenced to VDD voltage. GPO pin level is defined by VDD voltage.
7.3.5.2 GPO/INT Pins
LP5521 has one General Purpose Output pin (GPO); the INT pin can also be configured as a GPO pin. When
INT is configured as GPO output, its level is defined by the VDD voltage. State of the pins can be controlled with
GPO register (0EH). GPO pins are digital CMOS outputs and no pullup or pulldown resistors are needed.
When INT pin GPO function is disabled, it operates as an open drain pin. INT signal is active low; that is, when
interrupt signal is sent, the pin is pulled to GND. External pullup resistor is needed for proper functionality.
Table 8. GPO Register (0EH)
16
NAME
BIT
DESCRIPTION
INT_AS_GPO
2
Enable INT pin GPO function
0 = INT pin functions as a INT pin
1 = INT pin functions as a GPO pin
GPO
1
0 = GPO pin state is low
1 = GPO pin state is high
INT
0
0 = INT pin state is low (INT_AS_GPO=1)
1 = INT pin state is high (INT_AS_GPO=1)
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.3.5.3 TRIG Pin
The TRIG pin can function as an external trigger input or output. External trigger signal is active low; that is,
when trigger is sent or received the pin is pulled to GND. TRIG is an open-drain pin and external pullup resistor
is needed for trigger line. External trigger input signal must be at least two 32-kHz clock cycles long to be
recognized. Trigger output signal is three 32-kHz clock cycles long. If TRIG pin is not used on application,
connected the TRIG pin to GND to prevent floating of this pin and extra current consumption.
7.3.5.4 ADDR_SEL0,1 Pins
The ADDR_SEL0,1 pins define the chip I2C address. Pins are referenced to VDD signal level. See I2C-Compatible
Serial Bus Interface for I2C address definitions.
7.3.5.5 CLK_32K Pin
The CLK_32K pin is used for connecting an external 32-kHz clock to LP5521. External clock can be used to
synchronize the sequence engines of several LP5521. Using external clock can also improve automatic power
save mode efficiency, because internal clock can be switched off automatically when device has entered power
save mode, and external clock is present. See application note LP5521 Power Efficiency Considerations
(SNVA185) for more information.
Device can be used without the external clock. If external clock is not used on the application, connect the
CLK_32K pin to GND to prevent floating of this pin and extra current consumption.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
17
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.4 Device Functional Modes
7.4.1 Modes of Operation
RESET:
In the RESET mode all the internal registers are reset to the default values. Reset is done always if
Reset Register (0DH) is written FFH or internal power on reset (POR) is activated. POR activates
when supply voltage is connected or when the supply voltage VDD falls below 1.5 V typical (0.8 V
minimum). Once VDD rises above 1.5 V, POR inactivates, and the chip continues to the STANDBY
mode. CHIP_EN control bit is low after POR by default.
STANDBY: The STANDBY mode is entered if the register bit CHIP_EN or EN pin is LOW and Reset is not
active. This is the low power consumption mode, when all circuit functions are disabled. Registers
can be written in this mode if EN pin is high. Control bits are effective after start-up.
START-UP: When CHIP_EN bit is written high and EN pin is high, the INTERNAL STARTUP SEQUENCE
powers up all the needed internal blocks (VREF, bias, oscillator, etc.). Start-up delay is after setting
EN pin high is 1 ms (typical). Start-up delay after setting CHIP_EN to 1 is 500 μs (typical). If the
chip temperature rises too high, the thermal shutdown (TSD) disables the chip operation, and the
chip state is in START-UP mode until no TSD event is present. (1)
NORMAL:
During NORMAL mode the user controls the chip using the Control Registers. If EN pin is set low,
the CHIP_EN bit is reset to 0.
POWER SAVE: In POWER SAVE mode analog blocks are disabled to minimize power consumption. See
Automatic Power Save for further information.
POR
RESET
2
I C reset=H and EN=H (pin)
or
POR=H
STANDBY
EN=H (pin) and
CHIP_EN=H (bit)
EN=L (pin) or
CHIP_EN=L (bit)
INTERNAL
STARTUP
SEQUENCE
TSD = L
TSD = H
NORMAL MODE
Exit power save
Enter power save
POWER SAVE
Figure 18. Modes of Operation
(1)
18
Internal thermal shutdown circuitry protects the device from permanent damage. Thermal shutdown engages at TJ = 150°C (typical) and
disengages at TJ = 130°C (typical).
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.5 Programming
7.5.1 I2C-Compatible Serial Bus Interface
7.5.1.1 Interface Bus Overview
The I2C compatible synchronous serial interface provides access to the programmable functions and registers on
the device. This protocol uses a two-wire interface for bidirectional communications between the IC's connected
to the bus. The two interface lines are the serial data line (SDA), and the serial clock line (SCL). These lines
should be connected to a positive supply, via a pullup resistor and remain HIGH even when the bus is idle.
Every device on the bus is assigned a unique address and acts as either a Master or a Slave depending on
whether it generates or receives the serial clock (SCL).
7.5.1.2 Data Transactions
One data bit is transferred during each clock pulse. Data is sampled during the high state of the serial clock
(SCL). Consequently, throughout the high period of the clock the data should remain stable. Any changes on the
SDA line during the high state of the SCL and in the middle of a transaction, aborts the current transaction. New
data should be sent during the low SCL state. This protocol permits a single data line to transfer both
command/control information and data using the synchronous serial clock.
SCL
SDA
data
change
allowed
data
valid
data
valid
data
change
allowed
data
change
allowed
Figure 19. Data Validity
Each data transaction is composed of a start condition, a number of byte transfers (set by the software) and a
stop condition to terminate the transaction. Every byte written to the SDA bus must be 8 bits long and is
transferred with the most significant bit first. After each byte, an acknowledge signal must follow. The following
sections provide further details of this process.
SCL
Data Output
by Receiver
Data Output
by Transmitter
Transmitter Stays off the
Bus During the
Acknowledge Clock
Acknowledge Signal
from Receiver
1
2
3...6
7
8
9
S
Start
Condition
Figure 20. Acknowledge Signal
The Master device on the bus always generates the start and stop conditions (control codes). After a start
condition is generated, the bus is considered busy and it retains this status until a certain time after a stop
condition is generated. A high-to-low transition of the data line (SDA) while the clock (SCL) is high indicates a
start condition. A low-to-high transition of the SDA line while the SCL is high indicates a stop condition.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
19
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Programming (continued)
SDA
SCL
S
P
START condition
STOP condition
Figure 21. Start and Stop Conditions
In addition to the first start condition, a repeated start condition can be generated in the middle of a transaction.
This allows another device to be accessed, or a register read cycle.
7.5.1.3 Acknowledge Cycle
The acknowledge cycle consists of two signals: the acknowledge clock pulse the master sends with each byte
transferred, and the acknowledge signal sent by the receiving device.
The master generates the acknowledge clock pulse on the ninth clock pulse of the byte transfer. The transmitter
releases the SDA line (permits it to go high) to allow the receiver to send the acknowledge signal. The receiver
must pull down the SDA line during the acknowledge clock pulse and ensure that SDA remains low during the
high period of the clock pulse, thus signaling the correct reception of the last data byte and its readiness to
receive the next byte.
7.5.1.4 Acknowledge After Every Byte Rule
The master generates an acknowledge clock pulse after each byte transfer. The receiver sends an acknowledge
signal after every byte received.
There is one exception to the acknowledge after every byte rule. When the master is the receiver, it must
indicate to the transmitter an end of data by not-acknowledging (negative acknowledge) the last byte clocked out
of the slave. This negative acknowledge still includes the acknowledge clock pulse (generated by the master),
but the SDA line is not pulled down.
7.5.1.5 Addressing Transfer Formats
Each device on the bus has a unique slave address. The LP5521 operates as a slave device with the 7-bit
address. The LP5521 I2C address is pin selectable from four different choices. If 8-bit address is used for
programming, the 8th bit is 1 for read and 0 for write. Table 9 shows the 8-bit I2C addresses.
Table 9. 8-Bit I2C Addresses
ADDR_SEL
[1:0]
I2C ADDRESS WRITE
(8 bits)
I2C ADDRESS READ
(8 bits)
00
01
10
11
0110 0100 = 64H
0110 0110 = 66H
0110 1000 = 68H
0110 1010 = 6AH
0110 0101 = 65H
0110 0111 = 67H
0110 1001 = 69H
0110 1011 = 6BH
Before any data is transmitted, the master transmits the address of the slave being addressed. The slave device
sends an acknowledge signal on the SDA line, once it recognizes its address.
The slave address is the first seven bits after a start condition. The direction of the data transfer (R/W) depends
on the bit sent after the slave address — the eighth bit.
When the slave address is sent, each device in the system compares this slave address with its own. If there is a
match, the device considers itself addressed and sends an acknowledge signal. Depending upon the state of the
R/W bit (1:read, 0:write), the device acts as a transmitter or a receiver.
20
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
MSB
ADR6
Bit7
LSB
ADR5
bit6
ADR4
bit5
ADR3
bit4
ADR2
bit3
ADR1
bit2
ADR0
bit1
R/W
bit0
2
I C SLAVE address (chip address)
Figure 22. I2C Chip Address
7.5.1.6 Control Register Write Cycle
• Master device generates start condition.
• Master device sends slave address (7 bits) and the data direction bit (r/w = 0).
• Slave device sends acknowledge signal if the slave address is correct.
• Master sends control register address (8 bits).
• Slave sends acknowledge signal.
• Master sends data byte to be written to the addressed register.
• Slave sends acknowledge signal.
• If master will send further data bytes the control register address is incremented by one after acknowledge
signal.
• Write cycle ends when the master creates stop condition.
7.5.1.7 Control Register Read Cycle
• Master device generates a start condition.
• Master device sends slave address (7 bits) and the data direction bit (r/w = 0).
• Slave device sends acknowledge signal if the slave address is correct.
• Master sends control register address (8 bits).
• Slave sends acknowledge signal.
• Master device generates repeated start condition.
• Master sends the slave address (7 bits) and the data direction bit (r/w = 1).
• Slave sends acknowledge signal if the slave address is correct.
• Slave sends data byte from addressed register.
• If the master device sends acknowledge signal, the control register address is incremented by one. Slave
device sends data byte from addressed register.
• Read cycle ends when the master does not generate acknowledge signal after data byte and generates stop
condition.
ADDRESS MODE
Data Read
[Ack]
[Ack]
[Ack]
[Register Data]
… additional reads from subsequent register address possible
Data Write
[Ack]
[Ack]
[Ack]
… additional writes to subsequent register address possible
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
21
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Data from master [ ] Data from slave
ack from slave
ack from slave
start
MSB Chip id LSB
w
ack
MSB Register Addr LSB
ack
id = 011 0010b
w
ack
address = 02H
ack
ack from slave
MSB
Data
LSB
ack
stop
address 02H data
ack
stop
SCL
SDA
start
Figure 23. Register Write Format
When a READ function is to be accomplished, a WRITE function must precede the READ function, as shown in
Figure 24.
ack from slave
start
MSB Chip id LSB
w
ack from slave
MSB Register Addr LSB
repeated start
ack from slave data from slave nack from master
rs
MSB Chip Address LSB
rs
id = 011 0010b
r
MSB
Data
LSB
stop
r ack
address 00H data
nack stop
SCL
SDA
start
id = 011 0010b
w ack
address = 00H
ack
w = write (SDA = 0)
r = read (SDA = 1)
ack = acknowledge (SDA pulled down by either master or slave
rs = repeated start
id = 7-bit chip address
Figure 24. Register Read Format
7.5.2 LED Controller Operation Modes
Operation modes are defined in register address 01H. Each output channel (R, G, B) operation mode can be
configured separately. MODE registers are synchronized to a 32-kHz clock. Delay between consecutive I2C
writes to OP_MODE register (01H) need to be longer than 153 µs (typical).
Table 10. OP_MODE Register (01H):
22
NAME
BIT
DESCRIPTION
R_MODE
5:4
R channel operation mode
00b = Disabled, reset R channel PC
01b = Load program to SRAM, reset R channel PC
10b = Run program defined by R_EXEC
11b = Direct control, reset R channel PC
G_MODE
3:2
G channel operation mode
00b = Disabled, reset G channel PC
01b = Load program to SRAM, reset G channel PC
10b = Run program defined by G_EXEC
11b = Direct control, reset G channel PC
B_MODE
1:0
B channel operation mode
00b = Disabled, reset B channel PC
01b = Load program to SRAM, reset B channel PC
10b = Run program defined by B_EXEC
11b = Direct control, reset B channel PC
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.5.2.1 Disabled
Each channel can be configured to disabled mode. LED output current is 0 during this mode. Disabled mode
resets PC of respective channel.
7.5.2.2 LOAD Program
LP5521 can store 16 commands for each channel (R, G, B). Each command consists of 16 bits. Because one
register has only 8 bits, one command requires two I2C register addresses. In order to reduce program load time
LP5521 supports address auto incrementation. Register address is incremented after each 8 data bits. Whole
program memory can be written in one I2C write sequence.
Program memory is defined in the LP5521 register table, 10H to 2FH for R channel, 30H to 4FH for G channel
and 50H to 6FH for B channel. In order to be able to access program memory at least one channel operation
mode needs to be LOAD Program.
Memory writes are allowed only to the channel in LOAD mode. All channels are in hold while one or several
channels are in LOAD program mode, and PWM values are frozen for the channels which are not in LOAD
mode. Program execution continues when all channels are out of LOAD program mode. LOAD Program mode
resets PC of respective channel.
7.5.2.3 RUN Program
RUN Program mode executes the commands defined in program memory for respective channel (R, G, B).
Execution register bits in ENABLE register define how program is executed. Program start position can be
programmed to Program Counter register (see the following tables). By manually selecting the PC start value,
user can write different lighting sequences to the memory, and select appropriate sequence with the PC register.
If program counter runs to end (15) the next command will be executed from program location 0.
If internal clock is used in the RUN program mode, operation mode needs to be written disabled (00b) before
disabling the chip (with CHIP_EN bit or EN pin) to ensure that the sequence starts from the correct program
counter (PC) value when restarting the sequence.
PC registers are synchronized to 32 kHz clock. Delay between consecutive I2C writes to PC registers (09H, 0AH,
0BH) need to be longer than 153 µs (typ.).
Note that entering LOAD program or Direct Control Mode from RUN PROGRAM mode is not allowed. Engine
execution mode should be set to Hold, and Operation Mode to disabled, when changing operation mode from
RUN mode.
Table 11. R Channel PC Register (09H), G CHANNEL PC Register (0AH), B CHANNEL PC Register (0BH)
NAME
BIT
DESCRIPTION
PC
3:0
Program counter value from 0 to 15d
Table 12. ENABLE Register (00H)
NAME
BIT
DESCRIPTION
R_EXEC
5:4
R channel program execution
00b = Hold: Wait until current command is finished then stop while EXEC mode is hold. PC can be read
or written only in this mode.
01b = Step: Execute instruction defined by current R channel PC value, increment PC and change
R_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current R channel PC value
11b = Execute instruction defined by current R channel PC value and change R_EXEC to 00b (Hold)
G_EXEC
3:2
G channel program execution
00b = Hold: Wait until current command is finished then stop while EXEC mode is hold. PC can be read
or written only in this mode.
01b = Step: Execute instruction defined by current G channel PC value, increment PC and change
G_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current G channel PC value
11b = Execute instruction defined by current G channel PC value and change G_EXEC to 00b (Hold)
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
23
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Table 12. ENABLE Register (00H) (continued)
NAME
BIT
DESCRIPTION
B_EXEC
1:0
B channel program execution
00b = Hold: Wait until current command is finished then stop while EXEC mode is hold. PC can be read
or written only in this mode.
01b = Step: Execute instruction defined by current B channel PC value, increment PC and change
B_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current B channel PC value
11b = Execute instruction defined by current B channel PC value and change B_EXEC to 00b (Hold)
EXEC registers are synchronized to 32-kHz clock. Delay between consecutive I2C writes to ENABLE register
(00H) need to be longer than 488 μs (typ.).
7.5.2.3.1 DIRECT Control
When R, G or B channel mode is set to 11b, the LP5521 drivers work in direct control mode. LP5521 LED
channels can be controlled independently through I2C. For each channel there is a PWM control register and a
output current control register. With output current control register is set what is the maximum output current with
8-bit resolution, step size is 100 μA. Duty cycle can be set with 8-bit resolution. Direct control mode resets
respective channel’s PC. PWM control bits are presented in Table 13:
Table 13. R_PWM Register (02H), G_PWM Register (03H), B_PWM Register (04H):
NAME
BIT
DESCRIPTION
PWM
7:0
LED PWM value during direct control operation mode
0000 0000b = 0%
1111 1111b = 100%
If charge pump automatic gain change is used in this mode, then PWM values need to be written 0 before
changing the drivers’ operation mode to disabled (00b) to ensure proper automatic gain change operation.
7.5.3 LED Controller Programming Commands
LP5521 has three independent programmable channels (R, G, B). Trigger connections between channels are
common for all channels. All channels have own program memories for storing complex patterns. Brightness
control and patterns are done with 8-bit PWM control (256 steps) to get accurate and smooth color control.
Program execution is timed with 32 768 Hz clock. This clock can be generated internally or external 32 kHz clock
can be connected to CLK_32K pin. Using external clock enables synchronization of LED timing to this clock
rather than internal clock. Selection of the clock is made with address 08H bits INT_CLK_EN and CLK_DET_EN.
See External Clock Detection for details.
Supported commands are listed in Table 14. Command compiler is available for easy sequence
programming. With Command compiler it is possible to write sequences with simple ASCII commands,
which are then converted to binary or hex format. See application note "LP5521 Programming
Considerations" for examples of Command compiler usage.
Table 14. LED Controller Programming Commands
Command
15
14
Ramp
Wait
0
Prescale
Step time
Set PWM
0
1
0
Go to
Start
0
0
0
Branch
1
0
1
End
1
1
0
Trigger
1
1
1
24
13
12
11
10
9
8
7
5
Sign
4
3
2
1
0
0
0
Increment (number of steps)
PWM Value
0
Loop count
Int
6
Reset
0
0
x
0
0
0
Step / command number
X
Wait for trigger on channels 5-0
Submit Documentation Feedback
Send trigger on channels 5-0
X
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
X means do not care whether 1 or 0.
7.5.3.1 RAMP/WAIT
Ramp command generates a PWM ramp starting from current value. At each ramp step the output is
incremented by one. Time for one step is defined with Prescale and Step time bits. Minimum time for one step is
0.49 ms and maximum time is 63 × 15.6 ms = 1 second/step, so it is possible to program very fast and also very
slow ramps. Increment value defines how many steps are taken in one command. Number of actual steps is
Increment + 1. Maximum value is 127d, which corresponds to half of full scale (128 steps). If during ramp
command PWM reaches minimum/maximum (0/255) ramp command is executed to the end, and PWM stays at
minimum/maximum. This enables ramp command to be used as combined ramp and wait command in a single
instruction.
Ramp command can be used as wait instruction when increment is zero.
Setting register 00H bit LOG_EN sets the scale from linear to logarithmic. When LOG_EN = 0 linear scale is
used, and when LOG_EN = 1 logarithmic scale is used. By using logarithmic scale the visual effect of the ramp
command seems linear to the eye.
Table 15. Ramp/Wait Command
15
14
0
Prescale
13
NAME
Prescale
Step time
Sign
Increment
12
11
10
9
8
7
Step time
6
5
Sign
4
3
2
1
0
Increment
VALUE(d)
DESCRIPTION
0
Divides master clock (32 768Hz) by 16 = 2048 Hz, 0.49 ms cycle time
1
Divides master clock (32 768Hz) by 512 = 64 Hz, 15.6 ms cycle time
1-63
One ramp increment done in (step time) x (clock after prescale) Note: 0 means Set
PMW command.
0
Increase PWM output
1
Decrease PWM output
0-127
The number of steps is Increment + 1. Note: 0 is a wait instruction.
Application example:
For example if following parameters are used for ramp:
• Prescale = 1 → cycle time = 15.6 ms
• Step time = 2 → time = 15.6 ms x 2 = 31.2 ms
• Sign = 0 → rising ramp
• Increment = 4 → 5 cycles
Ramp command will be: 0100 0010 0000 0100b = 4204H
If current PWM value is 3, and the first command is as described above and next command is a ramp with
otherwise same parameters, but with Sign = 1 (Command = 4284H), the result will be like in Figure 25:
PWM Control
Value
8
End of 1st Ramp command,
start next command
End of 2nd Ramp command,
start next command
Rising ramp,
Sign = 0
7
6
Increment = 4
=> 5 cycles
5
4
Current value
3
2
Downward
ramp, Sign = 1
Step time = 31.2 ms
1
Steps
1
2
3
4
5
6
7
8
9
10
Figure 25. Example of 2 Sequential Ramp Commands.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
25
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.5.3.2 Set PWM
Set PWM output value from 0 to 255. Command takes sixteen 32 kHz clock cycles (= 488 μs). Setting register
00H bit LOG_EN sets the scale from linear to logarithmic.
Table 16. Set PWM Command
15
14
13
12
11
10
9
8
0
1
0
0
0
0
0
0
7
6
5
4
3
2
1
0
PWM value
7.5.3.3 Go to Start
Go to start command resets Program Counter register and continues executing program from the 00H location.
Command takes sixteen 32 kHz clock cycles. Note that default value for all program memory registers is 0000H,
which is Go to start command.
Go to start command
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
7.5.3.4 Branch
When branch command is executed, the 'step number' value is loaded to PC and program execution continues
from this location. Looping is done by the number defined in loop count parameter. Nested looping is supported
(loop inside loop). The number of nested loops is not limited. Command takes sixteen 32-kHz clock cycles.
Table 17. Branch Command
15
14
13
1
0
1
12
11
10
9
8
7
Loop count
6
5
4
X
X
X
NAME
VALUE(d)
loop count
0-63
The number of loops to be done. 0 means infinite loop.
step number
0-15
The step number to be loaded to program counter.
3
2
1
0
Step number
DESCRIPTION
7.5.3.5 End
End program execution, resets the program counter and sets the corresponding EXEC register to 00b (hold).
Command takes sixteen 32-kHz clock cycles.
Table 18. End Command
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
1
1
0
int
reset
X
X
X
X
X
X
X
X
X
X
X
NAME
int
reset
26
VALUE
DESCRIPTION
0
No interrupt will be sent.
1
Send interrupt to processor by pulling the INT pin down and setting corresponding status
register bit high to notify that program has ended. Interrupt can only be cleared by reading
interrupt status register 0CH.
0
Keep the current PWM value.
1
Set PWM value to 0.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
X means do not care whether 1 or 0.
7.5.3.6 Trigger
Wait or send triggers can be used to, for example, synchronize operation between different channels. Send
trigger command takes sixteen 32-kHz clock cycles, and wait for trigger takes at least sixteen 32 kHz clock
cycles. The receiving channel stores sent triggers. Received triggers are cleared by wait for trigger command if
received triggers match to channels defined in the command. Channel waits for until all defined triggers have
been received.
External trigger input signal must be at least two 32-kHz clock cycles (= 61 μs typical) long to be recognized.
Trigger output signal is three 32-kHz clock cycles (92 μs typical) long. External trigger signal is active low; that is,
when trigger is sent/received the pin is pulled to GND. Sent external trigger is masked; that is, the device which
has sent the trigger does not recognize it. If send and wait external trigger are used on the same command, the
send external trigger is executed first, then the wait external trigger.
Table 19. Trigger Command
15
1
14
1
13
1
12
11
10
9
8
7
6
wait trigger
EXT
X
B
5
4
3
2
1
G
R
send trigger
G
R
EXT
X
B
0
X
NAME
VALUE(d)
DESCRIPTION
wait trigger
0-31
Wait for trigger for the channel(s) defined. Several triggers can be defined in the same
command. Bit 0 is R, bit 1 is G, bit 2 is B and bit 5 is external trigger I/O. Bits 3 and 4
are not in use.
send trigger
0-31
Send trigger for the channel(s) defined. Several triggers can be defined in the same
command. Bit 0 is R, bit 1 is G, bit 2 is B and bit 5 is external trigger I/O. Bits 3 and 4
are not in use.
X means do not care whether 1 or 0.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
27
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.6 Register Maps
Table 20. LP5521 Control Register Names and Default Values
ADDR
(HEX)
REGISTER
D7
D6
00
ENABLE
LOG_EN
CHIP_EN
01
OP MODE
02
R PWM
R_PWM[7:0]
0000 0000
03
G PWM
G_PWM[7:0]
0000 0000
D5
D4
D3
R_EXEC[1:0]
R_MODE[1:0]
D2
D1
D0
DEFAULT
G_EXEC[1:0]
B_EXEC[1:0]
0000 0000
G_MODE[1:0]
B_MODE[1:0]
0000 0000
04
B PWM
B_PWM[7:0]
0000 0000
05
R CURRENT
R_CURRENT[7:0]
1010 1111
06
G CURRENT
G_CURRENT[7:0]
1010 1111
07
B CURRENT
08
CONFIG
09
R PC
R_PC[3:0]
0000 0000
0A
G PC
G_PC[3:0]
0000 0000
0B
B PC
0C
STATUS
0D
RESET
B_CURRENT[7:0]
PWM_HF
PWRSAVE_EN
CP_MODE[1:0]
1010 1111
R_TO_BATT
CLK_DET_EN
INT_CLK_EN
B_PC[3:0]
EXT_CLK_USED
R_INT
0000 0000
0000 0000
G_INT
B_INT
RESET[7:0]
0000 0000
0000 0000
0E
GPO
10
PROG MEM R
CMD_R1[15:8]
INT_AS_GPO
GPO
INT
0000 0000
0000 0000
11
PROG MEM R
CMD_R1[7:0]
0000 0000
2E
PROG MEM R
CMD_R16[15:8]
0000 0000
2F
PROG MEM R
CMD_R16[7:0]
0000 0000
30
PROG MEM G
CMD_G1[15:8]
0000 0000
31
PROG MEM G
CMD_G1[7:0]
0000 0000
...
...
4E
PROG MEM G
CMD_G16[15:8]
0000 0000
4F
PROG MEM G
CMD_G16[7:0]
0000 0000
50
PROG MEM B
CMD_B1[15:8]
0000 0000
51
PROG MEM B
CMD_B1[7:0]
0000 0000
6E
PROG MEM B
CMD_B16[15:8]
0000 0000
6F
PROG MEM B
CMD_B16[7:0]
0000 0000
...
28
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.6.1 Enable Register (Enable)
Address 00H
Reset value 00H
Table 21. Enable Register
7
6
5
4
3
2
1
0
LOG_EN
CHIP_EN
R_EXEC[1]
R_EXEC[0]
G_EXEC[1]
G_EXEC[0]
B_EXEC[1]
B_EXEC[0]
NAME
BIT
ACCESS
ACTIVE
LOG_EN
7
R/W
High
Logarithmic PWM adjustment generation enable
CHIP_EN
6
R/W
High
Master chip enable. Enables device internal startup sequence. Startup delay
after setting CHIP_EN is 500 μs. See Operation for further information.
Setting EN pin low resets the CHIP_EN state to 0.
R_EXEC
G_EXEC
B_EXEC
5:4
3:2
1:0
DESCRIPTION
R/W
R channel program execution.
00b = Hold: Wait until current command is finished then stop while EXEC
mode is hold. PC can be read or written only in this mode.
01b = Step: Execute instruction defined by current R channel PC value,
increment PC and change R_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current R Channel PC
value
11b = Execute instruction defined by current R channel PC value and change
R_EXEC to 00b (Hold)
R/W
G channel program execution
00b = Hold: Wait until current command is finished then stop while EXEC
mode is hold. PC can be read or written only in this mode.
01b = Step: Execute instruction defined by current G channel PC value,
increment PC and change G_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current G Channel PC
value
11b = Execute instruction defined by current G channel PC value and
change G_EXEC to 00b (Hold)
R/W
B channel program execution
00b = Hold: Wait until current command is finished then stop while EXEC
mode is hold. PC can be read or written only in this mode.
01b = Step: Execute instruction defined by current B channel PC value,
increment PC and change B_EXEC to 00b (Hold)
10b = Run: Start at program counter value defined by current B Channel PC
value
11b = Execute instruction defined by current B channel PC value and change
B_EXEC to 00b (Hold)
EXEC registers are synchronized to 32 kHz clock. Delay between consecutive I2C writes to ENABLE register
(00H) need to be longer than 488 μs (typ).
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
29
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.6.2 Operation Mode Register (OP Mode)
Address 01H
Reset value 00H
Table 22. OP Mode Register
7
6
NAME
BIT
R_MODE
3:2
B_MODE
4
3
2
1
0
R_MODE[0]
G_MODE[1]
G_MODE[0]
B_MODE[1]
B_MODE[0]
ACCESS
5:4
G_MODE
5
R_MODE[1]
1:0
ACTIVE
DESCRIPTION
R/W
R channel operation mode
00b = Disabled
01b = Load program to SRAM, reset R channel PC
10b = Run program defined by R_EXEC
11b = Direct control
R/W
G channel operation mode
00b = Disabled
01b = Load program to SRAM, reset G channel PC
10b = Run program defined by G_EXEC
11b = Direct control
R/W
B channel operation mode
00b = Disabled
01b = Load program to SRAM, reset B channel PC
10b = Run program defined by B_EXEC
11b = Direct control
MODE registers are synchronized to 32 kHz clock. Delay between consecutive I2C writes to OP_MODE register
(01H) need to be longer than 153 μs (typ).
7.6.3 R Channel PWM Control (R_PWM)
Address 02H
Reset value 00H
Table 23. R PWM Register
7
6
5
4
3
2
1
0
R_PWM[7:0]
30
NAME
BIT
ACCESS
R_PWM
7:0
R/W
ACTIVE
DESCRIPTION
R Channel PWM value during direct control operation mode
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.6.4 G Channel PWM Control (G_PWM)
Address 03H
Reset value 00H
Table 24. G PWM Register
7
6
5
4
3
2
1
0
1
0
1
0
G_PWM[7:0]
NAME
BIT
ACCESS
G_PWM
7:0
R/W
ACTIVE
DESCRIPTION
G Channel PWM value during direct control operation mode
7.6.5 B Channel PWM Control (B_PWM)
Address 04H
Reset value 00H
Table 25. B PWM Register
7
6
5
4
3
2
B_PWM[7:0]
NAME
BIT
ACCESS
B_PWM
7:0
R/W
ACTIVE
DESCRIPTION
B Channel PWM value during direct control operation mode
7.6.6 R Channel Current (R_CURRENT)
Address 05H
Reset Value AFH
Table 26. R CURRENT Register
7
6
5
4
3
2
R_CURRENT[7:0]
NAME
R_CURRENT
BIT
7:0
ACCESS
R/W
ACTIVE
DESCRIPTION
Current setting
0000 0000b = 0.0 mA
0000 0001b = 0.1 mA
0000 0010b = 0.2 mA
0000 0011b = 0.3 mA
0000 0100b = 0.4 mA
0000 0101b = 0.5 mA
0000 0110b = 0.6 mA
...
1010 1111b = 17.5 mA (default)
...
1111 1011b = 25.1 mA
1111 1100b = 25.2 mA
1111 1101b = 25.3 mA
1111 1110b = 25.4 mA
1111 1111b = 25.5 mA
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
31
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.6.7 G Channel Current (G_CURRENT)
Address 06H
Reset Value AFH
Table 27. G CURRENT Register
7
6
5
4
3
2
1
0
1
0
G_CURRENT[7:0]
NAME
G_CURRENT
BIT
ACCESS
7:0
ACTIVE
DESCRIPTION
Current setting
0000 0000b = 0.0 mA
0000 0001b = 0.1 mA
0000 0010b = 0.2 mA
0000 0011b = 0.3 mA
0000 0100b = 0.4 mA
0000 0101b = 0.5 mA
0000 0110b = 0.6 mA
...
1010 1111b = 17.5 mA (default)
...
1111 1011b = 25.1 mA
1111 1100b = 25.2 mA
1111 1101b = 25.3 mA
1111 1110b = 25.4 mA
1111 1111b = 25.5 mA
R/W
7.6.8 B Channel Current (B_CURRENT)
Address 07H
Reset value AFH
Table 28. B CURRENT Register
7
6
5
4
3
2
B_CURRENT[7:0]
NAME
B_CURRENT
32
BIT
ACCESS
7:0
R/W
ACTIVE
DESCRIPTION
Current setting
0000 0000b = 0.0 mA
0000 0001b = 0.1 mA
0000 0010b = 0.2 mA
0000 0011b = 0.3 mA
0000 0100b = 0.4 mA
0000 0101b = 0.5 mA
0000 0110b = 0.6 mA
...
1010 1111b = 17.5 mA (default)
...
1111 1011b = 25.1 mA
1111 1100b = 25.2 mA
1111 1101b = 25.3 mA
1111 1110b = 25.4 mA
1111 1111b = 25.5 mA
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.6.9 Configuration Control (CONFIG)
Address 08H
Reset value 00H
Table 29. CONFIG Register
7
6
5
PWM_HF
PWRSAVE_EN
4
3
CP_MODE[1:0]
2
1
0
R_TO_BATT
CLK_DET_EN
INT_CLK_EN
NAME
BIT
ACCESS
ACTIVE
PWM_HF
6
R/W
High
PWM clock
0 = 256 Hz PWM clock used (CLK_32K)
1 = 558 Hz PWM clock used (internal oscillator)
PWRSAVE_EN
5
R/W
High
Power save mode enable
CP_MODE
4:3
R/W
R_TO_BATT
2
R/W
CLK_DET_EN,
INT_CLK_EN
1:0
DESCRIPTION
Charge pump operation mode
00b = OFF
01b = Forced to bypass mode (1x)
10b = Forced to 1.5x mode
11b = Automatic mode selection
R channel supply connection
0 = R output connected to charge pump
1 = R output connected to battery
High
LED Controller clock source
00b = External clock source (CLK_32K)
01b = Internal clock
10b = Automatic selection
11b = Internal clock
R/W
7.6.10 R Channel Program Counter Value (R Channel PC)
Address 09H
Reset value 00H
Table 30. R Channel PC Register
7
6
5
NAME
BIT
ACCESS
R_PC
3:0
R/W
4
ACTIVE
3
2
1
0
R_PC[3]
R_PC[2]
R_PC[1]
R_PC[0]
DESCRIPTION
R channel program counter value
PC registers are synchronized to a 32-kHz clock. Delay between consecutive I2C writes to PC registers needs to
be longer than 153 μs (typ.). PC register can be read or written only when EXEC mode is 'hold'.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
33
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
7.6.11 G Channel Program Counter Value (G Channel PC)
Address 0AH
Reset value 00H
Table 31. G Channel PC Register
7
6
5
NAME
BIT
ACCESS
G_PC
3:0
R/W
4
ACTIVE
3
2
1
0
G_PC[3]
G_PC[2]
G_PC[1]
G_PC[0]
DESCRIPTION
G channel program counter value
PC registers are synchronized to 32 kHz clock. Delay between consecutive I2C writes to PC registers needs to
be longer than 153 μs (typ.). PC register can be read or written only when EXEC mode is 'hold'.
7.6.12 B Channel Program Counter Value (B Channel PC)
Address 0BH
Reset value 00H
Table 32. B Channel PC Register
7
6
5
NAME
BIT
ACCESS
B_PC
3:0
R/W
4
ACTIVE
3
2
1
0
B_PC[3]
B_PC[2]
B_PC[1]
B_PC[0]
DESCRIPTION
B channel program counter value
PC registers are synchronized to a 32-kHz clock. Delay between consecutive I2C writes to PC registers must be
longer than 153 μs (typ.). PC register can be read or written only when EXEC mode is 'hold'.
7.6.13 Status/Interrupt Register
Address 0CH
Reset value 00H
Table 33. STATUS/INTERRUPT Register
7
6
5
NAME
BIT
ACCESS
EXT_CLK
USED
3
R
4
ACTIVE
3
2
1
0
EXT_CLK
USED
R_INT
G_INT
B_INT
DESCRIPTION
External clock state
0 = Internal 32kHz clock used
1 = External 32kHz clock used
R_INT
2
R
High
Interrupt from R channel
G_INT
1
R
High
Interrupt from G channel
B_INT
0
R
High
Interrupt from B channel
Note: Register INT bits will be cleared when read operation to Status/Interrupt register occurs. INT output pin
(active low) will go high after read operation.
34
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
7.6.14 RESET Register
Address 0DH
Reset value 00H
Table 34. RESET Register
7
6
5
4
3
2
1
0
RESET
RESET
RESET
RESET
RESET
RESET
RESET
RESET
NAME
BIT
ACCESS
RESET
7:0
W
ACTIVE
DESCRIPTION
Reset all register values when FFH is written. No acknowledge from LP5521
after write.
7.6.15 GPO Register
Address 0EH
Reset value 00H
Table 35. GPO Register
7
6
5
4
3
2
1
0
INT_AS_GPO
GPO
INT
NAME
BIT
ACCESS
ACTIVE
INT_AS_GPO
2
R/W
High
DESCRIPTION
Enable INT pin GPO function
GPO
1
R/W
High
GPO pin state:
0 = LOW
1 = HIGH
INT
0
R/W
High
INT pin state (when INT_AS_GPO=1):
0 = LOW
1 = HIGH
7.6.16 Program Memory
Address 10H – 6FH
Reset values 00H
Please see LED Controller Programming Commands for further information.
Command
15
14
Ramp
Wait
0
Prescale
13
12
11
10
Step time
Set PWM
0
1
0
Go toStart
0
0
0
Branch
1
0
1
End
1
1
0
Trigger
1
1
1
9
8
7
5
4
Sign
3
2
1
0
0
0
0
Increment
PWM Value
0
Loop Count
Int
6
Reset
0
0
X
0
0
Step number
X
Wait for trigger on channels 5-0
Send trigger on channels 5-0
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
X
35
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LP5521 is designed as a autonomous lighting controller for mobile devices. These devices need extremely
small form factor; therefore, the LP5521 is designed to require only 4 small capacitors: input, output, and two flycapacitors for charge pump. If charge pump is not needed in the application (input voltage is high enough for
driving LEDs), the charge pump capacitors can be omitted thus reducing the solution size even further. LED can
be RGB LED or any color if desired.
8.2 Typical Applications
Application with Charge Pump shows an example of typical application which uses charge pump to get high
enough voltage to drive LEDs. The device is powered from single Li-Ion battery with voltage range of 2.7 V to 4.2
V.
8.2.1 Application with Charge Pump
CFLY1
CFLY2
0.47 µF
CFLY1P
+
CIN
1 µF
0.47 µF
CFLY1N
CFLY2P
CFLY2N
VDD
VOUT
RGB LED 0...25.5 mA/LED
-
SCL
SDA
EN
MCU
COUT
1 µF
R
LP5521
G
CLK_32K
B
INT
TRIG
GPO
ADDR_SEL0
ADDR_SEL1
GNDs
Copyright © 2016, Texas Instruments Incorporated
Figure 26. LP5521 Typical Application Schematic With Charge Pump
8.2.1.1 Design Requirements
36
DESIGN PARAMETER
EXAMPLE VALUE
Input voltage range
2.7 V to 4.2 V (single Li-Ion cell battery)
LED VF (maximum)
3.6 V
LED current
25.5 mA maximum
Input capacitor
CIN = 1 μF
Output capacitor
COUT = 1 μF
Fly capacitors
CFLY1 = CFLY2 = 470 nF
Charge pump mode
Automatic or 1.5×
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
8.2.1.2 Detailed Design Procedure
8.2.1.2.1 Capacitor Selection
The LP5521 requires 4 external capacitors for proper operation (CIN = COUT = 1 μF, CFLY1 = CFLY2 = 470 nF).
Surface-mount multi-layer ceramic capacitors are recommended. These capacitors are small, inexpensive and
have very low equivalent series resistance (ESR < 20 mΩ typical). Tantalum capacitors, OS-CON capacitors,
and aluminum electrolytic capacitors are not recommended for use with the LP5521 due to their high ESR, as
compared to ceramic capacitors.
For most applications, ceramic capacitors with X7R or X5R temperature characteristic are preferred for use with
the LP5521. These capacitors have tight capacitance tolerance (as good as ±10%) and hold their value over
temperature (X7R: ±15% over –55°C to 125°C; X5R: ±15% over –55°C to 85°C).
Capacitors with Y5V or Z5U temperature characteristic are generally not recommended for use with the LP5521.
Capacitors with these temperature characteristics typically have wide capacitance tolerance (+80%, –20%) and
vary significantly over temperature (Y5V: +22%, –82% over –30°C to +85°C range; Z5U: +22%, –56% over
+10°C to +85°C range). Under some conditions, a nominal 1-μF Y5V or Z5U capacitor could have a capacitance
of only 0.1 μF. Such detrimental deviation is likely to cause Y5V and Z5U capacitors to fail to meet the minimum
capacitance requirements of the LP5521.
The minimum voltage rating acceptable for all capacitors is 6.3 V. The recommended voltage rating of the output
capacitor is 10 V to account for DC bias capacitance losses.
NOTE
Some ceramic capacitors, especially those in small packages, exhibit a strong capacitance
reduction with the increased applied voltage (DC bias effect). The capacitance value can
fall below half of the nominal capacitance. Choose output and input capacitor with DC bias
voltage effect better than –50% at 5 V voltage (0.5 μF at 5 V).
Table 36. External Component Examples
MODEL
TYPE
VENDOR
VOLTAGE RATING
SIZE INCH (mm)
1 μF for COUT and CIN
C1005X5R1A105K
Ceramic X5R
TDK
10 V
0402 (1005)
ECJ0EB1A105M
Ceramic X5R
Panasonic
10 V
0402 (1005)
ECJUVBPA105M
Ceramic X5R, array of two
Panasonic
10 V
0504
470 nF for CFLY1-2
C1005X5R1A474K
Ceramic X5R
TDK
10 V
0402 (1005)
ECJ0EB0J474K
Ceramic X5R
Panasonic
10 V
0402 (1005)
LEDs
User Defined
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
37
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
8.2.1.3 Application Curves
Figure 28. Charge Pump Line Transient Response
1.5× Mode (VIN 3.5V to 4 V)
Figure 27. Charge Pump Load Transient Response in 1.5×
Mode (0 to 25.5 mA)
8.2.2 Application Without Charge Pump
In this application example the input voltage is high enough to drive the LEDs even without charge pump. In that
case the charge pump components are omitted, allowing savings on bill-of-material and also board space.
Charge pump must be set to 1× mode (bypass) in this case.
CFLY1P
+
CIN
1 PF
CFLY1N
CFLY2P
CFLY2N
VDD
VOUT
COUT
1 PF
RGB LED 0...25.5 mA/LED
-
SCL
SDA
LP5521
EN
MCU
R
G
CLK_32K
INT
B
TRIG
GPO
ADDR_SEL0
ADDR_SEL1
GNDs
Copyright © 2016, Texas Instruments Incorporated
Figure 29. Typical Application Schematic Without Charge Pump
8.2.2.1 Design Requirements
38
DESIGN PARAMETER
EXAMPLE VALUE
Input voltage range
4.5 V to 5.5 V
LED VF (max)
3.6 V
LED current
25.5 mA maximum
Input capacitor
CIN = 1 μF
Output capacitor
COUT = 1 μF
Fly capacitors
none
Charge pump mode
1X
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
8.2.2.2 Detailed Design Procedures
Selecting input and output capacitors follows the same procedure as in the application with charge pump.
8.3 Initialization Setup
8.3.1 Program Load and Execution Example
1. Startup Device and Configure Device to SRAM Write Mode:
– Supply e.g. 3.6 V to VDD
– Supply e.g. 1.8 V to EN
– Wait 1 ms (startup delay)
– Generate 32 kHz clock to CLK_32K pin
– Write to address 00H 0100 0000b (enable LP5521)
– Wait 500 μs (startup delay)
– Write to address 01H 0001 0000b (Configure R channel into "Load program to SRAM" mode)
2. Program Load to SRAM (see Figure 30):
– Write to address 10H 0000 0011b (1st ramp command 8 MSB)
– Write to address 11H 0111 1111b (1st ramp command 8 LSB)
– Write to address 12H 0100 1101b (1st wait command 8 MSB)
– Write to address 13H 0000 0000b (1st wait command 8 LSB)
– Write to address 14H 0000 0011b (2nd ramp command 8 MSB)
– Write to address 15H 1111 1111b (2nd ramp command 8 LSB)
– Write to address 16H 0110 0000b (2nd wait command 8 MSB)
– Write to address 17H 0000 0000b (2nd wait command 8 LSB)
3. Enable Powersave, charge pump automatic mode (1x / 1.5x) and use external 32 kHz clock:
– Write to address 08H 0011 1000b
4. Run program:
– Write to address 01H 0010 0000b (Configure LED controller operation mode to "Run program" in R
channel
– Write to address 00H 0110 0000b (Configure program execution mode from "Hold" to "Run" in R channel
LP5521 will generate 1100 ms long LED pattern which will be repeated infinitely. LED pattern is illustrated in
Figure 30.
PWM value
255
127
R
Time (ms)
100
200
300
400
500
600
R program:
ramp up to PWM value 128 in 200 ms
wait 200 ms
ramp down to PWM value 0 in 200 ms
wait 500 ms
700
800
900 1000 1100
1200 1300 1400
1500 1600 1700
R program as binary code:
0000001101111111
0100110100000000
0000001111111111
0110000000000000
Figure 30. Sequence Diagram
8.3.2 Direct PWM Control Example
1. Start up device:
– Supply, for example, 3.6 V to VDD
– Supply, for example,1.8 V to EN
– Wait 1 ms (start-up delay)
– Write to address 00H 0100 0000b (enable LP5521)
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
39
LP5521
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
www.ti.com
Initialization Setup (continued)
– Wait 500 µs (start-up delay)
2. Enable charge pump 1.5x mode and use internal clock:
– Write to address 08H 0001 0001b
3. Direct PWM control:
– Write to address 01H 0011 1111b (Configure R, G and B channels into "Direct PWM control mode")
4. Write PWM values:
– Write to address 02H 1000 0000b (R driver PWM 50% duty cycle)
– Write to address 03H 1100 0000b (G driver PWM 75% duty cycle)
– Write to address 04H 1111 1111b (B driver PWM 100% duty cycle)
LEDs are turned on after the PWM values are written. Changes to the PWM value registers are reflected
immediately to the LED brightness. Default LED current (17.5 mA) is used for LED outputs, if no other values are
written.
9 Power Supply Recommendations
The device is designed to operate from an input voltage supply range between 2.7 V and 5.5V. In a typical
application this is from single Li-ion battery cell. This input supply must be well regulated and able to withstand
maximum input current and maintain stable voltage without voltage drop even at load transition condition (startup or rapid brightness change). The resistance of the input supply rail must be low enough that the input current
transient does not cause drop below a 2.7-V level in the LP5521 supply voltage.
10 Layout
10.1 Layout Guidelines
Place capacitors as close to the LP5521 device as possible to minimize the current loops. Figure 31 shows an
example of LP5521 PCB layout and component placement.
10.2 Layout Example
MicroVias
CFLY
2P
CFLY
1P
VDD
GND
TRIG
CFLY
2N
CFLY
1N
GND
CLK
32K
INT
VOUT
ADDR
SEL1
ADDR
SEL0
GPO
EN
B
G
R
SCL
SDA
Control signals
Top Layer
Inner Layer
Vias to GND plane
To LEDs
Figure 31. Example of Typical Layout
40
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
LP5521
www.ti.com
SNVS441I – JANUARY 2007 – REVISED NOVEMBER 2016
11 Device and Documentation Support
11.1 Device Support
11.1.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
11.2 Documentation Support
11.2.1 Related Documentation
• See LP5521 Programming Considerations for more information about programming of the device.
• See LP5521 Power Efficiency Consideration for more information about powering the device and partitioning
the system.
• See LP5521TM Evaluation Kit for more information about evaluation kit for LP5521TM.
11.3 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
11.4 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.5 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.6 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.7 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2007–2016, Texas Instruments Incorporated
Product Folder Links: LP5521
41
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
LP5521TM/NOPB
ACTIVE
DSBGA
YFQ
20
250
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-30 to 85
5521
LP5521TMX/NOPB
ACTIVE
DSBGA
YFQ
20
3000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-30 to 85
5521
LP5521YQ/NOPB
ACTIVE
WQFN
NJA
24
1000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-30 to 85
L5521YQ
LP5521YQX/NOPB
ACTIVE
WQFN
NJA
24
4500
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-30 to 85
L5521YQ
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
