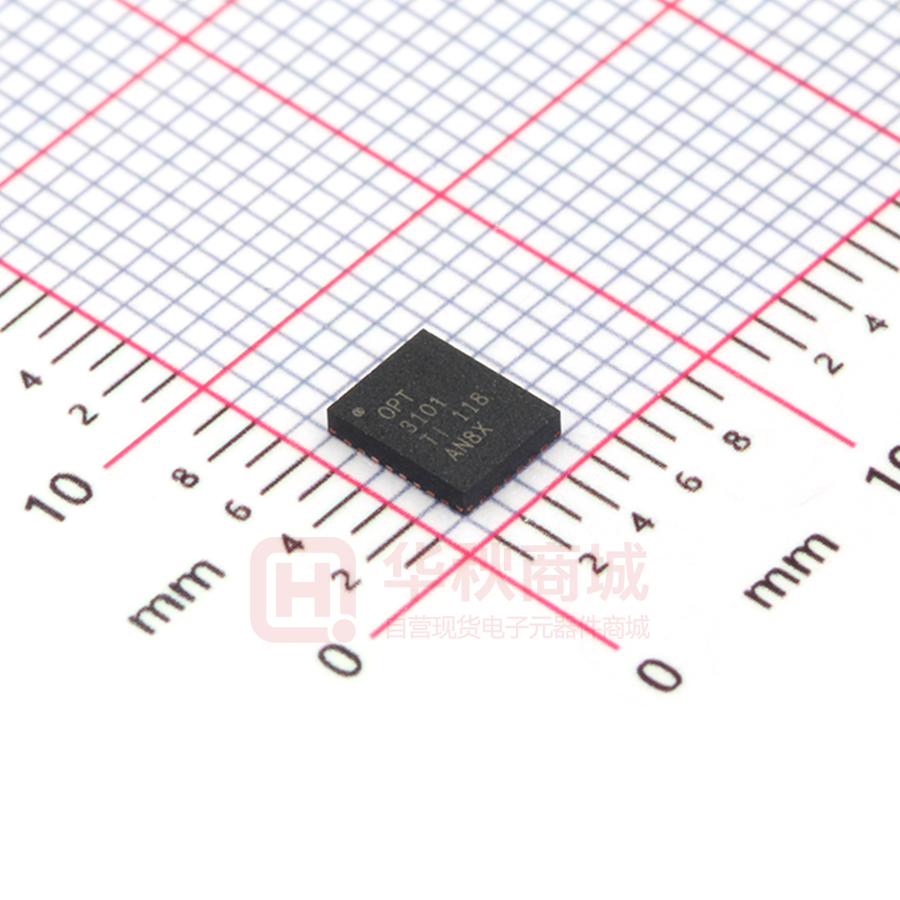

OPT3101RHFR

Product Folder Order Now Support & Community Tools & Software Technical Documents OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 OPT3101 ToF-Based Long-Range Proximity and Distance Sensor AFE 1 Features 2 Applications • • 1 • • • • • • • • • • • • • • • • • Long-Range Distance Measurement, Obstacle Detection and Avoidance Flexibility to Customize Design With a Wide Variety of Photodiodes and Emitters Sample Rate up to 4 kHz 16-Bit Distance Output at 15-m Unambiguous Range De-Aliasing to Extend the Distance Range Supports 3 Transmitter Channels for Multi-Zone Operation Excellent Ambient and Sunlight Rejection 200-nA Full-Scale Signal Current 88-dB Signal Phase Dynamic Range at 1 kHz Supports DC Ambient up to 200 µA, 60-dB Rejection for Ambient at 1 kHz Distance Measurement Independent of Object Reflectivity Adaptive HDR to Save Power and Increase the Dynamic Range Configurable Event Detection and Interrupt Output Mechanism I2C Interface for Control and Data Integrated Illumination Driver With Programmable Current Control up to 173 mA Integrated Temperature Sensor for Calibration Single 3.3-V or 1.8-V and 3.3-V Supply Operation Operating Ambient Temperature: –40 to 85°C Application Block Diagram • Precise Long-Range Distance Measurement – Background Suppression and Accurate Object Counting in High-Speed Conveyor Belt Systems – Precise Displacement Sensing in Factory Automation – Non-Contact Distance and/or Level Measurement in Harsh Environments (HighTemperature or Hazardous Conditions) Obstacle Detection and Avoidance – Precise Distance Measurement for Drone Landing and Navigation – Cliff and Edge Detection in Vacuum Cleaners (No False Triggers From Dark Carpets) – Perimeter Scan in Automatic Guided Vehicle Like Lawnmowers, Robots – Obstruction Sensing in Applications Such as Smoke Detectors, Emergency Exits 3 Description The OPT3101 device is a high-speed, high-resolution AFE for continuous-wave, time-of-flight based proximity sensing and range finding. The device integrates the complete depth processing pipeline that includes the ADC, timing sequencer, and the digital processing engine. The device also has a builtin illumination driver that covers most of the target applications. Given the high ambient rejection ratio, the device can support very high ambient conditions, including full sunlight of 130 klx. The timing sequencer is highly configurable to provide for application-specific trade-offs of power versus performance. The device provides depth data that consists of phase, amplitude, and ambient measurements. The calibration subsystem supports phase-data calibration for inaccuracies resulting from temperature and crosstalk. Device Information(1) PART NUMBER OPT3101 PACKAGE VQFN (28) BODY SIZE (NOM) 5.00 mm × 4.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table of Contents 1 2 3 4 5 6 7 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 5 6.1 6.2 6.3 6.4 6.5 6.6 6.7 5 5 5 6 6 7 8 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Timing Requirements ................................................ Typical Characteristics .............................................. Detailed Description ............................................ 12 7.1 7.2 7.3 7.4 7.5 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Programming .......................................................... Register Maps ......................................................... 12 12 12 30 34 8 Application and Implementation ...................... 102 8.1 Application Information.......................................... 102 8.2 Typical Application ................................................ 102 8.3 Initialization Set Up .............................................. 106 9 Power Supply Recommendations.................... 107 9.1 System With Off-Chip 1.8-V Regulator ................ 107 9.2 System With On-Chip 1.8-V Regulator ................. 107 10 Layout................................................................. 108 10.1 Layout Guidelines ............................................... 108 10.2 Layout Example .................................................. 108 11 Device and Documentation Support ............... 111 11.1 Documentation Support ..................................... 11.2 Receiving Notification of Documentation Updates.................................................................. 11.3 Community Resources........................................ 11.4 Trademarks ......................................................... 11.5 Electrostatic Discharge Caution .......................... 11.6 Glossary .............................................................. 111 111 111 111 111 111 12 Mechanical, Packaging, and Orderable Information ......................................................... 111 4 Revision History Changes from Original (February 2018) to Revision A Page • Changged several items in the Features list ......................................................................................................................... 1 • Changed the Application Block Diagram ............................................................................................................................... 1 • Changed several items in the Applications section ............................................................................................................... 1 • Changed all occurrences of "free-air temperature" in the data sheet to "junction temperature" ........................................... 5 • Changed all occurrances of VCC in the data sheet to VCC .................................................................................................... 5 • Added a row to the Absolute Maximum Ratings table for VO, Output voltage ...................................................................... 5 • Added two rows to the Recommended Operating Conditions table for VI and VO ................................................................. 5 • Changed subscripting of some parameter symbols in the Electrical Characteristics condition statement ............................ 6 • Changed subscripting for tPU,Deepsleep and tPU,Standby ............................................................................................................... 6 • Changed table rulings for VOH, VOL, and II ............................................................................................................................. 7 • Changed Figure 15............................................................................................................................................................... 13 • Changed Figure 16............................................................................................................................................................... 14 • Changed the contents of numerous cells in the Table 29 table ........................................................................................... 34 • Added the Table 30 table ..................................................................................................................................................... 40 • Changed the content in most of the subsections of Register Descriptions.......................................................................... 40 2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 5 Pin Configuration and Functions A0 AVSS AVSS INP INM AVSS 28 27 26 25 24 23 (RHF Package) (28-Pin VQFN) Top View A1 1 22 NC A2 2 21 AVDD IOVSS 3 20 AVDD3 TX2 4 19 DVDD 18 REG_MODE Thermal TX1 5 VSSL 6 17 RST_MS TX0 7 16 SDA_M IOVSS 8 15 SCL_M 14 SDA_S 13 SCL_S 12 GP2 11 GP1 10 IOVDD IOVDD 9 Pad Not to scale NC – No internal connection Pin Functions PIN NAME NO. I/O TYPE (1) DESCRIPTION A0 28 I AVDD I2C slave LSB0 address bit A1 1 I AVDD I2C slave LSB1 address bit A2 2 I AVDD I2C slave LSB2 address bit AVDD 21 — — 1.8-V analog supply AVDD3 20 — — 3.3-V analog supply AVSS 23, 26, 27 — — Analog ground DVDD 19 — — 1.8-V digital supply GP1 11 O IOVDD General-purpose output GP2 12 I/O IOVDD General-purpose output, CLKREF input INM 24 I AVDD AFE negative input. Connect photodiode equivalent capacitance. Connect the other end of the capacitor to ground AVSS. INP 25 I AVDD AFE positive input. Connect photodiode cathode. Connect the Anode of the photodiode to ground AVSS. IOVDD 9, 10 — — Supply for I/O and illumination driver IOVSS 3, 8 — — Ground for digital and I/O NC 22 — — No internal connection REG_MODE 18 I IOVDD (1) Mode to select internal regulator for 1.8-V supplies (AVDD, DVDD) This column provides the I/O voltage domain of the input and output pins. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 3 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Pin Functions (continued) PIN NAME NO. I/O TYPE (1) DESCRIPTION RST_MS 17 I IOVDD Active-low global reset, monoshot trigger. There is no internal pullup on this pin. Connect this pin to the host controller or add a pullup resistor. SCL_M 15 O IOVDD I2C master clock. Connect with a 10-kΩ resistor to a 3.3-V supply. SCL_S 13 I IOVDD I2C slave clock. Connect with a 10-kΩ resistor to a 3.3-V supply. SDA_M 16 I/O IOVDD I2C master data. Connect with a 10-kΩ resistor to a 3.3-V supply. SDA_S 14 I/O IOVDD I2C slave data. Connect with a 10-kΩ resistor to a 3.3-V supply. TX0 7 O IOVDD Illumination driver output. Connect to LED cathode. Anode should be connected to a supply. TX1 5 O IOVDD Illumination driver output. Connect to LED cathode. Anode should be connected to a supply. TX2 4 O IOVDD Illumination driver output. Connect to LED cathode. Anode should be connected to a supply. VSSL 6 — — Illumination driver ground. Thermal pad — — — Thermal pad of the device. Connect thermal pad to AVSS PCB ground plane using multiple vias for good thermal performance. 4 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 6 Specifications 6.1 Absolute Maximum Ratings over operating junction temperature range (unless otherwise noted) (1) MIN MAX UNIT IOVDD Digital I/O supply –0.3 4 V AVDD3 Analog supply –0.3 4 V AVDD Analog supply –0.3 2.2 V DVDD Digital supply –0.3 2.2 V VI Input voltage at input pins –0.3 VCC + 0.3 (2) VO Output voltage at output pins –0.3 VCC + 0.3 (2) TJ Junction temperature –40 125 °C Tstg Storage temperature –40 125 °C (1) (2) V V Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. VCC is equal to IOVDD or AVDD, based on the I/O voltage domain listed in the Pin Functions table. 6.2 ESD Ratings VALUE V (ESD) (1) (2) Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins Electrostatic discharge UNIT ±1000 (1) V Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2) ±250 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating junction temperature range (unless otherwise noted) MIN NOM MAX 1.7 1.8 to 3.3 3.6 V Analog supply 3 3.3 3.6 V AVDD Analog supply 1.7 1.8 1.9 V DVDD Digital supply 1.7 1.8 1.9 V VDRV TX0, TX1, TX2 pin voltage 0.7 3.6 V V IOVDD Digital I/O supply AVDD3 UNIT VI Input voltage at input pins –0.1 VCC + 0.3 VO Output voltage at output pins –0.1 VCC + 0.3 (1) V TA Ambient temperature –40 85 °C (1) (1) VCC is equal to IOVDD or AVDD, based on the I/O voltage domain listed in the Pin Functions table. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 5 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 6.4 Thermal Information OPT3101 THERMAL METRIC (1) RHF (QFN) UNIT 28 PINS RθJA Junction-to-ambient thermal resistance 32.9 °C/W RθJC(top) Junction-to-case (top) thermal resistance 21.6 °C/W RθJB Junction-to-board thermal resistance 10.8 °C/W ΨJT Junction-to-top characterization parameter 0.3 °C/W ΨJB Junction-to-board characterization parameter 10.7 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 1.6 °C/W (1) For more information about traditional and new thermal metrics, see Semiconductor and IC Package Thermal Metrics. 6.5 Electrical Characteristics All specifications at TA = 25°C, VAVDD = 1.8 V, VAVDD3 = 3.3 V, VDVDD = 1.8 V, VIOVDD = 3.3 V, IambMax = 20 µA, photodiode with a capacitance of 2 pF at AFE input unless otherwise noted. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT AFE Iref Full-scale signal current at fmod Inoise AFE input-referred current noise IambMax Maximum ambient dc current at input µ1000Hz Ambient attenuation at 1000 Hz VR 200 nA 1.5 (1) pA/√Hz (2) µA 60 dB Bias voltage at INM, INP 1 V Cin Maximum external photodiode capacitance at input 6 pF fmod Modulation frequency sps Sample rate tPU,Deepsleep Deep sleep recovery time tPU,Standby Standby recovery time AVDD3 = 3.3 V 200 10 MHz 4000 Monoshot mode only (3) Hz 1 ms 50 µs 173.6 mA ILLUMINATION DRIVER Maximum built-in illumination driver current IDRV POWER (ACTIVE MODE AT MAXIMUM FRAME RATE) IAVDD 1.8-V analog supply current 11.6 mA IDVDD 1.8-V digital supply current 5.7 mA IAVDD3 3.3-V analog supply current 0.5 mA IIOVDD 3.3-V I/O supply current 0.7 mA POWER (DEEP SLEEP MODE) IAVDD 1.8-V analog supply current 1 µA IDVDD 1.8-V digital supply current 3 µA IAVDD3 3.3-V analog supply current 1 µA IIOVDD 3.3-V I/O current 2 µA POWER (ACTIVE MODE AT MAXIMUM FRAME RATE), INTERNAL LDO MODE IAVDD3 3.3-V analog supply current Internal LDO mode 17.9 mA IIOVDD 3.3-V I/O supply current Internal LDO mode 0.7 mA POWER (DEEP SLEEP MODE), INTERNAL LDO MODE IAVDD3 3.3-V analog supply current Internal LDO mode 80 µA IIOVDD 3.3-V I/O supply current Internal LDO mode 2 µA CMOS I/Os (1) (2) (3) 6 Noise is higher by 20% with a photodiode capacitance of 6 pF at the AFE input. IambMax is programmable through register setting IAMB_MAX_SEL. Reference, oscillator, and ambient cancellation are not powered down. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Electrical Characteristics (continued) All specifications at TA = 25°C, VAVDD = 1.8 V, VAVDD3 = 3.3 V, VDVDD = 1.8 V, VIOVDD = 3.3 V, IambMax = 20 µA, photodiode with a capacitance of 2 pF at AFE input unless otherwise noted. PARAMETER VIH Input high-level threshold VIL Input low-level threshold TEST CONDITIONS MIN MAX UNIT V 0.3 × VCC IOH = –2 mA VOH TYP 0.7 × VCC Output high level IOH = –8 mA VCC (4) – 0.45 VCC (4) V V – 0.5 IOL = 2 mA 0.35 IOL = 8 mA 0.65 Pins with pullup, pulldown resistor ±50 VOL Output low level II Input pin leakage current CI Input capacitance 5 pF IOH Maximum output current high level 10 mA IOL Maximum output current low level 10 mA (4) Pins without pullup, pulldown resistor V µA ±10 VCC is equal to IOVDD or AVDD, based on the I/O voltage domain listed in the Pin Functions table. 6.6 Timing Requirements MIN NOM MAX UNIT RSTZ_MS Pin tPWMonoShot Pulse duration of monoshot trigger 0.1 tPWReset 30 Reset pulse duration 1 µs µs 2 I C Slave fSCL I 2 C slave SCL operating frequency 400 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 kHz 7 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 6.7 Typical Characteristics All specifications at TA = 25°C, VAVDD = 1.8 V, VAVDD3 = 3.3 V, VDVDD = 1.8 V, VIOVDD = 3.3 V, IambMax = 20 µA, photodiode with a capacitance of 2 pF at INP and INM, unless otherwise noted. Sample rate = 1000 Hz Figure 1. Distance Standard Deviation vs AFE Input Signal Figure 2. AFE Thermal Noise vs Maximum Ambient Current Supported Figure 3. Illumination Driver I-V Characteristics 8 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 6.7.1 Continuous Mode Duty Cycle = (NUM_AVG_SUB_FRAMES + 1) / (NUM_SUB_FRAMES + 1) Figure 4. Supply Current in Continuous Mode Duty Cycle = (NUM_AVG_SUB_FRAMES + 1) / (NUM_SUB_FRAMES + 1) Figure 5. Supply Current in Continuous Mode with Internal LDO 6.7.2 Monoshot Mode Figure 6. AVDD Supply Current in Monoshot Mode Figure 7. DVDD Supply Current in Monoshot Mode Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 9 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Monoshot Mode (continued) Figure 8. AVDD3 Supply Current in Monoshot Mode Figure 9. IOVDD Supply Current in Monoshot Mode Figure 10. Illumination Supply Current in Monoshot Mode 10 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 6.7.3 Monoshot Mode With Internal LDO Figure 11. AVDD3 Supply Current in Monoshot Mode With Internal LDO Figure 12. IOVDD Supply Current in Monoshot Mode With Internal LDO Figure 13. Illumination Supply Current in Monoshot Mode With Internal LDO Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 11 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7 Detailed Description 7.1 Overview The OPT3101 device is a fully integrated analog front end (AFE) based on the time-of-flight (ToF) principle using active illumination. The OPT3101 AFE connects to an external illuminator (LED, VCSEL, or LASER) to transmit modulated optical signals, and reflected signals are received by an external photodiode which connects to the input of the AFE. The received signal is converted to amplitude and phase information by the AFE and depth engine. This output is stored in registers, which can be read out through the device I2C interface. The OPT3101 AFE has the following blocks: • Timing generator: generates the sequencing signals for the sensor, illumination, and depth processor • ToF receiver AFE • Illumination driver • Depth engine: calculates phase and amplitude • I2C slave for configuration and output data interface of the device registers by the host processor • I2C master for external temperature sensing, auto load registers from an external EEPROM 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Timing Generator The timing generator (TG) generates the timing sequence for each frame. The TG has the following features: • Frame rate control • Sequencing The following are various modes of operation: • Continuous or monoshot mode • Auto high-dynamic-range (HDR) mode or non-HDR mode • Single-LED or multi-LED mode 12 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Feature Description (continued) Different modes of operation are explained below. Figure 14. Continuous and Monoshot Modes 7.3.1.1 Continuous Operating Mode In this mode, the device runs continuously at the programmed sample rate. More details about the frame timing are described in Non-HDR Mode and Auto HDR Mode. 7.3.1.2 Monoshot Mode Monoshot mode is a low-power mode. In this mode, the device is in a deep sleep state and waits for an external trigger. The sample can be initiated by an RST_MS pin (active-low) trigger or the register trigger (MONOSHOT_BIT). On trigger, the device comes out of power down, waits for the programmed delay (POWERUP_DELAY) to start a frame, captures the specified number of samples (MONOSHOT_NUMFRAME), then goes into a deep sleep state to save power. A new interrupt is serviced only after completing the current frame capture. Any interrupt during the capture of a frame is discarded. Figure 15 shows the timing diagram of the monoshot mode with the RST_MS pin trigger. From the trigger, the frame start can be delayed by setting the POWERUP_DELAY register. The delay between the trigger and the sample start (FR_VD signal in Figure 15) is (64 × POWERUP_DELAY + 2) × tCLK. A minimum delay of 0.4 ms is required for the device to come out of the deep sleep state. A maximum of 26.2 ms delay can be programmed. This mode can also be used for synchronized capture from an external host. The RST_MS pin is a dual-purpose pin used for reset and monoshot triggering. For reset, give a pulse duration that is > 30 µs. For monoshot trigger, give a pulse duration that is < 1 µs and > 100 ns. Figure 15. Timing for Pin-Triggered Monoshot Mode With RST_MS Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 13 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Feature Description (continued) For register-triggered monoshot mode, the host writes 1 to the interrupt register (MONOSHOT_BIT) to initiate sample capture. Once the data ready of the Nth sample is available, the device automatically clears the interrupt register bit and goes into deep sleep state. Figure 16. Timing for Register (MONOSHOT_BIT) Triggered Monoshot Mode Table 1. Monoshot Mode Register Settings PARAMETER ADDRESS DESCRIPTION MONOSHOT_MODE 27h[1:0] 0: Continuous mode | 3: Monoshot mode | Other values: Not valid MONOSHOT_NUMFRAME 27h[7:2] Number of frames to be captured for every trigger. POWERUP_DELAY MONOSHOT_BIT 26h[23:10] 0h[23] Register to program the delay from the external trigger to start of frame (FRAME_VD). Delay = (64 × POWERUP_DELAY + 2) × tCLK, tCLK = 25 ns. Monoshot trigger register. Write 1 to start sample capture. The bit is auto cleared after capture completion. 7.3.1.3 Non-HDR Mode In this mode a fixed LED current is used for the Illumination driver. Figure 17 shows the frame timing. Each frame is divided into multiple sub-frames, which can be varied from 1 to 212. Each sub-frame is 10,000 clocks of 40 MHz, which is equal to a 4-kHz sub-frame rate. In each sub-frame, 8192 clocks is the photodiode signal integration time and the remainder of the time is used for processing the signal and computing amplitude and phase. The device can be operated at the highest frame rate of 4 kHz by setting the number of sub-frames to 1 (NUM_SUB_FRAMES = 0) in a frame. 4000 Sample Rate = 1 + NUM _ SUB _ FRAMES (1) Table 2. Sample-Rate Configuration Registers PARAMETER ADDRESS DESCRIPTION NUM_SUB_FRAMES 9Fh[11:0] Total number of sub-frames in a frame. Each sub-frame is 0.25 ms. Number of sub frames in a frame = NUM_SUB_FRAMES + 1. This number must be equal or greater than NUM_AVG_SUB_FRAMES. NUM_AVG_SUB_FRAMES 9Fh[23:12] Specifies the number of sub-frames to be averaged in a frame. Number of averaged sub-frames should be a power of 2 Averaging sub-frames = NUM_AVG_SUB_FRAMES + 1. If the number of averaged sub-frames is not a power of 2, the output amplitude AMP_OUT scales according Equation 2. This is only a digital scaling factor and does not affect the distance noise of the measurement. It is recommended to use number of averaged sub-frames as a power of 2. (2) 14 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 (1) N1 = 10,000; number of 40-MHz clocks in a sub-frame. (2) N2 = NUM_SUB_FRAMES + 1 is the number of sub-frames in a frame, programmable in the range of 1 to 212. Figure 17. Frame Timing Diagram 7.3.1.4 Auto HDR Mode In this mode, the sequencer switches between two illumination driver currents to extend the dynamic range, depending on the signal saturation and lower amplitude threshold. The principle of operation is explained in Figure 18. When the illumination driver current is high and the amplitude exceeds the saturation threshold, HDR_THR_HIGH, the illumination driver is switched to the lower current. When the illumination driver current is low and the measured amplitude is below the lower threshold, HDR_THR_LOW, the illumination driver is switched to the higher current. Figure 18. Auto HDR Mode: State Diagram Figure 19 shows the frame timing diagram for HDR mode. In this mode, the first sub-frame information is used to make a decision about the validity of the output. If the first sub-frame output is valid, the same illumination DAC is used for the rest of the frame, otherwise the illumination driver is switched to the second illumination DAC current. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 15 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 (1) www.ti.com The illumination driver DAC switching is shown for a particular scenario. Figure 19. Auto HDR Mode Frame Timing Diagram Amplitude thresholds for the HDR mode should be chosen according to Equation 3. Choice of the two illumination driver DAC currents depends on the end application. HDR _ THR _ HIGH ILLUM _ DAC _ H > HDR _ THR _ LOW ILLUM _ DAC _ L (3) HDR_THR_HIGH is the saturation threshold for the HDR switching, and should be set slightly below the actual saturation amplitude (HDR should trigger before the AFE analog path saturates). HDR_THR_LOW is the accuracy threshold, the amplitude below which the distance accuracy is poor. Figure 20 shows an illustration of the HDR operation with distance. At a distance close to the sensor, the lower illumination DAC current is used. As the object moves away from the sensor, ILLUM_DAC switches to a higher value once the amplitude falls below the lower threshold (HDR_THR_LOW). At the switching point, non-saturation is ensured by choosing the DAC currents according to Equation 3. As the object moves towards the sensor, ILLUM_DAC switches to the lower value once the amplitude reaches the saturation level (HDR_THR_HIGH). At this transition, the amplitude with ILLUM_DAC_L is above HDR_THR_LOW. Figure 20. HDR Mode Operation With Distance 16 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 3. HDR Mode Configuration Registers PARAMETER ADDRESS DESCRIPTION EN_ADAPTIVE_HDR 2Ah[15] Enable adaptive HDR mode. Minimum number of sub-frames in a frame in this mode is 2 (NUM_SUB_FRAMES = 1) SEL_HDR_MODE 2Ah[16] Chooses which current to use when EN_ADAPTIVE_HDR = 0. 0 – ILLUM_DAC_L | 1 – ILLUM_DAC_H HDR_THR_HIGH 2Bh[15:0] Saturation amplitude threshold of the auto HDR for high DAC current (ILLUM_DAC_H) Write a value of 27000 HDR_THR_LOW 2Ch[15:0] Accuracy threshold of the auto HDR for low DAC current (ILLUM_DAC_L) = HDR_THR_HIGH × (ILLUM_DAC_L / ILLUM_DAC_H) × (1 / 1.2) ILLUM_DAC_L_TX0 29h[4:0] ILLUM_DAC_L of TX0 channel ILLUM_DAC_H_TX0 29h[9:5] ILLUM_DAC_H of TX0 channel ILLUM_DAC_L_TX1 29h[14:10] ILLUM_DAC_L of TX1 channel ILLUM_DAC_H_TX1 29h[19:15] ILLUM_DAC_H of TX1 channel ILLUM_DAC_L_TX2 29h[23:20], 2Ah[23] ILLUM_DAC_L of TX2 channel ILLUM_DAC_H_TX2 2Ah[22:18] ILLUM_DAC_H of TX2 channel 7.3.1.5 Multi Channel Mode The OPT3101 AFE supports up to three separate illumination channels. Only one illumination channel can be activated at a given point of time. In multi channel mode, the illumination driver switches current between different pins (TX0, TX1, and TX2) across samples. The sequence of switching is programmable (TX_SEQ_REG). In single channel mode, the channel to be used can be selected through SEL_TX_CH. Each illumination channel has separate current programmability, listed in Table 3. This mode can be combined with continuous mode, monoshot mode, non-HDR mode, or auto HDR mode. Table 4. Multi LED Configuration Registers REGISTER EN_TX_SWITCH ADDRESS 2Ah[0] DESCRIPTION Enable switching between Illumination channels TX0, TX1, TX2. SEL_TX_CH 2Ah[2:1] Selects the ILLUM channels when switching is disabled. TX_SEQ_REG 2Ah[14:3] Stores the sequence of ILLUM channel switching in this register. For example, register value: 2-1-0-2-1-0. The sequence will be 0-1-2-0-1-2 Separate calibration registers are provided for each illumination channel to support different currents for each channel in the same system. 7.3.2 AFE The diode current is capacitively coupled to the AFE as shown in Figure 21. The AFE processes the input signal and produces digitized in-phase and quadrature-phase components of the input signal. The AFE has a full-scale current of 200 nA peak-to-peak and supports a photodiode capacitance up to 6 pF. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 17 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 21. AFE, Photodiode Interface The signal-to-noise ratio (SNR) for a given signal current and sample rate can be calculated from the following equation. SNR = I SIG _ AFE I noise ´ BW = I SIG _ AFE 94.8 pA / (NUM _ AVG _ SUB _ FRAMES + 1) where • • • sphase Isig_afe = signal current entering the AFE Inoise = Input referred current noise floor of the AFE = 1.5 pA/√Hz with IAMB_MAX=20 µA and CPD= 2pF (Figure 2) BW = Signal measurement bandwidth (4) 1 = radians SNR where • • σphase= Phase standard deviation in radians SNR is calculated from Equation 4 sdis tance = c / (2fMOD ) 2p (5) 1 ´ meters SNR where • • • σdistance= Distance standard deviation in meters c = Speed of light fMOD = 10 MHz, modulation frequency (6) For example, with an AFE signal current of 20 nA peak-to-peak (–20 dBFS), frame rate of 125 Hz (NUM_AVG_SUB_FRAMES = 31), SNR = 1193 = 61.5 dB. Depth noise standard deviation for this scenario is σdistance = 15 m / (2π) / 1193 = 2 mm. 7.3.3 Ambient Cancellation The ambient cancellation circuit provides the dc and low-frequency diode current while biasing the diode at 1 V. Figure 22 shows the frequency response of the ambient cancellation circuit. A diode current with frequency below fc2 has second-order rejection. The corner frequency fc2 is designed to be at 50 kHz for IAMB_MAX_SEL = 0 (20 µA ambient current support). Below frequency fc1 (approximately at 10 Hz), attenuation becomes first-order. So for a frequency of 1 kHz, the rejection would be (50 kHz / 1 kHz) × 2 = 2500 = 68 dB. 18 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 22. Ambient Cancellation Circuit Frequency Response The maximum ambient current supported is programmable from 10 μA to 200 µA, listed in Table 5. Noise contribution from the ambient cancellation block increases with increase in ambient current support, shown in Figure 2. For low-ambient systems, the lower value of maximum ambient support should be used to reduce the noise contribution from the ambient cancellation. Ambient current is also converted to digital using an ADC (AMB_DATA) at the output of the ambient cancellation block. Ambient ADC resolution is 0.104 µA/LSB with 20µA support. Ambient ADC resolution scales linearly with maximum ambient current supported. Ambient current can be calculated from the AMB_DATA using Equation 7. AMB _ DATA - AMB _ CALIB ´ IAMB _ MAX IAMB = 192 where • • IAMB_MAX= Maximum ambient current supported. Listed in Table 5 AMB_CALIB = ambient ADC output in the dark. Typical value is 64, could vary by few codes from device to device. (7) Table 5. Ambient Cancellation Register Settings PARAMETER IAMB_MAX_SEL ADDRESS 72h[7:4] DESCRIPTION Selects the value of maximum ambient current support 0: 20 µA | 5: 10 µA | 10: 33 µA | 11: 50 µA | 12: 100 µA | 14: 200 μA | Other values: Not valid 7.3.4 Oscillator The system clock is generated using an on-chip oscillator with high stability across temperature. This oscillator is trimmed to a nominal frequency of 80 MHz within ±3%. For accurate distance conversion, this frequency is trimmed digitally to 10-bit accuracy. Additionally, the device can accept an external reference clock and correct for the on-chip oscillator variations for continuous background frequency calibration. 7.3.5 CLKGEN CLKGEN takes the clock from the oscillator and generates the clocks required for various blocks. CLKGEN generates a 10-MHz clock for the illumination driver. The phase of the illumination CLK can be changed in 16 steps. This feature is useful for phase nonlinearity correction resulting from square wave modulation. Phase nonlinearity from ideal square wave demodulation is approximately ±4 degrees. OPT3101 has a filter to reject the higher-order harmonics of a square wave and the resulting nonlinearity is small, ±0.5 degrees. For de-aliasing, CLKGEN also generates an additional frequency of 10 × (6 / 7) MHz or 10 × (6 / 5) MHz for the illumination clock. Table 6. Register Settings to Change the Phase of Illumination PARAMETER SHIFT_ILLUM_PHASE ADDRESS 71h[6:3] DESCRIPTION Mode to generate different Illumination clock phases. Illumination clock phase = SHIFT_ILLUM_PHASE × 22.5 degrees Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 19 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.3.6 Illumination Driver Figure 23 shows the illumination driver block diagram. The illumination driver supports three illumination channels. The same current source is multiplexed onto three channels. Only one channel can be used at any given time. Figure 23. Illumination Driver Block Diagram Illumination driver current can be programmed using a 5-bit DAC, listed in Table 7. Step size of the DAC can also be scaled from 1.4 mA to 5.6 mA using ILLUM_SCALE. A dc bias-current option is also provided. DC bias is useful if the system requires a very small switching illumination current. This dc bias can be programmed in the range of 0.5 mA to 7.5 mA in steps of 0.5 mA using ILLUM_DC_CURR_DAC. Table 7. Illumination Driver Register Settings REGISTER EN_LED_DRV ADDRESS 79h[0] DESCRIPTION Enable the illumination driver ILLUM_DAC_L_TX0 29h[4:0] Illumination driver-current DAC register, ILLUM_DAC_L of TX0 channel. Illumination current = ILLUM_DAC_L_TX0 × DAC step ILLUM_DAC_H_TX0 29h[9:5] Illumination driver current DAC register, ILLUM_DAC_H of TX0 channel. Illumination current = ILLUM_DAC_L_TX0 × DAC step ILLUM_SCALE_L_TX0 2Bh[18:16] Scale the illumination current DAC step size for ILLUM_DAC_L_TX0 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid. ILLUM_SCALE_H_TX0 2Bh[21:19] Scale the illumination current DAC step size for ILLUM_DAC_H_TX0 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid. ILLUM_DC_CURR_DAC 79h[11:8] Program the illumination driver DC bias current DC current = 0.5 mA × ILLUM_DC_CURR_DAC 7.3.7 Depth Engine The depth engine computes the phase and amplitude from in-phase and quadrature-phase components of the received signal. The depth engine also performs the following calibrations: • Phase offset • Phase correction with temperature • Crosstalk • Frequency • Square wave nonlinearity • Phase correction with ambient For a detailed calibration procedure, see OPT3101 Distance Sensor System Calibration Table 8. Phase Offset Correction Registers PARAMETER EN_PHASE_CORR ADDRESS 43h [0] DESCRIPTION Enables phase offset correction PHASE_OFFSET_HDR0_TX0 42h[15:0] Phase offset for TX0 illumination channel with current of ILLUM_DAC_L_TX0 PHASE_OFFSET_HDR1_TX0 51h[15:0] Phase offset for TX0 illumination channel with current of ILLUM_DAC_H_TX0 20 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 8. Phase Offset Correction Registers (continued) PARAMETER ADDRESS DESCRIPTION PHASE_OFFSET_HDR0_TX1 52h[15:0] Phase offset for TX1 illumination channel with current of ILLUM_DAC_L_TX1 PHASE_OFFSET_HDR1_TX1 53h[15:0] Phase offset for TX1 illumination channel with current of ILLUM_DAC_H_TX1 PHASE_OFFSET_HDR0_TX2 54h[15:0] Phase offset for TX2 illumination channel with current of ILLUM_DAC_L_TX2 PHASE_OFFSET_HDR1_TX2 55h[15:0] Phase offset for TX2 illumination channel with current of ILLUM_DAC_H_TX2 Table 9. Phase Temperature Coefficient Registers PARAMETER EN_TEMP_CORR ADDRESS 43h[1] DESCRIPTION Enable temperature correction SCALE_PHASE_TEMP_COEFF 43h[8:6] Adjust scale factor for temperature coefficient TMAIN_CALIB_HDR0_TX0 47h[11:0] Calibration temperature for sensor offset for TX0 illumination channel with current of ILLUM_DAC_L_TX0 TEMP_COEFF_MAIN_HDR0_TX0 45h[11:0] Phase temperature coefficient for sensor temperature for TX0 illumination channel with current of ILLUM_DAC_L_TX0 TMAIN_CALIB_HDR1_TX0 48h[11:0] Calibration temperature for sensor offset for TX0 illumination channel with current of ILLUM_DAC_H_TX0 TEMP_COEFF_MAIN_HDR1_TX0 2Dh[11:0] Phase temperature coefficient for sensor temperature for TX0 illumination channel with current of ILLUM_DAC_H_TX0 TMAIN_CALIB_HDR0_TX1 49h[11:0] Calibration temperature for sensor offset for TX1 illumination channel with current of ILLUM_DAC_L_TX1 TEMP_COEFF_MAIN_HDR0_TX1 2Dh[23:12] Phase temperature coefficient for sensor temperature for TX1 illumination channel with current of ILLUM_DAC_L_TX1 TMAIN_CALIB_HDR1_TX1 41h[23:12] Calibration temperature for sensor offset for TX1 illumination channel with current of ILLUM_DAC_H_TX1 TEMP_COEFF_MAIN_HDR1_TX1 2Fh[23:16], 30h[23:20] Phase temperature coefficient for sensor temperature for TX1 illumination channel with current of ILLUM_DAC_H_TX1 3Fh[11:0] Calibration temperature for sensor offset for TX2 illumination channel with current of ILLUM_DAC_L_TX2 TEMP_COEFF_MAIN_HDR0_TX2 31h[23:16], 32h[23:20] Phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_L_TX2 TMAIN_CALIB_HDR1_TX2 45h[23:12] Calibration temperature for sensor offset for TX2 illumination channel with current of ILLUM_DAC_H_TX2 TEMP_COEFF_MAIN_HDR1_TX2 33h[23:16], 34h[23:20] Phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_H_TX2 TMAIN_CALIB_HDR0_TX2 Table 10. Phase Temperature Coefficient Registers for External Temperature Sensor PARAMETER ADDRESS DESCRIPTION TILLUM_CALIB_HDR0_TX0 47h[23:12] Calibration temperature of external temperature sensor TEMP_COEFF_ILLUM_HDR0_TX0 46h[11:0] Phase temperature coefficient for illumination using external temperature sensor. TILLUM_CALIB_HDR1_TX0 48h[23:12] Calibration temperature of external temperature sensor TEMP_COEFF_ILLUM_HDR1_TX0 51h[23:16], 52h[23:20] Phase temperature coefficient for illumination using external temperature sensor. TILLUM_CALIB_HDR0_TX1 49h[23:12] Calibration temperature of external temperature sensor TEMP_COEFF_ILLUM_HDR0_TX1 53h[23:16], 54h[23:20] Phase temperature coefficient for illumination using external temperature sensor. TILLUM_CALIB_HDR1_TX1 43h[23:12] Calibration temperature of external temperature sensor TEMP_COEFF_ILLUM_HDR1_TX1 55h[23:16], 56h[23:20] Phase temperature coefficient for illumination using external temperature sensor. TILLUM_CALIB_HDR0_TX2 3Fh[23:12] Calibration temperature of external temperature sensor TEMP_COEFF_ILLUM_HDR0_TX2 57h[23:16], 58h[23:20] Phase temperature coefficient for illumination using external temperature sensor. TILLUM_CALIB_HDR1_TX2 46h[23:12] Calibration temperature of external temperature sensor Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 21 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 10. Phase Temperature Coefficient Registers for External Temperature Sensor (continued) PARAMETER ADDRESS 59h[23:16], 5Ah[23:20] TEMP_COEFF_ILLUM_HDR1_TX2 DESCRIPTION Phase temperature coefficient for illumination using external temperature sensor. Table 11. Ambient-Dependent Phase Correction Registers REGISTER ADDRESS AMB_PHASE_CORR_PWL_X0 B8h[9:0] AMB_PHASE_CORR_PWL_X1 B9h[19:10] AMB_PHASE_CORR_PWL_X2 B9h[9:0] DESCRIPTION First knee point of PWL phase correction with ambient Second knee point of PWL phase correction with ambient Third knee point of PWL phase correction with ambient AMB_PHASE_CORR_PWL_COEFF0 0Ch[23:16] AMB_PHASE_CORR_PWL_COEFF1 B4h[7:0] Slope of first segment for PWL phase correction with ambient Slope of second segment for PWL phase correction with ambient AMB_PHASE_CORR_PWL_COEFF2 B4h[15:8] Slope of third segment for PWL phase correction with ambient AMB_PHASE_CORR_PWL_COEFF3 B4h[23:16] Slope of fourth segment for PWL phase correction with ambient SCALE_AMB_PHASE_CORR_COEFF B5h[2:0] Scaling factor for ambient-based PWL phase correction. Table 12. Internal Crosstalk Correction Registers REGISTER ADDRESS INT_XTALK_CALIB 2Eh[4] XTALK_FILT_TIME_CONST DESCRIPTION The device initializes the internal electrical crosstalk measurement upon setting this bit. Use the following sequence: INT_XTALK_CALIB = 1 Delay (at least 5 × 2XTALK_FILT_TIME_CONST frames) INT_XTALK_CALIB = 0 See OPT3101 Distance Sensor System Calibration. 2Eh[23:20] Time constant for crosstalk filtering. Time constant τ = 2XTALK_FILT_TIME_CONST frames. At least 5τ should be allowed for settling of crosstalk measurement. USE_XTALK_FILT_INT 2Eh[5] Select filter or direct sampling for internal crosstalk measurement. 0 – Direct sampling, 1 – Filter USE_XTALK_REG_INT 2Eh[6] Select register value or internally calibrated value for internal crosstalk 0 – Calibration value, 1 – Register value IPHASE_XTALK_INT_REG 3D[15:0] Register for in-phase component of internal crosstalk QPHASE_XTALK_INT_REG 3E[15:0] Register for quadrature-phase component of internal crosstalk IPHASE_XTALK 3Bh[23:0] Read-only register. In-phase component. Different values can be selected to be read out with IQ_READ_DATA_SEL QPHASE_XTALK 3Ch[23:0] Read-only register. Quadrature-phase component. Different values can be selected to be read out with IQ_READ_DATA_SEL IQ_READ_DATA_SEL 2Eh[11:9] Mux select for IPHASE_XTALK, QPHASE_XTALK 0 – Internal crosstalk | 1 – Illum crosstalk | 2 – Raw I, Q | 3 – 16-bit frame counter INT_XTALK_REG_SCALE 2E[16:14] Scale factor for internal crosstalk register (IPHASE_XTALK_INT_REG, QPHASE_XTALK_INT_REG). Scale = 2INT_XTALK_REG_SCALE Table 13. Illumination Crosstalk Correction Registers REGISTER ADDRESS DESCRIPTION ILLUM_XTALK_CALIB 2Eh[12] The device initializes the illumination crosstalk measurement upon setting this bit. This measurement should be done with the photodiode masked such that no modulated light is received. Use following sequence: ILLUM_XTALK_CALIB = 1 Delay (at least 5 × 2XTALK_FILT_TIME_CONST frames) ILLUM_XTALK_CALIB = 0 See OPT3101 Distance Sensor System Calibration. USE_XTALK_FILT_ILLUM 2Eh[7] Select filter or direct sampling for illumination crosstalk measurement. 0 – Direct sampling, 1 – Filter 22 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 13. Illumination Crosstalk Correction Registers (continued) REGISTER ADDRESS USE_XTALK_REG_ ILLUM DESCRIPTION Select register value or internally calibrated value for illumination crosstalk correction. 0 – Calibration value, 1 – Register value 2Eh[8] ILLUM_XTALK_REG_SCALE 2E[19-17] Scale factor for Illumination crosstalk register (IPHASE_XTALK_REG_HDR_TX, QPHASE_XTALK_REG_HDR_TX, i = 0,1, j = 0,1,2). Scale = 2INT_XTALK_REG_SCALE IPHASE_XTALK_REG_HDR0_TX0 2Fh[15:0] Register for illumination crosstalk in-phase component for TX0 channel with ILLUM_DAC_L_TX0 current QPHASE_XTALK_REG_HDR0_TX0 30h[15:0] Register for illumination crosstalk quadrature-phase component for TX0 channel with ILLUM_DAC_L_TX0 current IPHASE_XTALK_REG_HDR1_TX0 31h[15:0] Register for illumination crosstalk in-phase component for TX0 channel with ILLUM_DAC_H_TX0 current QPHASE_XTALK_REG_HDR1_TX0 32h[15:0] Register for illumination crosstalk quadrature-phase component for TX0 channel with ILLUM_DAC_H_TX0 current IPHASE_XTALK_REG_HDR0_TX1 33h[15:0] Register for illumination crosstalk in-phase component for TX1 channel with ILLUM_DAC_L_TX1 current QPHASE_XTALK_REG_HDR0_TX1 34h[15:0] Register for illumination crosstalk in quadrature-phase component for TX1 channel with ILLUM_DAC_L_TX1 current IPHASE_XTALK_REG_HDR1_TX1 35h[15:0] Register for illumination crosstalk in-phase component for TX1 channel with ILLUM_DAC_H_TX1 current QPHASE_XTALK_REG_HDR1_TX1 36h[15:0] Register for illumination crosstalk quadrature-phase component for TX1 channel with ILLUM_DAC_H_TX1 current IPHASE_XTALK_REG_HDR0_TX2 37h[15:0] Register for illumination crosstalk in-phase component for TX2 channel with ILLUM_DAC_L_TX2 current QPHASE_XTALK_REG_HDR0_TX2 38h[15:0] Register for illumination crosstalk quadrature-phase component for TX2 channel with ILLUM_DAC_L_TX2 current IPHASE_XTALK_REG_HDR1_TX2 39h[15:0] Register for illumination crosstalk in-phase component for TX2 channel with ILLUM_DAC_H_TX2 current QPHASE_XTALK_REG_HDR1_TX2 3Ah[15:0] Register for illumination crosstalk quadrature-phase component for TX2 channel with ILLUM_DAC_H_TX2 current Table 14. Frequency Correction Registers REGISTER ADDRESS DESCRIPTION EN_AUTO_FREQ_COUNT 0Fh[21] Determines which value to be used for frequency correction 0 – Trimmed value 1 – Measured value from frequency calibration EN_FLOOP 0Fh[22] Enables the frequency calibration block. EN_FREQ_CORR 0Fh[23] Enables frequency correction for the phase output REF_COUNT_LIMIT 0Fh[14:0] This sets the limit for reference-clock count. Write this register with value = (40 × 106 / 2SYS_CLK_DIVIDER) / fEXT SYS_CLK_DIVIDER 0Fh[20:17] Programs system clock divider for frequency calibration. This should be adjusted to get it closer to the external reference frequency. The default is 10, system clock = 40 MHz / 210 = 39.0625 kHz to bring close to 32.768 kHz. EN_CONT_FCALIB 10h[15] Enables continuous frequency calibration. 0 – Frequency is measured only when START_FREQ_CALIB = 1 1 – Frequency is continuously measured. 10h[14:0] Read the register which holds the value of frequency calibration. FREQ_COUNT_READ_REG START_FREQ_CALIB 0Fh[16] Starts the frequency calibration. Table 15. Phase Nonlinearity Correction Registers REGISTER EN_NL_CORR ADDRESS 4Ah[0] DESCRIPTION Enables square wave non-linearity correction SCALE_NL_CORR_COEFF 4Ah[19:18] Scaling factor for nonlinearity correction coefficients (A*_COEFF_HDR*_TX*) A0_COEFF_HDR0_TX0 4Ah[17:2] 0th-order coefficient for square wave nonlinearity correction Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 23 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 15. Phase Nonlinearity Correction Registers (continued) REGISTER ADDRESS DESCRIPTION A1_COEFF_HDR0_TX0 4Bh[15:0] 1st-order coefficient for square wave nonlinearity correction A2_COEFF_HDR0_TX0 4Ch[15:0] 2nd-order coefficient for square wave nonlinearity correction A3_COEFF_HDR0_TX0 4D[15:0] 3rd-order coefficient for square wave nonlinearity correction A4_COEFF_HDR0_TX0 4Eh[15:0] 4th-order coefficient for square wave nonlinearity correction A0_COEFF_HDR1_TX0 A2[15:0] 0th-order coefficient for square wave nonlinearity correction A1_COEFF_HDR1_TX0 A7[15:0] 1st-order coefficient for square wave nonlinearity correction A2_COEFF_HDR1_TX0 AC[15:0] 2nd-order coefficient for square wave nonlinearity correction A3_COEFF_HDR1_TX0 B1[15:0] 3rd-order coefficient for square wave nonlinearity correction A4_COEFF_HDR1_TX0 AA[23:16], AB[23:16] 4th-order coefficient for square wave nonlinearity correction 7.3.8 Output Data Phase and amplitude information is stored in registers which can be read out using the I2C interface. The device gives data ready after computation of the depth information on the general purpose I/O (GP1 or GP2) which can be used trigger the host to read the data from the device. Distance can be calculated from the phase using Equation 8. A single code of PHASE_OUT is 228.7µm. PHASE _ OUT c Dis tance = ´ meters 16 2fMOD 2 where • • c = Speed of light fMOD = 10 MHz, modulation frequency (8) Along with phase and amplitude of the signal, ambient ADC output and temperature sensor output are also stored in the registers. All the output data is stored in contiguous registers 8, 9, and 10. AMB_OVL_FLAG MOD_FREQ FRAME_STATUS REG 9 DEALIAS_BIN[3:0] REG 10 24 18 TMAIN[11:4] 17 16 PHASE_OVER_FLOW REG 8 19 HDR_MODE 20 FRAME_COUNT 1 21 TX_CHANNEL 22 SIG_O VL_FL AG 23 PHASE _OVER FLOW_ F2 REGIST ER FRAME_COUNT0 Table 16. Output Data Registers 15 14 13 12 11 10 9 8 7 6 5 4 3 2 PHASE_OUT [15:8] PHASE_OUT [7:0] AMP_OUT[15:8] AMP_OUT[7:0] TMAIN[3:0] AMB_DATA[9:6] Submit Documentation Feedback AMB_DATA[5:0] 1 0 FRAME_ COUNT 2 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 17. Output Data Registers Description FIELD BIT PHASE_OUT DESCRIPTION 08h[15:0] PHASE_OVERFLOW 08h[16] AMP_OUT 09h[15:0] Final calibrated phase. Phase overflow during frequency correction. Amplitude of the signal. SIG_OVL_FLAG 09h[18] Overload flag to indicate signal saturation AMB_OVL_FLAG 08h[22] Overload flag to indicate ambient saturation HDR_MODE 08h[17] Indicates the illumination driver DAC current used. 0: ILLUM_DAC_L | 1: ILLUM_DAC_H TX_CHANNEL 08h[19:18] Indicates which Illumination channel of TX0/TX1/TX2 is used. FRAME_STATUS 08h[20] 0 = Invalid frame | 1= Valid frame. Frame can be invalid during crosstalk measurement. MOD_FREQ 08h[21] Indicates the frequency used. 0: 10 MHz | 1: De-alias frequency (10 MHz × 6 / 7 or 10 MHz × 6 / 5) FRAME_COUNT0 08h[23] Frame counter LSB bit [0] FRAME_COUNT1 09h[17:16] FRAME_COUNT2 0Ah[1:0] DEALIAS_BIN 09h[23:20] PHASE_OVER_FLOW_F2 Frame counter bits [2:1] Frame counter bits [4:3]. Frame counter = FRAME_COUNT2 × 8 + FRAME_COUNT1 × 2 + FRAME_COUNT0 Distance bin in de-alias mode 09h[19] Phase overflow of second modulation frequency during frequency correction. AMB_DATA 0Ah[11:2] Ambient ADC output. Indicates the ambient light. In no ambient light condition AMB_DATA is 64 typically. TMAIN 0Ah[23:12] Temperature sensor output Temperature (°C) = (TMAIN / 8) – 256 7.3.9 General Purpose I/O There are two general purpose I/Os which can be used to bring out various digital signals like DATA_RDY, FRAME_VD, ILLUM CLK, ILLUM_EN. GP2 can also be used as an input pin for external clock reference for device on-chip oscillator frequency calibration. Table 18. GPIO Configuration Registers REGISTER ADDRESS DESCRIPTION GPO1_MUX_SEL 78h[8:6] Select signal for the GP1 output multiplexer. 0: DVSS | 2: DIG_GPO_0 | 3: DIG_GPO_1 | 7: ILLUM_CLK | Other values: Not valid GPIO1_OBUF_EN 78h[12] Enable output buffer of GP1 pin GPIO2_IBUF_EN 78h[16] Enable input buffer of GP2 pin. External reference clock should be connected to this pin for frequency calibration. GPIO2_OBUF_EN 78h[15] Enable output buffer of GP2 pin GPO2_MUX_SEL 78h[11:9] Select signal for the GP2 output multiplexer. 0: DVSS | 2: DIG_GPO_0 | 3: DIG_GPO_1 | 7: ILLUM_EN_TX0 | Other values: Not valid 0Bh[3:0] Mux selection bits for digital signal DIG_GPO_0, which can be brought out on GP1 or GP2 0: FRAME_VD | 1: SUB_VD | 4: SEQUENCER_INTERRUPT 8: COMP_STATUS | 9: DATA_RDY | 10: FRAME_COUNTER_LSB | Other values: Not valid 0Bh[7:4] Mux selection bits for digital signal DIG_GPO_1 which can be brought out on GP1 or GP2 0: FRAME_VD | 1: SUB-VD | 4: SEQUENCER_INTERRUPT 8: COMP_STATUS | 9: DATA_RDY | 10: FRAME_COUNTER_LSB | Other values: Not valid DIG_GPO_SEL0 DIG_GPO_SEL1 7.3.10 Temperature Sensor The device has an internal temperature sensor to monitor the temperature of the sensor core. The temperature sensor has a range of –25°C to 125°C. The output of this temperature sensor is accessible from register TMAIN. It can be used for phase temperature compensation. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 25 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.3.11 On-Chip Regulator AFE has an internal regulator for generating the 1.8-V supplies (AVDD, DVDD) from the AVDD3 supply. In this mode, only one 3.3-V supply is sufficient for the device operation. Because the power is drawn from the 3.3-V supply for AVDD, DVDD, power consumption is higher. The REG_MODE pin controls the regulator. Connect this pin to IOVDD to enable regulator mode. In non-regulator mode, the REG_MODE pin should be connected to IOVSS. Figure 177 show the block diagram of the regulator. A decoupling capacitor of 100 nF minimum should be connected at the pins AVDD and DVDD. The decoupling capacitor on AVDD should be connected to AVSS, and the decoupling capacitor on DVDD should be connected to IOVSS. 7.3.12 Sequencer AFE has an on-chip sequencer which can be used to perform various operations. The sequencer commands are tabulated in Table 19. Each instruction is 12 bits with the first four MSB bits as the opcode and next eight bit as operand. The sequencer can perform a comparison of amplitude or phase with register thresholds COMPARE_REG1, COMPARE_REG2 and generate a signal COMP_STATUS, which can be observed on GP1 with the DIG_GPO_SEL0 = 8 and gpo1_mux_sel = 2 settings. The comparison input type can be selected using COMP_IN_SEL. The sequencer executes one command per sample. The sequencer interrupt to execute a command can be positioned either at the beginning of the sample or at the end of the sample after data is ready and before the next sample starts. The sequencer interrupt can be programmed with the TG_SEQ_INT_START, TG_SEQ_INT_END, TG_SEQ_INT_MASK_START, and TG_SEQ_INT_MASK_END registers. TG_SEQ_INT_START and TG_SEQ_INT_END define the position of the interrupt pulse within a sub-frame. TG_SEQ_INT_MASK_START and TG_SEQ_INT_MASK_END define the sub-frame during which the pulse is enabled. Some of the use cases of the sequencer are: • Switching of transmitter channels • Generating an interrupt based on a phase or amplitude comparison with defined thresholds • Generating an interrupt based on a phase or amplitude comparison with hysteresis • Extending the dynamic range using four illumination driver currents • Performing a de-alias operation to extend the distance range from 15 m to 75 m. Table 19. Sequencer Commands OPCODE FUNCTION DESCRIPTION 0000 NOP The operand indicates the number of cycles for which NOP should be executed. 0 means 1 cycle, 1 means 2 cycle, and so on. For example 0000-0000 1111 indicates that for the next 16 cycles the sequencer does not do anything. WRITE This command writes the operand to the STATUS_OUT register. For example 00010110 0110 makes the value on the STATUS_OUT port 0110 01100. The STATUS_OUT port is mapped to certain key registers listed in Table 20. STATUS_OUT values override the register values only if EN_PROCESSOR_VALUES = 1. GOTO Program counter (PC) goes to the line indicated by the operand. This command is useful for looping. The next command is executed on the next sequencer interrupt. For example, 0010-0000 0000 sets the PC to the first line of the program memory so that the instructions are executed in a loop. 0011 DGOTO In this command, the PC goes to the line indicated by the operand only if STATUS_IN_REG bit is 1. If not, the PC stays in the same command until the STATUS_IN_REG register value becomes 1. The next command is executed on the next frame VD. For example, 00110000 0000 suspends the program until the STATUS_IN_REG bit is set to 1. Once it is set, the loop is restarted. 0100 DrGOTO In this instruction, the PC goes to the line indicated by operand without any delay. This executes next instruction as well. The next command is executed on the same frame VD. 0101 COMP0 In this command, the CPU compares COMP_IN and COMPARE_REG1. If COMP_IN ≤ COMPARE_REG1, the program counter stays where it is and the COMP_STATUS port is 0. If the comparison fails, the program counter moves to the line indicated by the operand, and COMP_STATUS becomes 1. 0110 COMP0_INV 0111 COMP_WINDOW 0001 0010 26 Similar to COMP but the comparison used is: COMP_IN ≥ COMPARE_REG2 In this command, the PC stays at the same command forever. If (COMP_IN ≥ COMPARE_REG1) and (COMP_IN ≤ COMPARE_REG2) then COMP_STATUS becomes 1 else COMP_STATUS = 0. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 19. Sequencer Commands (continued) OPCODE FUNCTION DESCRIPTION 1000 COMP2 If (COMP_IN ≥ COMPARE_REG1) and (COMP_IN ≤ COMPARE_REG2) then COMP_STATUS becomes 1 else COMP_STATUS = 0. If the condition is TRUE the program counter stays at the same command else moves to the line indicated by the operand. 1001 COMP3 Similar to COMP2. The difference is that regardless of the comparison result, the program counter moves to the instruction pointed to by the operand. If comparison is met, COMP_STATUS is set to 1, else to 0. 1010 COMP_HYST In this command, the PC stays at the same command forever. There is hysteresis in the comparison. If (COMP_IN ≤ COMPARE_REG1) then COMP_STATUS = 0, elsif (COMP_IN ≥ COMPARE_REG2) then COMP_STATUS = 1. 1011 COMP1 In this command, the CPU compares COMP_IN and COMPARE_REG1. If COMP_IN ≤ COMPARE_REG1, the program counter stays where it is and the COMP_STATUS port is 0. If the comparison fails the program counter moves to the line indicated by the operand and COMP_STATUS becomes 1. Executes this command and moves to next command at the same interrupt. 1100 COMP1_INV Similar to COMP1 but the comparison used is COMP_IN ≥ COMPARE_REG2. Sequencer executes the command and moves to next command at the same interrupt. 1101–1111 Not valid Table 20. Sequencer STATUS_OUT Register Mapping STATUS_OUT REGISTER MAPPING [0] INT_XTALK_CALIB [1] EN_DEALIAS_MEAS [2] START_FREQ_CALIB [4:3] SEL_TX_CH [5] SEL_HDR_MODE [7:6] Invalid Table 21. Sequencer Registers REGISTER ADDRESS DESCRIPTION COMP_IN_SEL 13h[2:0] Select the value used for comp_in. 0: AMP_OUT | 1: DEALIAS_BIN | 2: Phase output in de-alias mode | 3: PHASE_OUT COMPARE_REG1 13h[18:3] Sequencer comparison threshold1 COMPARE_REG2 14h[15:0] Sequencer comparison threshold2 EN_SEQUENCER 14h[16] Enable the sequencer. EN_PROCESSOR_VALU ES 14h[17] Uses processor values instead of register values. STATUS_IN_REG 14h[18] The register is used to control the program flow in CPU DIS_INTERRUPT 14h[19] Disables the interrupt which triggers the sequencer. COMMAND0 to COMMAND19 15h[11:0] to 1Eh[23:12] Sequencer command registers. A total of 20 command registers are available. 7.3.12.1 Interrupt Output The sequencer supports various interrupt output modes using the comparison commands listed in Table 19. The register settings to use the sequencer for generating interrupt output using COMP_WINDOW are listed in Table 22, and the corresponding interrupt output is shown in Figure 24. To use a comparison with hysteresis (COMP_HYST) use COMMAND0 = 0xA00 and the rest of the settings remain the same as when using COMP_WINDOW. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 27 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 24. Interrupt Output Using Different Comparison Commands Table 22. Register Settings to Use Sequencer for Generating Interrupt Output PARAMETER VALUE DESCRIPTION Sequencer Interrupt Signal TG_SEQ_INT_START TG_SEQ_INT_END 9850 9858 TG_SEQ_INT_MASK_START NUM_AVG_SUB_FR AMES TG_SEQ_INT_MASK_END NUM_AVG_SUB_FR AMES Set the sequencer interrupt at the end of the last averaged subframe after data ready is available Sequencer Commands COMMAND0 0x700 COMP_WINDOW. COMP_STATUS = 1 when distance is between the lower (COMPARE_REG1) and upper (COMPARE_REG2) limits else COMP_STATUS = 0 Get COMP_STATUS on GP1 GPIO1_OBUF_EN 1 Enable GP1 output buffer. GPO1_MUX_SEL 3 Select DIG_GPO_1 on GP1 GPO_SEL1 8 Select COMP_STATUS on DIG_GPO_1 1 Select amplitude PHASE_OUT for comparison input COMP_IN Comparison Settings COMP_IN_SEL COMPARE_REG1 PHASE1 Phase corresponding to a lower distance (phase) threshold COMPARE_REG2 PHASE2 Phase corresponding to an upper distance (phase) threshold Sequencer Enable EN_SEQUENCER 1 Enable the sequencer. Sequencer enable should be only be changed while TG_EN = 0. Before changing this register disable TG (TG_EN = 0), modify this register and then enable TG (TG_EN = 1). EN_PROCESSOR_VALUES 1 Enable processor values to control the STATUS_OUT register bits. 7.3.12.2 Super-HDR Mode Using Sequencer The on-chip sequencer can be used to extend the dynamic range using four illumination currents. Figure 25 shows the state diagram of the super-HDR mode implemented using the sequencer. For this example, the illumination driver currents should be programmed in the following order: IILLUM_H_TX1 > IILLUM_L_TX1 > IILLUM_H_TX0 > IILLUM_L_TX0.Table 23 lists the register settings to operate the device in super HDR mode using the sequencer. HDR_THR_LOW should be determined by the minimum of the two adaptive HDR settings listed below. • HDR_THR_HIGH × ILLUM_DAC_L_TX0 / ILLUM_DAC_H_TX0 • HDR_THR_HIGH × ILLUM_DAC_L_TX1 / ILLUM_DAC_H_TX1 28 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 25. Super-HDR Mode Using Sequencer: State Diagram Table 23. Register Settings to Use Sequencer for Super HDR Mode PARAMETER VALUE DESCRIPTION Sequencer Interrupt Signal TG_SEQ_INT_START TG_SEQ_INT_END 9850 9858 TG_SEQ_INT_MASK_START NUM_AVG_SUB_FR AMES TG_SEQ_INT_MASK_END NUM_AVG_SUB_FR AMES Set the sequencer interrupt at the end of the last averaged subframe after data ready is available Sequencer Commands COMMAND0 0x108 Set illumination to channel TX1 COMMAND1 0xB02 COMP1 command. If COMP_IN > COMPARE_REG1, move to COMMAND2. COMMAND2 0x100 Set illumination to channel TX0 COMMAND3 0xC00 COMP1_INV command. If COMP_IN < COMPARE_REG2, move to COMMAND0. Comparison Settings COMP_IN_SEL 0 Select amplitude AMP_OUT for COMP_IN COMPARE_REG1 HDR_THR_HIGH + 500 Should be greater than the hdr High threshold: HDR_THR_HIGH COMPARE_REG2 HDR_THR_LOW 500 Should be less than the hdr low threshold HDR_THR_LOW. Sequencer Enable EN_SEQUENCER 1 Enable the sequencer. Sequencer enable should be only be changed while TG_EN = 0. Before changing this register, disable TG (TG_EN = 0), modify this register, and then enable TG (TG_EN = 1). EN_PROCESSOR_VALUES 1 Enable processor values to control the STATUS_OUT register bits. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 29 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.4 Programming The OPT3101 device supports the I2C interface for register read and write access. The device also has an I2C host which can be used to interface with an external temperature sensor or external EEPROM. 7.4.1 I2C Slave The I2C slave interface can be accessed with the SDA_S and SLC_S device pins. The I2C interface supports bus speeds up to 400 kHz. The slave address for this device is 1011A2A1A0. Using the A0, A1, and A2 pins, the address can be configured. By default A0, A1 and A2 are pulled to the AVDD supply and the default address is 1011 111. To change the address, connect these pins to either the AVDD or AVSS supply. The register access can be single R/W or continuous R/W with auto-increment of register address. Table 24. I2C Slave Configuration Registers FIELD I2C_CONT_RW BIT DESCRIPTION 00h[6] Enable continuous read/write of registers using device I2C slave The individual registers are 24-bit length in this device. However, the register read/write is in chunks of eight bits. After every 8-bit transfer, the slave expects an acknowledgement from the master in the case of read or gives out an acknowledgement in the case of write. Figure 26 shows the I2C timing for register write operation. Figure 26. I2C Register Write Example For example, to write 0x654321 to any register, the data should be split as three bytes and ordered as follows, 0x21, 0x43, 0x65. The same ordering is true for read mode. The first byte of data received corresponds to [7:0], followed by [15:8] and then followed by [23:16]. Figure 27 shows the different read/write modes. Figure 27. I2C Slave Interface R/W Modes 7.4.2 I2C Master The OPT3101 device also has an I2C master, which is used to read the calibration and configuration registers from an external memory with the I2C interface (EEPROM with I2C address of 1010 000) during power up. It can also read temperature from an external temperature sensor with the I2C interface (default address of 1001 000). Table 25 lists the register settings to configure the I2C Host. 30 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 25. I2C Master Register Settings PARAMETER BIT DESCRIPTION TSENS_SLAVE0 02h[6:0] I2C slave address. In multi-channel illumination operation, the temperature-sensor slave address is selected based on the channel being used for reading the external temperature value (TX0: TSENS_SLAVE0, TX1: TSENS_SLAVE1, TX2: TSENS_SLAVE2) I2C_HOST_EN 01h[19] Enable the I2C host FRAME_VD_TRIG 01h[17] Trigger I2C host operation every frame VD I2C_TRIG_REG 01h[18] Manual trigger the I2C host by writing to this register I2C_NUM_TRAN 03h[17] 0: 1 transaction | 1: 2 transactions I2C_RW 01h[21:20] 0: Write | 1: Read LSB: First transaction MSB: Second transaction I2C_NUM_BYTES_TRAN1 07h[17:16] 0: 1 byte | 1: 2 bytes I2C_NUM_BYTES_TRAN2 05h[23:22] 0: 1 byte | 1: 2 bytes I2C_WRITE_DATA1 03h[16:9] First byte of I2C write transaction 8-bit register address I2C_WRITE_DATA2 07h[7:0] Second byte of I2C write transaction 8-bit register data to be written 07h[19:18] Selects the byte of read data. 0: 7:0 | 1: 15:8 | 2: 23:16 | 3: 31:24 I2C_SEL_READ_BYTES I2C_READ_DATA I2C host read data can be accessed through this register. 03h[7:0] 7.4.2.1 External Temperature Sensor The temperature sensor address can be configured through internal registers (TSENS_SLAVE0, TSENS_SLAVE1, TSENS_SLAVE2) . This sensor can be used for calibrating the system parameters with temperature changes. An external temperature sensor is required if an external illumination driver is used. Typically the on-die temperature sensor is sufficient if the internal illumination driver is used. The temperature readings are refreshed every frame. The device supports up to three temperature sensors to associate with three illumination channels. A single- or two-byte read operation is performed on each of the temperature sensors to read the corresponding temperature. TI's TMP102 device, 12-bit temperature sensor is suggested if accurate temperature correction with smaller jumps at the temperature code changes is required. The TMP103 8-bit temperature sensor can be used if the temperature-correction accuracy requirement is less. For temperature calibration of phase, the value read from the temperature sensor is assumed to be linear with the actual temperature. Register settings to configure the external temperature sensor read using the I2C host are listed in Table 26. Table 26. Register Settings to Enable External Temperature Readout Using I2C master VALUE for TMP102 VALUE for TMP103A 0x48 0x70 EN_TILLUM_READ 1 1 Enable reading of the external temperature sensor using the I2C master TEMP_AVG_ILLUM 0 2 0: no averaging for TMP102, this is already 12-bit data. Further averaging not required. 2: 4 averages for TMP103A I2C_HOST_EN 1 1 Enable I2C master I2C_NUM_TRAN 0 0 One read transaction I2C_RW 1 1 Read transaction I2C_NUM_BYTES_TRAN1 1 0 1: Two-byte read for the TMP102 device 0: One-byte read for the TMP103A device FRAME_VD_TRIG 1 1 Trigger temperature read for every frame PARAMETER TSENS_SLAVE0 DESCRIPTION I2C slave address of the external temperature sensor Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 31 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 26. Register Settings to Enable External Temperature Readout Using I2C master (continued) VALUE for TMP102 VALUE for TMP103A CONFIG_TILLUM_MSB 8 0 Mode to select the correct 12 bits from the read 16 bits in a two-byte read for the TMP102 device EN_TILLUM_12B 1 0 Enable the 12-bit mode to read 12-bit temperature sensor data from an external temperature sensor. PARAMETER DESCRIPTION 7.4.2.2 External EEPROM The I2C host of the OPT3101 device automatically loads all of the registers (256 bytes) from an external 2KB (256 × 8) EEPROM on device reset to configure the device. Of these 256 bytes, 64 bytes are register address, and 192 bytes are data bytes. So from EEPROM, the device can auto load any of up to 64 device registers of 24 bits each (64 × 24). EEPROM data should be written in the following format. If only part of the memory is used, the rest of the memory should be filled with all 0x00 or 0xFF. Table 27. External EEPROM Data Format ADDRESS DATA [7:0] 0 Register address i 1 Register data i[7:0] 2 Register data i[15:8] 3 Register data i[23:16] 4 Register address j 5 Register data j[7:0] 6 Register data j[15:8] 7 Register data j[23:16] … … 255 Register data k[23:16] The EEPROM I2C slave address should be 0x50h. On device reset, I2C host initiates auto load from the external EEPROM connected on the SDA_M, SCL_M bus. If there is an EEPROM device on the bus, this load operation performs the 256-byte read operation. If there is no EEPROM on the host bus, the device terminates auto load after the first transaction. During I2C host auto load, if an external host writes to the OPT3101 I2C slave, it acknowledges but data transfer does not happen (write/read). Register address 0 of the OPT3101 device cannot be loaded from the OPT3101 I2C host. Register address 0 is always reserved for I2C slave. By writing to register bit 0[22] (FORCE_EN_SLAVE) of the OPT3101 device, I2C slave can take control of register access from host auto load. If there are no pullup resistors connected on the I2C host bus SDA_M and SCL_M, then register bit 0[22] (FORCE_EN_SLAVE) = 1 should be written before any other I2C register writes, otherwise the device register read/write does not happen. If the device is to be used in monoshot mode, I2C host power down disable should be written first (DIS_GLB_PD_I2CHOST) before writing monoshot mode enable (MONOSHOT_MODE) bit in the EEPROM. 7.4.2.3 External EEPROM Programming To simplify the EEPROM programming in the end system, the OPT3101 device supports writing to EEPROM through the device I2C slave. The device auto loads from EEPROM on reset. Before programming EEPROM, this auto load might corrupt the registers. First erase the EEPROM and follow the flowchart shown in Figure 28. The register settings to write to external EEPROM on the OPT3101 I2C host through the OPT3101 I2C slave are listed in Table 28. 32 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 28. EEPROM Programming Flow Chart Table 28. Register Settings to Write to External EEPROM Using I2C Master PARAMETER VALUE DESCRIPTION TSENS_SLAVE0 50h EEPROM I2C address. EEPROM with this I2C slave address should be used. I2C_HOST_EN 1 Enable device I2C host. I2C_NUM_TRAN 0 Number of I2C master transactions = 1 I2C_RW 0 Write transaction I2C_NUM_BYTES_TRAN1 1 2-byte transaction (register address, register data) I2C_WRITE_DATA1 EEPROM register address I2C_WRITE_DATA2 Data to be written I2C_TRIG_REG 1→0 Trigger the I2C host write by writing 1 to this register and make it 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 33 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5 Register Maps 7.5.1 Serial Interface Register Map Table 29. Default Register Map ADDRE SS (Hex) D23 D22 D21 00h MONO SHOT_ BIT FORCE _EN_S LAVE FORCE _EN_B YPASS 0 0 D20 D19 0 I2C_RW 03h TEMP_AVG_ILLU M EN_TIL LUM_R EAD TEMP_AVG_MAI N 0 04h TILLUM _UNSI GNED 05h I2C_NUM_BYTE S_TRAN2 07h 08h D10 D9 0 0 0 0 0 0 I2C_EN I2C_TR IG_RE G FRAME _VD_T RIG 0 0 0 0 0 0 0 0 0 0 0 0 MOD_F REQ 1 0 0 I2C_SEL_READ_ BYTES FRAME _STAT US TX_CHANNEL PHASE _OVER _FLOW _F2 SIG_O VL_FL AG 0 0 0 0 D4 0 0 0 0 0 0 0 0 0 0 D3 0 D2 0 0 ADDR_SLAVE_EEPROM D1 D0 0 SOFT WARE_ RESET SWAP_ READ_ DATA EEPRO M_REA D_TRI G 0 0 0 I2C_READ_DATA 0 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 I2C_WRITE_DATA2 0 PHASE_OUT AMP_OUT FRAME_COUNT 1 FRAME_COUNT 2 AMB_DATA AMB_CALIB EN_FR EQ_CO RR 0 D5 INIT_L OAD_D ONE PHASE _OVER _FLOW DIG_GPO_SEL2 AMB_PHASE_CORR_PWL_COEFF0 EN_TIL LUM_1 2B D6 I2C_C ONT_R W TSENS_SLAVE0 I2C_WRITE_DATA1 I2C_NUM_BYTE S_TRAN1 HDR_M ODE D7 TSENS_SLAVE1 I2C_NU M_TRA N 0 D8 TILLUM 0 0Bh 34 D11 TMAIN 0Ch 11h D12 0 0 AMB_O VL_FL AG D13 0 0Ah 10h D14 0 0 09h 0Fh D15 0 0 DEALIAS_BIN 0Dh D16 TSENS_SLAVE2 CONFIG_TILLUM_MSB FRAME _COUN T0 D17 0 01h 02h D18 0 0 DIG_GPO_SEL1 AMB_XTALK_QPHASE_COEFF DIG_GPO_SEL0 AMB_XTALK_IPHASE_COEFF AMB_SAT_THR 0 0 0 EN_FL OOP EN_AU TO_FR EQ_CO UNT 0 0 SYS_CLK_DIVIDER 0 0 START _FREQ _CALIB 0 0 0 0 0 0 REF_COUNT_LIMIT 0 AMPLITUDE_MIN_THR[15:8] EN_CO NT_FC ALIB AMPLITUDE_MIN_THR[7:0] DIS_O VL_GA TING FREQ_COUNT_READ_REG FREQ_COUNT_REG Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 29. Default Register Map (continued) ADDRE SS (Hex) D23 D22 D21 D20 D19 13h 0 0 0 0 0 14h 0 0 0 0 DIS_IN TERRU PT D18 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 STATU S_IN_R EG EN_PR OCESS OR_VA LUES EN_SE QUEN CER COMMAND1 COMMAND0 COMMAND3 COMMAND2 17h COMMAND5 COMMAND4 18h COMMAND7 COMMAND6 19h COMMAND9 COMMAND8 1Ah COMMAND11 COMMAND10 1Bh COMMAND13 COMMAND12 1Ch COMMAND15 COMMAND14 1Dh COMMAND17 COMMAND16 1Eh COMMAND19 26h 0 0 0 2Bh 0 0 ILLUM_SCALE_H_TX0 ILLUM_SCALE_L_TX0 HDR_THR_HIGH 2Ch 0 0 ILLUM_SCALE_H_TX1 ILLUM_SCALE_L_TX1 HDR_THR_LOW 2Dh ILLUM_XTALK_REG_SCAL E 2Fh 31h 35h 0 ILLUM_ XTALK _CALIB IQ_READ_DATA_SEL 0 TEMP_COEFF_MAIN_HDR0_TX2[3:0 ] 0 0 0 0 0 0 0 1 1 MONOSHOT_MO DE ILLUM_DAC_L_TX0 SEL_TX_CH EN_TX _SWIT CH USE_X TALK_ REG_IL LUM USE_X TALK_ FILT_IL LUM USE_X TALK_ REG_I NT USE_X TALK_ FILT_I NT INT_XT ALK_C ALIB DIS_A UTO_S CALE FORCE_SCALE_VAL QPHASE_XTALK_REG_HDR0_TX0 0 IPHASE_XTALK_REG_HDR1_TX0 0 QPHASE_XTALK_REG_HDR1_TX0 0 TEMP_COEFF_MAIN_HDR1_TX2[11:4] TEMP_COEFF_MAIN_HDR1_TX2[3:0 ] 1 IPHASE_XTALK_REG_HDR0_TX0 TEMP_COEFF_MAIN_HDR0_TX2[11:4] 33h 34h 0 D0 TEMP_COEFF_MAIN_HDR1_TX0 TEMP_COEFF_MAIN_HDR1_TX1[11:4] TEMP_COEFF_MAIN_HDR1_TX1[3:0 ] 1 TX_SEQ_REG INT_XTALK_REG_SCALE 2Eh 32h EN_AD APTIVE _HDR TEMP_COEFF_MAIN_HDR0_TX1 XTALK_FILT_TIME_CONST 0 ILLUM_DAC_H_TX0 2Ah 0 SEL_H DR_M ODE 0 MONOSHOT_NUMFRAME ILLUM_DAC_L_TX1 ILLUM_ DAC_L _TX2[0] 30h 0 MONOSHOT_FZ_CLKCNT ILLUM_DAC_H_TX1 ILLUM_DAC_H_TX2 D1 COMMAND18 POWERUP_DELAY 27h D2 COMPARE_REG2 16h ILLUM_DAC_L_TX2[4:1] D3 MUX_SEL_COMPIN 15h 29h D4 COMPARE_REG1 IPHASE_XTALK_REG_HDR0_TX1 0 0 0 0 0 0 0 0 QPHASE_XTALK_REG_HDR0_TX1 IPHASE_XTALK_REG_HDR1_TX1 36h TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX0 QPHASE_XTALK_REG_HDR1_TX1 37h TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX0 IPHASE_XTALK_REG_HDR0_TX2 38h TEMP_COEFF_XTALK_IPHASE_HDR0_TX0 QPHASE_XTALK_REG_HDR0_TX2 39h TEMP_COEFF_XTALK_QPHASE_HDR0_TX0 IPHASE_XTALK_REG_HDR1_TX2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 35 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 29. Default Register Map (continued) ADDRE SS (Hex) 3Ah D23 0 D22 D21 D20 SCALE_AMB_COEFF_XTA LK D19 D18 D17 SCALE_TEMP_COEFF_XT ALK D16 D15 D14 D13 D12 D11 D10 EN_TE MP_XT ALK_C ORR D9 D8 D7 D6 3Bh IPHASE_XTALK QPHASE_XTALK 3Dh 0 0 0 0 0 0 0 0 IPHASE_XTALK_INT_REG 3Eh 0 0 0 0 0 0 0 0 QPHASE_XTALK_INT_REG NCR_C ONFIG 0 EN_MU LTI_FR EQ_PH ASE 0 0 0 40h TILLUM_CALIB_HDR0_TX2 42h ALPHA0_DEALIAS_SCALE 1 TMAIN_CALIB_HDR1_TX1 0 0 0 0 0 0 0 0 0 0 0 0 D1 D0 1 1 1 0 0 0 0 EN_DE ALIAS_ MEAS EN_TE MP_CO RR EN_PH ASE_C ORR 0 EN_NL _CORR ALPHA1_DEALIAS_SCALE PHASE_OFFSET_HDR0_TX0 TILLUM_CALIB_HDR1_TX1 0 D2 BETA1_DEALIAS_SCALE 0 43h 44h D3 TMAIN_CALIB_HDR0_TX2 BETA0_DEALIAS_SCALE 41h D4 QPHASE_XTALK_REG_HDR1_TX2 3Ch 3Fh D5 0 0 SCALE_PHASE_TEMP_CO EFF 0 0 TMAIN_CALIB_HDR1_TX2 TEMP_COEFF_MAIN_HDR0_TX0 46h TILLUM_CALIB_HDR1_TX2 TEMP_COEFF_ILLUM_HDR0_TX0 47h TILLUM_CALIB_HDR0_TX0 TMAIN_CALIB_HDR0_TX0 48h TILLUM_CALIB_HDR1_TX0 TMAIN_CALIB_HDR1_TX0 49h TILLUM_CALIB_HDR0_TX1 TMAIN_CALIB_HDR0_TX1 0 0 0 0 SCALE_NL_COR R_COEFF A0_COEFF_HDR0_TX0 4Bh 0 0 0 0 0 0 0 0 A1_COEFF_HDR0_TX0 4Ch 0 0 0 0 0 0 0 0 A2_COEFF_HDR0_TX0 4Dh 0 0 0 0 0 0 0 0 A3_COEFF_HDR0_TX0 4Eh 0 0 0 0 0 0 0 0 A4_COEFF_HDR0_TX0 1 0 OVERR IDE_CL KGEN_ REG 50h 51h 52h 53h 54h 55h 56h 57h 36 0 0 0 0 0 0 0 0 0 0 0 TEMP_COEFF_ILLUM_HDR1_TX0[11:4] TEMP_COEFF_ILLUM_HDR1_TX0[3: 0] 0 0 0 0 0 0 0 1 0 0 0 0 CLIP_ MODE_ OFFSE T CLIP_ CLIP_ MODE_ MODE_ TEMP NL CLIP_ MODE_ FC PHASE_OFFSET_HDR0_TX1 0 PHASE_OFFSET_HDR1_TX1 0 PHASE_OFFSET_HDR0_TX2 0 TEMP_COEFF_ILLUM_HDR1_TX1[11:4] TEMP_COEFF_ILLUM_HDR1_TX1[3: 0] 0 PHASE_OFFSET_HDR1_TX0 TEMP_COEFF_ILLUM_HDR0_TX1[11:4] TEMP_COEFF_ILLUM_HDR0_TX1[3: 0] 0 PHASE2_OFFSET_HDR0_TX0 45h 4Ah 0 PHASE_OFFSET_HDR1_TX2 0 PHASE2_OFFSET_HDR1_TX0 0 TEMP_COEFF_ILLUM_HDR0_TX2[11:4] PHASE2_OFFSET_HDR0_TX1 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 29. Default Register Map (continued) ADDRE SS (Hex) 58h D23 D22 D21 59h 5Ah D20 TEMP_COEFF_ILLUM_HDR0_TX2[3: 0] D19 D18 D17 D16 0 0 0 0 D15 D14 D13 D12 D11 D10 D9 0 D7 D6 D5 D4 D3 D2 D1 PHASE2_OFFSET_HDR0_TX2 0 0 PHASE2_OFFSET_HDR1_TX2 0 5Bh TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX1 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX1 5Ch TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX0 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX2 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX2 5Dh TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX2 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX1 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX1 5Eh TEMP_COEFF_XTALK_IPHASE_HDR0_TX1 TEMP_COEFF_XTALK_IPHASE_HDR1_TX0 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX2 5Fh TEMP_COEFF_XTALK_IPHASE_HDR1_TX2 TEMP_COEFF_XTALK_IPHASE_HDR0_TX2 TEMP_COEFF_XTALK_IPHASE_HDR1_TX1 60h TEMP_COEFF_XTALK_QPHASE_HDR1_TX1 TEMP_COEFF_XTALK_QPHASE_HDR0_TX1 TEMP_COEFF_XTALK_QPHASE_HDR1_TX0 61h 64h 65h 6Eh 0 0 0 PROG_OVLDET_REFM DIS_O VLDET 0 0 0 71h 0 0 72h 0 0 0 0 0 0 0 PROG_OVLDET_REFP 77h 78h 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 TEMP_COEFF_XTALK_QPHASE_HDR1_TX2 0 0 0 SEL_G P3_ON _SDAM 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 EN_TE MP_CO NV 0 0 0 0 0 0 0 0 0 0 EN_ILL UM_CL K_GPI O ILLUM_ CLK_G PIO_M ODE 0 0 DIS_IL LUM_C LK_TX INVER T_AFE _CLK 0 INVER T_TG_ CLK SHUT_ CLOCK S 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 TEMP_COEFF_XTALK_QPHASE_HDR0_TX2 0 UNMA SK_ILL UMEN_ INTXTA LK 0 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX0 0 0 0 0 0 0 0 0 PDN_IL LUM_D RV 79h 0 0 0 0 0 0 0 0 0 0 0 GPIO2 _IBUF_ EN GPIO2 _OBUF _EN 0 0 0 0 0 0 0 0 0 0 EN_DY N_PD_I 2CHOS T_OSC 0 0 0 0 GPIO1 _IBUF_ EN GPIO1 _OBUF _EN 0 PDN_IL LUM_D C_CUR R 0 0 0 0 0 EN_DY N_PD_ OSC GPO2_MUX_SEL 0 0 0 RESER VED DIS_GL B_PD_ AMB_D AC DIS_GL DIS_GL B_PD_ B_PD_ AFE_D AFE AC DIS_GL DIS_GL B_PD_I B_PD_ LLUM_ TEMP_ DRV SENS DIS_GL B_PD_ REFSY S RESER VED EN_DY N_PD_ AMB_A DC EN_DY N_PD_ AMB_D AC EN_DY N_PD_ AFE_D AC EN_DY N_PD_I LLUM_ DRV EN_DY N_PD_ REFSY S EN_DY N_PD_ AFE EN_DY N_PD_ TEMP_ SENS GPO1_MUX_SEL 0 0 0 0 DIS_GL B_PD_ AMB_A DC 0 0 0 0 EN_TX _DC_C URR_A LL SEL_IL LUM_T X0_ON _TX1 ILLUM_DC_CURR_DAC 0 DEALIA DEALIA S_FRE S_EN Q SHIFT_ILLUM_PHASE IAMB_MAX_SEL DIS_GL DIS_GL B_PD_I B_PD_ 2CHOS OSC T PDN_G LOBAL 76h D0 PHASE2_OFFSET_HDR1_TX1 TEMP_COEFF_ILLUM_HDR1_TX2[11:4] TEMP_COEFF_ILLUM_HDR1_TX2[3: 0] D8 7Ah 0 0 0 0 0 0 0 0 0 0 0 0 0 80h DIS_T G_ACO NF 0 0 0 83h 0 0 0 0 0 0 0 0 84h 0 0 0 0 0 0 0 0 TG_AFE_RST_END 85h 0 0 0 0 0 0 0 0 TG_SEQ_INT_START 0 0 TX0_PIN_CONFI G GPO3_MUX_SEL EN_TX _CLKZ EN_TX _CLKB TX2_PIN_CONFI G TX1_PIN_CONFI G 0 SUB_VD_CLK_CNT TG_EN TG_AFE_RST_START Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 37 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 29. Default Register Map (continued) ADDRE SS (Hex) D23 D22 D21 D20 D19 D18 D17 D16 86h 0 0 0 0 0 0 0 0 TG_SEQ_INT_END 87h 0 0 0 0 0 0 0 0 TG_CAPTURE_START 88h 0 0 0 0 0 0 0 0 TG_CAPTURE_END 89h 0 0 0 0 0 0 0 0 TG_OVL_WINDOW_START 8Ah 0 0 0 0 0 0 0 0 TG_OVL_WINDOW_END 8Fh 0 0 0 0 0 0 0 0 TG_ILLUMEN_START 90h 0 0 0 0 0 0 0 0 TG_ILLUMEN_END 91h 0 0 0 0 0 0 0 0 TG_CALC_START 92h 0 0 0 0 0 0 0 0 TG_CALC_END 93h 0 0 0 0 0 0 0 0 TG_DYNPDN_START 94h 0 0 0 0 0 0 0 0 TG_DYNPDN_END D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 97h TG_SEQ_INT_MASK_END TG_SEQ_INT_MASK_START 98h TG_CAPTURE_MASK_END TG_CAPTURE_MASK_START 99h TG_OVL_WINDOW_MASK_END TG_OVL_WINDOW_MASK_START 9Ch TG_ILLUMEN_MASK_END TG_ILLUMEN_MASK_START 9Dh TG_CALC_MASK_END TG_CALC_MASK_START 9Eh TG_DYNPDN_MASK_END TG_DYNPDN_MASK_START 9Fh A0h NUM_AVG_SUB_FRAMES 0 0 0 0 0 0 0 A3_COEFF_HDR0_TX1[15:8] A0_COEFF_HDR1_TX0 A3_COEFF_HDR0_TX1[7:0] A0_COEFF_HDR0_TX1 A4h A3_COEFF_HDR1_TX1[15:8] A0_COEFF_HDR1_TX1 A5h A3_COEFF_HDR1_TX1[7:0] A0_COEFF_HDR0_TX2 A6h A3_COEFF_HDR0_TX2[15:8] A0_COEFF_HDR1_TX2 A7h A3_COEFF_HDR0_TX2[7:0] A1_COEFF_HDR1_TX0 A8h A3_COEFF_HDR1_TX2[15:8] A1_COEFF_HDR0_TX1 A9h A3_COEFF_HDR1_TX2[7:0] A1_COEFF_HDR1_TX1 AAh A4_COEFF_HDR1_TX0[15:8] A1_COEFF_HDR0_TX2 ABh A4_COEFF_HDR1_TX0[7:0] A1_COEFF_HDR1_TX2 ACh A4_COEFF_HDR0_TX1[15:8] A2_COEFF_HDR1_TX0 ADh A4_COEFF_HDR0_TX1[7:0] A2_COEFF_HDR0_TX1 AEh A4_COEFF_HDR1_TX1[15:8] A2_COEFF_HDR1_TX1 AFh A4_COEFF_HDR1_TX1[7:0] A2_COEFF_HDR0_TX2 B0h A4_COEFF_HDR0_TX2[15:8] A2_COEFF_HDR1_TX2 B1h A4_COEFF_HDR0_TX2[7:0] 0 B4h B5h 38 0 0 0 0 0 0 0 D0 A3_COEFF_HDR1_TX0 0 0 0 A4_COEFF_HDR1_TX2 AMB_PHASE_CORR_PWL_COEFF3 0 D1 CAPTURE_CLK_CNT A3h 0 D2 NUM_SUB_FRAMES 0 A2h B2h D3 0 AMB_PHASE_CORR_PWL_COEFF2 0 0 0 0 0 0 0 0 Submit Documentation Feedback AMB_PHASE_CORR_PWL_COEFF1 0 0 0 0 0 0 0 SCALE_AMB_PHASE_CO RR_COEFF Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 29. Default Register Map (continued) ADDRE SS (Hex) B8h B9h D23 0 D22 0 D21 D20 0 GIVE_ DEALIA S_DAT A ILLUM_SCALE_H_TX2 D19 D18 ILLUM_SCALE_L_TX2 D17 D16 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 AMB_PHASE_CORR_PWL_X0 AMB_PHASE_CORR_PWL_X1 AMB_ADC_IN_T X2 AMB_ADC_IN_T X1 AMB_ADC_IN_T X0 EN_TX 2_ON_ TX0 EN_TX 1_ON_ TX0 AMB_PHASE_CORR_PWL_X2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 39 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5.1.1 Register Descriptions Table 30. Access Type Codes Access Type Code Description R Read W Write Read Type R Write Type W Reset or Default Value -n Value after reset or the default value 7.5.1.1.1 Register 0h (Address = 0h) [reset = 0h] Figure 29. Register 0h 23 22 MONOSHOT_B FORCE_EN_S IT LAVE R/W - 0h R/W - 0h 15 14 7 0 R/W - 0h 21 20 FORCE_EN_B YPASS R/W - 0h 13 6 I2C_CONT_R W R/W - 0h 5 19 18 17 16 R/W - 0h 10 9 8 0 2 1 0 SOFTWARE_R ESET R/W - 0h RESERVED 12 11 RESERVED R/W - 0h 4 3 RESERVED R/W - 0h Table 31. Register 00 Field Descriptions Bit Field Type Reset 23 MONOSHOT_BIT R/W 0h Monoshot trigger register. Write a 1 to this bit to start sample capture in monoshot mode. This bit is auto cleared after the sample capture completion. 22 FORCE_EN_SLAVE R/W 0h Setting this bit to 1 enables I2C slave register access from the device I2C host for any address. Set this bit to 1 when the SDA_M and SCL_M pins are left floating. 21 FORCE_EN_BYPASS R/W 0h Setting this bit to 1 disables the device I2C host and shorts the I2C host bus and I2C slave bus. RESERVED R/W 0h Always read or write 0h. I2C_CONT_RW R/W 0h Enable continuous read/write of the device I2C slave registers. RESERVED R/W 0h Always read or write 0h. SOFTWARE_RESET R/W 0h Generates a device reset on writing this bit and resets all the register settings to default values, including this bit. 20:7 6 5:1 0 Description 7.5.1.1.2 Register 1h (Address = 1h) [reset = 120140h] Figure 30. Register 1h 23 RESERVED 22 0 R/W - 0h 15 R/W - 0h 14 21 20 I2C_RW R/W - 1h 13 12 RESERVED 19 I2C_EN R/W - 0h 11 R/W - 0h 40 Submit Documentation Feedback 18 I2C_TRIG_RE G R/W - 0h 10 17 FRAME_VD_T RIG R/W - 1h 9 16 RESERVED R/W - 0h 8 ADDR_SLAVE _EEPROM R/W - 1h Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7 6 5 4 ADDR_SLAVE_EEPROM 3 2 1 SWAP_READ_ DATA R/W - 0h R/W - 10h 0 RESERVED R/W - 0h Table 32. Register 01 Field Descriptions Bit Field Type Reset 23 RESERVED R/W 0h Description Always read or write 0h. 21:20 I2C_RW R/W 1h Chooses R/W for I2C host operation. 0: Write | 1: Read LSB: first transaction, MSB: second transaction 19 I2C_EN R/W 0h Enables the I2C host. 18 I2C_TRIG_REG R/W 0h The trigger register for I2C transactions 17 FRAME_VD_TRIG R/W 1h When this bit is 1, the I2C host is triggered on every sample start. Else it is triggered based on the setting of I2C_TRIG_REG. 16:9 RESERVED R/W 0h Always read or write 0h. 8:2 ADDR_SLAVE_EEPROM R/W 50h External EEPROM I2C slave address. 1 SWAP_READ_DATA R/W 0h Setting this bit to 1 reverses the data read by I2C host from [7:0] to [0:7]. 0 RESERVED R/W 0h Always read or write 0h. 7.5.1.1.3 Register 2h (Address = 2h) [reset = 92A4C8h] Figure 31. Register 2h 23 22 TEMP_AVG_ILLUM R/W - 2h 15 14 TSENS_SLAVE2 R/W - 2h 7 6 TSENS_SLAVE 1 R/W - 1h 21 EN_TILLUM_R EAD R/W - 0h 13 20 5 4 19 18 TSENS_SLAVE2 R/W - 12h 11 10 TSENS_SLAVE1 R/W - 24h 3 2 TSENS_SLAVE0 12 17 16 9 8 1 0 R/W - 48h Table 33. Register 02 Field Descriptions Bit 23:22 Field Type Reset Description TEMP_AVG_ILLUM R/W 2h Average external temperature sensor reading. 0: No average | 1: 2-sample average | 2: 4-sample average | Other values: Not valid EN_TILLUM_READ R/W 0h Enable I2C read of appropriate external temperature sensor on I2C host bus. 0: Disable external temperature sensor read | 1: Enable external temperature sensor read 20:14 TSENS_SLAVE2 R/W 4Ah Slave address of the external temperature sensor in proximity to the TX2 channel 13:7 TSENS_SLAVE1 R/W 49h Slave address of the external temperature sensor in proximity to the TX1 channel 6:0 TSENS_SLAVE0 R/W 48h Slave address of the external temperature sensor in proximity to the TX0 channel 21 7.5.1.1.4 Register 3h (Address = 3h) [reset = 800000h] Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 41 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 32. Register 3h 23 22 TEMP_AVG_MAIN 21 20 19 18 11 10 17 I2C_NUM_TRA N R/W - 0h 9 2 1 RESERVED R/W - 2h 15 14 13 7 6 5 R/W - 0h 12 I2C_WRITE_DATA1 R/W - 0h 4 3 I2C_READ_DATA R - 0h 16 I2C_WRITE_D ATA1 R/W - 0h 8 INIT_LOAD_D ONE R - 0h 0 Table 34. Register 03 Field Descriptions Bit Field Type Reset 23:22 TEMP_AVG_MAIN R/W 0h Average on-chip temperature sensor reading. 0: No average | 1: 2-sample average | 2: 4-sample average | 3: Not valid 21:18 RESERVED R/W 0h Always read or write 0h. I2C_NUM_TRAN R/W 0h The number of I2C host transactions. 0: 1 transaction | 1: 2 transactions. 16:9 I2C_WRITE_DATA1 R/W 0h The external I2C slave device register address connected to the OPT3101 I2C host bus where the read would start. Normally in a temperature-sensor read this is not required to be programmed. 8 INIT_LOAD_DONE R 0h Can be used to check whether initial auto load from EEPROM is successful or not. 0: Auto load from EEPROM is incomplete | 1: Auto load from EEPROM is complete 7:0 I2C_READ_DATA R 0h The I2C host read data. 17 Description 7.5.1.1.5 Register 4h (Address = 4h) [reset = 17h] Figure 33. Register 4h 23 TILLUM_UNSI GNED R/W - 0h 15 22 14 21 RESERVED 20 19 18 17 16 TILLUM R/W - 0h 13 R - 0h 12 11 10 9 8 3 2 1 0 TILLUM R - 0h 7 6 5 4 RESERVED R/W - 17h Table 35. Register 04 Field Descriptions Bit Field Type Reset Description 23 TILLUM_UNSIGNED R/W 0h Set this bit to 1 when the temperature given by the external temperature sensor is in unsigned format. 22:20 RESERVED R/W 0h Always read or write 0h. 19:8 TILLUM R 0h The temperature value of the external temperature sensor. 7:0 RESERVED R/W 17h Always read or write 17h. 7.5.1.1.6 Register 5h (Address = 5h) [reset = 80000h] 42 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 34. Register 5h 23 22 I2C_NUM_BYTES_TRAN2 R/W-0h 15 14 7 21 20 R/W-0h 13 6 5 19 18 RESERVED R/W-0h R/W-1h R/W-0h 12 11 10 RESERVED R/W-0h 4 3 2 RESERVED R/W-0h 17 16 R/W-0h 9 R/W-0h 8 1 0 Table 36. Register 05 Field Descriptions Bit Field Type Reset Description 23:22 I2C_NUM_BYTES_TRAN2 R/W 0h Number of bytes used in transaction 2 of the I2C host transaction. 0: 1 byte | 1: 2 bytes | Other values: Not valid 21:16 RESERVED R/W 08h Always read or write 08h. 15:0 RESERVED R/W 0h Always read or write 0h. 7.5.1.1.7 Register 7h (Address = 7h) [reset = 0h] Figure 35. Register 7h 23 22 21 CONFIG_TILLUM_MSB R/W-0h 14 13 15 7 6 20 19 18 I2C_SEL_READ_BYTES R/W-0h 12 11 10 RESERVED R/W-0h 4 3 2 I2C_WRITE_DATA2 R/W-0h 5 17 16 I2C_NUM_BYTES_TRAN1 R/W-0h 9 8 1 0 Table 37. Register 07 Field Descriptions Bit Field Type Reset Description 23:20 CONFIG_TILLUM_MSB R/W 0h Configure the data read by the device I2C host from the external temperature sensor 8: I2C host read data[15:4], to support 12-bit external temperature sensor | Other values: Not valid. Along with this register also set the EN_TILLUM_12B regsiter to 1. 19:18 I2C_SEL_READ_BYTES R/W 0h Chooses which byte of the I2C_READ register to be read on the I2C_READ_DATA register 0: 7:0 | 1: 15:8 | 2: 23:16 | 3: 31:24 17:16 I2C_NUM_BYTES_TRAN1 R/W 0h Number of bytes used in the transaction 1 of I2C host transaction. 0: 1 byte | 1: 2 bytes 15:8 RESERVED R/W 0h Always read or write 0h. 7:0 I2C_WRITE_DATA2 R/W 0h Second byte of I2C write transaction. 8-bit register data to be written 7.5.1.1.8 Register 8h (Address = 8h) [reset = 0h] Figure 36. Register 8h 23 22 FRAME_COUN AMB_OVL_FLA T0 G R-0h R-0h 15 14 21 MOD_FREQ R-0h 13 20 FRAME_STAT US R-0h 12 19 18 TX_CHANNEL R-0h 11 10 17 HDR_MODE R-0h 9 16 PHASE_OVER _FLOW R-0h 8 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 43 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com PHASE_OUT R-0h 7 6 5 4 3 2 1 0 PHASE_OUT R-0h Table 38. Register 08 Field Descriptions Bit Field Type Reset 23 FRAME_COUNT0 R 0h Frame counter LSB bit. 22 AMB_OVL_FLAG R 0h Overload flag to indicate ambient saturation 0: No saturation | 1: Ambient saturation 21 MOD_FREQ R 0h Indicates the frequency used. 0: 10 MHz | 1: De-alias frequency (10 MHz × 6 / 7 or 10 MHz × 6 / 5) 20 FRAME_STATUS R 0h 0: Invalid frame | 1: Valid frame. Frame is invalid during the internal crosstalk calibration frame (INT_XTALK_CALIB = 1) or the illumination crosstalk calibration frame (ILLUM_XTALK_CALIB = 1). TX_CHANNEL R 0h Indicates which Illumination channel used. 0: TX0 | 1: TX1 | 2: TX2 | 3: Not valid 17 HDR_MODE R 0h Indicates the illumination driver DAC current used. 0: ILLUM_DAC_L | 1: ILLUM_DAC_H 16 PHASE_OVER_FLOW R 0h PHASE_OUT overflow bit during frequency correction 0: No overflow | 1: overflow PHASE_OUT R 0h Final calibrated phase. 19:18 15:0 Description 7.5.1.1.9 Register 9h (Address = 9h) [reset = 0h] Figure 37. Register 9h 23 22 21 20 19 PHASE_OVER _FLOW_F2 R-0h 12 11 AMP_OUT R-0h 4 3 AMP_OUT R-0h DEALIAS_BIN R-0h 15 14 13 7 6 5 18 SIG_OVL_FLA G R-0h 10 2 17 16 FRAME_COUNT1 R-0h 9 8 1 0 Table 39. Register 09 Field Descriptions Bit Type Reset DEALIAS_BIN R 0h Distance bin in de-alias mode. De-aliased distance = DEALIAS_BIN × 216 × FREQ_COUNT_READ_REG / 16384 + PHASE_OVER_FLOW × 216 + PHASE_OUT 19 PHASE_OVER_FLOW_F2 R 0h Phase overflow of second modulation frequency used for de-alias operation during frequency correction. 0: No overflow | 1: overflow 18 SIG_OVL_FLAG R 0h Overload flag to indicate signal saturation 0: No saturation | 1: Signal saturation 17:16 FRAME_COUNT1 R 0h Frame counter bits [2:1] 15:0 AMP_OUT R 0h Amplitude of the received signal. 23:20 Field Description 7.5.1.1.10 Register Ah (Address = Ah) [reset = 0h] 44 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 38. Register Ah 23 22 21 20 19 18 11 10 17 16 9 8 TMAIN R-0h 15 14 13 12 TMAIN R-0h 7 6 AMB_DATA R-0h 5 4 3 2 1 0 FRAME_COUNT2 R-0h AMB_DATA R-0h Table 40. Register 0A Field Descriptions Bit Field Type Reset Description 23:12 TMAIN R 0h On-chip temperature sensor output Temperature (°C) = TMAIN / 8 – 256 11:2 AMB_DATA R 0h Ambient ADC output. Indicates the ambient light. 1:0 FRAME_COUNT2 R 0h Frame counter MSB bits [4:3]. 7.5.1.1.11 Register Bh (Address = Bh) [reset = FC009h] Figure 39. Register Bh 23 22 21 20 19 18 11 10 17 16 AMB_CALIB R/W - 0Fh 15 14 13 12 AMB_CALIB R/W - 3h 7 GPO_SEL2 R/W - 0h 6 5 DIG_GPO_SEL1 R/W - 0h 4 3 9 0 R/W - 0h 2 1 DIG_GPO_SEL0 R/W - 9h 8 0 R/W - 0h 0 Table 41. Register 0B Field Descriptions Field Type Reset 23:14 Bit AMB_CALIB R/W 3Fh 13:10 DIG_GPO_SEL2 R/W 0h Mux selection bits for digital signal DIG_GPO_2 which can be brought out on GP3 (SDA_M) 0 R/W 0h Always read or write 0h. 0h Mux selection bits for digital signal DIG_GPO_1 which can be brought out on GP1 or GP2 0: FRAME VD | 1: SUB-VD | 4: SEQUENCER INTERRUPT 8: COMP_STATUS | 9: DATA_RDY | 10: FRAME_COUNTER_LSB | Other values: Not valid 9h Mux selection bits for digital signal DIG_GPO_0 which can be brought out on GP1 or GP2 0: FRAME VD | 1: SUB-VD | 4: SEQUENCER INTERRUPT 8: COMP_STATUS | 9: DATA_RDY | 10: FRAME_COUNTER_LSB | Other values: Not valid 9:8 7:4 3:0 DIG_GPO_SEL1 DIG_GPO_SEL0 R/W R/W Description The ambient ADC value at which device is calibrated for phase offset 7.5.1.1.12 Register Ch (Address = Ch) [reset = 0h] Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 45 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 40. Register Ch 23 22 21 15 14 13 7 6 5 20 19 AMB_PHASE_CORR_PWL_COEFF0 R/W - 0h 12 11 AMB_XTALK_QPHASE_COEFF R/W - 0h 4 3 AMB_XTALK_IPHASE_COEFF R/W - 0h 18 17 16 10 9 8 2 1 0 Table 42. Register 0C Field Descriptions Bit Field Type Reset 23:16 AMB_PHASE_CORR_PWL _COEFF0 Description R/W 0h Coefficient 0 for piecewise linear (PWL) phase correction with ambient. 15:8 AMB_XTALK_QPHASE_C OEFF R/W 0h Coefficient to correct for the crosstalk (quadrature component) change with ambient. 7:0 AMB_XTALK_IPHASE_CO EFF R/W 0h Coefficient to correct for the crosstalk (in-phase component) change with ambient. 7.5.1.1.13 Register Dh (Address = Dh) [reset = 6000h] Figure 41. Register Dh 23 EN_TILLUM_1 2B R/W - 0h 15 22 21 14 13 7 AMB_SAT_TH R R/W - 0h 6 5 20 19 18 17 10 9 16 AMB_SAT_TH R R/W - 0h 8 2 1 0 RESERVED R/W - 0h 12 11 AMB_SAT_THR R/W - 60h 4 3 RESERVED R/W - 0h Table 43. Register 0D Field Descriptions Bit Field Type Reset Description EN_TILLUM_12B R/W 0h Enables support for an external temperature sensor with more than 8-bit resolution on the I2C host bus. Preferred 12-bit temperature sensor: TMP102. 0: 8-bit temperature read | 1: 12-bit temperature read 22:17 RESERVED R/W 0h Always read or write 0h. 16:7 AMB_SAT_THR R/W C0h 6:0 RESERVED R/W 0h 23 Ambient threshold which is used to detect the ambient overload. AMB_DATA – AMB_CALIB is compared against this threshold value and AMB_OVL_FLAG is set to 1 if it exceeds the threshold. Always read or write 0h. 7.5.1.1.14 Register Fh (Address = Fh) [reset = 144C4Bh] Figure 42. Register Fh 23 EN_FREQ_CO RR R/W - 0h 15 46 22 EN_FLOOP R/W - 0h 14 21 EN_AUTO_FR EQ_COUNT R/W - 0h 13 20 19 18 SYS_CLK_DIVIDER 12 11 17 R/W - Ah Submit Documentation Feedback 10 9 16 START_FREQ _CALIB R/W - 0h 8 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 RESERVED R/W - 0h 7 6 REF_COUNT_LIMIT R/W - 4Ch 4 3 REF_COUNT_LIMIT R/W - 4Bh 5 2 1 0 Table 44. Register 0F Field Descriptions Bit Field Type Reset 23 EN_FREQ_CORR R/W 0h Enable frequency correction for the phase output. 0: Frequency correction disabled | 1: Frequency correction enabled 22 EN_FLOOP R/W 0h Enables the frequency calibration block. 0: Disable frequency calibration block | 1: Enable frequency calibration block 21 EN_AUTO_FREQ_COUNT R/W 0h Determines the value to be used for frequency correction. 0 – On-chip trimmed value | 1 – Measured value from frequency calibration SYS_CLK_DIVIDER R/W Ah Programs the system-clock divider for frequency calibration. This register should be adjusted to get it closer to the external reference frequency connected to GP2 pin. SYS_CLK_DIVIDER = round(log2(40 × 106 / fEXT)) 16 START_FREQ_CALIB R/W 0h Setting this bit to 1 starts the frequency calibration. 15 RESERVED R/W 0h Always read or write 0h. REF_COUNT_LIMIT R/W 4C4Bh 20:17 14:0 Description This sets the limit for ref-clock count. REF_COUNT_LIMIT = (40 × 106 / 2SYS_CLK_DIVIDER) / fEXT 7.5.1.1.15 Register 10h (Address = 10h) [reset = 4000h] Figure 43. Register 10h 23 22 21 15 EN_CONT_FC ALIB R/W - 0h 7 14 13 6 5 20 19 18 AMPLITUDE_MIN_THR[15:8] R/W - 0h 12 11 10 FREQ_COUNT_READ_REG R/W - 40h 4 3 FREQ_COUNT_READ_REG R/W - 0h 2 17 16 9 8 1 0 Table 45. Register 10 Field Descriptions Bit 23:16 15 14:0 Field Type Reset AMPLITUDE_MIN_THR[15: 8] R/W 0h MSB of minimum amplitude threshold below which phase is made FFFFh. EN_CONT_FCALIB R/W 0h Enables continuous frequency calibration. 0: Frequency is measured only when START_FREQ_CALIB = 1 | 1: Frequency is continuously measured. R 4000h FREQ_COUNT_READ_RE G Description Read register which holds the value of frequency correction when frequency calibration is enabled. This value is used for frequency correction when EN_AUTO_FREQ_COUNT = 1. 7.5.1.1.16 Register 11h (Address = 11h) [reset = 0h] Figure 44. Register 11h 23 22 21 15 14 13 20 19 AMPLITUDE_MIN_THR[7:0] R/W - 0h 12 11 18 17 16 10 9 8 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 47 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 DIS_OVL_GATI NG R/W - 0h 7 www.ti.com FREQ_COUNT_REG 6 R 4 3 FREQ_COUNT_REG R 5 2 1 0 Table 46. Register 11 Field Descriptions Bit 23:16 15 14:0 Field Type Reset AMPLITUDE_MIN_THR[7:0 ] R/W 0h LSB of minimum amplitude threshold below which phase is made FFFFh. DIS_OVL_GATING R/W 0h Disable gating of phase output when SIG_OVL_FLAG becomes 1. 0: PHASE_OUT is gated when SIG_OVL_FLAG = 1 | 1: PHASE_OUT is not gated FREQ_COUNT_REG Description Digital frequency correction trim value. This value will be used for frequency correction when EN_AUTO_FREQ_COUNT = 0. R 7.5.1.1.17 Register 13h (Address = 13h) [reset = 0h] Figure 45. Register 13h 23 22 15 14 7 6 21 RESERVED R/W - 0h 13 20 5 COMPARE_REG1 R/W - 0h 19 18 12 11 COMPARE_REG1 R/W - 0h 4 3 10 2 17 COMPARE_REG1 R/W - 0h 9 16 1 MUX_SEL_COMPIN R/W - 0h 0 8 Table 47. Register 13 Field Descriptions Field Type Reset 23:19 Bit RESERVED R/W 0h Description Always read or write 0h. 18:3 COMPARE_REG1 R/W 0h Sequencer comparison threshold1 register 2:0 MUX_SEL_COMPIN R/W 0h Chooses the value used for comparator input register of sequencer. 0: AMP_OUT | 1: DEALIAS_BIN | 2: De-alias distance | 3: PHASE_OUT | Other values: Not valid. 7.5.1.1.18 Register 14h (Address = 14h) [reset = 0h] Figure 46. Register 14h 23 22 21 RESERVED R/W - 0h 48 15 14 13 7 6 5 20 19 DIS_INTERRU PT R/W - 0h 12 11 COMPARE_REG2 R/W - 0h 4 3 COMPARE_REG2 R/W - 0h Submit Documentation Feedback 18 STATUS_IN_R EG R/W - 0h 10 17 EN_PROCESS OR_VALUES R/W - 0h 9 16 EN_SEQUENC ER R/W - 0h 8 2 1 0 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 48. Register 14 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0h. 19 DIS_INTERRUPT R/W 0h Disables the interrupt that triggers sequencer. 0: Sequencer interrupt enabled | 1: Sequencer interrupt disabled 18 STATUS_IN_REG R/W 0h This register is used to control the program flow in the sequencer 17 EN_PROCESSOR_VALUE S R/W 0h Uses STATUS_OUT values instead of register values. STAUTS_OUT register mapping is described in Table 20 16 EN_SEQUENCER R/W 0h Enable the sequencer. 0: Sequencer enabled | 1: Sequencer disabled 15:0 COMPARE_REG2 R/W 0h Sequencer second comparison threshold register 23:20 Description 7.5.1.1.19 Register 15h (Address = 15h) [reset = 101063h] Figure 47. Register 15h 23 22 21 20 19 18 11 10 17 16 9 8 1 0 17 16 9 8 1 0 COMMAND1 R/W - 10h 15 14 13 12 COMMAND1 R/W - 1h 7 6 COMMAND0 R/W - 0h 5 4 3 2 COMMAND0 R/W - 63h Table 49. Register 15 Field Descriptions Bit Field Type Reset Description 23:12 COMMAND1 R/W 101h Sequencer command 1. 11:0 COMMAND0 R/W 63h Sequencer command 0. 7.5.1.1.20 Register 16h (Address = 16h) [reset = 400100h] Figure 48. Register 16h 23 22 21 20 19 18 11 10 COMMAND3 R/W - 40h 15 14 13 12 COMMAND3 R/W - 0h 7 6 COMMAND2 R/W - 1h 5 4 3 2 COMMAND2 R/W - 00h Table 50. Register 16 Field Descriptions Field Type Reset Description 23:12 Bit COMMAND3 R/W 400h Sequencer command 3. 11:0 COMMAND2 R/W 100h Sequencer command 2. 7.5.1.1.21 Register 17h (Address = 17h) [reset = 0h] Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 49 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 49. Register 17h 23 22 21 20 19 18 11 10 17 16 9 8 1 0 17 16 9 8 1 0 17 16 9 8 1 0 COMMAND5 R/W - 0h 15 14 13 12 COMMAND5 R/W - 0h 7 6 COMMAND4 R/W - 0h 5 4 3 2 COMMAND4 R/W - 0h Table 51. Register 17 Field Descriptions Field Type Reset 23:12 Bit COMMAND5 R/W 0h Description Sequencer command 5. 11:0 COMMAND4 R/W 0h Sequencer command 4. 7.5.1.1.22 Register 18h (Address = 18h) [reset = 0h] Figure 50. Register 18h 23 22 21 20 19 18 11 10 COMMAND7 R/W - 0h 15 14 13 12 COMMAND7 R/W - 0h 7 6 COMMAND6 R/W - 0h 5 4 3 2 COMMAND6 R/W - 0h Table 52. Register 18 Field Descriptions Bit Field Type Reset Description 23:12 COMMAND7 R/W 0h Sequencer command 7. 11:0 COMMAND6 R/W 0h Sequencer command 6. 7.5.1.1.23 Register 19h (Address = 19h) [reset = 0h] Figure 51. Register 19h 23 22 21 20 19 18 11 10 COMMAND9 R/W - 0h 15 14 13 12 COMMAND9 R/W - 0h 7 6 COMMAND8 R/W - 0h 5 4 3 2 COMMAND8 R/W - 0h Table 53. Register 19 Field Descriptions Bit 50 Field Type Reset 23:12 COMMAND9 R/W 0h Description Sequencer command 9. 11:0 COMMAND8 R/W 0h Sequencer command 8. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7.5.1.1.24 Register 1Ah (Address = 1Ah) [reset = 0h] Figure 52. Register 1Ah 23 22 21 20 19 18 11 10 17 16 9 8 1 0 17 16 9 8 1 0 17 16 9 8 1 0 COMMAND11 R/W - 0h 15 14 13 12 COMMAND11 R/W - 0h 7 6 COMMAND10 R/W - 0h 5 4 3 2 COMMAND10 R/W - 0h Table 54. Register 1A Field Descriptions Field Type Reset 23:12 Bit COMMAND11 R/W 0h Description Sequencer command 11. 11:0 COMMAND10 R/W 0h Sequencer command 10. 7.5.1.1.25 Register 1Bh (Address = 1Bh) [reset = 0h] Figure 53. Register 1Bh 23 22 21 20 19 18 11 10 COMMAND13 R/W - 0h 15 14 13 12 COMMAND13 R/W - 0h 7 6 COMMAND12 R/W - 0h 5 4 3 2 COMMAND12 R/W - 0h Table 55. Register 1B Field Descriptions Bit Field Type Reset Description 23:12 COMMAND13 R/W 0h Sequencer command 13. 11:0 COMMAND12 R/W 0h Sequencer command 12. 7.5.1.1.26 Register 1Ch (Address = 1Ch) [reset = 0h] Figure 54. Register 1Ch 23 22 21 20 19 18 11 10 COMMAND15 R/W - 0h 15 14 13 12 COMMAND15 R/W - 0h 7 6 COMMAND14 R/W - 0h 5 4 3 2 COMMAND14 R/W - 0h Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 51 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 56. Register 1C Field Descriptions Field Type Reset 23:12 Bit COMMAND15 R/W 0h Description Sequencer command 15. 11:0 COMMAND14 R/W 0h Sequencer command 14. 7.5.1.1.27 Register 1Dh (Address = 1Dh) [reset = 0h] Figure 55. Register 1Dh 23 22 21 20 19 18 17 16 11 10 9 8 1 0 17 16 9 8 1 0 18 17 16 10 9 0 R/W - 0h 1 8 0 R/W - 0h 0 COMMAND17 R/W - 0h 15 14 13 12 COMMAND17 R/W - 0h 7 6 COMMAND16 R/W - 0h 5 4 3 2 COMMAND16 R/W - 0h Table 57. Register 1D Field Descriptions Bit Field Type Reset Description 23:12 COMMAND17 R/W 0h Sequencer command 17. 11:0 COMMAND16 R/W 0h Sequencer command 16. 7.5.1.1.28 Register 1Eh (Address = 1Eh) [reset = 0h] Figure 56. Register 1Eh 23 22 21 20 19 18 11 10 COMMAND19 R/W - 0h 15 14 13 12 COMMAND19 R/W - 0h 7 6 COMMAND18 R/W - 0h 5 4 3 2 COMMAND18 R/W - 0h Table 58. Register 1E Field Descriptions Field Type Reset 23:12 Bit COMMAND19 R/W 0h Description Sequencer command 19. 11:0 COMMAND18 R/W 0h Sequencer command 18. 7.5.1.1.29 Register 26h (Address = 26h) [reset = 4000Fh] Figure 57. Register 26h 52 23 22 15 14 7 6 21 20 19 POWERUP_DELAY R/W - 04h 13 12 11 POWERUP_DELAY R/W - 00h 5 4 3 Submit Documentation Feedback 2 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 0 R/W - 0h 0 R/W - 0h 0 R/W - 0h 0 R/W - 0h 1 R/W - 1h 1 R/W - 1h 1 R/W - 1h 1 R/W - 1h Table 59. Register 26 Field Descriptions Bit 23:10 9:0 Field Type Reset Description POWERUP_DELAY R/W 100h Register to program the delay from the monoshot trigger to start of frame (FRAME_VD). Delay = (64 × POWERUP_DELAY + 2) × tCLK, tCLK = 25 ns. RESERVED R/W Fh Always read or write Fh. 7.5.1.1.30 Register 27h (Address = 27h) [reset = 26AC18h] Figure 58. Register 27h 23 22 15 14 7 6 MONOSHOT_NUMFRAME 21 20 19 MONOSHOT_FZ_CLKCNT R/W - 26h 13 12 11 MONOSHOT_FZ_CLKCNT R/W - ACh 5 4 3 MONOSHOT_NUMFRAME R/W - 6h 18 17 16 10 9 8 2 1 0 MONOSHOT_MODE R/W - 0h Table 60. Register 27 Field Descriptions Bit Field Type Reset Description 23:8 MONOSHOT_FZ_CLKCNT R/W 26ACh The CLK count at which a monoshot operation freezes. 7:2 MONOSHOT_NUMFRAME R/W 6h The number of samples to be captured on every monoshot trigger event. 1:0 MONOSHOT_MODE R/W 0h Select monoshot mode. 0: Continuous mode | 3: Monoshot mode | Other values: Not valid 7.5.1.1.31 Register 29h (Address = 29h) [reset = 3F0FC3h] Figure 59. Register 29h 23 22 21 ILLUM_DAC_L_TX2[4:1] R/W - 3h 14 13 15 ILLUM_DAC_H _TX1 R/W - 0h 7 6 ILLUM_DAC_H_TX0 R/W - 6h 20 19 12 ILLUM_DAC_L_TX1 11 R/W - 03h 4 5 18 17 16 ILLUM_DAC_H_TX1 R/W - Fh 10 9 8 ILLUM_DAC_H_TX0 R/W - 3h 3 2 ILLUM_DAC_L_TX0 R/W - 03h 1 0 Table 61. Register 29 Field Descriptions Bit Field Type Reset Description 23:20 ILLUM_DAC_L_TX2[4:1] R/W 3h 19:15 ILLUM_DAC_H_TX1 R/W 1Eh Illumination driver current DAC register, ILLUM_DAC_H of TX1 channel 14:10 ILLUM_DAC_L_TX1 R/W 3h Illumination driver current DAC register, ILLUM_DAC_L of TX1 channel 9:5 ILLUM_DAC_H_TX0 R/W 1Eh Illumination driver current DAC register, ILLUM_DAC_H of TX0 channel 4:0 ILLUM_DAC_L_TX0 R/W 3h Illumination driver current DAC register, ILLUM_DAC_L of TX0 channel Illumination driver current DAC register, ILLUM_DAC_L[4:1] of TX2 channel Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 53 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5.1.1.32 Register 2Ah (Address = 2Ah) [reset = 784920h] Figure 60. Register 2Ah 23 ILLUM_DAC_L _TX2[0] R/W - 0h 15 EN_ADAPTIVE _HDR R/W - 0h 7 22 21 20 ILLUM_DAC_H_TX2 14 13 6 5 TX_SEQ_REG R/W - 1Eh 12 19 18 11 TX_SEQ_REG 10 R/W - 49h 3 4 17 RESERVED R/W - 0h 9 2 1 SEL_TX_CH R/W - 04h 16 SEL_HDR_MO DE R/W - 0h 8 R/W - 0h 0 EN_TX_SWITC H R/W - 0h Table 62. Register 2A Field Descriptions Bit Field Type 23 ILLUM_DAC_L_TX2[0] R/W 1h ILLUM_DAC_H_TX2 R/W 1Eh 17 RESERVED R/W 0h Always read or write 0h. 16 SEL_HDR_MODE R/W 0h Selects which current to use when EN_ADAPTIVE_HDR = 0 0: ILLUM_DAC_L | 1: ILLUM_DAC_H 15 EN_ADAPTIVE_HDR R/W 0h Enable adaptive HDR to switch between two illumination driver currents (ILLUM_DAC_L and ILLUM_DAC_H) depending on the amplitude of the received signal. 0: Disable adaptive HDR | 1: Enable adaptive HDR 14:3 TX_SEQ_REG R/W 924h Switching sequence of illumination channels. Up to a sequence of 6 channel configurations. For example, for register value: 2-1-0-2-1-0, the illumination channel sequence is 0-1-2-0-1-2 2:1 SEL_TX_CH R/W 0h Selects the illumination channel when channel switching is disabled. 0: TX0 | 1: TX1 | 2: TX2 | 3: Not valid 0h Enable switching of illumination channels. 0: TX channel switching is disabled and the TX channel is determined by SEL_TX_CH 1: TX channel switching is enabled. The TX channel switching is programmed with TX_SEQ_REG. 22:18 0 EN_TX_SWITCH R/W Reset Description Illumination driver current DAC register, ILLUM_DAC_L[0] of TX2 channel Illumination driver current DAC register, ILLUM_DAC_H of TX2 channel 7.5.1.1.33 Register 2Bh (Address = 2Bh) [reset = 6000h] Figure 61. Register 2Bh 23 22 21 15 14 13 7 6 5 RESERVED R/W - 0h 54 20 19 ILLUM_SCALE_H_TX0 R/W - 0h 12 11 HDR_THR_HIGH R/W - 60h 4 3 HDR_THR_HIGH R/W - 00h Submit Documentation Feedback 18 16 10 17 ILLUM_SCALE_L_TX0 R/W - 0h 9 2 1 0 8 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 63. Register 2B Field Descriptions Field Type Reset 23:22 Bit RESERVED R/W 0h Description Always read or write 0h. 21:19 ILLUM_SCALE_H_TX0 R/W 0h Illumination driver current scale register of TX0 channel with DAC_H current. 0: 5.6 mA | 1: 4.2mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 18:16 ILLUM_SCALE_L_TX0 R/W 0h Illumination driver current scale register of TX0 channel with DAC_L current. 0: 5.6 mA | 1: 4.2mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 15:0 HDR_THR_HIGH R/W 6000h High threshold for the HDR switching. Amplitude is compared against this threshold when the illumination driver current is high (ILLUM_DAC_H) and it switches to ILLUM_DAC_L if the amplitude exceeds this threshold value. 7.5.1.1.34 Register 2Ch (Address = 2Ch) [reset = 800h] Figure 62. Register 2Ch 23 22 21 RESERVED R/W - 0h 15 14 13 7 6 5 20 19 ILLUM_SCALE_H_TX1 R/W - 0h 12 11 HDR_THR_LOW R/W - 08h 4 3 HDR_THR_LOW R/W - 0h 18 17 16 10 ILLUM_SCALE_L_TX1 R/W - 0h 9 8 2 1 0 Table 64. Register 2C Field Descriptions Bit Field Type Reset 23:22 RESERVED R/W 0h Always read or write 0h. 21:19 ILLUM_SCALE_H_TX0 R/W 0h Illumination driver current scale register of TX1 channel with DAC_H current. 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 18:16 ILLUM_SCALE_L_TX0 R/W 0h Illumination driver current scale register of TX1 channel with DAC_L current. 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 800h Low threshold for the HDR switching. Amplitude is compared against this threshold when the Illumination driver current is low (ILLUM_DAC_L) and it switches to ILLUM_DAC_H if the amplitude is lower than this threshold value. 15:0 HDR_THR_LOW R/W Description 7.5.1.1.35 Register 2Dh (Address = 2Dh) [reset = 0h] Figure 63. Register 2Dh 23 15 7 22 21 14 13 TEMP_COEFF_MAIN_HDR0_TX1 R/W - 0h 6 5 20 19 TEMP_COEFF_MAIN_HDR0_TX1 R/W - 0h 12 11 4 3 TEMP_COEFF_MAIN_HDR1_TX0 R/W - 0h 18 17 10 9 TEMP_COEFF_MAIN_HDR1_TX0 R/W - 0h 2 1 16 8 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 55 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 65. Register 2D Field Descriptions Bit Field Type Reset 23:12 TEMP_COEFF_MAIN_HD R0_TX1 Description R/W 0h Phase temperature coefficient for sensor temperature for TX1 illumination channel with current of ILLUM_DAC_L_TX1 11:0 TEMP_COEFF_MAIN_HD R1_TX0 R/W 0h Phase temperature coefficient for sensor temperature for TX0 illumination channel with current of ILLUM_DAC_H_TX0 7.5.1.1.36 Register 2Eh (Address = 2Eh) [reset = 8001A0h] Figure 64. Register 2Eh 23 22 21 XTALK_FILT_TIME_CONST R/W - 8h 15 14 INT_XTALK_REG_SCALE 13 0 R/W - 0h R/W - 0h 7 6 5 USE_XTALK_F USE_XTALK_R USE_XTALK_F ILT_ILLUM EG_INT ILT_INT R/W - 1h R/W - 0h R/W - 1h 20 19 12 ILLUM_XTALK _CALIB R/W - 0h 4 INT_XTALK_C ALIB R/W - 0h 18 17 ILLUM_XTALK_REG_SCALE 16 INT_XTALK_R EG_SCALE R/W - 0h R/W - 0h 11 10 9 8 IQ_READ_DATA_SEL USE_XTALK_R EG_ILLUM R/W - 0h R/W - 1h 3 2 1 0 DIS_AUTO_SC FORCE_SCALE_VAL ALE R/W - 0h R/W - 0h Table 66. Register 2E Field Descriptions Bit Field Type Reset 23:20 XTALK_FILT_TIME_CONS T R/W 8h Time constant for crosstalk filtering. Time constant τ = 2XTALK_FILT_TIME_CONST frames. At least 5τ should be allowed for settling the crosstalk measurement. 19:17 ILLUM_XTALK_REG_SCA LE R/W 0h Scale factor for illumination crosstalk register (IPHASE_XTALK_REG_HDR_TX, QPHASE_XTALK_REG_HDR_TX, i = 0, 1, j = 0, 1, 2). Scale = 2ILLUM_XTALK_REG_SCALE 16:14 INT_XTALK_REG_SCALE R/W 0h Scale factor for internal crosstalk register (IPHASE_XTALK_INT_REG, QPHASE_XTALK_INT_REG). Scale = 2INT_XTALK_REG_SCALE 0 R/W 0h Always read or write 0. 13 56 Description 12 ILLUM_XTALK_CALIB R/W 0h The device initializes the illumination crosstalk measurement upon setting this bit. This measurement should be done with the photodiode masked such that no modulated light is received. Use the following sequence: ILLUM_XTALK_CALIB = 1 Delay (at least 5 × 2XTALK_FILT_TIME_CONST frames) ILLUM_XTALK_CALIB = 0 11:9 IQ_READ_DATA_SEL R/W 0h Mux selection for IPHASE_XTALK, QPHASE_XTALK registers 0: Internal crosstalk | 1: Illumination crosstalk | 2: Raw I, Q | 3: 16-bit frame counter | Other values: Not valid 8 USE_XTALK_REG_ILLUM R/W 1h Select register value or internally calibrated value for illumination crosstalk 0: Calibration value | 1: Register value 7 USE_XTALK_FILT_ILLUM R/W 1h Select filter or direct sampling for Illumination crosstalk measurement. 0: Direct sampling | 1: Filter 6 USE_XTALK_REG_INT R/W 0h Select register value or internally calibrated value for internal crosstalk 0: Calibration value | 1: Register value 5 USE_XTALK_FILT_INT R/W 1h Select filter or direct sampling for internal crosstalk measurement. 0: Direct sampling | 1: Filter Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 66. Register 2E Field Descriptions (continued) Bit Field Type Reset Description 4 INT_XTALK_CALIB R/W 0h The device initializes the internal electrical crosstalk measurement upon setting this bit. Use following sequence: INT_XTALK_CALIB = 1 Delay (at least 5 × 2XTALK_FILT_TIME_CONST frames) INT_XTALK_CALIB = 0 3 DIS_AUTO_SCALE R/W 0h Disable digital auto scale in the signal path. 0: Auto scale enabled | 1: Auto scale disabled. FORCE_SCALE_VAL R/W 0h Digital scaling uses this register scale value if DIS_AUTO_SCALE = 1. This scale value is also used during any crosstalk calibration even if DIS_AUTO_SCALE = 0. Scale = 2(6 – FORCE_SCALE_VAL) 2:0 7.5.1.1.37 Register 2Fh (Address = 2Fh) [reset = 0h] Figure 65. Register 2Fh 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_MAIN_HDR1_TX1[11:4] R/W - 0h 12 11 IPHASE_XTALK_REG_HDR0_TX0 R/W - 0h 4 3 IPHASE_XTALK_REG_HDR0_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 67. Register 2F Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_MAIN_HD R1_TX1[11:4] R/W 0h MSB of phase temperature coefficient for sensor temperature for TX1 illumination channel with current of ILLUM_DAC_H_TX1 15:0 IPHASE_XTALK_REG_HD R0_TX0 R/W 0h Register for illumination crosstalk in-phase component for TX0 channel with ILLUM_DAC_L_TX0 current 7.5.1.1.38 Register 30h (Address = 30h) [reset = 0h] Figure 66. Register 30h 23 15 7 22 21 20 19 TEMP_COEFF_MAIN_HDR1_TX1[3:0] R/W - 0h 14 13 12 11 QPHASE_XTALK_REG_HDR0_TX0 R/W - 0h 6 5 4 3 QPHASE_XTALK_REG_HDR0_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h Table 68. Register 30 Field Descriptions Bit Field Type Reset 23:20 TEMP_COEFF_MAIN_HD R1_TX1[3:0] Description R/W 0h LSB of phase temperature coefficient for sensor temperature for TX1 illumination channel with current of ILLUM_DAC_H_TX1 19:16 RESERVED R/W 0h Always read or write 0h. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 57 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 68. Register 30 Field Descriptions (continued) Bit Field Type Reset 15:0 QPHASE_XTALK_REG_H DR0_TX0 R/W 0h Description Quadrature component of the crosstalk for ILLUM_DAC_L of TX0 7.5.1.1.39 Register 31h (Address = 31h) [reset = 0h] Figure 67. Register 31h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_MAIN_HDR0_TX2[11:4] R/W - 0h 12 11 IPHASE_XTALK_REG_HDR1_TX0 R/W - 0h 4 3 IPHASE_XTALK_REG_HDR1_TX0 18 17 16 10 9 8 2 1 0 R/W - 0h Table 69. Register 31 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_MAIN_HD R0_TX2[11:4] Description R/W 0h MSB of phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_L_TX2 15:0 IPHASE_XTALK_REG_HD R1_TX0 R/W 0h In-phase component of the crosstalk for ILLUM_DAC_H of TX0 7.5.1.1.40 Register 32h (Address = 32h) [reset = 0h] Figure 68. Register 32h 23 15 7 22 21 20 19 TEMP_COEFF_MAIN_HDR0_TX2[3:0] R/W - 0h 14 13 12 11 QPHASE_XTALK_REG_HDR1_TX0 R/W - 0h 6 5 4 3 QPHASE_XTALK_REG_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h Table 70. Register 32 Field Descriptions Bit Field Type Reset 23:20 TEMP_COEFF_MAIN_HD R0_TX2[3:0] Description R/W 0h LSB of phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_L_TX2 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 QPHASE_XTALK_REG_H DR1_TX0 R/W 0h Register for illumination crosstalk quad phase component for TX0 channel with ILLUM_DAC_H_TX0 current 7.5.1.1.41 Register 33h (Address = 33h) [reset = 0h] 58 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 69. Register 33h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_MAIN_HDR1_TX2[11:4] R/W - 0h 12 11 IPHASE_XTALK_REG_HDR0_TX1 R/W - 0h 4 3 IPHASE_XTALK_REG_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 71. Register 33 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_MAIN_HD R1_TX2[11:4] Description R/W 0h MSB of phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_H_TX2 15:0 IPHASE_XTALK_REG_HD R0_TX1 R/W 0h Register for illumination crosstalk in-phase component for TX1 channel with ILLUM_DAC_L_TX1 current 7.5.1.1.42 Register 34h (Address = 34h) [reset = 0h] Figure 70. Register 34h 23 15 7 22 21 20 19 TEMP_COEFF_MAIN_HDR1_TX2[3:0] R/W - 0h 14 13 12 11 QPHASE_XTALK_REG_HDR0_TX1 R/W - 0h 6 5 4 3 QPHASE_XTALK_REG_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h Table 72. Register 34 Field Descriptions Bit Field Type Reset 23:20 TEMP_COEFF_MAIN_HD R1_TX2[3:0] Description R/W 0h LSB of phase temperature coefficient for sensor temperature for TX2 illumination channel with current of ILLUM_DAC_H_TX2 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 QPHASE_XTALK_REG_H DR0_TX1 R/W 0h Register for illumination crosstalk in quadrature-phase component for TX1 channel with ILLUM_DAC_L_TX1 current 7.5.1.1.43 Register 35h (Address = 35h) [reset = 0h] Figure 71. Register 35h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 IPHASE_XTALK_REG_HDR1_TX1 R/W - 0h 4 3 IPHASE_XTALK_REG_HDR1_TX1 R/W - 0h Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 59 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 73. Register 35 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 IPHASE_XTALK_REG_HD R1_TX1 R/W 0h Register for illumination crosstalk in-phase component for TX1 channel with ILLUM_DAC_H_TX1 current 7.5.1.1.44 Register 36h (Address = 36h) [reset = 0h] Figure 72. Register 36h 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX0 R/W - 0h 13 12 11 10 QPHASE_XTALK_REG_HDR1_TX1 R/W - 0h 5 4 3 2 QPHASE_XTALK_REG_HDR1_TX1 R/W - 0h 17 16 9 8 1 0 Table 74. Register 36 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR0_TX0 Description R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX0 channel with ILLUM_DAC_L_TX0 current. 15:0 QPHASE_XTALK_REG_H DR1_TX1 R/W 0h Register for illumination crosstalk quadrature-phase component for TX1 channel with ILLUM_DAC_H_TX1 current 7.5.1.1.45 Register 37h (Address = 37h) [reset = 0h] Figure 73. Register 37h 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX0 R/W - 0h 13 12 11 10 IPHASE_XTALK_REG_HDR0_TX2 R/W - 0h 5 4 3 2 IPHASE_XTALK_REG_HDR0_TX2 R/W - 0h 17 16 9 8 1 0 Table 75. Register 37 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR0_TX0 Description R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX0 channel with ILLUM_DAC_L_TX0 current. 15:0 IPHASE_XTALK_REG_HD R0_TX2 R/W 0h Register for illumination crosstalk in-phase component for TX2 channel with ILLUM_DAC_L_TX2 current 7.5.1.1.46 Register 38h (Address = 38h) [reset = 0h] 60 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 74. Register 38h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_XTALK_IPHASE_HDR0_TX0 R/W - 0h 12 11 QPHASE_XTALK_REG_HDR0_TX2 R/W - 0h 4 3 QPHASE_XTALK_REG_HDR0_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 76. Register 38 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_XTALK_IP HASE_HDR0_TX0 Description R/W 0h Temperature coefficient of crosstalk in-phase component with TMAIN for TX0 channel with ILLUM_DAC_L_TX0 current 15:0 QPHASE_XTALK_REG_H DR0_TX2 R/W 0h Register for illumination crosstalk quadrature-phase component for TX2 channel with ILLUM_DAC_L_TX2 current 7.5.1.1.47 Register 39h (Address = 39h) [reset = 0h] Figure 75. Register 39h 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_XTALK_QPHASE_HDR0_TX0 R/W - 0h 13 12 11 10 IPHASE_XTALK_REG_HDR1_TX2 R/W - 0h 5 4 3 2 IPHASE_XTALK_REG_HDR1_TX2 R/W - 0h 17 16 9 8 1 0 Table 77. Register 39 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_XTALK_QP HASE_HDR0_TX0 Description R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX0 channel with ILLUM_DAC_L_TX0 current 15:0 IPHASE_XTALK_REG_HD R1_TX2 R/W 0h Register for illumination crosstalk in-phase component for TX2 channel with ILLUM_DAC_H_TX2 current 7.5.1.1.48 Register 3Ah (Address = 3Ah) [reset = 0h] Figure 76. Register 3Ah 23 RESERVED 22 21 20 SCALE_AMB_COEFF_XTALK R/W - 0h 15 14 R/W - 4h 13 7 6 5 19 18 17 SCALE_TEMP_COEFF_XTALK 12 11 QPHASE_XTALK_REG_HDR1_TX2 R/W - 0h 4 3 QPHASE_XTALK_REG_HDR1_TX2 R/W - 0h R/W - 5h 10 9 16 EN_TEMP_XT ALK_CORR R/W - 0h 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 61 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 78. Register 3A Field Descriptions Bit Field Type Reset 23 RESERVED R/W 0h Description Always read or write 0h. 22:20 SCALE_AMB_COEFF_XTA LK R/W 4h Scaling factor for ambient coefficient of crosstalk (AMB_XTALK_IPHASE_COEFF, AMB_XTALK_QPHASE_COEFF) 19:17 SCALE_TEMP_COEFF_XT ALK R/W 5h Scaling factor for temperature coefficient of crosstalk (TEMP_COEFF_XTALK_IPHASE_HDR_TX, TEMP_COEFF_XTALK_QPHASE_HDR_TX; i = 0, 1; j = 0, 1, 2). 16 EN_TEMP_XTALK_CORR R/W 0h Enable crosstalk correction with temperature. 15:0 QPHASE_XTALK_REG_H DR1_TX2 R/W 0h Register for illumination crosstalk quadrature-phase component for TX2 channel with ILLUM_DAC_H_TX2 current 7.5.1.1.49 Register 3Bh (Address = 3Bh) [reset = 0h] Figure 77. Register 3Bh 23 22 21 15 14 13 7 6 5 20 19 IPHASE_XTALK R - 0h 12 11 IPHASE_XTALK R - 0h 4 3 IPHASE_XTALK R - 0h 18 17 16 10 9 8 2 1 0 Table 79. Register 3B Field Descriptions Bit Field 23:0 IPHASE_XTALK Type Reset R 0h Description Read-only register. In-phase component. Different values can be selected to be read out with IQ_READ_DATA_SEL. 7.5.1.1.50 Register 3Ch (Address = 3Ch) [reset = 0h] Figure 78. Register 3Ch 23 22 21 15 14 13 7 6 5 20 19 QPHASE_XTALK R - 0h 12 11 QPHASE_XTALK R - 0h 4 3 QPHASE_XTALK R - 0h 18 17 16 10 9 8 2 1 0 Table 80. Register 3C Field Descriptions Bit Field 23:0 QPHASE_XTALK Type Reset R 0h Description Read-only register. Quadrature-phase component. Different values can be selected to be read out with IQ_READ_DATA_SEL. 7.5.1.1.51 Register 3Dh (Address = 3Dh) [reset = 0h] 62 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 79. Register 3Dh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R - 0h 15 14 13 7 6 5 12 11 IPHASE_XTALK_INT_REG R/W - 0h 4 3 IPHASE_XTALK_INT_REG R/W - 0h Table 81. Register 3D Field Descriptions Bit Field 23:16 RESERVED 15:0 IPHASE_XTALK_INT_REG Type Reset R 0h R/W 0h Description Register for in-phase component of internal crosstalk 7.5.1.1.52 Register 3Eh (Address = 3Eh) [reset = 0h] Figure 80. Register 3Eh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R - 0h 15 14 13 7 6 5 12 11 QPHASE_XTALK_INT_REG R/W - 0h 4 3 QPHASE_XTALK_INT_REG R/W - 0h Table 82. Register 3E Field Descriptions Bit Field 23:16 RESERVED 15:0 QPHASE_XTALK_INT_RE G Type Reset R 0h R/W 0h Description Register for quadrature-phase component of internal crosstalk 7.5.1.1.53 Register 3Fh (Address = 3Fh) [reset = 0h] Figure 81. Register 3Fh 23 22 15 21 14 13 TILLUM_CALIB_HDR0_TX2 R/W - 0h 6 5 7 20 19 TILLUM_CALIB_HDR0_TX2 R/W - 0h 12 11 4 3 TMAIN_CALIB_HDR0_TX2 R/W - 0h 18 17 10 9 TMAIN_CALIB_HDR0_TX2 R/W - 0h 2 1 16 8 0 Table 83. Register 3F Field Descriptions Bit 23:12 Field Type Reset TILLUM_CALIB_HDR0_TX 2 R/W 0h Description Calibration temperature of external temperature sensor (TILLUM) for TX2 illumination channel with current of ILLUM_DAC_L_TX2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 63 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 83. Register 3F Field Descriptions (continued) Bit Field Type Reset 11:0 TMAIN_CALIB_HDR0_TX2 R/W 0h Description Calibration temperature of on-chip temperature sensor (TMAIN) for TX2 illumination channel with current of ILLUM_DAC_L_TX2 7.5.1.1.54 Register 40h (Address = 40h) [reset = 2021E0h] Figure 82. Register 40h 23 RESERVED R/W - 0h 15 BETA0_DEALI AS_SCALE R/W - 0h 7 22 EN_MULTI_FR EQ_PHASE R/W - 0h 14 21 NCR_CONFIG 6 5 R/W - 1h 13 20 19 18 BETA0_DEALIAS_SCALE 12 11 ALPHA0_DEALIAS_SCALE 17 16 R/W - 0h 10 9 8 RESERVED 2 1 R/W - 10h 4 3 RESERVED R/W - 1h 0 EN_DEALIAS_ MEAS R/W - 0h R/W - 70h Table 84. Register 40 Field Descriptions Bit Field Type Reset 23 RESERVED R/W 0h Description Always read or write 0h. 22 EN_MULTI_FREQ_PHASE R/W 0h With this bit set to 1, along with EN_DEALIAS_MEAS = 1, the PHASE_OUT register gives the phase measurement with two frequencies. The frequency of the phase is indicated in MOD_FREQ status bit. 0: 10-MHz modulation | 1: 10-MHz and 10 × (6 / 7)-MHz or 10 × (6 / 5)-MHz modulation. 21 NCR_CONFIG R/W 1h Select second frequency for de-alias operation. 0: 10 × (6 / 7) MHz | 1: 10 × (6 / 5) MHz. 20:15 BETA0_DEALIAS_SCALE R/W 0h Internal crosstalk scaling for de-alias frequency. β = BETA0_DEALIAS_SCALE / 16. 14:9 ALPHA0_DEALIAS_SCALE R/W 10h Internal crosstalk scaling for de-alias frequency. α = ALPHA0_DEALIAS_SCALE / 16. 8:1 RESERVED R/W F0h Always read or write F0h. EN_DEALIAS_MEAS R/W 0h 0 Enables de-alias measurement. 0: Default operating mode | 1: De-alias operating mode 7.5.1.1.55 Register 41h (Address = 41h) [reset = 10h] Figure 83. Register 41h 23 22 15 21 14 13 TMAIN_CALIB_HDR1_TX1 R/W - 0h 7 6 5 BETA1_DEALIAS_SCALE R/W - 0h 64 20 19 TMAIN_CALIB_HDR1_TX1 R/W - 0h 12 11 4 18 17 10 9 BETA1_DEALIAS_SCALE R/W - 0h 3 2 1 ALPHA1_DEALIAS_SCALE R/W - 10h Submit Documentation Feedback 16 8 0 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 85. Register 41 Field Descriptions Bit Field Type Reset Description 23:12 TMAIN_CALIB_HDR1_TX1 R/W 0h Calibration temperature of on-chip temperature sensor (TMAIN) for TX1 illumination channel with current of ILLUM_DAC_H_TX1 11:6 BETA1_DEALIAS_SCALE R/W 0h Illumination crosstalk scaling for de-alias frequency. β = BETA1_DEALIAS_SCALE / 16 5:0 ALPHA1_DEALIAS_SCALE R/W 10h Illumination crosstalk scaling for de-alias frequency. α = ALPHA1_DEALIAS_SCALE / 16 7.5.1.1.56 Register 42h (Address = 42h) [reset = 0h] Figure 84. Register 42h 23 22 21 20 19 18 17 16 11 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 7 6 13 12 PHASE_OFFSET_HDR0_TX0 R/W - 0h 4 3 PHASE_OFFSET_HDR0_TX0 R/W - 0h 5 Table 86. Register 42 Field Descriptions Bit Field Type Reset Description 23:16 RESERVED R/W 0h Always read or write 0h. 15:0 PHASE_OFFSET_HDR0_T X0 R/W 0h Phase offset for TX0 illumination channel with current of ILLUM_DAC_L_TX0 7.5.1.1.57 Register 43h (Address = 43h) [reset = 81h] Figure 85. Register 43h 23 15 22 21 14 13 TILLUM_CALIB_HDR1_TX1 R/W - 0h 7 6 SCALE_PHASE_TEMP_COEFF 20 19 TILLUM_CALIB_HDR1_TX1 R/W - 0h 12 11 0 5 4 R/W - 2h R/W - 0h 3 RESERVED 18 17 10 0 9 0 R/W - 0h 2 R/W - 0h 1 EN_TEMP_CO RR R/W - 0h R/W - 0h 16 8 SCALE_PHAS E_TEMP_COE FF R/W - 0h 0 EN_PHASE_C ORR R/W - 1h Table 87. Register 43 Field Descriptions Bit Field Type Reset 23:12 TILLUM_CALIB_HDR1_TX 1 R/W 0h Calibration temperature of external temperature sensor (TILLUM) for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 8:6 SCALE_PHASE_TEMP_C OEFF R/W 2h Scaling factor for phase temperature coefficient. 5:2 RESERVED R/W 0h Always read or write 0h. EN_TEMP_CORR R/W 0h Enables temperature correction for phase. 0: Phase temperature correction disabled | 0: Phase temperature correction enabled 1 Description Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 65 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 87. Register 43 Field Descriptions (continued) Bit 0 Field Type Reset EN_PHASE_CORR R/W 1h Description Enables phase offset correction. 0: Phase offset correction disabled | 0: Phase offset correction enabled 7.5.1.1.58 Register 44h (Address = 44h) [reset = 0h] Figure 86. Register 44h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 PHASE2_OFFSET_HDR0_TX0 R/W - 0h 4 3 PHASE2_OFFSET_HDR0_TX0 R/W - 0h Table 88. Register 44 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 PHASE2_OFFSET_HDR0_ TX0 R/W 0h De-alias frequency phase offset for TX0 illumination channel with current of ILLUM_DAC_L_TX0. 7.5.1.1.59 Register 45h (Address = 45h) [reset = 0h] Figure 87. Register 45h 23 22 15 21 14 13 TMAIN_CALIB_HDR1_TX2 R/W - 0h 6 5 7 20 19 TMAIN_CALIB_HDR1_TX2 R/W - 0h 12 11 4 3 18 17 10 9 TEMP_COEFF_MAIN_HDR0_TX0 R/W - 0h 2 1 16 8 0 TEMP_COEFF_MAIN_HDR0_TX0 R/W - 0h Table 89. Register 45 Field Descriptions Bit Field Type Reset Description 23:12 TMAIN_CALIB_HDR1_TX2 R/W 0h Calibration temperature of on-chip temperature sensor (TMAIN) for TX2 illumination channel with current of ILLUM_DAC_H_TX2 11:0 TEMP_COEFF_MAIN_HD R0_TX0 R/W 0h Phase temperature coefficient of TX0 illumination channel with on-chip temperature sensor (TMAIN) for a current of ILLUM_DAC_L_TX0 7.5.1.1.60 Register 46h (Address = 46h) [reset = 0h] Figure 88. Register 46h 23 15 66 22 21 14 13 TILLUM_CALIB_HDR1_TX2 20 19 TILLUM_CALIB_HDR1_TX2 R/W - 0h 12 11 Submit Documentation Feedback 18 17 10 9 TEMP_COEFF_ILLUM_HDR0_TX0 16 8 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 R/W - 0h 7 6 R/W - 0h 5 4 3 TEMP_COEFF_ILLUM_HDR0_TX0 R/W - 0h 2 1 0 Table 90. Register 46 Field Descriptions Bit Field Type Reset 23:12 TILLUM_CALIB_HDR1_TX 2 Description R/W 0h Calibration temperature of external temperature sensor (TILLUM) for TX2 illumination channel with current of ILLUM_DAC_H_TX2 11:0 TEMP_COEFF_ILLUM_HD R0_TX0 R/W 0h Phase temperature coefficient of illumination source connected to TX0 pin with external temperature sensor (TILLUM) for a current of ILLUM_DAC_L_TX0. 7.5.1.1.61 Register 47h (Address = 47h) [reset = 800800h] Figure 89. Register 47h 23 22 15 21 14 13 TILLUM_CALIB_HDR0_TX0 R/W - 0h 6 5 7 20 19 TILLUM_CALIB_HDR0_TX0 R/W - 80h 12 11 4 3 TMAIN_CALIB_HDR0_TX0 R/W - 0h 18 17 10 9 TMAIN_CALIB_HDR0_TX0 R/W - 8h 2 1 16 8 0 Table 91. Register 47 Field Descriptions Bit Field Type Reset Description 23:12 TILLUM_CALIB_HDR0_TX 0 R/W 800h Calibration temperature of external temperature sensor (TILLUM) for TX0 illumination channel with current of ILLUM_DAC_L_TX0 11:0 TMAIN_CALIB_HDR0_TX0 R/W 800h Calibration temperature of on-chip temperature sensor (TMAIN) for TX0 illumination channel with current of ILLUM_DAC_L_TX0 7.5.1.1.62 Register 48h (Address = 48h) [reset = 0h] Figure 90. Register 48h 23 22 15 21 14 13 TILLUM_CALIB_HDR1_TX0 R/W - 0h 6 5 7 20 19 TILLUM_CALIB_HDR1_TX0 R/W - 0h 12 11 4 3 TMAIN_CALIB_HDR1_TX0 R/W - 0h 18 17 10 9 TMAIN_CALIB_HDR1_TX0 R/W - 0h 2 1 16 8 0 Table 92. Register 48 Field Descriptions Bit Field Type Reset 23:12 TILLUM_CALIB_HDR1_TX 0 Description R/W 0h Calibration temperature of external temperature sensor (TILLUM) for TX0 illumination channel with current of ILLUM_DAC_H_TX0 11:0 TMAIN_CALIB_HDR1_TX0 R/W 0h Calibration temperature of on-chip temperature sensor (TMAIN) for TX0 illumination channel with current of ILLUM_DAC_H_TX0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 67 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5.1.1.63 Register 49h (Address = 49h) [reset = 0h] Figure 91. Register 49h 23 22 15 21 14 13 TILLUM_CALIB_HDR0_TX1 R/W - 0h 6 5 7 20 19 TILLUM_CALIB_HDR0_TX1 R/W - 0h 12 11 4 3 TMAIN_CALIB_HDR0_TX1 R/W - 0h 18 17 10 9 TMAIN_CALIB_HDR0_TX1 R/W - 0h 2 1 16 8 0 Table 93. Register 49 Field Descriptions Bit Field Type Reset 23:12 TILLUM_CALIB_HDR0_TX 1 Description R/W 0h Calibration temperature of external temperature sensor (TILLUM) for TX1 illumination channel with current of ILLUM_DAC_L_TX1 11:0 TMAIN_CALIB_HDR0_TX1 R/W 0h Calibration temperature of on-chip temperature sensor (TMAIN) for TX0 illumination channel with current of ILLUM_DAC_L_TX1 7.5.1.1.64 Register 4Ah (Address = 4Ah) [reset = 0h] Figure 92. Register 4Ah 23 22 21 20 19 18 SCALE_NL_CORR_COEFF R/W - 0h 13 12 11 10 A0_COEFF_HDR0_TX0 R/W - 0h 5 4 3 2 A0_COEFF_HDR0_TX0 R/W - 0h RESERVED R/W - 0h 15 14 7 6 17 16 A0_COEFF_HDR0_TX0 R/W - 0h 9 8 1 RESERVED R/W - 0h 0 EN_NL_CORR R/W - 0h Table 94. Register 4A Field Descriptions Field Type Reset 23:20 Bit RESERVED R/W 0h Description Always read or write 0h. 19:18 SCALE_NL_CORR_COEF F R/W 0h Scaling factor for nonlinearity correction coefficients (A*_COEFF_HDR_TX, i = 0,1; j = 0, 1, 2) 17:2 A0_COEFF_HDR0_TX0 R/W 0h 0th order coefficient for square wave nonlinearity correction 1 RESERVED R/W 0h Always read or write 0h. 0 EN_NL_CORR R/W 0h Enables square wave harmonic nonlinearity correction 7.5.1.1.65 Register 4Bh (Address = 4Bh) [reset = 407h] Figure 93. Register 4Bh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R - 0h 68 15 14 13 7 6 5 12 11 A1_COEFF_HDR0_TX0 R/W - 04h 4 3 A1_COEFF_HDR0_TX0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 R/W - 07h Table 95. Register 4B Field Descriptions Bit Field 23:16 RESERVED 15:0 A1_COEFF_HDR0_TX0 Type Reset R 0h R/W 407h Description Always read or write 0h. First-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_L_TX0. 7.5.1.1.66 Register 4Ch (Address = 4Ch) [reset = F23Eh] Figure 94. Register 4Ch 23 22 21 20 R/W - 0h 15 R/W - 0h 14 R/W - 0h 13 7 6 5 19 RESERVED 0 R - 0h R/W - 0h R/W - 0h 12 11 A2_COEFF_HDR0_TX0 R/W - F2h 4 3 A2_COEFF_HDR0_TX0 R/W - 3Eh 18 17 16 R/W - 0h 10 R/W - 0h 9 R/W - 0h 8 2 1 0 Table 96. Register 4C Field Descriptions Bit Field 23:16 RESERVED 15:0 A2_COEFF_HDR0_TX0 Type Reset R 0h R/W F23Eh Description Always read or write 0h. Second-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_L_TX0. 7.5.1.1.67 Register 4Dh (Address = 4Dh) [reset = 1144h] Figure 95. Register 4Dh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R - 0h 15 14 13 7 6 5 12 11 A3_COEFF_HDR0_TX0 R/W - 11h 4 3 A3_COEFF_HDR0_TX0 R/W - 44h Table 97. Register 4D Field Descriptions Bit Field 23:16 RESERVED 15:0 A3_COEFF_HDR0_TX0 Type Reset R 0h R/W 1144h Description Third-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_L_TX0. 7.5.1.1.68 Register 4Eh (Address = 4Eh) [reset = F881h] Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 69 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 96. Register 4Eh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R - 0h 15 14 13 7 6 5 12 11 A4_COEFF_HDR0_TX0 R/W - F8h 4 3 A4_COEFF_HDR0_TX0 R/W - 81h Table 98. Register 4E Field Descriptions Bit Field 23:16 RESERVED 15:0 A4_COEFF_HDR0_TX0 Type Reset R 0h R/W F881h Description Fourth-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_L_TX0 7.5.1.1.69 Register 50h (Address = 50h) [reset = 200100h] Figure 97. Register 50h 23 0 21 1 20 0 R/W - 0h 15 0 R/W - 0h 7 0 22 OVERRIDE_CL KGEN_REG R/W - 0h 14 0 R/W - 0h 6 0 19 0 R/W - 1h 13 0 R/W - 0h 5 0 R/W - 0h 12 0 R/W - 0h 4 0 R/W - 0h R/W - 0h R/W - 0h R/W - 0h 18 0 17 0 16 0 R/W - 0h R/W - 0h R/W - 0h R/W - 0h 11 10 9 8 0 0 0 1 R/W - 0h R/W - 0h R/W - 0h R/W - 1h 3 2 1 0 CLIP_MODE_O CLIP_MODE_T CLIP_MODE_N CLIP_MODE_F FFSET EMP L C R/W - 0h R/W - 0h R/W - 0h R/W - 0h Table 99. Register 50 Field Descriptions Bit Field Type Reset 23 RESERVED R/W 0h Always read or write 0h. 22 OVERRIDE_CLKGEN_RE G R/W 0h Setting this register to 1 allows user to independently control DEALIAS_FREQ, DEALIAS_EN. RESERVED R/W 3 CLIP_MODE_OFFSET R/W 0h Chooses either clipping or wrap around when applying offset correction for phase. 0: Wrap around | 1: Clip 2 CLIP_MODE_TEMP R/W 0h Chooses either clipping or wrap around when applying temperature correction for phase. 0: Wrap around | 1: Clip 1 CLIP_MODE_NL R/W 0h Chooses either clipping or wrap around when applying nonlinearity correction for phase. 0: Wrap around | 1: Clip 0 CLIP_MODE_FC R/W 0h Chooses clipping or wrap around when applying freq-correction for phase. 0: Wrap around | 1: Clip 21:4 Description 2 0010h Always read or write 2 0010h. 7.5.1.1.70 Register 51h (Address = 51h) [reset = 0h] 70 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 98. Register 51h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_ILLUM_HDR1_TX0[11:4] R/W - 0h 12 11 PHASE_OFFSET_HDR1_TX0 R/W - 0h 4 3 PHASE_OFFSET_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 100. Register 51 Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_HD R1_TX0[11:4] R/W 0h Phase temperature coefficient of illumination source connected to TX0 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX0. 15:0 PHASE_OFFSET_HDR1_T X0 R/W 0h Phase offset for TX0 illumination channel with current of ILLUM_DAC_H_TX0 7.5.1.1.71 Register 52h (Address = 52h) [reset = 0h] Figure 99. Register 52h 23 15 22 21 TEMP_COEFF_ILLUM_HDR1_TX0[3:0] R/W - 0h 14 13 7 6 5 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 12 11 PHASE_OFFSET_HDR0_TX1 R/W - 0h 4 3 PHASE_OFFSET_HDR0_TX1 R/W - 0h Table 101. Register 52 Field Descriptions Bit Field Type Reset Description 23:20 TEMP_COEFF_ILLUM_HD R1_TX0[3:0] R/W 0h Phase temperature coefficient of illumination source connected to TX0 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX0. 15:0 PHASE_OFFSET_HDR0_T X1 R/W 0h Phase offset for TX1 illumination channel with current of ILLUM_DAC_L_TX1 7.5.1.1.72 Register 53h (Address = 53h) [reset = 0h] Figure 100. Register 53h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_ILLUM_HDR0_TX1[11:4] R/W - 0h 12 11 PHASE_OFFSET_HDR1_TX1 R/W - 0h 4 3 PHASE_OFFSET_HDR1_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 71 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 102. Register 53 Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_HD R0_TX1[11:4] R/W 0h Phase temperature coefficient of illumination source connected to TX1 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_L_TX1. 15:0 PHASE_OFFSET_HDR1_T X1 R/W 0h Phase offset for TX1 illumination channel with current of ILLUM_DAC_H_TX1 7.5.1.1.73 Register 54h (Address = 54h) [reset = 0h] Figure 101. Register 54h 23 15 22 21 TEMP_COEFF_ILLUM_HDR0_TX1[3:0] R/W - 0h 14 13 7 6 5 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 12 11 PHASE_OFFSET_HDR0_TX2 R/W - 0h 4 3 PHASE_OFFSET_HDR0_TX2 R/W - 0h Table 103. Register 54 Field Descriptions Bit Field Type Reset Description 23:20 TEMP_COEFF_ILLUM_HD R0_TX1[3:0] R/W 0h Phase temperature coefficient of illumination source connected to TX1 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_L_TX1. 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 PHASE_OFFSET_HDR0_T X2 R/W 0h Phase offset for TX2 illumination channel with current of ILLUM_DAC_L_TX2 7.5.1.1.74 Register 55h (Address = 55h) [reset = 0h] Figure 102. Register 55h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_ILLUM_HDR1_TX1[11:4] R/W - 0h 12 11 PHASE_OFFSET_HDR1_TX2 R/W - 0h 4 3 PHASE_OFFSET_HDR1_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 104. Register 55 Field Descriptions Bit 72 Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_HD R1_TX1[11:4] R/W 0h Phase temperature coefficient of illumination source connected to TX1 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX1. 15:0 PHASE_OFFSET_HDR1_T X2 R/W 0h Phase offset for TX2 illumination channel with current of ILLUM_DAC_H_TX2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7.5.1.1.75 Register 56h (Address = 56h) [reset = 0h] Figure 103. Register 56h 23 22 21 TEMP_COEFF_ILLUM_HDR1_TX1[3:0] 15 14 13 7 6 5 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 12 11 PHASE2_OFFSET_HDR1_TX0 R/W - 0h 4 3 PHASE2_OFFSET_HDR1_TX0 R/W - 0h Table 105. Register 56 Field Descriptions Bit Field Type Reset Description 23:20 TEMP_COEFF_ILLUM_HD R1_TX1[3:0] R/W 0h Phase temperature coefficient of illumination source connected to TX1 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX1. 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 PHASE2_OFFSET_HDR1_ TX0 R/W 0h De-alias frequency phase offset for TX0 illumination channel with current of ILLUM_DAC_H_TX0 7.5.1.1.76 Register 57h (Address = 57h) [reset = 0h] Figure 104. Register 57h 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_ILLUM_HDR0_TX2[11:4] R/W - 0h 12 11 PHASE2_OFFSET_HDR0_TX1 R/W - 0h 4 3 PHASE2_OFFSET_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 106. Register 57 Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_HD R0_TX2[11:4] R/W 0h Phase temperature coefficient of illumination source connected to TX2 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_L_TX2. 15:0 PHASE2_OFFSET_HDR0_ TX1 R/W 0h De-alias frequency phase offset for TX1 illumination channel with current of ILLUM_DAC_L_TX1 7.5.1.1.77 Register 58h (Address = 58h) [reset = 0h] Figure 105. Register 58h 23 22 21 TEMP_COEFF_ILLUM_HDR0_TX2[3:0] 15 14 13 7 6 5 20 19 12 11 PHASE2_OFFSET_HDR1_TX1 4 3 PHASE2_OFFSET_HDR1_TX1 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 73 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 107. Register 58 Field Descriptions Bit Field Type Reset Description 23:20 TEMP_COEFF_ILLUM_HD R0_TX2[3:0] R/W 0h Phase temperature coefficient of illumination source connected to TX2 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_L_TX2. 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 PHASE2_OFFSET_HDR1_ TX1 R/W 0h De-alias frequency phase offset for TX1 illumination channel with current of ILLUM_DAC_H_TX1 7.5.1.1.78 Register 59h (Address = 59h) [reset = 0h] Figure 106. Register 59h 23 22 21 15 14 13 7 6 20 19 TEMP_COEFF_ILLUM_HDR1_TX2[11:4] R/W - 0h 12 11 PHASE2_OFFSET_HDR0_TX2 R/W - 0h 4 3 PHASE2_OFFSET_HDR0_TX2 R/W - 0h 5 18 17 16 10 9 8 2 1 0 Table 108. Register 59 Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_HD R1_TX2[11:4] R/W 0h Phase temperature coefficient of illumination source connected to TX2 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX2. 15:0 PHASE2_OFFSET_HDR0_ TX2 R/W 0h De-alias frequency phase offset for TX2 illumination channel with current of ILLUM_DAC_L_TX2 7.5.1.1.79 Register 5Ah (Address = 5Ah) [reset = 0h] Figure 107. Register 5Ah 23 22 21 TEMP_COEFF_ILLUM_HDR1_TX2[3:0] 15 14 13 7 6 5 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 12 11 PHASE2_OFFSET_HDR1_TX2 R/W - 0h 4 3 PHASE2_OFFSET_HDR1_TX2 R/W - 0h Table 109. Register 5A Field Descriptions Bit 74 Field Type Reset Description 23:20 TEMP_COEFF_ILLUM_HD R1_TX2[3:0] R/W 0h Phase temperature coefficient of illumination source connected to TX2 pin with external temperature sensor (TILLUM) for current of ILLUM_DAC_H_TX2. 19:16 RESERVED R/W 0h Always read or write 0h. 15:0 PHASE2_OFFSET_HDR1_ TX2 R/W 0h De-alias frequency phase offset for TX2 illumination channel with current of ILLUM_DAC_H_TX2 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7.5.1.1.80 Register 5Bh (Address = 5Bh) [reset = 0h] Figure 108. Register 5Bh 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX1 R/W - 0h 13 12 11 10 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX1 R/W - 0h 5 4 3 2 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX0 R/W - 0h 17 16 9 8 1 0 Table 110. Register 5B Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR1_TX1 Description R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX1 channel with ILLUM_DAC_H_TX1 current. 15:8 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR0_TX1 R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX1 channel with ILLUM_DAC_L_TX1 current. 7:0 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR1_TX0 R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX0 channel with ILLUM_DAC_H_TX0 current. 7.5.1.1.81 Register 5Ch (Address = 5Ch) [reset = 0h] Figure 109. Register 5Ch 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX0 R/W - 0h 13 12 11 10 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR1_TX2 R/W - 0h 5 4 3 2 TEMP_COEFF_ILLUM_XTALK_IPHASE_HDR0_TX2 R/W - 0h 17 16 9 8 1 0 Table 111. Register 5C Field Descriptions Bit Field Type Reset Description 23:16 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR1_TX0 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX0 channel with ILLUM_DAC_H_TX0 current. 15:8 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR1_TX2 R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX2 channel with ILLUM_DAC_H_TX2 current. 7:0 TEMP_COEFF_ILLUM_XT ALK_IPHASE_HDR0_TX2 R/W 0h Temperature coefficient of crosstalk in-phase component with TILLUM for TX2 channel with ILLUM_DAC_H_TX2 current. 7.5.1.1.82 Register 5Dh (Address = 5Dh) [reset = 0h] Figure 110. Register 5Dh 23 22 15 14 21 20 19 18 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX2 R/W - 0h 13 12 11 10 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX1 R/W - 0h 17 16 9 8 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 75 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7 6 www.ti.com 5 4 3 2 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR0_TX1 R/W - 0h 1 0 Table 112. Register 5D Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR0_TX2 Description R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX2 channel with ILLUM_DAC_L_TX2 current. 15:8 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR1_TX1 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX1 channel with ILLUM_DAC_H_TX1 current. 7:0 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR0_TX1 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX1 channel with ILLUM_DAC_L_TX1 current. 7.5.1.1.83 Register 5Eh (Address = 5Eh) [reset = 0h] Figure 111. Register 5Eh 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_XTALK_IPHASE_HDR0_TX1 R/W - 0h 13 12 11 10 TEMP_COEFF_XTALK_IPHASE_HDR1_TX0 R/W - 0h 5 4 3 2 TEMP_COEFF_ILLUM_XTALK_QPHASE_HDR1_TX2 R/W - 0h 17 16 9 8 1 0 Table 113. Register 5E Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_XTALK_IP HASE_HDR0_TX1 Description R/W 0h Temperature coefficient of crosstalk in-phase component with TMAIN for TX1 channel with ILLUM_DAC_L_TX1 current 15:8 TEMP_COEFF_XTALK_IP HASE_HDR1_TX0 R/W 0h Temperature coefficient of crosstalk in-phase component with TMAIN for TX0 channel with ILLUM_DAC_H_TX0 current 7:0 TEMP_COEFF_ILLUM_XT ALK_QPHASE_HDR1_TX2 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TILLUM for TX2 channel with ILLUM_DAC_H_TX2 current. 7.5.1.1.84 Register 5Fh (Address = 5Fh) [reset = 0h] Figure 112. Register 5Fh 23 22 21 15 14 13 7 6 5 20 19 TEMP_COEFF_XTALK_IPHASE_HDR1_TX2 R/W - 0h 12 11 TEMP_COEFF_XTALK_IPHASE_HDR0_TX2 R/W - 0h 4 3 TEMP_COEFF_XTALK_IPHASE_HDR1_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 114. Register 5F Field Descriptions Bit 76 Field Type Reset Description 23:16 TEMP_COEFF_XTALK_IP HASE_HDR1_TX2 R/W 0h Temperature coefficient of crosstalk in-phase component with TMAIN for TX2 channel with ILLUM_DAC_H_TX2 current 15:8 TEMP_COEFF_XTALK_IP HASE_HDR0_TX2 R/W 0h Temperature coefficient of crosstalk in-phase component with TMAIN for TX2 channel with ILLUM_DAC_L_TX2 current Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 114. Register 5F Field Descriptions (continued) Bit Field Type Reset 7:0 TEMP_COEFF_XTALK_IP HASE_HDR1_TX1 R/W 0h Description Temperature coefficient of crosstalk in-phase component with TMAIN for TX1 channel with ILLUM_DAC_H_TX1 current 7.5.1.1.85 Register 60h (Address = 60h) [reset = 0h] Figure 113. Register 60h 23 22 15 14 7 6 21 20 19 18 TEMP_COEFF_XTALK_QPHASE_HDR1_TX1 R/W - 0h 13 12 11 10 TEMP_COEFF_XTALK_QPHASE_HDR0_TX1 R/W - 0h 5 4 3 2 TEMP_COEFF_XTALK_QPHASE_HDR1_TX0 17 16 9 8 1 0 R/W - 0h Table 115. Register 60 Field Descriptions Bit Field Type Reset 23:16 TEMP_COEFF_XTALK_QP HASE_HDR1_TX1 Description R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX1 channel with ILLUM_DAC_H_TX1 current 15:8 TEMP_COEFF_XTALK_QP HASE_HDR0_TX1 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX1 channel with ILLUM_DAC_L_TX1 current 7:0 TEMP_COEFF_XTALK_QP HASE_HDR1_TX0 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX0 channel with ILLUM_DAC_H_TX0 current 7.5.1.1.86 Register 61h (Address = 61h) [reset = 0h] Figure 114. Register 61h 23 22 21 20 19 18 17 16 12 11 10 TEMP_COEFF_XTALK_QPHASE_HDR1_TX2 R/W - 0h 4 3 2 TEMP_COEFF_XTALK_QPHASE_HDR0_TX2 R/W - 0h 9 8 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 116. Register 61 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:8 TEMP_COEFF_XTALK_QP HASE_HDR1_TX2 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX2 channel with ILLUM_DAC_H_TX2 current 7:0 TEMP_COEFF_XTALK_QP HASE_HDR0_TX2 R/W 0h Temperature coefficient of crosstalk quadrature-phase component with TMAIN for TX2 channel with ILLUM_DAC_L_TX2 current 7.5.1.1.87 Register 64h (Address = 64h) [reset = 280C00h] Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 77 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 115. Register 64h 23 21 15 22 PROG_OVLDET_REFM R/W - 1h 14 7 6 5 20 19 PROG_OVLDET_REFP R/W - 2h 12 11 RESERVED R/W - 0Ch 4 3 RESERVED R/W - 0h 13 18 17 16 RESERVED R/W - 0h 10 9 8 2 1 0 Table 117. Register 64 Field Descriptions Bit Field Type Reset Description 23:21 PROG_OVLDET_REFM R/W 1h Program overload comparator threshold 0: Default | 1: 100 mV | 2: 200 mV | Other values: Not valid 20:18 PROG_OVLDET_REFP R/W 2h Program overload comparator threshold 0: Default | 2: –100 mV | Other values: Not valid 17:0 RESERVED R/W 0C00h Always read or write 0C00h. 7.5.1.1.88 Register 65h (Address = 65h) [reset = 0h] Figure 116. Register 65h 23 DIS_OVLDET R/W - 0h 15 22 21 14 13 7 6 5 20 19 RESERVED R/W - 0h 12 11 RESERVED R/W - 0h 4 3 RESERVED R/W - 0h 18 17 16 10 9 8 2 1 0 Table 118. Register 65 Field Descriptions Bit Field Type Reset 23 DIS_OVLDET R/W 0h Disables AFE overload detection. 0: AFE overload detection is enabled. | 1: AFE overload detection is disabled. RESERVED R/W 0h Always read or write 0h. 22:0 Description 7.5.1.1.89 Register 6Eh (Address = 6Eh) [reset = 20000h] Figure 117. Register 6Eh 23 22 21 RESERVED R/W - 0h 78 15 14 13 7 6 5 20 19 EN_TEMP_CO NV R/W - 0h 12 11 RESERVED R/W - 0h 4 3 RESERVED R/W - 0h Submit Documentation Feedback 18 17 RESERVED 16 10 R/W - 2h 9 8 2 1 0 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 119. Register 6E Field Descriptions Bit 23:20 19 18:0 Field Type Reset RESERVED R/W 0h Description Always read or write 0h. EN_TEMP_CONV R/W 0h Enable temperature sensor conversion 0: Temperature conversion is disabled. | 1: Temperature conversion is enabled. RESERVED R/W 2 0000h Always read or write 2 0000h. 7.5.1.1.90 Register 71h (Address = 71h) [reset = 0h] Figure 118. Register 71h 23 22 21 20 19 18 17 UNMASK_ILLU MEN_INTXTAL K R/W - 0h 16 EN_ILLUM_CL K_GPIO 11 INVERT_AFE_ CLK 10 RESERVED 9 INVERT_TG_C LK R/W - 0h 1 DEALIAS_EN 8 SHUT_CLOCK S R/W - 0h 0 RESERVED R/W - 0h R/W - 0h RESERVED R/W - 0h 15 ILLUM_CLK_G PIO_MODE R/W - 0h 7 RESERVED 14 13 12 RESERVED DIS_ILLUM_CL K_TX R/W - 0h R/W - 0h 6 5 4 SHIFT_ILLUM_PHASE R/W - 0h 3 R/W - 0h R/W - 0h 2 DEALIAS_FRE Q R/W - 0h R/W - 0h Table 120. Register 71 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0h. 17 UNMASK_ILLUMEN_INTX TALK R/W 0h Mask or unmask ILLUM_EN_TX0 going to GPIO with internal crosstalk signal 0: ILLUM_EN_TX0 is masked with internal crosstalk correction signal 1: ILLUM_EN_TX0 is not masked with internal crosstalk correction signal 16 EN_ILLUM_CLK_GPIO R/W 0h Enable ILLUM CLK going to GPIO 0: Illumination clock to GPIO is disabled. | 1: Illumination clock to GPIO is enabled. 15 ILLUM_CLK_GPIO_MODE R/W 0h Disable ILLUM_EN_TX0 gating ILLUM_CLK going to GPIO. 0: ILLUM_CLK comes on GPIO only when ILLUM_EN (TG signal) is high | 1: ILLUM_CLK alive always RESERVED R/W 0h Always read or write 0h. 12 DIS_ILLUM_CLK_TX R/W 0h Disable ILLUM_CLK going to transmitter 0: Clock to illumination driver is enabled. | 1: Clock to illumination driver is disabled 11 INVERT_AFE_CLK R/W 0h Invert CLK input to AFE. 0: AFE CLK is not inverted | 1: AFE CLK is inverted. 10 RESERVED R/W 0h Always read or write 0h. 9 INVERT_TG_CLK R/W 0h Invert CLK input to timing generation unit. 0: TG CLK is not inverted | 1: TG CLK is inverted. 8 SHUT_CLOCKS R/W 0h Shut down all CLK signals at modulation frequency. 0: Modulation clocks is alive | 1: Modulation clock is shut down. 7 RESERVED R/W 0h Always read or write 0h. SHIFT_ILLUM_PHASE R/W 0h Shift the phase of ILLUM_CLK. PHASE = SHIFT_ILLUM_PHASE × 22.5°. 2 DEALIAS_FREQ R/W 0h Select modulation frequency when DEALIAS_EN = 1. This register works only when OVERRIDE_CLKGEN_REG = 1. 0: 10 × (6 / 7) MHz | 1: 10 × (6 / 5) MHz 1 DEALIAS_EN R/W 0h Change the modulation frequency. This register works only when OVERRIDE_CLKGEN_REG = 1. 23:18 14:13 6:3 Description Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 79 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 120. Register 71 Field Descriptions (continued) Bit 0 Field Type Reset RESERVED R/W 0h Description Always read or write 0h. 7.5.1.1.91 Register 72h (Address = 72h) [reset = C0h] Figure 119. Register 72h 23 22 21 20 19 18 17 16 11 10 9 8 3 2 1 0 RESERVED R/W - 0h 15 14 13 12 RESERVED R/W - 0h 7 6 5 IAMB_MAX_SEL R/W - Ch 4 RESERVED R/W - 0h Table 121. Register 72 Field Descriptions Bit Field Type Reset 23:8 RESERVED R/W 0h Description Always read or write 0h. 7:4 IAMB_MAX_SEL R/W Ch Selects the value of ambient cancellation DAC resistor 0: 20 µA | 5: 10 µA | 10: 33 µA | 11: 50 µA | 12: 100 µA | 14: 200 µA | Other values: Not valid. 3:0 RESERVED R/W 0h Always read or write 0h. 7.5.1.1.92 Register 76h (Address = 76h) [reset = 0h] Figure 120. Register 76h 23 22 21 20 19 18 11 PDN_GLOBAL 10 RESERVED 17 16 RESERVED R/W - 0h 15 14 13 12 RESERVED 7 RESERVED R/W - 0h R/W - 0h 6 5 DIS_GLB_PD_ DIS_GLB_PD_ AMB_ADC AMB_DAC R/W - 0h R/W - 0h 4 DIS_GLB_PD_ AFE_DAC R/W - 0h R/W - 0h 3 DIS_GLB_PD_ AFE R/W - 0h 9 DIS_GLB_PD_I 2CHOST R/W - 0h R/W - 0h 2 1 DIS_GLB_PD_I DIS_GLB_PD_ LLUM_DRV TEMP_SENS R/W - 0h R/W - 0h 8 DIS_GLB_PD_ OSC R/W - 0h 0 DIS_GLB_PD_ REFSYS R/W - 0h Table 122. Register 76 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0h. 11 PDN_GLOBAL R/W 0h Global power down of all the blocks. 0: Acitve | 1: Power down 10 RESERVED R/W 0h Always read or write 0h. 9 DIS_GLB_PD_I2CHOST R/W 0h Disable global power down of I2C host. 0: Enable global power down | 1: Disable global power down. 8 DIS_GLB_PD_OSC R/W 0h Disable global power down of main oscillator. 0: Enable global power down | 1: Disable global power down. 7 RESERVED R/W 0h Always read or write 0h. 6 DIS_GLB_PD_AMB_ADC R/W 0h Disable global power down of ambient ADC. 0: Enable global power down | 1: Disable global power down. 23:12 80 Description Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 122. Register 76 Field Descriptions (continued) Bit Field Type Reset Description 5 DIS_GLB_PD_AMB_DAC R/W 0h Disable global power down of ambient cancellation. 0: Enable global power down | 1: Disable global power down. 4 DIS_GLB_PD_AFE_DAC R/W 0h Disable global power down of AFE DAC. 0: Enable global power down | 1: Disable global power down. 3 DIS_GLB_PD_AFE R/W 0h Disable global power down of AFE. 0: Enable global power down | 1: Disable global power down. 2 DIS_GLB_PD_ILLUM_DRV R/W 0h Disable global power down of illumination driver. 0: Enable global power down | 1: Disable global power down. 1 DIS_GLB_PD_TEMP_SEN S R/W 0h Disable global power down of temperature sensor. 0: Enable global power down | 1: Disable global power down. 0 DIS_GLB_PD_REFSYS R/W 0h Disable global power down of reference. 0: Enable global power down | 1: Disable global power down. 7.5.1.1.93 Register 77h (Address = 77h) [reset = 0h] Figure 121. Register 77h 23 22 21 20 19 18 17 16 11 10 3 EN_DYN_PD_ AFE R/W - 0h 2 EN_DYN_PD_I LLUM_DRV R/W - 0h 9 EN_DYN_PD_I 2CHOST_OSC R/W - 0h 1 EN_DYN_PD_ TEMP_SENS R/W - 0h 8 EN_DYN_PD_ OSC R/W - 0h 0 EN_DYN_PD_ REFSYS R/W - 0h RESERVED R/W - 0h 15 14 13 12 RESERVED 7 RESERVED R/W - 0h 6 EN_DYN_PD_ AMB_ADC R/W - 0h R/W - 0h 5 4 EN_DYN_PD_ EN_DYN_PD_ AMB_DAC AFE_DAC R/W - 0h R/W - 0h Table 123. Register 77 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0h. 9 EN_DYN_PD_I2CHOST_O SC R/W 0h Enable dynamic power down of I2C host oscillator. 0: Disable dynamic power down | 1: Enable dynamic power down. 8 EN_DYN_PD_OSC R/W 0h Enable dynamic power down of main oscillator. 0: Disable dynamic power down | 1: Enable dynamic power down. 7 RESERVED R/W 0h Always read or write 0h. 6 EN_DYN_PD_AMB_ADC R/W 0h Enable dynamic power down of ambient ADC. 0: Disable dynamic power down | 1: Enable dynamic power down. 5 EN_DYN_PD_AMB_DAC R/W 0h Enable dynamic power down of ambient cancellation. 0: Disable dynamic power down | 1: Enable dynamic power down. 4 EN_DYN_PD_AFE_DAC R/W 0h Enable dynamic power down of AFE DAC. 0: Disable dynamic power down | 1: Enable dynamic power down. 3 EN_DYN_PD_AFE R/W 0h Enable dynamic power down of AFE. 0: Disable dynamic power down | 1: Enable dynamic power down. 2 EN_DYN_PD_ILLUM_DRV R/W 0h Enable dynamic power down of illumination driver. 0: Disable dynamic power down | 1: Enable dynamic power down. 1 EN_DYN_PD_TEMP_SEN S R/W 0h Enable dynamic power down of temperature sensor. 0: Disable dynamic power down | 1: Enable dynamic power down. 0 EN_DYN_PD_REFSYS R/W 0h Enable dynamic power down of reference. 0: Disable dynamic power down | 1: Enable dynamic power down. 23:10 Description Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 81 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5.1.1.94 Register 78h (Address = 78h) [reset = 0h] Figure 122. Register 78h 23 RESERVED 22 21 SEL_GP3_ON_ SDAM R/W - 0h R/W - 0h 15 14 13 GPIO2_OBUF_ RESERVED EN R/W - 0h R/W - 0h 7 6 5 GPO1_MUX_SEL R/W - 0h 20 19 RESERVED 12 GPIO1_OBUF_ EN R/W - 0h 4 RESERVED R/W - 0h R/W - 0h 11 18 17 10 GPO2_MUX_SEL 9 3 R/W - 0h 2 1 GPO3_MUX_SEL R/W - 0h 16 GPIO2_IBUF_E N R/W - 0h 8 GPO1_MUX_S EL R/W - 0h 0 Table 124. Register 78 Field Descriptions Bit Field Type Reset 23 RESERVED R/W 0h Always read or write 0h. 22 SEL_GP3_ON_SDAM R/W 0h Select GP3 on SDA_M pin. This feature can be used when I2C host is not used in the system. Pull up need to be present on SDA_M pin. To save power the signal on this pin are inverted (active low). RESERVED R/W 0h Always read or write 0h. 16 GPIO2_IBUF_EN R/W 0h Enable input buffer on GP2 pin. Used for reference CLK input. 0: Disable input buffer | 1: Enable input buffer. 15 GPIO2_OBUF_EN R/W 0h Enable output buffer on GP2 pin. 0: Disable output buffer | 1: Enable output buffer. RESERVED R/W 0h Always read or write 0h. 12 GPIO1_OBUF_EN R/W 0h Enable output buffer on GP1 pin. 0: Disable output buffer | 1: Enable output buffer. 11:9 GPO2_MUX_SEL R/W 0h Select signal for the GP2 output multiplexer. 0: DVSS | 2: DIG_GPO_0 | 3: DIG_GPO_1 | 7: ILLUM_EN_TX0 | Other values: Not valid. 8:6 GPO1_MUX_SEL R/W 0h Select signal for the GP1 output multiplexer. 0: DVSS | 2: DIG_GPO_0 | 3: DIG_GPO_1 | 7: ILLUM_CLK | Other values: Not valid. 5:3 RESERVED R/W 0h Always read or write 0h. 2:0 GPO3_MUX_SEL R/W 0h Select signal for the GP3 output multiplexer. 0: DVSS | 2: DIG_GPO_0 | 3: DIG_GPO_1 | 7: DIG_GPO_2 | Other values: Not valid. 21:17 14:13 Description 7.5.1.1.95 Register 79h (Address = 79h) [reset = 1h] Figure 123. Register 79h 23 22 21 20 12 PDN_ILLUM_D C_CURR R/W - 0h 4 EN_TX_DC_C URR_ALL R/W - 0h RESERVED 15 R/W - 0h 14 RESERVED 13 7 R/W - 0h 6 RESERVED 5 R/W - 0h 82 19 PDN_ILLUM_D RV R/W - 0h 11 3 SEL_ILLUM_T X0_ON_TX1 R/W - 0h Submit Documentation Feedback 18 17 RESERVED R/W - 0h 10 9 ILLUM_DC_CURR_DAC R/W - 0h 2 1 EN_TX_CLKZ RESERVED R/W - 0h R/W - 0h 16 8 0 EN_TX_CLKB R/W - 1h Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 125. Register 79 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0. PDN_ILLUM_DRV R/W 0h Test-mode bit to power down the illumination driver. 0: Illumination driver is active | 1: Illumination driver is powered down. RESERVED R/W 0h Always read or write 0. 12 PDN_ILLUM_DC_CURR R/W 0h Power down the dc bias current through the TX pins. 0: Illumination dc bias current is active | 1: Illumination dc bias current is powered down. 11:8 ILLUM_DC_CURR_DAC R/W 0h DC current through TX pin = 0.5 mA × ILLUM_DC_CURR_DAC 7:5 RESERVED R/W 0h Always read or write 0. 4 EN_TX_DC_CURR_ALL R/W 0h Enable dc current of all TX channels when TX0 is selected. 3 SEL_ILLUM_TX0_ON_TX1 R/W 0h Use ILLUM_EN_TX0 for TX1. This mode is required to enable static current-drive mode. 0: TX1 is controlled by SEL_TX_CH | 0: TX1 is selected when TX0 is active. 2 EN_TX_CLKZ R/W 0h Enable inverted modulation CLK. 0: Inverted modulation clock is disabled | 1: Inverted modulation clock is enabled. 1 RESERVED R/W 0h Always read or write 0. 0 EN_TX_CLKB R/W 1h Enable modulation CLK. 0: Modulation clock is disabled | 1: Modulation clock is enabled. 23:20 19 18:14 Description 7.5.1.1.96 Register 7Ah (Address = 7Ah) [reset = 0h] Figure 124. Register 7Ah 23 22 21 20 19 18 17 16 11 10 9 8 RESERVED R/W - 0h 15 14 13 12 RESERVED R/W - 0h 7 6 RESERVED R/W - 0h 5 4 TX0_PIN_CONFIG R/W - 0h 3 2 TX2_PIN_CONFIG R/W - 0h 1 0 TX1_PIN_CONFIG R/W - 0h Table 126. Register 7A Field Descriptions Bit Field Type Reset Description 23:6 RESERVED R/W 0h Always read or write 0. 5:4 TX0_PIN_CONFIG R/W 0h Configure TX0 pin. 0: CLKB | 2: CLKZ | 3: 1 | Other values: Not valid 3:2 TX2_PIN_CONFIG R/W 0h Configure TX2 pin. 0: CLKB | 2: CLKZ | 3: 1 | Other values: Not valid 1:0 TX1_PIN_CONFIG R/W 0h Configure TX1 pin. 0: CLKB | 2: CLKZ | 3: 1 | Other values: Not valid 7.5.1.1.97 Register 80h (Address = 80h) [reset = 4E1Eh] Figure 125. Register 80h 23 DIS_TG_ACON F R/W - 0h 15 22 21 20 19 18 17 10 9 RESERVED 14 13 R/W - 0h 12 11 SUB_VD_CLK_CNT R/W - 4Eh 16 SUB_VD_CLK_ CNT R/W - 0h 8 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 83 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7 6 5 www.ti.com 4 SUB_VD_CLK_CNT R/W - 0Fh 3 2 1 0 TG_EN R/W - 0h Table 127. Register 80 Field Descriptions Bit Field Type Reset Description DIS_TG_ACONF R/W 0h Disable automatic configuration of TG registers: TG_CAPTURE_MASK_*, TG_OVL_WINDOW_MSAK*, TG_ILLUMEN_MASK*, TG_CALC_MASK*, TG_DYNPDN_MASK*. If these TG signals must be configured by the user, DIS_TG_ACONF should be set 1 to override the default settings of the above mentioned TG signal registers. 22:17 RESERVED R/W 0h Always read or write 0h. 16:1 SUB_VD_CLK_CNT R/W 270Fh TG_EN R/W 0h 23 0 The number of TG clocks in a sub-frame. Enable the timing generation unit. 0: TG is disabled | 1: TG is enabled. 7.5.1.1.98 Register 83h (Address = 83h) [reset = D0h] Figure 126. Register 83h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 TG_AFE_RST_START R/W - 00h 4 3 TG_AFE_RST_START R/W - D0h Table 128. Register 83 Field Descriptions Bit Field Type Reset 23:16 RESERVED R/W 0h 15:0 TG_AFE_RST_START R/W D0h Description Always read or write 0h. This register defines the starting position of AFE data-path reset TG signal in the number of TG CLKs (tCLK) in a sub-frame. Pulse duration of this reset signal is (TG_AFE_RST_END – TG_AFE_RST_START) × tCLK. 7.5.1.1.99 Register 84h (Address = 84h) [reset = D8h] Figure 127. Register 84h 23 22 21 20 19 18 17 16 12 11 TG_AFE_RST_END R/W - 00h 4 3 TG_AFE_RST_END R/W - D8h 10 9 8 2 1 0 RESERVED R/W - 0h 84 15 14 13 7 6 5 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Table 129. Register 84 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_AFE_RST_END R/W D8h Description Always read or write 0h. This register defines the ending position of the AFE data-path reset TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.100 Register 85h (Address = 85h) [reset = 20h] Figure 128. Register 85h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 TG_SEQ_INT_START R/W - 00h 4 3 TG_SEQ_INT_START R/W - 20h Table 130. Register 85 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 TG_SEQ_INT_START R/W 20h Starting position of the sequencer interrupt TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.101 Register 86h (Address = 86h) [reset = 28h] Figure 129. Register 86h 23 22 21 20 19 18 17 16 12 11 TG_SEQ_INT_END R/W - 00h 4 3 TG_SEQ_INT_END R/W - 28h 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 131. Register 86 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 TG_SEQ_INT_END R/W 28h Ending position of the sequencer interrupt TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.102 Register 87h (Address = 87h) [reset = 2454h] Figure 130. Register 87h 23 22 21 20 19 18 17 16 11 10 9 8 RESERVED R/W - 0h 15 14 13 12 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 85 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7 6 www.ti.com TG_CAPTURE_START R/W - 24h 4 3 TG_CAPTURE_START R/W - 54h 5 2 1 0 Table 132. Register 87 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_CAPTURE_START R/W 2454h Description Always read or write 0h. Starting position of the internal data capture TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.103 Register 88h (Address = 88h) [reset = 2648h] Figure 131. Register 88h 23 22 21 20 19 18 17 16 12 11 TG_CAPTURE_END R/W - 26h 4 3 TG_CAPTURE_END R/W - 48h 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 133. Register 88 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_CAPTURE_END R/W 2648h Description Always read or write 0h. Ending position of the internal data capture TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.104 Register 89h (Address = 89h) [reset = 3E8h] Figure 132. Register 89h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 TG_OVL_WINDOW_START R/W - 03h 4 3 TG_OVL_WINDOW_START R/W - E8h Table 134. Register 89 Field Descriptions Bit 86 Field Type Reset 23:16 RESERVED R/W 0h 15:0 TG_OVL_WINDOW_STAR T R/W 3E8h Description Always read or write 0h. Starting position of the AFE overload observation window TG signal in the number of TG clocks (tCLK) in a sub-frame. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7.5.1.1.105 Register 8Ah (Address = 8Ah) [reset = 1F40h] Figure 133. Register 8Ah 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 TG_OVL_WINDOW_END R/W - 1Fh 4 3 TG_OVL_WINDOW_END R/W - 40h Table 135. Register 8A Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_OVL_WINDOW_END R/W 1F40h Description Always read or write 0h. Ending position of the AFE overload observation window TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.106 Register 8Fh (Address = 8Fh) [reset = 0h] Figure 134. Register 8Fh 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 TG_ILLUMEN_START R/W - 0h 4 3 TG_ILLUMEN_START R/W - 0h Table 136. Register 8F Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 TG_ILLUMEN_START R/W 0h Starting position of the illumination enable TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.107 Register 90h (Address = 90h) [reset = 2134h] Figure 135. Register 90h 23 22 21 20 19 18 17 16 12 11 TG_ILLUMEN_END R/W - 21h 4 3 TG_ILLUMEN_END R/W - 34h 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 87 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 137. Register 90 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_ILLUMEN_END R/W 2134h Description Always read or write 0h. Ending position of the illumination enable TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.108 Register 91h (Address = 91h) [reset = 2134h] Figure 136. Register 91h 23 22 21 20 19 18 17 16 12 11 TG_CALC_START R/W - 21h 4 3 TG_CALC_START R/W - 34h 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 138. Register 91 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_CALC_START R/W 2134h Description Always read or write 0h. Starting position of the calculation TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.109 Register 92h (Address = 92h) [reset = 2EE0h] Figure 137. Register 92h 23 22 21 20 19 18 17 16 12 11 TG_CALC_END R/W - 2Eh 4 3 TG_CALC_END R/W - E0h 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 139. Register 92 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_CALC_END R/W 2EE0h Description Always read or write 0h. Ending position of the calculation TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.110 Register 93h (Address = 93h) [reset = 0h] Figure 138. Register 93h 23 22 21 20 19 18 17 16 11 10 9 8 RESERVED R/W - 0h 15 88 14 13 12 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7 6 TG_DYNPDN_START R/W - 0h 4 3 TG_DYNPDN_START R/W - 0h 5 2 1 0 Table 140. Register 93 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 TG_DYNPDN_START R/W 0h Starting position of the dynamic power-down TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.111 Register 94h (Address = 94h) [reset = FFFFh] Figure 139. Register 94h 23 22 21 20 19 18 17 16 12 11 TG_DYNPDN_END R/W - FFh 4 3 TG_DYNPDN_END R/W - FFh 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 Table 141. Register 94 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 TG_DYNPDN_END R/W FFFFh Description Always read or write 0h. Ending position of the dynamic power-down TG signal in the number of TG clocks (tCLK) in a sub-frame. 7.5.1.1.112 Register 97h (Address = 97h) [reset = 0h] Figure 140. Register 97h 23 22 15 21 14 13 TG_SEQ_INT_MASK_END R/W - 0h 6 5 7 20 19 TG_SEQ_INT_MASK_END R/W - 0h 12 11 4 3 TG_SEQ_INT_MASK_START R/W - 0h 18 17 10 9 TG_SEQ_INT_MASK_START R/W - 0h 2 1 16 8 0 Table 142. Register 97 Field Descriptions Bit Field Type Reset Description 23:12 TG_SEQ_INT_MASK_END R/W 0h Ending position of the sequencer interrupt TG signal mask in the number of sub-frames in a frame. 11:0 TG_SEQ_INT_MASK_STA RT R/W 0h Starting position of the sequencer interrupt TG signal mask in the number of sub-frames in a frame. The TG signal exists between the START and END sub-frames. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 89 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 7.5.1.1.113 Register 98h (Address = 98h) [reset = 0h] Figure 141. Register 98h 23 22 15 21 14 13 TG_CAPTURE_MASK_END R/W - 0h 6 5 7 20 19 TG_CAPTURE_MASK_END R/W - 0h 12 11 4 3 TG_CAPTURE_MASK_START R/W - 0h 18 17 10 9 TG_CAPTURE_MASK_START R/W - 0h 2 1 16 8 0 Table 143. Register 98 Field Descriptions Bit Field Type Reset Description 23:12 TG_CAPTURE_MASK_EN D R/W 0h Ending position of the internal data-capture TG signal mask in the number of sub-frames in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. 11:0 TG_CAPTURE_MASK_ST ART R/W 0h Starting position of the internal data-capture TG signal mask in the number of sub-frames in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. The TG signal exists between the START and END sub-frames. 7.5.1.1.114 Register 99h (Address = 99h) [reset = 1h] Figure 142. Register 99h 23 15 7 22 21 14 13 TG_OVL_WINDOW_MASK_END R/W - 0h 6 5 20 19 TG_OVL_WINDOW_MASK_END R/W - 0h 12 11 18 17 10 9 TG_OVL_WINDOW_MASK_START R/W - 0h 4 3 2 1 TG_OVL_WINDOW_MASK_START R/W - 0h 16 8 0 Table 144. Register 99 Field Descriptions Bit Field Type Reset 23:12 TG_OVL_WINDOW_MASK _END R/W 0h Ending position of the AFE overload observation window TG signal mask in the number of sub-frames in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. 11:0 TG_OVL_WINDOW_MASK _START 1h Starting position of AFE overload observation window TG signal mask in the number of sub-frames in a frame. The TG signal exists between the START and END sub-frames. Write 0 to this register when DIS_TG_ACONF = 1 and EN_ADAPTIVE_HDR = 0, or 1 when DIS_TG_ACONF = 1 and EN_ADAPTIVE_HDR = 1. R/W Description 7.5.1.1.115 Register 9Ch (Address = 9Ch) [reset = FFF000h] Figure 143. Register 9Ch 23 15 90 22 21 14 13 TG_ILLUMEN_MASK_END 20 19 TG_ILLUMEN_MASK_END R/W - FFh 12 11 Submit Documentation Feedback 18 17 10 9 TG_ILLUMEN_MASK_START 16 8 Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 R/W - Fh 7 6 R/W - 0h 5 4 3 TG_ILLUMEN_MASK_START R/W - 0h 2 1 0 Table 145. Register 9C Field Descriptions Bit Field Type Reset Description 23:12 TG_ILLUMEN_MASK_END R/W FFFh Ending position of the illumination-enable TG signal mask in the number of sub-frames in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. 11:0 TG_ILLUMEN_MASK_STA RT R/W 0h Starting position of the illumination-enable TG signal mask in the number of sub-frames in a frame. The TG signal exists between the START and END sub-frames. 7.5.1.1.116 Register 9Dh (Address = 9Dh) [reset = 0h] Figure 144. Register 9Dh 23 22 15 21 14 13 TG_CALC_MASK_END R/W - 0h 6 5 7 20 19 TG_CALC_MASK_END R/W - 0h 12 11 4 3 TG_CALC_MASK_START R/W - 0h 18 17 10 9 TG_CALC_MASK_START R/W - 0h 2 1 16 8 0 Table 146. Register 9D Field Descriptions Bit Field Type Reset Description 23:12 TG_CALC_MASK_END R/W 0h Ending position of the calculation TG signal mask in the number of subframes in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. 11:0 TG_CALC_MASK_START R/W 0h Starting position of the calculation TG signal mask in the number of subframes in a frame. The TG signal exists between the START and END subframes. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. 7.5.1.1.117 Register 9Eh (Address = 9Eh) [reset = 0h] Figure 145. Register 9Eh 23 22 15 21 14 13 TG_DYNPDN_MASK_END R/W - 0h 6 5 7 20 19 TG_DYNPDN_MASK_END R/W - 0h 12 11 4 3 TG_DYNPDN_MASK_START R/W - 0h 18 17 10 9 TG_DYNPDN_MASK_START R/W - 0h 2 1 16 8 0 Table 147. Register 9E Field Descriptions Bit 23:12 Field Type Reset TG_DYNPDN_MASK_END R/W 0h Description Ending position of the dynamic power-down TG signal mask in the number of sub-frames in a frame. This register should be equal to NUM_AVG_SUB_FRAMES when DIS_TG_ACONF = 1. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 91 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 147. Register 9E Field Descriptions (continued) Bit Field Type Reset 11:0 TG_DYNPDN_MASK_STA RT R/W 0h Description Starting position of the dynamic power-down TG signal mask in the number of sub-frames in a frame. The TG signal exists outside the TG_DYNPDN_MASK_START and TG_DYNPDN_MASK_END sub-frames. 7.5.1.1.118 Register 9Fh (Address = 9Fh) [reset = 0h] Figure 146. Register 9Fh 23 22 15 21 14 13 NUM_AVG_SUB_FRAMES R/W - 0h 6 5 7 20 19 NUM_AVG_SUB_FRAMES R/W - 0h 12 11 4 3 18 17 10 9 NUM_SUB_FRAMES R/W - 0h 2 1 16 8 0 NUM_SUB_FRAMES R/W - 0h Table 148. Register 9F Field Descriptions Bit Field Type Reset Description 23:12 NUM_AVG_SUB_FRAMES R/W 0h Specifies the number of sub-frames to be averaged in a frame. Averaging sub-frames = NUM_AVG_SUB_FRAMES + 1. 11:0 NUM_SUB_FRAMES R/W 0h Total number of sub-frames in a frame. Each sub-frame is approximately 0.25 ms (SUB_VD_CLK_CNT × 25 ns) Number of sub-frames in a frame = NUM_SUB_FRAMES + 1. This number must be equal to or greater than NUM_AVG_SUB_FRAMES. 7.5.1.1.119 Register A0h (Address = A0h) [reset = 2198h] Figure 147. Register A0h 23 22 21 20 19 18 17 16 11 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 7 6 13 12 CAPTURE_CLK_CNT R/W - 21h 4 3 CAPTURE_CLK_CNT R/W - 98h 5 Table 149. Register A0 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h 15:0 CAPTURE_CLK_CNT R/W 2198h Description Always read or write 0h. Internal data capture position (number of TG clocks, tCLK) in a sub-frame. 7.5.1.1.120 Register A2h (Address = A2h) [reset = 0h] 92 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 148. Register A2h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR0_TX1[15:8] R/W - 0h 12 11 A0_COEFF_HDR1_TX0 R/W - 0h 4 3 A0_COEFF_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 150. Register A2 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR0_TX1[15 :8] Description R/W 0h MSB of third-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 15:0 A0_COEFF_HDR1_TX0 R/W 0h Constant offset for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 7.5.1.1.121 Register A3h (Address = A3h) [reset = 0h] Figure 149. Register A3h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR0_TX1[7:0] R/W - 0h 12 11 A0_COEFF_HDR0_TX1 R/W - 0h 4 3 A0_COEFF_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 151. Register A3 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR0_TX1[7: 0] Description R/W 0h LSB of third-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 15:0 A0_COEFF_HDR0_TX1 R/W 0h Constant offset for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 7.5.1.1.122 Register A4h (Address = A4h) [reset = 0h] Figure 150. Register A4h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR1_TX1[15:8] R/W - 0h 12 11 A0_COEFF_HDR1_TX1 R/W - 0h 4 3 A0_COEFF_HDR1_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 93 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 152. Register A4 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR1_TX1[15 :8] Description R/W 0h MSB of third order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 15:0 A0_COEFF_HDR1_TX1 R/W 0h Constant offset for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 7.5.1.1.123 Register A5h (Address = A5h) [reset = 0h] Figure 151. Register A5h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR1_TX1[7:0] R/W - 0h 12 11 A0_COEFF_HDR0_TX2 R/W - 0h 4 3 A0_COEFF_HDR0_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 153. Register A5 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR1_TX1[7: 0] Description R/W 0h LSB of third-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 15:0 A0_COEFF_HDR0_TX2 R/W 0h Constant offset for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 7.5.1.1.124 Register A6h (Address = A6h) [reset = 0h] Figure 152. Register A6h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR0_TX2[15:8] R/W - 0h 12 11 A0_COEFF_HDR1_TX2 R/W - 0h 4 3 A0_COEFF_HDR1_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 154. Register A6 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR0_TX2[15 :8] Description R/W 0h MSB of third-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 15:0 A0_COEFF_HDR1_TX2 R/W 0h Constant offset for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 7.5.1.1.125 Register A7h (Address = A7h) [reset = 0h] 94 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 153. Register A7h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR0_TX2[7:0] R/W - 0h 12 11 A1_COEFF_HDR1_TX0 R/W - 0h 4 3 A1_COEFF_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 155. Register A7 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR0_TX2[7: 0] Description R/W 0h LSB of third-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 15:0 A1_COEFF_HDR1_TX0 R/W 0h First-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 7.5.1.1.126 Register A8h (Address = A8h) [reset = 0h] Figure 154. Register A8h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR1_TX2[15:8] R/W - 0h 12 11 A1_COEFF_HDR0_TX1 R/W - 0h 4 3 A1_COEFF_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 156. Register A8 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR1_TX2[15 :8] Description R/W 0h MSB of third-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 15:0 A1_COEFF_HDR0_TX1 R/W 0h First-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 7.5.1.1.127 Register A9h (Address = A9h) [reset = 0h] Figure 155. Register A9h 23 22 21 15 14 13 7 6 5 20 19 A3_COEFF_HDR1_TX2[7:0] R/W - 0h 12 11 A1_COEFF_HDR1_TX1 R/W - 0h 4 3 A1_COEFF_HDR1_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 95 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 157. Register A9 Field Descriptions Bit Field Type Reset 23:16 A3_COEFF_HDR1_TX2[7: 0] Description R/W 0h LSB of third-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 15:0 A1_COEFF_HDR1_TX1 R/W 0h First-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 7.5.1.1.128 Register AAh (Address = AAh) [reset = 0h] Figure 156. Register AAh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR1_TX0[15:8] R/W - 0h 12 11 A1_COEFF_HDR0_TX2 R/W - 0h 4 3 A1_COEFF_HDR0_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 158. Register AA Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR1_TX0[15 :8] Description R/W 0h MSB of fourth-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 15:0 A1_COEFF_HDR0_TX2 R/W 0h First-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 7.5.1.1.129 Register ABh (Address = ABh) [reset = 0h] Figure 157. Register ABh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR1_TX0[7:0] R/W - 0h 12 11 A1_COEFF_HDR1_TX2 R/W - 0h 4 3 A1_COEFF_HDR1_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 159. Register AB Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR1_TX0[7: 0] Description R/W 0h LSB of fourth-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 15:0 A1_COEFF_HDR1_TX2 R/W 0h First-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 7.5.1.1.130 Register ACh (Address = ACh) [reset = 0h] 96 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 158. Register ACh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR0_TX1[15:8] R/W - 0h 12 11 A2_COEFF_HDR1_TX0 R/W - 0h 4 3 A2_COEFF_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 160. Register AC Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR0_TX1[15 :8] Description R/W 0h MSB of fourth-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 15:0 A2_COEFF_HDR1_TX0 R/W 0h Second-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 7.5.1.1.131 Register ADh (Address = ADh) [reset = 0h] Figure 159. Register ADh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR0_TX1[7:0] R/W - 0h 12 11 A2_COEFF_HDR0_TX1 R/W - 0h 4 3 A2_COEFF_HDR0_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 161. Register AD Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR0_TX1[7: 0] Description R/W 0h LSB of fourth-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 15:0 A2_COEFF_HDR0_TX1 R/W 0h Second-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_L_TX1. 7.5.1.1.132 Register AEh (Address = AEh) [reset = 0h] Figure 160. Register AEh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR1_TX1[15:8] R/W - 0h 12 11 A2_COEFF_HDR1_TX1 R/W - 0h 4 3 A2_COEFF_HDR1_TX1 R/W - 0h 18 17 16 10 9 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 97 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 162. Register AE Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR1_TX1[15 :8] Description R/W 0h MSB of fourth-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 15:0 A2_COEFF_HDR1_TX1 R/W 0h Second-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 7.5.1.1.133 Register AFh (Address = AFh) [reset = 0h] Figure 161. Register AFh 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR1_TX1[7:0] R/W - 0h 12 11 A2_COEFF_HDR0_TX2 R/W - 0h 4 3 A2_COEFF_HDR0_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 163. Register AF Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR1_TX1[7: 0] Description R/W 0h LSB of fourth-order coefficient for square wave nonlinearity correction for TX1 illumination channel with current of ILLUM_DAC_H_TX1. 15:0 A2_COEFF_HDR0_TX2 R/W 0h Second-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 7.5.1.1.134 Register B0h (Address = B0h) [reset = 0h] Figure 162. Register B0h 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR0_TX2[15:8] R/W - 0h 12 11 A2_COEFF_HDR1_TX2 R/W - 0h 4 3 A2_COEFF_HDR1_TX2 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 164. Register B0 Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR0_TX2[15 :8] Description R/W 0h MSB of fourth-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 15:0 A2_COEFF_HDR1_TX2 R/W 0h Second-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 7.5.1.1.135 Register B1h (Address = B1h) [reset = 0h] 98 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Figure 163. Register B1h 23 22 21 15 14 13 7 6 5 20 19 A4_COEFF_HDR0_TX2[7:0] R/W - 0h 12 11 A3_COEFF_HDR1_TX0 R/W - 0h 4 3 A3_COEFF_HDR1_TX0 R/W - 0h 18 17 16 10 9 8 2 1 0 Table 165. Register B1 Field Descriptions Bit Field Type Reset 23:16 A4_COEFF_HDR0_TX2[7: 0] Description R/W 0h LSB byte of fourtt-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_L_TX2. 15:0 A3_COEFF_HDR1_TX0 R/W 0h Third-order coefficient for square wave nonlinearity correction for TX0 illumination channel with current of ILLUM_DAC_H_TX0. 7.5.1.1.136 Register B2h (Address = B2h) [reset = 0h] Figure 164. Register B2h 23 22 21 20 19 18 17 16 10 9 8 2 1 0 RESERVED R/W - 0h 15 14 13 7 6 5 12 11 A4_COEFF_HDR1_TX2 R/W - 0h 4 3 A4_COEFF_HDR1_TX2 R/W - 0h Table 166. Register B2 Field Descriptions Field Type Reset 23:16 Bit RESERVED R/W 0h Description Always read or write 0h. 15:0 A4_COEFF_HDR1_TX2 R/W 0h Fourth-order coefficient for square wave nonlinearity correction for TX2 illumination channel with current of ILLUM_DAC_H_TX2. 7.5.1.1.137 Register B4h (Address = B4h) [reset = 0h] Figure 165. Register B4h 23 22 21 15 14 13 7 6 5 20 19 AMB_PHASE_CORR_PWL_COEFF3 R/W - 0h 12 11 AMB_PHASE_CORR_PWL_COEFF2 R/W - 0h 4 3 AMB_PHASE_CORR_PWL_COEFF1 R/W - 0h 18 17 16 10 9 8 2 1 0 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 99 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Table 167. Register B4 Field Descriptions Bit Field Type Reset 23:16 AMB_PHASE_CORR_PWL _COEFF3 Description R/W 0h Coefficient 3 for PWL phase correction with ambient. 15:8 AMB_PHASE_CORR_PWL _COEFF2 R/W 0h Coefficient 2 for PWL phase correction with ambient. 7:0 AMB_PHASE_CORR_PWL _COEFF1 R/W 0h Coefficient 1 for PWL phase correction with ambient. 7.5.1.1.138 Register B5h (Address = B5h) [reset = 0h] Figure 166. Register B5h 23 22 21 20 19 18 17 16 11 10 9 8 3 2 1 0 SCALE_AMB_PHASE_CORR_COEFF R/W - 0h RESERVED R/W - 0h 15 14 13 12 RESERVED R/W - 0h 7 6 5 RESERVED R/W - 0h 4 Table 168. Register B5 Field Descriptions Bit Field Type Reset Description 23:3 RESERVED R/W 0h Always read or write 0h. 2:0 SCALE_AMB_PHASE_CO RR_COEFF R/W 0h Scaling factor for ambient-based PWL phase correction. 7.5.1.1.139 Register B8h (Address = B8h) [reset = 7FDFFh] Figure 167. Register B8h 23 22 RESERVED 15 R/W - 0h 14 7 6 21 20 19 GIVE_DEAL_D ATA R/W - 0h 13 12 11 AMB_PHASE_CORR_PWL_X1 R/W - 3Fh 5 4 3 AMB_PHASE_CORR_PWL_X0 R/W - FFh 18 17 AMB_PHASE_CORR_PWL_X1 16 R/W - 7h 10 2 9 8 AMB_PHASE_CORR_PWL_X0 R/W - 1h 1 0 Table 169. Register B8 Field Descriptions Bit Field Type Reset RESERVED R/W 0h Always read or write 0h. GIVE_DEALIAS_DATA R/W 0h When this register is set to 1, de-aliased phase is given out on PHASE_OUT. 19:10 AMB_PHASE_CORR_PWL _X1 R/W 1FFh Second knee point of PWL phase correction with ambient. 9:0 AMB_PHASE_CORR_PWL _X0 R/W 1FFh First knee point of PWL phase correction with ambient. 23:21 20 100 Description Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 7.5.1.1.140 Register B8h (Address = B9h) [reset = 1FFh] Figure 168. Register B9h 23 22 ILLUM_SCALE_H_TX2 R/W - 0h 15 14 AMB_ADC_IN_TX1 R/W - 0h 7 6 21 20 19 18 ILLUM_SCALE_L_TX2 R/W - 0h 13 12 11 10 AMB_ADC_IN_TX0 EN_TX2_ON_T EN_TX1_ON_T X0 X0 R/W - 0h R/W - 0h R/W - 0h 5 4 3 2 AMB_PHASE_CORR_PWL_X2 R/W - FFh 17 16 AMB_ADC_IN_TX2 R/W - 0h 9 8 AMB_PHASE_CORR_PWL_X2 R/W - 1h 1 0 Table 170. Register B9 Field Descriptions Bit Field Type Reset Description 23:21 ILLUM_SCALE_H_TX2 R/W 0h Current-scaling register for the illumination driver TX2 channel with DAC_H current. 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 20:18 ILLUM_SCALE_L_TX2 R/W 0h Current scaling register for the illumination driver TX2 channel with DAC_L current. 0: 5.6 mA | 1: 4.2 mA | 2: 2.8 mA | 3: 1.4 mA | Other values: Not valid 17:16 AMB_ADC_IN_TX2 R/W 0h Select ambient ADC input when TX2 channel is selected. 0: DACP - DACM | 1: DACP - REFP | 2: DACM - DACP | 3: DACM - REFM 15:14 AMB_ADC_IN_TX1 R/W 0h Select ambient ADC input when TX1 channel is selected. 0: DACP - DACM | 1: DACP - REFP | 2: DACM - DACP | 3: DACM - REFM 13:12 AMB_ADC_IN_TX0 R/W 0h Select ambient ADC input when TX0 channel is selected. 0: DACP - DACM | 1: DACP - REFP | 2: DACM - DACP | 3: DACM - REFM 11 EN_TX2_ON_TX0 R/W 0h If this bit is 1 when TX2 is selected, the illumination driver current flows through TX0. 10 EN_TX1_ON_TX0 R/W 0h If this bit is 1 when TX1 is selected, the illumination driver current flows through TX0. 9:0 AMB_PHASE_CORR_PWL _X2 R/W 1FFh Third knee point of PWL phase correction with ambient Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 101 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information The OPT3101 AFE is a fully integrated analog front end with an integrated illumination driver for measuring distance. The device interfaces an external photodiode and LED, VCSEL, or LASER. The device has an I2C interface for the data output. An external MCU can read out the distance data from the device directly and no computation is required on the external MCU. All the computation and corrections for crosstalk, phase offset, temperature-dependent phase drift, and ambient-dependent phase drift are done on the chip. The device also provides temperature output from the on-chip temperature sensor. It can operate up to a speed of 4000 sps in non-HDR mode and 2000 sps in auto HDR mode. 8.2 Typical Application Obstacle avoidance for autonomous vehicle navigation is a typical application which can be implemented using this AFE. The system can be optimized to meet the application requirements by optimizing various parameters like illumination current, sub-frame averaging, and auto HDR mode, which are explained in the following sections. Figure 169 shows the interface between the OPT3101 device and an external MCU. Figure 169. Typical Application Block Diagram 8.2.1 Design Requirements Table 171 lists the application requirements for obstacle avoidance system. Table 171. Application Specifications SPECIFICATION VALUE UNITS Minimum distance 0.3 m Maximum distance 5 m Distance accuracy 2 % For an object with 18% reflectivity. Sunlight condition Ambient light 130 klx Field of view ±3 degrees Wavelength 850 nm Sample rate 30 sps Supply 3.3 V 102 COMMENTS Infrared wavelength for illumination. Single supply for the system Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 8.2.2 Detailed Design Procedure 8.2.2.1 Sample Rate The sample rate can be adjusted by programming the number of sub-frames in a frame. To meet the application requirement of 30 sps, 128 sub-frame averaging can be used from Equation 1. Set the register NUM_SUB_FRAME = 127 and NUM_AVG_SUB_FRAMES = 127, which gives a sample rate of 31.25 sps. 8.2.2.2 Photodiode and LED OSRAM SFH4550 LED meets the required field of view specification and has peak spectral emission at 860 nm. Even though LED is specified for a half-angle of ±3 degrees, a significant amount of the optical power will be outside the half-angle. Figure 170 shows the radiation characteristics of the LED. The photodiode should have a field of view greater than the field of view of the LED to effectively collect all the optical power emitted from the LED and reflected by the object. The photodiode should also have peak sensitivity matching the peak spectral emission of the LED. Most of the photodiodes come in two variants; • With a daylight filter, which has a very broad spectrum; example: SFH213 • Narrow-band IR spectrum; example: SFH213FA. A photiode with a narrow-band IR filter should be selected as it collects a lower ambient signal. Photodiode SFH213FA meets these requirements. This photodiode has a capacitance of 5.8 pF at 1-V reverse bias, which is within the supported capacitance range of the AFE. Photodiode characterisitcs are shown in Figure 171 and Figure 172 Figure 170. SFH4550 LED Radiation Characteristics Figure 171. SFH213FA Photodiode Directional Characteristics Figure 172. SFH213FA Photodiode Reverse Bias Capacitance Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 103 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com 8.2.2.3 Ambient Support The photodiode has an IR filter centered at 900 nm as shown in Figure 173. The sunlight spectral irradiance within the spectral bandwidth of the photodiode is also shown in the same figure. The total sunlight power with in the spectral bandwidth of photodiode is 176 watts/m2. The ambient sunlight power received by the photodiode can be calculated using Equation 9. Total ambient current for this photodiode is 49.2 µA. Accounting for variations in reflectivity, the IAMB_MAX_SEL = 12 setting should be selected, which corresponds to 100-µA ambient current support. where PAMB = Total ambient light power in the photodiode spectral bandwidth in W/m2 Ascene = Area covered by photodiode FoV Ωlens = Solid angle from a point on target object to the photodiode lens Ωsemi-sphere= 2π • • • • (9) where • φPD = Photodiode half-angle = 10° for SFH213FA (10) Figure 173. SFH213FA Photodiode Spectral Response and Sunlight Power Within Photodiode Spectral Bandwidth Table 172. Photodiode Specifications PARAMETER Photodiode current with 1 mW/cm VALUE 2 Half-angle UNIT 90 µA ±10 Degrees COMMENTS Photodiode specification Total sunlight power in photodiode spectral bandwidth falling on the object 175 W/m Total power received at the photodiode 0.2736 mW/cm2 2 Photodiode specification Calculated from sunlight spectra (see Figure 173) Calculated using Equation 10 Ambient current 49.2 µA Calculated from 0.2736 mW/cm2 × 90 µA/ (1 mW/cm2). An additional factor of 2 should be added to account for the photodiode response outside the specified half angle of ±10 degrees. Reverse bias capacitance at VR = 1 V 5.8 pF AFE supports a maximum capacitance of 6 pF. 104 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 8.2.2.4 Distance Accuracy For 30 sps operation, 128 sub-frames can be averaged to improve the noise performance by setting NUM_SUB_FRAMES = 127 and NUM_AVG_SUB_FRAMES = 127. AFE noise with a 6-pF photodiode capacitance and 100-µA ambient current support can be extracted from Figure 2 as 2.25 pA/√Hz. Total noise at 31.25 sps operation with the above settings is 12.6 pA. The minimum SNR required to meet the distance accuracy of 2%, (10 cm at 5 m) can be calculated using Equation 6 as 23.8. So the minimum signal current required is 12.6 pA × 23.8 = 300 pA. The photodiode current required to get a signal current of 300pA can be calculated from Equation 11 as 720 pA. With a diode responsivity of 0.5 A/W, the optical power required is 720 pA / (0.5 A/W) = 1.44 nW. Illumination power required with an 18% reflective target can be calculated from Equation 12 as 64 mW. The SFH4550 produces 70 mW of optical power for a current of 100 mA. From this, the required illumination current can be calculated as 91.5 mA where • • • IPD = Photodiode signal current. ISIG_AFE = Signal current entering the AFE. CPD = Photodiode capacitance at a reverse bias voltage of 1 V (11) Pr,sig = Signal power received by the photodiode PLED = LED output power R = Object reflectivity Ωlens = Solid angle from a point on a target object to the photodiode lens Ωsemi-sphere= 2π (12) Dlens = Diameter of the lens over the photodiode = 5 mm for SFH213FA d = Object distance (13) where • • • • • where • • Choose 100 mA as the illumination current for meeting the SNR requirement for the 18% reflective target at a 5m distance. With this illumination current, a 90% reflective object gives a signal current of 1.5 nA for an object at 5 m, and the AFE saturates for an object at a distance of 5 m / √(200 nA / 1.5nA) = 0.43 m. Because the required minimum distance is lower than this, on-chip adaptive HDR should be used by setting ENABLE_ADAPTIVE_HDR = 1, ILLUM_DAC_L_TX0 = 2 and ILLUM_DAC_H_TX0 = 20. HDR switching thresholds can be set at HDR_THR_HIGH = 27 000 and HDR_THR_LOW = 27 000 / 10 / 1.2 = 2250. 8.2.2.5 Supply Voltage Because the system must operate with a single supply, the OPT3101 device can be used in LDO mode, where the required 1.8-V supplies AVDD and DVDD are generated by the device itself using an internal LDO. To operate in this mode, connect the REG_MODE pin to the IOVDD supply (3.3 V). 8.2.3 Application Curves Figure 174 and Figure 175 shows simulated received signal and distance standard deviation with object distance Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 105 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Figure 174. Received Signal vs Object Distance Figure 175. Distance Standard Deviation vs Object Distance 8.3 Initialization Set Up After device power up, apply device reset by applying an active-low pulse of duration > 30 µs. Write the following registers to set the device running in required condition. • Write the NUM_SUB_FRAMES and NUM_AVG_SUB_FRAMES registers to set the device to operate at the required sample rate. • Select the maximum ambient current to be supported by writing IAMB_MAX_SEL. • Enable adaptive HDR mode if required: EN_ADAPTIVE_HDR. • Write illumination DAC currents ILLUM_DAC_L_TX0 and ILLUM_DAC_H_TX0. • Program the adaptive HDR thresholds: HDR_THR_LOW and HDR_THR_HIGH. • Load all the calibration settings: illumination crosstalk, phase offset, phase temperature coefficient, and phase ambient coefficient. • Enable frequency calibration if an external reference CLK is connected to GP2: EN_AUTO_FREQ_COUNT = 1, EN_FLOOP = 1, EN_FREQ_CORR = 1, SYS_CLK_DIVIDER = round(log2(40×106 / fEXT)), REF_COUNT_LIMIT = 214 × (40×106 / 2SYS_CLK_DIV) / fEXT, EN_CONT_FCALIB = 1 • Enable on-chip temperature conversion: EN_TEMP_CONV = 1 • Write I2C host settings to read the external temperature sensor if it is present in the system. Register settings are listed in Table 26. • Enable the timing generator by setting TG_EN = 1 • Perform internal crosstalk correction by making INT_XTALK_CALIB = 1, followed by INT_XTALK_CALIB = 0. 106 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 9 Power Supply Recommendations The OPT3101 device requires 1.8-V and 3.3-V supplies. There are two 1.8-V supplies (AVDD and DVDD) and two 3.3-V supplies (AVDD3 and IOVDD). AVDD and AVDD3 are analog supplies, DVDD and IOVDD are digital and I/O supplies. VDD_LED is not a device pin, but the supply connecting to the anode of the LED (Illumination source). The inimum voltage of the VDD_LED supply is 0.7 V (VDRV) + forward voltage drop of the LED at the maximum illumination driver current (1.8-V typical for 850-nm LED with 100 mA) + IR drop across the series elements (beads, PCB routing) in the supply (VDD_LED) – ground (VSSL) path. The transmitter and receiver of the OPT3101 device operate at the same modulation frequency (10 MHz). Any coupling from the transmitter switching to the AFE results in a crosstalk signal which affects the performance of the distance measurement. Achieving the lowest possible crosstalk is critical for an accurate distance measurement system. Care should be taken to isolate all analog and switching supplies. VDD_LED has the highest switching current at the modulation frequency, fMOD. DVDD and IOVDD also have switching current at the modulation frequency, fMOD, but much lower than VDD_LED. Use ferrite beads with the highest impedance at 10 MHz (> 500 Ω) in the series path of the supplies and decoupling capacitors with low impedance at fMOD on the supplies very close to the device. 9.1 System With Off-Chip 1.8-V Regulator Figure 176 shows the supply network with 1.8 V generated using an off-chip regulator. The REG_MODE pin of the OPT3101 device should be connected to IOVSS in this mode. One external regulator can be used to generate the 1.8-V supply and use beads to isolate AVDD and DVDD. The external regulator mode is useful only when the on-chip regulator mode cannot meet the power-down-state current requirement. For example, in systems where the sample rate is very low that are kept in the power-down state most of the time. Figure 176. Power Supply Network in a System With External 1.8-V Regulator 9.2 System With On-Chip 1.8-V Regulator Figure 177 shows the supply network with 1.8 V generated using the on-chip regulators. There are two regulators, one each for AVDD and DVDD, with the input supply as AVDD3. Only decoupling capacitors need to be placed on AVDD and DVDD supplies. All other supplies should have beads in the series path. The REG_MODE pin of the OPT3101 device should be connected to IOVDD in this mode. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 107 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com System With On-Chip 1.8-V Regulator (continued) Figure 177. Power Supply Network With On-Chip 1.8-V Regulator 10 Layout 10.1 Layout Guidelines Reducing coupling between transmitter and receiver is very critical to achieve good system performance. The area of the transmitter current-carrying loop through the LED supply decoupling capacitor, LED, and the AFE pins TX* and VSSL should be minimized. Similarly, the receiver loop involving the photodiode, matching capacitor, and the AFE pins INP and INM should be minimized.Figure 178 shows the transmitter and receiver loops. Figure 178. AFE Interface With Photodiode and LED 10.2 Layout Example Layout of a system involving a 5-mm radial through-hole photodiode and LED is shown in Figure 179. The following guidelines should be followed to keep the crosstalk between transmitter and receiver low. • Use a four-layer board, so that all the analog and digital supplies can be well isolated from each other. • Place the photodiode and LED oriented orthogonal to each other . 108 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 Layout Example (continued) • • • • • • • • Minimize the area of the transmitter current-carrying loop involving LED, VDD_LED-to-VSSL decoupling capacitor, and AFE. Minimize the area of the receiver loop involving the photodiode, matching capacitor, and AFE. Shield the receiver loop using AVSS ground in the top and bottom PCB layers. Also place a shielding ring around the photodiode and connect the shielding ring to AVSS. This shielding ring helps in reducing the electrical and optical crosstalk. Shield the transmitter loop using IOVSS ground in all the PCB layers. Also place a shielding ring around the LED and connect the shielding ring to IOVSS. LED terminals should not see the photodiode terminals directly. Any small amount of capacitive coupling between photodiode and LED terminals results in huge crosstalk. Grounded metal rings around photodiode and LED help in shielding. Use vias around the transmitter and receiver loops in their respective ground planes to improve the shielding. Connect the device thermal pad to AVSS. Do not overlap different ground planes, keep them well isolated. Figure 179. PCB Layout example Figure 180. Ground Isolation Between AVSS and IOVSS in a Four-Layer PCB Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 109 OPT3101 SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 www.ti.com Layout Example (continued) Figure 181. Photodiode and LED Placement on PCB 110 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 OPT3101 www.ti.com SBAS883A – FEBRUARY 2018 – REVISED JUNE 2018 11 Device and Documentation Support 11.1 Documentation Support 11.1.1 Related Documentation For related documentation see the following: • OPT3101 Distance Sensor System Calibration • Introduction to Time-of-Flight Optical Proximity Sensor System Design • OPT3101 Evaluation Module User's Guide 11.2 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 11.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.4 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 11.5 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 11.6 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the mostcurrent data available for the designated device. This data is subject to change without notice and without revision of this document. For browser-based versions of this data sheet, see the left-hand navigation pane. Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated Product Folder Links: OPT3101 111 PACKAGE OPTION ADDENDUM www.ti.com 30-Jun-2018 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) OPT3101RHFR ACTIVE VQFN RHF 28 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-2-260C-1 YEAR -40 to 85 OPT 3101 OPT3101RHFT ACTIVE VQFN RHF 28 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-2-260C-1 YEAR -40 to 85 OPT 3101 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
