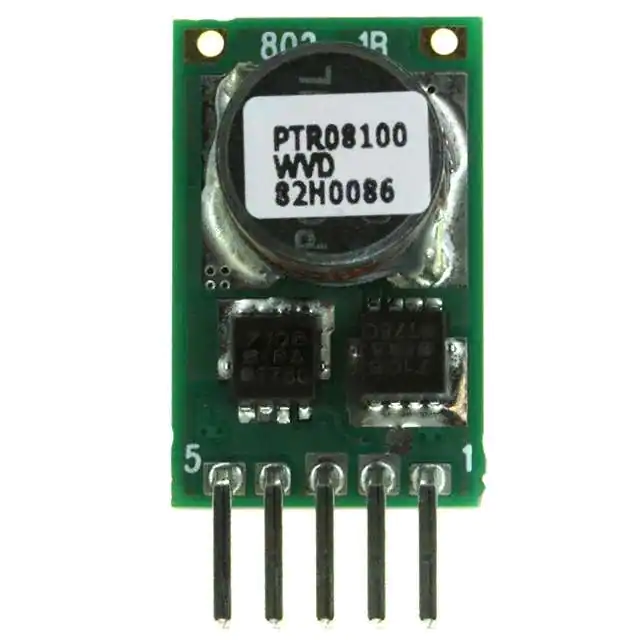

PTR08100WVD

PTR08100W www.ti.com ....................................................................................................................................................... SLTS284E – AUGUST 2007 – REVISED APRIL 2009 10-A, 4.5-V to 14-V INPUT, NON-ISOLATED, ADJUSTABLE WIDE-OUTPUT, SWITCHING REGULATOR FEATURES APPLICATIONS • • • • • • • 1 • • • • • • • Up to 10-A Output Current Wide Input Voltage Range (4.5 V to 14 V) Wide-Output Voltage Adjust (0.6 V to 5.5 V) Efficiencies Up To 96% ON/OFF Inhibit Undervoltage Lockout (UVLO) Output Overcurrent Protection (Nonlatching, Auto-Reset) Overtemperature Protection Ambient Temp. Range: –40°C to 85°C Space Saving Vertical SIP Package Instrumentation Consumer Electronics Servers General-Purpose Circuits DESCRIPTION The PTR08100W is a highly integrated, low-cost switching regulator module that delivers up to 10 A of output current. Occupying approximate PCB area of a standard TO-220 linear regulator IC, the PTR08100W provides output current at a much higher efficiency and with much less power dissipation, thereby eliminating the need for a heat sink. Their small size (0.65 x 0.41 in), high efficiency, and low cost makes these modules attractive for a variety of applications. The input voltage range of the PTR08100W is from 4.5 V to 14 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTR08100W can step down to voltages as low as 0.6 V. The output voltage can be adjusted to any voltage over the range, 0.6 V to 5.5 V, using a single external resistor. Operating features include an undervoltage lockout (UVLO), on/off inhibit and output overcurrent protection. Target applications include servers, test and measurement applications, and high-end consumer products. VI 2 VI VO 4 VO PTR08100W Inhibit 1 Inhibit CI 100 mF (Required) GND GND VOAdjust 3 5 RSET 1%, 0.05 W CO 100 mF (Required) L O A D GND UDG-07115 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 2007–2009, Texas Instruments Incorporated PTR08100W SLTS284E – AUGUST 2007 – REVISED APRIL 2009 ....................................................................................................................................................... www.ti.com These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. ORDERING INFORMATION For the most current package and ordering information, see the Package Option Addendum at the end of this datasheet, or see the TI website at www.ti.com. ABSOLUTE MAXIMUM RATINGS over operating free-air temperature range unless otherwise noted (1) UNIT TA Operating free-air temperature Over VI range Twave Wave solder temperature Surface temperature of module body or pins (5 seconds maximum) Tstg Storage temperature Storage temperature of module removed from shipping package Tpkg Packaging temperature Shipping Tray storage or bake temperature (1) (2) -40 to 85 °C (2) 260 -55 to 125 45 Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. This product is not compatible with surface-mount reflow solder processes. RECOMMENDED OPERATING CONDITIONS MIN MAX VI Input voltage 4.5 14 UNIT V TA Operating free-air temperature –40 85 °C PACKAGE SPECIFICATIONS PTR08100W UNIT Weight Flammability Mechanical shock Mechanical vibration (1) 2 2.74 grams Meets UL 94 V-O Per Mil-STD-883D, Method 2002.3, 1 msec, 1/2 sine, mounted Mil-STD-883D, Method 2007.2, 20-2000 Hz 250 G 5G (1) (1) Qualification limit. Submit Documentation Feedback Copyright © 2007–2009, Texas Instruments Incorporated Product Folder Link(s): PTR08100W PTR08100W www.ti.com ....................................................................................................................................................... SLTS284E – AUGUST 2007 – REVISED APRIL 2009 ELECTRICAL CHARACTERISTICS at 25°C free-air temperature, VI = 12 V, VO = 3.3 V, IO = IO(Max), CI = 100 µF, CO = 100 µF (unless otherwise noted) PARAMETER IO Output current TEST CONDITIONS MIN TA = 50°C, 200LFM airflow TYP MAX 0 0.6 V ≤ VO ≤ 3.6 4.5 3.6 V < VO ≤ 5.5 VO /0.83 (2) 10 14 UNIT A (1) VI Input voltage range Over IO range VO(adj) Output voltage adjust range Over IO range Set-point voltage tolerance TA = 25°C Temperature variation -40°C ≤ TA ≤ +85°C ±0.2 % VO Line regulation Over VI range ±0.3 % VO Load regulation Over IO range ±0.5 Total output voltage variation Includes set-point, line, load, –40°C ≤ TA ≤ +85°C VO 0.6 RSET = 267 Ω, VI = 12 V, VO = 5 V (2) 92 % (2) 95 % ILIM Output voltage ripple 20 MHz bandwith Overcurrent threshold Reset, followed by autorecovery Transient response UVLO TA = 25°C VI = 5 V IO = 5 A Undervoltage lockout Inhibit control (pin 1) 91 % RSET = 1.3 kΩ, VO = 1.5 V 90 % RSET = 1.91 kΩ, VO = 1.2 V 88 % RSET = 2.87 kΩ, VO = 1 V 86 % RSET = 10.7 kΩ, VO = 0.7 V 84 % A 50 µs VO over/undershoot 150 mV 4.25 Input high voltage (VIH) 2.8 Input low voltage (VIL) –0.3 Input low current (IIL) FS Switching frequency Over VI and IO ranges CI External input capacitance 100 (5) 100 (6) Equivalent series resistance (non-ceramic) 5 (8) Per Bellcore TR-332, 50% stress, TA = 40°C, ground benign 13.7 Non-ceramic CO External output capacitance MTBF (1) (2) (3) (4) (5) (6) (7) (8) Calculated reliability mVPP 16 3.8 Pin 1 to GND % VO Recovery time VI = decreasing Input standby current (3) 50 VI = increasing II(stby) V % VO 93 % RSET = 976 Ω, VO = 1.8 V 2.5 A/µs load step from 50 to 100% IOmax (3) V % VO ±3 RSET = 619 Ω, VO = 2.5 V Efficiency 5.5 ±2 RSET = 432 Ω, VO = 3.3 V η 14 Ceramic 4.4 3.95 6 V (4) 0.6 V –125 µA 1 mA 300 kHz µF 3000 22 (6) (7) 100 µF mΩ 106 Hrs For output voltages less than 1.0 V, the output ripple may increase (up to 2×) when operating at input voltages greater than (VO ×15). The minimum input voltage is 4.5 V or (VO/0.83) V, whichever is greater. The set-point voltage tolerance is affected by the tolerance and stability of RSET. The stated limit is unconditionally met if RSET has a tolerance of 1% with with 100 ppm/°C or better temperature stability. This control pin has an internal pullup to the input voltage VI. If it is left open circuit, the module operates when input power is applied. A small low-leakage (
