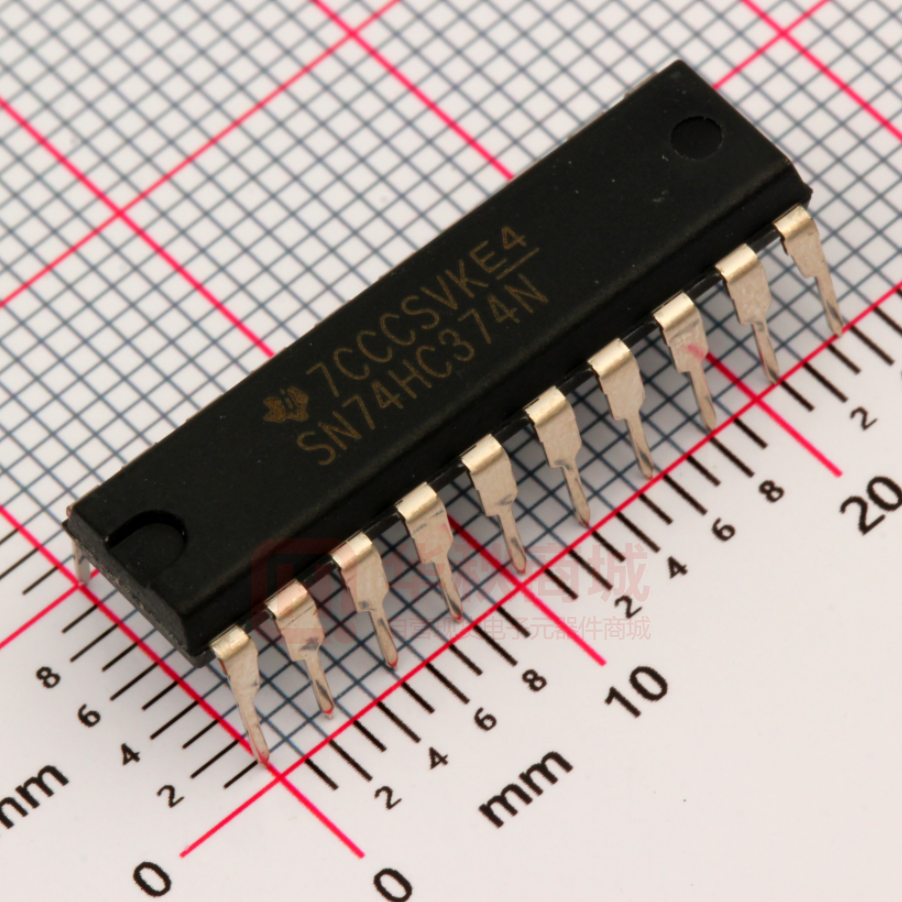

SN74HC374N


 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 D Wide Operating Voltage Range of 2 V to 6 V D High-Current 3-State True Outputs Can D D D D Drive Up To 15 LSTTL Loads D Eight D-Type Flip-Flops in a Single Package D Full Parallel Access for Loading Low Power Consumption, 80-µA Max ICC Typical tpd = 14 ns ±6-mA Output Drive at 5 V Low Input Current of 1 µA Max SN54HC374 . . . FK PACKAGE (TOP VIEW) 1 20 2 19 3 18 4 17 5 16 6 15 7 14 8 13 9 12 10 11 VCC 8Q 8D 7D 7Q 6Q 6D 5D 5Q CLK 2D 2Q 3Q 3D 4D 4 3 2 1 20 19 18 5 17 6 16 7 15 8 14 9 10 11 12 13 8D 7D 7Q 6Q 6D 4Q GND CLK 5Q 5D OE 1Q 1D 2D 2Q 3Q 3D 4D 4Q GND 1D 1Q OE VCC 8Q SN54HC374 . . . J OR W PACKAGE SN74HC374 . . . DB, DW, N, NS, OR PW PACKAGE (TOP VIEW) description/ordering information These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The eight flip-flops of the ’HC374 devices are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels that were set up at the data (D) inputs. An output-enable (OE) input places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pullup components. ORDERING INFORMATION PDIP − N SN74HC374N Tube of 25 SN74HC374DW Reel of 2000 SN74HC374DWR SOP − NS Reel of 2000 SN74HC374NSR HC374 SSOP − DB Reel of 2000 SN74HC374DBR HC374 Tube of 2000 SN74HC374PWR Reel of 250 SN74HC374PWT CDIP − J Tube of 20 SNJ54HC374J SNJ54HC374J CFP − W Tube of 85 SNJ54HC374W SNJ54HC374W LCCC − FK Tube of 55 SNJ54HC374FK TSSOP − PW −55°C −55 C to 125 125°C C TOP-SIDE MARKING Tube of 20 SOIC − DW −40°C −40 C to 85 85°C C ORDERABLE PART NUMBER PACKAGE† TA SN74HC374N HC374 HC374 SNJ54HC374FK † Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. Copyright  2003, Texas Instruments Incorporated     ! " #$%! "  &$'(#! )!%* )$#!" # ! "&%##!" &% !+% !%"  %," "!$%!" "!)) -!.* )$#! &#%""/ )%" ! %#%""(. #($)% !%"!/  (( &%!%"*  &)$#!" #&(! ! 0 1 (( &%!%" % !%"!%) $(%"" !+%-"% !%)*  (( !+% &)$#!" &)$#! &#%""/ )%" ! %#%""(. #($)% !%"!/  (( &%!%"* POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 1 

 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 description/ordering information (continued) OE does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. FUNCTION TABLE (each flip-flop) INPUTS OE CLK D OUTPUT Q L ↑ H H L ↑ L L L H or L X Q0 H X X Z logic diagram (positive logic) OE CLK 1 11 C1 1D 3 1D 2 1Q To Seven Other Channels absolute maximum ratings over operating free-air temperature range (unless otherwise noted)† Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±35 mA Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±70 mA Package thermal impedance, θJA (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70°C/W DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58°C/W N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69°C/W NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60°C/W PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83°C/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. The package thermal impedance is calculated in accordance with JESD 51-7. 2 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 

 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 recommended operating conditions (see Note 3) SN54HC374 VCC VIH Supply voltage VCC = 2 V VCC = 4.5 V High-level input voltage VCC = 6 V VCC = 2 V VIL VI VO ∆t/∆v MIN NOM MAX 2 5 6 Input voltage MAX 2 5 6 3.15 3.15 4.2 4.2 0 VCC = 6 V UNIT V V 0.5 0.5 1.35 1.35 1.8 1.8 VCC VCC VCC = 2 V VCC = 4.5 V Input transition rise/fall time NOM 1.5 0 Output voltage MIN 1.5 VCC = 4.5 V VCC = 6 V Low-level input voltage SN74HC374 0 VCC VCC 0 1000 1000 500 500 400 400 V V V ns TA Operating free-air temperature −55 125 −40 85 °C NOTE 3: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, literature number SCBA004. electrical characteristics over recommended operating free-air temperature range (unless otherwise noted) PARAMETER VOH VOL TEST CONDITIONS VI = VCC or 0, MIN MAX SN74HC374 MIN MAX UNIT 1.9 1.998 1.9 1.9 IOH = −20 µA 4.4 4.499 4.4 4.4 6V 5.9 5.999 5.9 5.9 IOH = −6 mA IOH = −7.8 mA 4.5 V 3.98 4.3 3.7 3.84 6V 5.48 5.8 5.2 5.34 2V 0.002 0.1 0.1 0.1 IOL = 20 µA 4.5 V 0.001 0.1 0.1 0.1 6V 0.001 0.1 0.1 0.1 4.5 V 0.17 0.26 0.4 0.33 6V 0.15 0.26 0.4 0.33 6V ±0.1 ±100 ±1000 ±1000 nA 6V ±0.01 ±0.5 ±10 ±5 µA 8 160 80 µA 10 10 10 pF IOL = 6 mA IOL = 7.8 mA ICC Ci SN54HC374 2V VI = VIH or VIL VI = VCC or 0 VO = VCC or 0 TA = 25°C MIN TYP MAX 4.5 V VI = VIH or VIL II IOZ VCC IO = 0 6V 2 V to 6 V POST OFFICE BOX 655303 3 • DALLAS, TEXAS 75265 V V 3 

 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 timing requirements over recommended operating free-air temperature range (unless otherwise noted) VCC fclock Clock frequency tw Pulse duration, CLK high or low tsu Setup time, data before CLK↑ th Hold time, data after CLK CLK↑ TA = 25°C MIN MAX SN54HC374 MIN MAX SN74HC374 MIN MAX 2V 6 4 5 4.5 V 30 20 24 6V 35 24 28 2V 80 120 100 4.5 V 16 24 20 6V 14 20 17 2V 100 150 125 4.5 V 20 30 25 6V 17 25 21 2V 10 13 12 4.5 V 5 5 5 6V 5 5 5 UNIT MHz ns ns ns switching characteristics over recommended operating free-air temperature range, CL = 50 pF (unless otherwise noted) (see Figure 1) PARAMETER FROM (INPUT) TO (OUTPUT) fmax tpd ten tdis tt 4 CLK OE OE Any Q Any Q Any Q Any Q VCC TA = 25°C MIN TYP MAX SN54HC374 MIN MAX SN74HC374 MIN 2V 6 12 4 5 4.5 V 30 60 20 24 6V 35 70 24 28 MAX MHz 2V 63 180 270 225 4.5 V 17 36 54 45 6V 15 31 46 38 2V 60 150 225 190 4.5 V 16 30 45 38 6V 14 26 38 32 2V 36 150 225 190 4.5 V 17 30 45 38 6V 16 26 38 32 2V 28 60 90 75 4.5 V 8 12 18 15 6V 6 10 15 13 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 UNIT ns ns ns ns 

 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 switching characteristics over recommended operating free-air temperature range, CL = 150 pF (unless otherwise noted) (see Figure 1) PARAMETER FROM (INPUT) TO (OUTPUT) fmax tpd ten tt CLK OE Any Q Any Q Any Q VCC MIN TA = 25°C TYP MAX SN54HC374 MIN MAX SN74HC374 MIN 2V 6 12 5 4.5 V 30 60 24 6V 35 70 28 MAX UNIT MHz 2V 80 230 345 290 4.5 V 22 46 69 58 6V 19 39 58 49 2V 70 200 300 250 4.5 V 25 40 60 50 6V 22 34 51 43 2V 45 210 315 265 4.5 V 17 42 63 53 6V 13 36 53 45 ns ns ns operating characteristics, TA = 25°C PARAMETER Cpd Power dissipation capacitance per flip-flop POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 TEST CONDITIONS TYP UNIT No load 100 pF 5 

 


SCLS141E − DECEMBER 1982 − REVISED AUGUST 2003 PARAMETER MEASUREMENT INFORMATION VCC From Output Under Test CL (see Note A) PARAMETER tPZH S1 Test Point RL ten RL tdis S2 tPZL tPHZ tPLZ 1 kΩ 1 kΩ Reference Input VCC 50% Data Input VCC 50% 10% 50% VCC 0V In-Phase Output 50% 10% tPHL 90% 90% tr tPHL Out-ofPhase Output 90% tf Open Closed Closed Open Open Open VCC th 90% 90% VCC 50% 10% 0 V tf 50% 10% Output Control (Low-Level Enabling) VCC 50% 50% 0V tPZL VOH 50% 10% V OL tf Output Waveform 1 (See Note B) tPLZ 90% VOH VOL Output Waveform 2 (See Note B) ≈VCC ≈VCC 50% 10% tPZH tPLH 50% 10% Open VOLTAGE WAVEFORMS SETUP AND HOLD AND INPUT RISE AND FALL TIMES 50% tPLH Closed tr VOLTAGE WAVEFORMS PULSE DURATIONS 50% Closed 0V 0V Input Open tsu 0V 50% 50 pF or 150 pF 50% 50% tw Low-Level Pulse S2 50 pF or 150 pF LOAD CIRCUIT High-Level Pulse S1 50 pF −− tpd or tt CL VOL tPHZ 50% 90% VOH ≈0 V tr VOLTAGE WAVEFORMS PROPAGATION DELAY AND OUTPUT TRANSITION TIMES VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES FOR 3-STATE OUTPUTS NOTES: A. CL includes probe and test-fixture capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control. C. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr = 6 ns, tf = 6 ns. D. For clock inputs, fmax is measured when the input duty cycle is 50%. E. The outputs are measured one at a time with one input transition per measurement. F. tPLZ and tPHZ are the same as tdis. G. tPZL and tPZH are the same as ten. H. tPLH and tPHL are the same as tpd. Figure 1. Load Circuit and Voltage Waveforms 6 POST OFFICE BOX 655303 • DALLAS, TEXAS 75265 PACKAGE OPTION ADDENDUM www.ti.com 24-Aug-2018 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) 5962-8407101VRA ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8407101VR A SNV54HC374J 5962-8407101VSA ACTIVE CFP W 20 1 TBD A42 N / A for Pkg Type -55 to 125 5962-8407101VS A SNV54HC374W 84071012A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 84071012A SNJ54HC 374FK 8407101RA ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 8407101RA SNJ54HC374J 8407101SA ACTIVE CFP W 20 1 TBD A42 N / A for Pkg Type -55 to 125 8407101SA SNJ54HC374W JM38510/65602BRA ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 JM38510/ 65602BRA M38510/65602BRA ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 JM38510/ 65602BRA SN54HC374J ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 SN54HC374J SN74HC374DBR ACTIVE SSOP DB 20 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374DW ACTIVE SOIC DW 20 25 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374DWE4 ACTIVE SOIC DW 20 25 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374DWG4 ACTIVE SOIC DW 20 25 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374DWR ACTIVE SOIC DW 20 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374DWRG4 ACTIVE SOIC DW 20 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374N ACTIVE PDIP N 20 20 Pb-Free (RoHS) CU NIPDAU N / A for Pkg Type -40 to 85 SN74HC374N SN74HC374NE4 ACTIVE PDIP N 20 20 Pb-Free (RoHS) CU NIPDAU N / A for Pkg Type -40 to 85 SN74HC374N Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com Orderable Device 24-Aug-2018 Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) SN74HC374NSR ACTIVE SO NS 20 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374PWR ACTIVE TSSOP PW 20 2000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SN74HC374PWT ACTIVE TSSOP PW 20 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 HC374 SNJ54HC374FK ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type -55 to 125 84071012A SNJ54HC 374FK SNJ54HC374J ACTIVE CDIP J 20 1 TBD A42 N / A for Pkg Type -55 to 125 8407101RA SNJ54HC374J SNJ54HC374W ACTIVE CFP W 20 1 TBD A42 N / A for Pkg Type -55 to 125 8407101SA SNJ54HC374W (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
