TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
TXB0104 4-Bit Bidirectional Voltage-level Translator With Automatic Direction Sensing
and ±15-kV ESD Protection
1 Features
3 Description
•
This TXB0104 4-bit noninverting translator uses two
separate configurable power-supply rails. The A port
is designed to track VCCA. VCCA accepts any supply
voltage from 1.2 V to 3.6 V. The B port is designed to
track VCCB. VCCB accepts any supply voltage from
1.65 V to 5.5 V. This allows for universal low-voltage
bidirectional translation between any of the 1.2-V,
1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
VCCA must not exceed VCCB.
1
•
•
•
•
•
•
1.2-V to 3.6-V on A Port and 1.65-V to 5.5-V
on B Port (VCCA ≤ VCCB)
VCC Isolation Feature: If Either VCC Input Is at
GND, All Outputs Are in the High-Impedance
State
Output Enable (OE) Input Circuit Referenced to
VCCA
Low Power Consumption, 5-μA Maximum ICC
I OFF Supports Partial Power-Down Mode
Operation
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
– A Port:
– 2500-V Human-Body Model (A114-B)
– 1500-V Charged-Device Model (C101)
– B Port:
– ±15-kV Human-Body Model (A114-B)
– 1500-V Charged-Device Model (C101)
When the OE input is low, all outputs are placed in
the high-impedance state. To ensure the highimpedance state during power up or power down, OE
must be tied to GND through a pulldown resistor The
current sourcing capability of the driver determines
the minimum value of the resistor.
The TXB0104 device is designed so the OE input
circuit is supplied by VCCA.
This device is fully specified for partial power-down
applications using I OFF. The I OFF circuitry disables
the outputs, which prevents damaging current
backflow through the device when the device is
powered down.
Device Information(1)
2 Applications
•
•
•
•
PART NUMBER
Headsets
Smartphones
Tablets
Desktop PC
PACKAGE
BODY SIZE (NOM)

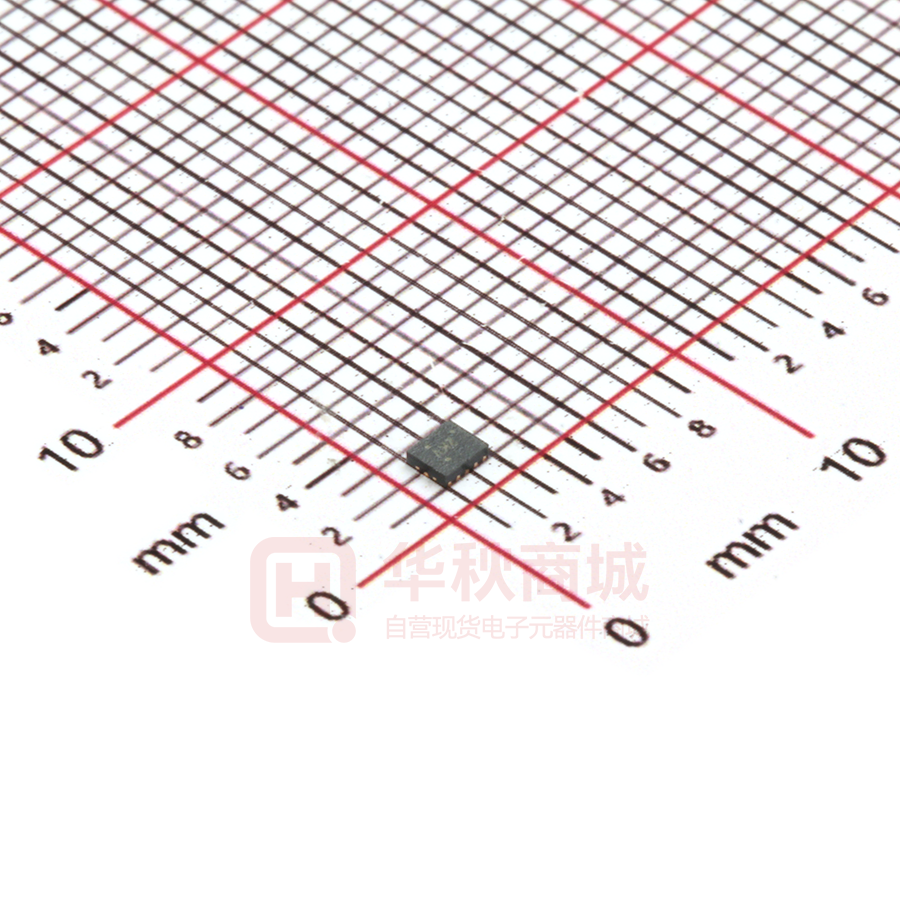

TXB0104RUT
UQFN (12)
2.00 mm × 1.70 mm
TXB0104D
SOIC (14)
8.65 mm × 3.91 mm
TXB0104ZXU/GXU
BGA MICROSTAR
JUNIOR™ (12)
2.00 mm × 2.50 mm
TXB0104PW
TSSOP (14)
5.00 mm × 4.40 mm
TXB0104RGY
VQFN (14)
3.50 mm × 3.50 mm
TXB0104YZT
DSBGA (12)
1.40 mm × 1.90 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Typical Application Block Diagram for TXB010X
VCCA
Processor
VCCB
Peripheral
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
5
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
6.10
6.11
6.12
6.13
6.14
6.15
6.16
Absolute Maximum Ratings ..................................... 5
ESD Ratings ............................................................ 5
Recommended Operating Conditions....................... 6
Thermal Information .................................................. 6
Electrical Characteristics .......................................... 7
Timing Requirements: VCCA = 1.2 V ......................... 8
Timing Requirements: VCCA = 1.5 V ± 0.1 V ............ 8
Timing Requirements: VCCA = 1.8 V ± 0.15 V .......... 8
Timing Requirements: VCCA = 2.5 V ± 0.2 V ............ 8
Timing Requirements: VCCA = 3.3 V ± 0.3 V .......... 8
Switching Characteristics: VCCA = 1.2 V ................. 9
Switching Characteristics: VCCA = 1.5 V ± 0.1 V .... 9
Switching Characteristics: VCCA = 1.8 V ± 0.15 V 10
Switching Characteristics: VCCA = 2.5 V ± 0.2 V .. 10
Switching Characteristics: VCCA = 3.3 V ± 0.3 V .. 11
Operating Characteristics: VCCA = 1.2 V to 1.5 V,
VCCB = 1.5 V to 1.8 V............................................... 12
6.17 Operating Characteristics: VCCA = 1.8 V to 3.3 V,
VCCB = 1.8 V to 5 V.................................................. 12
6.18 Typical Characteristics .......................................... 13
7
8
Parameter Measurement Information ................ 14
Detailed Description ............................................ 16
8.1
8.2
8.3
8.4
9
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
16
16
17
19
Application and Implementation ........................ 20
9.1 Application Information............................................ 20
9.2 Typical Application ................................................. 20
10 Power Supply Recommendations ..................... 22
11 Layout................................................................... 22
11.1 Layout Guidelines ................................................. 22
11.2 Layout Example .................................................... 22
12 Device and Documentation Support ................. 23
12.1
12.2
12.3
12.4
12.5
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
23
23
23
23
23
13 Mechanical, Packaging, and Orderable
Information ........................................................... 24
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision H (Janurary 2018) to Revision I
Page
•
Updated Pin Functions table ................................................................................................................................................. 4
•
Added Pin Assignments table for GXU and ZXU package ................................................................................................... 4
•
Added Pin Assignments table for YZT package .................................................................................................................... 4
•
Updated Layout Example ..................................................................................................................................................... 22
Changes from Revision G (November 2014) to Revision H
Page
•
Added package families to package pinout drawings in Pin Configuration and Functions section ...................................... 3
•
Added junction temperature range in Absolute Maximum Ratingstable................................................................................. 5
•
Changed unit from V to kV in ESD Ratings table................................................................................................................... 5
Changes from Revision F (May 2012) to Revision G
•
2
Page
Added Pin Configuration and Functions section, Handling Rating table, Feature Description section, Device
Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout
section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information
section ................................................................................................................................................................................... 1
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
5 Pin Configuration and Functions
GXU and ZXU Package
12-Pin BGA Microstar Junior
Top View
VCCB
B C
VCCA
A
RGY Package
14-Pin VQFN With Exposed Thermal Pad
Top View
1
14
4
3
A1
A2
A3
A4
NC
2
1
13 B1
2
3
12 B2
Exposed
Center
Pad
4
5
6
11 B3
10 B4
9 NC
YZT Package
12-Pin DSBGA
Top View
8
3 2 1
OE
GND
7
NC − No internal connection
D
C
B
A
RUT Package
12-Pin UQFN
Top View
OE
PLACEHOLDER
VCCA
D or PW Package
14-Pin SOIC or TSSOP
Top View
1
14
VCCB
A1
2
13
B1
A2
3
12
B2
A3
4
11
B3
A4
5
10
B4
NC
GND
6
9
7
8
NC
OE
12
11 VCCB
A1 2
10 B1
A2 3
9 B2
A3 4
8 B3
A4 5
6
7 B4
GND
VCCA
1
NC − No internal connection
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
3
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
Pin Functions
PIN
NAME
I/O
DESCRIPTION
D, PW
RGY
RUT
GXU, ZXU
YZT
A1
2
2
2
A1
A3
I/O
Input/output 1. Referenced to VCCA.
A2
3
3
3
A2
B3
I/O
Input/output 2. Referenced to VCCA.
A3
4
4
4
A3
C3
I/O
Input/output 3. Referenced to VCCA.
A4
5
5
5
A4
D3
I/O
Input/output 4. Referenced to VCCA.
B1
13
13
10
C1
A1
I/O
Input/output 1. Referenced to VCCB.
B2
12
12
9
C2
B1
I/O
Input/output 2. Referenced to VCCB.
B3
11
11
8
C3
C1
I/O
Input/output 3. Referenced to VCCB.
B4
10
10
7
C4
D1
I/O
Input/output 4. Referenced to VCCB.
GND
7
7
6
B4
D2
—
Ground
NC
6, 9
6,9
—
–
–
—
No connection. Not internally connected.
OE
8
8
12
B3
C2
I
Tri-state output-mode enable. Pull OE low to place all
outputs in tri-state mode. Referenced to VCCA.
VCCA
1
1
1
B2
B2
—
A-port supply voltage 1.2 V ≤ VCCA ≤ 3.6 V and VCCA ≤
VCCB.
VCCB
14
14
11
B1
A2
—
B-port supply voltage 1.65 V ≤ VCCB ≤ 5.5 V.
Thermal
pad
—
—
–
–
—
For the RGY package, the exposed center thermal pad
must either be connected to Ground or left electrically
open.
Pin Assignments: GXU and ZXU Package
A
B
C
4
A4
GND
B4
3
A3
OE
B3
2
A2
VCCA
B2
1
A1
VCCB
B1
Pin Assignments: YZT Package
4
3
2
1
D
A4
GND
B4
C
A3
OE
B3
B
A2
VCCA
B2
A
A1
VCCB
B1
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
6 Specifications
6.1 Absolute Maximum Ratings (1)
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
Supply voltage, VCCA
–0.5
4.6
Supply voltage, VCCB
–0.5
6.5
A port
–0.5
4.6
B port
–0.5
6.5
Voltage applied to any output in the high-impedance or power-off state, A port
VO
B port
–0.5
4.6
-0.5
6.5
A port
–0.5
VCCA + 0.5
B port
–0.5
VCCB + 0.5
Input voltage, VI
Voltage applied to any output in the high or low state, VO (2)
UNIT
V
V
V
V
Input clamp current, IIK
VI < 0
–50
mA
Output clamp current, IOK
VO < 0
–50
mA
Continuous output current, IO
–50
50
mA
Continuous current through VCCA, VCCB, or GND
–100
100
mA
150
°C
150
°C
Junction temperature range, TJ
Storage temperature range, Tstg
(1)
(2)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The value of VCCA and VCCB are provided in the recommended operating conditions table.
6.2 ESD Ratings
VALUE
(1)
A port
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
B port
±15
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
A port
±1.5
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
B port
±1.5
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001
V(ESD)
(1)
(2)
Electrostatic
discharge
UNIT
±2.5
kV
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
5
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1) (2)
MIN
MAX
VCCA Supply voltage
1.2
3.6
VCCB Supply voltage
1.65
5.5
VIH
High-level input voltage
VIL
Low-level input voltage
Voltage applied to any
output in the high-impedance
or power-off state
VO
Δt/Δv
TA
(1)
(2)
(3)
Input transition
rise or fall rate
UNIT
V
Data
inputs
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
VCCI × 0.65 (3)
VCCI
OE
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
VCCA × 0.65
5.5
Data
inputs
VCCA = 1.2 V to 5.5 V
VCCB = 1.65 V to 5.5 V
0
VCCI × 0.35 (3)
OE
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
0
VCCA × 0.35
A-port
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
0
3.6
B-port
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
0
5.5
A-port
inputs
VCCA = 1.2 V to 3.6 V
VCCB = 1.65 V to 5.5 V
B-port
inputs
VCCA = 1.2 V to 3.6 V
V
V
V
40
VCCB = 1.65 V to 3.6 V
40
VCCB = 4.5 V to 5.5 V
30
Operating free-air temperature
–40
ns/V
85
°C
The A and B sides of an unused data I/O pair must be held in the same state, that is, both at VCCI or both at GND.
VCCA must be less than or equal to VCCB and must not exceed 3.6 V.
VCCI is the supply voltage associated with the input port.
6.4 Thermal Information
TXB0104
THERMAL METRIC
(1)
D
GXU/ZXU
PW
RGY
RUT
YZT
14 PINS
12 PINS
14 PINS
14 PINS
12 PINS
12 PINS
90.7
127.1
121.0
52.8
119.8
89.2
RθJC(top) Junction-to-case (top) thermal
resistance
50.5
92.8
50.0
67.7
42.6
0.9
RθJB
Junction-to-board thermal
resistance
45.4
62.2
62.8
28.9
52.5
14.4
ψJT
Junction-to-top characterization
parameter
14.7
2.3
6.4
2.6
0.7
3.0
ψJB
Junction-to-board characterization
parameter
45.1
62.2
62.2
29.0
52.3
14.4
─
─
─
─
─
─
RθJA
Junction-to-ambient thermal
resistance
RθJC(bot) Junction-to-case (bottom) thermal
resistance
(1)
6
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report.
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
6.5 Electrical Characteristics (1) (2)
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
VCCA
VCCB
IOH = –20 μA
VOLA
Port A output
low voltage
IOL = 20 μA
VOHB
Port B output
high voltage
IOH = –20 μA
1.65 V to 5.5 V
VOLB
Port B output
low voltage
IOL = 20 μA
1.65 V to 5.5 V
II
Inflectionpoint current
OE:
VI = VCCI or GND
Ioff
Off-state
current
VCCA supply
current
ICCA
TYP MAX
MIN
MAX
1.4 V to 3.6 V
1.2 V
0.3
1.4 V to 3.6 V
0.4
VCCB – 0.4
0.4
V
μA
–1
1
–2
2
A port:
VI or VO = 0 to 3.6 V
0V
0 V to 5.5 V
–1
1
–2
2
B port:
VI or VO = 0 to 5.5 V
0 V to 3.6 V
0V
–1
1
–2
2
1.2 V to 3.6 V
1.65 V to 5.5 V
–1
1
–2
2
VI = VCCI or GND
IO = 0
VCCB supply
current
VI = VCCI or GND
IO = 0
ICCA
+
ICCB
Combined
supply
current
VI = VCCI or GND
IO = 0
ICCZA
Highimpedance
state, VCCA
supply
current
VI = VCCI or GND
IO = 0,
OE = GND
ICCZB
Highimpedance
state, VCCB
supply
current
VI = VCCI or GND
IO = 0,
OE = GND
Ci
Input
capacitance
Cio
Input-tooutput
internal
capacitance
V
V
1.65 V to 5.5 V
A or B port:
OE = GND
UNIT
V
VCCA – 0.4
1.2 V to 3.6 V
ICCB
(1)
(2)
–40°C to 85°C
1.1
Port A output
high voltage
Highimpedancestate output
current
MIN
1.2 V
VOHA
IOZ
TA = 25°C
μA
1.2 V
1.65 V to 5.5 V
1.4 V to 3.6 V
1.65 V to 5.5 V
5
3.6 V
0V
2
μA
0.06
0V
5.5 V
1.2 V
1.65 V to 5.5 V
1.4 V to 3.6 V
1.65 V to 5.5 V
5
3.6 V
0V
–2
μA
–2
3.4
0V
5.5 V
1.2 V
1.65 V to 5.5 V
1.4 V to 3.6 V
1.65 V to 5.5 V
1.2 V
1.65 V to 5.5 V
1.4 V to 3.6 V
1.65 V to 5.5 V
1.2 V
1.65 V to 5.5 V
1.4 V to 3.6 V
1.65 V to 5.5 V
OE
1.2 V to 3.6 V
1.65 V to 5.5 V
3
4
A port
1.2 V to 3.6 V
1.65 V to 5.5 V
5
6
B port
1.2 V to 3.6 V
1.65 V to 5.5 V
11
14
μA
2
3.5
10
μA
0.05
5
μA
3.3
5
μA
pF
pF
VCCI is the supply voltage associated with the input port.
VCCO is the supply voltage associated with the output port.
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
7
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
6.6 Timing Requirements: VCCA = 1.2 V
TA = 25°C, VCCA = 1.2 V
VCCB = 1.8 V
MIN
TYP
Data rate
tw
Pulse duration
Data inputs
VCCB = 2.5 V
MAX
MIN
TYP
MAX
VCCB = 3.3 V
MIN
TYP
VCCB = 5 V
MAX
MIN
TYP
MAX
UNIT
20
20
20
20
Mbps
50
50
50
50
ns
6.7 Timing Requirements: VCCA = 1.5 V ± 0.1 V
over recommended operating free-air temperature range, VCCA = 1.5 V ± 0.1 V (unless otherwise noted)
VCCB = 1.8 V
± 0.15 V
MIN
MAX
Data rate
tw
Pulse duration
VCCB = 2.5 V
± 0.2 V
MIN
MAX
40
Data inputs
VCCB = 3.3 V
± 0.3 V
MIN
40
25
25
VCCB = 5 V
± 0.5 V
MAX
MIN
40
40
25
UNIT
MAX
25
Mbps
ns
6.8 Timing Requirements: VCCA = 1.8 V ± 0.15 V
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (unless otherwise noted)
VCCB = 1.8 V
± 0.15 V
MIN
Data rate
tw
Pulse duration
VCCB = 2.5 V
± 0.2 V
MAX
MIN
MAX
60
Data inputs
VCCB = 3.3 V
± 0.3 V
MIN
60
17
VCCB = 5 V
± 0.5 V
MAX
MIN
60
17
60
17
UNIT
MAX
17
Mbps
ns
6.9 Timing Requirements: VCCA = 2.5 V ± 0.2 V
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (unless otherwise noted)
VCCB = 2.5 V
± 0.2 V
MIN
MAX
Data rate
tw
Pulse duration
VCCB = 3.3 V
± 0.3 V
MIN
100
Data inputs
10
MAX
VCCB = 5 V
± 0.5 V
MIN
100
10
UNIT
MAX
100
10
Mbps
ns
6.10 Timing Requirements: VCCA = 3.3 V ± 0.3 V
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (unless otherwise noted)
VCCB = 3.3 V
± 0.3 V
MIN
Data rate
tw
8
Pulse duration
MAX
VCCB = 5 V
± 0.5 V
MIN
100
Data inputs
10
Submit Documentation Feedback
100
10
UNIT
MAX
Mbps
ns
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
6.11 Switching Characteristics: VCCA = 1.2 V
TA = 25°C, VCCA = 1.2 V
PARAMETER
TEST
CONDITIONS
VCCB = 1.8 V
MIN
TYP
VCCB = 2.5 V
MAX
MIN
TYP
VCCB = 3.3 V
MAX
MIN
TYP
VCCB = 5 V
MAX
MIN
TYP
MAX
UNIT
A-to-B
6.9
5.7
5.3
5.5
B-to-A
7.4
6.4
6
5.8
OE-to-A
1
1
1
1
OE-to-B
1
1
1
1
OE-to-A
18
15
14
14
OE-to-B
20
17
16
16
Input rise
time, input
fall time
A-port rise
and fall times
4.2
4.2
4.2
4.2
ns
trB, tfB
Input rise
time, input
fall time
B-port rise
and fall times
2.1
1.5
1.2
1.1
ns
tSK(O)
Skew (time), Channel-tooutput
channel skew
0.4
0.5
0.5
1.4
ns
tpd
Propagation
delay time
ten
Enable time
tdis
Disable time
trA, tfA
Maximum
data rate
20
20
20
ns
µs
ns
20
Mbps
6.12 Switching Characteristics: VCCA = 1.5 V ± 0.1 V
over recommended operating free-air temperature range, VCCA = 1.5 V ± 0.1 V (unless otherwise noted)
PARAMETER
tpd
Propagation
delay time
ten
Enable time
tdis
Disable time
trA, tfA
TEST
CONDITIONS
VCCB = 1.8 V
± 0.15 V
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
MIN
MAX
MIN
MAX
MIN
A-to-B
1.4
12.9
1.2
10.1
B-to-A
0.9
14.2
0.7
12
VCCB = 5 V
± 0.5 V
UNIT
MAX
MIN
MAX
1.1
10
0.8
9.9
0.4
11.7
0.3
13.7
OE-to-A
1
1
1
1
OE-to-B
1
1
1
1
ns
µs
OE-to-A
5.9
31
5.7
25.9
5.6
23
5.7
22.4
OE-to-B
5.4
30.3
4.9
22.8
4.8
20
4.9
19.5
Input rise
time, input
fall time
A-port
rise and
fall times
1.4
5.1
1.4
5.1
1.4
5.1
1.4
5.1
ns
trB, tfB
Input rise
time, input
fall time
B-port
rise and
fall times
0.9
4.5
0.6
3.2
0.5
2.8
0.4
2.7
ns
tSK(O)
Skew (time),
output
Channel-tochannel skew
0.5
ns
Maximum
data rate
0.5
40
0.5
40
0.5
40
40
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
ns
Mbps
9
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
6.13 Switching Characteristics: VCCA = 1.8 V ± 0.15 V
over recommended operating free-air temperature range, VCCA = 1.8 V ± 0.15 V (unless otherwise noted)
PARAMETER
TEST
CONDITIONS
VCCB = 1.8 V
± 0.15 V
VCCB = 2.5 V
± 0.2 V
VCCB = 3.3 V
± 0.3 V
VCCB = 5 V
± 0.5 V
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
1.6
11
1.4
7.7
1.3
6.8
1.2
6.5
1.5
12
1.3
8.4
1
7.6
0.9
7.1
UNIT
tpd
Propagation A-to-B
delay time
B-to-A
ten
Enable time
tdis
Disable
time
OE-to-A
5.9
31
5.1
21.3
5
19.3
5
17.4
OE-to-B
5.4
30.3
4.4
20.8
4.2
17.9
4.3
16.3
trA, tfA
Input rise
time, input
fall time
A-port
rise and
fall times
1
4.2
1.1
4.1
1.1
4.1
1.1
4.1
ns
trB, tfB
Input rise
time, input
fall time
B-port
rise and
fall times
0.9
3.8
0.6
3.2
0.5
2.8
0.4
2.7
ns
tSK(O)
Skew
(time),
output
Channel-tochannel skew
0.5
ns
OE-to-A
1
1
1
1
OE-to-B
1
1
1
1
Maximum
data rate
0.5
0.5
60
0.5
60
60
60
ns
µs
ns
Mbps
6.14 Switching Characteristics: VCCA = 2.5 V ± 0.2 V
over recommended operating free-air temperature range, VCCA = 2.5 V ± 0.2 V (unless otherwise noted)
PARAMETER
TEST
CONDITIONS
VCCB = 2.5 V ± 0.2 V
VCCB = 3.3 V ± 0.3 V
VCCB = 5 V ± 0.5 V
MIN
MAX
MIN
MAX
MIN
MAX
1.1
6.3
1
5.2
0.9
4.7
1.2
6.6
1.1
5.1
0.9
4.4
UNIT
tpd
Propagatio A-to-B
n delay
B-to-A
time
ten
Enable
time
OE-to-A
1
1
1
OE-to-B
1
1
1
tdis
Disable
time
OE-to-A
5.1
21.3
4.6
15.2
4.6
13.2
OE-to-B
4.4
20.8
3.8
16
3.9
13.9
trA, tfA
Input rise
time, input
fall time
A-port
rise and
fall times
0.8
3
0.8
3
0.8
3
ns
trB, tfB
Input rise
time, input
fall time
B-port
rise and
fall times
0.7
2.6
0.5
2.8
0.4
2.7
ns
tSK(O)
Skew
(time),
output
Channel-tochannel skew
0.5
ns
Maximum
data rate
10
0.5
100
0.5
100
Submit Documentation Feedback
100
ns
μs
ns
Mbps
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
6.15 Switching Characteristics: VCCA = 3.3 V ± 0.3 V
over recommended operating free-air temperature range, VCCA = 3.3 V ± 0.3 V (unless otherwise noted)
PARAMETER
TEST
CONDITIONS
tpd
Propagation A-to-B
delay time
B-to-A
ten
Enable time
tdis
Disable time
trA, tfA
VCCB = 3.3 V ± 0.3 V
VCCB = 5 V ± 0.5 V
MIN
MAX
MIN
MAX
0.9
4.7
0.8
4
1
4.9
0.9
3.8
OE-to-A
1
1
OE-to-B
1
1
UNIT
ns
μs
OE-to-A
4.6
15.2
4.3
12.1
OE-to-B
3.8
16
3.4
13.2
Input rise
time, input
fall time
A-port
rise and
fall times
0.7
2.5
0.7
2.5
ns
trB, tfB
Input rise
time, input
fall time
B-port
rise and
fall times
0.5
2.1
0.4
2.7
ns
tSK(O)
Skew
(time),
output
Channel-tochannel skew
0.5
ns
Maximum
data rate
0.5
100
100
ns
Mbps
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
11
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
6.16 Operating Characteristics: VCCA = 1.2 V to 1.5 V, VCCB = 1.5 V to 1.8 V
TA = 25°C
PARAMETER
CpdA
CpdB
CpdA
CpdB
Power
dissipation
capacitance
Power
dissipation
capacitance
Power
dissipation
capacitance
Power
dissipation
capacitance
VCCA = 1.2 V, VCCB =1.5 V
TEST CONDITIONS
CL = 0
f = 10 MHz
tr = tf = 1 ns
OE = VCCA
(outputs
enabled)
CL = 0
f = 10 MHz
tr = tf = 1 ns
OE = GND
(outputs
disabled)
MIN
TYP
VCCA = 1.2 V, VCCB = 1.8 V
MAX
MIN
TYP
VCCA = 1.5 V, VCCB = 1.8 V
MAX
MIN
TYP
A-port input,
B-port output
7.8
10
9
B-port input,
A-port output
12
11
11
A-port input,
B-port output
38.1
28
28
B-port input,
A-port output
25.4
19
18
A-port input,
B-port output
0.01
0.01
0.01
B-port input,
A-port output
0.01
0.01
0.01
A-port input,
B-port output
0.01
0.01
0.01
B-port input,
A-port output
0.01
0.01
0.01
MAX
UNIT
pF
pF
6.17 Operating Characteristics: VCCA = 1.8 V to 3.3 V, VCCB = 1.8 V to 5 V
TA = 25°C
PARAMETER
TEST CONDITIONS
VCCA = 1.8 V,
VCCB =1.8 V
MIN
CpdA
CpdB
CpdA
CpdB
12
TYP
MAX
VCCA = 2.5 V,
VCCB = 2.5 V
MIN
TYP
VCCA = 2.5 V,
VCCB = 5 V
MAX
MIN
TYP
MAX
VCCA = 3.3 V,
VCCB = 3.3 V to 5 V
MIN
TYP
Power
dissipation
CL = 0
capacitanc
f = 10 MHz
e
tr = tf = 1 ns
OE = VCCA
Power
(outputs
dissipation
enabled)
capacitanc
e
A-port input,
B-port output
8
8
8
9
B-port input,
A-port output
11
11
11
11
A-port input,
B-port output
28
29
29
29
B-port input,
A-port output
18
19
21
22
Power
dissipation
CL = 0
capacitanc
f = 10 MHz
e
tr = tf = 1 ns
OE = GND
Power
(outputs
dissipation
disabled)
capacitanc
e
A-port input,
B-port output
0.01
0.01
0.01
0.01
B-port input,
A-port output
0.01
0.01
0.01
0.01
A-port input,
B-port output
0.01
0.01
0.01
0.03
B-port input,
A-port output
0.01
0.01
0.01
0.04
UNIT
MAX
pF
pF
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
6.18 Typical Characteristics
6
40
25qC (Room Temperature)
85qC
5
A Port I/O Capacitance (pF)
OE Pin Input Capacitance (pF)
6
4
3
2
1
0
0
0.5
1
1.5
2
2.5
VCCA (V)
3
3.5
5
4
3
2
40
25qC (Room Temperature)
85qC
1
0
4
0
0.5
1
D001
VCCB= 3.3 V
1.5
2
2.5
VCCA (V)
3
3.5
4
D002
VCCB= 3.3 V
Figure 1. Input Capacitance for OE Pin (CI) vs Power Supply
(VCCA)
Figure 2. Capacitance for A port I/O Pins (CiO) vs Power
Supply (VCCA)
B Port I/O Capacitance (pF)
12
10
8
6
4
40
25qC (Room Temperature)
85qC
2
0
0
0.5
1
1.5
2
2.5 3
VCCB (V)
3.5
4
4.5
5
5.5
D003
VCCA= 1.8 V
Figure 3. Capacitance for B Port I/O Pins (CiO) vs Power Supply (VCCB)
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
13
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
7 Parameter Measurement Information
Unless otherwise noted, all input pulses are supplied by generators that have the following characteristics:
• PRR 10 MHz
• ZO = 50 W
• dv/dt ≥ 1 V/ns
NOTE
All parameters and waveforms are not applicable to all devices.
From Output
Under Test
15 pF
(1)
1M
The outputs are measured one at a time, with one transition per measurement.
Figure 4. Load Circuit For Maximum Data Rate: Pulse Duration,
Propagation Delay Output Rise, And Fall Time Measurement
2 x VCCO
S1
50 k
From Output
Under Test
15 pF
(1)
Open
50 k
The outputs are measured one at a time, with one transition per measurement.
Figure 5. Load Circuit For Enable / Disable Time Measurement
Table 1. Switch Position For Enable / Disable Time Measurement (See Figure 5)
14
TEST
S1
tPZL, tPLZ
2 × VCCO
tPHZ, tPZH
Open
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
VCCI
Input
VCCI / 2
VCCI / 2
0V
t PLH
Output
t PHL
VCCO / 2
0.9
VCCO
0.1
VCCO
VOH
VCCO / 2
VOL
tr
tf
(1)
VCCI is the VCC associated with the input port.
(2)
VCCO is the VCC associated with the output port.
(3)
tPLH and tPHL are the same as tpd.
(4)
The outputs are measured one at a time, with one transition per measurement.
Figure 6. Voltage Waveforms Propagation Delay Times
tw
VCCI
Input
VCCI / 2
VCCI / 2
0V
Figure 7. Voltage Waveforms Pulse Duration
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
15
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
8 Detailed Description
8.1 Overview
The TXB0104 device is a 4-bit, directionless voltage-level translator specifically designed for translating logic
voltage levels. The A port is able to accept I/O voltages ranging from 1.2 V to 3.6 V, while the B port can accept
I/O voltages from 1.65 V to 5.5 V. The device is a buffered architecture with edge-rate accelerators (one-shots)
to improve the overall data rate. This device can only translate push-pull CMOS logic outputs. If for open-drain
signal translation, please refer to TI’s TXS010X products.
8.2 Functional Block Diagram
VCCA
VCCB
OE
One
Shot
B1
A1
4k
One
Shot
4k
2 channels
One
Shot
A2
A3
4k
B2
B3
One
Shot
4k
One
Shot
B4
A4
4k
One
Shot
4k
16
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
8.3 Feature Description
8.3.1 Architecture
The TXB0104 device architecture (see Figure 8) does not require a direction-control signal to control the
direction of data flow from A to B or from B to A. In a DC state, the output drivers of the device maintain a high or
low, but are designed to be weak, so the output drivers can be overdriven by an external driver when data on the
bus flows the opposite direction.
The output one-shots detect rising or falling edges on the A or B ports. During a rising edge, the one-shot turns
on the PMOS transistors (T1, T3) for a short duration, which speeds up the low-to-high transition. Similarly,
during a falling edge, the one-shot turns on the NMOS transistors (T2, T4) for a short duration, which speeds up
the high-to-low transition. The typical output impedance during output transition is 70 Ω at VCCO = 1.2 V to 1.8 V,
50 Ω at VCCO = 1.8 V to 3.3 V, and 40 Ω at VCCO = 3.3 V to 5 V.
VCCA
VCCB
One
Shot
T1
4k
One
Shot
T2
A
B
One
Shot
T3
4k
T4
One
Shot
Figure 8. Architecture of TXB0104 Device I/O Cell
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
17
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
Feature Description (continued)
8.3.2 Input Driver Requirements
Typical IIN vs VIN characteristics of the device are shown in Figure 9. For proper operation, the device driving the
data I/Os of the TXB0104 device must have drive strength of at least ±2 mA.
IIN
VT /4 k
VIN
±(VD ± VT)/4 k
(1)
VT is the input threshold of the TXB0104 device, (typically VCC / 2).
(2)
VD is the supply voltage of the external driver.
Figure 9. Typical IIN vs VIN Curve
8.3.3 Output Load Considerations
TI recommends careful PCB layout practices with short PCB trace lengths to avoid excessive capacitive loading
and to ensure that proper O.S. triggering takes place. PCB signal trace-lengths must be kept short enough such
that the round trip delay of any reflection is less than the one-shot duration. This improves signal integrity by
ensuring that any reflection sees a low impedance at the driver. The O.S. circuits have been designed to stay on
for approximately 10 ns. The maximum capacitance of the lumped load that can be driven also depends directly
on the one-shot duration. With very heavy capacitive loads, the one-shot can time-out before the signal is driven
fully to the positive rail. The O.S. duration has been set to best optimize trade-offs between dynamic ICC, load
driving capability, and maximum bit-rate considerations. Both PCB trace length and connectors add to the
capacitance that the device output sees, so it is recommended that this lumped-load capacitance be considered
to avoid O.S. retriggering, bus contention, output signal oscillations, or other adverse system-level affects.
18
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
Feature Description (continued)
8.3.4 Enable and Disable
The TXB0104 device has an OE input that is used to disable the device by setting OE = low, which places all
I/Os in the high-impedance (Hi-Z) state. The disable time (tdis) indicates the delay between when OE goes low
and when the outputs acutally get disabled (Hi-Z). The enable time (ten) indicates the amount of time the user
must allow for the one-shot circuitry to become operational after OE is taken high.
8.3.5 Pullup or Pulldown Resistors on I/O Lines
The device is designed to drive capacitive loads of up to 70 pF. The output drivers of the TXB0104 device have
low dc drive strength. If pullup or pulldown resistors are connected externally to the data I/Os, their values must
be kept higher than 50 kΩ to ensure that they do not contend with the output drivers of the TXB0104 device.
For the same reason, the TXB0104 device must not be used in applications such as I2C or 1-Wire where an
open-drain driver is connected on the bidirectional data I/O. For these applications, use a device from the TI
TXS01xx series of level translators.
8.4 Device Functional Modes
The device has two functional modes, enabled and disabled. To disable the device, set the OE input to low,
which places all I/Os in a high impedance state. Setting the OE input to high will enable the device.
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
19
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers must
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TXB0104 device can be used in level-translation applications for interfacing devices or systems operating at
different interface voltages with one another. It can only translate push-pull CMOS logic outputs. If for open-drain
signal translation, please refer to TI TXS010X products. Any external pulldown or pullup resistors are
recommended larger than 50 kΩ.
9.2 Typical Application
3.3 V
1.8 V
0.1 …F
VCCA
0.1 …F
VCCB
OE
1.8 V
System Controller
3.3 V
System
TXB0104
Data
Data
GND
9.2.1 Design Requirements
For this design example, use the parameters listed in Table 2. And make sure the VCCA ≤ VCCB.
Table 2. Design Parameters
DESIGN PARAMETERS
20
EXAMPLE VALUE
Input voltage range
1.2 V to 3.6 V
Output voltage range
1.65 V to 5.5 V
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
9.2.2 Detailed Design Procedure
To begin the design process, determine the following:
• Input voltage range
- Use the supply voltage of the device that is driving the TXB0104 device to determine the input voltage
range. For a valid logic high, the value must exceed the VIH of the input port. For a valid logic low, the value
must be less than the VIL of the input port.
• Output voltage range
- Use the supply voltage of the device that the device is driving to determine the output voltage range.
- External pullup or pulldown resistors are not recommended. If mandatory, it is recommended that the value
must be larger than 50 kΩ.
• An external pulldown or pullup resistor decreases the output VOH and VOL. Use the below equations to draft
estimate the VOH and VOL as a result of an external pulldown and pullup resistor.
VOH = VCCx × RPD / (RPD + 4.5 kΩ)
VOL = VCCx × 4.5 kΩ / (RPU + 4.5 kΩ)
Where
• VCCx is the output port supply voltage on either VCCA or VCCB
• RPD is the value of the external pull down resistor
• RPU is the value of the external pull up resistor
• 4.5 kΩ is the counting the variation of the serial resistor 4 kΩ in the I/O line.
9.2.3 Application Curves
Figure 10. Level-Translation of a 2.5-MHz Signal
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
21
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
10 Power Supply Recommendations
During operation, ensure that VCCA ≤ VCCB at all times. During power-up sequencing, VCCA ≥ VCCB does not
damage the device, so any power supply can be ramped up first. The device has circuitry that disables all output
ports when either VCC is switched off (VCCA/B = 0 V). The output-enable (OE) input circuit is designed so that it is
supplied by VCCA and when the (OE) input is low, all outputs are placed in the high-impedance state. To ensure
the high-impedance state of the outputs during power up or power down, the OE input pin must be tied to GND
through a pulldown resistor and must not be enabled until VCCA and VCCB are fully ramped and stable. The
minimum value of the pulldown resistor to ground is determined by the current-sourcing capability of the driver.
11 Layout
11.1 Layout Guidelines
To ensure reliability of the device, following common printed-circuit board layout guidelines is recommended.
• Bypass capacitors must be used on power supplies, and must be placed as close as possible to the VCCA,
VCCB pin and GND pin.
• Short trace-lengths must be used to avoid excessive loading.
• PCB signal trace-lengths must be kept short enough so that the round-trip delay of any reflection is less than
the one-shot duration, approximately 10 ns, ensuring that any reflection encounters low impedance at the
source driver.
11.2 Layout Example
LEGEND
Polygonal
VIA to Power Plane
Copper Pour
VIA to GND Plane (Inner Layer)
TXB0104PWR
Bypass
Capacitor
To Controller
To Controller
0.1 …F
0.1 …F
1
VCCA
2
VCCB
14
A1
B1
13
3
A2
B2
12
4
A3
B3
11
5
A4
B4
10
6
NC
NC
9
7
GND
OE
8
To System
To System
To System
To Controller
To Controller
Bypass
Capacitor
To System
Keep OE low until VCCA and
VCCB are powered up
22
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
12 Device and Documentation Support
12.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
is a trademark of ~ Texas Instruments.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
23
TXB0104
SCES650I – APRIL 2006 – REVISED MARCH 2018
www.ti.com
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
24
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
TXB0104
www.ti.com
SCES650I – APRIL 2006 – REVISED MARCH 2018
Submit Documentation Feedback
Copyright © 2006–2018, Texas Instruments Incorporated
Product Folder Links: TXB0104
25
PACKAGE OPTION ADDENDUM
www.ti.com
6-Feb-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
HPA01164RUTR
ACTIVE
UQFN
RUT
12
3000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
(2KR, 2KV)
TXB0104D
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
TXB0104
TXB0104DG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
TXB0104
TXB0104DR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
TXB0104
TXB0104DRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
TXB0104
TXB0104PWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
YE04
TXB0104PWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-1-260C-UNLIM
-40 to 85
YE04
TXB0104RGYR
ACTIVE
VQFN
RGY
14
3000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
YE04
TXB0104RGYRG4
ACTIVE
VQFN
RGY
14
3000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
YE04
TXB0104RUTR
ACTIVE
UQFN
RUT
12
3000
Green (RoHS
& no Sb/Br)
NIPDAU | NIPDAUAG
Level-1-260C-UNLIM
-40 to 85
(2KR, 2KV)
TXB0104YZTR
ACTIVE
DSBGA
YZT
12
3000
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
(2K, 2K7)
TXB0104ZXUR
ACTIVE
BGA
MICROSTAR
JUNIOR
ZXU
12
2500
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
YE04
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
6-Feb-2020
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
