TXS0102
ZHCSHK3I – JANUARY 2007 – REVISED OCTOBER 2018
适用于漏极开路和推挽应用的 TXS0102 2 位双向电压电平 转换器
1 特性
•
•
1
•
•
•
•
•
•
•
3 说明
无需方向控制信号
最大数据速率
– 24Mbps（推挽）
– 2Mbps（开漏）
采用德州仪器的 NanoStar™封装
A 端口支持 1.65V 至 3.6V 的电压，B 端口支持
2.3V 至 5.5V 的电压 (VCCA ≤ VCCB)
VCC 隔离特性：如果任何一个 VCC 输入接地
(GND)，则两个端口均处于高阻抗状态
无需电源定序：VCCA 或 VCCB 均可优先斜升
Ioff 支持局部关断模式运行
闩锁性能超出 JESD 78 II 类规范要求的 100mA
静电放电 (ESD) 保护性能超过 JESD 22 规范的要
求
– A 端口：
– 2500V 人体放电模型 (A114-B)
– 250V 机器放电模式 (A115-A)
– 1500V 充电器件模型 (C101)
– B 端口：
– 8kV 人体放电模型 (A114-B)
– 250V 机器放电模式 (A115-A)
– 1500V 充电器件模型 (C101)
2 应用
•
•
•
此两位同相转换器是一个双向电压电平转换器，可用来
在混合电压系统之间建立数字开关兼容性。它使用两个
独立的可配置电源轨，其中 A 端口支持 1.65V 至 3.6V
工作电压范围，同时可跟踪 VCCA 电源，而 B 端口支
持 2.3V 至 5.5V 工作电压范围，同时可跟踪 VCCB 电
源。因此，该器件能够支持更低及更高的逻辑信号电
平，同时能够在 1.8V、2.5V、3.3V 和 5V 电压节点之
间任意进行双向转换。
当输出使能端 (OE) 输入为低电平时，所有输入/输出均
处于高阻抗状态，从而显著减少了电源静态电流消耗。
为确保在上电或掉电期间均处于高阻抗状态，应将 OE
通过下拉电阻器接地；该电阻其的最小值取决于驱动器
的拉电流能力。
器件信息(1)
器件型号
封装
封装尺寸（标称值）

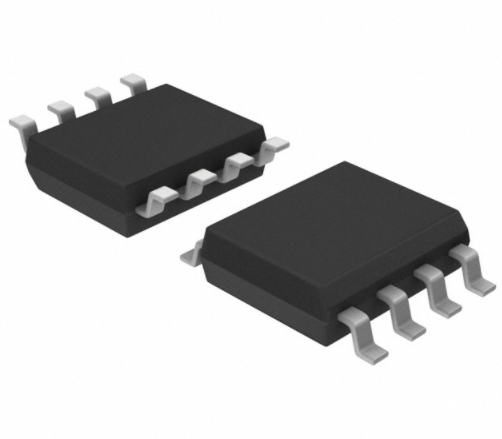

TXS0102DCT
SSOP (8)
2.95mm × 2.80mm
TXS0102DCU
超薄小外形尺寸
封装
(VSSOP)(8)
2.30mm x 2.00mm
TXS0102DQE
X2SON (8)
1.40mm x 1.00mm
TXS0102DQM
X2SON (8)
1.80mm × 1.20mm
TXS0102YZP
DSBGA (8)
1.90mm × 0.90mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附
录。
2
I C/SMBus
UART
通用输入/输出 (GPIO)
TXS0102 典型应用方框图
VCCA
Processor
VCCB
Peripheral
1
本文档旨在为方便起见，提供有关 TI 产品中文版本的信息，以确认产品的概要。 有关适用的官方英文版本的最新信息，请访问 www.ti.com，其内容始终优先。 TI 不保证翻译的准确
性和有效性。 在实际设计之前，请务必参考最新版本的英文版本。
English Data Sheet: SCES640
TXS0102
ZHCSHK3I – JANUARY 2007 – REVISED OCTOBER 2018
www.ti.com.cn
目录
1
2
3
4
5
6
特性 ..........................................................................
应用 ..........................................................................
说明 ..........................................................................
修订历史记录 ...........................................................
Pin Configuration and Functions .........................
Specifications.........................................................
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
6.10
6.11
6.12
7
8
1
1
1
2
3
4
Absolute Maximum Ratings ..................................... 4
ESD Ratings ............................................................ 4
Recommended Operating Conditions ...................... 5
Thermal Information .................................................. 5
Electrical Characteristics........................................... 6
Timing Requirements: VCCA = 1.8 V ±0.15 V............ 7
Timing Requirements: VCCA = 2.5 V ± 0.2 V ............ 7
Timing Requirements: VCCA = 3.3 V ± 0.3 V ............ 7
Switching Characteristics: VCCA = 1.8 V ± 0.15 V .... 8
Switching Characteristics: VCCA = 2.5 V ± 0.2 V .... 9
Switching Characteristics: VCCA = 3.3 V ± 0.3 V .. 10
Typical Characteristics .......................................... 11
Parameter Measurement Information ................ 12
Detailed Description ............................................ 14
8.1
8.2
8.3
8.4
9
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
14
14
15
16
Application and Implementation ........................ 17
9.1 Application Information............................................ 17
9.2 Typical Application ................................................. 17
10 Power Supply Recommendations ..................... 19
11 Layout................................................................... 19
11.1 Layout Guidelines ................................................. 19
11.2 Layout Example .................................................... 19
12 器件和文档支持 ..................................................... 20
12.1
12.2
12.3
12.4
12.5
12.6
文档支持 ...............................................................
接收文档更新通知 .................................................
社区资源................................................................
商标 .......................................................................
静电放电警告.........................................................
术语表 ...................................................................
20
20
20
20
20
20
13 机械、封装和可订购信息 ....................................... 21
4 修订历史记录
注：之前版本的页码可能与当前版本有所不同。
Changes from Revision H (April 2018) to Revision I
•
Updated the VIH A-port I/O VCCA value in the Recommended Operating Conditions table From: "1.65 V to 3.6 V", To:
"1.65 V to 1.95 V" .................................................................................................................................................................. 5
Changes from Revision G (January 2018) to Revision H
•
Page
Page
Updated TXS0102 Layout Example diagram ...................................................................................................................... 19
Changes from Revision F (August 2014) to Revision G
Page
•
已更改 将首页图形标题中的器件编号从 TXS010x 更改成了 TXS0102 ................................................................................. 1
•
Changed value from 8 V to 8000 V in ESD Ratings table...................................................................................................... 4
•
Changed unit from kV to V in ESD Ratings table................................................................................................................... 4
•
Added typical value column in Electrical Characteristics table ............................................................................................. 6
•
已更改 part number in title of 图 10 from TXS01xx to TXS0102 .......................................................................................... 15
•
已添加 title to TXS0102 Layout Example diagram .............................................................................................................. 19
