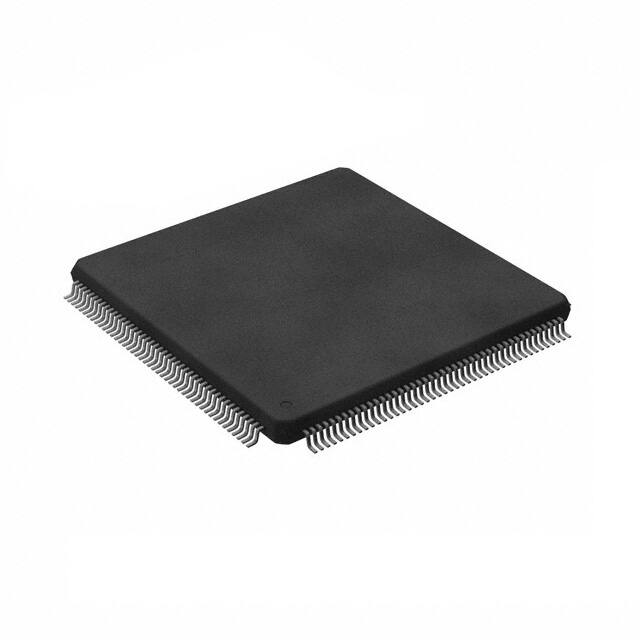

CY7C0851AV-133AXC

CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV FLEx36™ 3.3V 32K/64K/128K/256K x 36 Synchronous Dual-Port RAM Functional Description Features ■ True dual-ported memory cells that allow simultaneous access of the same memory location ■ Synchronous pipelined operation ■ Organization of 1-Mbit, 2-Mbit, 4-Mbit, and 9-Mbit devices ■ Pipelined output mode allows fast operation ■ 0.18-micron CMOS for optimum speed and power ■ High-speed clock to data access ■ 3.3V low power ❐ Active as low as 225 mA (typ) ❐ Standby as low as 55 mA (typ) ■ Mailbox function for message passing ■ Global master reset ■ Separate byte enables on both ports ■ Commercial and industrial temperature ranges ■ IEEE 1149.1-compatible JTAG boundary scan ■ 172-Ball FBGA (1 mm pitch) (15 mm × 15 mm) ■ 176-Pin TQFP (24 mm × 24 mm × 1.4 mm) ■ Counter wrap around control ❐ Internal mask register controls counter wrap-around ❐ Counter-interrupt flags to indicate wrap-around ❐ Memory block retransmit operation The FLEx36™ family includes 1M, 2M, 4M, and 9M pipelined, synchronous, true dual-port static RAMs that are high-speed, low-power 3.3V CMOS. Two ports are provided, permitting independent, simultaneous access to any location in memory. The result of writing to the same location by more than one port at the same time is undefined. Registers on control, address, and data lines allow for minimal setup and hold time. During a Read operation, data is registered for decreased cycle time. Each port contains a burst counter on the input address register. After externally loading the counter with the initial address, the counter increments the address internally (more details to follow). The internal Write pulse width is independent of the duration of the R/W input signal. The internal Write pulse is self-timed to allow the shortest possible cycle times. A HIGH on CE0 or LOW on CE1 for one clock cycle powers down the internal circuitry to reduce the static power consumption. One cycle with chip enables asserted is required to reactivate the outputs. Additional features include: readback of burst-counter internal address value on address lines, counter-mask registers to control the counter wrap-around, counter interrupt (CNTINT) flags, readback of mask register value on address lines, retransmit functionality, interrupt flags for message passing, JTAG for boundary scan, and asynchronous Master Reset (MRST). The CY7C0853AV device in this family has limited features. Please see See “Address Counter and Mask Register Operations” on page 8. for details. ■ Counter readback on address lines ■ Mask register readback on address lines ■ Dual Chip Enables on both ports for easy depth expansion Table 1. Product Selection Guide Density Part Number Max. Speed (MHz) 1-Mbit (32K x 36) 2-Mbit (64K x 36) 4-Mbit (128K x 36) 9-Mbit (256K x 36) CY7C0850AV CY7C0851AV CY7C0852AV CY7C0853AV 167 167 167 133 Max. Access Time - Clock to Data (ns) 4.0 4.0 4.0 4.7 Typical operating current (mA) 225 225 225 270 176TQFP 172FBGA 176TQFP 172FBGA 176TQFP 172FBGA 172FBGA Package Cypress Semiconductor Corporation Document #: 38-06070 Rev. *H • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Revised July 29, 2008 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Logic Block Diagram [1] OEL R/WL OER R/WR B0L B0R B1L B1R B2L B2R B3L B3R CE0L CE1L DQ27L–DQ35L DQ18L–DQ26L DQ9L–DQ17L DQ0L–DQ8L CE0R CE1R 9 9 9 9 I/O Control 9 I/O Control 9 9 9 Addr. Read Back DQ27R–DQ35R DQ18R–DQ26R DQ9R–DQ17R DQ0R–DQ8R Addr. Read Back True Dual-Ported RAM Array A0L–A17L 18 CNT/MSKL 18 Mask Register Mask Register Counter/ Address Register Counter/ Address Register ADSL CNTENL CNTRSTL CLKL Address Address Decode Decode Mirror Reg INTL Interrupt Logic CNT/MSKR ADS CNTEN CNTRSTR Mirror Reg CNTINTL MRST Reset Logic TMS TDI TCK JTAG TDO Interrupt Logic A0R–A17R CLKR CNTINTR INTR Note 1. 9M device has 18 address bits, 4M device has 17 address bits, 2M device has 16 address bits, and 1M device has 15 address bits. Document #: 38-06070 Rev. *H Page 2 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Pin Configurations Figure 1. 172-Ball BGA (Top View) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A DQ32L DQ30L CNTINTL VSS DQ13L VDD DQ11L DQ11R VDD DQ13R VSS CNTINTR DQ30R DQ32R B A0L DQ33L DQ29L DQ17L DQ14L DQ12L DQ9L DQ9R DQ12R DQ14R DQ17R DQ29R DQ33R A0R C NC A1L DQ31L DQ27L INTL DQ15L DQ10L DQ10R DQ15R INTR DQ27R DQ31R A1R NC D A2L A3L DQ35L DQ34L DQ28L DQ16L VSS VSS DQ16R DQ28R DQ34R DQ35R A3R A2R E A4L A5L CE1L B0L VDD VSS VDD VDD B0R CE1R A5R A4R F VDD A6L A7L B1L VDD VSS B1R A7R A6R VDD G OEL B2L B3L CE0L CE0R B3R B2R OER H VSS R/WL A8L CLKL CLKR A8R R/WR VSS J A9L A10L VSS ADSL VSS VDD ADSR MRST A10R A9R K A11L A12L A15L[2] CNTRSTL VDD VDD VSS VDD CNTRSTR A15R[2] A12R A11R L CNT/MSKL A13L CNTENL DQ26L DQ25L DQ19L VSS VSS DQ19R DQ25R DQ26R CNTENR A13R CNT/MSKR M A16L[2] A14L DQ22L DQ18L TDI DQ7L DQ2L DQ2R DQ7R TCK DQ18R DQ22R A14R A16R[2] N DQ24L DQ20L DQ8L DQ6L DQ5L DQ3L DQ0L DQ0R DQ3R DQ5R DQ6R DQ8R DQ20R DQ24R P DQ23L DQ21L TDO VSS DQ4L VDD DQ1L DQ1R VDD DQ4R VSS TMS DQ21R DQ23R CY7C0850AV CY7C0851AV CY7C0852AV Note 2. For CY7C0851AV, pins M1 and M14 are NC. For CY7C0850AV, pins K3, K12 M1, and M14 are NC Document #: 38-06070 Rev. *H Page 3 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Pin Configurations (continued) Figure 2. 172-Ball BGA (Top View) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A DQ32L DQ30L NC VSS DQ13L VDD DQ11L DQ11R VDD DQ13R VSS NC DQ30R DQ32R B A0L DQ33L DQ29L DQ17L DQ14L DQ12L DQ9L DQ9R DQ12R DQ14R DQ17R DQ29R DQ33R A0R C A17L A1L DQ31L DQ27L INTL DQ15L DQ10L DQ10R DQ15R INTR DQ27R DQ31R A1R A17R D A2L A3L DQ35L DQ34L DQ28L DQ16L VSS VSS DQ16R DQ28R DQ34R DQ35R A3R A2R E A4L A5L VDD B0L VDD VSS VDD VDD B0R VDD A5R A4R F VDD A6L A7L B1L VDD VSS B1R A7R A6R VDD G OEL B2L B3L VSS VSS B3R B2R OER H VSS R/WL A8L CLKL CLKR A8R R/WR VSS J A9L A10L VSS VSS VSS VDD VSS MRST A10R A9R K A11L A12L A15L VDD VDD VDD VSS VDD VDD A15R A12R A11R L VDD A13L VSS DQ26L DQ25L DQ19L VSS VSS DQ19R DQ25R DQ26R VSS A13R VDD M A16L A14L DQ22L DQ18L TDI DQ7L DQ2L DQ2R DQ7R TCK DQ18R DQ22R A14R A16R N DQ24L DQ20L DQ8L DQ6L DQ5L DQ3L DQ0L DQ0R DQ3R DQ5R DQ6R DQ8R DQ20R DQ24R P DQ23L DQ21L TDO VSS DQ4L VDD DQ1L DQ1R VDD DQ4R VSS TMS DQ21R DQ23R Document #: 38-06070 Rev. *H CY7C0853AV Page 4 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Pin Configurations (continued) A2L 4 5 6 A3L VSS VDD 7 8 9 A4L A5L 10 11 A6L CE1L B2L 12 13 14 15 16 17 B3L 18 OEL CE0L 19 20 21 22 DQ32R DQ33R 133 DQ31R DQ30R VSS VDD 136 135 134 137 DQ27R DQ29R DQ28R 139 138 140 DQ16R CNTINTR INTR 142 141 143 DQ14R DQ17R DQ15R 145 144 146 VSS DQ13R 148 147 VDD 150 149 DQ11R DQ12R 151 DQ10R 153 152 DQ9L DQ9R 154 DQ10L 156 155 DQ12L DQ11L 157 VDD 159 158 DQ13L VSS 160 DQ14L 162 161 DQ15L DQ17L 163 DQ16L 165 164 INTL CNTINTL 166 DQ27L 168 167 DQ28L DQ29L 169 DQ30L 171 170 VDD VSS 172 Document #: 38-06070 Rev. *H CE1R B2R B3R OER CE0R VDD VDD VSS VSS R/WR CLKR MRST ADSR CNTENR CNTRSTR CNT/MSKR A8R A9R A10R A11R A12R VSS 95 VDD A13R A14R A15R[2] A16R[2] DQ24R 88 DQ20R DQ23R DQ26R DQ22R 85 86 87 84 VSS VDD DQ21R 82 83 81 DQ19R DQ25R DQ18R 79 80 78 TMS TCK DQ8R 76 77 75 DQ6R DQ7R DQ5R 73 74 71 72 VSS DQ4R VDD 70 68 69 DQ2R DQ3R DQ1R 67 65 66 DQ0L DQ0R DQ1L 64 62 63 DQ3L DQ2L VDD 61 59 60 DQ4L VSS DQ5L 58 56 57 DQ7L DQ6L DQ20L DQ8L DQ24L 41 42 43 44 A6R 96 94 93 92 91 90 89 55 A15L[2] A16L[2] 38 39 40 53 54 A14L 36 37 TDI TDO VDD A13L 98 97 DQ18L VSS B1R 100 99 52 A10L A11L A12L 118 117 116 115 102 101 31 32 33 34 35 50 51 A8L A9L 30 DQ25L DQ19L CNTRSTL CNT/MSKL A3R VSS VDD A7R B0R 113 112 111 110 28 29 A1R A2R 120 119 107 106 105 104 103 DQ21L CNTENL DQ35R NC A0R A4R A5R 109 108 49 CLKL VSS ADSL 23 24 25 26 27 47 48 VSS R/WL DQ34R 123 122 121 114 CY7C0850AV CY7C0851AV CY7C0852AV VDD VSS VDD VDD VSS 125 124 DQ22L B1L 129 128 127 126 45 46 A7L B0L 132 131 130 DQ26L DQ23L A1L DQ31L 2 3 174 173 1 DQ35L NC A0L DQ33L DQ32L DQ34L 176 175 Figure 3. 176-Pin Thin Quad Flat Pack (TQFP) (Top View) Page 5 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Pin Definitions Left Port Right Port Description A0L–A17L[1] A0R–A17R[1] Address Inputs. ADSL[3] ADSR[3] Address Strobe Input. Used as an address qualifier. This signal should be asserted LOW for the part using the externally supplied address on the address pins and for loading this address into the burst address counter. CE0L[3] CE0R[3] Active LOW Chip Enable Input. CE1L[3] CE1R[3] Active HIGH Chip Enable Input. CLKR CLKL CNTENL [3] CNTENR Clock Signal. Maximum clock input rate is fMAX. [3] Counter Enable Input. Asserting this signal LOW increments the burst address counter of its respective port on each rising edge of CLK. The increment is disabled if ADS or CNTRST are asserted LOW. CNTRSTL[3] CNTRSTR[3] Counter Reset Input. Asserting this signal LOW resets to zero the unmasked portion of the burst address counter of its respective port. CNTRST is not disabled by asserting ADS or CNTEN. CNT/MSKL[3] CNT/MSKR[3] Address Counter Mask Register Enable Input. Asserting this signal LOW enables access to the mask register. When tied HIGH, the mask register is not accessible and the address counter operations are enabled based on the status of the counter control signals. DQ0L–DQ35L DQ0R–DQ35R Data Bus Input/Output. OEL OER Output Enable Input. This asynchronous signal must be asserted LOW to enable the DQ data pins during Read operations. INTL INTR Mailbox Interrupt Flag Output. The mailbox permits communications between ports. The upper two memory locations can be used for message passing. INTL is asserted LOW when the right port writes to the mailbox location of the left port, and vice versa. An interrupt to a port is deasserted HIGH when it reads the contents of its mailbox. CNTINTL[3] CNTINTR[3] Counter Interrupt Output. This pin is asserted LOW when the unmasked portion of the counter is incremented to all “1s.” R/WL R/WR Read/Write Enable Input. Assert this pin LOW to write to, or HIGH to Read from the dual port memory array. B0L–B3L B0R–B3R Byte Select Inputs. Asserting these signals enables Read and Write operations to the corresponding bytes of the memory array. MRST Master Reset Input. MRST is an asynchronous input signal and affects both ports. Asserting MRST LOW performs all of the reset functions as described in the text. A MRST operation is required at power up. TMS JTAG Test Mode Select Input. It controls the advance of JTAG TAP state machine. State machine transitions occur on the rising edge of TCK. TDI JTAG Test Data Input. Data on the TDI input is shifted serially into selected registers. TCK JTAG Test Clock Input. TDO JTAG Test Data Output. TDO transitions occur on the falling edge of TCK. TDO is normally three-stated except when captured data is shifted out of the JTAG TAP. VSS Ground Inputs. VDD Power Inputs. Note 3. These pins are not available for CY7C0853AV device. Document #: 38-06070 Rev. *H Page 6 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Master Reset The FLEx36 family devices undergo a complete reset by taking its MRST input LOW. The MRST input can switch asynchronously to the clocks. The MRST initializes the internal burst counters to zero, and the counter mask registers to all ones (completely unmasked). The MRST also forces the Mailbox Interrupt (INT) flags and the Counter Interrupt (CNTINT) flags HIGH. The MRST must be performed on the FLEx36 family devices after power up. Mailbox Interrupts The upper two memory locations may be used for message passing and permit communications between ports. Table 2 shows the interrupt operation for both ports of CY7C0853AV. The highest memory location, 3FFFF is the mailbox for the right port and 3FFFE is the mailbox for the left port. Table 2 shows that in order to set the INTR flag, a Write operation by the left port to address 3FFFF asserts INTR LOW. At least one byte has to be active for a Write to generate an interrupt. A valid Read of the 3FFFF location by the right port resets INTR HIGH. At least one byte has to be active in order for a Read to reset the interrupt. When one port Writes to the other port’s mailbox, the INT of the port that the mailbox belongs to is asserted LOW. The INT is reset when the owner (port) of the mailbox Reads the contents of the mailbox. The interrupt flag is set in a flow-thru mode (i.e., it follows the clock edge of the writing port). Also, the flag is reset in a flow-thru mode (i.e., it follows the clock edge of the reading port). Each port can read the other port’s mailbox without resetting the interrupt. And each port can write to its own mailbox without setting the interrupt. If an application does not require message passing, INT pins should be left open. Table 2. Interrupt Operation Example [1, 4, 5, 6, 7] Function R/WL L X X H Set Right INTR Flag Reset Right INTR Flag Set Left INTL Flag Reset Left INTL Flag Left Port A0L–17L 3FFFF X X 3FFFE CEL L X X L INTL X X L H R/WR X H L X CER X L L X Right Port A0R–17R X 3FFFF 3FFFE X INTR L H X X Table 3. Address Counter and Counter-Mask Register Control Operation (Any Port) [8, 9] CLK X MRST L CNT/MSK X CNTRST X ADS X CNTEN Operation X Master Reset H H L X X Counter Reset H H H L L Counter Load H H H L H Counter Readback H H H H L Counter Increment H H H H H Counter Hold H L L X X Mask Reset H L H L L Mask Load H L H L H Mask Readback H L H H X Reserved Description Reset address counter to all 0s and mask register to all 1s. Reset counter unmasked portion to all 0s. Load counter with external address value presented on address lines. Read out counter internal value on address lines. Internally increment address counter value. Constantly hold the address value for multiple clock cycles. Reset mask register to all 1s. Load mask register with value presented on the address lines. Read out mask register value on address lines. Operation undefined Notes 4. CE is internal signal. CE = LOW if CE0 = LOW and CE1 = HIGH. For a single Read operation, CE only needs to be asserted once at the rising edge of the CLK and can be deasserted after that. Data is out after the following CLK edge and is three-stated after the next CLK edge. 5. OE is “Don’t Care” for mailbox operation. 6. At least one of B0, B1, B2, or B3 must be LOW. 7. A16x is a NC for CY7C0851AV, therefore the Interrupt Addresses are FFFF and EFFF; A16x and A15x are NC for CY7C0850AV, therefore the Interrupt Addresses are 7FFF and 6FFF. 8. “X” = “Don’t Care,” “H” = HIGH, “L” = LOW. 9. Counter operation and mask register operation is independent of chip enables. Document #: 38-06070 Rev. *H Page 7 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Address Counter and Mask Register Operations will reset the counter and mirror registers to 00000, as will master reset (MRST). This section[10] describes the features only apply to CY7C0850AV/CY7C0851AV/CY7C0852AV devices, but not to the CY7C0853AV device. Each port of these devices has a programmable burst address counter. The burst counter contains three registers: a counter register, a mask register, and a mirror register. Counter Load Operation The counter register contains the address used to access the RAM array. It is changed only by the Counter Load, Increment, Counter Reset, and by master reset (MRST) operations. The mask register value affects the Increment and Counter Reset operations by preventing the corresponding bits of the counter register from changing. It also affects the counter interrupt output (CNTINT). The mask register is changed only by the Mask Load and Mask Reset operations, and by the MRST. The mask register defines the counting range of the counter register. It divides the counter register into two regions: zero or more “0s” in the most significant bits define the masked region, one or more “1s” in the least significant bits define the unmasked region. Bit 0 may also be “0,” masking the least significant counter bit and causing the counter to increment by two instead of one. The mirror register is used to reload the counter register on increment operations (see “retransmit,” below). It always contains the value last loaded into the counter register, and is changed only by the Counter Load operation, and by the MRST. Table 3 on page 7 summarizes the operation of these registers and the required input control signals. The MRST control signal is asynchronous. All the other control signals in Table 3 on page 7 (CNT/MSK, CNTRST, ADS, CNTEN) are synchronized to the port’s CLK. All these counter and mask operations are independent of the port’s chip enable inputs (CE0 and CE1). Counter enable (CNTEN) inputs are provided to stall the operation of the address input and utilize the internal address generated by the internal counter for fast, interleaved memory applications. A port’s burst counter is loaded when the port’s address strobe (ADS) and CNTEN signals are LOW. When the port’s CNTEN is asserted and the ADS is deasserted, the address counter increments on each LOW to HIGH transition of that port’s clock signal. This will Read/Write one word from/into each successive address location until CNTEN is deasserted. The counter can address the entire memory array, and loops back to the start. Counter reset (CNTRST) is used to reset the unmasked portion of the burst counter to 0s. A counter-mask register is used to control the counter wrap. Counter Reset Operation All unmasked bits of the counter are reset to “0.” All masked bits remain unchanged. The mirror register is loaded with the value of the burst counter. A Mask Reset followed by a Counter Reset The address counter and mirror registers are both loaded with the address value presented at the address lines. Counter Readback Operation The internal value of the counter register can be read out on the address lines. Readback is pipelined; the address is valid tCA2 after the next rising edge of the port’s clock. If address readback occurs while the port is enabled (CE0 LOW and CE1 HIGH), the data lines (DQs) is three-stated. Figure 4 on page 10 shows a block diagram of the operation. Counter Increment Operation Once the address counter register is initially loaded with an external address, the counter can internally increment the address value, potentially addressing the entire memory array. Only the unmasked bits of the counter register are incremented. The corresponding bit in the mask register must be a “1” for a counter bit to change. The counter register is incremented by 1 if the least significant bit is unmasked, and by 2 if it is masked. If all unmasked bits are “1,” the next increment wraps the counter back to the initially loaded value. If an Increment results in all the unmasked bits of the counter being “1s,” a counter interrupt flag (CNTINT) is asserted. The next Increment returns the counter register to its initial value, which was stored in the mirror register. The counter address can instead be forced to loop to 00000 by externally connecting CNTINT to CNTRST.[11] An increment that results in one or more of the unmasked bits of the counter being “0” deasserts the counter interrupt flag. The example in Figure 5 on page 11 shows the counter mask register loaded with a mask value of 0003Fh unmasking the first 6 bits with bit “0” as the LSB and bit “16” as the MSB. The maximum value the mask register can be loaded with is 1FFFFh. Setting the mask register to this value allows the counter to access the entire memory space. The address counter is then loaded with an initial value of 8h. The base address bits (in this case, the 6th address through the 16th address) are loaded with an address value but do not increment once the counter is configured for increment operation. The counter address starts at address 8h. The counter increments its internal address value till it reaches the mask register value of 3Fh. The counter wraps around the memory block to location 8h at the next count. CNTINT is issued when the counter reaches its maximum value. Counter Hold Operation The value of all three registers can be constantly maintained unchanged for an unlimited number of clock cycles. Such operation is useful in applications where wait states are needed, or when address is available a few cycles ahead of data in a shared bus interface. Notes 10. This section describes the CY7C0852AV, which have 17 address bits and a maximum address value of 1FFFF. The CY7C0851AV has 16 address bits, register lengths of 16 bits, and a maximum address value of FFFF. The CY7C0850AV has 15 address bits, register lengths of 15 bits, and a maximum address value of 7FFF. 11. CNTINT and CNTRST specs are guaranteed by design to operate properly at speed grade operating frequency when tied together. Document #: 38-06070 Rev. *H Page 8 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Counter Interrupt Mask Load Operation The counter interrupt (CNTINT) is asserted LOW when an increment operation results in the unmasked portion of the counter register being all “1s.” It is deasserted HIGH when an Increment operation results in any other value. It is also de-asserted by Counter Reset, Counter Load, Mask Reset and Mask Load operations, and by MRST. The mask register is loaded with the address value presented at the address lines. Not all values permit correct increment operations. Permitted values are of the form 2n – 1 or 2n – 2. From the most significant bit to the least significant bit, permitted values have zero or more “0s,” one or more “1s,” or one “0.” Thus 1FFFF, 003FE, and 00001 are permitted values, but 1F0FF, 003FC, and 00000 are not. Retransmit Retransmit is a feature that allows the Read of a block of memory more than once without the need to reload the initial address. This eliminates the need for external logic to store and route data. It also reduces the complexity of the system design and saves board space. An internal “mirror register” is used to store the initially loaded address counter value. When the counter unmasked portion reaches its maximum value set by the mask register, it wraps back to the initial value stored in this “mirror register.” If the counter is continuously configured in increment mode, it increments again to its maximum value and wraps back to the value initially stored into the “mirror register.” Thus, the repeated access of the same data is allowed without the need for any external logic. Mask Reset Operation The mask register is reset to all “1s,” which unmasks every bit of the counter. Master reset (MRST) also resets the mask register to all “1s.” Document #: 38-06070 Rev. *H Mask Readback Operation The internal value of the mask register can be read out on the address lines. Readback is pipelined; the address is valid tCM2 after the next rising edge of the port’s clock. If mask readback occurs while the port is enabled (CE0 LOW and CE1 HIGH), the data lines (DQs) is three-stated. Figure 4 on page 10 shows a block diagram of the operation. Counting by Two When the least significant bit of the mask register is “0,” the counter increments by two. This may be used to connect the CY7C0850AV/CY7C0851AV/CY7C0852AV as a 72-bit single port SRAM in which the counter of one port counts even addresses and the counter of the other port counts odd addresses. This even-odd address scheme stores one half of the 72-bit data in even memory locations, and the other half in odd memory locations. Page 9 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Figure 4. Counter, Mask, and Mirror Logic Block Diagram [1] CNT/MSK CNTEN Decode Logic ADS CNTRST MRST Bidirectional Address Lines Mask Register Counter/ Address Register Address RAM Decode Array CLK From Address Lines Load/Increment 17 Mirror From Mask Register From Mask From Counter Increment Logic Wrap 17 17 17 17 Bit 0 +1 Wrap Detect 1 +2 Wrap 0 1 0 Document #: 38-06070 Rev. *H To Readback and Address Decode 0 0 17 Counter 1 1 17 To Counter Page 10 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Figure 5. Programmable Counter-Mask Register Operation [1, 12] Example: Load Counter-Mask Register = 3F CNTINT H 0 0 0s 216 215 H X X Xs 216 215 Max Address Register L X X H X X 216 215 Document #: 38-06070 Rev. *H 1 1 1 Unmasked Address X 0 0 1 0 0 Xs X 1 1 1 Mask Register bit-0 0 26 25 24 23 22 21 20 216 215 Max + 1 Address Register 1 26 25 24 23 22 21 20 Masked Address Load Address Counter = 8 0 1 1 1 1 1 Address Counter bit-0 26 25 24 23 22 21 20 Xs X 0 0 1 0 0 0 26 25 24 23 22 21 20 Page 11 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV IEEE 1149.1 Serial Boundary Scan (JTAG) [13] The CY7C0850AV/CY7C0851AV/CY7C0852AV/CY7C0853AV incorporates an IEEE 1149.1 serial boundary scan test access port (TAP). The TAP controller functions in a manner that does not conflict with the operation of other devices using 1149.1-compliant TAPs. The TAP operates using JEDEC-standard 3.3V I/O logic levels. It is composed of three input connections and one output connection required by the test logic defined by the standard. Performing a TAP Reset A reset is performed by forcing TMS HIGH (VDD) for five rising edges of TCK. This reset does not affect the operation of the devices, and may be performed while the devices are operating. An MRST must be performed on the devices after power up. Performing a Pause/Restart When a SHIFT-DR PAUSE-DR SHIFT-DR is performed the scan chain outputs the next bit in the chain twice. For example, if the value expected from the chain is 1010101, the device outputs a 11010101. This extra bit causes some testers to report an erroneous failure for the devices in a scan test. Therefore the tester should be configured to never enter the PAUSE-DR state. Table 4. Identification Register Definitions Instruction Field Value Revision Number (31:28) 0h Cypress Device ID (27:12) Description Reserved for version number. C001h Defines Cypress part number for the CY7C0851AV C002h Defines Cypress part number for the CY7C0852AV and CY7C0853AV C092h Defines Cypress part number for the CY7C0850AV Cypress JEDEC ID (11:1) 034h ID Register Presence (0) 1 Allows unique identification of the DP family device vendor. Indicates the presence of an ID register. Table 5. Scan Registers Sizes Register Name Bit Size Instruction 4 Bypass 1 Identification 32 Boundary Scan n[14] Table 6. Instruction Identification Codes Instruction Code Description EXTEST 0000 Captures the Input/Output ring contents. Places the BSR between the TDI and TDO. BYPASS 1111 Places the BYR between TDI and TDO. IDCODE 1011 Loads the IDR with the vendor ID code and places the register between TDI and TDO. HIGHZ 0111 Places BYR between TDI and TDO. Forces all CY7C0851AV/CY7C0852AV/ CY7C0853AV output drivers to a High-Z state. CLAMP 0100 Controls boundary to 1/0. Places BYR between TDI and TDO. SAMPLE/PRELOAD 1000 Captures the input/output ring contents. Places BSR between TDI and TDO. NBSRST 1100 Resets the non-boundary scan logic. Places BYR between TDI and TDO. RESERVED All other codes Other combinations are reserved. Do not use other than the above. Notes 12. The “X” in this diagram represents the counter upper bits. 13. Boundary scan is IEEE 1149.1-compatible. See “Performing a Pause/Restart” for deviation from strict 1149.1 compliance. 14. See details in the device BSDL files. Document #: 38-06070 Rev. *H Page 12 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV DC Input Voltage .............................. –0.5V to VDD + 0.5V[16] Maximum Ratings Exceeding maximum ratings[15] may impair the useful life of the device. These user guidelines are not tested. Storage Temperature ................................ –65°C to + 150°C Ambient Temperature with Power Applied ........................................... –55°C to + 125°C Output Current into Outputs (LOW)............................. 20 mA Static Discharge Voltage........................................... > 2000V (JEDEC JESD22-A114-2000B) Latch-up Current .................................................... > 200 mA Operating Range Supply Voltage to Ground Potential...............–0.5V to + 4.6V DC Voltage Applied to Outputs in High-Z State ......................... –0.5V to VDD + 0.5V Range Ambient Temperature VDD 0°C to +70°C 3.3V ± 165 mV –40°C to +85°C 3.3V ± 165 mV Commercial Industrial Electrical Characteristics Over the Operating Range Parameter -167 Description Min VOH Output HIGH Voltage (VDD = Min., IOH= –4.0 mA) VOL Output LOW Voltage (VDD = Min., IOL= +4.0 mA) Typ. -133 Max Min 2.4 Typ. -100 Max 2.4 Min Typ. 2.4 0.4 2.0 Unit V 0.4 2.0 Max 0.4 V 0.8 V VIH Input HIGH Voltage VIL Input LOW Voltage 2.0 IOZ Output Leakage Current –10 10 –10 10 –10 10 μA IIX1 Input Leakage Current Except TDI, TMS, MRST –10 10 –10 10 –10 10 μA IIX2 Input Leakage Current TDI, TMS, MRST –0.1 1.0 –0.1 1.0 –0.1 1.0 ICC Operating Current for (VDD = Max.,IOUT = 0 mA), Outputs Disabled ISB1[18] 0.8 225 300 Standby Current (Both Ports TTL Level) CEL and CER ≥ VIH, f = fMAX 90 115 ISB2[18] Standby Current (One Port TTL Level) CEL | CER ≥ VIH, f = fMAX 160 ISB3[18] Standby Current (Both Ports CMOS Level) CEL and CER ≥ VDD – 0.2V, f = 0 ISB4[18] Standby Current (One Port CMOS Level) CEL | CER ≥ VIH, f = fMAX ISB5 Operating Current (VDD = Max, IOUT = 0 mA, f = 0) Outputs Disabled CY7C0850AV CY7C0851AV CY7C0852AV V 0.8 mA 225 300 270 400 200 310 90 115 90 115 mA 210 160 210 160 210 mA 55 75 55 75 55 75 mA 160 210 160 210 160 210 mA 70 100 70 100 mA CY7C0853AV CY7C0853AV mA Capacitance Part Number[17] Parameter Description CY7C0850AV, CIN CY7C0851AV, CY7C0852AV C OUT Input Capacitance CY7C0853AV CIN Input Capacitance COUT Output Capacitance Output Capacitance Test Conditions TA = 25°C, f = 1 MHz, VDD = 3.3V Max Unit 13 pF 10 pF 22 pF 20 pF Notes 15. The voltage on any input or I/O pin can not exceed the power pin during power up. 16. Pulse width < 20 ns. 17. COUT also references CI/O. 18. ISB1, ISB2, ISB3 and ISB4 are not applicable for CY7C0853AV because it can not be powered down by using chip enable pins. Document #: 38-06070 Rev. *H Page 13 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Figure 6. AC Test Load and Waveforms 3.3V Z0 = 50Ω R = 50Ω R1 = 590 Ω OUTPUT OUTPUT C = 10 pF C = 5 pF VTH = 1.5V (a) Normal Load (Load 1) (b) Three-state Delay (Load 2) 3.0V ALL INPUT PULSES R2 = 435 Ω 90% 10% VSS < 2 ns 90% 10% < 2 ns Switching Characteristics Over the Operating Range Parameter fMAX2 tCYC2 tCH2 tCL2 tR[19] tF[19] tSA tHA tSB tHB tSC tHC tSW tHW tSD tHD tSAD tHAD tSCN tHCN tSRST tHRST tSCM tHCM Description Maximum Operating Frequency Clock Cycle Time Clock HIGH Time Clock LOW Time Clock Rise Time Clock Fall Time Address Setup Time Address Hold Time Byte Select Setup Time Byte Select Hold Time Chip Enable Setup Time Chip Enable Hold Time R/W Setup Time R/W Hold Time Input Data Setup Time Input Data Hold Time ADS Setup Time ADS Hold Time CNTEN Setup Time CNTEN Hold Time CNTRST Setup Time CNTRST Hold Time CNT/MSK Setup Time CNT/MSK Hold Time -167 CY7C0850AV CY7C0851AV CY7C0852AV Min Max 167 6.0 2.7 2.7 2.0 2.0 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 2.3 0.6 -133 CY7C0850AV CY7C0851AV CY7C0853AV CY7C0852AV Min Max Min Max 133 133 7.5 7.5 3.0 3.0 3.0 3.0 2.0 2.0 2.0 2.0 2.5 2.5 0.6 0.6 2.5 2.5 0.6 0.6 2.5 NA 0.6 NA 2.5 2.5 0.6 0.6 2.5 2.5 0.6 0.6 2.5 NA 0.6 NA 2.5 NA 0.6 NA 2.5 NA 0.6 NA 2.5 NA 0.6 NA -100 CY7C0853AV Min Max 100 10.0 4.0 4.0 3.0 3.0 3.0 0.6 3.0 0.6 NA NA 3.0 0.6 3.0 0.6 NA NA NA NA NA NA NA NA Unit MHz ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns Note 19. Except JTAG signals (tr and tf < 10 ns [max.]). Document #: 38-06070 Rev. *H Page 14 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Characteristics Over the Operating Range (continued) Parameter Description tOE Output Enable to Data Valid [20, 21] tOLZ OE to Low Z tOHZ[20, 21] OE to High Z tCD2 Clock to Data Valid tCA2 Clock to Counter Address Valid tCM2 Clock to Mask Register Readback Valid tDC Data Output Hold After Clock HIGH tCKHZ[20, 21] Clock HIGH to Output High Z tCKLZ[20, 21] Clock HIGH to Output Low Z tSINT Clock to INT Set Time tRINT Clock to INT Reset Time tSCINT Clock to CNTINT Set Time tRCINT Clock to CNTINT Reset time Port to Port Delays tCCS Clock to Clock Skew Master Reset Timing tRS Master Reset Pulse Width tRSS Master Reset Setup Time tRSR Master Reset Recovery Time tRSF Master Reset to Outputs Inactive tRSCNTINT Master Reset to Counter Interrupt Flag Reset Time -167 CY7C0850AV CY7C0851AV CY7C0852AV Min Max 4.0 0 0 4.0 4.0 4.0 4.0 1.0 0 4.0 1.0 4.0 0.5 6.7 0.5 6.7 0.5 5.0 0.5 5.0 -133 CY7C0850AV CY7C0851AV CY7C0853AV CY7C0852AV Min Max Min Max 4.4 4.7 0 0 0 4.4 0 4.7 4.4 4.7 4.4 NA 4.4 NA 1.0 1.0 0 4.4 0 4.7 1.0 4.4 1.0 4.7 0.5 7.5 0.5 7.5 0.5 7.5 0.5 7.5 0.5 5.7 NA NA 0.5 5.7 NA NA -100 CY7C0853AV Min 0 0 1.0 0 1.0 0.5 0.5 NA NA Max 5.0 5.0 5.0 NA NA 5.0 5.0 10 10 NA NA Unit ns ns ns ns ns ns ns ns ns ns ns ns ns 5.2 6.0 6.0 8.0 ns 7.0 6.0 6.0 7.5 6.0 7.5 7.5 6.0 7.5 10.0 8.5 10.0 ns ns ns ns ns 10.0 10.0 10.0 10.0 10.0 NA 10.0 NA Notes 20. This parameter is guaranteed by design, but it is not production tested. 21. Test conditions used are Load 2. Document #: 38-06070 Rev. *H Page 15 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV JTAG Timing Parameter 167/133/100 Description Min Max Unit fJTAG Maximum JTAG TAP Controller Frequency tTCYC TCK Clock Cycle Time tTH TCK Clock HIGH Time 40 ns tTL TCK Clock LOW Time 40 ns tTMSS TMS Setup to TCK Clock Rise 10 ns tTMSH TMS Hold After TCK Clock Rise 10 ns tTDIS TDI Setup to TCK Clock Rise 10 ns tTDIH TDI Hold After TCK Clock Rise 10 ns tTDOV TCK Clock LOW to TDO Valid tTDOX TCK Clock LOW to TDO Invalid 10 100 ns 30 0 MHz ns ns Figure 7. JTAG Switching Waveform tTH Test Clock TCK tTMSS tTL tTCYC tTMSH Test Mode Select TMS tTDIS tTDIH Test Data-In TDI Test Data-Out TDO Document #: 38-06070 Rev. *H tTDOX tTDOV Page 16 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms Figure 8. Master Reset tRS MRST ALL ADDRESS/ DATA LINES tRSF tRSS ALL OTHER INPUTS tRSR INACTIVE ACTIVE TMS CNTINT INT TDO Figure 9. Read Cycle[4, 22, 23, 24, 25] tCH2 tCYC2 tCL2 CLK CE tSC tHC tSB tHB tSW tSA tHW tHA tSC tHC B0–B3 R/W ADDRESS An DATAOUT An+1 1 Latency An+2 tDC tCD2 Qn tCKLZ An+3 Qn+1 tOHZ Qn+2 tOLZ OE tOE Notes 22. OE is asynchronously controlled; all other inputs (excluding MRST and JTAG) are synchronous to the rising clock edge. 23. ADS = CNTEN = LOW, and MRST = CNTRST = CNT/MSK = HIGH. 24. The output is disabled (high-impedance state) by CE = VIH following the next rising edge of the clock. 25. Addresses do not have to be accessed sequentially since ADS = CNTEN = VIL with CNT/MSK = VIH constantly loads the address on the rising edge of the CLK. Numbers are for reference only. Document #: 38-06070 Rev. *H Page 17 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 10. Bank Select Read[26, 27] tCH2 tCYC2 tCL2 CLK tHA tSA ADDRESS(B1) A0 A1 A3 A2 A4 A5 tHC tSC CE(B1) tCD2 tHC tSC tCD2 tHA tSA tDC A0 ADDRESS(B2) A1 tCKHZ Q3 Q1 Q0 DATAOUT(B1) tCD2 tCKHZ tDC tCKLZ A3 A2 A4 A5 tHC tSC CE(B2) tSC tCD2 tHC DATAOUT(B2) tCKHZ tCD2 Q4 Q2 tCKLZ tCKLZ Figure 11. Read-to-Write-to-Read (OE = LOW)[25, 28, 29, 30, 31] tCH2 tCYC2 tCL2 CLK CE tSC tHC tSW tHW R/W tSW tHW An ADDRESS tSA DATAIN An+1 An+2 An+2 An+3 An+4 tSD tHD tHA tCD2 tCKHZ Dn+2 Qn DATAOUT tCD2 tCD2 Qn+1 Qn+3 tCKLZ READ NO OPERATION WRITE READ Notes 26. In this depth-expansion example, B1 represents Bank #1 and B2 is Bank #2; each bank consists of one Cypress CY7C0851AV/CY7C0852AV device from this data sheet. ADDRESS(B1) = ADDRESS(B2). 27. ADS = CNTEN= B0 – B3 = OE = LOW; MRST = CNTRST = CNT/MSK = HIGH. 28. Output state (HIGH, LOW, or high-impedance) is determined by the previous cycle control signals. 29. During “No Operation,” data in memory at the selected address may be corrupted and should be rewritten to ensure data integrity. 30. CE0 = OE = B0 – B3 = LOW; CE1 = R/W = CNTRST = MRST = HIGH. 31. CE0 = B0 – B3 = R/W = LOW; CE1 = CNTRST = MRST = CNT/MSK = HIGH. When R/W first switches low, since OE = LOW, the Write operation cannot be completed (labelled as no operation). One clock cycle is required to three-state the I/O for the Write operation on the next rising edge of CLK. Document #: 38-06070 Rev. *H Page 18 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 12. Read-to-Write-to-Read (OE Controlled)[25, 28, 30, 31] tCH2 tCYC2 tCL2 CLK CE tSC tHC tSW tHW R/W ADDRESS tSW tHW An An+1 tSA An+2 tHA An+3 An+4 An+5 tSD tHD Dn+2 DATAIN Dn+3 tCD2 DATAOUT tCD2 tCD2 Qn Qn+1 Qn+4 tOHZ OE READ WRITE READ Figure 13. Read with Address Counter Advance[30] tCH2 tCYC2 tCL2 CLK tSA ADDRESS tHA An tSAD tHAD ADS tSAD tHAD tSCN tHCN CNTEN tSCN DATAOUT tHCN Qx–1 READ EXTERNAL ADDRESS Document #: 38-06070 Rev. *H tCD2 Qx tDC Qn READ WITH COUNTER Qn+1 COUNTER HOLD Qn+2 Qn+3 READ WITH COUNTER Page 19 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 14. Write with Address Counter Advance [31] tCH2 tCYC2 tCL2 CLK tSA tHA An ADDRESS INTERNAL ADDRESS An tSAD tHAD tSCN tHCN An+1 An+2 An+3 An+4 ADS CNTEN Dn DATAIN tSD Dn+1 tHD WRITE EXTERNAL ADDRESS Dn+1 WRITE WITH COUNTER Dn+2 Dn+3 WRITE COUNTER HOLD Dn+4 WRITE WITH COUNTER Figure 15. Disabled-to-Read-to-Read-to-Read-to-Write tCL2 tCYC2 tCH2 CLK tSC tHC CE tSW tHW R/W tSW tHW tHA tSA An ADDRESS tHA tSA An+1 An+4 An+3 An+2 OE tSD DATAIN tHD Dn+3 tCD2 DATAOUT Qn DISABLED Document #: 38-06070 Rev. *H READ READ Qn+1 READ Qn+2 WRITE READ Page 20 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 16. Disabled-to-Write-to-Read-to-Write-to-Read tCL2 tCYC2 tCH2 CLK tSC tHC CE tHW tSW R/W tSA tHA ADDRESS An An+4 An+3 An+2 An+1 tOE OE tSD tHD DATAIN Dn Dn+2 tCD2 Qn+3 Qn+1 DATAOUT DISABLED WRITE READ READ WRITE READ Figure 17. Disabled-to-Read-to-Disabled-to-Write tCL2 tCYC2 tCH2 CLK tSC tHC CE R/W tSW tHW ADDRESS tSA An+4 An+3 An+2 An+1 An tHA tOE OE tOHZ tSD tHD DATAIN Dn+2 tCD2 DATAOUT Qn+3 Qn DISABLED Document #: 38-06070 Rev. *H READ DISABLED WRITE READ READ Page 21 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 18. Read-to-Readback-to-Read-to-Read (R/W = HIGH) tCL2 tCYC2 tCH2 CLK tHAD tSAD ADS CNTEN tSCN tHCN tSA An+1 ADDRESS COUNTER INTERNAL ADDRESS tHA An An+1 An+2 An+3 An+4 OE DATAOUT Qn+1 READ INCREMENT Document #: 38-06070 Rev. *H NO OPERATION READBACK INCREMENT Qn+3 Qn+2 READ READ INCREMENT READ INCREMENT Page 22 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 19. Counter Reset[32, 33] tCYC2 tCH2 tCL2 CLK tSA INTERNAL ADDRESS Ax tSW tHW tSD tHD An 1 0 Ap Am An ADDRESS tHA Ap Am R/W ADS CNTEN tSRST tHRST CNTRST DATAIN D0 tCD2 tCD2 [34] DATAOUT Q0 COUNTER RESET WRITE ADDRESS 0 tCKLZ READ ADDRESS 0 READ ADDRESS 1 Q1 READ ADDRESS An Qn READ ADDRESS Am Notes 32. CE0 = B0 – B3 = LOW; CE1 = MRST = CNT/MSK = HIGH. 33. No dead cycle exists during counter reset. A Read or Write cycle may be coincidental with the counter reset. 34. Retransmit happens if the counter remains in increment mode after it wraps to initially loaded value. Document #: 38-06070 Rev. *H Page 23 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 20. Readback State of Address Counter or Mask Register[35, 36, 37, 38] tCYC2 tCH2 tCL2 CLK tCA2 or tCM2 tSA tHA EXTERNAL ADDRESS A0–A16 An* An INTERNAL ADDRESS An+1 An An+2 An+4 An+3 tSAD tHAD ADS tSCN tHCN CNTEN tCD2 DATAOUT Qx-2 LOAD EXTERNAL ADDRESS tCKHZ Qx-1 Qn READBACK COUNTER INTERNAL ADDRESS INCREMENT tCKLZ Qn+1 Qn+2 Qn+3 Notes 35. CE0 = OE = B0 – B3 = LOW; CE1 = R/W = CNTRST = MRST = HIGH. 36. Address in output mode. Host must not be driving address bus after tCKLZ in next clock cycle. 37. Address in input mode. Host can drive address bus after tCKHZ. 38. An * is the internal value of the address counter (or the mask register depending on the CNT/MSK level) being Read out on the address lines. Document #: 38-06070 Rev. *H Page 24 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 21. Left_Port (L_Port) Write to Right_Port (R_Port) Read[39, 40, 41] tCH2 tCYC2 tCL2 CLKL tHA tSA L_PORT ADDRESS An tSW tHW R/WL tCKHZ tSD L_PORT DATAIN CLKR tHD tCKLZ Dn tCYC2 tCL2 tCCS tCH2 R_PORT ADDRESS tSA tHA An R/WR tCD2 R_PORT Qn DATAOUT tDC Notes 39. CE0 = OE = ADS = CNTEN = B0 – B3 = LOW; CE1 = CNTRST = MRST = CNT/MSK = HIGH. 40. This timing is valid when one port is writing, and other port is reading the same location at the same time. If tCCS is violated, indeterminate data is Read out. 41. If tCCS < minimum specified value, then R_Port is Read the most recent data (written by L_Port) only (2 * tCYC2 + tCD2) after the rising edge of R_Port's clock. If tCCS > minimum specified value, then R_Port is Read the most recent data (written by L_Port) (tCYC2 + tCD2) after the rising edge of R_Port's clock. Document #: 38-06070 Rev. *H Page 25 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 22. Counter Interrupt and Retransmit[34, 42, 43, 44, 45] tCH2 tCYC2 tCL2 CLK tSCM tHCM CNT/MSK ADS CNTEN COUNTER INTERNAL ADDRESS 1FFFC 1FFFD 1FFFE tSCINT 1FFFF Last_Loaded Last_Loaded +1 tRCINT CNTINT Notes 42. CE0 = OE = B0 – B3 = LOW; CE1 = R/W = CNTRST = MRST = HIGH. 43. CNTINT is always driven. 44. CNTINT goes LOW when the unmasked portion of the address counter is incremented to the maximum value. 45. The mask register assumed to have the value of 1FFFFh. Document #: 38-06070 Rev. *H Page 26 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Switching Waveforms (continued) Figure 23. MailBox Interrupt Timing[46, 47, 48, 49, 50] tCH2 tCYC2 tCL2 CLKL tSA L_PORT ADDRESS tHA 3FFFF An+1 An An+2 An+3 tSINT tRINT INTR tCH2 tCYC2 tCL2 CLKR tSA R_PORT ADDRESS tHA Am+1 Am 3FFFF Am+3 Am+4 Table 7. Read/Write and Enable Operation (Any Port) [1, 8, 51, 52] Inputs OE Operation CE0 CE1 R/W DQ0 – DQ35 X H X X High-Z Deselected X X L X High-Z Deselected X L H L DIN Write L L H H DOUT Read L H X High-Z Outputs Disabled H CLK Outputs X Notes 46. CE0 = OE = ADS = CNTEN = LOW; CE1 = CNTRST = MRST = CNT/MSK = HIGH. 47. Address “3FFFF” is the mailbox location for R_Port of a 9M device. 48. L_Port is configured for Write operation, and R_Port is configured for Read operation. 49. At least one byte enable (B0 – B3) is required to be active during interrupt operations. 50. Interrupt flag is set with respect to the rising edge of the Write clock, and is reset with respect to the rising edge of the Read clock. 51. OE is an asynchronous input signal. 52. When CE changes state, deselection and Read happen after one cycle of latency. Document #: 38-06070 Rev. *H Page 27 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Ordering Information 256K × 36 (9M) 3.3V Synchronous CY7C0853AV Dual-Port SRAM Speed (MHz) 133 Ordering Code Package Diagram Operating Range CY7C0853AV-133BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch Commercial CY7C0853AV-133BBI 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch Industrial CY7C0853AV-133BBXI 100 Package Type 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch (Pb-Free) CY7C0853AV-100BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch Commercial CY7C0853AV-100BBI 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch Industrial 128K × 36 (4M) 3.3V Synchronous CY7C0852AV Dual-Port SRAM Speed (MHz) 167 Ordering Code Package Diagram CY7C0852AV-167BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0852AV-167AC 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0852AV-167AXC 133 Package Type Operating Range Commercial 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) CY7C0852AV-133BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0852AV-133AC 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0852AV-133AXC Commercial 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) CY7C0852AV-133BBI 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0852AV-133AI 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0852AV-133AXI Industrial 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) 64K × 36 (2M) 3.3V Synchronous CY7C0851AV Dual-Port SRAM Speed (MHz) 167 Ordering Code CY7C0851AV-167BBC Package Diagram 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0851AV-167BBXC CY7C0851AV-167AC Operating Range Commercial 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch (Pb-Free) 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0851AV-167AXC 133 Package Type 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) CY7C0851AV-133BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0851AV-133AC 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0851AV-133AXC Commercial 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) CY7C0851AV-133BBI 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0851AV-133AI 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0851AV-133AXI Industrial 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) (Pb-Free) 32K × 36 (1M) 3.3V Synchronous CY7C0850AV Dual-Port SRAM Speed (MHz) 167 133 Ordering Code Package Diagram Package Type CY7C0850AV-167BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0850AV-167AC 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0850AV-133BBC 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0850AV-133AC 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) CY7C0850AV-133BBI 51-85114 172-Ball Grid Array (15 x 15 x 1.25 mm) with 1 mm pitch CY7C0850AV-133AI 51-85132 176-Pin Thin Quad Flat Pack (24 x 24 x 1.4 mm) Document #: 38-06070 Rev. *H Operating Range Commercial Commercial Industrial Page 28 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Package Diagrams Figure 24. 172-Ball FBGA (15 x 15 x 1.25 mm) (51-85114) 51-85114-*B Document #: 38-06070 Rev. *H Page 29 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Package Diagrams Figure 25. 176-Pin Thin Quad Flat Pack (24 × 24 × 1.4 mm) (51-85132) 51-85132-** Document #: 38-06070 Rev. *H Page 30 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Document History Page Document Title: CY7C0850AV/CY7C0851AV/CY7C0852AV/CY7C0853AV, FLEx36™ 3.3V 32K/64K/128K/256K x 36 Synchronous Dual-Port RAM Document Number: 38-06070 REV. ECN NO. Submission Date Orig. of Change ** 127809 08/04/03 SPN This data sheet has been extracted from another data sheet: the 2M/4M/9M data sheet. The following changes have been made from the original as pertains to this device: Updated capacitance values Updated “Read-to-Write-to-Read (OE Controlled)” waveform Revised static discharge voltage Corrected 0853 pins L3 and L12 Added discussion of Pause/Restart for JTAG boundary scan Power up requirements added to Maximum Ratings information Revise tcd2, tOE, tOHZ, tCKHZ, tCKLZ for the CY7C0853V to 4.7 ns Updated Icc numbers Updated tHA, tHB, tHD for -100 speed Separated out from the 4M data sheet Added 133-MHz Industrial device to Ordering Information table *A 210948 See ECN YDT Changed mailbox addresses from 1FFFE and 1FFFF to 3FFFE and 3FFFF. Description of Change *B 216190 See ECN *C 231996 See ECN YDT Removed “A particular port can write to a certain location while another port is reading that location.” from Functional Description. *D 238938 See ECN WWZ Merged 0853 (9Mx36) with 0852 (4Mx36) and 0851(2Mx36), add 0850 (1M x36), to the data sheet. Added product selection table. Added JTAG ID code for 1M device. Added note 14. Updated boundary scan section. Updated function description for the merge and addition. *E 329122 See ECN SPN Updated Marketing part numbers *F 389877 See ECN KGH Updated Read-to-Write-to-Read timing diagram to reflect accurate bus turnaround scheme. Added ISB5 Changed tRSCNTINT to 10ns Changed tRSF to 10ns Added figure Disabled-to-Read-to-Read-to-Read-to-Write Added figure Disabled-to-Write-to-Read-to-Write-to-Read Added figure Disabled-to-Read-to-Disabled-to-Write Added figure Read-to-Readback-to-Read-to-Read (R/W = HIGH) Updated Read-to-Write-to-Read timing diagram to correct the data out schemes Updated Disabled-to-Read-to-Read-to-Read-to-Write timing diagram to correct the chip enable, data in, and data out schemes Updated Disabled-to-Write-to-Read-to-Write-to-Read timing diagram to correct the chip enable and output enable schemes Updated Disabled-to-Read-to-Disabled-to-Write timing diagram to correct the chip enable and output enable schemes *G 391597 See ECN SPN Updated counter reset section to reflect mirror register behavior *H 2544945 07/29/08 Document #: 38-06070 Rev. *H YDT/Dcon Corrected Revision of Document. CMS does not reflect this rev change VKN/AESA Updated Template. Updated ordering information Page 31 of 32 [+] Feedback CY7C0850AV, CY7C0851AV CY7C0852AV, CY7C0853AV Sales, Solutions, and Legal Information Worldwide Sales and Design Support Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office closest to you, visit us at cypress.com/sales. Products PSoC Clocks & Buffers PSoC Solutions psoc.cypress.com clocks.cypress.com General Low Power/Low Voltage psoc.cypress.com/solutions psoc.cypress.com/low-power Wireless wireless.cypress.com Precision Analog Memories memory.cypress.com LCD Drive psoc.cypress.com/lcd-drive image.cypress.com CAN 2.0b psoc.cypress.com/can USB psoc.cypress.com/usb Image Sensors psoc.cypress.com/precision-analog © Cypress Semiconductor Corporation, 2003-2008. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges. Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without the express written permission of Cypress. Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges. Use may be limited by and subject to the applicable Cypress software license agreement. Document #: 38-06070 Rev. *H Revised July 29, 2008 Page 32 of 32 FLEx36 is a trademark of Cypress Semiconductor Corporation. All product and company names mentioned in this document may be the trademarks of their respective holders. [+] Feedback
