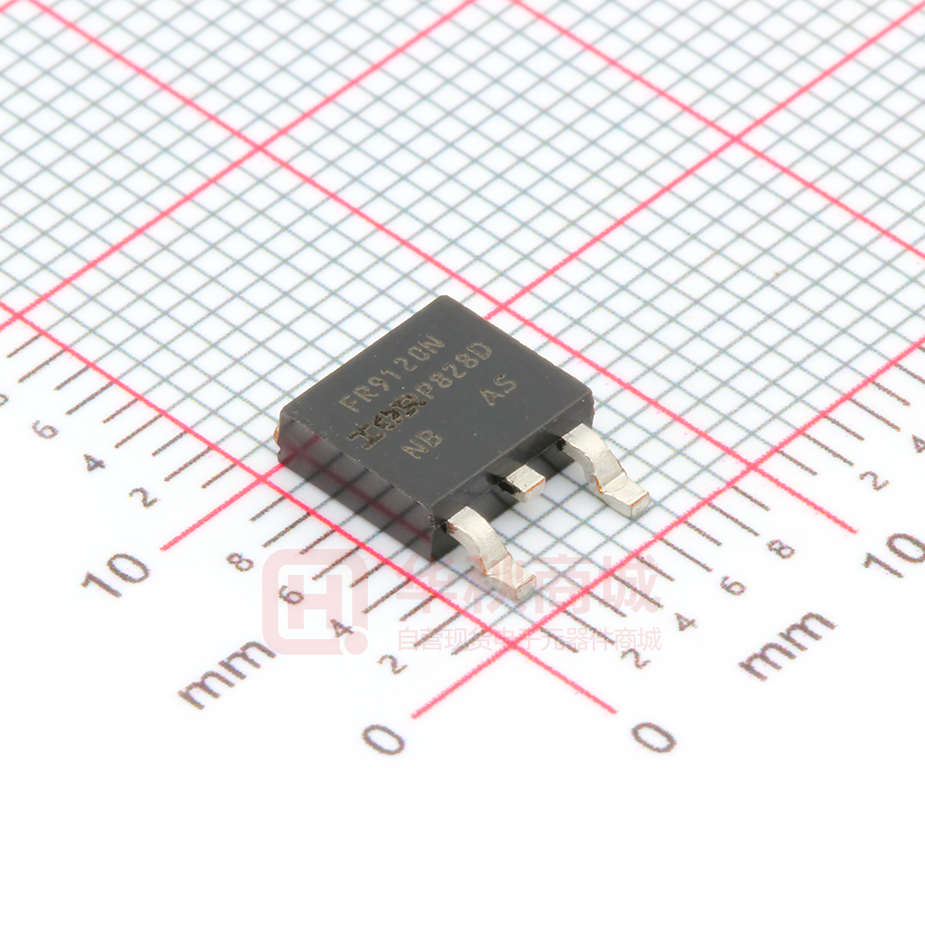

IRFR9120NTRPBF

PD-95020A IRFR9120NPbF IRFU9120NPbF l l l l l l l l Ultra Low On-Resistance P-Channel Surface Mount (IRFR9120N) Straight Lead (IRFU9120N) Advanced Process Technology Fast Switching Fully Avalanche Rated Lead-Free HEXFET® Power MOSFET D VDSS = -100V RDS(on) = 0.48Ω G ID = -6.6A S Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D-Pak TO-252AA I-Pak TO-251AA Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C V GS EAS IAR EAR dv/dt TJ TSTG Parameter Max. Continuous Drain Current, VGS @ -10V Continuous Drain Current, VGS @ -10V Pulsed Drain Current  Power Dissipation Linear Derating Factor Gate-to-Source Voltage Single Pulse Avalanche Energy‚ Avalanche Current Repetitive Avalanche Energy Peak Diode Recovery dv/dt ƒ Operating Junction and Storage Temperature Range Soldering Temperature, for 10 seconds -6.6 -4.2 -26 40 0.32 ± 20 100 -6.6 4.0 -5.0 -55 to + 150 Units A W W/°C V mJ A mJ V/ns 300 (1.6mm from case ) °C Thermal Resistance Parameter RθJC RθJA RθJA www.irf.com Junction-to-Case Junction-to-Ambient (PCB mount)** Junction-to-Ambient Typ. Max. Units ––– ––– ––– 3.1 50 110 °C/W 1 12/14/04 IRFR/U9120NPbF Electrical Characteristics @ TJ = 25°C (unless otherwise specified) Parameter Drain-to-Source Breakdown Voltage ∆V(BR)DSS/∆TJ Breakdown Voltage Temp. Coefficient RDS(on) Static Drain-to-Source On-Resistance VGS(th) Gate Threshold Voltage gfs Forward Transconductance Qg Qgs Qgd td(on) tr td(off) tf Gate-to-Source Forward Leakage Gate-to-Source Reverse Leakage Total Gate Charge Gate-to-Source Charge Gate-to-Drain ("Miller") Charge Turn-On Delay Time Rise Time Turn-Off Delay Time Fall Time Min. -100 ––– ––– -2.0 1.4 ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– Typ. ––– -0.11 ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– 14 47 28 31 LD Internal Drain Inductance ––– 4.5 LS Internal Source Inductance ––– 7.5 Ciss Coss Crss Input Capacitance Output Capacitance Reverse Transfer Capacitance ––– ––– ––– 350 110 70 V(BR)DSS IDSS IGSS Drain-to-Source Leakage Current Max. Units Conditions ––– V VGS = 0V, ID = -250µA ––– V/°C Reference to 25°C, ID = -1mA 0.48 Ω VGS = -10V, I D = -3.9A „ -4.0 V VDS = VGS, ID = -250µA ––– S VDS = -50V, ID = -4.0A† -25 VDS = -100V, VGS = 0V µA -250 VDS = -80V, VGS = 0V, TJ = 150°C 100 VGS = 20V nA -100 VGS = -20V 27 ID = -4.0A 5.0 nC VDS = -80V 15 VGS = -10V, See Fig. 6 and 13 „† ––– VDD = -50V ––– ID = -4.0A ns ––– RG = 12 Ω ––– RD =12 Ω, See Fig. 10 „† D Between lead, ––– 6mm (0.25in.) nH G from package ––– and center of die contact… S ––– VGS = 0V ––– pF VDS = -25V ––– ƒ = 1.0MHz, See Fig. 5† Source-Drain Ratings and Characteristics IS ISM V SD t rr Qrr ton Parameter Continuous Source Current (Body Diode) Pulsed Source Current (Body Diode)  Diode Forward Voltage Reverse Recovery Time Reverse Recovery Charge Forward Turn-On Time Notes:  Repetitive rating; pulse width limited by max. junction temperature. ( See fig. 11 ) ‚ Starting TJ = 25°C, L = 13mH RG = 25Ω, IAS = -3.9A. (See Figure 12) ƒ ISD ≤ -4.0A, di/dt ≤ 300A/µs, VDD ≤ V(BR)DSS, TJ ≤ 150°C Min. Typ. Max. Units Conditions D MOSFET symbol ––– ––– -6.6 showing the A G integral reverse ––– ––– -26 p-n junction diode. S ––– ––– -1.6 V TJ = 25°C, IS = -3.9A, VGS = 0V „ ––– 100 150 ns TJ = 25°C, IF = -4.0A ––– 420 630 nC di/dt = 100A/µs „† Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD) „ Pulse width ≤ 300µs; duty cycle ≤ 2%. …This is applied for I-PAK, LS of D-PAK is measured between lead and center of die contact † Uses IRF9520N data and test conditions. ** When mounted on 1" square PCB (FR-4 or G-10 Material ) . For recommended footprint and soldering techniques refer to application note #AN-994 IRFR/U9120NPbF 100 100 VGS -15V -10V -8.0V -7.0V -6.0V -5.5V -5.0V BOTTOM -4.5V VGS -15V -10V -8.0V -7.0V -6.0V -5.5V -5.0V BOTTOM -4.5V TOP -I D , Drain-to-Source Current (A) -I D , Drain-to-Source Current (A) TOP 10 1 -4.5V 20µs PULSE WIDTH TJ = 25 °C 0.1 0.1 1 10 100 10 1 -4.5V 0.1 0.1 2.5 R DS(on) , Drain-to-Source On Resistance (Normalized) -I D , Drain-to-Source Current (A) 100 TJ = 25 °C TJ = 150 ° C 1 V DS = -50V 20µs PULSE WIDTH 4 5 6 7 8 9 -VGS , Gate-to-Source Voltage (V) Fig 3. Typical Transfer Characteristics 10 100 Fig 2. Typical Output Characteristics Fig 1. Typical Output Characteristics 0.1 1 -VDS , Drain-to-Source Voltage (V) -VDS , Drain-to-Source Voltage (V) 10 20µs PULSE WIDTH TJ = 150 °C 10 ID = -6.7A 2.0 1.5 1.0 0.5 0.0 -60 -40 -20 V GS = -10V 0 20 40 60 80 100 120 140 160 TJ , Junction Temperature ( °C) Fig 4. Normalized On-Resistance Vs. Temperature IRFR/U9120NPbF 20 0V, f = 1MHz Cgs + Cgd , Cds SHORTED Cgd Cds + Cgd -VGS , Gate-to-Source Voltage (V) VGS = Ciss = Crss = Coss = 600 Ciss Coss 400 Crss 200 ID = -4.0 A VDS =-80V VDS =-50V VDS =-20V 16 12 8 4 FOR TEST CIRCUIT SEE FIGURE 13 0 0 1 10 0 100 5 10 15 20 25 QG , Total Gate Charge (nC) -VDS , Drain-to-Source Voltage (V) Fig 5. Typical Capacitance Vs. Drain-to-Source Voltage Fig 6. Typical Gate Charge Vs. Gate-to-Source Voltage 100 100 OPERATION IN THIS AREA LIMITED BY RDS(on) 10us 10 -IID , Drain Current (A) -ISD , Reverse Drain Current (A) C, Capacitance (pF) 800 TJ = 150 ° C TJ = 25 ° C 1 0.1 0.2 V GS = 0 V 0.8 1.4 2.0 -VSD ,Source-to-Drain Voltage (V) Fig 7. Typical Source-Drain Diode Forward Voltage 10 100us 1ms 1 10ms TC = 25 °C TJ = 150 °C Single Pulse 0.1 2.6 1 10 100 -VDS , Drain-to-Source Voltage (V) Fig 8. Maximum Safe Operating Area 1000 IRFR/U9120NPbF 8.0 VGS -ID , Drain Current (A) RD VDS D.U.T. RG 6.0 + VDD -10V Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % 4.0 Fig 10a. Switching Time Test Circuit 2.0 td(on) tr t d(off) tf VGS 10% 0.0 25 50 75 100 125 150 TC , Case Temperature ( °C) 90% VDS Fig 9. Maximum Drain Current Vs. Case Temperature Fig 10b. Switching Time Waveforms Thermal Response (Z thJC ) 10 D = 0.50 1 0.20 0.10 0.05 0.1 0.01 0.00001 0.02 0.01 P DM SINGLE PULSE (THERMAL RESPONSE) t1 t2 Notes: 1. Duty factor D = t 1 / t 2 2. Peak T J = P DM x Z thJC + TC 0.0001 0.001 0.01 0.1 1 t1 , Rectangular Pulse Duration (sec) Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case 10 IRFR/U9120NPbF L VDS - V V DD + DD D.U.T RG A IAS -20V tp DRIVER 0.01Ω 15V Fig 12a. Unclamped Inductive Test Circuit I AS EAS , Single Pulse Avalanche Energy (mJ) 250 TOP 200 BOTTOM ID -1.7A -2.5A -3.9A 150 100 50 0 25 50 75 100 125 150 Starting TJ , Junction Temperature ( °C) Fig 12c. Maximum Avalanche Energy Vs. Drain Current tp V(BR)DSS Fig 12b. Unclamped Inductive Waveforms Current Regulator Same Type as D.U.T. 50KΩ QG 12V -10V .2µF .3µF QGS QGD D.U.T. +VDS VGS VG -3mA Charge Fig 13a. Basic Gate Charge Waveform IG ID Current Sampling Resistors Fig 13b. Gate Charge Test Circuit IRFR/U9120NPbF Peak Diode Recovery dv/dt Test Circuit + D.U.T* ƒ Circuit Layout Considerations • Low Stray Inductance • Ground Plane • Low Leakage Inductance Current Transformer + ‚ - - „ +  RG • dv/dt controlled by RG • ISD controlled by Duty Factor "D" • D.U.T. - Device Under Test VGS * + - VDD Reverse Polarity of D.U.T for P-Channel Driver Gate Drive P.W. Period D= P.W. Period [VGS=10V ] *** D.U.T. ISD Waveform Reverse Recovery Current Body Diode Forward Current di/dt D.U.T. VDS Waveform Diode Recovery dv/dt Re-Applied Voltage Body Diode [VDD] Forward Drop Inductor Curent Ripple ≤ 5% *** VGS = 5.0V for Logic Level and 3V Drive Devices Fig 14. For P-Channel HEXFETS [ISD ] IRFR/U9120NPbF D-Pak (TO-252AA) Package Outline Dimensions are shown in millimeters (inches) D-Pak (TO-252AA) Part Marking Information EXAMPLE: THIS IS AN IRFR120 WITH ASSEMBLY LOT CODE 1234 ASSEMBLED ON WW 16, 1999 IN THE ASSEMBLY LINE "A" PART NUMBER INTERNATIONAL RECTIFIER LOGO Note: "P" in assembly line position indicates "Lead-Free" IRFU120 12 916A 34 ASSEMBLY LOT CODE DATE CODE YEAR 9 = 1999 WEEK 16 LINE A OR PART NUMBER INTERNATIONAL RECTIFIER LOGO IRFU120 12 ASSEMBLY LOT CODE 34 DATE CODE P = DESIGNATES LEAD-FREE PRODUCT (OPTIONAL) YEAR 9 = 1999 WEEK 16 A = ASSEMBLY SITE CODE IRFR/U9120NPbF I-Pak (TO-251AA) Package Outline Dimensions are shown in millimeters (inches) I-Pak (TO-251AA) Part Marking Information EXAMPLE: T HIS IS AN IRF U120 WIT H AS SEMBLY LOT CODE 5678 ASS EMB LED ON WW 19, 1999 IN T HE AS S EMBLY LINE "A" INT ERNAT IONAL RECT IF IER LOGO PART NUMBER IRF U120 919A 56 78 AS SEMBLY LOT CODE Note: "P" in assembly line position indicates "Lead-F ree" DAT E CODE YEAR 9 = 1999 WEEK 19 LINE A OR INT ERNAT IONAL RECT IFIER LOGO PART NUMBER IRF U120 56 ASS EMB LY LOT CODE 78 DAT E CODE P = DES IGNAT ES LEAD-FREE PRODUCT (OPT IONAL) YEAR 9 = 1999 WEEK 19 A = AS SEMB LY S IT E CODE IRFR/U9120NPbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION TRL 16.3 ( .641 ) 15.7 ( .619 ) 8.1 ( .318 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS TO EIA-481 & EIA-541. 13 INCH 16 mm NOTES : 1. OUTLINE CONFORMS TO EIA-481. Data and specifications subject to change without notice. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.12/04 Note: For the most current drawings please refer to the IR website at: http://www.irf.com/package/
