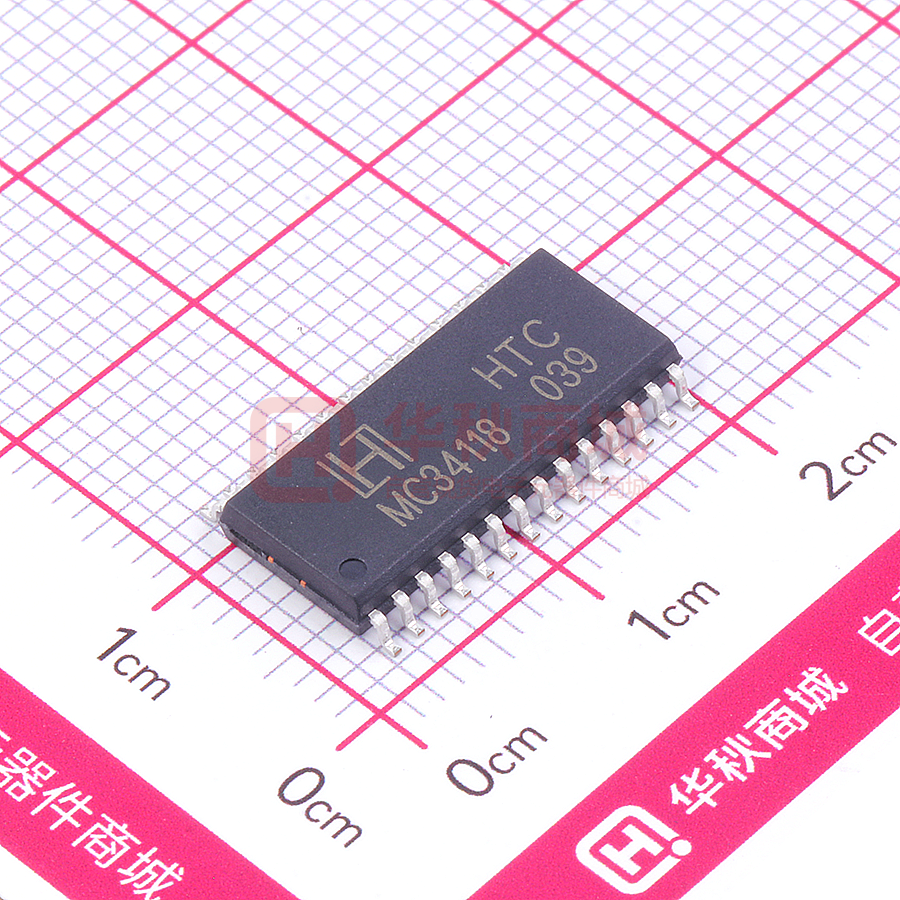

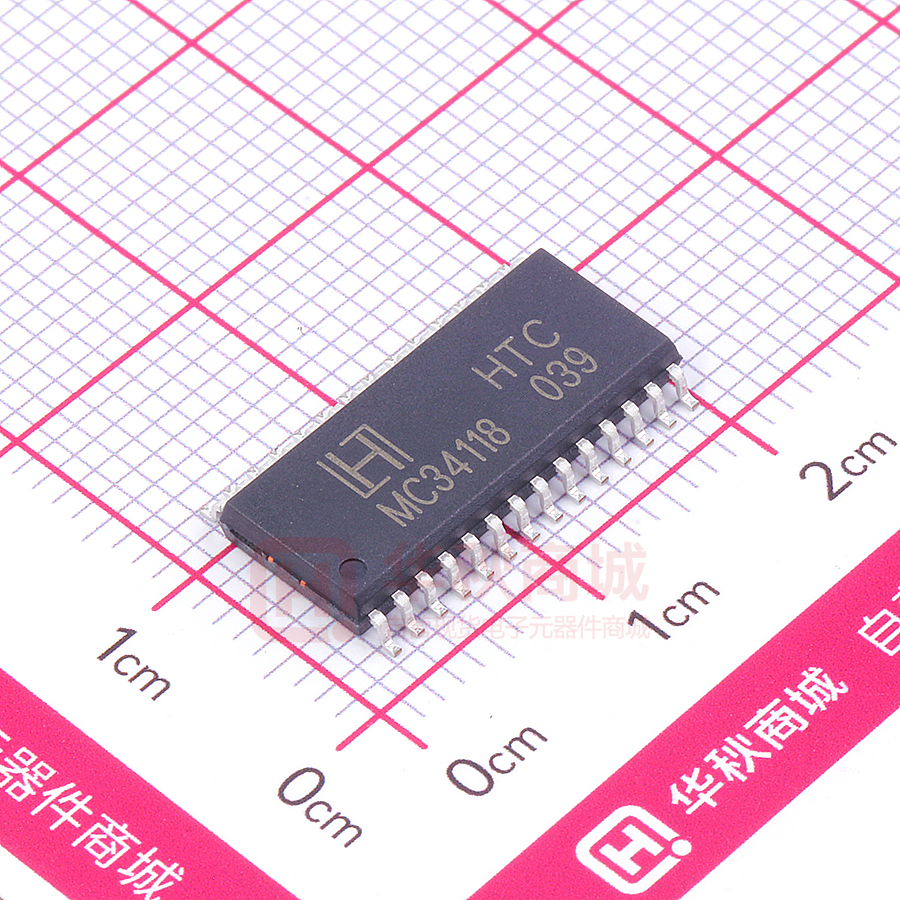

MC34118D

Voice Switched Speakerphone Circuit MC34118 FEATURES • Improved Attenuator Gain Range: 52dB Between Transmit and Receive • Low Voltage Operation for Line-Powered Application (3.0V to 6.5V) • 4-Point Signal Sensing for Improved Sensitivity • Background Noise Monitors for Both Transmit and Receive Paths • Microphone Amplifier Gain Set by External Resistors – Mute Function Included • Chip Disable for Active/Standby Operation • Dial Tone Detector to Inhibit Receive Idle Mode During Dial Tone Presence • Standard 28-Pin Plastic DIP Package and SOP Package Available • Compatible with MC34119 Speaker Amplifier SOP-28 DIP-28 DESCRIPTION The MC34118 Voice Switched Speakerphone Circuit incorporates the necessary amplifiers, attenuators, level detectors, and control algorithm to form the heart of a high quality hands-free speakerphone system. Included are a microphone amplifier with adjustable gain and MUTE control, Transmit and Receive attenuators which operate in a complementary manner, level detectors at both input and output of both attenuators, and background noise monitors for both the transmit and receive channels. A Dial Tone Detector prevents the dial tone from being attenuated by the Receive background noise monitor circuit. Also included are two line driver amplifiers which can be used to form a hybrid network in conjunction with an external coupling transformer. A high-pass filter can be used to filter out 60Hz noise in the receive channel, or for other filtering functions. A Chip Disable pin permits powering down the entire circuit to conserve power on long loops where loop current is at a minimum. The MC34118 may be operated from a power supply, or it can be powered from the telephone line, requiring typically 5.0mA. The MC34118 can be interfaced directly to Tip and Ring (through a coupling transformer) for stand-alone operation, or it can be used in conjunction with a handset speech network and/or other features of a featurephone. Aug. 2020 – R1.0 1/26 ORDERING INFORMATION Device Package MC34118D SOP-28 MC34118N DIP-28 HTC Voice Switched Speakerphone Circuit MC34118 ABSOLUTE MAXIMUM RATINGS (Note 1) CHARACTERISTIC SYMBOL MIN MAX UNIT VCC −1.0 7.0 V VCD, VMUT −1.0 VCC + 1.0 V VVLC −1.0 VCC + 0.5 V VTXI, VRXI, VFI −0.5 VCC + 0.5 V TSTG −65 150 °C Supply Voltage (Pin 4) Input Voltage at CD (Pin 3), MUT (Pin 12) Input Voltage at VLC (Pin 13) Input Voltage at TXI (Pin 9 ), RXI (Pin 21), FI (Pin 2) Storage Temperature Range Note 1. Stresses beyond those listed under the Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under the Recommended Operating Ratings are not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. Note 2. Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC). Unused outputs must be left open. RECOMMENDED OPERATING RATINGS (Note 3) CHARACTERISTIC SYMBOL MIN MAX UNIT VCC 3.5 6.5 V VCD, VMUT 0 VCC V IVB - 500 µA VVLC 0.3 × VB VB V Attenuator Input Signal Voltage (Pins 9, 21) VTXI, VRXI 0 350 mVrms Microphone Amplifier, Hybrid Amplifier Gain AV 0 40 dB Load Current at TXO (Pin 8), RXO (Pin 22) ITXO, IRXO 0 2.0 mA IMCO 0 1.0 mA IHTO+, IHTO− 0 5.0 mA TA −25 70 °C Supply Voltage (Pin 4) Input Voltage at CD (Pin 3), MUT (Pin 12) Current at VB (Pin 15) Input Voltage at VLC (Pin 13) Load Current at MCO (Pin 10) Load Current at HTO+ (Pin 5), HTO− (Pin 6) Operating Ambient Temperature Range Note 3. The device is not guaranteed to function outside its operating ratings. Aug. 2020 – R1.0 2/26 HTC Voice Switched Speakerphone Circuit MC34118 ORDERING INFORMATION Package Order No. Description Supplied As Status SOP-28 MC34118D Voice Switched Speakerphone Circuit Tape & Reel Active DIP-28 MC34118N Voice Switched Speakerphone Circuit Tube Contact us Aug. 2020 – R1.0 3/26 HTC Voice Switched Speakerphone Circuit MC34118 PIN CONFIGURATION FO 1 28 GND FI 2 27 CPR CD 3 26 RLI1 VCC 4 25 RLO1 HTO+ 5 24 TLO1 HTO− 6 23 TLI1 HTI 7 22 RXO TXO 8 21 RXI TXI 9 20 RLI2 MCO 10 19 RLO2 MCI 11 18 TLO2 MUT 12 17 TLI2 VLC 13 16 CPT CT 14 15 VB SOP-28 / DIP-28 PIN DESCRIPTION Pin No. Pin Name 1 FO Filter Output. Output impedance is less than 50Ω. 2 FI Filter Input. Input impedance is greater than 1.0MΩ. 3 CD Chip Disable. A logic low (< 0.8V) sets normal operation. A logic high (> 2.0V) disables the IC to conserve power. Input impedance is nominally 90kΩ. 4 VCC A supply voltage of +2.8 to +6.5 volts is required, at ≈ 5.0mA. As VCC falls from 3.5V to 2.8V, and AGC circuit reduces the receive attenuator gain by ≈ 25dB (when in the receive mode). 5 HTO+ Output of the second hybrid amplifier. The gain is internally set at -1.0 to provide a differential output, in conjunction with HTO−, to the hybrid transformer. 6 HTO− Output of the first hybrid amplifier. The gain of the amp is set by external resistors. 7 HTI Input and summing node for the first hybrid amplifier. DC level is ≈ VB. 8 TXO Output of the transmit attenuator. DC level is approximately VB. 9 TXI Input to the transmit attenuator. Max. signal level is approximately VB. 10 MCO Output of the microphone amplifier. resistors. 11 MCI Input and summing node of the microphone amplifier. DC level is ≈ VB. 12 MUT Mute Input. A logic low (< 0.8V) sets normal operation. A logic high (> 2.0V) mutes the microphone amplifier without affecting the rest of the circuit. Input impedance is normally 90kΩ. Aug. 2020 – R1.0 Pin Function 4/26 The gain of the amplifier is set by external HTC Voice Switched Speakerphone Circuit MC34118 PIN DESCRIPTION (continued) Pin No. Pin Name Pin Function 13 VLC Volume Control Input. When VVLC = VB, the receive attenuator is at maximum gain when in the receive mode. When VVLC = 0.3 VB, the receive gain is down 35dB. Does not affect the transmit mode. 14 CT An RC at this pin sets the response time for the circuit to switch modes. 15 VB An output voltage ≈ VCC/2. This voltage is a system AC ground, and biases the volume control. A filter cap is required. 16 CPT An RC at this pin sets the time constant for the transmit background monitor. 17 TLI2 Input to the transmit level detector on the microphone/speaker side. 18 TLO2 Output of the transmit level detector on the microphone/speaker side, and input to the transmit background monitor. 19 RLO2 Output of the receive level detector on the microphone/speaker side. 20 RLI2 Input to the receive level detector on the microphone/speaker side. 21 RXI Input to the receive attenuator and dial tone detector. Max input level is 350mV RMS. Input impedance is ≈ 10kΩ. 22 RXO Output of the receive attenuator. DC level is approximately VB. 23 TLI1 Input to the transmit level detector on the line side. 24 TLO1 Output of the transmit level detector on the line side. 25 RLO1 Output of the receive level detector on the line side, and input to the receive background monitor. 26 RLI1 Input to the receive level detector on the line side. 27 CPR An RC at this pin sets the time constant for the receive background monitor. 28 GND Ground pin for the entire IC. Aug. 2020 – R1.0 5/26 HTC Voice Switched Speakerphone Circuit MC34118 SIMPLIFIED BLOCK DIAGRAM MUTE TIP Tx ATTENUATOR MIKE BACKGROUND NOISE MONITOR LEVEL DETECTORS VOLUME CONTROL SPEAKER ZB −1.0 AGC ATTENUATOR CONTROL LEVEL DETECTORS RING BACKGROUND NOISE MONITOR DIAL TONE DETECTOR Rx ATTENUATOR BIAS FILTER VCC CHIP DISABLE POWER AMP (EXTERNAL) Aug. 2020 – R1.0 6/26 HTC Voice Switched Speakerphone Circuit MC34118 ELECTRICAL CHARACTERISTICS Specifications are for TA = −25°C to 75°C, VCC = 5.0V, VCD = 0.8V, unless otherwise noted. PARAMETER SYMBOL TEST CONDITIONS MIN MAX UNIT VCC = 6.5V, VCD = 0.8V - 10 mA VCC = 6.5V, VCD = 2.0V - 1.0 mA POWER SUPPLY VCC Supply Current ICC CD Input Resistance RCD VCC = VCD = 6.5V 37.5 - kΩ CD Input High Voltage VCDH VCC = VCD = 6.5V 2.0 VCC V CD Input Low Voltage VCDL VCC = VCD = 6.5V 0 0.8 V 1.35 3.0 V VRXI = 150mVrms, VCC = 5.0V 1.5 10 dB VRXI = 150mVrms, VCC = 3.5V 1.5 10 dB ∆GRX1 VCC = 3.5V versus VCC = 5.0V −0.5 0.5 dB ∆GRX2 VCC = 2.8V versus VCC = 5.0V - −15 dB VRXI = 150mVrms −25 −15 dB ∆GRX3 Rx to Tx Mode 49 54 dB VCR Rx Mode, 0.3 × VB < VVLC < VB 27 - dB - ±190 mV VB Output Voltage VB ATTENUATORS (VVLC = VB, unless otherwise noted) Receive Attenuator Gain (f = 1.0kHz) Rx Mode Gain Change GRX (Note 4) AGC Gain Change (Note 4) Idle Mode Range GRXI (Note 4) Volume Control Range (Note 4) ∆RXO DC Voltage ∆VRXO Rx to Tx Mode RXO High Voltage VRXOH IOUT = −1.0mA, VRXI = VB + 1.5V, VCT = 2.6V 2.8 - V RXO Low Voltage VRXOL IOUT = 1.0mA, VRXI = VB − 1.0V, VCT = 2.6V Output measured with respect to VB - VB – 0.75 V VRXI = 350mVrms, f = 1.0kHz 5.25 17.5 kΩ RXI Input Resistance RRXI Transmit Attenuator Gain (f = 1.0kHz) Tx Mode GTX VTXI = 150mVrms 1.5 10 dB Idle Mode GTXI VTXI = 150mVrms −25 −15 dB ∆GTXI Tx to Rx Mode 49 54 dB ∆TXO DC Voltage ∆VTXO Tx to Rx Mode - ±190 mV TXO High Voltage VTXOH IOUT = −1.0mA, VTXI = VB + 1.5V, VCT = 1.6V 2.8 - V TXO Low Voltage VTXOL IOUT = 1.0mA, VTXI = VB − 1.0V, VCT = 1.6V Output measured with respect to VB - VB − 0.75 V 5.25 17.5 kΩ Range (Note 4) TXI Input Resistance RTXI VTXI = 350mVrms, f = 1.0kHz Note 4. Specifications are for TA = 25°C. Note 5. All currents into a device pin are positive, those out of a pin are negative. Algebraic convention rather than magnitude is used to define limits. Aug. 2020 – R1.0 7/26 HTC Voice Switched Speakerphone Circuit MC34118 ELECTRICAL CHARACTERISTICS (continued) Specifications are for TA = −25°C to 75°C, VCC = 5.0V, VCD = 0.8V, unless otherwise noted. PARAMETER SYMBOL TEST CONDITIONS MIN MAX UNIT ATTENUATOR CONTROL CT Source Current (Switching to Rx Mode) ICTR f = 1.0kHz, VVLC = VB = VCT −106 −30 µA CT Sink Current (Switching to Tx Mode) ICTT f = 1.0kHz, VVLC = VB = VCT 30 106 µA CT Fast Idle Internal (Note 4) Resistance RFI 1.5 3.6 kΩ VDT 10 20 mV VMCO − VB, Feedback R = 180kΩ −62 62 mV Dial Tone Detector Threshold (Note 4) MICROPHONE AMPLIFIER (VMUT ≤ 0.8V, AVCL = 31dB, unless otherwise noted) Output Offset MCOVOS Open Loop Gain AVOLM f = 100Hz 60 - dB Output High Voltage VMCOH IOUT = −1.0mA, VMCI = VB + 1.5V 2.8 - V Output Low Voltage VMCOL IOUT = 1.0mA, VMCI = VB − 1.0V - 250 mV Muting (∆Gain) GMT f = 1.0kHz, VMCI = 150mV, 0.8V ≤ VMUT ≤ 2.0V 52 - dB MUT Input Resistance RMUT VCC = VMUT = 6.5V 37.5 - kΩ MUT Input High Voltage VMUTH 2.0 VCC V MUT Input Low Voltage VMUTL 0 0.8 V VHTO− − VB, Feedback R = 51kΩ VB − 25 VB + 25 mV VB − 37 VB + 37 mV 57 - dB HYBRID AMPLIFIERS HTO Offset HVOS HTO− to HTO+ Offset HBVOS Feedback R = 51kΩ Open Loop Gain AVOLH HTI to HTO−, f = 100Hz, VHTI = 20mV Closed Loop Gain AVCLH HTO− to HTO+ −2.8 2.2 dB HTO− High Voltage VHT−H IOUT = −5.0mA, VHTI = VB − 1.0V 2.8 - V HTO− Low Voltage VHT−L IOUT = 5.0mA, VHTI = VB + 1.5V - 375 mV HTO+ High Voltage VHT+H IOUT = −5.0mA, VHTI = VB + 1.5V 2.8 - V HTO+ Low Voltage VHT+L IOUT = 5.0mA, VHTI = VB − 1.0V - 562 mV 0.8 1.2 VB − 250 VB + 25 mV 112 500 µA LEVEL DETECTORS AND BACKGOUND NOISE MONITORS Transmit-Receive Switching (Note 4) Threshold ITH Ratio of Current at RLI1 + RLI2 to 20µA at TLI1 + TLI2 to switch from Tx to Rx FILTER Voltage Offset at FO FO Sink Current FOVOS IFO VFO – VB, 220kΩ from VB to FI VB = VFO, VFI = 0V Note 4. Specifications are for TA = 25°C. Note 5. All currents into a device pin are positive, those out of a pin are negative. Algebraic convention rather than magnitude is used to define limits. Aug. 2020 – R1.0 8/26 HTC Voice Switched Speakerphone Circuit MC34118 BLOCK DIAGRAM VCC VB VB RMF ZBAL RHF 6 Tx ATTENUATOR RMI MCI MCO 11 VB TXI 9 10 MIKE TXO TLI2 17 RHI 8 TLI1 R RING R VB MUTE HTO+ VB 12 VCC TIP 7 23 CT 14 HTO− HTI 5 VCC CPT VCC BACKGROUND NOISE MONITOR 16 AGC BACKGROUND NOISE MONITOR TLO2 18 CPR 27 RLO1 ATTENUATOR CONTROL RLO2 19 25 LEVEL DETECTORS TLO1 LEVEL DETECTORS VCC 24 4 CD R 3 GND 400 VB R 28 20 BIAS RLI2 VLC 13 VB VB Aug. 2020 – R1.0 21 22 15 VOLUME SPEAKER AMP MC34119 FILTER RXO RXI 26 RLI1 1 FO +1 2 FI Rx ATTENUATOR 15 mV DIAL TONE DETECTOR VB 9/26 HTC Voice Switched Speakerphone Circuit MC34118 FUNCTIONAL DESCRIPTION INTRODUCTION The fundamental difference between the operation of a speakerphone and a handset is that of half-duplex versus full-duplex. The handset is full duplex since conversation can occur in both directions (transmit and receive) simultaneously. A speakerphone has higher gain levels in both paths, and attempting to converse full duplex results in oscillatory problems due to the loop that exists within the system. The loop is formed by the receive and transmit paths, the hybrid, and the acoustic coupling (speaker to microphone). The only practical and economical solution used to date is to design the speakerphone to function in a half duplex mode – i.e., only one person speaks at a time, whole other listens. To achieve this requires a circuit which can detect who is talking, switch on the appropriate path (transmit or receive), and switch off (attenuate) the other path. In this way, the loop gain is maintained less than unity. When the talkers exchange function, the circuit must quickly detect this, and switch the circuit appropriately. By providing speech level detectors, the circuit operates in a “hands-free” mode, eliminating the need for a “push-to-talk” switch. The handset, by the way, has the same loop as the speakerphone. But since the gains are considerably lower, and since the acoustic coupling from the earpiece to the mouth piece is almost non-existent (the receiver is normally held against a person’s ear), oscillations don’t occur. The MC34118 provides the necessary level detectors, attenuators, and switching control for a properly operating speakerphone. The detection sensitivity and timing are externally controllable. Additionally, the MC34118 provides background noise monitors, hybrid amplifiers for interfacing to Tip and Ring, the microphone amplifier, and other associated functions. Please refer to the Block Diagram when reading the following sections. ATTENUATORS The transmit and receive attenuators are complementary in function, i.e., when one is at maximum gain (6.0dB), the other is at maximum attenuation (−46dB), and vice versa. They are never both fully on or both fully off. The sum of their gains remains constant (within a nominal error band of ±0.1dB) at a typical value of −40dB. Their purpose is to control the transmit and receive paths to provide the half-duplex operation required in a speakerphone. The attenuators are non-inverting, and have a −3.0dB (from max gain) frequency of ≈ 100kHz. The input impedance of each attenuator (TXI and RXI) is nominally 10kΩ, and the input signal should be limited to 350mVrms (990mVp-p) to prevent distortion. That maximum recommended input signal is independent of the volume control setting. The diode clamp on the inputs limits the input swing, and therefore the maximum negative output swing. This is the reason for VRXOL and VTXOL specification being defined as they are in the Electrical Characteristics. The output impedance is < 10Ω until the output current limit (typically 2.5mA) is reached. VB 10 k TXI (RXI) 4.0 k 96 k TO ATTENUATOR INPUT < Attenuator Input Stage > The attenuators are controlled by the single output of the Control Block, which is measureable at the CT pin (Pin 14). When the CT pin is at 240milivolts with respect to VB, the circuit is in the receive mode (receive attenuators is at 6.0dB). The circuit is in an idle mode when the CT voltage is equal to VB, causing the attenuators’ gains to be halfway between their fully on and fully off positions (−20dB each). Monitoring the CT voltage (with respect to VB) Aug. 2020 – R1.0 10/26 HTC Voice Switched Speakerphone Circuit MC34118 is the most direct method of monitoring the circuit’s mode. The inputs to the Control Block are seven: 2 from the comparators operated by the level detectors, 2 from the background noise monitors, the volume control, the dial tone detector, and the AGC circuit. The seven inputs are described below. LEVEL DETECTORS There are four level detectors – two on the receive side and two on the transmit side. The terms in parentheses form one system, and the other term form the second system. Each level detector is a high gain amplifier with back-to-back diodes in the feedback path, resulting in non-linear gain, which permits operation over a wide dynamic range of speech levels. The sensitivity of each level detector is determined by the external resistor and capacitor at each input (TLI1, TLI2, RLI1, and RLI2). Each output charges an external capacitor through a diode and limiting resistor, thus providing a DC representation of the input AC signal level. The outputs have a quick rise time (determined by the capacitor and an internal 350Ω resistor), and a slow decay time set by an internal current source and the capacitor. The capacitors on the four outputs should have the same value (±10%) to prevent timing problems. LEVEL DETECTOR RLI1 (TLI2) 5.1 k SIGNAL INPUT SIGNAL INPUT 100 k VCC 47 µF 350 VB RLO1 (TLO2) 2.0 µF 0.1 µF 0.1 µF 36 mV 4.0 µA 56 k 33 k LEVEL DETECTOR VB C4 (C3) 5.1 k TLI1 (RLI2) CPR (CPT) BACKGROUND NOISE MONITOR 350 C2 (C1) VB TLO1 (RLO2) 2.0 µF 4.0 µA TO ATTENUATOR CONTROL BLOCK COMPARATOR NOTE: External component values are application dependent. < Level Detectors > On the receive side, one level detector (RLI1) is at the receive input receiving the same signal as at Tip and Ring, and the other (RLI2) is at the output of the speaker amplifier. On the transmit side, one level detector (TLI2) is at the output of the microphone amplifier, while the other (TLI1) is at the hybrid output. Outputs RLO1 and TLO1 feed a comparator, the output of which goes to the Attenuator Control Block. Likewise, outputs RLO2 and TLO2 feed a second comparator which also goes to the Attenuator Control Block. The truth table for the effects of the level detectors on the Control Block is given in the section describing the Control Block. BACKGOUND NOISE MONITORS The purpose of the background noise monitors is to distinguish speech (which consists of bursts) from background noise (a relatively constant signal level). There are two background noise monitors – one for the receive path and one for the transmit path. The receive background noise monitor is operated on by the RLI1−RLO1 level detector, while the transmit background noise monitor is operated on by the TLI2−TLO2 level Aug. 2020 – R1.0 11/26 HTC Voice Switched Speakerphone Circuit MC34118 detector. They monitor the background noise by storing a DC voltage representative of the respective noise levels in capacitors at CPR and CPT. The voltages at theses pins have slow rise times (determined by the external RC), but fast decay times. If the signal at RLO1 (or TLI2) changes slowly, the voltage at CPR (or CPT) will remain more positive than the voltage at the non-inverting input of the monitor’s output comparator. When speech is present, the voltage on the non-inverting input of the comparator will rise quicker than the voltage at the inverting input (due to the burst characteristic of speech), causing its output to change. This output is sensed by the Attenuator Control Block. The 36mV offset at the comparator’s input keeps the comparator from changing state unless the speech level exceeds the background noise by ≈ 4.0dB. The time constant of the external RC (≈ 4.7 seconds) determines the response time to background noise variations. VOLUME CONTROL The volume control input at VLC (Pin 13) is sensed as a voltage with respect to VB. The volume control affects the attenuators only in the receive mode. It has no effect in the idle or transmit modes. When in the receive mode, the gain of the receive attenuator will be 6.0dB, and the gain of the transmit attenuator will be −46dB only when VVLC is equal to VB. As VVLC is reduced below VB, the gain of the receive attenuator is reduced, and the gain of the transmit attenuator is increased such that their sum remains constant. Changing the voltage at VLC changes the voltage at CT (see the Attenuator Control Block section), which in turn controls the attenuators. The volume control setting does not affect the maximum attenuator input signal at which noticeable distortion occurs. The bias current at VLC is typically 60nA out of the pin, and does not vary significantly with the VLC voltage or with VCC. DIAL TONE DETECTOR The dial tone detector is a comparator with one side connected to the receive input (RXI) and the other input connected to VB with a 15mV offset. If the circuit is in the receive mode, and the incoming signal is greater than 15mV (10mVrms), the comparator’s output will change, disabling the receive idle mode. The receive attenuator will then be at a setting determined solely by the volume control. TO Rx ATTENUATOR RXI TO ATTENUATOR CONTROL BLOCK 15 mV VB C4 < Dial Tone Detector > The purpose of this circuit is to prevent the dial tone (which would be considered as continuous noise) from fading away as the circuit would have the tendency to switch to the idle mode. By disabling the receive idle mode, the dial tone remains at the normally expected full level. AGC The AGC circuit affects the circuit only in the receive mode, and only when the supply voltage (VCC) is less than 3.5 volts. As VCC falls below 3.5 volts, the gain of the receive attenuator is reduced. The transmit path attenuation changes such that the sum of the transmit and receive gains remains constant. Aug. 2020 – R1.0 12/26 HTC Voice Switched Speakerphone Circuit MC34118 The purpose of this feature is to reduce the power (and current) used by the speaker when a line-powered speakerphone is connected to a long line, where the available power is limited. By reducing the speaker power, the voltage sag at VCC is controlled, preventing possible erratic operation. ATTENUATOR CONTROL BLOCK The Attenuator Control Block has the seven inputs described above: - The output of the comparator operated by RLO2 and TLO2 (microphone/speaker side) – designated C1. - The output of the comparator operated by RLO1 and TLO1 (Tip/Ring side) – designated C2. - The output of the transmit background noise monitor – designated C3. - The output of the receive background noise monitor – designated C4. - The volume control. - The dial tone detector. - The AGC circuit The single output of the Control Block controls the two attenuators. The effect of C1-C4 is as follows: Inputs C1 Output Mode C2 C3 C4 Tx Tx 1 X Transmit Tx Rx y y Fast Idle Rx Tx y y Fast Idle Rx Rx X 1 Receive Tx Tx 0 X Slow Idle Tx Rx 0 0 Slow Idle Rx Tx 0 0 Slow Idle Rx Rx X 0 Slow Idle X: Don’t Care y: C3 and C4 are not both 0. A definition of the above terms: 1) “Transmit” means the transmit attenuator is fully on (6.0dB), and the receive attenuator is at maximum attenuation (−46dB). 2) “Receive” means both attenuators are controlled by the volume control. At maximum volume, the receive attenuator is fully on (6.0dB), and the transmit attenuator is at maximum attenuation (−46dB). 3) “Fast Idle” means both transmit and receive speech are present in approximately equal level. The attenuators are quickly switched (30ms) to idle until one speech level dominates the other. 4) “Slow Idle” means speech has ceased in both transmit and receive paths. The attenuators are then slowly switched (1 second) to the idle mode. 5) Switching to the full transmit or receive modes from any other mode is at the fast rate (≈ 30ms). A summary of the truth table is as follows: 1) The circuit will switch to transmit if: a) both transmit level detectors sense higher signal levels relative to the respective receive level detectors (TLI1 versus RLI1, TLI2 versus RLI2), and b) the transmit background noise monitor indicates the presence of speech. 2) The circuit will switch to receive if: a) both receive level detectors sense higher signal levels relative to the respective transmit level detectors, and b) the receive background noise monitor indicates the presence of speech. 3) The circuit will switch to the fast idle mode if the level detectors disagree on the relative strengths of the signal levels, and at least one of the background noise monitors indicates speech. For example, referring to Aug. 2020 – R1.0 13/26 HTC Voice Switched Speakerphone Circuit MC34118 the Block Diagram, if there is sufficient signal at the microphone amp output (TLI2) and there is sufficient signal at the receive input (RLI1) to override the signal at the hybrid output (TLI1), and either or both background monitors indicate speech, then the circuit will be in the fast idle mode. Two conditions which can cause the fast idle mode to occur are a) when both talkers are attempting to gain control of the system by talking at the same time, and b) when one talker is in a very noisy environment, forcing the other talker to continually override that noise level. In general, the fast idle mode will occur infrequently. 4) The circuit will switch to the slow idle mode when a) both talkers are quiet (no speech present), or b) when one talker’s speech level is continuously overridden by noise at the other speaker’s location. The time required to switch the circuit between transmit, receive, fast idle and slow idle is determined in part by the components at the CT pin (Pin 14). (See the section on Switching Times for a more complete explanation of the switching time components.) A schematic of the CT circuitry operates as follows: - RCT is typically 120kΩ, and CCT is typically 5.0µF. - To switch to the receive mode, I1 is turned on (I2 is off), charging the external capacitor to 240mV above VB. (An internal clamp) prevents further charging of the capacitor.) - To switch to the transmit mode, I2 is turned on (I1 is off) bringing down the voltage on the capacitor to −240mV with respect to VB. - To switch to idle quickly (fast idle), the current sources are turned off, and the internal 2.0kΩ resistor is switched in, discharging the capacitor to VB with a time constant = 2.0k × CCT. - To switch to idle slowly (slow idle), the current sources are turned off, the switch at the 2.0kΩ resistor is open, and the capacitor discharges to VB through the external resistor RCT with a time constant = RCT × CCT. VB RCT CT CCT TO ATTENUATORS 2.0 k I1 I2 CONTROL CIRCUIT 4 C1 – C4 VOL. CONTROL DIAL TONE DET. AGC 60 µA EACH < CT Attenuator Control Block Circuit > MICROPHONE AMPLIFIER The microphone amplifier (Pins 10, 11) has the non-inverting input internally connected to VB, while the inverting input and the output are pinned out. Unlike most op-amps, the amplifier has an all-NPN output stage, which maximizes phase margin and gain-bandwidth. This feature ensures stability at gains less than unity, as well as with a wide range of reactive loads. The open loop gain is typically 80dB (f < 100Hz), and the gain-bandwidth is typically 1.0MHz. The maximum p-p output swing is typically 1.0 volt less than VCC with an output impedance of < 10Ω until current limiting is reached (typically 1.5mA). Input bias current at MCI is typically 40nA out of the pin. The muting function (Pin 12), when activated, will reduce the gain of the amplifier to ≈ −39dB (with RMI = 5.1kΩ) by shorting the output to the inverting input. The mute input has a threshold of ≈ 1.5 volts, and the voltage at this pin must be kept within the range of ground and VCC. If the mute function is not used, the pin should be grounded. Aug. 2020 – R1.0 14/26 HTC Voice Switched Speakerphone Circuit MC34118 RMF VCC VB RMI FROM MIKE MCO MCI VCC 75 k MUTE RMF GAIN = − RMI 75 k < Microphone Amplifier and Mute > HYBRID AMPLIFIERS The two hybrid amplifiers (at HTO+, HTO−, and HTC), in conjunction with an external transformer, provide the two-to-four wire converter for interfacing to the telephone line. The gain of the first amplifier (HTI to HTO−) is set by external resistors, and its output drives the second amplifier, the gain of which is internally set at − 1.0. Unlike most op-amps, the amplifiers have an all-NPN output stage, which maximizes phase margin and gain-bandwidth. This feature ensures stability at gains less than unity, as well as with a wide range of reactive loads. The open loop gain of the first amplifier is typically 80dB, and the gain bandwidth of each amplifier is ≈ 1.0MHz. The maximum p-p output swing of each amplifier is typically 1.2 volts less than VCC with an output impedance of < 10Ω until current limiting is reached (typically 8.0mA). The output current capability is guaranteed to be a minimum of 5.0mA. The bias current at HTI is typically 30nA out of the pin. The connections to the coupling transformer are shown in the Block Diagram. The block labeled Zbal is the balancing network necessary to match the line impedance. FILTER The operation of the filter circuit is determined by the external components. The circuit within the MC34118, from pins FI to FO is a buffer with a high input impedance (> 1.0 MΩ), and l low output impedance (< 50Ω). The configuration of the external components determines whether the circuit is a high-pass filter (as shown in the Block Diagram), a low-pass filter, or a band-pass filter. 50 305 Hz 0 VB − 3.0 − 30 fN = R1 56 k R2 220 k C1 C2 VCC 100 k fN 1 1 2π C R1R2 2 4700 pF FI FO 4700 pF 260 µA FOR C1 = C2 MC34118 < High Pass Filter > As a high pass filter, the filter will keep out 60Hz (and 120Hz) hum which can be picked up by the external Aug. 2020 – R1.0 15/26 HTC Voice Switched Speakerphone Circuit MC34118 telephone lines. As a low pass filter, it can be used to roll off the high end frequencies in the receive circuit, which aids in protecting against acoustic feedback problems. With an appropriate choice of an input coupling capacitor to the low pass filter, a band pass filter is formed. 4.0 k 0 20 k VB 220 k − 3.0 C1 − 30 fN = R2 fN 1 1 2π C1C2R FOR R1 = R2 0.01 FI 13 k R1 13 k 0.001 2 +1 FO C2 MC34118 Vin < Low Pass Filter > POWER SUPPLY, VB, AND CHIP DISABLE The power supply voltage at VCC (Pin 4) is to be between 3.5 and 6.5 volts for normal operation, with reduced operation possible down to 2.8 volts. The output voltage at VB (Pin 15 is ≈ (VCC − 0.7) / 2), and provides the AC ground for the system. The output impedance at VB is ≈ 400Ω, and in conjunction with the external capacitor at VB, forms a low pass filter for power supply rejection. The choice of capacitor is application dependent based on whether the circuit is powered by the telephone line or a power supply. Since VB biases the microphone and hybrid amplifiers, the amount of supply rejection at their outputs is directly related to the rejection at VB, as well as their respective gain. The Chip Disable (Pin 3) permits powering down the IC to conserve power and/or for muting purposes. With VCD ≤ 0.8 volts, normal operation is in effect. With VCD ≥ 2.0 volts and ≤ VCC, the IC is powered down. In the powered down mode, the microphone and the hybrid amplifiers are disables, and their outputs go to a high impedance state. Additionally, the bias is removed from the level detectors. The bias is not removed from the filter (Pins 1, 2), the attenuators (Pins 8, 9, 21, 22) or from Pins 13, 14, and 15 (the attenuators are disables, however, and will not pass a signal). The input impedance at CD is typically 90kΩ, has a threshold of ≈ 1.5 volts, and the voltage at this pin must be kept within the range of ground and VCC. If CD is not used, the pin should be grounded. Aug. 2020 – R1.0 16/26 HTC Voice Switched Speakerphone Circuit MC34118 DESIGN GUIDELINES SWITCHING TIME The switching time of the MC34118 circuit is dominated by the components at CT (Pin 14), and secondarily by the capacitors at the level detector outputs (RLO1, RLO2, TLO1, TLO2). The time to switch to receive or to transmit from idle is determined by the capacitor at CT, together with the internal current sources. The switching time is: ∆T= ∆V × CCT I For the typical case where ∆V = 240mV, I = 60µA, and CCT is 5.0µF, ∆T = 20ms. If the circuit switches directly from receive to transmit (or vice-versa), the total switching time would be 40ms. The switching time from either receive or transmit to idle depends on which type of idle mode is in effect. If the circuit is going to “fast idle,” the time constant is determined by the CT capacitor, and the internal 2.0kΩ resistor. With CCT = 5.0µF, the time constant is ≈ 10ms, giving a switching time to idle of ≈ 30ms (for 95% change). Fast idle is an infrequent occurrence, however, occurring when both speakers are talking and competing for control of the circuit. The switching time from idle back to either transmit or receive is described above. If the circuit is switching to “slow idle,” the time constant is determined by the CT capacitor and RCT, the external resistor. With CCT = 5.0µF, and RCT = 120kΩ, the time constant is ≈ 600ms, giving a switching time of ≈ 1.8 seconds (for a 95% change). The switching period to slow idle begins when both speakers have stopped talking. The switching time back to the original mode will depend on how soon that speaker begins speaking again. The sooner the speaking starts during the 1.8 second period, the quicker the switching time since a smaller voltage excursion is required. That switching time is determined by the internal current sources as described above. The above switching times occur, however, after the level detectors have detected the appropriate signal levels, since their output operate the Attenuator Control Block. The rise time of the level detectors’ outputs to new speech is quick by comparison (≈ 1.0ms), determined by the internal 350Ω resistor and the external capacitor (typically 2.0µF). The output’s decay time is determined by the external capacitor, and an internal 4.0µA current source giving a decay rate of ≈ 60ms for a 120mV excursion at RLO or TLO. However, the overall response time of the circuit is not a constant since it depends on the relative strength of the signals at the different level detector, as well as the timing of the signals with respect to each other. The capacitors at the four outputs (RLO1, RLO2, TLO1, TLO2) must be equal value (±10%) to prevent problems in timing and level response. The rise time of the level detector’s outputs is not significant since it is so short. The decay time, however, provides a significant part of the “hold time” necessary to hold the circuit during the normal pauses in speech. The components at the inputs of the level detectors (RLI1, RLI2, TLI1, TLI2) do not affect the switching time, but rather affect the relative signal levels required to switch the circuit, as well as the frequency response of the detectors. Aug. 2020 – R1.0 17/26 HTC Voice Switched Speakerphone Circuit MC34118 TYPICAL APPLICATION CIRCUIT VCC 5.1 k 1.0 k 20 µF 270 pF VB (NOTE 1) 0.1 5.1 k 620 0.2 5.1 k 180 k RMF RMI MIKE MCI 0.02 0.1 MCO 11 TLI2 10 17 0.1 RHI 10 k TXI 9 TLI1 23 HTI 7 6 HOOK SWITCH 820 0.1 RHF TXO 8 0.05 300 k 5.1 k HTO− TIP VCC Tx ATTENUATOR VB MUTE VB HTO+ VCC 12 5 VB VB VB MUT R R VCC 4 AGC CD 3 VCC 24 18 100 k CPT ATTENUATOR CONTROL BNM 16 27 RLO1 25 19 2.0 µF CT VB VB RLI2 20 RXO 22 VLC 13 VB 0.05 200 pF 10 k 20 k RLI1 0.05 10 k FO FI 4700 pF 220 k 4700 pF 1 56 k 9.1 k 0.1 4 R 3 8 MC34119 7 0.1 26 2 VB VOLUME CONTROL 110 k 25Ω SPEAKER (300mV) +1 21 RXI 5.1 k R 28 FILTER Rx ATTENUATOR 220 µF GND VB VB 15 5 MC34118 DTD 14 120 k 1000 µF (NOTE 3) 47 µF 2.0 µF 5.0 µF 1N4733 5.1V VCC 100 k CPR BNM RLO2 47 µF DISABLE TLO1 TLO2 2.0 µF RING 0.01 6 1 VB 1. These two resistors depend on the specific microphone selected. 2. Component values shown are recommendations only, and will vary in different applications. 3. This capacitor must be physically adjacent to Pin 4 of the MC34118. 4. BNM: Background Noise Monitor; DTD: Dial Tone Detector 5. Capacitor values are in µF except where noted. < Basic Line Powered Speakerphone > Aug. 2020 – R1.0 18/26 HTC Voice Switched Speakerphone Circuit MC34118 DESIGN EQUATIONS Referring to the below figure (the coupling capacitors have been omitted for simplicity), and the circuit of the Typical Application Circuit, the following definitions will be used (all measurements are at 1.0kHz): - GMA is the gain of the microphone amplifier measured from the microphone output to TXI (typically 35 V/V, or 31 dB); - GTX is the gain of the transmit attenuator, measured from TXI to TXO; - GHA is the gain of hybrid amplifiers, measured from TXO to the HTO−/HTO+ differential output (typically 10.2 V/V, or 20.1dB); - GHT is the gain from HTO−/HTO+ to Tip/Ring for transmit signals, and includes the balance network (measured at 0.4V/V, or −8.0dB); - GST is the sidetone gain, measured from HTO−/HTO+ to the filter input (measured at 0.18V/V, or −15dB); - GHR is the gain from Tip/Ring to the filter input for receive signals (measured at 0.833 V/V or −1.6dB); - GFO is the gain of the filter stage, measured from the input of the filter to RXI, typically 0dB at 1.0kHz; - GRX is the gain of the receive attenuator measured from RXI to RXO; - GSA is the gain of the speaker amplifier, measured from RXO to the differential output of the MC34119 (typically 22 V/V or 26.8dB); - GAC is the acoustic coupling, measured from the speaker differential voltage to the microphone output voltage. VM MIKE AMP TXI I1 HYBRID AMP Tx ATTENUATOR V1 TXO R1 R2 TLI2 ACOUSTIC COUPLING V2 I2 TLI1 GHT C2 (GAC) GST CONTROL HYBRID C1 RLI2 I3 RLI1 R3 V3 R4 RXO RXI TIP RING GHR I4 V4 FILTER Rx ATTENUATOR < Basic Block Diagram for Design Purpose > I) Transmit Gain The transmit gain, from the microphone output (VM) to Tip and Ring, is determined by the output characteristics of the microphone, and the desired transmit level. For example, a typical electret microphone will produce ≈ 0.35mVrms under normal speech conditions. To achieve 100mVrms at Tip/Ring, an overall gain of 285 V/V is necessary. The gain of the transmit attenuator is fixed at 2.0 (6.0dB), and the gain through the hybrid of GHT is normally 0.4 (−8.0dB). Therefore a gain of 357 V/V is required of the microphone and hybrid amplifiers. It is desirable to have the majority of that gain in the microphone amplifier for three reasons: 1) the low level signals from the microphone should be amplified as soon as possible to minimize signal/noise problems; 2) to provide a reasonable signal level to the TLI2 level detector; and 3) to minimize any gain applied to broadband noise Aug. 2020 – R1.0 19/26 HTC Voice Switched Speakerphone Circuit MC34118 generated within the attenuator. However, to cover the normal voiceband, the microphone amplifier’s gain should not exceed 48dB. The gain for the microphone amplifier was set at 35 V/V (31 dB), and the differential gain of the hybrid amplifiers was set at 10.2V/V (20.1dB). II) Receive Gain The overall receive gain depends on the incoming signal level, and the desired output power at the speaker. Nominal receive levels (independent of the peaks) at Tip/Ring can be 35mVrms (−27dBm), although on long lines that level can be down to 8.0mVrms (−40dBm). The speaker power is: PSPK = 10dBm / 10 × 0.6 RS (Equation 1) Where RS is the speaker impedance, and the dBm term is the incoming signal level increased by the gain of the receive path. Experience has shown that ≈ 30dB gain is a satisfactory amount for the majority of applications. Using the above numbers and Equation 1, it would appear that the resulting power to the speaker is extremely low. However, Equation 1 does not consider the peaks in normal speech, which can be 10 to 15 times the rms value. Considering the peaks, the overall average power approaches 20mW to 30mW on long lines, and much more on short lines. The gain from Tip/Ring to the filter input was measured at 0.833 V/V (−1.6dB), the filter’s gain is unity, and the receive attenuator’s gain is 2.0 V/V (6.0dB) at maximum volume. The speaker amplifier’s gain is set at 22 V/V (26.8dB), which puts the overall gain at ≈ 31.2dB. III) Loop Gain The total loop gain must add up to less than zero dB to obtain a stable circuit. This can be expressed as: GMA + GTX + GHA + GST + GFO + GRX + GSA + GAC < 0 (Equation 2) Using the typical numbers mentioned above, and knowing that GTX + GRX = −40dB, the required acoustic coupling can be determined: GAC < − [31 + 20.1 + (−15) + 0 + (−40) +26.8] = −22.9dB (Equation 3) An acoustic loss of at least 23dB is necessary to prevent instability and oscillations, commonly referred to as “singing.” However, the following equations show that greater acoustic loss is necessary to obtain proper level detection and switching. IV) Switching Thresholds To switch comparator C1, currents I1 and I3 need to be determined. With a receive signal VL applied to Tip/Ring, a current I3 will flow through R3 into RLI2 according to the following equation: I3 = VL GSA �GHR × GFO × GRX × � R3 2 (Equation 4) where the terms in the brackets are the V/V gain terms. The speaker amplifier gain is divided by two since GSA is the differential gain of the amplifier, and V3 is obtained from one side of that output. The current I1, coming from the microphone circuit, is defined by: I1 = VM × GMA R1 (Equation 5) where VM is the microphone voltage. Since the switching threshold occurs when I1 = I3, combining the above two Aug. 2020 – R1.0 20/26 HTC Voice Switched Speakerphone Circuit MC34118 equations yields: VM = VL × R1 [GHR × GFO × GRX × GSA ] R3 GMA × 2 (Equation 6) This is the general equation defining the microphone voltage necessary to switch comparator C1 when a receive signal VL is present. The highest VM occurs when the receive attenuator is at maximum gain (6.0dB). Using the typical numbers for Equation 6 yields: VM = 0.52 VL (Equation 7) To switch comparator C2, currents I2 and I4 need to be determined. With sound applied to the microphone, a voltage VM is created by the microphone, resulting in a current I2 into TLI1: I2 = VM GHA �GMA × GTX × � R2 2 (Equation 8) Since GHA is differential gain of the hybrid amplifiers, it is divided by two to obtain the voltage V2 applied to R2. Comparator C2 switches when I4 = I2 ∙ I4 is defined by: I4 = VL [GHR × GFO ] R4 (Equation 9) Setting I4 = I2 , and combining the above equations results in: VL = VM × R4 [GMA × GTX × GHA ] R2 [GHR × GFO × 2] (Equation 10) This equation defines the line voltage at Tip/Ring necessary to switch comparator C2 in the presence of a microphone voltage. The highest VL occurs when the circuit is in the transmit mode (GTX = 6.0dB). Using the typical numbers for Equation 10 yields: VL = 840 VM (or VM = 0.0019 VL ) (Equation 11) At idle, where the gain of the two attenuators is −20dB (0.1 V/V), Equations 6 and 10 yield the same result: VM = 0.024 VL (Equation 12) Equations 7, 11, and 12 define the thresholds for switching, and are represented in the following graph: VM MRX MI MTX VL < Switching Thresholds > The “M” terms are the slopes of the lines (0.52, 0.024, and 0.0019) which are the coefficients of the three Aug. 2020 – R1.0 21/26 HTC Voice Switched Speakerphone Circuit MC34118 equations. The MRX line represents the receive to transmit threshold in that it defines the microphone signal level necessary to switch to transmit in the presence of a given receive signal level. The MTX line represents the transmit to receive threshold. The MI line represents the idle condition, and defines the threshold level on one side (transmit or receive) necessary to overcome noise on the other. Some comments on the above graph: - Acoustic coupling and sidetone coupling were not included in Equations 7 and 12. Those couplings will affect the actual performance of the final speakerphone due to their interaction with speech at the microphone, and the receive signal coming in at Tip/Ring. The effects of those couplings are difficult to predict due to their associated phase shifts and frequency response. In some cases the coupling signal will add, and other times subtract from the incoming signal. The physical design of the speakerphone enclosure, as well as the specific phone line to which it is connected, will affect the acoustic and sidetone couplings, respectively. - The MRX line helps define the maximum acoustic coupling allowed in a system, which can be found from the following equation: GAC-MAX = R1 2 × R3 × GMA (Equation 13) Equation 13 is independent of the volume control setting. Conversely, the acoustic coupling of a designed system helps determine the minimum slope of that line. Using the component values in Equation 13 yields a GAC-MAX of −37dB. Experience has shown, however, that an acoustic coupling loss of > 40dB is desirable. - The MTX line helps define the maximum sidetone coupling (GST) allowed in the system, which can be found from the following equation: GST = R4 2 × R2 × GFO (Equation 13) Using the component values in Equation 14 yields a maximum sidetone of 0 dB. Experience has show, however, that a minimum of 6.0dB loss is preferable. The above equations can be used to determine the resistor values for the level detector inputs. Equations 6 can be used to determine the R1/R3 ratio, and Equation 10 can be used to determine the R4/R2 ratio. R1 to R4 each represent the combined impedance of the resistor and coupling capacitor at each level detector input. The magnitude of each RC’s impedance should be kept within the range of 2.0kΩ to 15kΩ in the voiceband (due to the typical signal levels present) to obtain the best performance from the level detectors. The specific R and C at each location will determine the frequency response of that level detector. Aug. 2020 – R1.0 22/26 HTC Voice Switched Speakerphone Circuit MC34118 APPLICATION INFORMATION DIAL TONE DETECTOR The threshold for the dial tone detector is internally set at 15mv (10mVrms) below VB. That threshold can be reduced by connecting a resistor from RXI go ground. The resistor value is calculated from: R = 10k � VB -1� ∆V where VB is the voltage at Pin 15, and ∆V is the amount of threshold reduction. By connecting a resistor from VCC to RXI, the threshold can be increased. The resistor value is calculated from: R = 10k � where ∆V is the amount of the threshold increase. VCC - VB - 1� ∆V BACKGROUND NOISE MONITORS For testing circuit analysis purposes, the transmit or receive attenuators can be set to the “on” position, by disabling the background noise monitors, and applying a signal so as to activate the level detectors. Grounding the CPR pin will disable the receive background noise monitor, thereby indicating the “presence of speech” to the attenuator control block. Grounding CPT does the same for the transmit path. Additionally, the receive background noise monitor is automatically disabled by the dial tone detector whenever the receive signal exceeds the detector’s threshold. TRANSMIT/RECEIVE DETECTION PRIORITY Although the MC34118 was designed to have an idle mode such that the attenuators are halfway between their full on and full off positions, the idle mode can be biased towards the transmit or the receive side. With this done, gaining control of the circuit from idle will be easier for that side towards which it is biased since that path will have less attenuation at idle. By connecting a resistor from CT (Pin 14) to ground, the circuit will be biased towards the transmit side. The resistor value is calculated from: R = RT � VB -1� ∆V where R is the added resistor, RCT is the resistor normally between Pins 14 and 15 (typically 120kΩ), and ∆V is the difference between VB and the voltage at CT at idle. By connecting a resistor from CT (Pin 14) to VCC, the circuit will be biased towards the receive side. The resistor value is calculated from: R = RT � VCC - VB -1� ∆V R, RCT, and ∆V are the same as above. Switching time will be somewhat affected in each case due to the different voltage excursions required to get to transmit and receive from idle. For practical considerations, the ∆V shift should not exceed 100mV. Aug. 2020 – R1.0 23/26 HTC Voice Switched Speakerphone Circuit MC34118 VOLUME CONTROL If a potentiometer with a standard linear taper is used for the volume control, the receive gain will not vary in a linear manner with respect to the pot’s positions. In situations where this may be objectionable, a potentiometer with an audio taper (commonly used in radio volume controls) will provide a more linear relationship. The slight non-linearity at each end of the graph is due to the physical construction of the potentiometer, and will vary among different manufacturers. APPLICATION CIRCUIT The circuit of the Typical Application Circuit is a basic speakerphone, to be used in parallel with any other telephone which contains the ringer, dialer, and handset functions. The circuit is powered entirely by the telephone line’s loop current, and its characteristics. The below figure shows how the same circuit can be configured to be powered from a 3.5 volt to 6.0 volt power supply rather than the phone line. TO HTO− 300 HOOK SWITCH 0.05 820 TIP TO FILTER RING 0.01 TO HTO+ TO VCC FROM POWER SUPPLY 100 µF (*) TO CD DISABLE TO CD (MC34119) * This capacitor must be physically adjacent to Pin 4 of the MC34118. < Operating from a Power Supply > RFI INTERFERENCE Potential radio frequency interference problems should be addressed early in the electrical and mechanical design of the speakerphone. RFI may enter the circuit through Tip and ring, through the microphone wiring to the microphone amplifier, or through any of the PC board traces. The most sensitive pins on the MC34118 are the inputs to the level detectors (RLI1, RLI2, TLI1, TLI2) since, when there is no speech present, the inputs are high impedance and these op amps are in a near open loop condition. The board traces to these pins should be kept short, and the resistor and capacitor for each of these pins should be kept short, and the resistor and capacitor for each of these pins should be physically close to the pins. Any other high Impedance input pin (MCI, HTI, FI, VLC) should be considered sensitive to RFI signals. FINAL ANALYSIS Proper operation of a speakerphone is a combination of proper mechanical (acoustic) design as well as proper electronic design. The acoustics of the enclosure must be considered early in the design of a speakerphone. In general, electronics cannot compensate for poor acoustics, low speaker quality, or any combination of the two. Proper acoustic separation of the speaker and microphone, as described in the Design Equations, is essential. The physical locations of the microphone, along with the characteristics of the selected microphone, will play a large role in the quality of the transmitted sound. The microphone and speaker vendors can usually provide Aug. 2020 – R1.0 24/26 HTC Voice Switched Speakerphone Circuit MC34118 additional information on the use of their products. In the final analysis, the circuits shown in this datasheet will have to be “fine tuned” to match the acoustics of the enclosure, the specific hybrid, and the specific microphone and speaker selected. The component values shown in this datasheet should be considered as starting points only. The gains of the transmit and receive paths are easily adjusted at the microphone and speaker amplifiers, respectively. The switching response can then be fine tuned by varying (in small steps) the components at the level detector inputs until satisfactory operation is obtained for both long and short lines. Aug. 2020 – R1.0 25/26 HTC Voice Switched Speakerphone Circuit MC34118 REVISION NOTICE The description in this data sheet is subject to change without any notice to describe its electrical characteristics properly. Aug. 2020 – R1.0 26/26 HTC
