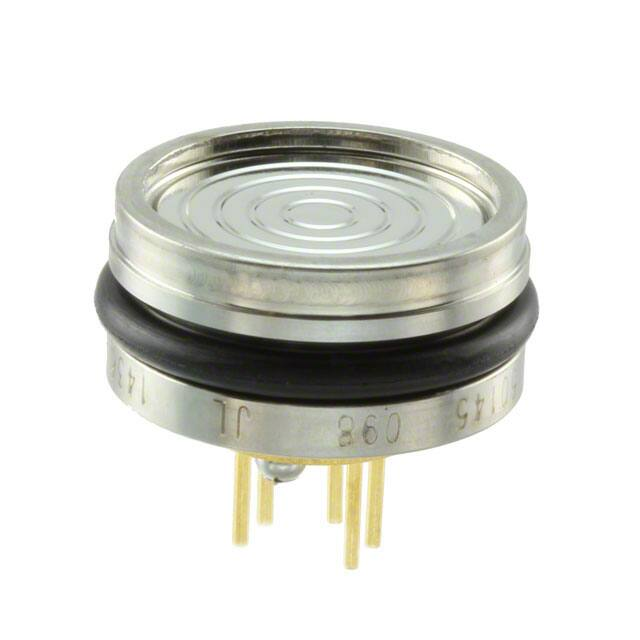

te.com 86 Uncompensated SPECIFICATIONS     FEATIRES     -40ºC to +125ºC Operating Temperature Range ±0.2% Pressure Non Linearity Solid State Reliability O-Ring Mount  316L SS Pressure Sensor Small Profile 0 - 100mV Output Absolute and Gage The 86 uncompensated is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 86 uncompensated is designed for O-ring mounting and OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the  316L stainless steel diaphragm to the sensing element.  Please refer to the 86 compensated and constant voltage datasheets for more information on different features of the 86.  APPLICATIONS       Medical Instruments Process Control Fresh & Waste Water Measurements Partial Vacuum Gas Measurement Pressure Transmitters Tank Level Systems (RV & Industrial) CLICK HERE › CONNECT WITH A SPECIALIST TE CONNECTIVITY SENSORS /// 86U REVA 10/2021 Page 1 86 Digital Output Pressure Sensor PERFORMANCE SPECIFICATIONS Unless otherwise specified, Supply Current: 1.5 mA; Ambient Temperature: 25°C PARAMETERS 005PSIG & ≥015PSI 005PSIA MIN TYP MAX Sensitivity 12 15 Zero Pressure Output -10 - Pressure Non Linearity -0.2 Pressure Hysteresis Repeatability MAX UNITS NOTES MIN TYP 18 12 - 27 10 -6.0 - 8.0 mV/V 1 - 0.2 -0.1 - 0.1 %Span 2,3 -0.10 - 0.10 -0.05 - 0.05 %Span 3 - ±0.02 - - ±0.02 - %Span mV/V@Span Bridge Resistance 4.0K 5.0K 6.0K 3.8K - 5.8K Ω 4 Thermal Hysteresis – Span -0.25 ±0.05 0.25 -0.25 ±0.05 0.25 %Span 5 Thermal Hysteresis – Offset -0.25 ±0.05 0.25 -0.25 ±0.05 0.25 %Span 5 Temp. Coefficient – Resistance - 2.4K - 1.30K 1.51K 1.75K PPM/°C 5 Temp. Coefficient – Span - -2.0K - -1.65K -1.25K -1.0K PPM/°C 5 Temp. Coefficient – Offset -80 - 80 -30 - 30 µV/V/°C 3,5 Long Term Stability – Span - ±0.10 - - ±0.10 - %Span/Year Long Term Stability – Offset - ±0.25 - - ±0.10 - %Span/Year Supply Current 0.5 1.5 2.0 0.5 1.5 2.0 mA Supply Voltage - 5 9.5 - 5 9.5 V Output Noise (10Hz to 1KHz) - 1.0 - - 1.0 - µV p-p Response Time (10% to 90%) - 0.1 - - 0.1 - ms Insulation Resistance (50VDC) 50M - - 50M Pressure Overload - - 3X - - Pressure Burst - - 4X - - -40 - 125 -40 -50 - 125 -50 Operating Temperature Storage Temperature Media – Pressure Port 3 Ω 6 3X Rated 7 4X Rated 8 - 125 ºC - 125 ºC Liquids and Gases compatible with 316/316L Stainless Steel Notes 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Measured at vacuum for absolute (A) and at ambient for gage (G). Best fit straight line. Values for 5PSIG devices are as follows: Non-linearity: ±0.2% max Temp coefficient (span): -80 min, 80 max Long term stability (offset): ±0.25 TYP Pressure Hysteresis:-0.10 min, +0.10 max. Bridge resistance is measured with both –E pins shorted together. TC values are first order coefficients to a quadratic fit over a temperature range of -20 to +85°C (0 to +50°C for 5psi). Between case and sending element. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer. The maximum pressure that can be applied without changing the transducer’s performance or accuracy Standard gage units are not recommended for vacuum applications. Testing: 10.1 Units are not tested over temperature or pressure. 10.2 A final test is performed @ 1.5mA and room temperature for part functionality. 10.3 All units are subjected to 100% drift test. Marking: Part marked with model number, pressure range, type (‘A’ for absolute, ‘G’ for gage), lot number, serial number and date code. Shipping and Packaging: The stainless steel diaphragm is protected by a static dissipative cap (No fitting options only). Each unit will be packaged individually in a plastic vial with anti-static foam. Product description: Model 85-XXXX-XU(T) is a uncompensated micro machined piezoresistive silicon pressure sensor Direct mechanical contact with diaphragm is prohibited. Diaphragm surface must remain free of defects (scratches, punctures, dents, fingerprints, etc.) for device to operate properly. Caution is advised when handling parts with exposed diaphragms. Use protective cap whenever devices are not in use. TE CONNECTIVITY SENSORS /// 86U REVA 10/2021 Page 2 86 Digital Output Pressure Sensor DIMENSIONS Dimensions are in inches mm Sensor Pinout TE CONNECTIVITY SENSORS /// 86U Pin No. Function 1 -OUT 2 -EX2 3 +OUT 4 +EX 5 -EX1 REVA 10/2021 Page 3 86 Digital Output Pressure Sensor RECOMMENDED MOUNTING DIMENSIONS CONNECTIONS TE CONNECTIVITY SENSORS /// 86U REVA 10/2021 Page 4 86 Digital Output Pressure Sensor ORDERING INFORMATION Part Number 86 – 030 G – U T Pressure Range [psi] Vent G A Tube No Tube T [Blank] 005 015 030 050 100 300 500 Electrical Open Bridge,Uncomp U Pressure Type Gage Absolute CLICK HERE › CONNECT WITH A SPECIALIST NORTH AMERICA Tel +1 800 522 6752 EUROPE Tel +31 73 624 6999 ASIA Tel +86 0400 820 6015 te.com/sensors TE Connectivity, TE, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application. © 2021 TE Connectivity Corporation. All Rights Reserved. Version A7 02/2021 TE CONNECTIVITY SENSORS /// 86U REVA 10/2021 Page 5
