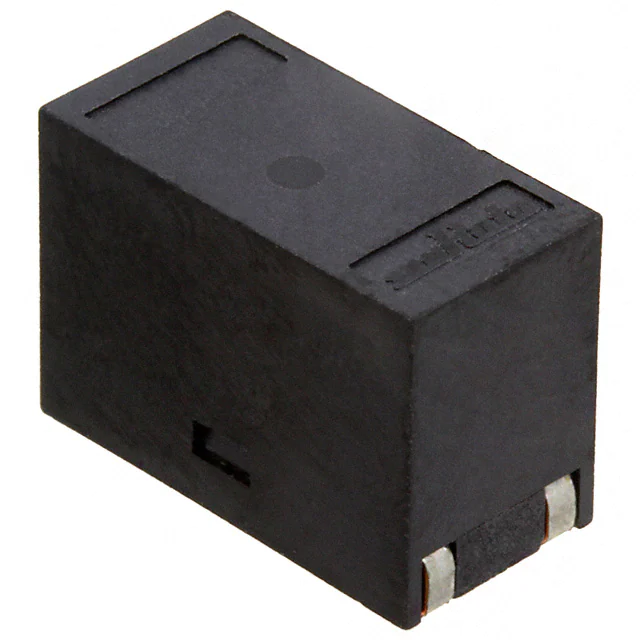

PLT10HH501100PNL

PLT10HH501100PNL

  • 厂商:

    MURATA-PS(村田)

  • 封装:

    FILTER_12.9X6.6MM_SM

  • 描述:

    CMC 500 OHM 10A 2 LN

  • 数据手册
  • 价格&库存
PLT10HH501100PNL 数据手册
Spec No. JEFL243B-9101H-01 Reference Only P1/10 SMD type common-mode choke coil PLT10HH□□□□□□PN□ Murata Standard Reference Specification [AEC-Q200] 1. Scope This reference specification applies to SMD type common-mode choke coil PLT10H Series for Automotive Electronics based on AEC-Q200. 2. Part Numbering (Ex.) PLT Product ID 10H H 102 Type Application Common Mode Impedance Zc H:Automotive 6R0 Rated Current P Winding Mode N Dimenssion L Packaging code L:Taping (Φ178mm reel) K:Taping (Φ330mm reel) B :Bulk 3. Rating Customer Part Number MURATA Part Number PLT10HH1026R0PNL PLT10HH1026R0PNK PLT10HH1026R0PNB PLT10HH9016R0PNL PLT10HH9016R0PNK PLT10HH9016R0PNB PLT10HH501100PNL PLT10HH501100PNK PLT10HH501100PNB PLT10HH401100PNL PLT10HH401100PNK PLT10HH401100PNB PLT10HH101150PNL PLT10HH101150PNK PLT10HH101150PNB PLT10HH450180PNL PLT10HH450180PNK PLT10HH450180PNB Common Mode Impedance Zc (at10MHz) (Ω) Typ. * DC Insulation Rated Withstand Inductance ESD Rank Resistance Resistance Rated 6:≧25kV Voltage Voltage (L) (Rdc) (I.R.) (AD) V(DC) V(DC) Current (μH min.) (mΩ) (MΩ min.) (A) 1000 100 250 6 8.0±0.5 10 20 900 100 250 6 8.0±0.5 10 14 500 100 250 10 3.6±0.5 10 9 6 400 100 250 10 3.6±0.5 10 6 100 300 750 15 1.8±0.5 10 2 45 300 750 18 1.3±0.5 10 0.8 ・Operating Temperature range (Product temperature; Self- temperature rise is included) :-55℃~+125℃ (PLT10HH9016R0 / PLT10HH401100/ PLT10HH101150/ PLT10HH450180) :-55℃~+105℃ (PLT10HH1026R0 / PLT10HH501100) ・Storage Temperature range:-55℃~+125℃ ■* Rated Current is derated as below figure depending on the operating temperature. MURATA MFG.CO.,LTD Reference Only Spec No. JEFL243B-9101H-01 P2/10 Standard Testing Conditions < Unless otherwise specified > Temperature: Ordinary Temp.15 ºC to 35 °C Humidity: Ordinary Humidity 25 %(RH) to 85 %(RH) < In case of doubt > Temperature: 20 °C ± 2 °C Humidity: 60 %(RH) to 70 %(RH) Atmospheric pressure: 86 kPa to 106 kPa 4. Dimenssion ① ② ■Equivalent Circuit 102 ④ ③ No p o l a rity ③ 12.9±0.2 6.6±0.2 2.0±0.3 9.4 max ② 9.1±0.2 ④ ① ■Unit Mass (Typical value) 2.1±0.3 13.4 max 2.1±0.3 2.1g 1.0±0.2 :Electrode 1.0±0.2 (in mm) 3.2±0.3 5. Marking (1)Manufacturer Identification:( ) (2)Parts Number:Common Mode Impedance Zc PLT10HH1026R0PN□:( 102 ) PLT10HH9016R0PN□:( 901 ) PLT10HH501100PN□:( 501 ) PLT10HH401100PN□:( 401 ) PLT10HH101150PN□:( 101 ) PLT10HH450180PN□:( 450 ) Common Mode Impedance Zc (3 digits) Manufacturer Identification MURATA MFG.CO.,LTD Spec No. JEFL243B-9101H-01 Reference Only P3/10 6. Electrical Performance No. 6.1 6.2 Item Specification Common Meet item 3 Mode Impedance (Zc) Typ. Withstand Products shall not be damaged. Voltage 6.3 Insulation Meet item 3 Resistance (I.R.) 6.4 DC Meet item 3 Resistance (Rdc) Inductance Meet item 3 (L) 6.5 Test method Measuring Frequency: 10MHz (ref.item 8) Measuring Equipment: KEYSIGHT 4294A or the equivalent Use a cable / connector of 50Ω impedance. Voltage: Rated Voltage×250% (ref.item 8) Time:1~5s Measuring current: 10mA max. Voltage: Rated Voltage (ref.item 8) Time: 30s max. Measuring current: 10mA max Measuring Equipment: KEYSIGHT 4339A or the equivalent Measuring method: four-terminal method (ref.item 8) Measuring Frequency:1±0.1kHz (ref.item 8) Voltage: 1V (rms) max. Measuring Equipment: KEYSIGHT 4284A or the equivalent 7.Q200 Requirement 7-1. Performance (based on Table 13 for Ferrite EMI SUPPRESSORS/FILTERS) AEC-Q200 Rev.D issued June 1. 2010 AEC-Q200 No. Stress 3 High Temperature Exposure 4 Temperature Cycling 5 Destructive Physical Analysis 7 Biased Humidity 8 Operational Life 9 External Visual 10 Physical Dimension 12 Resistance to Solvents 13 Mechanical Shock Murata Specification / Deviation Test Method Meet Table A after testing. 1000hours at Maximum Table A Operating Temperature Set for 24hours at room Appearance No damage temperature, then measured. Inductance change within ±15% (%ΔL) Insulation Resistance Meet item 3 (I.R.) Withstand Products shall not Voltage be damaged. Meet Table A after testing. 1000cycles -55 deg C to + Maximum Operating Temperature Set for 24hours at room temperature, then measured. Per EIA469 Not Applicable No electrical tests 1000hours at 85 deg C, 85%RH Apply max rated voltage. Meet Table A after testing. (ref.item 8.2) Meet Table A after testing. Apply Maximum Operating Apply rated voltage. Temperature 1000hours Set for 24hours at room temperature, then measured. Visual inspection No abnormalities Meet ITEM 4 (Style and Dimensions) Per MIL-STD-202 Method 215 Per MIL-STD-202 Method 213 Condition F: 1500g’s(14.7N)/0.5ms/ Half sine No defects Not Applicable Meet Table A after testing. MURATA MFG.CO.,LTD (ref.item 8.2) Reference Only Spec No. JEFL243B-9101H-01 AEC-Q200 No. Stress 14 Vibration P4/10 Murata Specification / Deviation Test Method Meet Table A after testing. 17 ESD 5g's(0.049N) for 20 minutes, 12cycles each of 3 oritentations Test from 10-2000Hz. 12cycles each of 3 orientations No-heating Solder temperature 260C+/-5 deg C Immersion time 10s Per AEC-Q200-002 18 Solderbility Per J-STD-002 19 Electrical Characterization 20 Flammability Measured : Inductance Method b : Not Applicable 95% of the terminations is to be soldered.(except partly-exposed wire) Flux:Ethanol solution of rosin,25(wt)% includes activator equivalent to 0.06 to 0.10(wt)% chlorine Refer to 3.Rating. Per UL-94 Not Applicable 21 Board Flex Epoxy-PCB(1.6mm) Deflection 2mm(min) 60 sec minimum holding time Per AEC-Q200-006 A force of 17.7N for 60sec Per ISO-7637-2 Meet Table A after testing. 15 Resistance to Soldering Heat 22 Terminal Strength 30 Electrical Transient Conduction Pre-heating:150 to 180C / 90±30s Meet Table A after testing. Meet Table A after testing. ESD Rank: Refer to Item 3. Rating. No defects Not Applicable 8. Measuring Terminal (When measuring and supplying the voltage, the following terminal is applied.) No. 8.1 8.2 8.3 Item Measuring terminal Inductance (L) DC Resistance (Rdc) I N Withstand voltage Insulation Resistance (I.R.) I N Biased Humidity Operational Life OUT OUT Common Mode Impedance(Zc) I N OUT 9. Measuring method for common mode impedance. Measured common mode impedance may be included measurement error due to stray capacitance, residual inductance of test fixture. To correct this error, the common mode impedance should be calculate as follows; (1) Measure admittance of the fixture(opened), Go Bo. (2) Measure impedance of the fixture(shorted), Rs Xs. (3) Measure admittance of the specimen, Gm Bm. (4) Calculate corrected impedance Z using the formula below. Z = (Rx2+Xx2) 1/2 Where Gm - Go Rx = - Rs (Gm-Go)2 + (Bm-Bo)2 Xx = - (Bm - Bo) - Xs (Gm-Go)2 + (Bm-Bo)2 MURATA MFG.CO.,LTD Spec No. JEFL243B-9101H-01 Reference Only P5/10 10. P.C.B., Flux, Solder and Soldering condition Test shall be done using P.C.B., Flux, Solder and Soldering condition which are specified in item 13 except the case of being specified special condition. 11. Specification of Packaging 11.1 Appearance and Dimensions (24mm-wide,Plastic tape) 4.0×10pitch = 40.0±0.2 φ1.5+0.1/-0 *Dimension of the Cavity is measured at the bottom side. Direction of feed (in mm) (@mm) < Product direction > 11.2 Specification of Taping (1) Packing quantity (Standard quantity) Φ178 mm reel: 125 pcs. / reel Φ330 mm reel: 500 pcs. / reel (2) Packing Method Products shall be packaged in each embossed cavity of plastic tape and sealed with cover tape. (3) Spliced point The cover tape has no spliced point. (4) Sprocket Hole The sprocket holes are to the right as the tape is pulled toward the user. (5) Missing components number Missing components number within 0.025% of the number per reel or 1 pc., whichever is greater, and are not continuous. The specified quantity per reel is kept. 11.3 Pull Strength of Cover Tape 10N minimum 11.4 Peeling off force of Cover Tape 0.2N to 0.7N (minimum value is typical.) Speed of Peeling off: 300 mm / min 165 to 180 degree F Cover tape Plastic tape MURATA MFG.CO.,LTD Reference Only Spec No. JEFL243B-9101H-01 P6/10 11.5 Dimensions of Leader-tape, Trailer and Reel There shall be leader-tape (cover tape only and empty tape) and trailer-tape (empty tape) as follows. 【Packaging code:L(Φ178mm reel)】 【Packaging code:K(Φ330mm reel)】 (In mm) 11.6 Marking for reel Customer part number, MURATA part number, Inspection number(*1), RoHS Marking(*2), Quantity, etc *1) < Expression of Inspection No. > □□ ○○○○ ◇◇◇ ① ② ③ ① Factory code ② Date First digit:year/Last digit of year Second digit:Month/Jan. to Sep.→1 to 9,Oct. to Dec.→O,N,D Third, Fourth digit:Day ③ Serial No. *2) < Expression of RoHS Marking > ROHS – Y (△) ① ② ① RoHS regulation conformity parts ② MURATA classification number 11.7 Marking for Outside package Customer name, Purchasing Order Number, Customer Part Number, MURATA part number, RoHS Marking (*2), Quantity, etc 11.8 Specification of Outer Case Label H D W Reel Standard Reel Quantity in Outer case (Reel) 3 2 on a quantity of an order. Outer case Dimensions (mm) W D H Φ178mm 186 186 93 Φ330mm 340 340 85 *Above Outer Case size is typical. It depends MURATA MFG.CO.,LTD Spec No. JEFL243B-9101H-01 Reference Only P7/10 12.△ ! Caution 12.1 Mounting Direction Mount products in right direction. Wrong direction which is 90°rotated from right direction causes not only open or short circuit but also flames or other serious trouble. Z right direction Z wrong direction 12.2 Fail Safe Be sure to provide an appropriate fail-safe function on your product to prevent from a second damage that may be caused by the abnormal function or the failure of our products. 12.3 Limitation of Applications Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party's life, body or property. (1) Aircraft equipment (2) Aerospace equipment (3)Undersea equipment (4)Power plant control equipment (5) Medical equipment (6) Transportation equipment (trains, ships, etc.) (7) Traffic signal equipment (8) Disaster prevention / crime prevention equipment (9) Data-processing equipment (10) Applications of similar complexity and /or reliability requirements to the applications listed in the above 12.4 Attention regarding product's heat generation Please pay special attention to the product’s heat generation such as beyond Operating Temperature range, mounting product in close proximity to other products that radiate heat and beyond the rated current. 12.5 Corrosive gas Please refrain from use since contact with environments with corrosive gases (sulfur gas [hydrogen sulfide, sulfur dioxide, etc.], chlorine, ammonia, etc.) or oils (cutting oil, silicone oil, etc.) that have come into contact with the previously stated corrosive gas environment will result in deterioration of product quality or an open from deterioration due to corrosion of product electrode, etc. We will not bear any responsibility for use under these environments. 13. Notice Products can only be soldered with reflow. This product is designed for solder mounting. Please consult us in advance for applying other mounting method such as conductive adhesive. 13.1 Flux and Solder Flux Use rosin-based flux.Do not use highly acidic flux (with chlorine content exceeding0.2(wt)%) Do not use water soluble flux. Solder Use Sn-3.0Ag-0.5Cu solder Other flux (except above) please contacts us for details, then use. 13.2 Notes for Assembling When installing by the flow soldering, the degradation of the insulation resistance sometimes occurs. Products can only be soldered with reflow. The use in flow soldering is reserved. < Thermal Shock > Pre-heating should be in such a way that the temperature difference between solder and products surface is limited to 150 °C max. Also cooling into solvent after soldering should be in such a way that the temperature difference is limited to 150 °C max. Insufficient pre-heating may cause cracks on the ferrite, resulting in the deterioration of product quality. 13.3 Attention Regarding P.C.B. Bending The following shall be considered when designing P.C.B.'s and laying out products. (1) P .C.B. shall be designed so that products are not subject to the mechanical stress for board warpage. 〔 Products Direction〕 a Products shall be located in the sideways direction (Length:a D *1 A > B A > C C B D Slit *1 A > D is valid when stress is added vertically to the perforation as with Hand Separation. If a Cutting Disc is used, stress will be diagonal to the PCB, therefore A > D is invalid. (3) Mounting Components Near Screw Holes When a component is mounted near a screw hole, it may be affected by the board deflection that occurs during the tightening of the screw. Mount the component in a position as far away from the screw holes as possible. Screw Hole Recommended 13.4 Attention Regarding P.C.B. Design < The Arrangement of Products > P.C.B. shall be designed so that products are far from the portion of perforation. Portion of Perforation × P.C.B. The portion of perforation shall be designed as narrow as possible, and shall be designed so as not to be applied the stress in the case of P.C.B. separation. Portion of Perforation Products shall not be arranged on the line of a series of holes when there are big holes in P.C.B. (Because the stress concentrates on the line of holes.) P.C.B. ○ ○ Product × ○ × Product < Products Placing > Support pins shall be set under P.C.B to prevent causing a warp to P.C.B. during placing the products on the other side of P.C.B. Hole < P.C.B. Separation > P.C.B. shall not be separated with hand. P.C.B. shall be separated with the fixture so as not to cause P.C.B. bending. Pick- up nozzle Product P.C.B. Support pin MURATA MFG.CO.,LTD Spec No. JEFL243B-9101H-01 Reference Only P9/10 13.5 Standard Land Dimensions (1) Design the land pads for this part as shown above on both side printed circuit boards (or a multiple layered substrate ). (2) To use PLT10HH with high current such as its rated current 6A~18A,the pattern is also should be applicable for such high current. The thickness of copper foil for PLT10HH should be designed as temperature rise is lower than 40 degree C (DC resistance of land and pattern should be low according to the current). 13.6 Reflow Soldering Standard soldering profile and the limit soldering profile is as follows. The excessive soldering conditions may cause leaching of the electrode and/or resulting in the deterioration of product quality. Temp (°C) 260°C /10s 250±3°C 220°C 230°C Limit Profile 180 150 Standard Profile 30~60s 60s max. 90s±30s Pre-heating Heating Peak temperature Cycle of reflow Time(s) Standard Profile Limit Profile 150°C ~ 180°C , 90s ± 30s above 220°C , 30s ~ 60s above 230°C , 60s max. 250°C ± 3°C 260°C , 10s 2 times 2 times (1)Solder paste printing for reflow soldering · Standard thickness of solder paste should be 150 to 200 μm. Incidentally, depending on the reflow condition and the way of heat conduction, the solder would not wet up the terminal, being possible to lead to not enough connection between terminals and lands on the circuit board / open circuit in the circuit board. In case of use, always evaluate this part in your products with actual use condition. · For the solder paste printing pattern, use standard land dimensions. · For the resist and copper foil pattern, use standard land dimensions. · Use Sn-3.0Ag-0.5Cu solder MURATA MFG.CO.,LTD Spec No. JEFL243B-9101H-01 Reference Only P10/10 (2) Reworking with Soldering iron · The following conditions shall be strictly followed when using a soldering iron. Pre-heating: 150°C, 1 min Soldering iron: 80W max. Tip temperature/ Soldering time: 400°C ± 5°C, within 5s Times : 2times max. Note: Do not touch the products directly with the tip of the soldering iron. 13.7 Cleaning Conditions Do not clean after soldering. 13.8 Handling of a substrate After mounting products on a substrate, do not apply any stress to the product caused by bending or twisting to the substrate when cropping the substrate, inserting and removing a connector from the substrate or tightening screw to the substrate. Excessive mechanical stress may cause cracking in the product. Bending Twisting 13.9 Operating Environment Do not use this product under the following environmental conditions, on deterioration of the Insulation Resistance and/or corrosion of Inner Electrode may result from the use. (1) In the corrodible atmosphere (acidic gas, alkaline gas, chlorine, sulfur gas, organic gas and etc.) (2) In the atmosphere where liquid such as organic solvent, may splash on the products. (3) In the atmosphere where the temperature / humidity changes rapidly and it is easy to dew. (4) In the atmosphere where the product is covered with dust or is subjected to salty breeze. 13.10 Storage Conditions (1)Storage period Use the products within 12 months after delivered. Solderability should be checked if this period is exceeded. (2)Storage conditions • Products should be stored in the warehouse on the following conditions. Temperature: -10°C to 40°C Humidity: 15% to 85% relative humidity No rapid change on temperature and humidity • Don't keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. • Products should be stored on the palette for the prevention of the influence from humidity, dust and so on. • Products should be stored in the warehouse without heat shock, vibration, direct sunlight and so on. • Avoid storing the product by itself bare (i.e.exposed directly to air). (3)Delivery Care should be taken when transporting or handling product to avoid excessive vibration or mechanical shock. 14. △ ! Note (1)Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. (2)You are requested not to use our product deviating from the reference specifications. (3)The contents of this reference specification are subject to change without advance notice. Please approve our product specifications or transact the approval sheet for product specifications before ordering. MURATA MFG.CO.,LTD
