Buck Converter Synchronous
3 MHz, 2 A
NCP6324, NCV6324
The NCP/NCV6324, a family of synchronous buck converters,
which is optimized to supply different sub systems of portable
applications powered by one cell Li−ion or three cell Alkaline/NiCd/
NiMH batteries. The devices are able to deliver up to 2 A on an
external adjustable voltage. Operation with 3 MHz switching
frequency allows employing small size inductor and capacitors. Input
supply voltage feedforward control is employed to deal with wide
input voltage range. Synchronous rectification and automatic
PWM/PFM power save mode offer improved system efficiency. The

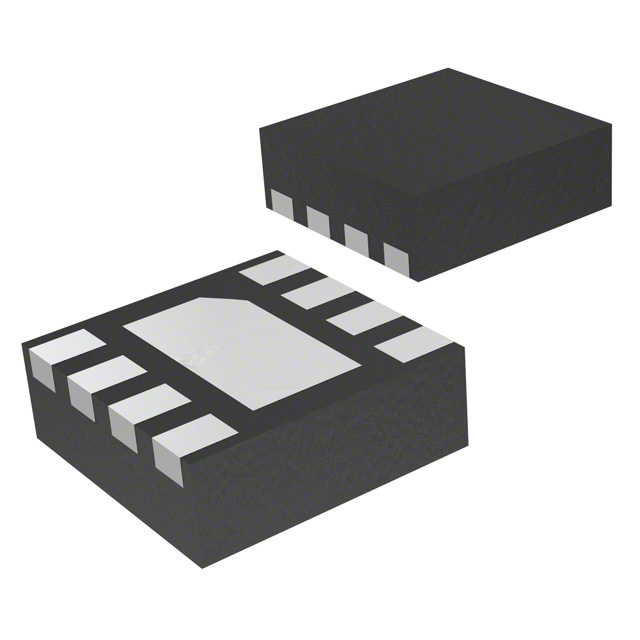

NCP/NCV6324 is in a space saving, low profile 2.0 x 2.0 x 0.75 mm
WDFN8 package or a WDFNW8 wettable flank package.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2.5 V to 5.5 V Input Voltage Range
External Adjustable Voltage
Up to 2 A Output Current
3 MHz Switching Frequency
Synchronous Rectification
Automatic Power Save (NCx6324B) or External Mode Selection
(NCx6324C)
Enable Input
Power Good Output Option (NCx6324B)
Soft Start
Over Current Protection
Active Discharge When Disabled
Thermal Shutdown Protection
WDFN−8, 2 x 2 mm, 0.5 mm Pitch Package and
WDFNW8, 2 x 2 mm, 0.5 mm Pitch Package with Wettable Flanks
Maximum 0.8mm Height for Super Thin Applications
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applications
•
•
•
•
July, 2020 − Rev. 8
MARKING
DIAGRAM
1
WDFN8
CASE 511BE
1
XX MG
G
1
WDFNW8
CASE 511CL
XX = Specific Device Code
M = Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
PINOUT
PGND
1
SW
2
8
PVIN
7
AVIN
9
AGND
3
6
MODE/PG
FB
4
5
EN
(Top View)
ORDERING INFORMATION
See detailed ordering, marking and shipping information on
page 2 of this data sheet.
• USB Powered Devices
• Point of Load
• Game and Entertainment System
Cellular Phones, Smart Phones, and PDAs
Portable Media Players
Digital Still Cameras
Wireless and DSL Modems
© Semiconductor Components Industries, LLC, 2015
www.onsemi.com
1
Publication Order Number:
NCP6324/D
NCP6324, NCV6324
ORDERING INFORMATION
Device
Marking
NCP6324BMTAATBG
4A
NCV6324BMTAATBG*
CE
NCP6324CMTAATBG
C4
NCV6324CMTAATBG*
HA
NCV6324BMTAAWTBG*
WC
NCV6324CMTAAWTBG*
LF
Shipping†
Package
WDFN8
(Pb−Free)
3000 / Tape & Reel
WDFNW8 with Wettable Flanks
(Pb−Free)
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP
Capable.
NCx6324B
1uH
Vo = 0.6V to Vin
PGND
Cout
10uF
R1
Cfb
SW
PVIN
AVIN
AGND
PG
FB
EN
Vin = 2.5V to 5.5V
Cin
10uF
Vo = 0.6V to Vin
Rpg
1M
Power Good
NCx6324C
1uH
PGND
Cout
10uF
Enable
Cfb
R1
SW
R2
AVIN
AGND MODE
FB
EN
R2
(a) Power Good Output Option
(NCx6324B)
(b) External Mode Selection
(NCx6324C)
Figure 1. Typical Application Circuits
www.onsemi.com
2
Vin = 2.5V to 5.5V
PVIN
Cin
10uF
Mode
Enable
NCP6324, NCV6324
PIN DESCRIPTION
Pin
Name
Type
1
PGND
Power
Ground
Power Ground for power, analog blocks. Must be connected to the system ground.
2
SW
Power
Output
Switch Power pin connects power transistors to one end of the inductor.
3
AGND
Analog
Ground
Analog Ground analog and digital blocks. Must be connected to the system ground.
4
FB
Analog
Input
Feedback Voltage from the buck converter output. This is the input to the error amplifier. This pin
is connected to the resistor divider network between the output and AGND.
5
EN
Digital
Input
Enable of the IC. High level at this pin enables the device. Low level at this pin disables the device.
6
PG/MODE
Digital
Output
PG pin is for NCx6324B with Power Good option. It is open drain output. Low level at this pin indicates the device is not in power good, while high impedance at this pin indicates the device is in
power good. When not used, PG pin of the NCx6324B can be left unconnected.
MODE pin is for NCx6324C with mode external selection option. High level at this pin forces the
device to operate in forced PWM mode. Low level at this pin enables the device to operate in
automatic PFM/PWM mode for power saving function.
7
AVIN
Analog
Input
Analog Supply. This pin is the analog and the digital supply of the device. An optional 1 mF or larger ceramic capacitor bypasses this input to the ground. This capacitor should be placed as close
as possible to this input.
8
PVIN
Power
Input
Power Supply Input. This pin is the power supply of the device. A 10 mF or larger ceramic capacitor must bypass this input to the ground. This capacitor should be placed as close a possible to
this input.
9
PAD
Exposed
Pad
Vin
Cin
Description
Exposed Pad. Must be soldered to system ground to achieve power dissipation performances.
This pin is internally unconnected
PVIN
8
L
SW
2
Vo
1uH
Cout
10uF
10uF
AVIN
7
PWM / PFM
Control
UVLO
PGND
1
R1
Enable
Power Good
EN
5
Rpg
1M
MODE/PG
6
MODE
PG
Logic Control
&
Current Limit
&
Thermal
Shutdown
Error
Amp
FB
4
R2
AGND
3
Reference
Voltage
Figure 2. Functional Block Diagram
www.onsemi.com
3
Cfb
NCP6324, NCV6324
MAXIMUM RATINGS
Value
Rating
Symbol
Min
Max
Unit
Analog Pins DC non switching:
AVIN, PG, FB, EN
VA−DC
−0.3
6.0
V
Power Pins DC non switching:
PVIN, SW
VP−DC
−0.3
6.0
V
Between PVIN, PGND pins, transient 3 ns − 3 MHz
VP−TR
−0.3
7.5
V
Human Body Model (HBM) ESD Rating are (Note 1)
ESD HBM
2000
V
Machine Model (MM) ESD Rating (Note 1)
ESD MM
200
V
ILU
−100
100
mA
Junction Temperature Range (Note 3)
TJMAX
−40
TSD
°C
Storage Temperature Range
TSTG
−55
150
°C
Thermal Resistance Junction−to−Top Case (Note 4)
RqJC
12
°C/W
Thermal Resistance Junction−to−Board (Note 4)
RqJB
30
°C/W
Thermal Resistance Junction−to−Ambient (Note 4)
RqJA
62
°C/W
PD
1.6
W
MSL
1
−
Latchup Current (Note 2)
Power Dissipation (Note 5)
Moisture Sensitivity Level (Note 6)
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. This device series contains ESD protection and passes the following tests:
Human Body Model (HBM) ±2.0 kV per JEDEC standard: JESD22−A114.
Machine Model (MM) ±200 V per JEDEC standard: JESD22−A115.
2. Latchup Current per JEDEC standard: JESD78 Class II.
3. The thermal shutdown set to 150°C (typical) avoids potential irreversible damage on the device due to power dissipation.
4. The thermal resistance values are dependent of the PCB heat dissipation. The board used to drive this data was an 80x50 mm NCP6324EVB
board. It is a multilayer board with 1 ounce internal power and ground planes and 2−1 ounce copper traces on top and bottom of the board.
If the copper traces of top and bottom are 1 ounce too, RqJC = 11°C/W, RqJB = 30°C/W, and RqJA = 72°C/W.
5. The maximum power dissipation (PD) is dependent on input voltage, maximum output current and external components selected.
6. Moisture Sensitivity Level (MSL): 1 per IPC/JEDEC standard: J−STD−020A.
RECOMMENDED OPERATING CONDITIONS
Rating
Symbol
Min
Typ
Max
Unit
Analog Input Supply
AVINR
2.5
−
5.5
V
Power Input Supply
PVINR
2.5
−
5.5
V
TJ
−40
−
+125
°C
Inductor for DC to DC Converter (Note 8)
LOUT
0.67
1.0
−
mH
Output Capacitor (Note 8, 9)
COUT
7.0
10
−
mF
Input Capacitor for Power Supply (Note 8)
CPVIN
7.0
10
−
mF
Operating Junction Temperature Range (Note 7)
Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond
the Recommended Operating Ranges limits may affect device reliability.
7. The thermal shutdown set to 170°C (typical) avoids potential irreversible damage due to power dissipation.
8. Including de−ratings (Refer to the Application Information section of this document for further details).
9. The output capacitor value contributes to the regulator loop stability. Special care should be taken for COUT selection. In case of doubt, please
contact your sales office.
www.onsemi.com
4
NCP6324, NCV6324
ELECTRICAL CHARACTERISTICS (VIN = 3.6 V, VOUT = 1.8 V, L = 1 mH, C = 10 mF, typical values are referenced to TJ = 25°C, Min
and Max values are referenced to TJ up to 125°C, unless other noted.)
Symbol
Characteristics
Test Conditions
Min
Typ
Max
Unit
(Note 13)
2.5
−
5.5
V
EN high, no load, no switching, PFM Mode
EN high, no load, Forced PWM Mode
−
−
30
5.7
−
−
mA
mA
EN low (Note 12 for NCP6324)
−
−
1
mA
(Note 10)
0.6
−
VIN
V
SUPPLY VOLTAGE
VIN
Input Voltage VIN Range
SUPPLY CURRENT
IQ
VIN Quiescent Supply Current
ISD
VIN Shutdown Current
OUTPUT VOLTAGE
VOUT
VFB
DMAX
Output Voltage Range
FB Voltage
PWM Mode
594
600
606
mV
FB Voltage in Load Regulation
VIN = 3.6 V, IOUT from 200 mA to IOUTMAX,
PWM mode (Note 10)
−
−0.5
−
%/A
FB Voltage in Line Regulation
IOUT = 200 mA, VIN from MAX (VNOM +
0.5 V, 2.5 V) to 5.5 V, PWM mode
(Note 10)
−
0
−
%/V
(Note 10)
−
100
−
%
(Note 10)
2.0
−
−
A
2.3
2.8
3.3
A
Maximum Duty Cycle
OUTPUT CURRENT
IOUTMAX
Output Current Capability
ILIMP
Output Peak Current Limit P−Channel
ILIMN
Output Peak Current Limit N−Channel
0.9
A
VOLTAGE MONITOR
VINUV−
VIN UVLO Falling Threshold
VINHYS
VIN UVLO Hysteresis
VPGL
Power Good Low Threshold
−
−
2.4
V
60
140
200
mV
VOUT falls down to cross the threshold
(percentage of FB voltage) (Note 11)
87
90
92
%
VOUT rises up to cross the threshold
(percentage of Power Good Low Threshold
(VPGL) voltage) (Note 11)
0
5
7
%
VPGHYS
Power Good Hysteresis
TdPGH1
Power Good High Delay in Start Up
From EN rising edge to PG going high.
(Note 11)
−
1.15
−
ms
TdPGL1
Power Good Low Delay in Shut Down
From EN falling edge to PG going low.
(Notes 10 and 11)
−
8
−
ms
TdPGH
Power Good High Delay in Regulation
From VFB going higher than 95% nominal
level to PG going high.
Not for the first time in start up. (Notes 10
and 11)
−
5
−
ms
TdPGL
Power Good Low Delay in Regulation
From VFB going lower than 90% nominal
level to PG going low. (Notes 10 and 11)
−
8
−
ms
VPG_L
Power Good Pin Low Voltage
Voltage at PG pin with 5 mA sink current
(Note 11)
−
−
0.3
V
PG_LK
Power Good Pin Leakage Current
3.6 V at PG pin when power good valid
(Note 11)
−
−
100
nA
INTEGRATED MOSFETs
RON_H
High−Side MOSFET ON Resistance
VIN = 3.6 V (Note 12 for NCP6324)
VIN = 5 V (Note 12 for NCP6324)
−
−
160
130
200
−
mW
RON_L
Low−Side MOSFET ON Resistance
VIN = 3.6 V (Note 12 for NCP6324)
VIN = 5 V (Note 12 for NCP6324)
−
−
110
100
140
−
mW
10. Guaranteed by design, not tested in production.
11. Power Good function is for NCx6324B devices only.
12. Maximum value applies for TJ = 85°C.
13. Operation above 5.5 V input voltage for extended periods may affect device reliability. At the first power−up, input voltage must be > 2.6 V.
www.onsemi.com
5
NCP6324, NCV6324
ELECTRICAL CHARACTERISTICS (VIN = 3.6 V, VOUT = 1.8 V, L = 1 mH, C = 10 mF, typical values are referenced to TJ = 25°C, Min
and Max values are referenced to TJ up to 125°C, unless other noted.)
Symbol
Characteristics
Test Conditions
Min
Typ
Max
Unit
2.7
3.0
3.3
MHz
Time from EN to 90% of output voltage
target
0
0.18
1
ms
Time from 10% to 90% of output voltage
target
−
0.1
−
ms
SWITCHING FREQUENCY
FSW
Normal Operation Frequency
SOFT START
TSTART
TSS
Start Time
Soft−Start Time
CONTROL LOGIC
VEN_H
EN Input High Voltage
1.1
−
−
V
VEN_L
EN Input Low Voltage
−
−
0.4
V
VEN_HYS
EN Input Hysteresis
−
270
−
mV
IEN_BIAS
EN Input Bias Current
0.1
1
mA
VMODE_H
MODE Input High Voltage
(Note 14)
1.1
−
−
V
VMODE_L
MODE Input Low Voltage
(Note 14)
−
−
0.4
V
VMODE_HYS MODE Input Hysteresis
(Note 14)
−
270
−
mV
IMODE_BIAS MODE Input Bias Current
(Note 14)
0.1
1
mA
75
500
700
W
OUTPUT ACTIVE DISCHARGE
R_DIS
Internal Output Discharge Resistance
from SW to PGND
THERMAL SHUTDOWN
TSD
Thermal Shutdown Threshold
−
150
−
°C
TSD_HYS
Thermal Shutdown Hysteresis
−
25
−
°C
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
14. Mode function is for NCx6324C devices only.
www.onsemi.com
6
NCP6324, NCV6324
TYPICAL OPERATING CHARACTERESTICS
2
2
1.5
ISD (mA)
ISD (mA)
1.5
VIN = 5.5 V
VIN = 3.6 V
VIN = 2.5 V
1
0.5
1
0.5
0
2.5
3
3.5
4
VIN (V)
4.5
5
0
−40
5.5
Figure 3. Shutdown Current vs. Input Voltage
(EN = Low, TA = 255C)
−15
10
35
Temperature (°C)
60
85
Figure 4. Shtudown Current vs. Temperature
(EN = Low, VIN = 3.6 V)
35
35
VIN = 5.5 V
VIN = 3.6 V
VIN = 2.5 V
IQ (mA)
30
IQ (mA)
30
25
20
25
2.5
3
3.5
4
VIN (V)
4.5
5
20
−40
5.5
85
90
80
85
EFFICIENCY (%)
EFFICIENCY (%)
95
75
70
65
50
VIN = 5.5 V
VIN = 3.6 V
VIN = 2.5 V
0
400
60
85
80
75
70
65
VIN = 5.5 V
VIN = 3.6 V
VIN = 2.5 V
60
55
800
1200
IOUT (mA)
35
Figure 6. Quiescent Current vs. Temperature
(EN = High, Open Loop, VOUT = 1.8 V,
VIN = 3.6 V)
90
55
10
VIN (V)
Figure 5. Quiescent Current vs. Input Voltage
(EN = High, Open Loop, VOUT = 1.8 V,
TA = 255C)
60
−15
1600
2000
50
0
Figure 7. Efficiency vs. Output Current and
Input Voltage (VOUT = 1.05 V, TA = 255C)
400
800
1200
IOUT (mA)
1600
2000
Figure 8. Efficiency vs. Output Current and
Input Voltage (VOUT = 1.8 V, TA = 255C)
www.onsemi.com
7
NCP6324, NCV6324
100
100
95
95
90
90
85
85
EFFICIENCY (%)
EFFICIENCY (%)
TYPICAL OPERATING CHARACTERESTICS
80
75
70
65
60
80
75
70
65
60
VIN = 4.5 V
VIN = 5.5 V
55
50
0
400
800
1200
1600
VIN = 3.6 V
VIN = 5.5 V
55
50
2000
0
IOUT (mA)
400
800
1200
1600
2000
IOUT (mA)
Figure 9. Efficiency vs. Output Current and
Input Voltage (VOUT = 3.3 V, TA = 255C)
Figure 10. Efficiency vs. Output Current and
Input Voltage (VOUT = 4 V , TA = 255C)
Figure 12. Output Ripple Voltage in PFM Mode
(VIN = 3.6 V, VOUT = 1.8 V, IOUT = 10 mA, L=1 mH,
COUT = 10 mF)
Figure 11. Output Ripple Voltage in PWM Mode
(VIN = 3.6 V, VOUT = 1.8 V, IOUT = 1 A, L=1 mH,
COUT = 10 mF)
www.onsemi.com
8
NCP6324, NCV6324
TYPICAL OPERATING CHARACTERESTICS
Figure 13. Load Transient Response (VIN = 3.6 V,
VOUT = 1.8 V, IOUT = 500 mA to 1500 mA, L = 1 mH,
COUT = 10 mF)
Figure 14. Power Up Sequence and Inrush Current in
Input (VIN = 3.6 V, VOUT = 1.8 V, IOUT = 0 A,
L = 1 mH, COUT = 10 mF)
Figure 15. Power Up Sequence and Power Good
(VIN = 3.6 V, VOUT = 1.8 V, IOUT = 0 A, L = 1 mH,
COUT = 10 mF)
Figure 16. Power Down Sequence and Active Output
Discharge (VIN = 3.6 V, VOUT = 1.8 V, IOUT = 0 A,
L = 1 mH, COUT = 10 mF)
www.onsemi.com
9
NCP6324, NCV6324
DETAILED DESCRIPTION
General
PFM Mode Operation
The NCP/NCV6324, a family of voltage−mode
synchronous buck converters, which is optimized to supply
different sub−systems of portable applications powered by
one cell Li−ion or three cell Alkaline/NiCd/NiMH batteries.
The devices are able to deliver up to 2 A on an external
adjustable voltage. Operation with 3 MHz switching
frequency allows employing small size inductor and
capacitors. Input supply voltage feedforward control is
employed to deal with wide input voltage range.
Synchronous rectification and automatic PWM/PFM power
save mode offer improved system efficiency.
In light load range, the inductor current becomes
discontinuous and the device automatically operates in PFM
mode with an adaptive fixed on time and variable switching
frequency. In this mode, the output voltage is regulated by
pulse frequency modulation of the internal P−MOSFET, and
the switching frequency is almost proportional to the
loading current. The internal N−MOSFET operates as
synchronous rectifier after each on pulse of the P−MOSFET
with a very small negative current limit. When the load
increases and the inductor current becomes continuous, the
controller automatically turns back to the fixed−frequency
PWM mode operation.
Operation Mode Selection (NCx6324C)
For NCx6324C with an external mode selection option,
high level (above 1.1 V) at MODE pin forces the device to
operate in forced PWM mode. Low level (below 0.4 V) at
this pin enables the device to operate in automatic
PFM/PWM mode for power saving function.
Undervoltage Lockout
PWM Mode Operation
Enable
In medium and heavy load range, the inductor current is
continuous and the device operates in PWM mode with fixed
switching frequency, which has a typical value of 3 MHz. In
this mode, the output voltage is regulated by on−time pulse
width modulation of an internal P−MOSFET. An internal
N−MOSFET operates as synchronous rectifier and its
turn−on signal is complimentary to that of the P−MOSFET.
The NCP/NCV6324 has an enable logic input pin EN. A
high level (above 1.1 V) on this pin enables the device to
active mode. A low level (below 0.4 V) on this pin disables
the device and makes the device in shutdown mode. There
is an internal filter with 5 ms time constant. The EN pin is
pulled down by an internal 10 nA sink current source. In
most of applications, the EN signal can be programmed
independently to VIN power sequence.
The input voltage VIN must reach or exceed 2.4 V
(typical) before the NCP/NCV6324 enables the converter
output to begin the start up sequence. The UVLO threshold
hysteresis is typically 100 mV.
Figure 17. Power Good and Active Discharge Timing Diagram
Power Good Output (NCx6324B)
power good signal is available. The power good signal is low
when EN is high but the output voltage has not been
established. Once the output voltage of the converter drops
out below 90% of its regulation during operation, the power
good signal is pulled low and indicates a power failure. A 5%
For NCx6324B with a power good output, the device
monitors the output voltage and provides a power good
output signal at the PG pin. This pin is an open−drain output
pin. To indicate the output of the converter is established, a
www.onsemi.com
10
NCP6324, NCV6324
turned off cycle−by−cycle. The maximum output current
can be calculated by
hysteresis is required on power good comparator before
signal going high again. When not used, it is allowed to leave
this pin unconnected.
I MAX + I LMT *
Soft−Start
V OUT @ ǒV IN * V OUTǓ
2 @ V IN @ f SW @ L
(eq. 1)
A soft start limits inrush current when the converter is
enabled. After a minimum 80 ms delay time following the
enable signal, the output voltage starts to ramp up. Ramping
from 10% to 90% of the target voltage takes 100 ms, typical.
where VIN is input supply voltage, VOUT is output voltage,
L is inductance of the filter inductor, and fSW is 3 MHz
normal switching frequency.
Active Output Discharge
Negative Current Protection
An output discharge operation is active in when EN is low.
A discharge resistor (500 W typical) is enabled in this
condition to discharge the output capacitor through SW pin.
The NCP/NCV6324 includes a 1 A negative current
protection. It helps to protect the internal NMOS in case of
applications which require high output capacitor value.
Cycle−by−Cycle Current Limitation
Thermal Shutdown
The NCP/NCV6324 has a thermal shutdown protection to
protect the device from overheating when the die
temperature exceeds 150°C. After the thermal protection is
triggered, the fault state can be ended by re−applying VIN
and/or EN when the temperature drops down below 125°C.
The NCP/NCV6324 protects the device from over current
with a fixed−value cycle−by−cycle current limitation. The
typical peak current limit ILMT is 2.8 A. If inductor current
exceeds the current limit threshold, the P−MOSFET will be
www.onsemi.com
11
NCP6324, NCV6324
APPLICATION INFORMATION
Output Filter Design Considerations
to 50% of the maximum output current IOUT_MAX for a
trade−off between transient response and output ripple. The
inductance corresponding to the given current ripple is
The output filter introduces a double pole in the system at
a frequency of
f LC +
1
2 @ p @ ǸL @ C
(eq. 2)
L+
The internal compensation network design of the
NCP/NCV6324 is optimized for the typical output filter
comprised of a 1.0 mH inductor and a 10 mF ceramic output
capacitor, which has a double pole frequency at about
50 kHz. Other possible output filter combinations may have
a double pole around 50 kHz to have optimum operation
with the typical feedback network. Normal selection range
of the inductor is from 0.47 mH to 4.7 mH, and normal
selection range of the output capacitor is from 4.7 mF to
22 mF.
ǒVIN * VOUTǓ @ VOUT
(eq. 3)
V IN @ f SW @ I L_PP
The selected inductor must have high enough saturation
current rating to be higher than the maximum peak current
that is
I L_MAX + I OUT_MAX )
I L_PP
(eq. 4)
2
The inductor also needs to have high enough current
rating based on temperature rise concern. Low DCR is good
for efficiency improvement and temperature rise reduction.
Table 1 shows some recommended inductors for high power
applications and Table 2 shows some recommended
inductors for low power applications.
Inductor Selection
The inductance of the inductor is determined by given
peak−to−peak ripple current IL_PP of approximately 20%
Table 1. LIST OF RECOMMENDED INDUCTORS FOR HIGH POWER APPLICATIONS
Manufacturer
Part Number
Case Size
(mm)
L (mH)
Rated Current (mA)
(Inductance Drop)
Structure
MURATA
LQH44PN2R2MP0
4.0 x 4.0 x 1.8
2.2
2500 (−30%)
Wire Wound
MURATA
LQH44PN1R0NP0
4.0 x 4.0 x 1.8
1.0
2950 (−30%)
Wire Wound
MURATA
LQH32PNR47NNP0
3.0 x 2.5 x 1.7
0.47
3400 (−30%)
Wire Wound
Table 2. LIST OF RECOMMENDED INDUCTORS FOR LOW POWER APPLICATIONS
Manufacturer
Part Number
Case Size
(mm)
L (mH)
Rated Current (mA)
(Inductance Drop)
Structure
MURATA
LQH44PN2R2MJ0
4.0 x 4.0 x 1.1
2.2
1320 (−30%)
Wire Wound
MURATA
LQH44PN1R0NJ0
4.0 x 4.0 x 1.1
1.0
2000 (−30%)
Wire Wound
TDK
VLS201612ET−2R2
2.0 x 1.6 x 1.2
2.2
1150 (−30%)
Wire Wound
TDK
VLS201612ET−1R0
2.0 x 1.6 x 1.2
1.0
1650 (−30%)
Wire Wound
Output Capacitor Selection
operation mode, the three ripple components can be
obtained by
The output capacitor selection is determined by output
voltage ripple and load transient response requirement. For
a given peak−to−peak ripple current IL_PP in the inductor
of the output filter, the output voltage ripple across the
output capacitor is the sum of three ripple components as
below.
V OUT_PP(C) +
I L_PP
8 @ C @ f SW
V OUT_PP(ESR) + I L_PP @ ESR
V OUT_PP [ V OUT_PP(C) ) V OUT_PP(ESR) ) V OUT_PP(ESL)
V OUT_PP(ESL) +
(eq. 5)
ESL
ESL ) L
@ V IN
(eq. 6)
(eq. 7)
(eq. 8)
and the peak−to−peak ripple current is
where VOUT_PP(C) is a ripple component by an equivalent
total capacitance of the output capacitors, VOUT_PP(ESR)
is a ripple component by an equivalent ESR of the output
capacitors, and VOUT_PP(ESL) is a ripple component by
an equivalent ESL of the output capacitors. In PWM
I L_PP +
www.onsemi.com
12
ǒV IN * VOUTǓ @ VOUT
V IN @ f SW @ L
(eq. 9)
NCP6324, NCV6324
In applications with all ceramic output capacitors, the
main ripple component of the output ripple is
VOUT_PP(C). So that the minimum output capacitance can
be calculated regarding to a given output ripple requirement
VOUT_PP in PWM operation mode.
C MIN +
I L_PP
8 @ V OUT_PP @ f SW
C IN_MIN +
I OUT_MAX @ ǒD * D 2Ǔ
V IN_PP @ f SW
(eq. 11)
where
D+
(eq. 10)
V OUT
(eq. 12)
V IN
In addition, the input capacitor needs to be able to absorb
the input current, which has a RMS value of
Input Capacitor Selection
I IN_RMS + I OUT_MAX @ ǸD * D 2
One of the input capacitor selection guides is the input
voltage ripple requirement. To minimize the input voltage
ripple and get better decoupling in the input power supply
rail, ceramic capacitor is recommended due to low ESR and
ESL. The minimum input capacitance regarding to the input
ripple voltage VIN_PP is
(eq. 13)
The input capacitor also needs to be sufficient to protect
the device from over voltage spike, and normally at least a
4.7 mF capacitor is required. The input capacitor should be
located as close as possible to the IC on PCB.
Table 3. LIST OF RECOMMENDED INPUT CAPACITORS AND OUTPUT CAPACITORS
Manufacturer
Part Number
Case
Size
C (mF)
Rated
Voltage
(V)
MURATA
GRM21BR60J226ME39, X5R
0805
1.4
22
6.3
MLCC
TDK
C2012X5R0J226M, X5R
0805
1.25
22
6.3
MLCC
MURATA
GRM21BR61A106KE19, X5R
0805
1.35
10
10
MLCC
TDK
C2012X5R1A106M, X5R
0805
1.25
10
10
MLCC
MURATA
GRM188R60J106ME47, X5R
0603
0.9
10
6.3
MLCC
TDK
C1608X5R0J106M, X5R
0603
0.8
10
6.3
MLCC
MURATA
GRM188R60J475KE19, X5R
0603
0.87
4.7
6.3
MLCC
Design of Feedback Network
ǒ
Ǔ
R1
R2
Structure
220 kW for applications with the typical output filter. R2 is
the resistance from FB to AGND, which is used to program
the output voltage according to equation (14) once the value
of R1 has been selected. A capacitor Cfb needs to be
employed between the VOUT and FB in order to provide
feedforward function to achieve optimum transient
response. Normal value range of Cfb is from 0 to 100 pF, and
a typical value is 15 pF for applications with the typical
output filter and R1 = 220 kW.
Table 4 provides reference values of R1 and Cfb in case
of different output filter combinations. The final design may
need to be fine tuned regarding to application specifications.
For NCP/NCV6324 devices with an external adjustable
output voltage, the output voltage is programmed by an
external resistor divider connected from VOUT to FB and
then to AGND, as shown in the typical application
schematic Figure 1(a). The programmed output voltage is
V OUT + V FB @ 1 )
Height
Max (mm)
(eq. 14)
where VFB is equal to the internal reference voltage 0.6 V,
R1 is the resistance from VOUT to FB, which has a normal
value range from 50 kW to 1 MW and a typical value of
Table 4. Reference Values of Feedback Networks (R1 and Cfb) for Output Filter Combinations (L and C)
R1 (kW)
L (mH)
Cfb (pF)
4.7
C (mF)
10
22
0.47
0.68
1
2.2
3.3
4.7
220
220
220
220
330
330
3
5
8
15
15
22
220
220
220
220
330
330
8
10
15
27
27
39
220
220
220
220
330
330
15
22
27
39
47
56
www.onsemi.com
13
NCP6324, NCV6324
LAYOUT CONSIDERATIONS
• Arrange a “quiet” path for output voltage sense and
Electrical Layout Considerations
Good electrical layout is a key to make sure proper
operation, high efficiency, and noise reduction. Electrical
layout guidelines are:
• Use wide and short traces for power paths (such as
PVIN, VOUT, SW, and PGND) to reduce parasitic
inductance and high−frequency loop area. It is also
good for efficiency improvement.
• The device should be well decoupled by input capacitor
and input loop area should be as small as possible to
reduce parasitic inductance, input voltage spike, and
noise emission.
• SW node should be a large copper pour, but compact
because it is also a noise source.
• It would be good to have separated ground planes for
PGND and AGND and connect the two planes at one
point. Directly connect AGND pin to the exposed pad
and then connect to AGND ground plane through vias.
Try best to avoid overlap of input ground loop and
output ground loop to prevent noise impact on output
regulation.
feedback network, and make it surrounded by a ground
plane.
Thermal Layout Considerations
Good thermal layout helps high power dissipation from a
small package with reduced temperature rise. Thermal
layout guidelines are:
• The exposed pad must be well soldered on the board.
• A four or more layers PCB board with solid ground
planes is preferred for better heat dissipation.
• More free vias are welcome to be around IC and/or
underneath the exposed pad to connect the inner ground
layers to reduce thermal impedance.
• Use large area copper especially in top layer to help
thermal conduction and radiation.
• Do not put the inductor to be too close to the IC, thus
the heat sources are distributed.
GND
VIN
P
P
P
P
Cin
P
L
ÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏ
ÏÏÏÏÏÏÏÏÏÏ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÏÏÏ
ÏÏÏ
ÏÏÏ
PGND
1
SW
2
AGND
F
FB
A
A
3
4
A
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÏÏÏ
ÎÎÎ
ÎÎÎ
8
PVIN
7
AVIN
6
MODE/PG
5
EN
P
Cout
ÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎ
P
P
P
O
P
P
P
P
P
P
Cfb
F
R1
R2
VOUT
GND
Figure 18. Recommended PCB Layout for Application Boards
www.onsemi.com
14
O
A
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
WDFN8 2x2, 0.5P
CASE 511BE−01
ISSUE A
1
DATE 27 MAY 2011
SCALE 2:1
A
D
PIN ONE
REFERENCE
2X
0.10 C
2X
E
DETAIL A
ALTERNATE
CONSTRUCTIONS
TOP VIEW
ÇÇÇ
ÉÉÉ
ÉÉÉ
EXPOSED Cu
DETAIL B
A
0.10 C
A3
MOLD CMPD
0.08 C
ALTERNATE
CONSTRUCTIONS
A1
SIDE VIEW
C
D2
DETAIL A
1
8X
4
SEATING
PLANE
K
5
e
L
1
8X
MILLIMETERS
MIN
MAX
0.70
0.80
0.00
0.05
0.20 REF
0.20
0.30
2.00 BSC
1.50
1.70
2.00 BSC
0.80
1.00
0.50 BSC
0.25 REF
0.20
0.40
−−−
0.15
XX MG
G
XX = Specific Device Code
M = Date Code
G
= Pb−Free Package
b
0.10 C A B
BOTTOM VIEW
0.05 C
(Note: Microdot may be in either location)
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
NOTE 3
RECOMMENDED
SOLDERING FOOTPRINT*
8X
1.70
PACKAGE
OUTLINE
A3
DIM
A
A1
A3
b
D
D2
E
E2
e
K
L
L1
GENERIC
MARKING DIAGRAM*
E2
8
ÇÇ
ÉÉ
A1
DETAIL B
NOTE 4
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED
TERMINAL AND IS MEASURED BETWEEN
0.15 AND 0.30 MM FROM TERMINAL TIP.
4. COPLANARITY APPLIES TO THE EXPOSED
PAD AS WELL AS THE TERMINALS.
L1
ÇÇ
ÇÇ
ÇÇ
0.10 C
L
L
B
0.50
2.30
1.00
1
0.50
PITCH
8X
0.30
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
DOCUMENT NUMBER:
DESCRIPTION:
98AON48936E
WDFN8, 2X2, 0.5P
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2019
www.onsemi.com
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
WDFNW8 2x2, 0.5P
CASE 511CL
ISSUE B
1
SCALE 2:1
DATE 03 DEC 2019
GENERIC
MARKING DIAGRAM*
1
XX MG
G
XX = Specific Device Code
M = Date Code
G
= Pb−Free Package
(Note: Microdot may be in either location)
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”, may
or may not be present. Some products may
not follow the Generic Marking.
DOCUMENT NUMBER:
DESCRIPTION:
98AON12825G
WDFNW8 2x2, 0.5P
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
rights of others.
© Semiconductor Components Industries, LLC, 2018
www.onsemi.com
onsemi,
, and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates
and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any
products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the
information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use
of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products
and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information
provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may
vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license
under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems
or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should
Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Email Requests to: orderlit@onsemi.com
onsemi Website: www.onsemi.com
◊
TECHNICAL SUPPORT
North American Technical Support:
Voice Mail: 1 800−282−9855 Toll Free USA/Canada
Phone: 011 421 33 790 2910
Europe, Middle East and Africa Technical Support:
Phone: 00421 33 790 2910
For additional information, please contact your local Sales Representative
工商网监
湘ICP备2023018690号
