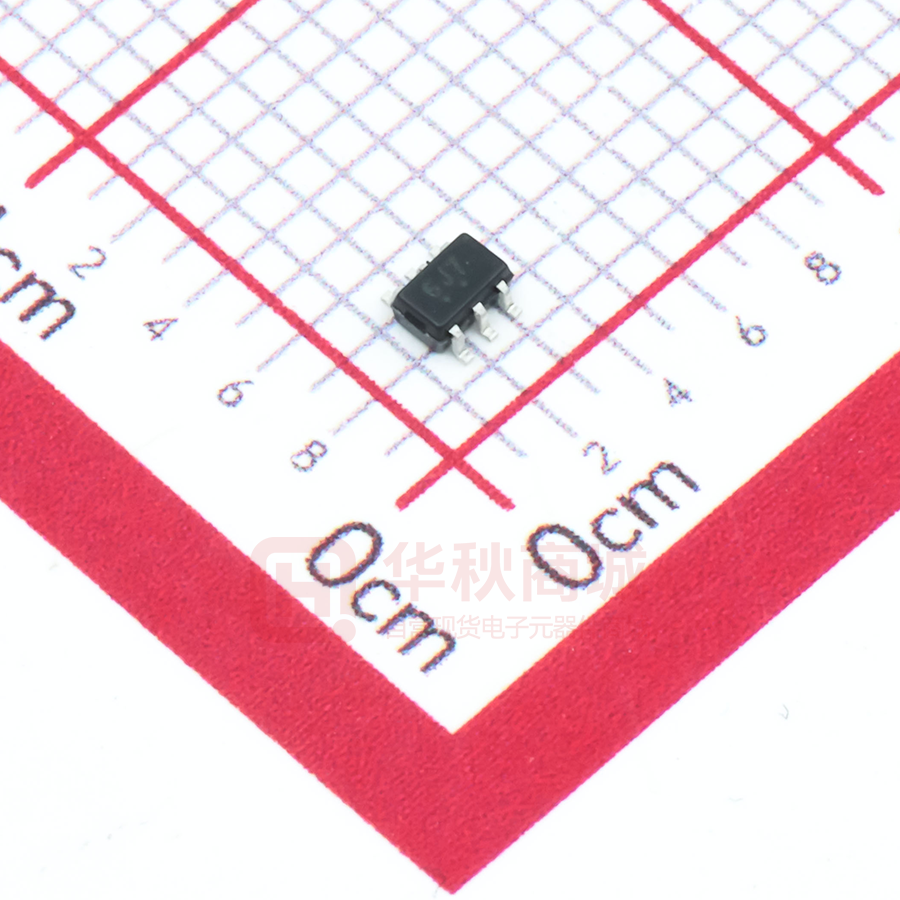

SMF05CT1G

SMF05CT1G, SMF12CT1G, SMF15CT1G, SMF24CT1G, SZSMF12CT1G ESD Protection Diode Array, 5-Line This 5−line surge protection array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package. www.onsemi.com SC−88 FIVE SURGE PROTECTION 100 W PEAK POWER Features • Protects up to 5−Line in a Single SC−88 Package • Peak Power Dissipation − 100 W (8 x 20 ms Waveform) • ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model SC−88 CASE 419B STYLE 24 and Class C (Exceeding 400 V) per Machine Model. • Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact) • Flammability Rating of UL 94 V−0 • SZ Prefix for Automotive and Other Applications Requiring Unique • Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable Pb−Free Packages are Available* PIN ASSIGNMENT 1 6 2 5 3 4 Applications • • • • • Hand−Held Portable Applications Networking and Telecom Automotive Electronics Serial and Parallel Ports Notebooks, Desktops, Servers Rating PPK 1 Peak Power Dissipation 8 x 20 ms Double Exponential Waveform (Note 1) TJ TSTG CATHODE ANODE CATHODE CATHODE CATHODE CATHODE MARKING DIAGRAM 6 XX MG G MAXIMUM RATINGS (TJ = 25°C unless otherwise specified) Symbol PIN 1. 2. 3. 4. 5. 6. 1 Value Unit W 100 Operating Junction Temperature Range −40 to 125 °C Storage Temperature Range −55 to 150 °C TL Lead Solder Temperature (10 s) 260 °C ESD Human Body Model (HBM) Machine Model (MM) IEC 61000−4−2 Air (ESD) IEC 61000−4−2 Contact (ESD) 16000 400 15000 15000 V XX = Specific Device Code 6J = SMF05C 6K = SZSMF12C/SMF12C 6L = SMF15C 6M = SMF24C M = Date Code G = Pb−Free Package ORDERING INFORMATION See detailed ordering and shipping information in the package dimensions section on page 3 of this data sheet. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Nonrepetitive current pulse per Figure 3. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2012 November, 2017 − Rev. 5 1 Publication Order Number: SMF05C/D SMF05CT1G, SMF12CT1G, SMF15CT1G, SMF24CT1G, SZSMF12CT1G SMF05CT1G ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol VRWM VBR Conditions Min Typ (Note 2) IT = 1 mA, (Note 3) 6.2 0.07 Max Unit 5.0 V 7.2 V 5.0 mA Reverse Leakage Current IR VRWM = 5 V Clamping Voltage VC IPP = 5 A (8 x 20 ms Waveform) 9.8 V Clamping Voltage VC IPP = 8 A (8 x 20 ms Waveform) 12.5 V Maximum Peak Pulse Current IPP 8 x 20 ms Waveform Capacitance CJ VR = 0 V, f = 1 MHz (Line to GND) 8.0 A 80 130 pF Typ Max Unit 12 V 15 V SMF12CT1G ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol VRWM VBR Conditions Min (Note 2) IT = 1 mA, (Note 3) 13.3 Reverse Leakage Current IR VRWM = 12 V 0.1 mA Clamping Voltage VC IPP = 3 A (8 x 20 ms Waveform) 0.01 21 V Clamping Voltage VC IPP = 6 A (8 x 20 ms Waveform) 23 V Maximum Peak Pulse Current IPP 8 x 20 ms Waveform 6.0 A Capacitance CJ VR = 0 V, f = 1 MHz (Line to GND) 40 60 pF Typ Max Unit 15 V 19 V 1.0 mA SMF15CT1G ELECTRICAL CHARACTERISTICS (TJ = 25°C, unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol VRWM VBR Conditions Min (Note 2) IT = 1 mA, (Note 3) 17 Reverse Leakage Current IR VRWM = 15 V 0.01 Clamping Voltage VC IPP = 1 A (8 x 20 ms Waveform) 23 V Clamping Voltage VC IPP = 5 A (8 x 20 ms Waveform) 29 V Maximum Peak Pulse Current IPP 8 x 20 ms Waveform Capacitance CJ VR = 0 V, f = 1 MHz (Line to GND) 5.0 A 33 45 pF Typ Max Unit 24 V 32 V SMF24CT1G ELECTRICAL CHARACTERISTICS (TJ = 25°C, unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol VRWM VBR Conditions Min (Note 2) IT = 1 mA, (Note 3) 26.7 Reverse Leakage Current IR VRWM = 24 V 1.0 mA Clamping Voltage VC IPP = 1 A (8 x 20 ms Waveform) 0.01 40 V Clamping Voltage VC IPP = 2.5 A (8 x 20 ms Waveform) 44 V Maximum Peak Pulse Current IPP 8 x 20 ms Waveform 2.5 A Capacitance CJ VR = 0 V, f = 1 MHz (Line to GND) 25 pF 21 2. Surge protection devices are normally selected according to the working peak reverse voltage (VRWM), which should be equal or greater than the DC or continuous peak operating voltage level. 3. VBR is measured at pulse test current IT. 4. Include SZ-prefix devices where applicable. www.onsemi.com 2 SMF05CT1G, SMF12CT1G, SMF15CT1G, SMF24CT1G, SZSMF12CT1G TYPICAL PERFORMANCE CURVES 100 100 90 90 % OF PEAK PULSE CURRENT PEAK POWER DISSIPATION (%) (TJ = 25°C unless otherwise specified) 80 70 60 50 40 30 20 10 0 0 25 50 75 100 125 150 175 tr PEAK VALUE IRSM @ 8 ms PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 200 0 20 Figure 1. Pulse Derating Curve 100 SMF24CT1G SMF15CT1G SMF12CT1G SMF05CT1G 10 0 5 10 JUNCTION CAPACITANCE (pF) VCLAMP, CLAMPING VOLTAGE (V) 80 60 Figure 2. 8 × 20 ms Pulse Waveform 100 1 40 t, TIME (ms) TA, AMBIENT TEMPERATURE (°C) SMF05CT1G 10 1 15 SMF12CT1G SMF15CT1G SMF24CT1G 0 IPP, PEAK PULSE CURRENT (A) 5 10 15 20 25 VBR, REVERSE VOLTAGE (V) Figure 3. Clamping Voltage vs Peak Pulse Current Figure 4. Junction Capacitance vs Reverse Voltage ORDERING INFORMATION Package Shipping† SMF05CT1G SC−88 (Pb−Free) 3,000 / Tape & Reel SMF05CT2G* SC−88 (Pb−Free) 3,000 / Tape & Reel SMF12CT1G SC−88 (Pb−Free) 3,000 / Tape & Reel SMF15CT1G SC−88 (Pb−Free) 3,000 / Tape & Reel SMF24CT1G SC−88 (Pb−Free) 3,000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *The “T2” suffix refers to an alternate tape & reel orientation. www.onsemi.com 3 SMF05CT1G, SMF12CT1G, SMF15CT1G, SMF24CT1G, SZSMF12CT1G PACKAGE DIMENSIONS SC−88/SC70−6/SOT−363 CASE 419B−02 ISSUE W D e 6 5 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. 419B−01 OBSOLETE, NEW STANDARD 419B−02. 4 HE −E− 1 2 DIM A A1 A3 b C D E e L HE 3 b 6 PL 0.2 (0.008) M E M A3 C STYLE 24: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE A A1 MILLIMETERS MIN NOM MAX 0.80 0.95 1.10 0.00 0.05 0.10 0.20 REF 0.10 0.21 0.30 0.10 0.14 0.25 1.80 2.00 2.20 1.15 1.25 1.35 0.65 BSC 0.10 0.20 0.30 2.00 2.10 2.20 L SOLDERING FOOTPRINT* 0.50 0.0197 0.65 0.025 0.65 0.025 0.40 0.0157 1.9 0.0748 SCALE 20:1 mm Ǔ ǒinches SC−88/SC70−6/SOT−363 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. www.onsemi.com 4 INCHES NOM MAX 0.037 0.043 0.002 0.004 0.008 REF 0.004 0.008 0.012 0.004 0.005 0.010 0.070 0.078 0.086 0.045 0.049 0.053 0.026 BSC 0.004 0.008 0.012 0.078 0.082 0.086 MIN 0.031 0.000 SMF05CT1G, SMF12CT1G, SMF15CT1G, SMF24CT1G, SZSMF12CT1G ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 5 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative SMF05C/D
