DATASHEET
ISL29035
FN8371
Rev 3.00
December 12, 2016

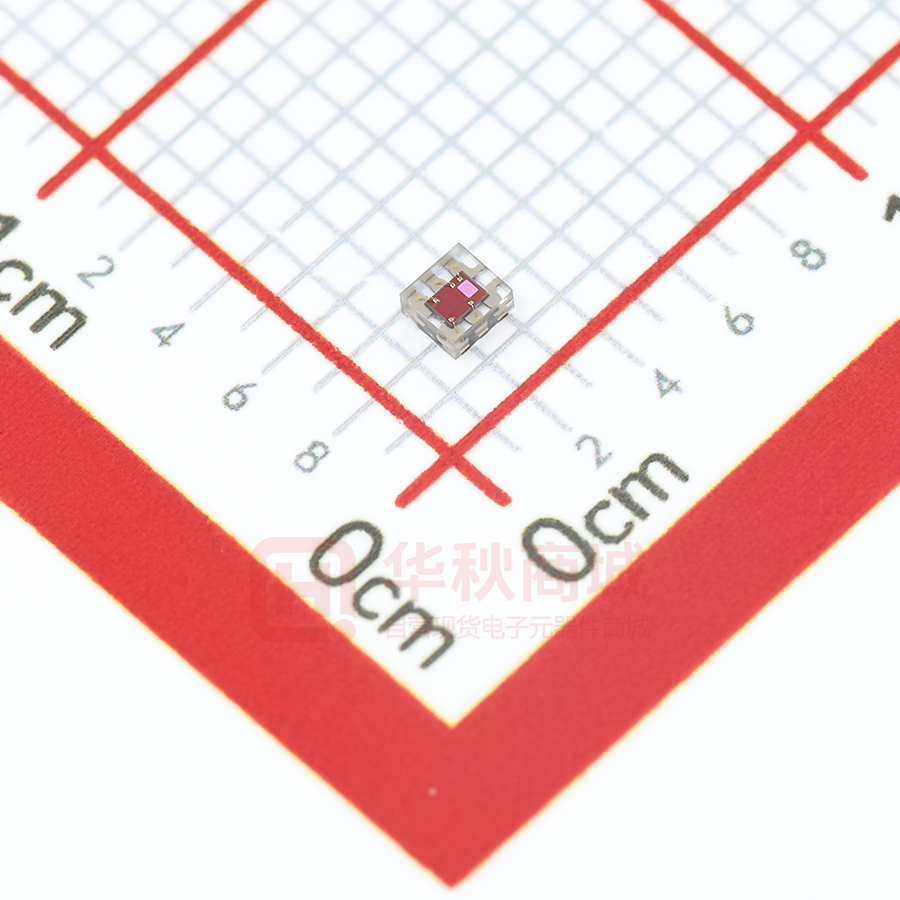

Integrated Digital Light Sensor with Interrupt
The ISL29035 is an integrated ambient and infrared
light-to-digital converter with I2C (SMBus compatible) Interface. Its
advanced self-calibrated photodiode array emulates human eye
response with excellent IR rejection. The on-chip ADC is capable
of rejecting 50Hz and 60Hz flicker caused by artificial light
sources. The Lux range select feature allows users to program the
Lux range for optimized counts/Lux.
Features
For ambient light sensing, an internal 16-bit ADC has been
designed based upon the charge-balancing technique. The
ADC conversion time is nominally 105ms and is user
adjustable from 11µs to 105ms, depending on oscillator
frequency and ADC resolution. In normal operation, typical
current consumption is 57µA. In order to further minimize
power consumption, two power-down modes have been
provided. If polling is chosen over continuous measurement of
light, the auto power-down function shuts down the whole chip
after each ADC conversion for the measurement. The other
power-down mode is controlled by software via the I2C
interface. The power consumption can be reduced to less than
0.3µA when powered down.
• Shutdown modes. . . . . . . . . . . . . . . . . . . .software and automatic
The ISL29035 supports a software brownout condition
detection. The device powers up with the brownout bit asserted
until the host clears it through the I2C interface.
The ISL29035 supports a software and hardware interrupt that
remains asserted until the host clears it through the I2C
interface. Function of ADC conversion continues without
stopping after interrupt is asserted.
Designed to operate on supplies from 2.25V to 3.63V with an I2C
supply from 1.7V to 3.63V, the ISL29035 is specified for
operation across the -40°C to +85°C ambient temperature
range.
FN8371 Rev 3.00
December 12, 2016
• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-bit ADC
• Wide dynamic range . . . . . . . . . . . . . . . . . . . . . . . . . .1:4,200,000
• Integrated noise reduction . . . . . . . . . . . . . . . . . . . . . 50/60Hz
• Close to human eye response with excellent IR/UV rejection
• Programmable interrupt threshold with persistence filter
• Supply current (typical) . . . . . . . . . . . . . . . . . . . . . . . . . . . 57µA
• Shutdown current (maximum) . . . . . . . . . . . . . . . . . . . 0.51µA
• I2C (SMB compatible) power supply . . . . . . . . . 1.7V to 3.63V
• Sensor power supply . . . . . . . . . . . . . . . . . . . . . 2.25V to 3.63V
• Operating temperature range. . . . . . . . . . . . . -40°C to +85°C
• Small form factor package . . . . . . . 6 Ld 1.5x1.6x0.75 ODFN
Applications
• Mobile devices: smart phone, PDA, GPS
• Computing devices: notebook PC, MacBook, tablets
• Consumer devices: LCD-TV, digital camera
• Industrial and medical light sensing
Related Literature
• AN1591, “Evaluation Hardware/Software Manual for ALS
and Proximity Sensor”
TABLE 1. KEY DIFFERENCES BETWEEN FAMILY OF PARTS
ALS SENSING
INTERRUPT PIN
NUMBER OF
PINS
ISL29034
Yes
No
4 Ld
ISL29035
Yes
Yes
6 Ld
PART NUMBER
Page 1 of 17
ISL29035
100
VDD
VDD_PULLUP
4.7k 4.7k
1.2
1µF
4.7k
VDD
SDA
MCU
6
SDA
SCL
5
SCL
GPIO
4
INT
ISL29035
NC
GND
2
3
NORMALIZED RESPONSE
1
1.0
HUMAN EYE
0.8
AMBIENT LIGHT SENSOR
0.6
0.4
0.2
0
300
400
500
600
700
800
900
1000
1100
WAVELENGTH (nm)
FIGURE 1. ISL29035 TYPICAL APPLICATION DIAGRAM
FN8371 Rev 3.00
December 12, 2016
FIGURE 2. NORMALIZED SPECTRAL RESPONSE FOR AMBIENT
LIGHT SENSING
Page 2 of 17
ISL29035
Block Diagram
VDD
1
IREF
COMMAND
REGISTER
fOSC
R
500k
PHOTODIODE
ARRAY
LIGHT DATA
PROCESS
CMD
I2C/SMB
Register
INTEGRATING
ADC
5
SCL
6
SDA
DATA
Register
INTERRUPT
2
4
GND
INT
FIGURE 3. BLOCK DIAGRAM
Pin Configuration
Pin Descriptions
ISL29035
(6 LD ODFN)
TOP VIEW
VDD
1
6
SDA
GND
2
5
SCL
NC
3
4
PIN
NUMBER
PIN NAME
1
VDD
Positive supply
2
GND
Ground pin
3
NC
No connect
4
INT
Interrupt pin; LOW for interrupt alarming. INT pin
is an open-drain. INT remains asserted until the
interrupt status bit is reset.
5
SCL
I2C serial clock
6
SDA
I2C serial data
INT
DESCRIPTION
Ordering Information
PART NUMBER
(Notes 1, 2, 3)
TEMP RANGE
(°C)
TAPE AND REEL
(UNITS)
ISL29035IROZ-T7
-40 to +85
3k units
6 Ld ODFN
L6.1.5x1.6
ISL29035IROZ-T7A
-40 to +85
250 units
6 Ld ODFN
L6.1.5x1.6
ISL29035EVAL1Z
PACKAGE
(RoHS COMPLIANT)
PKG.
DWG. #
Evaluation Board
NOTES:
1. Please refer to TB347 for details on reel specifications.
2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets; molding compounds/die attach materials and NiPdAu-Ag
plate - e4 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
3. For Moisture Sensitivity Level (MSL), please see product information page for ISL29035. For more information on MSL, please see tech brief TB477.
FN8371 Rev 3.00
December 12, 2016
Page 3 of 17
ISL29035
Absolute Maximum Ratings
Thermal Information
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +4.0V
I2C Bus (SCL, SDA) and INT Pin Voltage. . . . . . . . . . . . . . . . . . -0.2V to 4.0V
I2C Bus (SCL, SDA) and INT Pin Current. . . . . . . . . . . . . . . . . . . . . . .
