P-NUCLEO-USB001

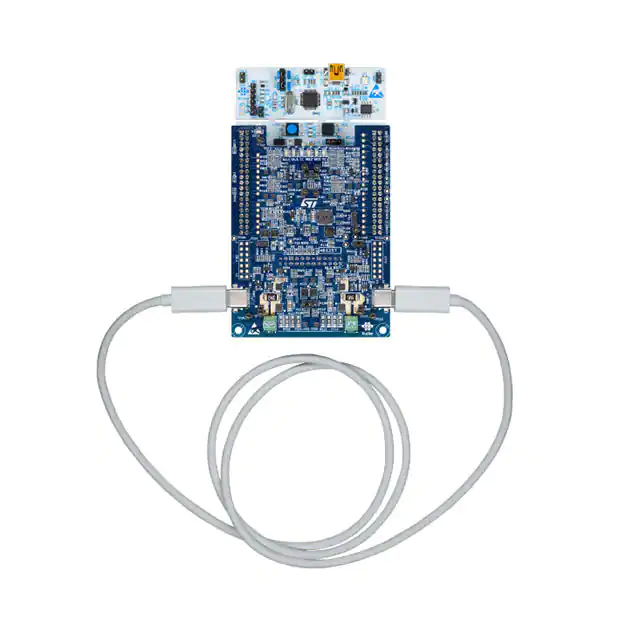

P-NUCLEO-USB001 STM32 Nucleo pack for USB Type-C™ and Power Delivery Data brief Features • Two DRP USB Type-C™ receptacles • USB 2.0 FS data communication interface as peripheral • VBUS load and discharge switches • VCONN switches • Voltage and current sensing for VBUS monitoring • EMI filters • A power connector to interface with external power supply (not supplied) Description The STM32 Nucleo pack for USB Type-C™ and Power Delivery (P-NUCLEO-USB001) is a development tool for learning and developing solutions based on USB Type-C™ and USB Power Delivery technologies. This tool, in association with the certified embedded software solution (X-CUBE-USB-PD), provides the means to control two USB Type-C™ ports using a single STM32F072 32-bit microcontroller, based on ARM® Cortex®-M0. The X-CUBE-USB-PD is compliant with the USB Type-C 1.2 and USB Power Delivery 2.0 specifications. A simple analog front-end PHY is used to interface the STM32F072 MCU with the Configuration Channels (CC lines) of the Type-C receptacles and to allow the communication over these lines using the Power Delivery communication protocol. 1. Picture is not contractual. The P-NUCLEO-USB001 is fully configurable and ready to support different configurations such as Provider, Consumer or DRP. X-CUBE-USB-PD is compliant with the USB Type-C™ 1.2 and the Power Delivery 2.0 specifications. February 2017 DocID029202 Rev 2 For further information contact your local STMicroelectronics sales office. 1/7 www.st.com P-NUCLEO-USB001 system architecture 1 P-NUCLEO-USB001 P-NUCLEO-USB001 system architecture The STM32 Nucleo pack for USB Type-C™ and Power Delivery is composed of two main blocks (see Figure 1: P-NUCLEO-USB001 system architecture): Note: 2/7 • A control block: the NUCLEO-F072RB MCU board where the stack is running • A USB Type-C™ interface: the MB1257 expansion board A certified USB Type-C™ full-featured cable is provided inside the package. DocID029202 Rev 2 P-NUCLEO-USB001 P-NUCLEO-USB001 system architecture Figure 1. P-NUCLEO-USB001 system architecture Expansion Board ST morpho connectors User LEDs CC AFE and VCONN Switch Port 0 CC AFE and VCONN Switch Port 1 Local Power Management Extension Connector Port 0 Extension Connector Port 1 VBUS Current/Voltage sensing Port 0 VBUS Current/Voltage sensing Port 1 Type-C Receptacle Port 0 Type-C Receptacle Port 1 VBUS Port 0 Switch and discharge VBUS Port 1 Switch and discharge Connector for VBUS Load Port 1 Port 0 connectors and circuitry Port 1 connectors and circuitry Connector for VBUS Load Port 0 Device Policy Manager Policy Engine Protocol Layer Physical Layer (4b5b, CRC, SOP, BMC) NUCLEO-F072RB DocID029202 Rev 2 3/7 7 P-NUCLEO-USB001 system architecture P-NUCLEO-USB001 The USB-C and Power Delivery expansion board includes: • Two DRP USB Type-C™ ports with: – Discrete analog front-end PHY for USB Type-C™ configuration and management (Rp, Rd, switches) – Voltage and current sensing – Dead Battery Management – EMI filters • Dedicated power connector to interface with an external power supply (not included) to provide different profiles and VCONN (5 V) • On-board power management able to provide internal supply voltages • Six-status control LEDs • USB 2.0 interface capability available on Port 0 only acting as UFP • RoHS compliant • PCB type and size: • – Material of PCB: FR4 – Four-layer layout Copper thickness: 35 µm – Note: Total dimensions of the expansion board: 74 mm x 98 mm The integrated Rp value is 4.7 Kohm at 3.3 V to advertise current capability of 3 A at 5 V. User has to change it according to power supply option capabilities. NUCLEO-F072RB board includes: • An STM32F072RBT6 32-bit microcontroller based on ARM® Cortex®-M0 with 128 Kbytes of Flash memory,16 Kbytes of SRAM, USB 2.0 FS data interface in LQFP64 package • Two types of extension resources: • – Arduino™ Uno Revision 3 connectivity – STMicroelectronics ST morpho extension pin headers for full access to all STM32 I/Os On-board ST-LINK/V2-1 debugger/programmer with SWD connector – • • – USB VBUS on Type-B connector or external source – Power management access point Three LEDs: – • 4/7 selection-mode switch to use the pack as a standalone ST-LINK/V2-1 Flexible board power supply: USB communication (LD1), user LED (LD2), power LED (LD3) Two push-buttons: USER and RESET DocID029202 Rev 2 P-NUCLEO-USB001 • • Note: P-NUCLEO-USB001 system architecture USB re-enumeration capability: three different interfaces are supported on USB – Virtual COM port(a) – Mass storage – Debug port Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs The NUCLEO-F072RB board included in the pack has a different configuration respect to the default one. The differences are listed below: • • • Solder bridges SB48, SB49, SB62, SB63 are closed Solder bridges SB13, SB14, SB15, SB21 are open 0 Ohm resistors R34, R36 are removed a. For all the details refer to STM32 Nucleo pack for USB Type-C™ and Power Delivery with the Nucleo-F072RB board User manual (UM2050). DocID029202 Rev 2 5/7 7 Revision history 2 P-NUCLEO-USB001 Revision history Table 1. Document revision history 6/7 Date Revision Changes 31-May-2016 1 Initial version. 15-Feb-2017 2 Updated Description. DocID029202 Rev 2 P-NUCLEO-USB001 IMPORTANT NOTICE – PLEASE READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products. No license, express or implied, to any intellectual property right is granted by ST herein. Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product. ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners. Information in this document supersedes and replaces information previously supplied in any prior versions of this document. © 2017 STMicroelectronics – All rights reserved DocID029202 Rev 2 7/7 7
