VND7140AJ12
Double channel high-side driver with CurrentSense analog
feedback for automotive applications
Datasheet - production data
•

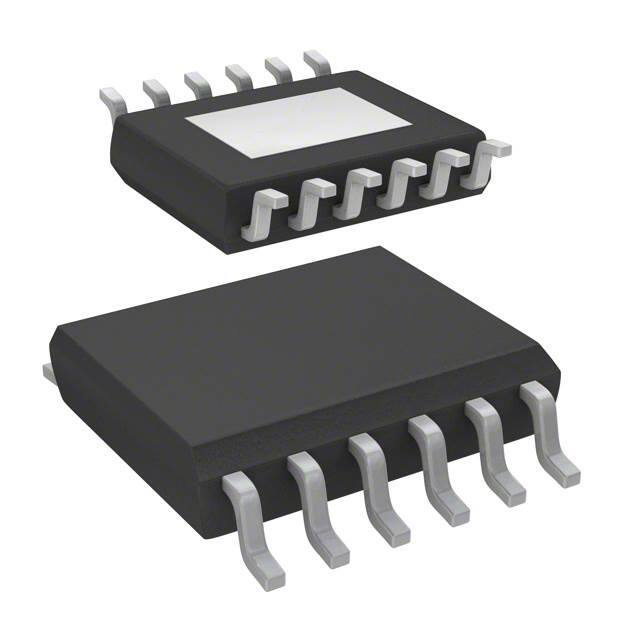

PowerSSO-12
GAPG040515 1112CFT
Features
Max transient supply voltage
VCC
40 V
Operating voltage range
VCC
4 V to 28 V
Minimum cranking supply
voltage (VCC decreasing)
VUSD_Cranking
2.85 V
Typ. on-state resistance
(per Ch)
RON
140 mΩ
Current limitation (typ)
ILIMH
12 A
Standby current (max)
ISTBY
0.5 µA
•
•
•
•
September 2015
Applications
•
•
Automotive qualified
Extreme low voltage operation for deep cold
cranking applications (compliant with LV124,
revision 2013)
General
−
Double channel smart high-side driver
with CurrentSense analog feedback
−
Very low standby current
−
Compatible with 3 V and 5 V CMOS
outputs
CurrentSense diagnostic functions
−
Multiplexed analog feedback of: load
current with high precision proportional
current mirror
−
Overload and short to ground (power
limitation) indication
−
Thermal shutdown indication
−
Off-state open-load detection
−
Output short to VCC detection
−
Sense enable/ disable
Protections
−
Undervoltage shutdown
−
Overvoltage clamp
−
Load current limitation
−
Self limiting of fast thermal transients
−
Loss of ground and loss of VCC
−
Reverse battery with external
components
−
Electrostatic discharge protection
All types of automotive resistive, inductive
and capacitive loads
Specially intended for automotive signal
lamps (up to R10W or LED Rear
Combinations)
Description
The device is a double channel high-side driver
manufactured using ST proprietary VIPower®
technology and housed in PowerSSO-12
package. The device is designed to drive 12 V
automotive grounded loads through a 3 V and
5 V CMOS compatible interface, providing
protection and diagnostics.
The device integrates advanced protective
functions such as load current limitation, overload
active management by power limitation and
overtemperature shutdown.
A current sense delivers high precision
proportional load current sense in addition to the
detection of overload and short circuit to ground,
short to VCC and off-state open-load.
A sense enable pin allows off-state diagnosis to
be disabled during the module low-power mode
as well as external sense resistor sharing among
similar devices.
DocID027923 Rev 3
This is information on a product in full production.
1/43
www.st.com
