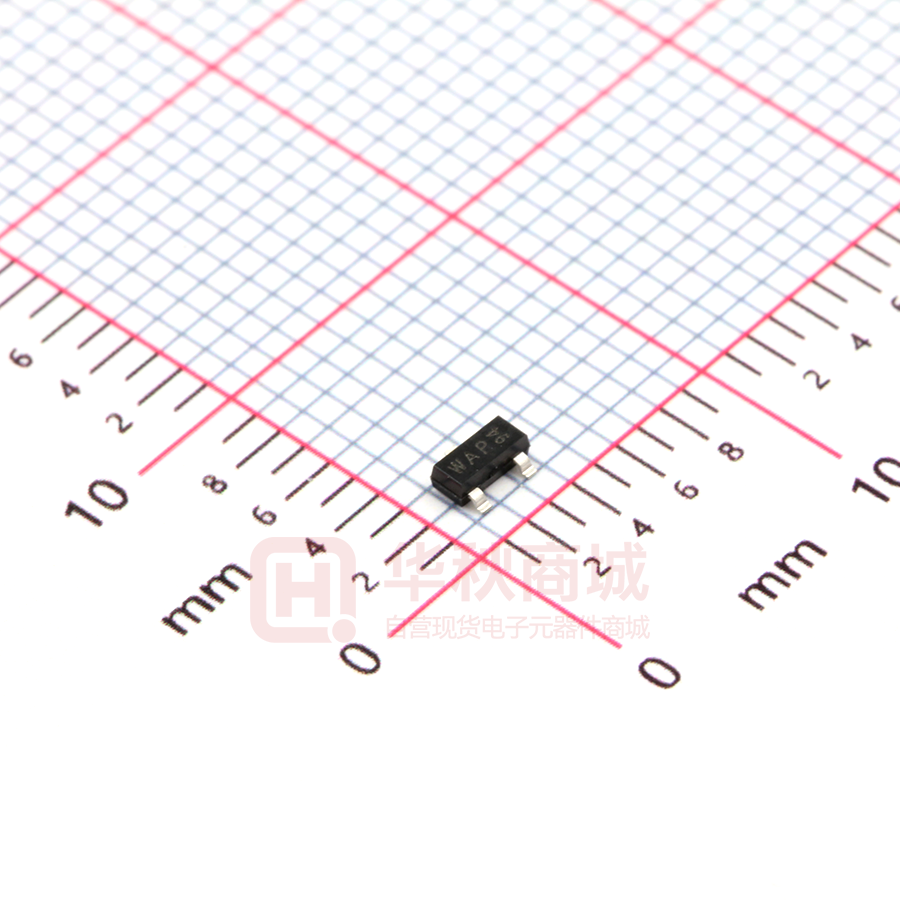

PESDxU1UT series
Ultra low capacitance ESD protection diode in SOT23 package
Rev. 02 — 20 August 2009
Product data sheet
1. Product profile
1.1 General description
Ultra low capacitance ElectroStatic Discharge (ESD) protection diode in a SOT23
(TO-236AB) small SMD plastic package designed to protect one high-speed data line
from the damage caused by ESD and other transients.
1.2 Features
n
n
n
n
Unidirectional ESD protection of one line
Ultra low diode capacitance: Cd = 0.6 pF
Max. peak pulse power: PPP up to 200 W
Low clamping voltage
n ESD protection > 23 kV
n IEC 61000-4-2; level 4 (ESD)
n IEC 61000-4-5; (surge)
1.3 Applications
n 10/100/1000 Ethernet
n FireWire
n Communication systems
n Local Area Network (LAN) equipment
n Computers and peripherals
n High-speed data lines
1.4 Quick reference data
Table 1.
Quick reference data
Symbol
Parameter
VRWM
reverse stand-off voltage
Conditions
Min
Typ
Max
Unit
PESD3V3U1UT
-
-
3.3
V
PESD5V0U1UT
-
-
5.0
V
PESD12VU1UT
-
-
12
V
PESD15VU1UT
-
-
15
V
PESD24VU1UT
Cd
[1]
diode capacitance
Measured from pin 1 to 2
f = 1 MHz; VR = 0 V
[1]
-
-
24
V
-
0.6
1.5
pF
PESDxU1UT series
NXP Semiconductors
Ultra low capacitance ESD protection diode in SOT23 package
2. Pinning information
Table 2.
Pinning
Pin
Description
Simplified outline
1
cathode ESD protection diode
2
cathode compensation diode
3
common anode
Symbol
3
1
3
2
1
2
006aaa441
3. Ordering information
Table 3.
Ordering information
Type number
PESD3V3U1UT
Package
Name
Description
Version
-
plastic surface mounted package; 3 leads
SOT23
PESD5V0U1UT
PESD12VU1UT
PESD15VU1UT
PESD24VU1UT
4. Marking
Table 4.
Marking codes
Type number
Marking code[1]
PESD3V3U1UT
*AP
PESD5V0U1UT
*AQ
PESD12VU1UT
*AR
PESD15VU1UT
*AS
PESD24VU1UT
*AT
[1]
* = -: made in Hong Kong
* = p: made in Hong Kong
* = t: made in Malaysia
* = W: made in China
PESDXU1UT_SER_2
Product data sheet
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 20 August 2009
2 of 13
PESDxU1UT series
NXP Semiconductors
Ultra low capacitance ESD protection diode in SOT23 package
5. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Min
Max
Unit
PESD3V3U1UT
-
80
W
PESD5V0U1UT
-
80
W
PESD12VU1UT
-
200
W
PESD15VU1UT
-
200
W
-
200
W
PESD3V3U1UT
-
5
A
PESD5V0U1UT
-
5
A
PESD12VU1UT
-
5
A
PESD15VU1UT
-
5
A
PESD24VU1UT
-
3
A
Tj
junction temperature
-
150
°C
Tamb
ambient temperature
−65
+150
°C
Tstg
storage temperature
−65
+150
°C
PPP
Parameter
Conditions
peak pulse power
8/20 µs
[1]
PESD24VU1UT
peak pulse current
IPP
[1]
8/20 µs
Non-repetitive current pulse 8/20 µs exponential decay waveform according to IEC 61000-4-5.
PESDXU1UT_SER_2
Product data sheet
[1]
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 20 August 2009
3 of 13
PESDxU1UT series
NXP Semiconductors
Ultra low capacitance ESD protection diode in SOT23 package
Table 6.
ESD maximum ratings
Symbol
Parameter
Conditions
Min
Max
Unit
PESD3V3U1UT
-
30
kV
PESD5V0U1UT
-
30
kV
PESD12VU1UT
-
30
kV
PESD15VU1UT
-
30
kV
PESD24VU1UT
-
23
kV
-
10
kV
electrostatic discharge voltage
VESD
PESDxU1UT
IEC 61000-4-2
(contact discharge)
HBM MIL-STD-883
[1]
Device stressed with ten non-repetitive ESD pulses.
[2]
Measured from pin 1 to 2
Table 7.
[1][2]
ESD standards compliance
Standard
Conditions
IEC 61000-4-2; level 4 (ESD)
> 15 kV (air); > 8 kV (contact)
HBM MIL-STD-883; class 3
> 4 kV
001aaa631
IPP
001aaa630
120
100 %
90 %
100 % IPP; 8 µs
IPP
(%)
80
e−t
50 % IPP; 20 µs
40
10 %
0
10
20
30
30 ns
40
t (µs)
Fig 1.
t
tr = 0.7 ns to 1 ns
0
60 ns
8/20 µs pulse waveform according to
IEC 61000-4-5
Fig 2.
ESD pulse waveform according to
IEC 61000-4-2
PESDXU1UT_SER_2
Product data sheet
© NXP B.V. 2009. All rights reserved.
Rev. 02 — 20 August 2009
4 of 13
PESDxU1UT series
NXP Semiconductors
Ultra low capacitance ESD protection diode in SOT23 package
6. Characteristics
Table 8.
Characteristics
Tamb = 25 °C unless otherwise specified
Symbol
Parameter
VRWM
reverse stand-off voltage
Conditions
Min
Typ
Max
Unit
PESD3V3U1UT
-
-
3.3
V
PESD5V0U1UT
-
-
5.0
V
PESD12VU1UT
-
-
12
V
PESD15VU1UT
-
-
15
V
PESD24VU1UT
-
-
24
V
reverse leakage current
IRM
PESD3V3U1UT
VRWM = 3.3 V
-
0.25
2
µA
PESD5V0U1UT
VRWM = 5.0 V
-
0.03
1
µA
PESD12VU1UT
VRWM = 12 V
-
