PTVA123501EC/FC
Thermally-Enhanced High Power RF LDMOS FETs
350 W, 50 V, 1200 – 1400 MHz
Description

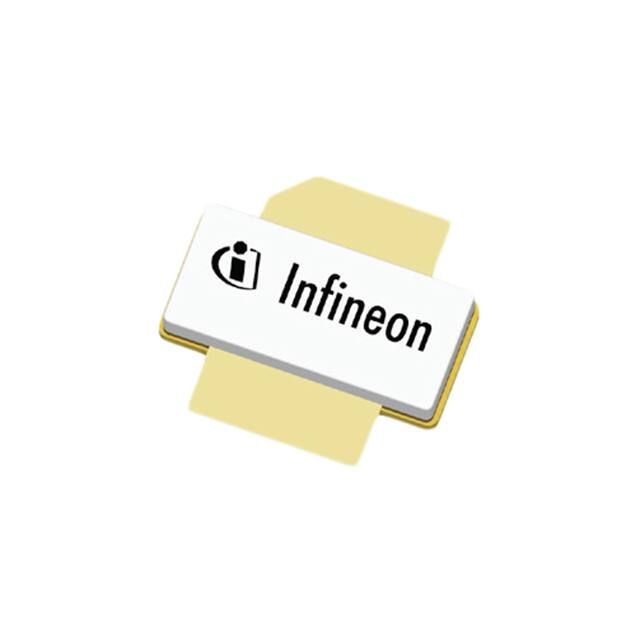

The PTVA123501EC and PTVA123501FC LDMOS FETs are designed for use in power amplifier applications in the 1200 MHz to
1400 MHz frequency band. Features include high gain and thermallyenhanced package with slotted and earless flanges. Manufactured
with Wolfspeed's advanced LDMOS process, these devices provide
excellent thermal performance and superior reliability.
PTVA123501EC
Package H-36248-2
PTVA123501FC
Package H-37248-2
Power Sweep, Pulsed RF
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
300 µs pulse width, 12% duty cycle
60
50
60
45
50
40
40
1200 MHz
1300 MHz
35
30
1400 MHz
Efficiency
a123501ec_g1-1
30
32
34
• Broadband internal input and output matching
70
Output Power
Drain Efficiency (%)
POUT (dBm)
55
30
Features
80
36
38
40
42
20
PIN (dBm)
• High gain and efficiency
• Integrated ESD protection
• Human Body Model Class 2 (per ANSI/ESDA/
JEDEC JS-001)
• Low thermal resistance
• Excellent ruggedness
• Pb-free and RoHS compliant
• Capable of withstanding a 10:1 load
mismatch (all phase angles) at 55.5 dBm
under pulsed conditions: 300 µs pulse width,
12% duty cycle, VDD = 50 V
RF Characteristics
Pulsed RF Performance (tested in Wolfspeed test fixture)
VDD = 50 V, IDQ = 0.15 A, POUT = 350 W, ƒ1 = 1200 MHz, ƒ2 = 1300 MHz, ƒ3 = 1400 MHz, 300 µs pulse width, 12% duty cycle
Characteristic
Symbol
Min
Typ
Max
Unit
Gain
Gps
16.5
17
—
dB
Drain Efficiency
hD
54
55
—
%
Return Loss
IRL
—
–12
–9
dB
All published data at TCASE = 25°C unless otherwise indicated
ESD: Electrostatic discharge sensitive device—observe handling precautions!
Rev. 06, 2018-06-19
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
2
RF Characteristics
Typical RF Performance (not subject to production test, verified by design/characterization in Wolfspeed test fixture)
VDD = 50 V, IDQ = 150 mA, Input signal (tr = 5 ns, tf = 6.5 ns), 300 µs pulse width, 12% duty cycle, class AB test
Mode of
Operation
ƒ
(MHz)
IRL
(dB)
P1dB
Gain
(dB)
Eff
(%)
P3dB
POUT
(W)
Gain
(dB)
Eff
(%)
POUT
(W)
Max
Pdroop (pulse)
dB @ 350 W
tr (ns) @
350 W
tf (ns) @
350 W
Pulsed RF
1200
–14
16.2
59
375
14.2
59
415
0.10
4
5<
Pulsed RF
1300
–14
16.0
59
390
14.0
59
435
0.15
4
5<
Pulsed RF
1400
–12
15.8
56
375
13.8
57
415
0.15
4
5<
Typical RF Performance (not subject to production test, verified by design/characterization in Wolfspeed test fixture)
VDD = 50 V, IDQ = 150 mA, 30 ms pulse width, 30% duty cycle, class AB test
Mode of
Operation
ƒ
(MHz)
Pulsed RF
1200
P3dB
P1dB
Gain
(dB)
Eff
(%)
POUT
(W)
Gain
(dB)
Eff
(%)
POUT
(W)
Pdroop (pulse) dB @ 300 W
16
47
316
14
48
350
0.23
Pulsed RF
1300
16
47
324
14
48
355
0.25
Pulsed RF
1400
15.5
45
315
13.5
47
355
0.29
DC Characteristics
Characteristic
Conditions
Symbol
Min
Typ
Max
Unit
Drain-Source Breakdown Voltage
VGS = 0 V, IDS = 10 mA
V(BR)DSS
105
—
—
V
Drain Leakage Current
VDS = 50 V, VGS = 0 V
IDSS
—
—
1.0
µA
VDS = 105 V, VGS = 0 V
IDSS
—
—
10.0
µA
On-State Resistance
VGS = 10 V, VDS = 0.1 V
RDS(on)
—
0.1
—
W
Operating Gate Voltage
VDS = 50 V, IDQ = 150 mA
VGS
3
3.35
4
V
Gate Leakage Current
VGS = 10 V, VDS = 0 V
IGSS
—
—
1.0
µA
Maximum Ratings
Parameter
Symbol
Value
Unit
Drain-Source Voltage
VDSS
105
V
Gate-Source Voltage
VGS
–6 to +12
V
Operating Voltage
VDD
0 to +55
V
Junction Temperature
TJ
225
°C
Storage Temperature Range
TSTG
–65 to +150
°C
Thermal Resistance (TCASE = 70°C, 300 W CW)
RqJC
0.34
Rev. 06, 2018-06-19
°C/W
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
3
PTVA123501EC/FC
Ordering Information
Type and Version
Order Code
Package Description
Shipping
PTVA123501EC V2 R0
PTVA123501EC-V2-R0
H-36248-2, bolt-down
Tape & Reel, 50 pcs
PTVA123501EC V2 R250
PTVA123501EC-V2-R250
H-36248-2, bolt-down
Tape & Reel, 250 pcs
PTVA123501FC V1 R0
PTVA123501FC-V1-R0
H-37248-2, earless
Tape & Reel, 50 pcs
PTVA123501FC V1 R250
PTVA123501FC-V1-R250
H-37248-2, earless
Tape & Reel, 250 pcs
See next page for Typical RF Performance
Rev. 06, 2018-06-19
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
4
Typical RF Performance (data taken in production test fixture)
Power Sweep, Pulsed RF
Power Sweep, Pulsed RF
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
300 µs pulse width, 12% duty cycle
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
300 µs pulse width, 12% duty cycle
Output Power
18
70
17
50
60
45
50
40
1300 MHz
35
34
14
30
13
20
12
1200 MHz
1300 MHz
1400 MHz
a123501ec_g1-1
32
15
1400 MHz
Efficiency
30
Gain
16
36
38
40
42
a123501ec_g1-2
30
32
34
18
16
60
Efficiency
55
50
1450
a123501ec_g1-3
1300
1350
1400
Frequency (MHz)
Power Droop (dB)
65
Drain Efficiency (%)
Gain (dB)
17
Rev. 06, 2018-06-19
0.2
-12
Power Droop
Gain
1250
42
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
300 µs pulse width, 12% duty cycle
70
1200
40
Pulsed RF Performance
Pulsed RF Performance
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
300 µs pulse width, 12% duty cycle
14
1150
38
PIN (dBm)
PIN (dBm)
15
36
0.15
-14
0.1
-16
IRL
0.05
0
1100
IRL (dB)
30
40
1200 MHz
Gain (dB)
POUT (dBm)
55
80
Drain Efficiency (%)
60
-18
1200
1300
1400
-20
1500
a123501ec_g1-4
Frequency (MHz)
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
5
PTVA123501EC/FC
Typical RF Performance (cont.)
Power Sweep, Pulsed RF
Power Sweep, Pulsed RF
IDQ = 150 mA,VDD = 50 V, TCASE = 25°C,
2 ms pulse width, 10% duty cycle
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
2 ms pulse width, 10% duty cycle
Output Power
18
70
17
50
60
45
50
1300 MHz
35
Efficiency
30
40
1200 MHz
30
31
33
35
37
39
41
43
Gain
15
14
1200 MHz
1300 MHz
13
1400 MHz
1400 MHz
a123501ec_g2-1
16
12
20
a123501ec_g2-2
31
33
35
Efficiency
55
1300
1350
Frequency (MHz)
Rev. 06, 2018-06-19
50
1450
a123501ec_g2-3
1250
1400
Power Droop (dB)
60
16
Drain Efficiency (%)
Gain (dB)
65
Gain
1200
43
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
2 ms pulse width, 10% duty cycle
70
18
14
1150
41
Pulsed RF Performance
Pulsed RF Performance
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
2 ms pulse width, 10% duty cycle
15
39
PIN (dBm)
PIN (dBm)
17
37
0.3
-10
0.25
-12
Power Droop
0.2
0.15
-14
-16
IRL (dB)
40
Gain (dB)
POUT (dBm)
55
80
Drain Efficiency (%)
60
IRL
0.1
-18
0.05
1100
-20
1500
a123501ec_g2-4
1200
1300
1400
Frequency (MHz)
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
6
Typical RF Performance (cont.)
Power Sweep, Pulsed RF
Power Sweep, Pulsed RF
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
16 ms pulse width, 20% duty cycle
IDQ = 150 mA,VDD = 50 V, TCASE = 25°C,
16 ms pulse width, 20% duty cycle
Output Power
18
70
17
50
60
45
50
40
40
1200 MHz
30
30
1300 MHz
Efficiency
33
35
37
39
41
15
14
1200 MHz
1300 MHz
13
1400 MHz
1400 MHz
a123501ec_g3-1
31
Gain
43
12
20
a123501ec_g3-2
31
33
35
PIN (dBm)
39
41
43
PIN (dBm)
Pulsed RF Performance
Pulsed RF Performance
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
16 ms pulse width, 20% duty cycle
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
16 ms pulse width, 20% duty cycle
70
17
65
Gain
60
16
55
15
-6
0.35
Power Droop (dB)
18
Drain Efficiency (%)
Gain (dB)
37
-8
0.3
Power Droop
0.25
-10
0.2
-12
IRL (dB)
35
16
Gain (dB)
POUT (dBm)
55
80
Drain Efficiency (%)
60
IRL
-14
0.15
Efficiency
14
1150
1250
1300
1350
Frequency (MHz)
Rev. 06, 2018-06-19
50
1450
a123501ec_g3-3
1200
1400
0.1
1100
-16
1500
a123501ec_g3-4
1200
1300
1400
Frequency (MHz)
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
7
PTVA123501EC/FC
Typical RF Performance (cont.)
Power Sweep, Pulsed RF
Power Sweep, Pulsed RF
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
16 ms pulse width, 50% duty cycle
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
16 ms pulse width, 50% duty cycle
Output Power
18
70
17
50
60
45
50
40
40
1200 MHz
30
30
1300 MHz
Efficiency
1400 MHz
a123501ec_g4-1
31
33
35
37
39
41
43
16
Gain
15
14
1200 MHz
1300 MHz
13
12
20
1400 MHz
a123501ec_g4-2
31
33
35
70
0.4
65
0.3
Gain
60
14
55
13
Efficiency
50
1500
a123501ec_g4-3
1300
Frequency (MHz)
1400
Power Droop (dB)
15
Gain (dB)
43
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
16 ms pulse width, 50% duty cycle
Drain Efficiency (%)
16
Rev. 06, 2018-06-19
41
Pulsed RF Performance
Pulsed RF Performance
IDQ = 150 mA, VDD = 50 V, POUT = 350 W,
16 ms pulse width, 50% duty cycle
1200
39
PIN (dBm)
PIN (dBm)
12
1100
37
-2
-4
Power Droop
0.2
-6
0.1
-8
0
1100
IRL
IRL (dB)
35
Gain (dB)
POUT (dBm)
55
80
Drain Efficiency (%)
60
-10
1500
a123501ec_g4-4
1200
1300
1400
Frequency (MHz)
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
8
Typical RF Performance (cont.)
Power Sweep, Pulsed RF
Power Sweep, Pulsed RF
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
22 ms pulse width, 50% duty cycle
Output Power
18
70
17
50
60
45
50
40
1300 MHz
35
Efficiency
31
33
35
37
39
41
43
14
13
20
12
35
37
39
41
43
0.4
65
15
60
14
55
Power Droop (dB)
Gain
Drain Efficiency (%)
Gain (dB)
33
IDQ = 150 mA, VDD = 50 V, POUT = 330 W,
22 ms pulse width, 50% duty cycle
70
17
-6
-8
0.3
Power Droop
-10
0.2
-12
0.1
-14
Efficiency
50
1500
a123501ec_g5-3
1200
1300
1400
Frequency (MHz)
Rev. 06, 2018-06-19
a123501ec_g5-2
31
Pulsed RF Performance
Pulsed RF Performance
12
1100
1300 MHz
PIN (dBm)
IDQ = 150 mA, VDD = 50 V, POUT = 330 W,
22 ms pulse width, 50% duty cycle
13
1200 MHz
1400 MHz
PIN (dBm)
16
Gain
15
30
1400 MHz
a123501ec_g5-1
16
IRL (dB)
30
40
1200 MHz
Gain (dB)
POUT (dBm)
55
80
Drain Efficiency (%)
60
IDQ = 150 mA, VDD = 50 V, TCASE = 25°C,
22 ms pulse width, 50% duty cycle
0
1100
IRL
1200
1300
1400
-16
1500
a123501ec_5-4
Frequency (MHz)
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
9
PTVA123501EC/FC
Broadband Circuit Impedance
Freq
[MHz]
Z Source W
R
D
Z Load W
jX
R
Z Source
jX
1200
1.25
–1.99
1.96
–2.23
1300
1.54
–1.52
1.59
–2.03
1400
1.66
–1.58
1.26
–1.75
Z Load
G
S
Load Pull Performance
Load Pull at Max POUT Point – 16 µs pulse width, 10% duty cycle, class AB, VDD = 50 V, 150 mA
Freq
[MHz]
Zl
[W]
PIN
[dBm]
POUT
[dBm]
POUT
[W]
PG
[dB]
PAE Eff
[%]
ZOUT
[W]
1200
1.91 – j2.04
41.40
56.40
436.52
15
53.80
1.30 – j2.03
1300
2.72 – j3.13
42.24
56.54
450.82
14.30
54.48
1.25 – j1.94
1400
4.83 – j1.46
41.66
56.31
427.56
14.65
53.27
1.03 – j1.94
Load Pull at Max GT Point – 16 µs pulse width, 10% duty cycle, class AB, VDD = 50 V, 150 mA
Freq
[MHz]
Zl
[W]
PIN
[dBm]
POUT
[dBm]
POUT
[W]
PG
[dB]
PAE Eff
[%]
ZOUT
[W]
1200
1.91 – j2.04
38.10
54.72
296.48
16.62
57.89
3.03 – j3.11
1300
2.72 – j3.13
38.84
54.83
304.09
15.99
62.54
3.22 – j1.63
1400
4.83 – j1.46
37.21
53.42
219.79
16.21
57.25
2.30 – j0.09
Load Pull at Max Efficiency Point – 16 µs pulse width, 10% duty cycle, class AB, VDD = 50 V, 150 mA
Freq
[MHz]
Zl
[W]
PIN
[dBm]
POUT
[dBm]
POUT
[W]
PG
[dB]
PAE Eff
[%]
ZOUT
[W]
1200
1.91 – j2.04
39.60
55.80
380.19
16.20
60.71
2.22 – j2.43
1300
2.72 – j3.13
39.44
55.23
333.43
15.79
63.71
2.81 – j1.90
1400
4.83 – j1.46
39.39
55.19
330.37
15.80
62.26
2.40 – j1.45
Z Optimum – 16 µs pulse width, 10% duty cycle, class AB, VDD = 50 V, 150 mA
Freq
[MHz]
Zl
[W]
PIN
[dBm]
POUT
[dBm]
POUT
[W]
PG
[dB]
PAE Eff
[%]
ZOUT
[W]
1200
1.91 – j2.04
39.18
55.58
361.41
16.4
60.5
2.41 – j2.50
1300
2.72 – j3.13
39.50
55.30
338.84
15.8
62.6
2.73 – j1.51
1400
4.83 – j1.46
40
55.60
363.08
15.6
60.7
1.86 – j1.37
Rev. 06, 2018-06-19
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
10
Reference Circuit
C201
C803 C801 R803 C802
R804
RO6006, .025 (62)
C206
C208
+
S3
S2
R802
S1
R801
VDD
R202
C101
R101
C104
R102
C103
C207
C211
R103
C203
C202
C102
RF_IN
RF_OUT
C205
C105
C106
C204
VDD
R201
C209
PTVA123501EC_IN RO6006, .025 (62)
C210
PTVA123501EC_OUT
pt v a12 350 1ec _ C D_ 06 - 19 - 20 18
Reference circuit assembly diagram (not to scale)*
Find Gerber files for this test fixture on the Wolfspeed Web site at www.wolfspeed.com/RF
Rev. 06, 2018-06-19
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
11
PTVA123501EC/FC
Reference Circuit (cont.)
Reference Circuit Assembly
DUT
PTVA123501EC or PTVA123501FC
Test Fixture Part No.
LTN/PTVA123501EC V2 or LTN/PTVA123501FC V1
PCB
Rogers 6006, 0.635 mm [0.025"] thick, 2 oz. copper, εr = 6.15
Components Information
Component
Description
Suggested Manufacturer
P/N
C101
Capacitor, 1 μF
TDK Corporation
C4532X7R2A105M230KA
C102, C103
Capacitor, 39 pF
ATC
ATC100B390KW500XB
C104
Capacitor, 10 μF
TDK Corporation
C5750X5R1H106K230KA
C105
Capacitor, 3 pF
ATC
ATC100A3R0CW150XB
C106
Capacitor, 0.5 pF
ATC
ATC100A0R5CW150XB
C801, C802, C803
Capacitor, 1000 pF
Panasonic Electronic Components
ECJ-1VB1H102K
R101
Resistor, 1000 Ω
Panasonic Electronic Components
ERJ-8GEYJ102V
R102
Resistor, 5600 Ω
Panasonic Electronic Components
ERJ-8GEYJ562V
R103, R804
Resistor, 10 Ω
Panasonic Electronic Components
ERJ-8GEYJ100V
R801
Resistor, 2000 Ω
Panasonic Electronic Components
ERJ-8GEYJ202V
R802
Resistor, 1200 Ω
Panasonic Electronic Components
ERJ-3GEYJ122V
R803
Resistor, 1300 Ω
Panasonic Electronic Components
ERJ-3GEYJ132V
S1
Transistor
Infineon Technologies
BCP56
S2
Voltage Regulator
Texas Instruments
LM7805
S3
Potentiometer, 2k Ω
Bourns Inc.
3224W-1-202E
C201
Capacitor, 6800 μF
Panasonic Electronic Components
ECO-S2AP682EA
C202
Capacitor, 100 μF
Cornell Dubilier Electronics (CDE)
SK101M100ST
C203
Capacitor, 22 μF
Cornell Dubilier Electronics (CDE)
SEK220M100ST
C204, C205, C207
Capacitor, 39 pF
ATC
ATC100B390KW500XB
C206, C210
Capacitor, 1 μF
TDK Corporation
C4532X7R2A105M230KA
C208, C209
Capacitor, 10 μF
TDK Corporation
C5750X5R1H106K230KA
C211
Capacitor, 10 μF
Panasonic Electronic Components
EEV-HD1H100P
R201, R202
Resistor, 5600 Ω
Panasonic Electronic Components
ERJ-8GEYJ562V
Input
Output
Rev. 06, 2018-06-19
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
12
Package Outline Specifications
Package H-36248-2
45° X 2.720
[45° X .107]
CL
4.826±0.510
[.190±0.020]
D
S
FLANGE 9.779
[.385]
LID 9.398 +0.100
–0.150
19.431 ±0.510
[.370+0.004
–0.006 ]
[.765±0.020]
CL
2X R1.626
[R.064]
G
4X R1.524
[R.060]
2X 12.700
[.500]
27.940
[1.100]
19.812±0.200
[.780±0.008]
1.016
[.040]
SPH 1.575
[0.062]
C
L
3.632±0.380
[.143±0.015]
H-36248-2_po_01.1_03-29-2013
34.036
[1.340]
Rev. 06, 2018-06-19
Diagram Notes—unless otherwise specified:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. All tolerances ± 0.127 [.005] unless specified otherwise.
4. Pins: D – drain; G – gate; S – source.
5. Lead thickness: 0.10 + 0.051/-0.025 mm [.004 +0.002/-0.001 inch].
6. Gold plating thickness: 1.14 ± 0.38 micron [45 ± 15 microinch].
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
13
PTVA123501EC/FC
Package Outline Specifications (cont.)
Package H-37248-2
45° X 2.720
[45° X .107]
CL
4.826±0.510
[.190±0.020]
+.381
-.127
+0.015
[ R.020 -0.005 ]
4X R0.508
D
+0.100
-0.150
+0.004
[ .370 -0.006 ]
LID 9.398
FLANGE 9.779
[.385]
19.431±0.510
[.765±0.020]
CL
G
2X 12.700
[.500]
SPH 1.575
[.062]
19.812±0.200
[.780±0.008]
1.016
[.040]
H-37248-2_po_10-04-2012
3.632±0.380
[.143±0.015]
S
Rev. 06, 2018-06-19
CL
20.574
[.810]
Diagram Notes—unless otherwise specified:
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. All tolerances ± 0.127 [.005] unless specified otherwise.
4. Pins: D – drain; G – gate; S – source.
5. Lead thickness: 0.10 + 0.051/-0.025 mm [.004 +0.002/-0.001 inch].
6. Gold plating thickness: 1.14 ± 0.38 micron [45 ± 15 microinch].
4600 Silicon Drive | Durham, NC 27703 | www.wolfspeed.com
PTVA123501EC/FC
14
Revision History
Revision
Date
Data Sheet Type
Page
Subjects (major changes since last revision)
01
2012-06-05
Preliminary
All
Data Sheet reflects preliminary specification
02
2013-03-06
Production
All
Data Sheet reflects released product specification
03
2013-07-11
Production
All
1, 9, 12
Updated to include FC version
Revised Pulsed RF performance table, Minor cosmetic changes only, Added package outline
04
2014-04-29
Production
All, 1
Revised product from V1 to V2, Revised target RF Charateristics table
04.1
2014-06-26
Production
All
3
Corrected FC version to V1 throughout
Corrected package to H-36248-2 and H-37248-2 in ordering table
05
2015-07-07
Production
8
Added typical performance at 22ms, 50% pulse
05.1
2016-04-26
Production
1, 3
Added ESD rating, updated ordering information
05.2
2016-02-07
Production
2
Updated operating voltage and junction temperature
06
2018-06-19
Production
All
Converted to Wolfspeed Data Sheet
For more information, please contact:
4600 Silicon Drive
Durham, North Carolina, USA 27703
www.wolfspeed.com/RF
Sales Contact
RFSales@wolfspeed.com
RF Product Marketing Contact
RFMarketing@wolfspeed.com
919.407.7816
Notes
Disclaimer
Specifications are subject to change without notice. Cree, Inc. believes the information contained within this data sheet
to be accurate and reliable. However, no responsibility is assumed by Cree for any infringement of patents or other rights
of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Cree. Cree makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose. “Typical” parameters are the average values expected by Cree in large quantities and are provided for
information purposes only. These values can and do vary in different applications and actual performance can vary over
time. All operating parameters should be validated by customer’s technical experts for each application. Cree products
are not designed, intended or authorized for use as components in applications intended for surgical implant into the
body or to support or sustain life, in applications in which the failure of the Cree product could result in personal injury or
death or in applications for planning, construction, maintenance or direct operation of a nuclear facility.
Copyright © 2018 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Wolfspeed™ and the Wolfspeed logo are trademarks of Cree, Inc.
Rev. 06, 2018-06-19
www.wolfspeed.com
工商网监
湘ICP备2023018690号
