SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
D
D
D
D
D
Member of the Texas Instruments
Widebus Family
EPIC (Enhanced-Performance Implanted
CMOS) Submicron Process
DOC (Dynamic Output Control) Circuit
Dynamically Changes Output Impedance,
Resulting in Noise Reduction Without
Speed Degradation
Dynamic Drive Capability Is Equivalent to
Standard Outputs With IOH and IOL of
±24 mA at 2.5-V VCC
D
D
D
Overvoltage-Tolerant Inputs/Outputs Allow
Mixed-Voltage-Mode Data Communications
Ioff Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class I

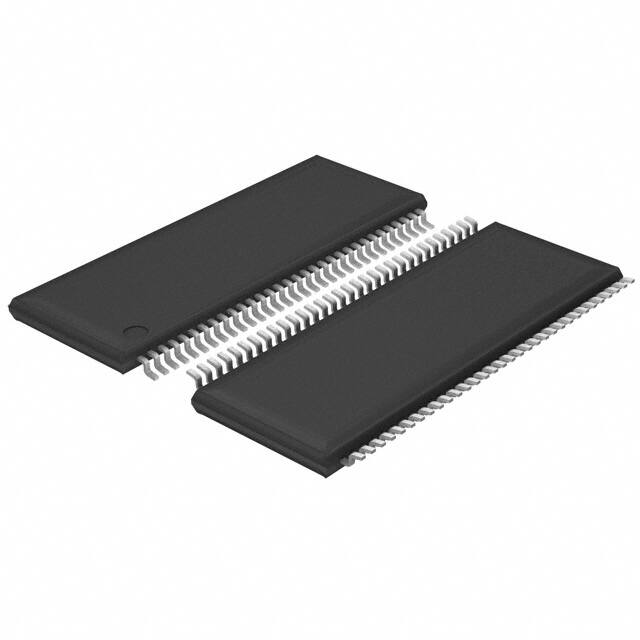

Packaged in Thin Shrink Small-Outline
Package
description
A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output
impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1
shows typical VOL vs IOL and VOH vs IOH curves to illustrate the output impedance and drive capability of the
circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is
equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC
Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC )
Circuitry Technology and Applications, literature number SCEA009.
3.2
TA = 25°C
Process = Nominal
– Output Voltage – V
2.8
2.4
VCC = 3.3 V
2.0
1.6
VCC = 2.5 V
1.2
OH
VCC = 1.8 V
0.8
V
VOL – Output Voltage – V
2.8
TA = 25°C
Process = Nominal
2.4
2.0
1.6
1.2
0.8
VCC = 3.3 V
VCC = 2.5 V
0.4
0.4
0
17
34
51
68
85 102 119
IOL – Output Current – mA
136
153
170
VCC = 1.8 V
–160 –144 –128 –112 –96 –80 –64 –48
IOH – Output Current – mA
–32
–16
0
Figure 1. Output Voltage vs Output Current
This 22-bit flip-flop is operational at 1.2-V to 3.6-V VCC, but is designed specifically for 1.65-V to 3.6-V VCC
operation.
The 22 flip-flops of the SN74AVC16722 are edge-triggered D-type flip-flops with clock-enable (CLKEN) input.
On the positive transition of the clock (CLK) input, the device stores data into the flip-flops if CLKEN is low. If
CLKEN is high, no data is stored.
A buffered output-enable (OE) input places the 22 outputs in either a normal logic state (high or low) or the
high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.
OE does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered
while the outputs are in the high-impedance state.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
DOC, EPIC, and Widebus are trademarks of Texas Instruments.
Copyright 2000, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
1
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
description (continued)
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
The SN74AVC16722 is characterized for operation from –40°C to 85°C.
terminal assignments
DGG PACKAGE
(TOP VIEW)
OE
Q1
Q2
GND
Q3
Q4
VCC
Q5
Q6
Q7
GND
Q8
Q9
Q10
Q11
Q12
Q13
GND
Q14
Q15
Q16
VCC
Q17
Q18
GND
Q19
Q20
VCC
Q21
Q22
GND
NC
1
64
2
63
3
62
4
61
5
60
6
59
7
58
8
57
9
56
10
55
11
54
12
53
13
52
14
51
15
50
16
49
17
48
18
47
19
46
20
45
21
44
22
43
23
42
24
41
25
40
26
39
27
38
28
37
29
36
30
35
31
34
32
33
CLK
D1
D2
GND
D3
D4
VCC
D5
D6
D7
GND
D8
D9
D10
D11
D12
D13
GND
D14
D15
D16
VCC
D17
D18
GND
D19
D20
VCC
D21
D22
GND
CLKEN
NC – No internal connection
2
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
FUNCTION TABLE
(each flip-flop)
INPUTS
D
OUTPUT
Q
X
X
Q0
↑
H
H
OE
CLKEN
CLK
L
H
L
L
L
L
↑
L
L
L
L
L or H
X
Q0
H
X
X
X
Z
logic diagram (positive logic)
1
OE
64
CLK
33
CE
CLKEN
C1
63
D1
1D
2
Q1
To 21 Other Channels
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 4.6 V
Voltage range applied to any output in the high-impedance or power-off state, VO
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 4.6 V
Voltage range applied to any output in the high or low state, VO
(see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through each VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±100 mA
Package thermal impedance, θJA (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65°C to 150°C
† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
2. The output positive-voltage rating may be exceeded up to 4.6 V maximum if the output current rating is observed.
3. The package thermal impedance is calculated in accordance with JESD 51.
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
3
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
recommended operating conditions (see Note 4)
VCC
VIH
Supply voltage
High-level input voltage
MIN
MAX
Operating
1.4
3.6
Data retention only
1.2
VCC = 1.2 V
VCC = 1.4 V to 1.6 V
VCC
0.65 × VCC
VCC = 1.65 V to 1.95 V
VCC = 2.3 V to 2.7 V
VCC = 3 V to 3.6 V
0.65 × VCC
VI
VO
IOHS
IOLS
Low-level input voltage
Output voltage
Static high-level
high level output current†
low level output current†
Static low-level
V
2
GND
0.35 × VCC
0.35 × VCC
VCC = 1.65 V to 1.95 V
VCC = 2.3 V to 2.7 V
VCC = 3 V to 3.6 V
Input voltage
V
1.7
VCC = 1.2 V
VCC = 1.4 V to 1.6 V
VIL
UNIT
V
0.7
0.8
0
3.6
V
Active state
0
3-state
0
VCC
3.6
V
VCC = 1.4 V to 1.6 V
VCC = 1.65 V to 1.95 V
–2
VCC = 2.3 V to 2.7 V
VCC = 3 V to 3.6 V
–8
–4
–12
VCC = 1.4 V to 1.6 V
VCC = 1.65 V to 1.95 V
2
VCC = 2.3 V to 2.7 V
VCC = 3 V to 3.6 V
8
∆t/∆v
mA
4
mA
12
Input transition rise or fall rate
VCC = 1.4 V to 3.6 V
5
ns/V
TA
Operating free-air temperature
–40
85
°C
† Dynamic drive capability is equivalent to standard outputs with IOH and IOL of ±24 mA at 2.5-V VCC. See Figure 1 for VOL vs IOL and VOH vs IOH
characteristics. Refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and
Dynamic Output Control (DOC ) Circuitry Technology and Applications, literature number SCEA009.
NOTE 4: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
4
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
IOHS = –100 µA
IOHS = –2 mA,
VOH
VIH = 0.91 V
VIH = 1.07 V
IOHS = –4 mA,
IOHS = –8 mA,
1.4 V
IOLS = 2 mA,
IOLS = 4 mA,
VIL = 0.49 V
VIL = 0.57 V
IOLS = 8 mA,
IOLS = 12 mA,
VIL = 0.7 V
VIL = 0.8 V
VI = VCC or GND
VI or VO = 3.6 V
IOZ
ICC
VO = VCC or GND
VI = VCC or GND,
1.2
2.3 V
1.75
3V
2.3
0.4
0.45
2.3 V
0.55
VI = VCC or GND
Data inputs
Outputs
Out
uts
0.2
1.4 V
IO = 0
VO = VCC or GND
UNIT
V
1.65 V
Control inputs
Co
MAX
VCC–0.2
1.05
1.4 V to 3.6 V
II
Ioff
Ci
TYP†
MIN
1.65 V
VIH = 1.7 V
VIH = 2 V
IOHS = –12 mA,
IOLS = 100 µA
VOL
VCC
1.4 V to 3.6 V
V
3V
0.7
3.6 V
±2.5
µA
0
±10
µA
3.6 V
±10
µA
3.6 V
40
µA
2.5 V
4
3.3 V
4
2.5 V
2
3.3 V
2
2.5 V
6.5
3.3 V
6
pF
pF
F
† Typical values are measured at TA = 25°C.
timing requirements over recommended operating free-air temperature range (unless otherwise
noted) (see Figures 2 through 5)
VCC = 1.2 V
MIN
fclock
tw
MAX
VCC = 1.5 V
± 0.1 V
MIN
MAX
VCC = 1.8 V
± 0.15 V
MIN
MAX
Clock frequency
Setup time
th
Hold time
MIN
80
Pulse duration, CLK high or low
tsu
VCC = 2.5 V
± 0.2 V
Data before CLK↑
CLKEN before CLK↑
Data after CLK↑
CLKEN after CLK↑
MAX
VCC = 3.3 V
± 0.3 V
MIN
140
175
6.2
3.5
2.8
12.8
8.3
5.7
3.5
2.5
3.5
2
1.6
1.4
1.4
0
0
0
0
0
2.1
1.6
1.3
1.2
1.2
UNIT
MAX
MHz
ns
ns
ns
switching characteristics over recommended operating free-air temperature range (unless
otherwise noted) (see Figures 2 through 5)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
VCC = 1.2 V
TYP
VCC = 1.5 V
± 0.1 V
MIN
MAX
VCC = 1.8 V
± 0.15 V
MIN
MAX
VCC = 2.5 V
± 0.2 V
MIN
80
MAX
fmax
tpd
CLK
Q
7.7
1.5
6.3
1.5
5.4
1
3.3
ten
OE
Q
11.2
2.5
10.6
2.4
9.5
1.8
6
tdis
OE
Q
6.8
1.9
7.2
1.9
7
1.2
3.6
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
VCC = 3.3 V
± 0.3 V
MIN
140
UNIT
MAX
175
MHz
0.7
2.6
ns
1.4
4.3
ns
1.2
3.4
ns
5
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
operating characteristics, TA = 25°C
PARAMETER
Cpd
d
TEST CONDITIONS
Outputs enabled
Power dissipation
capacitance
Outputs disabled
CL = 0
0,
VCC = 1.8 V
TYP
f = 10 MHz
VCC = 2.5 V
TYP
VCC = 3.3 V
TYP
88
98
110
60
64
79
UNIT
pF
PARAMETER MEASUREMENT INFORMATION
VCC = 1.2 V AND 1.5 V ± 0.1 V
2 × VCC
2 kΩ
From Output
Under Test
S1
Open
GND
CL = 15 pF
(see Note A)
2 kΩ
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCC
GND
LOAD CIRCUIT
tw
VCC
Timing
Input
VCC/2
VCC/2
VCC/2
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VCC/2
VCC/2
0V
tPLH
Output
Control
(low-level
enabling)
tPLZ
VCC
VCC/2
tPZH
VOH
VCC/2
VOL
VCC/2
0V
Output
Waveform 1
S1 at 2 × VCC
(see Note B)
tPHL
VCC/2
VCC
VCC/2
tPZL
VCC
Input
VOLTAGE WAVEFORMS
PULSE DURATION
th
VCC
Data
Input
VCC/2
0V
0V
tsu
Output
VCC
VCC/2
Input
Output
Waveform 2
S1 at GND
(see Note B)
VOL + 0.1 V
VOL
tPHZ
VCC/2
VOH
VOH – 0.1 V
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
Figure 2. Load Circuit and Voltage Waveforms
6
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
PARAMETER MEASUREMENT INFORMATION
VCC = 1.8 V ± 0.15 V
2 × VCC
1 kΩ
From Output
Under Test
S1
Open
GND
CL = 30 pF
(see Note A)
1 kΩ
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCC
GND
LOAD CIRCUIT
tw
VCC
Timing
Input
VCC/2
VCC/2
VCC/2
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VCC/2
VCC/2
0V
tPLH
Output
Control
(low-level
enabling)
tPLZ
VCC
VCC/2
tPZH
VOH
VCC/2
VOL
VCC/2
0V
Output
Waveform 1
S1 at 2 × VCC
(see Note B)
tPHL
VCC/2
VCC
VCC/2
tPZL
VCC
Input
VOLTAGE WAVEFORMS
PULSE DURATION
th
VCC
Data
Input
VCC/2
0V
0V
tsu
Output
VCC
VCC/2
Input
Output
Waveform 2
S1 at GND
(see Note B)
VOL + 0.15 V
VOL
tPHZ
VCC/2
VOH
VOH – 0.15 V
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
Figure 3. Load Circuit and Voltage Waveforms
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
7
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
PARAMETER MEASUREMENT INFORMATION
VCC = 2.5 V ± 0.2 V
From Output
Under Test
2 × VCC
S1
500 Ω
Open
GND
CL = 30 pF
(see Note A)
500 Ω
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCC
GND
LOAD CIRCUIT
tw
VCC
Timing
Input
VCC/2
VCC/2
VCC/2
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VCC/2
VCC/2
0V
tPLH
Output
Control
(low-level
enabling)
tPLZ
VCC
VCC/2
tPZH
VOH
VCC/2
VOL
VCC/2
0V
Output
Waveform 1
S1 at 2 × VCC
(see Note B)
tPHL
VCC/2
VCC
VCC/2
tPZL
VCC
Input
VOLTAGE WAVEFORMS
PULSE DURATION
th
VCC
Data
Input
VCC/2
0V
0V
tsu
Output
VCC
VCC/2
Input
Output
Waveform 2
S1 at GND
(see Note B)
VOL + 0.15 V
VOL
tPHZ
VCC/2
VOH
VOH – 0.15 V
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
Figure 4. Load Circuit and Voltage Waveforms
8
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
SN74AVC16722
22-BIT FLIP-FLOP
WITH 3-STATE OUTPUTS
SCES166H – DECEMBER 1998 – REVISED JUNE 2000
PARAMETER MEASUREMENT INFORMATION
VCC = 3.3 V ± 0.3 V
2 × VCC
S1
500 Ω
From Output
Under Test
Open
GND
CL = 30 pF
(see Note A)
500 Ω
TEST
S1
tpd
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCC
GND
tw
LOAD CIRCUIT
VCC
VCC
Timing
Input
VCC/2
Input
VCC/2
0V
VCC/2
0V
tsu
VOLTAGE WAVEFORMS
PULSE DURATION
th
VCC
Data
Input
VCC/2
VCC/2
0V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
Output
Control
(low-level
enabling)
VCC
VCC/2
0V
tPZL
VCC
Input
VCC/2
VCC/2
0V
tPLH
VCC/2
tPLZ
VCC
VCC/2
tPZH
VOH
Output
Output
Waveform 1
S1 at 2 × VCC
(see Note B)
tPHL
VCC/2
VOL
VCC/2
Output
Waveform 2
S1 at GND
(see Note B)
VOL + 0.3 V
VOL
tPHZ
VCC/2
VOH
VOH – 0.3 V
0V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
Figure 5. Load Circuit and Voltage Waveforms
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
9
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
74AVC16722DGGRE4
ACTIVE
TSSOP
DGG
64
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AVC16722
SN74AVC16722DGGR
ACTIVE
TSSOP
DGG
64
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AVC16722
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
