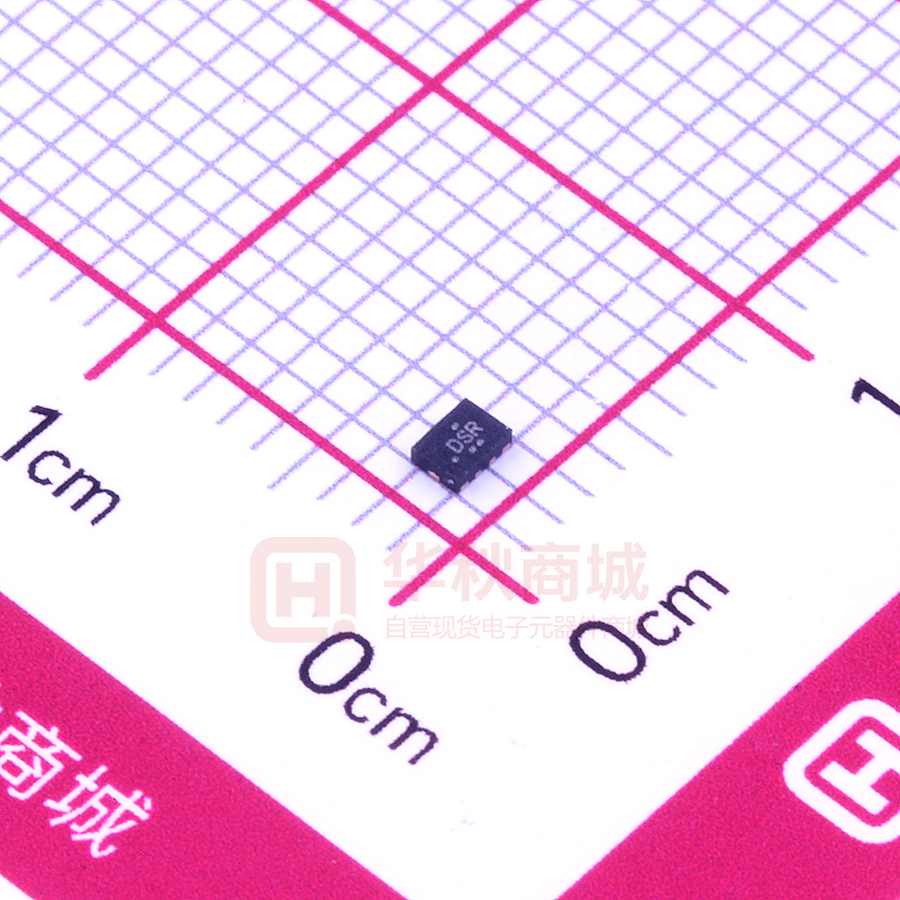

TS3USB3000RSER

TS3USB3000RSER

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    UQFN10

  • 描述:

    DPDT USB 2.0高速移动高清链路(MHL)6.1 - GHz开关

  • 数据手册
  • 价格&库存
TS3USB3000RSER 数据手册
Product Folder Order Now Support & Community Tools & Software Technical Documents TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 TS3USB3000 DPDT USB 2.0 High-Speed and Mobile High-Definition Link (MHL) 6.1-GHz Switch 1 Features 3 Description • • The TS3USB3000 device is a double-pole, double throw (DPDT) multiplexer that includes a high-speed Mobile High-Definition Link (MHL) switch and an USB 2.0 High-Speed (480 Mbps) switch in the same package. These configurations allow the system designer to use a common USB or Micro-USB connector for both MHL video signals and USB data. 1 • • • • • VCC Range 2.3 V to 4.8 V Mobile Hi-Definition Link (MHL) Switch: – Bandwidth (–3 dB): 6.1 GHz – RON (Typical): 5.7 Ω – CON (Typical): 1.6 pF USB Switch: – Bandwidth (–3 dB): 6.1 GHz – RON (Typical): 4.6 Ω – CON (Typical): 1.4 pF Current Consumption: 30 µA (Typical) Special Features: – IOFF Protection Prevents Current Leakage in Powered-Down State (VCC and VBUS = 0 V) – 1.8-V Compatible Control Inputs (SEL, OE) – Overvoltage Tolerance (OVT) on all I/O Pins up to 5.5 V Without External Components – Overvoltage Protection When 9-V Short to D+/-Pin ESD Performance: – 3.5-kV Human Body Model (A114B, Class II) – 1-kV Charged-Device Model (C101) 10-Pin UQFN Package (1.5-mm × 2-mm, 0.5-mm Pitch) The TS3USB3000 has a VCC range of 2.3 V to 4.8 V and supports overvoltage tolerance (OVT) feature, which allows the I/O pins to withstand overvoltage conditions (up to 5.5 V). The power-off protection feature forces all I/O pins to be in high-impedance mode when power is not present, allowing full isolation of the signal lines under such condition without excessive leakage current. The select pins of TS3USB3000 are compatible with 1.8-V control voltage, allowing them to be directly interfaced with the General-Purpose I/O (GPIO) from a mobile processor. The TS3USB3000 comes with a small 10-pin UQFN package with only 1.5 mm × 2 mm in size, which makes it a perfect candidate to be used in mobile applications. Device Information PART NUMBER TS3USB3000 BODY SIZE (NOM) 1.50 mm × 2.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. 2 Applications • • • PACKAGE UQFN (10) (1) Smartphones, Tablets, Mobile Portable Instrumentation Digital Still Cameras Functional Block Diagram TS3USB3000 USB+ D+ MHL+ USB DMHL - SEL Control Logic OE Copyright © 2017, Texas Instruments Incorporated 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 4 5 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 5 5 5 6 6 7 7 8 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Dynamic Characteristics ........................................... Timing Requirements ................................................ Typical Characteristics .............................................. Parameter Measurement Information ................ 10 Detailed Description ............................................ 11 8.1 Overview ................................................................. 11 8.2 Functional Block Diagram ....................................... 11 8.3 Feature Description................................................. 11 8.4 Device Functional Modes........................................ 13 9 Application and Implementation ........................ 14 9.1 Application Information............................................ 14 9.2 Typical Application .................................................. 14 10 Power Supply Recommendations ..................... 18 11 Layout................................................................... 18 11.1 Layout Guidelines ................................................. 18 11.2 Layout Example .................................................... 19 12 Device and Documentation Support ................. 20 12.1 12.2 12.3 12.4 12.5 12.6 Documentation Support ........................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 20 20 20 20 20 20 13 Mechanical, Packaging, and Orderable Information ........................................................... 20 13.1 Package Option Addendum .................................. 21 4 Revision History Changes from Revision E (July 2018) to Revision F • Page Removed the duplicate Tape and Reel Information ............................................................................................................. 20 Changes from Revision D (November 2017) to Revision E Page • Changed Feature From: Overvoltage Protection When 9-V Short to D-Pin To: Overvoltage Protection When 9-V Short to D+/-Pin ...................................................................................................................................................................... 1 • Changed From: VD-, D– DC voltage To: VD+/–, D+/- DC voltage in the Absolute Maximum Ratings ..................................... 5 • Changed Note (4) From: This rating only applies to the D– pin with respect to GND. To: This rating only applies to the D+/– pins with respect to GND in the Absolute Maximum Ratings ................................................................................. 5 • Changed D- To: D+/- in Overvoltage Protection When 9-V Short to D+/– Pin ................................................................... 11 • Changed D- To: D+/- in Pin Leakage ................................................................................................................................... 13 Changes from Revision C (January 2017) to Revision D • Changed the Package Option Addendum Device Marking column ..................................................................................... 20 Changes from Revision B (October 2015) to Revision C • 2 Page Extended the IC recommended VCC operating range to VCC = 2.3 to 4.8 V in the Features, Description, Absolute Maximum Ratings, Recommended Operating Conditions, Electrical Characteristics, Dynamic Characteristics and Timing Requirements sections ............................................................................................................................................... 6 Changes from Revision A (April 2013) to Revision B • Page Page Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section .............................. 1 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 Changes from Original (December 2012) to Revision A • Page Updated TI data sheet – no specific changes. ...................................................................................................................... 1 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 3 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 5 Pin Configuration and Functions 10 VCC RSE Package 10-Pin UQFN Top View 1 9 SEL USB± 2 8 D+ MHL+ 3 7 D± MHL± 4 6 OE GND 5 USB+ Not to scale Pin Functions PIN I/O DESCRIPTION NO. NAME 1 USB+ I/O USB data (Differential +) 2 USB– I/O USB data (Differential –) 3 MHL+ I/O MHL data (Differential +) 4 MHL– I/O MHL data (Differential –) 5 GND — Ground 6 OE I 7 D– I/O Data switch output (Differential –) 8 D+ I/O Data switch output (Differential +) 9 SEL I 10 VCC — 4 Output enable (Active low) Switch select (logic Low = D+/D– to USB+/USB– Logic High = D+/D– to MHL+/MHL–) Supply voltage Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) (2) Supply voltage (3) VCC (3) MIN MAX UNIT –0.3 5.5 V VI/O Input-output DC voltage –0.3 5.5 V VD+/– D+/- DC voltage (4) –0.3 9 V VI Digital input voltage (SEL, OE) –0.3 5.5 V IK Input-output port diode current VI/O < 0 –50 IIK Digital logic input clamp current (3) VI < 0 –50 ICC Continuous current through VCC IGND Continuous current through GND –100 Tstg Storage temperature –65 (1) (2) (3) (4) mA mA 100 mA mA 150 °C Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum. All voltages are with respect to ground, unless otherwise specified. This rating only applies to the D+/– pins with respect to GND. VCC must be powered within the recommended operating conditions of 2.3 V to 4.8 V and the OE pin must be logic high for this rating to be applicable. Any condition where VCC is unpowered or the OE pin is not high must reference the rest of the Absolute Maximum Ratings Table. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±3500 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±1000 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions VCC VI/O (USB) VI/O (MHL) MIN MAX Supply voltage 2.3 4.8 UNIT V Analog voltage 0 3.6 V VI Digital input voltage (SEL, OE) 0 VCC V TRAMP (VCC) Power supply ramp time requirement (VCC) 100 1000 μs/V TA Operating free-air temperature –40 85 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 ºC 5 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 6.4 Thermal Information TS3USB3000 THERMAL METRIC (1) RSE (UQFN) UNIT 10 PINS RθJA Junction-to-ambient thermal resistance RθJC(top) RθJB ψJT Junction-to-top characterization parameter ψJB Junction-to-board characterization parameter (1) 191.6 °C/W Junction-to-case (top) thermal resistance 94.3 °C/W Junction-to-board thermal resistance 117.5 °C/W 7.4 °C/W 117.4 °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics TA = –40°C to +85°C, Typical values are at VCC = 3.3 V, TA = 25°C, (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT MHL SWITCH VCC = 2.7 V VI/O = 1.65 V, ION = –8 mA 5.7 9 VCC = 2.3 V VI/O = 1.65 V, ION = –8 mA 5.7 9.5 ΔRON ON-state resistance match between + and – VCC = 2.3 V paths VI/O = 1.65 V, ION = –8 mA 0.1 Ω RON ON-state resistance flatness VCC = 2.3 V VI/O = 1.65 V to 3.45 V, ION = –8 mA 1 Ω (FLAT) IOZ OFF leakage current VCC = 4.8 V Switch OFF, VMHL± = 1.65 V to 3.45 V, VD± = 0 V IOFF Power-off leakage current VCC = 0 V Switch ON or OFF, VMHL± = 1.65 V to 3.45 V, VD± = NC VCC = 4.8 V RON ION ON-state resistance Ω –2 2 µA –10 10 µA Switch ON, VMHL± = 1.65 V to 3.45 V, VD± = NC –2 2 VCC = 2.3 V Switch ON, VMHL± = 1.65 V to 3.45 V, VD± = NC –125 125 ON leakage current µA USB SWITCH ON-state resistance VCC = 2.3 V VI/O = 0.4 V, ION = –8 mA 4.6 ΔRON ON-state resistance match between + and – VCC = 2.3 V paths VI/O = 0.4 V, ION = –8 mA 0.1 Ω RON ON-state resistance flatness VCC = 2.3 V VI/O = 0 V to 0.4 V, ION = –8 mA 1 Ω (FLAT) IOZ OFF leakage current VCC = 4.8 V Switch OFF, VUSB± = 0 V to 3.6 V, VD± = 0 V IOFF Power-off leakage current VCC = 0 V Switch ON or OFF, VUSB± = 0 V to 3.6 V, VD± = NC VCC = 4.8 V VCC = 2.3 V ION ON leakage current 7.5 Ω RON –2 2 µA –10 10 µA Switch ON, VUSB± = 0 V to 3.6 V, VD± = NC –2 2 Switch ON, VUSB± = 0 V to 3.6 V, VD± = NC –125 125 µA DIGITAL CONTROL INPUTS (SEL, OE) VIH Input logic high VCC = 2.3 V to 4.8 V VIL Input logic low VCC = 2.3 V to 4.8 V IIN Input leakage current VCC = 4.8 V, VI/O = 0 V to 3.6 V, VIN = 0 to 4.8 V 6 Submit Documentation Feedback 1.3 –10 V 0.6 V 10 μA Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 6.6 Dynamic Characteristics over operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT CON(MHL) MHL path ON capacitance VCC = 3.3 V, VI/O = 0 or 3.3 V, f = 240 MHz Switch ON 1.6 2 pF CON(USB) USB path ON capacitance VCC = 3.3 V, VI/O = 0 or 3.3 V, f = 240 MHz Switch ON 1.4 2 pF COFF(MHL) MHL path OFF capacitance VCC = 3.3 V, VI/O = 0 or 3.3 V f = 240 MHz Switch OFF 1.4 2 pF COFF(USB) USB path OFF capacitance VCC = 3.3 V, VI/O = 0 or 3.3 V f = 240 MHz Switch OFF 1.6 2 pF CI Digital input capacitance VCC = 3.3 V, VI = 0 or 2 V OISO OFF Isolation VCC = 2.3 V to 4.8 V, RL = 50 Ω, f = 240 MHz XTALK Crosstalk BW(MHL) BW(USB) 2.2 pF Switch OFF –34 dB VCC = 2.3 V to 4.8 V, RL = 50 Ω, f = 240 MHz Switch ON –37 dB MHL path –3-dB bandwidth VCC = 2.3 V to 4.8 V, RL = 50 Ω, f = 240 MHz Switch ON 6.1 GHz USB path –3-dB bandwidth VCC = 2.3 V to 4.8 V, RL = 50 Ω, Switch ON 6.1 GHz SUPPLY VCC Power supply voltage 2.3 ICC Positive supply current VCC = 4.8 V, VIN = VCC or GND, VI/O = 0 V, Switch ON or OFF Icc, HZ Power supply current in high-Z mode VCC = 4.8 V, VIN = VCC or GND, VI/O = 0 V, Switch ON or OFF, OE = H 4.8 V 30 50 µA 5 10 µA NOM MAX 6.7 Timing Requirements MIN tpd Propagation delay 100 tswitch Switching time (SEL to output) tZH, ZL MHL enable time (OE to output) (MHL) tHZ, LZ 600 RL = 50 Ω, CL = 5 pF, VCC = 2.3 V to 4.8 V MHL disable time (OE to output) (MHL) tZH, ZL USB enable time (OE to output) (USB) tHZ, LZ ps See Figure 1 VI/O = 3.3 V or 0 V UNIT ns 100 µs 200 ns 100 µs 200 ns 20 ps VI/O = 0.8 V or 0 V USB disable time (OE to output) (USB) tSK(P) Skew of opposite transitions of same output USB+/3V D+/- MHL+/- 1.8 V CL RL VSEL 50 % 50 % 0V SEL CL RL tSWITCH 3V VMHL/USB VSEL tSWITCH 50 % 50 % 0V (1) All input pulses are suppleid by generators having the following characteristics: 355 ” 10 MHz, ZO = 50 tf < 5 ns , tr < 5 ns, (2) CL includes probe and jig capacitance. Figure 1. Timing Diagram Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 7 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 6.0 6.0 5.5 5.5 5.0 5.0 4.5 4.5 Ron (Ÿ) Ron (Ÿ) 6.8 Typical Characteristics 4.0 3.5 3.5 3.0 3.0 2.5 2.5 2.0 2.0 0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 Vin (V) 8 4.0 4.0 0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 Vin (V) C002 4.0 C002 Figure 2. ON-Resistance vs VI for MHL Switch Figure 3. ON-Resistance vs VI for USB Switch Figure 4. Differential S21 vs Frequency for MHL Switch Figure 5. Differential S21 vs Frequency for USB Switch Figure 6. Off Isolation vs Frequency for MHL Path Figure 7. Off Isolation vs Frequency for USB Path Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 Typical Characteristics (continued) Figure 8. Cross Talk vs Frequency for MHL Path Figure 9. Cross Talk vs Frequency for USB Path Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 9 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 7 Parameter Measurement Information VDD VOUT1 VON VOUT2 + Channel ON SEL ION VSEL + RON = (VON – VI/O1) / ION or (VON – VI/O2) / ION VSEL = H or L GND Figure 10. ON-State Resistance (RON) VDD VOUT1 VOUT2 + A SEL Channel OFF + VSEL IOZ VIN VSEL = H or L + GND Figure 11. OFF Leakage Current (IOZ) VDD Network Analyzer VOUT+ RS VS VOUT- RS Channel ON VS VSEL = H or L RS=RL=50Ω GND RL RL Figure 12. Bandwidth (BW) 10 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 8 Detailed Description 8.1 Overview The TS3USB3000 device is a 2-channel SPDT switch specially designed for the switching of high-speed MHL and USB 2.0 and 3.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (6.1 GHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs or from one USB connector to two processors or controllers. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. The device also has a low power mode that reduces the power consumption to 5 μA for portable applications with a battery or limited power budget. The device is designed for low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps). The TS3USB3000 device integrates ESD protection cells on all pins, is available in a tiny UQFN package (1.5 mm × 2 mm) and is characterized over the free-air temperature range from –40°C to +85°C. 8.2 Functional Block Diagram TS3USB3000 USB+ D+ MHL+ USB DMHL - SEL Control Logic OE Copyright © 2017, Texas Instruments Incorporated 8.3 Feature Description 8.3.1 Low Power Mode The TS3USB3000 has a low power mode that reduces the power consumption to 5 μA while the device is not in use. To put the device in low power mode and disable the switch, the bus-switch enable pin OE must be supplied with a logic High signal. 8.3.2 Overvoltage Protection When 9-V Short to D+/– Pin This section describes how to protect the TS3USB3000 and the surrounding system when the D+/– pin is exposed to voltages greater than 5 V and less than 9 V. Voltages higher than 9 V damages the device. In charging applications it is possible for the USB plug to be inserted in such a way that the VBUS pin shorts to the D+/– pin of the connector. If there are peripherals on the D+/– pin that cannot tolerate conditions up to 9 V they can be damaged or destroyed. The TS3USB3000 can be used to protect the system from excess voltage if the correct precautions are taken. Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 11 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com Feature Description (continued) In Figure 13, the system has an application processor (AP) that cannot survive 9 V on the USB data lines. The following procedure protects the system and the TS3USB3000. As stated in the Absolute Maximum Ratings table footnotes, the 9 V rating is only applicable while the VCC is powered within the voltage range of the recommended operating conditions and the OE pin is high. 1. After a charger is connected to the USB port, the AP detects that a DCP is attached. 2. The AP pulls the OE pin high to disable the switches. 3. The AP communicates to the Charger that it can negotiate for a faster charging mode with VBUS at 9 V. 4. The TS3USB3000 is now in a low-power state with the switches disabled and can protect the AP. 5V 9V Phone/Tablet Battery Charger IC 3.3 V Potential short in connector VCC VBUS MHL- D- D- USBMHL+ D+ D+ GND USB+ Application Processor SEL OE GND TS3USB3000 Copyright © 2017, Texas Instruments Incorporated Figure 13. Potential VBUS to D+/– Short Example 12 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 Feature Description (continued) 8.3.3 Pin Leakage When the voltage on the D+/– pins rises above VCC +1 V a leakage path in the device starts conducting as shown in Figure 14. The amount of leakage depends on the VCC voltage and the pin voltage. This leakage is governed by Equation 1: V -V Pin Leakage = D CC 12000 (1) Leakage Path VCC USBDMHLUSB+ D+ MHL+ SEL OE GND Figure 14. Potential Leakage Path D+/– to VCC 8.4 Device Functional Modes 8.4.1 High Impedance Mode The TS3USB3000 has a high impedance mode that places all the signal paths in a Hi-Z state while the device is not in use. To put the device in high impedance mode and disable the switch, the bus-switch enable pin OE must be supplied with a logic High signal as shown in Table 1. Table 1. Function Table SEL OE SWITCH STATUS X High Both USB and MHL switches in High-Z Low Low D+/D– to USB+/USB– High Low D+/D– to MHL+/MHL– Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 13 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information There are many USB applications in which the USB hubs or controllers have a limited number of USB I/Os or need to route signals from a single USB connector. The TS3USB3000 solution can effectively expand the limited USB I/Os by switching between multiple USB buses to interface them to a single USB hub or controller or route signals from on connector to two different locations. 9.2 Typical Application Figure 15 represents a typical application of the TS3USB3000 USB/MHL switch. The TS3USB3000 is used to switch signals between the USB path, which goes to the baseband or application processor, or the MHL path, which goes to the HDMI to MHL bridge. The TS3USB3000 has internal 6-MΩ pulldown resistors on SEL and OE. The pulldown on SEL ensure the USB channel is selected by default. The pulldown on OE enables the switch when power is applied. The TS5A3157 is a separate SPDT switch that is used to switch between MHL’s CBUS and the USB ID line that is needed for USB OTG (USB On-The-Go) application. V BAT To Battery Charger VCC TS3USB3000 USB_ D+ USB+ VBUS D+ USB_ D- Baseband or Application Processor USBD+ DDID GND SEL GPO 1 MHL+ MHL + MHL- MHL - HDMI to MHL Bridge CBUS OE HDMI GND GPO 2 MicroUSB Connector ID _USB COM TS5A3157 Copyright © 2017, Texas Instruments Incorporated Figure 15. Typical TS3USB3000 Application 9.2.1 Design Requirements Design requirements of the MHL and USB 1.0,1.1, and 2.0 standards must be followed. The TS3USB3000 has internal 6-MΩ pulldown resistors on SEL and OE, so no external resistors are required on the logic pins. The internal pulldown resistor on SEL ensures the USB channel is selected by default. The internal pulldown resistor on OE enables the switch when power is applied to VCC. 9.2.2 Detailed Design Procedure The TS3USB3000 can be properly operated without any external components. However, TI recommends that unused pins must be connected to ground through a 50-Ω resistor to prevent signal reflections back into the device. 14 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 Typical Application (continued) 9.2.3 Application Curves Figure 16. Eye Pattern: 0.7 Gbps With No Device The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate Figure 17. Time Interval Error Histogram: 0.7 Gbps With No Device The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate Figure 18. Eye Pattern: 0.7 Gbps for MHL Switch Figure 19. Time Interval Error Histogram: 0.7 Gbps for MHL Switch Figure 20. Eye Pattern: 2.2 Gbps With No Device Figure 21. Time Interval Error Histogram: 2.2 Gbps With No Device Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 15 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com Typical Application (continued) The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate Figure 22. Eye Pattern: 2.2 Gbps for MHL Switch Figure 23. Time Interval Error Histogram: 2.2 Gbps for MHL Switch Figure 24. Eye Pattern: 3 Gbps With No Device Figure 25. Time Interval Error Histogram: 3 Gbps With No Device The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate Figure 26. Eye Pattern: 3 Gbps for MHL Switch 16 The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate Figure 27. Time Interval Error Histogram: 3 Gbps for MHL Switch Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 Typical Application (continued) Figure 28. Eye Pattern: 4.5 Gbps With No Device The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate Figure 29. Time Interval Error Histogram: 4.5 Gbps With No Device The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate Figure 30. Eye Pattern: 4.5 Gbps for MHL Switch Figure 31. Time Interval Error Histogram: 4.5 Gbps for MHL Switch Figure 32. 480-Mbps USB 2.0 Eye Pattern With No Device Figure 33. 480-Mbps USB 2.0 Eye Pattern for USB Switch Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 17 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 10 Power Supply Recommendations Power to the device is supplied through the VCC pin and must follow the USB 1.0, 1.1, and 2.0 standards. TI recommends placing a bypass capacitor as close to the supply pin VCC as possible to help smooth out lower frequency noise to provide better load regulation across the frequency spectrum. 11 Layout 11.1 Layout Guidelines Place supply bypass capacitors as close to VCC pin as possible and avoid placing the bypass caps near the D± traces. The high-speed D± must match and be no more than 4 inches long; otherwise, the eye diagram performance may be degraded. A high-speed USB connection is made through a shielded, twisted pair cable with a differential characteristic impedance. In layout, the impedance of D+ and D– traces must match the cable characteristic differential impedance for optimal performance. Route the high-speed USB signals using a minimum of vias and corners which reduces signal reflections and impedance changes. When a via must be used, increase the clearance size around it to minimize its capacitance. Each via introduces discontinuities in the signal’s transmission line and increases the chance of picking up interference from the other layers of the board. Be careful when designing test points on twisted pair lines; through-hole pins are not recommended. When it becomes necessary to turn 90°, use two 45° turns or an arc instead of making a single 90° turn. This reduces reflections on the signal traces by minimizing impedance discontinuities. Do not route USB traces under or near crystals, oscillators, clock signal generators, switching regulators, mounting holes, magnetic devices or ICs that use or duplicate clock signals. Avoid stubs on the high-speed USB signals because they cause signal reflections. If a stub is unavoidable, then the stub must be less than 200 mm. Route all high-speed USB signal traces over continuous GND planes, with no interruptions. Avoid crossing over anti-etch, commonly found with plane splits. Due to high frequencies associated with the USB, a printed circuit board with at least four layers is recommended; two signal layers separated by a ground and power layer as shown in Figure 34. Signal 1 GND Plane Power Plane Signal 2 Figure 34. Four-Layer Board Stack-Up The majority of signal traces must run on a single layer, preferably Signal 1. Immediately next to this layer must be the GND plane, which is solid with no cuts. Avoid running signal traces across a split in the ground or power plane. When running across split planes is unavoidable, sufficient decoupling must be used. Minimizing the number of signal vias reduces EMI by reducing inductance at high frequencies. 18 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 11.2 Layout Example LEGEND VIA to Power Plane Polygonal Copper Pour VIA to GND Plane Bypass Capacitor V+ To Microcontroller 10 1 USB+ VCC SEL 9 USB port 2 USB– D+ 8 3 MHL+ D– 7 To USB connector MHL port 4 MHL– OE 6 GND 5 To Microcontroller Figure 35. Package Layout Diagram Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 19 TS3USB3000 SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 www.ti.com 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation For related documentation see the following: • USB 2.0 Board Design and Layout Guidelines • High-Speed Layout Guidelines Application Report • High-Speed Interface Layout Guidelines 12.2 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.3 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.4 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.5 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 12.6 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 20 Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 TS3USB3000 www.ti.com SCDS337F – DECEMBER 2012 – REVISED JUNE 2019 13.1 Package Option Addendum 13.1.1 Packaging Information Orderable Device (1) (2) (3) (4) (5) (6) Status (1) Package Type Package Drawing Pins Package Qty Eco Plan (2) Lead/Ball Finish (3) MSL Peak Temp (4) Op Temp (°C) Device Marking (5) (6) TS3USB3000MRSER ACTIVE UQFN RSE 10 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 DRJ, DR0, DRR TS3USB3000RSER ACTIVE UQFN RSE 10 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -40 to 85 DSJ, DSO, DSR The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PRE_PROD Unannounced device, not in production, not available for mass market, nor on the web, samples not available. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. space Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability information and additional product content details. TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material) space Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width. space MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature. space There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device space Multiple Device markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation of the previous line and the two combined represent the entire Device Marking for that device. Important Information and Disclaimer: The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release. In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis. Submit Documentation Feedback Copyright © 2012–2019, Texas Instruments Incorporated Product Folder Links: TS3USB3000 21 PACKAGE MATERIALS INFORMATION www.ti.com 6-Jun-2019 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant TS3USB3000MRSER UQFN RSE 10 3000 180.0 9.5 2.2 1.8 0.75 4.0 8.0 Q3 TS3USB3000RSER UQFN RSE 10 3000 180.0 9.5 1.7 2.2 0.75 4.0 8.0 Q1 Pack Materials-Page 1 PACKAGE MATERIALS INFORMATION www.ti.com 6-Jun-2019 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) TS3USB3000MRSER UQFN RSE 10 3000 189.0 185.0 36.0 TS3USB3000RSER UQFN RSE 10 3000 189.0 185.0 36.0 Pack Materials-Page 2 PACKAGE OUTLINE RSE0010A UQFN - 0.6 mm max height SCALE 7.000 PLASTIC QUAD FLATPACK - NO LEAD 1.55 1.45 B A PIN 1 INDEX AREA 2.05 1.95 C 0.6 0.5 SEATING PLANE 0.05 0.00 0.05 C 0.35 2X 0.25 0.1 C A B 0.05 C 8X 0.4 0.3 5 4 (0.12) TYP 0.45 2X 0.35 6 SYMM 2X 1.5 4X 9 1 6X 0.5 0.25 0.15 0.1 0.05 C A B C 10 PIN 1 ID (45 X 0.1) SYMM 4X 0.3 0.2 0.1 0.05 C A B C 4220307/A 03/2020 NOTES: 1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M. 2. This drawing is subject to change without notice. www.ti.com EXAMPLE BOARD LAYOUT RSE0010A UQFN - 0.6 mm max height PLASTIC QUAD FLATPACK - NO LEAD SYMM (R0.05) TYP 2X (0.6) 10 8X (0.55) 9 1 4X (0.25) SYMM 6X (0.5) (1.8) 4X (0.2) 4 6 5 2X (0.3) (1.35) LAND PATTERN EXAMPLE EXPOSED METAL SHOWN SCALE:30X 0.07 MAX ALL AROUND 0.07 MIN ALL AROUND SOLDER MASK OPENING METAL EXPOSED METAL SOLDER MASK OPENING EXPOSED METAL NON SOLDER MASK DEFINED (PREFERRED) METAL UNDER SOLDER MASK SOLDER MASK DEFINED SOLDER MASK DETAILS NOT TO SCALE 4220307/A 03/2020 NOTES: (continued) 3. For more information, see Texas Instruments literature number SLUA271 (www.ti.com/lit/slua271). www.ti.com EXAMPLE STENCIL DESIGN RSE0010A UQFN - 0.6 mm max height PLASTIC QUAD FLATPACK - NO LEAD SYMM (R0.05) TYP 10 2X (0.6) 8X (0.55) 1 9 4X (0.25) SYMM 6X (0.5) (1.8) 4X (0.2) 4 6 5 2X (0.3) (1.35) SOLDER PASTE EXAMPLE BASED ON 0.1 mm THICKNESS SCALE: 30X 4220307/A 03/2020 NOTES: (continued) 5. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate design recommendations. www.ti.com IMPORTANT NOTICE AND DISCLAIMER TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS. These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you permission to use these resources only for development of an application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources. TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2020, Texas Instruments Incorporated
