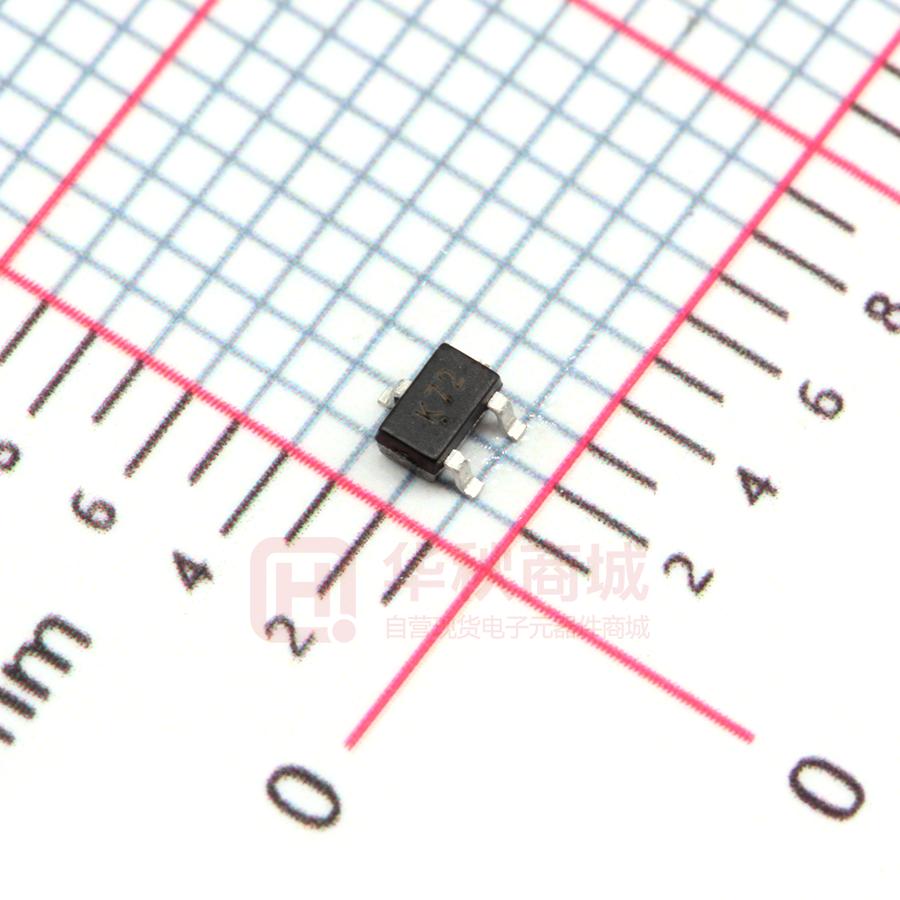

2N7002W

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-323 Plastic-Encapsulate MOSFETS 2N7002W MOSFET (N-Channel) V(BR)DSS ID RDS(on)MAX SOT-323   5Ω@10V  60 V 115mA 7Ω@5V   3 1. GATE 2. SOURCE 3. DRAIN 1 2 APPLICATION Load Switch for Portable Devices z DC/DC Converter FEATURE z High density cell design for low RDS(ON) Voltage controlled small signal switch z Rugged and reliable z z High saturation current capability z Equivalent Circuit MARKING MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Parameter Value Symbol Unit Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ± 20 V Continuous Drain Current ID 0.115 A Power Dissipation PD 0.200 W RθJA 625 ℃/W Junction Temperature TJ 150 Storage Temperature Tstg -50 ~+150 Thermal Resistance from Junction to Ambient www.cj-elec.com 1 ℃ J,Sep,2016 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Drain-Source Breakdown Voltage Symbol V(BR)DSS Test conditions VGS=0 V, ID=250 µA Min Typ Max 1.6 2.5 60 Unit V V(GS)th VDS=VGS, ID=250 µA Gate-body Leakage lGSS VDS=0 V, VGS=±20 V ±80 nA Zero Gate Voltage Drain Current IDSS VDS=60 V, VGS=0 V 80 nA On-state Drain Current ID(on) VGS=10 V, VDS=7 V Drain-Source On-Resistance RDS(on) Forward Trans conductance gfs Gate-Threshold Voltage Drain-source on-voltage VDS(on) Diode Forward Voltage VSD Input Capacitance * Ciss Output Capacitance * Coss Reverse Transfer Capacitance * Crss 1 500 mA VGS=10 V, ID=500mA 0.9 5 VGS=5 V, ID=50mA 1.1 7 Ω VDS=10 V, ID=200mA 80 500 ms VGS=10V, ID=500mA 0.5 3.75 V VGS=5V, ID=50mA 0.05 0.375 V IS=115mA, VGS=0 V 0.55 1.2 V 50 VDS=25V, VGS=0V, f=1MHz 25 pF 5 SWITCHING TIME Turn-on Time * td(on) Turn-off Time* td(off) VDD=25 V, RL=50Ω, 20 ns ID=500mA,VGEN=10 V RG=25 Ω 40 *These parameters have no way to verify. www.cj-elec.com 2 J,Sep,2016 Typical Characteristics Transfer Characteristics Output Characteristics 1.4 1.0 Ta=25℃ VGS=10V,9V,8V,7V,6V 1.2 Ta=25℃ VGS=5V Pulsed Pulsed (A) ID 0.8 DRAIN CURRENT DRAIN CURRENT ID (A) 0.8 1.0 VGS=4V 0.6 0.4 0.6 0.4 0.2 VGS=3V 0.2 0.0 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE VDS 0.0 5 0 2 4 6 GATE TO SOURCE VOLTAGE (V) RDS(ON) —— ID RDS(ON) —— 3 VGS (V) VGS 6 Ta=25℃ Ta=25℃ Pulsed RDS(ON) 2 ON-RESISTANCE ON-RESISTANCE RDS(ON) ( Ω) ( Ω) Pulsed VGS=5V 1 VGS=10V 0 0.0 0.2 0.4 0.6 DRAIN CURRENT 0.8 ID 1.0 4 ID=500mA 2 0 ID=50mA 0 6 GATE TO SOURCE VOLTAGE (A) 12 VGS 18 (V) IS —— VSD 2 Ta=25℃ SOURCE CURRENT IS (A) 1 Pulsed 0.3 0.1 0.03 0.01 3E-3 1E-3 0.2 0.4 0.6 0.8 1.0 SOURCE TO DRAIN VOLTAGE 1.2 1.4 VSD (V)  3 J,Sep,2016 6273DFNDJH2XWOLQH'LPHQVLRQV Symbol A A1 A2 b c D E E1 e e1 L L1  Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.200 0.400 0.080 0.150 2.000 2.200 1.150 1.350 2.150 2.450 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.008 0.016 0.003 0.006 0.079 0.087 0.045 0.053 0.085 0.096 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° 627 6XJJHVWHG3DG/D\RXW  ZZZFMHOHFFRP J,Sep,2016 6277DSHDQG5HHO SOT-323 Tape and reel SOT-323 Embossed Carrier Tape P0 d P1 Packaging Description: SOT-323 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). E C B F W A P A A A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-323 2.25 2.55 1.19 Ø1.55 1.75 3.50 4.00 4.00 2.00 8.00 SOT-323 Tape Leader and Trailer Trailer Tape 50±2 Empty Pockets Leader Tape 100±2 Empty Pockets Components SOT-323 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL 3000 pcs Reel Size Box 7 inch 30,000 pcs Box Size(mm) Carton Carton Size(mm) 203×203×195 120,000 pcs 438×438×220 ZZZFMHOHFFRP5 J,Sep,2016
