JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD

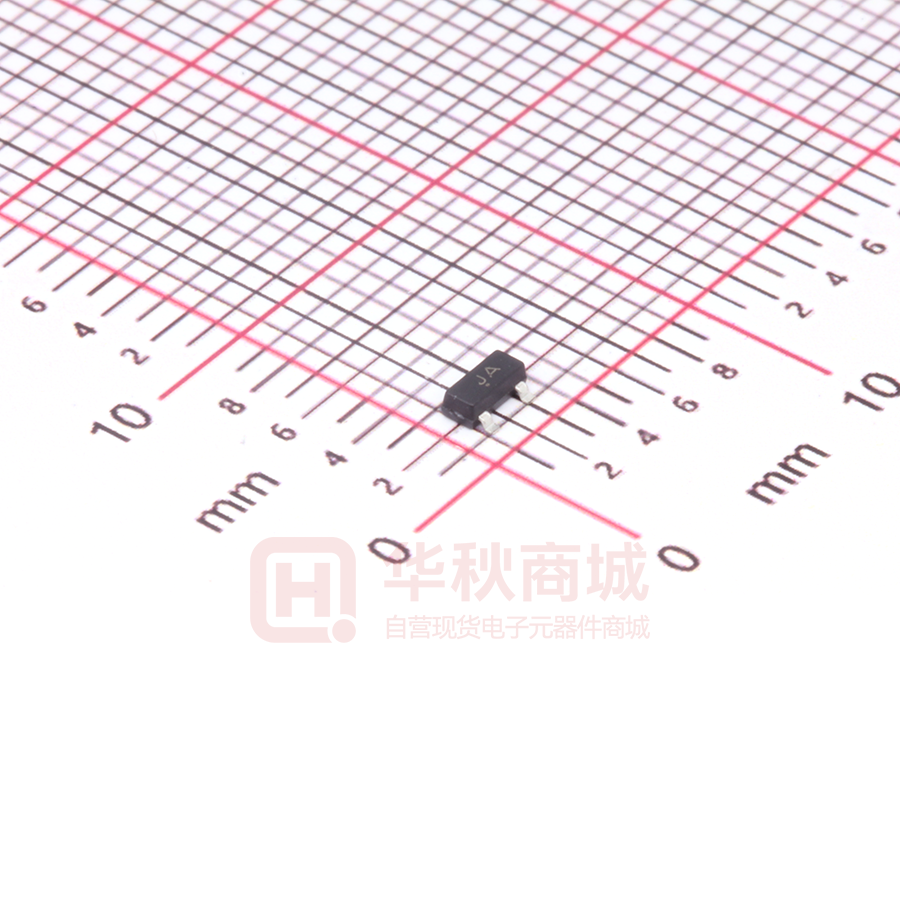

SOT-23 Plastic-Encapsulate Diodes
BAV74
SWITCHING DIODE
SOT-23
FEATURES
z
Fast Switching Speed
z
Surface Mount Package Ideally Suited for Automatic Insertion
For General Purpose Switching Applications
z
High Conductance
z
1
3
2
Marking: JA
JA
JA
Solid dot = Green molding compound device,
if none, the normal device
Maximum Ratings @Ta=25℃
Parameter
Symbol
Value
Unit
50
V
Non-Repetitive Peak Reverse Voltage
VRM
DC Blocking Voltage
VR
Average Rectified Output Current
IO
200
mA
Non-Repetitive Peak Forward Surge Current @t=8.3ms
IFSM
2.0
A
Power Dissipation
PD
225
mW
Thermal Resistance From Junction to Ambient
RθJA
556
℃/W
TJ
150
℃
TSTG
-55~+150
℃
Junction Temperature
Storage Temperature Range
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Reverse breakdown voltage
Symbol
V(BR)
Test
IR= 5µA
Reverse voltage leakage current
IR
VR=50V
Forward voltage
VF
Diode Capacitance
CD
Reveres recovery time
trr
www.cj-elec.com
conditions
Min
Max
50
Unit
V
0.1
µA
IF=100mA
1
V
VR=0, f=1MHz
2
pF
4
ns
IF=IR=10mA,RL=100Ω,
Irr=0.1×IR
1
B,Oct,2014
Typical Characteristics
Forward
Characteristics
Reverse
10000
300
Characteristics
(nA)
10
3
T =2
a
5℃
FORWARD CURRENT
REVERSE CURRENT IR
T=
a 10
0℃
30
IF
(mA)
100
1
0.3
0.1
0.0
Ta=100℃
1000
100
Ta=25℃
10
1
0.4
0.8
1.2
FORWARD VOLTAGE
VF
1.6
0
20
(V)
40
60
REVERSE VOLTAGE
80
VR
100
(V)
Power Derating Curve
Capacitance Characteristics
1.6
250
(mW)
f=1MHz
200
PD
1.4
1.2
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
1.0
0.8
0.6
150
100
50
0
0
4
8
12
REVERSE VOLTAGE
www.cj-elec.com
16
VR
20
0
(V)
25
50
75
100
AMBIENT TEMPERATURE
2
125
Ta
150
(℃)
B,Oct,2014
Symbol
A
A1
A2
b
c
D
E1
E
e
e1
L
Dimensions In Millimeters
Max.
Min.
1.050
1.250
0.000
0.100
1.050
1.150
0.300
0.500
0.100
0.200
2.820
3.020
1.500
1.700
2.650
2.950
0.950(BSC)
1.800
2.000
0.300
0.600
0°
8°
Dimensions In Inches
Min.
Max.
0.041
0.049
0.000
0.004
0.041
0.045
0.012
0.020
0.004
0.008
0.111
0.119
0.059
0.067
0.104
0.116
0.037(BSC)
0.071
0.079
0.012
0.024
0°
8°
-3L
3 B,Oct,2014
4 B,Oct,2014
