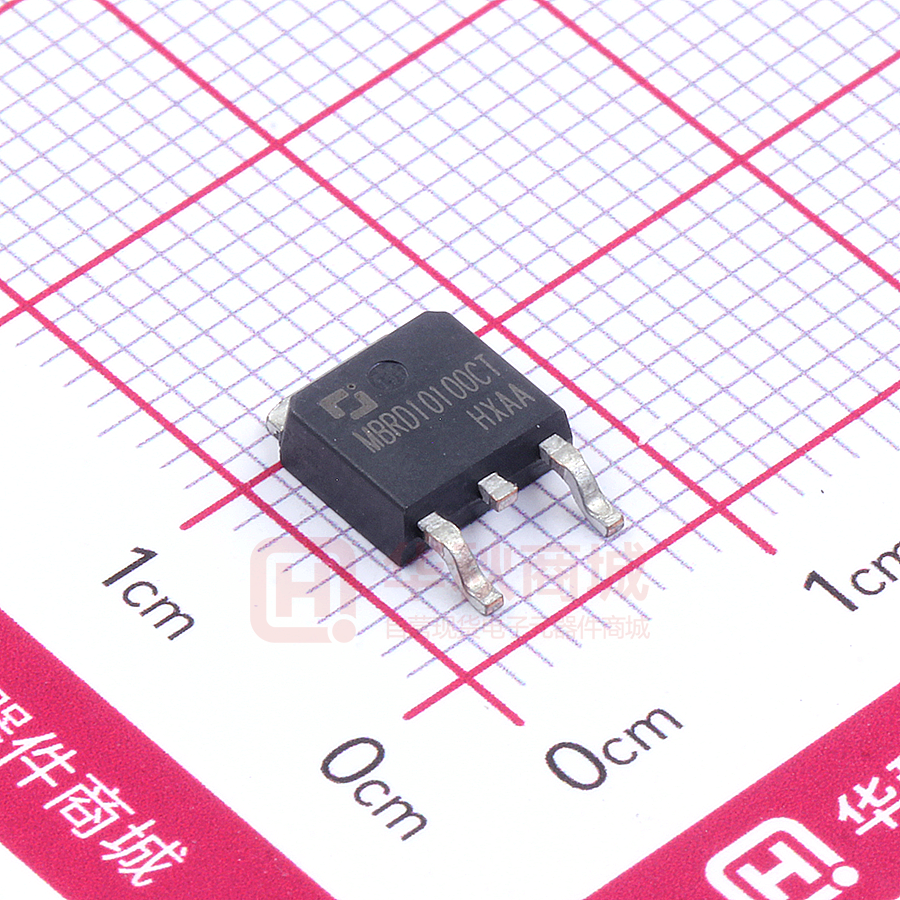

MBRD10100CT

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-252-2L Plastic-Encapsulate Diodes MBRD1070CT, 80CT, 90CT, 100CT TO-252-2L SCHOTTKY BARRIER RECTIFIER 1. ANODE FEATURES z Schottky Barrier Chip z Guard Ring Die Construction for Transient Protection z Low Power Loss,High Efficiency z High Surge Capability z High Current Capability and Low Forward Voltage Drop z For Use in Low Voltage, High Frequency Inverters,Free Wheeling, and Polarity Protection Applications 2. CATHODE 3. ANODE MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Value Symbol Parameter VRRM Peak repetitive reverse voltage VRWM Working peak reverse voltage VR DC blocking voltage VR(RMS) RMS reverse voltage IO IFSM Unit MBRD MBRD MBRD MBRD 1070CT 1080CT 1090CT 10100CT 70 80 90 100 V 49 56 63 70 V Average rectified output current@ Tc=100℃ Non-Repetitive peak forward surge current 8.3ms half sine wave 10 A 120 A Power dissipation 1.25 Thermal resistance from junction to ambient 80 ℃/W Tj Junction temperature 125 ℃ Tstg Storage temperature -55~+150 ℃ PD RΘJA www.cj-elec.com 1 W B,Mar,2016 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Device Test conditions MBRD1070CT Reverse voltage V(BR) Forward voltage Typical total capacitance Typ Max MBRD1080CT IR=0.1mA MBRD1090CT 80 V 90 100 MBRD1070CT VR=70V MBRD1080CT VR=80V MBRD1090CT VR=90V MBRD10100CT VR=100V VF(1) MBRD1070CT-10100CT IF=5A 0.85 VF(2)* MBRD1070CT-10100CT IF=10A 0.95 Ctot MBRD1070CT-10100CT VR=4V,f=1MHz IR Unit 70 MBRD10100CT Reverse current Min 0.1 150 mA V pF *Pulse test www.cj-elec.com 2 B,Mar,2016 Typical Characteristics Characteristics Reverse 1000 100 (uA) 1000 REVERSE CURRENT IR 10 T =2 a 5℃ 100 T= a 10 0℃ FORWARD CURRENT IF (mA) Forward 10000 Characteristics Ta=100℃ 10 1 Ta=25℃ 1 0 100 200 300 400 500 600 FORWARD VOLTAGE VF 700 800 900 0.1 1000 1 20 40 60 REVERSE VOLTAGE (mV) Capacitance Characteristics VR 80 100 100 125 (V) Power Derating Curve 2.00 600 Ta=25℃ f=1MHz 1.75 (W) PD 400 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) 500 300 200 1.50 1.25 1.00 0.75 0.50 100 0.25 0 0 5 10 15 20 REVERSE VOLTAGE www.cj-elec.com 25 VR 30 0.00 35 (V) 0 25 50 75 AMBIENT TEMPERATURE 3 Ta (℃ ) B,Mar,2016 Symbol A A1 B b c c1 D D1 E e e1 M N L L1 L2 V ĭ www.cj-elec.com Dimensions In Millimeters Max. Min. 2.380 2.200 0.000 0.100 0.800 1.400 0.710 0.810 0.460 0.560 0.460 0.560 6.500 6.700 5.130 5.460 6.000 6.200 2.286 TYP. 4.327 4.727 1.778REF. 0.762REF. 9.800 10.400 2.9REF. 1.400 1.700 4.830 REF.   4 Dimensions In Inches Min. Max. 0.087 0.094 0.000 0.004 0.031 0.055 0.028 0.032 0.018 0.022 0.018 0.022 0.256 0.264 0.202 0.215 0.236 0.244 0.090 TYP. 0.170 0.186 0.070REF. 0.018REF. 0.386 0.409 0.114REF. 0.055 0.067 0.190 REF.   B,Mar,2016 To-252(4R)-2L Tape and Reel www.cj-elec.com 5 B,Mar,2016
