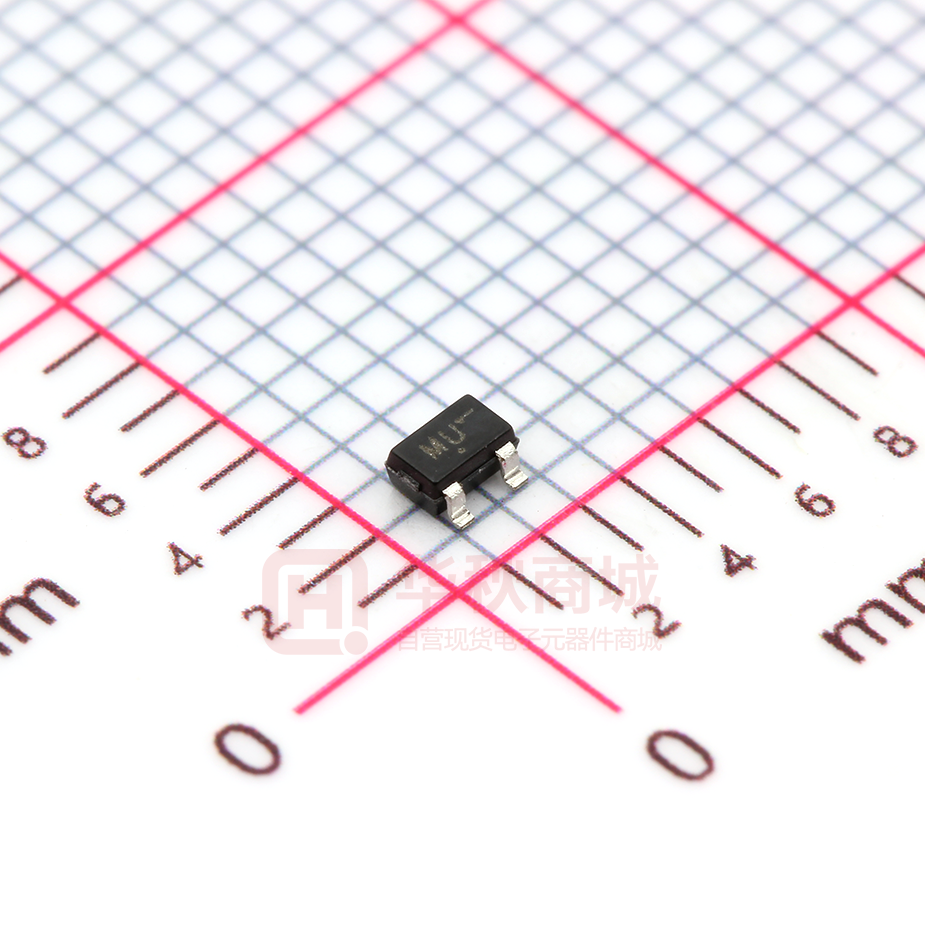

M1MA142WKT1G

M1MA141WKT1G, M1MA142WKT1G, SM1MA142WKT1G, Common Cathode Silicon Dual Switching Diode http://onsemi.com This Common Cathode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC−70 package which is designed for low power surface mount applications. SC−70 (SOT−323) CASE 419 STYLE 5 Features      Fast trr, < 3.0 ns Low CD, < 2.0 pF AEC−Q101 Qualified and PPAP Capable S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* CATHODE 3 MAXIMUM RATINGS (TA = 25C) 1 Rating Symbol Reverse Voltage M1MA141WKT1G M1MA142WKT1G, SM1MA142WKT1G VR Peak Reverse Voltage M1MA141WKT1G M1MA142WKT1G, SM1MA142WKT1G VRM Forward Current Single Dual IF Peak Forward Current Single Dual Peak Forward Surge Current M1MA141WKT1G M1MA142WKT1G, SM1MA142WKT1G IFM IFSM (Note 1) Value Unit Vdc 40 80 225 340 500 750 mAdc Mx = Device Code x = T for 141 U for 142 M = Date Code* G = Pb−Free Package mAdc (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. Symbol Max Unit Power Dissipation PD 150 mW Junction Temperature TJ 150 C Storage Temperature Tstg −55 to + 150 C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. t = 1 SEC *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.  Semiconductor Components Industries, LLC, 2011 November, 2011 − Rev. 9 Mx M G G mAdc 100 150 THERMAL CHARACTERISTICS Rating MARKING DIAGRAM Vdc 40 80 ANODE 2 1 ORDERING INFORMATION Package Shipping† M1MA141WKT1G SC−70 (Pb−Free) 3,000 / Tape & Reel M1MA142WKT1G SC−70 (Pb−Free) 3,000 / Tape & Reel SM1MA142WKT1G SC−70 (Pb−Free) 3,000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: M1MA141WKT1/D M1MA141WKT1G, M1MA142WKT1G, SM1MA142WKT1G, ELECTRICAL CHARACTERISTICS (TA = 25C) Characteristic Reverse Voltage Leakage Current M1MA141WKT1G M1MA142WKT1G, SM1MA142WKT1G Condition Symbol VR = 35 V VR = 75 V IR Min Max − − 0.1 0.1 − 1.2 40 80 − − Unit mAdc Forward Voltage IF = 100 mA VF Reverse Breakdown Voltage M1MA141WKT1G M1MA142WKT1G, SM1MA142WKT1G IR = 100 mA VR VR = 0, f = 1.0 MHz CD − 2.0 pF IF = 10 mA, VR = 6.0 V, RL = 100 W, Irr = 0.1 IR trr (Note 2) − 3.0 ns Diode Capacitance Reverse Recovery Time (Figure 1) 2. trr Test Circuit http://onsemi.com 2 Vdc Vdc M1MA141WKT1G, M1MA142WKT1G, SM1MA142WKT1G, RECOVERY TIME EQUIVALENT TEST CIRCUIT INPUT PULSE tr OUTPUT PULSE tp trr IF t t 10% RL A Irr = 0.1 IR 90% VR IF = 10 mA VR = 6 V RL = 100 W tp = 2 ms tr = 0.35 ns Figure 1. Recovery Time Equivalent Test Circuit 10 100 IR , REVERSE CURRENT (A) TA = 85C 10 TA = -40C 1.0 TA = 25C TA = 125C 1.0 TA = 85C 0.1 TA = 55C 0.01 TA = 25C 0.001 0.1 0.2 0.4 0.6 0.8 1.0 VF, FORWARD VOLTAGE (VOLTS) 0 1.2 10 Figure 2. Forward Voltage 20 30 40 VR, REVERSE VOLTAGE (VOLTS) Figure 3. Reverse Current 0.68 CD, DIODE CAPACITANCE (pF) IF, FORWARD CURRENT (mA) TA = 150C 0.64 0.6 0.56 0.52 0 2 4 6 VR, REVERSE VOLTAGE (VOLTS) Figure 4. Diode Capacitance http://onsemi.com 3 8 50 M1MA141WKT1G, M1MA142WKT1G, SM1MA142WKT1G, PACKAGE DIMENSIONS SC−70 (SOT−323) CASE 419−04 ISSUE N D NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. e1 DIM A A1 A2 b c D E e e1 L HE 3 E HE 1 2 b e A 0.05 (0.002) c A2 MIN 0.80 0.00 0.30 0.10 1.80 1.15 1.20 0.20 2.00 MILLIMETERS NOM MAX 0.90 1.00 0.05 0.10 0.70 REF 0.35 0.40 0.18 0.25 2.10 2.20 1.24 1.35 1.30 1.40 0.65 BSC 0.38 0.56 2.10 2.40 MIN 0.032 0.000 0.012 0.004 0.071 0.045 0.047 0.008 0.079 INCHES NOM 0.035 0.002 0.028 REF 0.014 0.007 0.083 0.049 0.051 0.026 BSC 0.015 0.083 MAX 0.040 0.004 0.016 0.010 0.087 0.053 0.055 0.022 0.095 STYLE 5: PIN 1. ANODE 2. ANODE 3. CATHODE L A1 SOLDERING FOOTPRINT* 0.65 0.025 0.65 0.025 1.9 0.075 0.9 0.035 0.7 0.028 SCALE 10:1 mm Ǔ ǒinches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 http://onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative M1MA141WKT1/D
