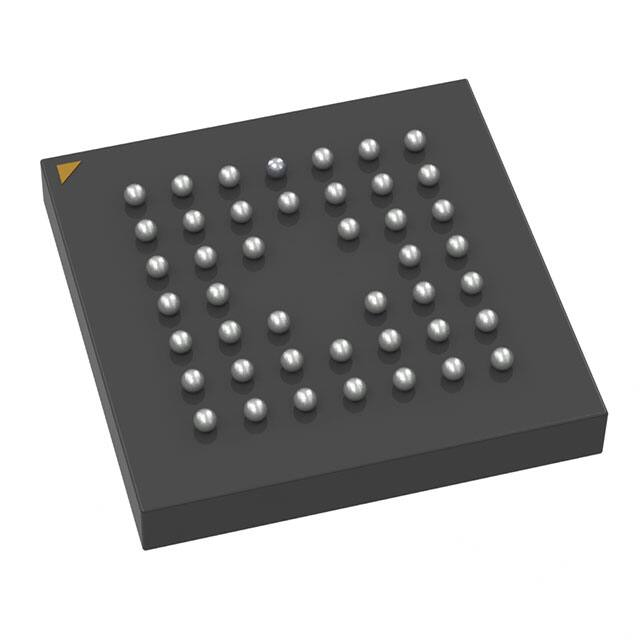

MT9V111IA7ATC-TR

MT9V111 - 1/4-Inch SOC VGA Digital Image Sensor Features 1/4-Inch SOC VGA CMOS Active-Pixel Digital Image Sensor MT9V111 Datasheet, Rev. N For the latest data sheet revision, please visit www.onsemi.com Features Table 1: • System-On-a-Chip (SOC)—Completely integrated camera system • Ultra low-power, low cost CMOS image sensor • Superior low-light performance • Up to 30 fps progressive scan at 27 MHz for highquality video at VGA resolution • On-chip Image Flow Processor (IFP) performs sophisticated processing: color recovery and correction, sharpening, gamma, lens shading correction, on-the-fly defect correction, 2X fixed zoom • Image decimation to arbitrary size with smooth, continuous zoom and pan • Automatic exposure, white balance and black compensation, flicker avoidance, color saturation, and defect identification and correction, auto frame rate, back light compensation • Xenon and LED-type flash support • Two-wire serial programming interface • ITU_R BT.656 (YCbCr), YUV, 565RGB, 555RGB, and 444RGB output data formats Parameter Optical Format Active Imager Size Active Pixels Pixel Size Color Filter Array Shutter Type Maximum Data Rate/ Master Clock Frame Rate VGA (640 x 480) CIF (352 x 288) QVGA (320 x 240) ADC Resolution Responsivity Dynamic Range SNRMAX Supply Voltage Power Consumption Operating Temperature Packaging Applications • • • • Key Performance Parameters Value 1/4-inch (4:3) 3.58mm(H) x 2.69mm(V) 4.48mm (Diagonal) 640H x 480V (VGA) 5.6 um x 5.6 um RGB Bayer Pattern Electronic Rolling Shutter (ERS) 1213.5 MPS/2427 MHz 15 fps at 12 MHz (default), programmable up to 30 fps at 27 MHz Programmable up to 60 fps Programmable up to 90 fps 10-bit, on-chip 1.9 V/lux-sec (550nm) 60 dB 45 dB 2.8V +0.25V
