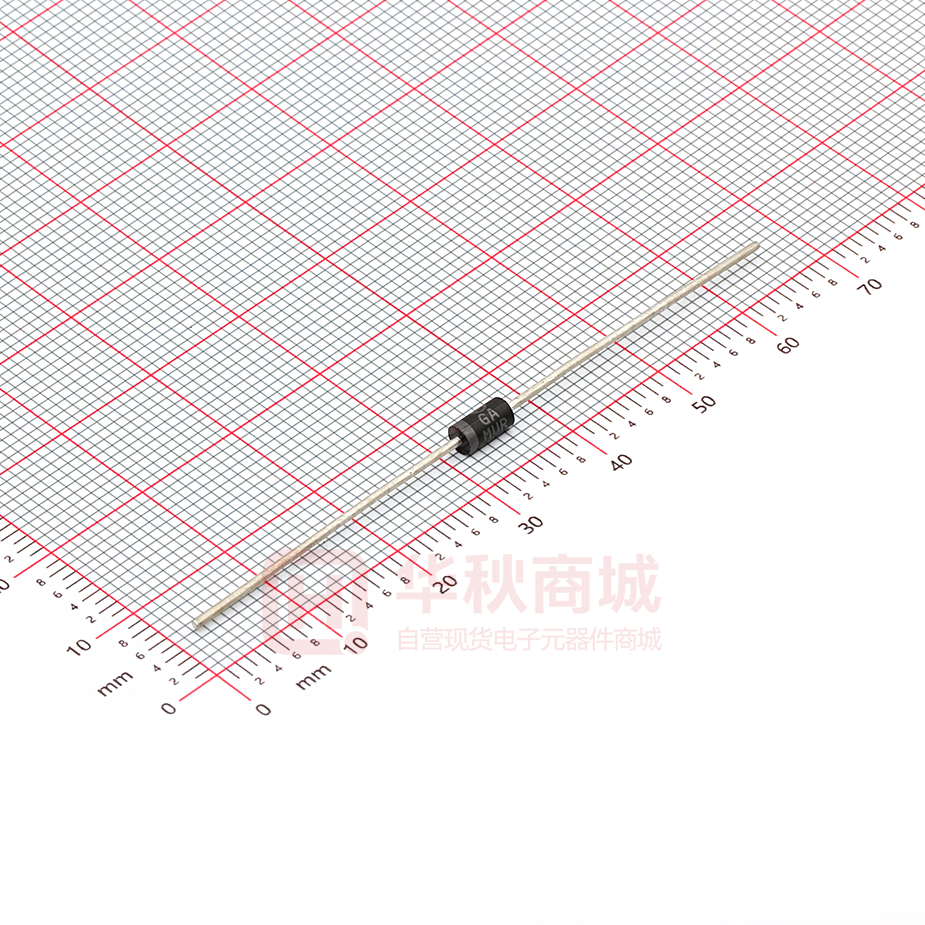

MUR220RLG

MUR220 Preferred Device SWITCHMODEt Power Rectifier These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes. Features • • • • • • http://onsemi.com Ultrafast 25 Nanosecond Recovery Times 175°C Operating Junction Temperature Low Forward Voltage Low Leakage Current High Temperature Glass Passivated Junction These are Pb−Free Devices* ULTRAFAST RECTIFIER 2.0 AMPERES − 200 VOLTS Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 0.4 Gram (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal AXIAL LEAD CASE 059−10 PLASTIC Leads are Readily Solderable • Lead Temperature for Soldering Purposes: • 260°C Max. for 10 Seconds Polarity: Cathode Indicated by Polarity Band MAXIMUM RATINGS Rating Symbol Value Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM VR 200 − V Average Rectified Forward Current (Note 1) (Square Wave Mounting Method #3 Per Note 3) IF(AV) 2.0 @ TA = 90°C A Non−Repetitive Peak Surge Current (Surge applied at rated load conditions, halfwave, single phase, 60 Hz) IFSM 35 A Operating Junction Temperature and Storage Temperature Range TJ, Tstg − 65 to +175 °C Symbol Max Unit RqJA (Note 3) °C/W THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction−to−Ambient Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2006 July, 2006 − Rev. 7 1 MARKING DIAGRAM A MUR220 YYWW G G A = Assembly Location MUR220 = Device Code YY = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Package Shipping † MUR220 Axial Lead** 1000 Units / Bulk MUR220G Axial Lead** 1000 Units / Bulk MUR220RL Axial Lead** 5000 / Tape & Reel MUR220RLG Axial Lead** 5000 / Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. **This package is inherently Pb−Free. Preferred devices are recommended choices for future use and best overall value. Publication Order Number: MUR220/D MUR220 ELECTRICAL CHARACTERISTICS Characteristic Symbol Maximum Instantaneous Forward Voltage (Note 2) (IF = 2.0 Amp, TJ = 150°C) (IF = 2.0 Amp, TJ = 25°C) vF Maximum Instantaneous Reverse Current (Note 2) (Rated dc Voltage, TJ = 150°C) (Rated dc Voltage, TJ = 25°C) iR Maximum Reverse Recovery Time (IF = 1.0 Amp, di/dt = 50 Amp/ms) (IF = 0.5 Amp, IR = 1.0 Amp, IREC = 0.25 A) trr Maximum Forward Recovery Time (IF = 1.0 A, di/dt = 100 A/ms, IREC to 1.0 V) tfr Value Unit V 0.75 0.95 mA 50 2.0 ns 35 25 25 ns 2. Pulse Test: Pulse Width = 300 ms, Duty Cycle ≤ 2.0%. 10 I , INSTANTANEOUS FORWARD CURRENT (AMPS) F I F , INSTANTANEOUS FORWARD CURRENT (AMPS) 10 VF @ 150°C 1.0 VF @ 150°C 1.0 125°C 125°C 75°C 75°C 25°C 25°C 0.1 0.1 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 VF, INSTANTANEOUS VOLTAGE (VOLTS) VF, INSTANTANEOUS VOLTAGE (VOLTS) Figure 1. Maximum Forward Voltage Figure 2. Typical Forward Voltage http://onsemi.com 2 1.2 1.3 MUR220 10 100 IR @ 150°C IR, REVERSE CURRENT (m A) IR, REVERSE CURRENT (m A) IR @ 150°C 125°C 10 75°C 1.0 25°C 0.1 25°C 0.01 40 60 80 100 120 140 160 180 200 20 60 80 100 120 140 160 VR, REVERSE VOLTAGE (VOLTS) VR, REVERSE VOLTAGE (VOLTS) Figure 4. Typical Reverse Current 5.0 4.0 3.0 dc 2.0 SQUARE WAVE 1.0 50 100 150 200 SQUARE WAVE dc 1.5 1.0 0.5 0 0 0.5 1.0 1.5 2.0 IF(AV), AVERAGE FORWARD CURRENT (AMPS) Figure 5. Current Derating Figure 6. Power Dissipation 50 TJ = 25°C 30 20 10 7.0 5.0 0 10 20 30 40 VR, REVERSE VOLTAGE (VOLTS) Figure 7. Typical Capacitance http://onsemi.com 3 200 180 2.0 TA, AMBIENT TEMPERATURE (°C) C, CAPACITANCE (pF) 0 40 Figure 3. Maximum Reverse Current PF(AV), AVERAGE POWER DISSIPATION (WATTS) 20 IF(AV) , AVERAGE FORWARD CURRENT (AMPS) 75°C 0.1 0.001 0.01 0 125°C 1.0 50 2.5 MUR220 NOTE 3. − AMBIENT MOUNTING DATA Data shown for Thermal Resistance, Junction−to−Ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured. TYPICAL VALUES FOR RqJA IN STILL AIR Lead 1/8 52 67 Mounting Method 1 2 RqJA 3 Length, L 1/4 1/2 65 72 80 87 Units °C/W °C/W 50 °C/W MOUNTING METHOD 1 ÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉ L L MOUNTING METHOD 2 ÉÉÉÉÉÉÉÉÉÉÉÉ ÉÉÉÉÉÉÉÉÉÉÉÉ L L Vector Pin Mounting ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ MOUNTING METHOD 3 L = 3/8 ″ Board Ground Plane P.C. Board with 1−1/2 ″ X 1−1/2″ Copper Surface http://onsemi.com 4 MUR220 PACKAGE DIMENSIONS AXIAL LEAD CASE 59−10 ISSUE U NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. ALL RULES AND NOTES ASSOCIATED WITH JEDEC DO−41 OUTLINE SHALL APPLY 4. POLARITY DENOTED BY CATHODE BAND. 5. LEAD DIAMETER NOT CONTROLLED WITHIN F DIMENSION. B K D DIM A B D F K F A POLARITY INDICATOR OPTIONAL AS NEEDED (SEE STYLES) INCHES MIN MAX 0.161 0.205 0.079 0.106 0.028 0.034 −−− 0.050 1.000 −−− MILLIMETERS MIN MAX 4.10 5.20 2.00 2.70 0.71 0.86 −−− 1.27 25.40 −−− STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE F K SWITCHMODE is a trademark of Semiconductor Components Industries, LLC. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5773−3850 http://onsemi.com 5 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative MUR220/D
