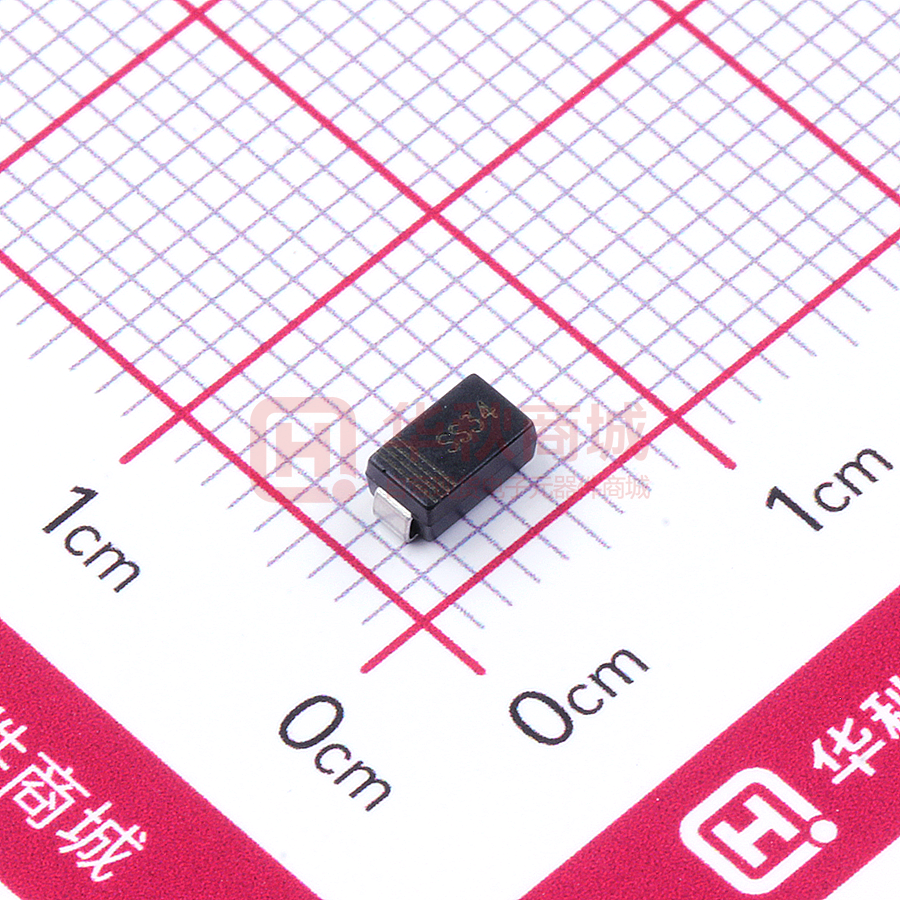

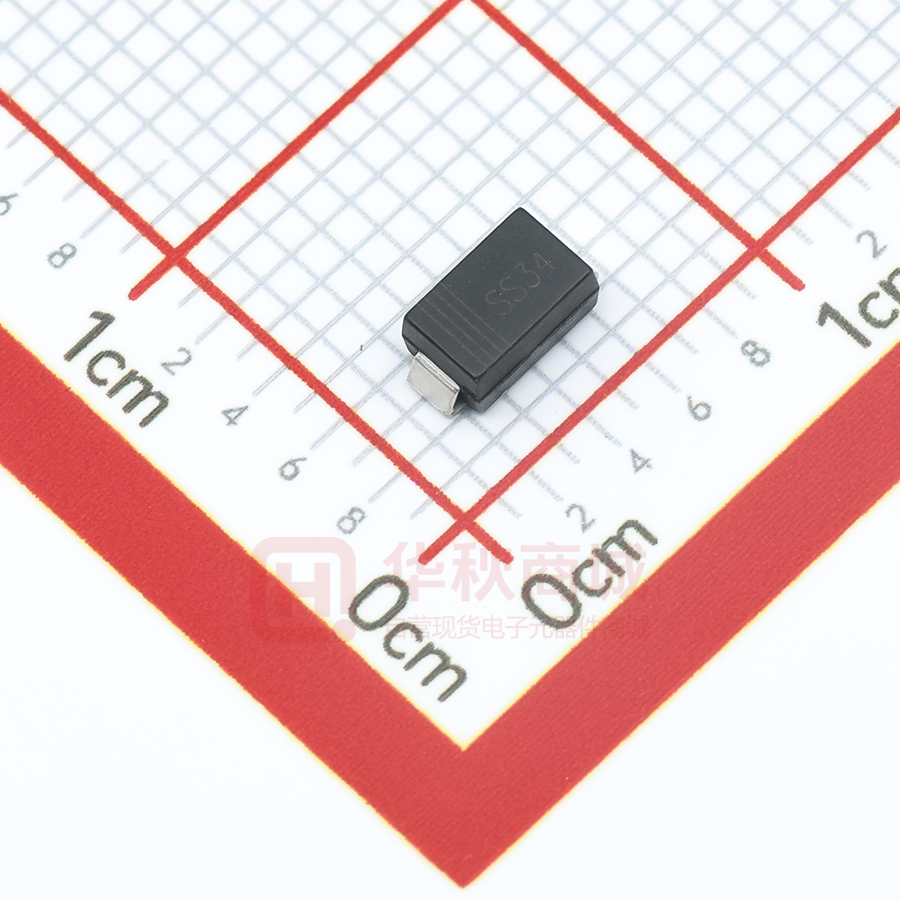

SS34A

Plastic-Encapsulate Diodes SCHOTTKY DIODES SS32---SS310 FEATURES Plastic package has Underwriters Laboratory Flammability Classification 94V-0 52 0 32 For surface mounted applications 7 4.50 Metal silicon junction, majority carrier conduction Low power loss, high efficiency. High current capability, low forward voltage drop MECHANICAL DATA SMA (DO-214AC) molded plastic body leads solderable per MIL-STD-750, Method 2026 DO-214AC (SMA) color band denotes cathode end MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Paramete Symbols SS32 SS33 SS34 SS35 SS36 SS38 SS310 Unit r Reverse Voltage Maximum Repetitive Peak VRRM A20 Maximum RMS Voltage VRMS Maximum DC Blocking Voltage VDC Maximum Average Forward Rectified Current Peak Forward Surge Current 8.3 ms Single Half I(AV) 3 A Sine-wave Superimposed on Rated Load IFSM 80 A (JEDEC Method) Maximum Instantaneous Forward Voltage at 3 A Maximum DC Reverse Current TA = 25 OC at Rated DC Blocking Voltage Typical Thermal Resistance O TA = 100 C 1) Operating Junction Temperature Range Storage Temperature Range A30 A40 A50 A60 A80 A100 V 14 21 28 35 42 56 70 V 20 30 40 50 60 80 100 V VF 0.55 IR 20 0.75 V 0.2 88 RθJA RθJL Tj Tstg mA 10 O C/W 28 - 65 to + 125 - 65 to + 150 - 65 to + 150 O C O C 1)P.C.B. mounted with 0.2 X 0.2" (5 X 5 mm) copper pad areas. GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes SS32---SS310 Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P2
