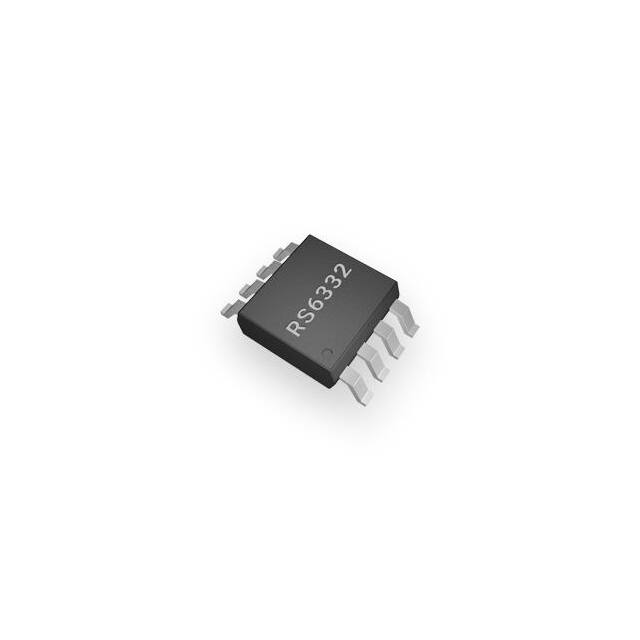

RS6332PXK

此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P 1.1MHz, Precision, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION • HIGH GAIN BANDWIDTH:1.1MHz • RAIL-TO-RAIL INPUT AND OUTPUT ±0.5mV Max Vos (RS6331P, RS6332P) ±0.8mV Max Vos (RS6334P) • INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V • SUPPLY RANGE: +2.1V to +5.5V • SPECIFIED UP TO +125°C • Micro SIZE The RS6331P, RS6332P, RS6334P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS6331P, RS6332P and RS6334P has lower offset, which is guaranteed not upper than ±0.5mV (RS6331P, RS6332P) / ±0.8mV (RS6334P) at 25°C with Vs = 5V, VCM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS6331P, RS6332P, RS6334P families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single supplies of 2.1V to 5.5V or dual power supplies of ±1.05V to ±2.75V. PACKAGES: SOT23-5, SOT353(SC70-5) APPLICATIONS • SENSORS • PHOTODIODE AMPLIFICATION • ACTIVE FILTERS • TEST EQUIPMENT • DRIVING A/D CONVERTERS PIN CONFIGURATIONS RS6331P 1 V- 2 +IN 3 5 V+ + IN 1 V- 2 - IN 3 5 V+ 4 OUT + OUT RS6331BP + - 4 -IN SOT23-5/ SOT353(SC70-5) SOT23-5/ SOT353(SC70-5) RS6334P RS6332P -IN A 2 +IN A 3 V- 8 1 OUT A 4 + A B+ V+ 7 OUTB 6 -IN B 5 +IN B SOIC-8(SOP8),MSOP-8,TSSOP-8 Note: NC indicates no internal connection REV C.1 OUT A 1 -IN A 2 14 OUT D 13 +IN A -IN D 3 12 +IN D A - + D + - V+ 4 11 V- +IN B 5 10 +IN C -IN B 6 9 -IN C OUT B 7 8 OUT C - + B + C SOIC-14(SOP14),TSSOP-14 1 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage, V+ to V-...............................................7.0V Input Terminals, Voltage (2) …………... – 0.5 to (V+) + 0.5V Current (2)…………………....….... ±10mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….………… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C SOT23-5, SOT23-6………………….………………200°C/W SOT353(SC70-5) ..………………….………………250°C/W MSOP-8, SOIC-8, TSSOP-8.………...…………... 150°C/W SOIC-14, TSSOP-14………….……….……………100°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................3000V MM ……………………….........………………...……….200V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER TEMPERATURE RANGE PACKAGE LEAD PACKAGE MARKING PACKAGE OPTION RS6331PXF -40℃~125℃ SOT23-5 6331P Tape and Reel,3000 RS6331BPXF -40℃~125℃ SOT23-5 6331BP Tape and Reel,3000 RS6331PXC5 -40℃~125℃ SOT353(SC70-5) 6331P Tape and Reel,3000 RS6331BPXC5 -40℃~125℃ SOT353(SC70-5) 6331BP Tape and Reel,3000 RS6332PXK -40℃~125℃ SOIC-8(SOP8) RS6332P Tape and Reel,2500 RS6332PXM -40℃~125℃ MSOP-8 RS6332P Tape and Reel,3000 RS6332PXQ -40℃~125℃ TSSOP-8 RS6332P Tape and Reel,3000 RS6334PXP -40℃~125℃ SOIC-14(SOP14) RS6334P Tape and Reel,2500 RS6334PXQ -40℃~125℃ TSSOP-14 RS6334P Tape and Reel,3000 RS6331P RS6332P RS6334P 2 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS6331P, RS6332P, RS6334P MIN TYP MAX UNITS POWER SUPPLY Vs Operating Voltage Range IQ Quiescent Current/Amplifier PSRR Power-Supply Rejection Ratio 25C 2.1 85 25C Vs=2.1V to 5.5V, Vcm=(V-)+0.5V 25C -40C to 125C 75 65 5.5 V 145 uA 92 dB INPUT Vos Vos TC Input Offset Voltage Input Offset Voltage Average Drift RS6331P 25C ±0.2 ±0.5 RS6332P 25C ±0.2 ±0.5 RS6334P 25C ±0.3 ±0.8 2 -40C to 125C mV uV/C IB Input Bias Current 25C 10 50 pA Ios Input Offset Current 25C 10 50 pA 5.6 V Vcm CMRR Common-Mode Voltage Range Common-Mode Rejection Ratio Vs= 5.5V Vs= 5.5V, Vcm =-0.1V to 4V Vs= 5.5V, Vcm =-0.1V to 5.6V 25C -0.1 25C -40C to 125C 25C -40C to 125C 75 68 63 57 95 25C -40C to 125C 25C -40C to 125C 95 85 100 92 110 85 dB OUTPUT AOL Open-Loop Voltage Gain RL=10KΩ, Vo= 0.05V to 4.95V RL=2KΩ RL=10KΩ 120 dB 25C 25 8 mV 25C 120 mA Slew Rate 25C 0.5 V/us Gain-Bandwidth Product 25C 1.1 MHz Phase Margin 25C 64 ° 1.3 us Output Swing From Rail Iout RL=2KΩ, Vo= 0.15V to 4.85V Output Current Source FREQUENCY RESPONSE SR GBP PM ts Setting Time,0.1% Overload Recovery Time VIN·Gain≥VS 4.7 us Turn-on time Vs= 5V 20 us NOISE en f = 1KHz 25C 22 nV/√Hz f = 10KHz 25C 20 nV/√Hz Input Voltage Noise Density 3 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. 100 80 110 120 90 100 70 60 50 40 30 20 CMRR(dB) Gain Phase Phase Margin (°) 120 Open-Loop Gain(dB) COMMON−MODE REJECTION RATIO vs FREQUENCY OPEN-LOOP GAIN AND PHASE vs FREQUENCY -20 10 100 1K 10K 100K 1M 60 40 10 0 80 20 -10 10M 1 10 1000 120 100 100 PSRR(dB) Voltage Noise(nV/√Hz) 10K POWER−SUPPLY REJECTION RATIO vs FREQUENCY INPUT VOLTAGE NOISE SPECTRAL DENSITY vs FREQUENCY 10 80 60 40 1 20 10 100 1K 10K 100K 1 10 Frequency(Hz) 100 100 1K 10K Frequency(KHz) Vs=5V QUIESCENT CURRENT vs TEMPERATURE 100 95 Quiescent Current(uA) Quiescent Current(uA) 1K Frequency(KHz) Vs=5V Frequency(Hz) | 100 90 85 80 75 70 65 60 QUIESCENT CURRENT vs TEMPERATURE 95 90 85 80 75 70 65 60 -40 -20 0 20 40 60 80 100 120 140 -40 -20 Temperature(℃) Vs=5V 0 20 40 60 80 100 120 140 Temperature(℃) Vs=2.7V 4 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. SINK CURRENT vs TEMPERATURE SOURCE CURRENT vs TEMPERATURE 145 Source Current(mA) Sink Current(mA) 140 135 130 125 120 115 110 105 100 -40 -20 0 150 145 140 135 130 125 120 115 110 105 100 -40 -20 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 Temperature(℃) Temperature(℃) INPUT BIAS CURRENT vs TEMPERATURE SMALL-SIGNAL STEP RESPONSE 10K 50mV/div 1K 100 10 1 -40 -20 0 20 40 60 80 100 120 140 200ns/div Temperature(℃) POSITIVE OVERVOLTAGE RECOVERY 0V 0V VOUT 1V/div VIN 200mV/div LARGE−SIGNAL STEP RESPONSE 1V/div Input Bias Current(pA) 100K VS=±2.5V G=-100 1us/div 4us/div 5 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P TYPICAL CHARACTERISTICS At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, VOUT = VS/2, unless otherwise noted. VIN 0V 200mV/div NEGATIVE OVERVOLTAGE RECOVERY VOUT 1V/div 0V VS=±2.5V G=-100 1us/div 6 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P APPLICATION NOTES The RS6331P, RS6332P, RS6334P, are high precision, rail-to-rail operational amplifiers that can be run from a single-supply voltage 2.1V to 5.5V (±1.05V to ±2.75V). Supply voltages higher than 7V (absolute maximum) can permanently damage the amplifier. INSTRUMENTATION AMPLIFIER In the three-op amp, instrumentation amplifier configuration shown in Figure2, Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. V1 RS6334P Good layout practice mandates use of a 0.1uF capacitor place closely across the supply pins. RS6334P LAYOUT GUIDELINS V2 Attention to good layout practices is always recommended. Keep traces short. When possible, use a PCB ground plane with surface-mount components placed as close to the device pins as possible. Place a 0.1uF capacitor closely across the supply pins. These guidelines should be applied throughout the analog circuit to improve performance and provide benefits such as reducing the EMI susceptibility. VOUT RS6334P Figure2. Amplifier instrumentation amplifier +Vs 10uF 0.1uF Vin Vip RS6331P Vout 10uF 0.1uF -Vs Figure1. Amplifier with Bypass Capacitors 7 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P PACKAGE OUTLINE DIMENSIONS SOT23-5 D 1.90 b 2.59 E1 E 0.99 0.95 0.69 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 L A1 Symbol c θ Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950(BSC) 0.037(BSC) e1 1.800 2.000 0.071 0.079 L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° 8 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P SOT353(SC70-5) D 1.30 b 1.9 E E1 0.75 Pin1 Index Area 0.65 0.4 e e1 RECOMMENDED LAND PATTERN (Unit: mm) 0.2 A A2 c θ L A1 Symbol Dimensions In Millimeters L1 Dimensions In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650(BSC) 0.026(BSC) e1 1.300(BSC) 0.051(BSC) L 0.260 L1 θ 0.460 0.010 0.525 0° 0.018 0.021 8° 9 0° 8° www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P MSOP-8 b e E E1 4.8 1.02 D 0.65 0.41 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 e 0.650(BSC) 0.026(BSC) E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° 10 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P TSSOP-8 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 Symbol H C A θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 11 1° 7° www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P TSSOP-14 e b 5.6 E1 E 1.78 D 0.65 0.42 RECOMMENDED LAND PATTERN (Unit: mm) A2 A A1 Symbol H C θ L Dimensions In Millimeters Min Max A Dimensions In Inches Min Max 1.200 0.047 A1 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 4.860 5.100 0.191 0.201 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 e L 0.650(BSC) 0.500 H θ 0.026(BSC) 0.700 0.020 0.25(TYP) 1° 0.028 0.01(TYP) 7° 12 1° 7° www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P SOIC-8(SOP8) b e 5.2 E E1 2.2 D 1.27 0.6 RECOMMENDED LAND PATTERN (Unit: mm) A2 c A A1 L Symbol Dimensions In Millimeters θ Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.007 0.010 D 4.800 5.000 0.189 0.197 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 13 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS6331P, RS6332P, RS6334P SOIC-14(SOP14) e b 5.2 1.27 E E1 0.6 D 1.27 RECOMMENDED LAND PATTERN (Unit: mm) A2 A1 A c θ L Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.310 0.510 0.012 0.020 c 0.100 0.250 0.004 0.010 D 8.450 8.850 0.333 0.348 e 1.270(BSC) 0.050(BSC) E 5.800 6.200 0.228 0.244 E1 3.800 4.000 0.150 0.157 L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° 14 www.run-ic.com
