AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
AFE4404 Ultra-Small, Integrated AFE for
Wearable, Optical, Heart-Rate Monitoring and Bio-Sensing
1 Features
2 Applications
•
•
•
•
•
•
1
•
•
•
•
•
•
•
•
Transmitter:
– Supports Common Anode LED Configuration
– Dynamic Range: 100 dB
– 6-Bit Programmable LED Current to 50 mA
(Extendable to 100 mA)
– Programmable LED On-Time
– Simultaneous Support of 3 LEDs for Optimized
SpO2, HRM, or Multi-Wavelength HRM
Receiver:
– 24-Bit Representation of the Current Input from
a Photodiode in Twos Complement Format
– Individual DC Offset Subtraction DAC at TIA
Input for Each LED and Ambient Phase
– Digital Ambient Subtraction at ADC Output
– Programmable Transimpedance Gain:
10 kΩ to 2 MΩ
– Dynamic Range: 100 dB
– Average Current Less Than 200 μA for PPG
Signal Acquisition
Pulse Frequency: 10 SPS to 1000 SPS
Flexible Pulse Sequencing and Timing Control
Flexible Clock Options:
– External Clocking:
4-MHz to 60-MHz Input Clock
– Internal Clocking: 4-MHz Oscillator
I2C Interface
Operating Temperature Range: –20°C to 70°C

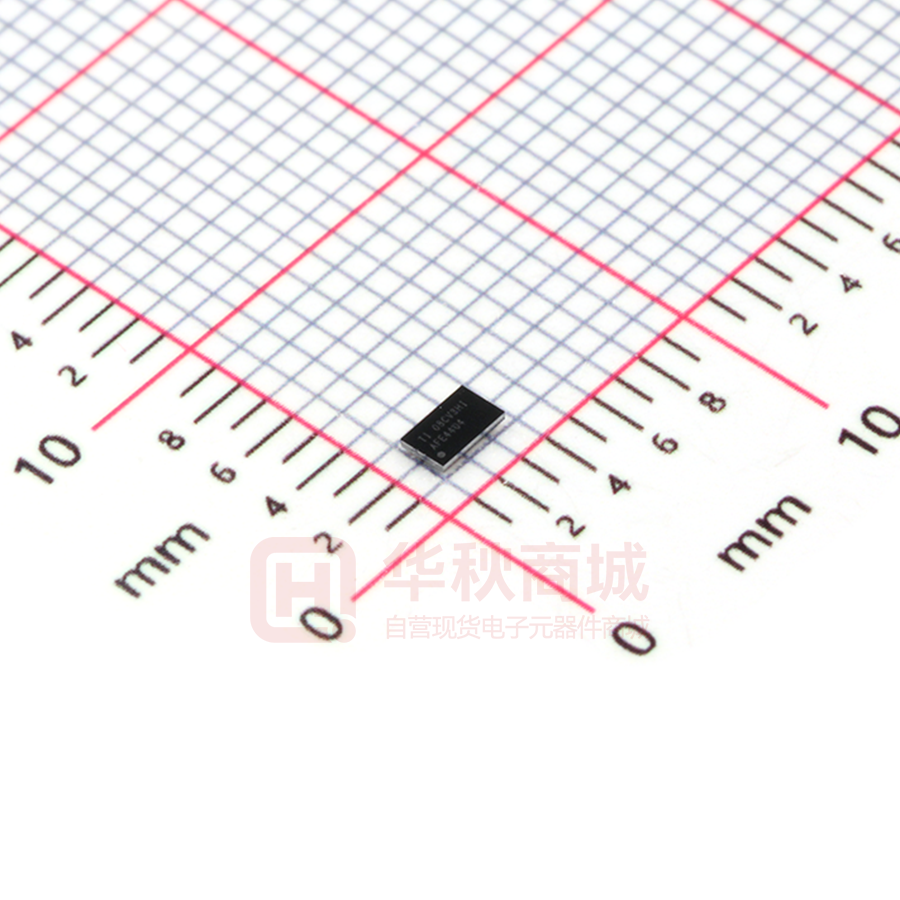

2.6-mm × 1.6-mm DSBGA Package, 0.5-mm Pitch
Supplies: Rx: 2 V to 3.6 V, Tx: 3 V to 5.25 V,
IO: 1.8 V to 3.6 V
Optical Heart-Rate Monitoring (HRM)
Heart-Rate Variability (HRV)
Pulse Oximetry (SpO2 Measurement)
VO2 Max
Calorie Expenditure
3 Description
The AFE4404 is an analog front-end (AFE) for optical
bio-sensing applications, such as heart-rate
monitoring (HRM) and saturation of peripheral
capillary oxygen (SpO2). The device supports three
switching light-emitting diodes (LEDs) and a single
photodiode. The current from the photodiode is
converted into voltage by the transimpedance
amplifier (TIA) and digitized using an analog-to-digital
converter (ADC). The ADC code can be read out
using an I2C interface. The AFE also has a fullyintegrated LED driver with a 6-bit current control. The
device has a high dynamic range transmit and
receive circuitry that helps with the sensing of very
small signal levels.
Device Information(1)
PART NUMBER
AFE4404
PACKAGE
DSBGA (15)
BODY SIZE (NOM)
2.60 mm × 1.60 mm(2)
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
(2) Refers to dimensions D × E in Figure 99.
Simplified Block Diagram
TX_SUP
RX_SUP
Offset
Cancellation
DAC
TX_SUP
TX1
TX2
TX3
LDO
I-V Amplifier (TIA)
Cf
LED
Driver
ILED
IO_SUP
INP
INM
CLK
Rf
Buffer
I2C_CLK
NoiseReduction
Filter
ADC
I2C Interface
I2C_DAT
RESETZ
Rf
Cf
IO
Buffer
Internal,
External
Clock
Timing
Engine
ADC_RDY
GND
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
4
6
7.1
7.2
7.3
7.4
7.5
7.6
7.7
6
6
6
6
7
8
9
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Timing Requirements ...............................................
Typical Characteristics ..............................................
Detailed Description ............................................ 13
8.1 Overview ................................................................. 13
8.2 Functional Block Diagram ....................................... 13
8.3 Feature Description................................................. 14
8.4 Device Functional Modes........................................ 29
8.5 Register Map........................................................... 33
9
Application and Implementation ........................ 68
9.1 Application Information............................................ 68
9.2 Typical Application .................................................. 68
10 Power Supply Recommendations ..................... 75
11 Layout................................................................... 77
11.1 Layout Guidelines ................................................. 77
11.2 Layout Example .................................................... 77
12 Device and Documentation Support ................. 78
12.1
12.2
12.3
12.4
12.5
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
78
78
78
78
78
13 Mechanical, Packaging, and Orderable
Information ........................................................... 78
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision C (May 2016) to Revision D
Page
•
Changed last sub-bullet of Receiver Features bullet ............................................................................................................. 1
•
Changed test conditions of dynamic power-down mode rows in Current Consumption subsection of Electrical
Characteristics table ............................................................................................................................................................... 8
Changes from Revision B (October 2015) to Revision C
Page
•
Changed specifications of t1 and t4 rows in Table 7 to improve rejection of ambient light................................................... 24
•
Changed Description column in Table 10 ........................................................................................................................... 26
•
Changed Table 11 ................................................................................................................................................................ 27
•
Changed Table 12 ................................................................................................................................................................ 28
•
Added Reducing Sensitivity to Ambient Light Modulation section........................................................................................ 70
Changes from Revision A (August 2015) to Revision B
Page
•
Changed TX_SUP pin number to E3 in Pin Functions table ................................................................................................. 5
•
Added Figure 9 ..................................................................................................................................................................... 10
•
Added Decimation Mode section ......................................................................................................................................... 32
•
Added rows 3Dh, 3Fh, and 40h to Table 16 ........................................................................................................................ 35
•
Added Register 3Dh description to Register Map section.................................................................................................... 66
•
Added Register 3Fh and Register 40h descriptions to Register Map section...................................................................... 67
•
Added System-Level ESD Considerations section ............................................................................................................. 69
•
Added input-referred current paragraph associated to Figure 9 in Application Curves section........................................... 72
2
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
Changes from Original (June 2015) to Revision A
Page
•
Deleted Diagnostics Mode section ....................................................................................................................................... 31
•
Changed bit 2 of address 00h to 0 in Table 16 ................................................................................................................... 33
•
Deleted row 30h from Table 16 ........................................................................................................................................... 34
•
Changed bit 2 name and description in Register 0h ........................................................................................................... 36
•
Deleted Register 30h ........................................................................................................................................................... 59
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
3
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
5 Device Comparison Table
PRODUCT
PACKAGE-LEAD
LED DRIVE
CONFIGURATION
LED DRIVE
CURRENT
(mA, Max)
OPERATING
TEMPERATURE
RANGE
AFE4400
VQFN-40
H-bridge,
common anode
50
0°C to 70°C
AFE4490
VQFN-40
H-bridge,
common anode
200
–40°C to 85°C
Clinical-grade pulse oximeters
AFE4403
DSBGA-36
H-bridge,
common anode
100
–20°C to 70°C
Clinical pulse oximeter patches, wearables
Common anode
(1)
–20°C to 70°C
Wearable optical bio-sensing
AFE4404
(1)
DSBGA-15
50
OPTIMIZED APPLICATION
Finger-clip pulse oximeters
Mode that doubles the range to 100 mA with additional restrictions.
6 Pin Configuration and Functions
YZP Package
15-Ball DSBGA
Bottom View
I2C_DAT
I2C_CLK
TX_SUP
RESETZ
TX2
GND
DNC
CLK
TX3
INP
ADC_RDY
TX1
INM
RX_SUP
IO_SUP
1
2
3
E
D
C
B
A
4
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
Pin Functions
PIN
I/O
DESCRIPTION
NAME
NO.
ADC_RDY
B2
Digital
ADC ready interrupt signal (output)
CLK
C2
Digital
Clock input or output, selectable based on register. Default is input (external clock mode).
Can be set via a register to output the clock when the oscillator is enabled. (1) (2)
DNC
C1
GND
D3
Ground
Common ground for transmitter and receiver
I2C_CLK
E2
Digital
I2C clock input, external pullup resistor to IO_SUP (for example, 10 kΩ)
I2C_DAT
E1
Digital
I2C data, external pullup resistor to IO_SUP (for example, 10 kΩ)
INM
A1
Analog
Connect only to anode of photodiode (3)
INP
B1
Analog
Connect only to cathode of photodiode (3)
IO_SUP
A3
Supply
Separate supply for digital I/O. Must be less than or equal to RX_SUP.
Can be tied to RX_SUP.
RESETZ
D1
Digital
RESETZ or PWDN: function based on (active low) duration of RESETZ pulse (4).
A 25-µs to 50-µs duration = RESETZ active.
A > 200-µs duration = PWDN active.
RX_SUP
A2
Supply
Receiver supply; 1-µF decapacitor to GND
TX1
B3
Analog
Transmit output, LED1
TX2
D2
Analog
Transmit output, LED2
TX3
C3
Analog
Transmit output, LED3
TX_SUP
E3
Supply
Transmitter supply; 1-µF decapacitor to GND
(1)
(2)
(3)
(4)
Do not connect (leave floating)
Depending on whether external clock mode or internal oscillator mode is used, extra series or shunt resistors are recommended on the
CLK pin. For more details, see the Typical Application section.
In both hardware power-down (PWDN) and software power-down (PDNAFE) modes, the CLK pin is driven by the AFE to 0 V.
Therefore, if operating in external clock mode, take care to shut off the external clock to the AFE when in these power-down modes.
Maintain the indicated polarity of photodiode connections to the AFE input pins.
A RESET pulse must be applied after power-up to ensure that the registers are all reset to their default values.
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
5
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
Supply voltage range
MIN
MAX
RX_SUP to GND
–0.3
4
IO_SUP to GND
–0.3
4
RX_SUP-IO_SUP
–0.3
TX_SUP to GND
UNIT
V
–0.3
6
Voltage applied to analog inputs
Max [–0.3, (GND – 0.3)]
Min [4, (RX_SUP + 0.3)]
V
Voltage applied to digital inputs
Max [–0.3, (GND – 0.3)]
Min [4, (IO_SUP + 0.3)]
V
Maximum duty cycle (cumulative):
sum of all LED phase durations as a function
of the total period
50-mA LED current mode
(ILED_2X = 0)
10%
100-mA LED current mode
(ILED_2X = 1)
3%
Storage temperature, Tstg
(1)
–60
150
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±1000
Charged device model (CDM), per JEDEC specification JESD22-C101 (2)
±250
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
RX_SUP
Receiver supply
IO_SUP
Input/output supply
TX_SUP
Transmitter supply
50-mA LED current mode
(ILED_2X = 0)
100-mA LED current mode
(ILED_2X = 1)
MAX
2
3.6
UNIT
V
1.7
Min (3.6, RX_SUP)
V
(1)
3.0 or (0.5 + VLED) ,
whichever is greater
5.25
V
(1)
3.0 or (1.0 + VLED) ,
whichever is greater
5.25
Digital inputs
0
IO_SUP
Analog inputs
0
RX_SUP
V
–20
70
°C
Operating temperature range
(1)
MIN
V
VLED refers to the maximum voltage drop across the external LED (at maximum LED current). This value is usually governed by the
forward drop voltage (VFB) of the LED.
7.4 Thermal Information
AFE4404
THERMAL METRIC (1)
YZP (DSBGA)
UNIT
15 BALLS
RθJA
Junction-to-ambient thermal resistance
67.5
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
0.5
°C/W
RθJB
Junction-to-board thermal resistance
12.9
°C/W
ψJT
Junction-to-top characterization parameter
0.2
°C/W
ψJB
Junction-to-board characterization parameter
12.9
°C/W
(1)
6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
7.5 Electrical Characteristics
Minimum and maximum specifications are at TA = –20°C to 70°C, typical specifications are at 25°C. TX_SUP = 4 V, RX_SUP
= IO_SUP = 3 V, 100-Hz PRF, 8-MHz external clock (with CLKDIV_EXTMODE set to divide-by-2), detector CIN = 50 pF, and
CLKDIV_PRF set to 1, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
PULSE REPETITION FREQUENCY
PRF (1)
10 (2)
Pulse repetition frequency
1000
SPS
RECEIVER
Offset cancellation DAC current range
Offset cancellation DAC current step
TIA gain setting
Cf setting
µA
0.47
µA
10k to 2M
Ω
2.5 to 25
pF
2.5 (3)
Switched RC filter bandwidth
ADC averages
Detector capacitance
–7 to 7
Differential capacitance between INP, INN
kHz
1
16
10
200
pF
TRANSMITTER
LED current range
ILED_2X = 0
0 to 50
ILED_2X = 1
0 to 100
LED current resolution
mA
6
Bits
4
MHz
CLOCKING (Internal Oscillator)
Frequency
Accuracy
Room temperature
Frequency drift with temperature
Full temperature range
±1%
±0.5%
Jitter (RMS)
Output clock high level
Output clock low level
Output clock rise and fall times
10% to 90%, 15-pF load capacitance on
CLK pin
100
ps
IO_SUP
V
0
V
< 30
ns
CLOCKING (External Clock)
Frequency range (4)
4
Input clock high level
Input clock low level
Input capacitance of CLK pin
60
MHz
IO_SUP
Capacitance to ground
V
0
V
200 µs. To simplify system design, keeping the
pulse duration fixed across use cases is easiest. Set the LED current to the highest value that can be afforded by
the system power budget. Initialize the TIA gain to the lowest gain setting of 10 kΩ and use the initial calibration
routine to determine the optimum gain. Set the ADC in averaging mode with the number of averages being the
maximum afforded by the choice of pulse repetition period and pulse duration. Eight ADC averages is usually
sufficient to obtain good SNR.
For power-critical, battery-operated applications, choose a sampling pulse duration between 50 µs to 100 µs and
operate the device at a high TIA gain setting (for example, 1 MΩ). Set the ADC in averaging mode with four to
eight averages. Initialize the LED current to the desired lowest setting (of a few milliamps) and use the initial
calibration routine to determine the optimum LED current setting up to the highest value allowed by the system
power budget.
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
73
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
Typical Application (continued)
For pulse-oximeter applications using red and IR LEDs, the target dc level can be typically set to 50% of positive
full-scale.
For HRM applications, the offset cancellation DAC can be additionally used such that the dc offset can be
subtracted from the signal, thereby allowing for a larger TIA gain to be applied without saturating the signal.
The calibration routine must be designed in a manner that does not rely on the accuracy of the LED current, TIA
gain, and offset cancellation DAC, thus allowing for device-to-device variations. Specifically, the offset
cancellation DAC is not trimmed at production and can have a significant device-to-device variation (±20%). If the
calibration routine requires an accurate estimate of the offset cancellation DAC, then the PD_DISCONNECT
mode can be used to estimate the offset cancellation DAC range on a given unit. The PD_DISCONNECT mode
disconnects the photodiode from the TIA inputs. In this mode IPD = 0 and, thus, the effective input current to the
TIA comes solely from the offset cancellation DAC (Ieff = I_OFFDAC). As a result, the offset cancellation DAC
value can be directly estimated from the AFE output code.
When the calibration loop is in the process of converging to the steady state, the device settings can continue to
be refreshed to new values. Ideally, a time equal to tCHANNEL is provided for the AFE to settle to any change in
signal-chain settings. However, this time can lead to unacceptably large delays in the convergence of the
calibration routine. Therefore, during the transient (when the calibration routine is in the transient phase), the wait
times can be reduced to as low as tCHANNEL / 10. After the calibration routine converges to the final settings, a
wait time of tCHANNEL can then be applied before high-accuracy data are read out from the AFE.
74
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
10 Power Supply Recommendations
The guidelines for power-supply sequencing and device initialization are shown in Figure 96, Figure 97, and
Table 79.
RX_SUP
t1
IO_SUP
t2
TX_SUP
t3
RESETZ
t4
t5
t7
t6
t4
t5
t6
Device
Settings
Device
Settings
I2C Interface
t8
ADC_RDY
Reset
CLK
(External Clock Mode)
Device State
High-Accuracy Operation
Hardware
PowerDown
(PWDN)
High-Accuracy
Operation
Reset
Figure 96. Power-Supply Sequencing, Device Initialization, and Hardware Power-Down Timing
RX_SUP
t1
IO_SUP
t2
TX_SUP
t3
RESETZ
t4
t5
t6
t6
Device
Settings
I2C Interface
PDNAFE
=1
PDNAFE
=0
ADC_RDY
Device State
Reset
CLK
(External Clock Mode)
High-Accuracy Operation
Software Power-Down (PDNAFE)
High-Accuracy
Operation
Figure 97. Power-Supply Sequencing, Device Initialization, and Software Power-Down Timing
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
75
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
Table 79. Timing Parameters for Power Supply Sequencing, Device Initialization, and Power-Down
Timing
VALUE
t1
Time between RX_SUP and IO_SUP ramping up
Ramp up RX_SUP before or at the same time as IO_SUP. Keep t1 as
small as possible (for example,10 ms).
t2
Time between RX_SUP and TX_SUP ramping up
Keep t2 as small as possible (for example,10 ms).
t3
Time between all supplies stabilizing and start of the RESETZ lowgoing pulse
t4
RESETZ pulse duration for the device to get reset
t5
Time between resetting the device and issuing of I2C commands
t6
Time between I2C commands and the ADC_RDY pulse that
corresponds to valid data
t7
RESETZ pulse duration for the device to enter PWDN (power-down)
mode
> 200 µs
t8
Time from exiting power-down mode and subsequently resetting the
device
> 10 ms
(1)
76
> 10 ms
Between 25 µs and 50 µs
> 1 ms
tCHANNEL (1)
The tCHANNEL parameter is specified in the Electrical Characteristics table.
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
11 Layout
11.1 Layout Guidelines
Two key layout guidelines are:
1. TX1, TX2, and TX3 are fast-switching lines and must be routed away from sensitive lines (such as the INP,
INN inputs).
2. The device can draw high-switching currents from the TX_SUP pin. A decoupling capacitor must be
electrically close to the pin.
11.2 Layout Example
Figure 98. Example Layout
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
77
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
12 Device and Documentation Support
12.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
78
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
YZP0015
DSBGA - 0.5 mm max height
SCALE 7.000
DIE SIZE BALL GRID ARRAY
B
A
E
BALL A1
CORNER
E = 1.6 mm
D = 2.6 mm
D
C
0.5 MAX
SEATING PLANE
0.19
0.13
0.05 C
BALL TYP
1 TYP
0.5 TYP
E
D
SYMM
2
TYP
C
B
0.5
TYP
A
0.25
0.21
C A
B
1
2
3
15X
0.015
SYMM
4221665/A 09/2014
NanoFree Is a trademark of Texas Instruments.
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
TM
3. NanoFree package configuration.
Figure 99. Package Outline
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
79
AFE4404
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
www.ti.com
EXAMPLE BOARD LAYOUT
YZP0015
DSBGA - 0.5 mm max height
DIE SIZE BALL GRID ARRAY
(0.5) TYP
15X (
0.23)
1
3
2
A
(0.5) TYP
B
SYMM
C
D
E
SYMM
LAND PATTERN EXAMPLE
SCALE:30X
0.05 MAX
( 0.23)
METAL
METAL
UNDER
SOLDER MASK
0.05 MIN
( 0.23)
SOLDER MASK
OPENING
SOLDER MASK
OPENING
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
SOLDER MASK DETAILS
NOT TO SCALE
4221665/A 09/2014
NOTES: (continued)
4. Final dimensions may vary due to manufacturing tolerance considerations and also routing constraints.
For more information, see Texas Instruments literature number SBVA017 (www.ti.com/lit/sbva017).
Figure 100. Example Board Layout
80
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
AFE4404
www.ti.com
SBAS689D – JUNE 2015 – REVISED DECEMBER 2016
EXAMPLE STENCIL DESIGN
YZP0015
DSBGA - 0.5 mm max height
DIE SIZE BALL GRID ARRAY
(0.5) TYP
(R0.05) TYP
15X ( 0.25)
1
2
3
A
(0.5)
TYP
B
METAL
TYP
SYMM
C
D
E
SYMM
SOLDER PASTE EXAMPLE
BASED ON 0.1 mm THICK STENCIL
SCALE:40X
4221665/A 09/2014
NOTES: (continued)
5. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release.
Figure 101. Example Stencil Design
Submit Documentation Feedback
Copyright © 2015–2016, Texas Instruments Incorporated
Product Folder Links: AFE4404
81
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
AFE4404YZPR
ACTIVE
DSBGA
YZP
15
3000
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-20 to 70
AFE4404
AFE4404YZPT
ACTIVE
DSBGA
YZP
15
250
RoHS & Green
SNAGCU
Level-1-260C-UNLIM
-20 to 70
AFE4404
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
