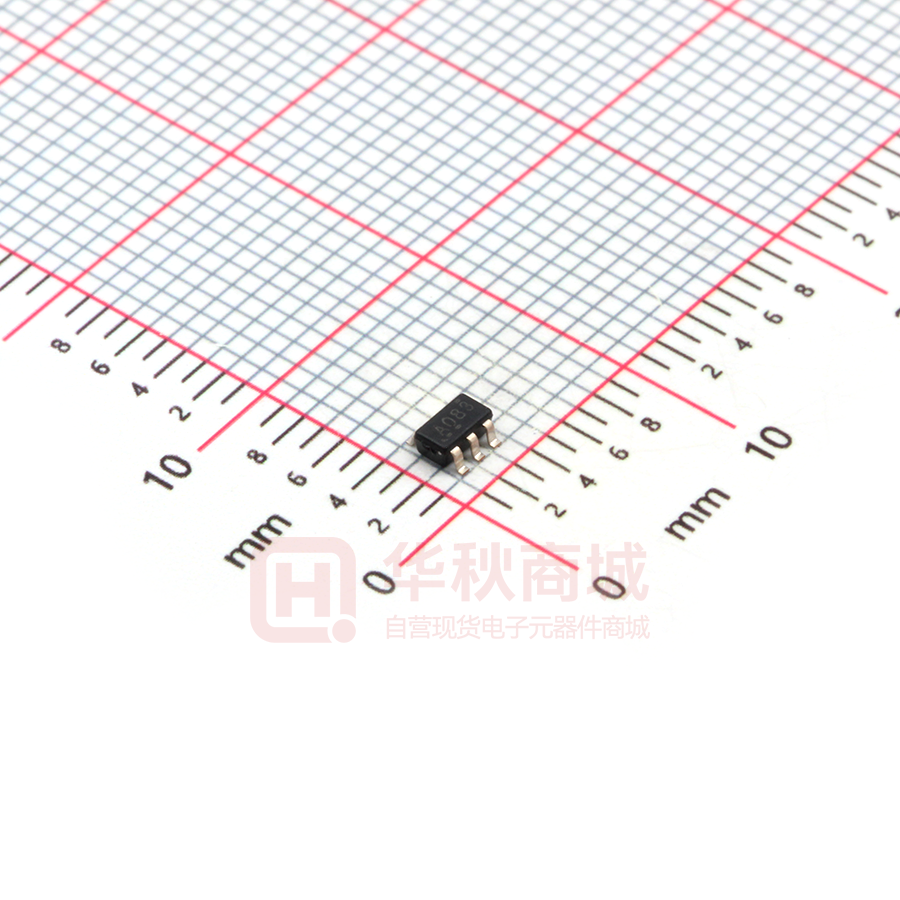

SN74AHC1G08DBVR

Product Folder Sample & Buy Support & Community Tools & Software Technical Documents Reference Design SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 SN74AHC1G08 Single 2-Input Positive-AND Gate 1 Features 3 Description • • • • • The SN74AHC1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A ● B or Y = A + B in positive logic. 1 • • Operating Range 2 V to 5.5 V Maximum tpd of 7 ns at 5 V Low Power Consumption, 10-μA Maximum ICC ±8-mA Output Drive at 5 V Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD Protection Exceeds JESD 22 – 2000-V Human Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) 2 Applications • • • • • • • • • • • • • Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) SN74AHC1G08DBV SOT-23 (5) 2.90 mm × 1.60 mm SN74AHC1G08DCK SC70 (5) 2.00 mm × 1.25 mm SN74AHC1G08DRL SOT (5) 1.60 mm × 1.20 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Logic Diagram (Positive Logic) A B 1 2 4 Y Barcode Scanners Cable Solutions E-Books Embedded PCs Field Transmitter: Temperature or Pressure Sensors Fingerprint Biometrics HVAC: Heating, Ventilating, and Air Conditioning Network-Attached Storage (NAS) Server Motherboard and PSU Software Defined Radios (SDR) TV: High Definition (HDTV), LCD, and Digital Video Communications Systems Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 4 4 4 5 5 5 5 6 6 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Switching Characteristics, VCC = 3.3 V ± 0.3 V ........ Switching Characteristics, VCC = 5 V ± 0.5 V ........... Operating Characteristics.......................................... Typical Characteristics .............................................. Parameter Measurement Information .................. 7 Detailed Description .............................................. 8 8.1 Overview ................................................................... 8 8.2 Functional Block Diagram ......................................... 8 8.3 Feature Description................................................... 8 8.4 Device Functional Modes.......................................... 8 9 Application and Implementation .......................... 9 9.1 Application Information.............................................. 9 9.2 Typical Application ................................................... 9 10 Power Supply Recommendations ..................... 10 11 Layout................................................................... 10 11.1 Layout Guidelines ................................................. 10 11.2 Layout Example .................................................... 11 12 Device and Documentation Support ................. 11 12.1 12.2 12.3 12.4 12.5 Documentation Support ........................................ Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 11 11 11 11 11 13 Mechanical, Packaging, and Orderable Information ........................................................... 12 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision O (June 2015) to Revision P • Page Changed VIL max value on Recommended Operating Conditions table from 5.5 V to 0.5 V ................................................ 4 Changes from Revision N (November 2012) to Revision O Page • Removed Ordering Information table. .................................................................................................................................... 1 • Added Applications ................................................................................................................................................................. 1 • Added Device Information table. ............................................................................................................................................ 1 • Added ESD Ratings table....................................................................................................................................................... 4 • Added Thermal Information table. .......................................................................................................................................... 5 Changes from Revision M (June 2005) to Revision N • 2 Page Changed document format from Quicksilver to DocZone. ..................................................................................................... 1 Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 SN74AHC1G08 www.ti.com SCLS314P – MARCH 1996 – REVISED MARCH 2016 5 Pin Configuration and Functions DBV Package 5-Pin SOT-23 Top View A 1 B 2 GND 3 5 V CC 4 Y DCK Package 5-Pin SC70 Top View A 1 B 2 GND 3 5 V CC 4 Y DRL Package 5-Pin SOT Top View A 1 B 2 GND 5 V CC 4 Y See mechanical drawings for dimensions (in Mechanical, Packaging, and Orderable Information). Pin Functions PIN NO. NAME I/O DESCRIPTION 1 A I Data Input 2 B I Data Input 3 GND — Ground 4 Y O Data Output 5 VCC — Power Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 3 SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC MIN MAX UNIT Supply voltage –0.5 7 V (2) –0.5 7 V –0.5 VCC + 0.5 V VI Input voltage VO Output voltage (2) IIK Input clamp current VI < 0 –20 mA IOK Output clamp current VO < 0 or VO > VCC ±20 mA IO Continuous output current VO = 0 to VCC ±25 mA ±50 mA 150 °C 150 °C Continuous current through VCC or GND TJ Junction temperature Tstg Storage temperature (1) (2) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1) 2000 Charged-device model (CDM), per JEDEC specification JESD22-C101, all pins (2) 1000 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) (1) VCC Supply voltage VCC = 2 V VIH High-level input voltage VCC = 3 V VCC = 5.5 V MIN MAX 2 5.5 Low-level Input voltage V 1.5 2.1 V 3.85 VCC = 2 V VIL UNIT 0.5 VCC = 3 V 0.9 VCC = 5.5 V V 1.65 VI Input voltage 0 5.5 V VO Output voltage 0 VCC V –50 µA IOH High-level output current VCC = 2 V IOL Low-level output current Δt/Δv Input transition rise or fall rate TA Operating free-air temperature (1) 4 VCC = 3.3 V ± 0.3 V –4 VCC = 5 V ± 0.5 V –8 VCC = 2 V 50 VCC = 3.3 V ± 0.3 V 4 VCC = 5 V ± 0.5 V 8 VCC = 3.3 V ± 0.3 V 100 VCC = 5 V ± 0.5 V 20 –55 125 mA µA mA ns/V °C All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report, Implications of Slow or Floating CMOS Inputs, SCBA004. Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 SN74AHC1G08 www.ti.com SCLS314P – MARCH 1996 – REVISED MARCH 2016 6.4 Thermal Information SN74AHC1G08 THERMAL METRIC (1) RθJA (1) DBV (SOT-23) DCK (SC70) DRL (SOT) 5 PINS 5 PINS 5 PINS 206 252 142 Junction-to-ambient thermal resistance UNIT °C/W For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. 6.5 Electrical Characteristics over operating free-air temperature range (unless otherwise noted) PARAMETER TEST CONDITIONS TA = 25°C VCC IOH = –50 µA VOH TA = –55°C to 125°C MIN TYP MAX MIN 2V 1.9 2 1.9 3V 2.9 3 2.9 4.5 4.5 V 4.4 IOH = –4 mA 3V 2.58 2.48 IOH = –8 mA 4.5 V 3.94 3.8 MAX 4.4 UNIT V 2V 0.1 0.1 3V 0.1 0.1 4.5 V 0.1 0.1 IOL = 4 mA 3V 0.36 0.44 IOL = 8 mA 4.5 V 0.36 0.44 0 V to 5.5 V ±0.1 ±1 µA 1 10 µA 10 10 pF IOL = 50 µA VOL II VI = 5.5 V or GND ICC VI = VCC or GND, Ci VI = VCC or GND IO = 0 5.5 V 5V 4 V 6.6 Switching Characteristics, VCC = 3.3 V ± 0.3 V over recommended operating free-air temperature range, VCC = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 2) PARAMETER tPLH tPHL tPLH tPHL FROM (INPUT) TO OUTPUT (OUTPUT) CAPACITANCE A or B Y CL = 15 pF A or B Y CL = 50 pF TA = 25°C MIN TA = –40°C to 85°C TA = –55°C to 125°C UNIT TYP MAX MIN MAX MIN MAX 6.2 8.8 1 10.5 1 11 6.2 8.8 1 10.5 1 11 8.7 12.3 1 14 1 14.5 8.7 12.3 1 14 1 14.5 ns ns 6.7 Switching Characteristics, VCC = 5 V ± 0.5 V over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 2) PARAMETER tPLH tPHL tPLH tPHL FROM (INPUT) TO OUTPUT (OUTPUT) CAPACITANCE A or B Y CL = 15 pF A or B Y CL = 50 pF TA = 25°C MIN TA = –40°C to 85°C TA = –55°C to 125°C TYP MAX MIN MAX MIN MAX 4.3 5.9 1 7 1 7.5 4.3 5.9 1 7 1 7.5 5.8 7.9 1 9 1 9.5 5.8 7.9 1 9 1 9.5 Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 UNIT ns ns 5 SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com 6.8 Operating Characteristics VCC = 5 V, TA = 25°C PARAMETER Cpd TEST CONDITIONS Power dissipation capacitance No load, TYP f = 1 MHz 18 UNIT pF 6.9 Typical Characteristics 5 Signal Voltage (V) 4 3 2 1 0 0 5 10 15 20 25 30 35 40 45 50 Time (ns) C001 Figure 1. Response Time vs Output Voltage (TA = 25°C, VA = 5 V) 6 Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 SN74AHC1G08 www.ti.com SCLS314P – MARCH 1996 – REVISED MARCH 2016 7 Parameter Measurement Information From Output Under Test Test Point From Output Under Test RL = 1 kΩ VCC Open S1 TEST GND CL (see Note A) CL (see Note A) S1 Open VCC GND VCC tPLH/tPHL tPLZ/tPZL tPHZ/tPZH Open Drain LOAD CIRCUIT FOR 3-STATE AND OPEN-DRAIN OUTPUTS LOAD CIRCUIT FOR TOTEM-POLE OUTPUTS VCC 50% VCC Timing Input tw tsu VCC Input 50% VCC 0V th VCC 50% VCC 50% VCC Data Input 50% VCC 0V 0V VOLTAGE WAVEFORMS SETUP AND HOLD TIMES VOLTAGE WAVEFORMS PULSE DURATION VCC 50% VCC Input 0V tPHL tPLH In-Phase Output 50% VCC Output Waveform 1 S1 at VCC (see Note B) 50% VCC 50% VCC VOH 50% VCC VOL 50% VCC 0V tPLZ tPZL ≈VCC 50% VCC Output Waveform 2 S1 at GND (see Note B) VOLTAGE WAVEFORMS PROPAGATION DELAY TIMES INVERTING AND NONINVERTING OUTPUTS VOL + 0.3 V VOL tPHZ tPZH tPLH tPHL Out-of-Phase Output VOH 50% VCC VOL VCC Output Control 50% VCC 50% VCC VOH 0.3 V VOH ≈0 V VOLTAGE WAVEFORMS ENABLE AND DISABLE TIMES LOW- AND HIGH-LEVEL ENABLING A. CL includes probe and jig capacitance. B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control. Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control. C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 3 ns, tf ≤ 3 ns. D. The outputs are measured one at a time with one input transition per measurement. E. All parameters and waveforms are not applicable to all devices. Figure 2. Load Circuit and Voltage Waveforms Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 7 SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com 8 Detailed Description 8.1 Overview The SN74AHC1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A ● B or Y = A + B in positive logic. 8.2 Functional Block Diagram A B 1 4 2 Y Figure 3. Logic Diagram (Positive Side) 8.3 Feature Description The SN74AHC1G08 device has a wide operating VCC range of 2 V to 5.5 V, which allows it to be used in a broad range of systems. The low propagation delay allows fast switching and higher operation speeds. In addition, the low-power consumption makes this device a good choice for portable and battery power-sensitive applications. 8.4 Device Functional Modes Table 1 lists the functional modes for SN74AHC1G08. Table 1. Function Table INPUTS 8 A B OUTPUT Y H H H L X L X L L Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 SN74AHC1G08 www.ti.com SCLS314P – MARCH 1996 – REVISED MARCH 2016 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 9.1 Application Information A common application for AND gates is their use in power sequencing. Power sequencing is often employed in applications that require a processor or other delicate device with specific voltage timing requirements in order to protect the device from malfunctioning. Using the SN74AHC1G08 to verify that the processor has turned on can protect it from any harmful signals. 9.2 Typical Application VCC = 5 V A Y MCU (MSP43x) B Temp. EN Sensor VO Figure 4. Power Sequencing Application 9.2.1 Design Requirements The SN74AHC1G08 device uses CMOS technology and has balanced output drive. Take care to avoid bus contention because it can drive currents that would exceed maximum limits. The SN74AHC1G08 allows switching control of analog and digital signals with a digital control signal. All input signals should remain as close to either 0 V or VCC as possible for optimal operation. 9.2.2 Detailed Design Procedure 1. Recommended input conditions: – For rise time and fall time specifications, see Δt/Δv in the Recommended Operating Conditions table. – For specified high and low levels, see VIH and VIL in the Recommended Operating Conditions table. – Inputs and outputs are overvoltage tolerant and can therefore go as high as 5.5 V at any valid VCC. 2. Recommended output conditions: – Load currents should not exceed ±50 mA. 3. Frequency selection criterion: – The effects of frequency upon the device's power consumption should be studied in CMOS Power Consumption and CPD Calculation, SCAA035. – Added trace resistance and capacitance can reduce maximum frequency capability; follow the layout practices listed in the Layout section. Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 9 SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com Typical Application (continued) 9.2.3 Application Curves Figure 5. AHC Family VOH vs IOH at VCC = 5.5 V Figure 6. AHC Family VOL vs IOL at VCC = 5.5 V 10 Power Supply Recommendations The power supply can be any voltage between the minimum and maximum supply voltage rating listed in the Recommended Operating Conditions table. Each VCC terminal should have a bypass capacitor to prevent power disturbance. A 0.1-μF bypass capacitor is recommended for devices with a single supply. If multiple pins are labeled VCC, then a 0.01-μF or 0.022-μF capacitor is recommended for each VCC because the VCC pins are tied together internally. For devices with dualsupply pins operating at different voltages, for example VCC and VDD, a 0.1-µF bypass capacitor is recommended for each supply pin. Use multiple bypass capacitors in parallel to reject different frequencies of noise. Capacitors with values of 0.1 μF and 1 μF are commonly used in parallel. The bypass capacitor should be installed as close to the power terminal as possible for best results. 11 Layout 11.1 Layout Guidelines Reflections and matching are closely related to the loop antenna theory but are different enough to be discussed separately from the theory. When a PCB trace turns a corner at a 90° angle, a reflection can occur. A reflection occurs primarily because of the change of width of the trace. At the apex of the turn, the trace width increases to 1.414 times the width. This increase upsets the transmission-line characteristics, especially the distributed capacitance and self–inductance of the trace which results in the reflection. Not all PCB traces can be straight and therefore some traces must turn corners. Figure 7 shows progressively better techniques of rounding corners. Only the last example (BEST) maintains constant trace width and minimizes reflections. 10 Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 SN74AHC1G08 www.ti.com SCLS314P – MARCH 1996 – REVISED MARCH 2016 11.2 Layout Example BETTER BEST 2W WORST 1W min. W Figure 7. Trace Example 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation For related documentation see the following: • Implications of Slow or Floating CMOS Inputs, SCBA004 • CMOS Power Consumption and CPD Calculation, SCAA035 • Selecting the Right Texas Instruments Signal Switch, SZZA030 12.2 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.3 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 12.4 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 12.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 11 SN74AHC1G08 SCLS314P – MARCH 1996 – REVISED MARCH 2016 www.ti.com 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser based versions of this data sheet, refer to the left hand navigation. 12 Submit Documentation Feedback Copyright © 1996–2016, Texas Instruments Incorporated Product Folder Links: SN74AHC1G08 PACKAGE OPTION ADDENDUM www.ti.com 4-Apr-2019 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan Lead/Ball Finish MSL Peak Temp (2) (6) (3) Op Temp (°C) Device Marking (4/5) SN74AHC1G08DBV3 ACTIVE SOT-23 DBV 5 3000 Pb-Free (RoHS) CU SNBI Level-1-260C-UNLIM -55 to 125 A08Y SN74AHC1G08DBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -55 to 125 (A083, A08G, A08J, A08L, A08S) SN74AHC1G08DBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 A08G SN74AHC1G08DBVRG4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 A08G SN74AHC1G08DBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -55 to 125 (A083, A08G, A08J, A08L, A08S) SN74AHC1G08DBVTG4 ACTIVE SOT-23 DBV 5 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 A08G SN74AHC1G08DCK3 ACTIVE SC70 DCK 5 3000 Pb-Free (RoHS) CU SNBI Level-1-260C-UNLIM -55 to 125 AEY SN74AHC1G08DCKR ACTIVE SC70 DCK 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -55 to 125 (AE3, AEG, AEJ, AE L, AES) SN74AHC1G08DCKRE4 ACTIVE SC70 DCK 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 AE3 SN74AHC1G08DCKRG4 ACTIVE SC70 DCK 5 3000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 AE3 SN74AHC1G08DCKT ACTIVE SC70 DCK 5 250 Green (RoHS & no Sb/Br) CU NIPDAU | CU SN Level-1-260C-UNLIM -55 to 125 (AE3, AEG, AEJ, AE L, AES) SN74AHC1G08DCKTE4 ACTIVE SC70 DCK 5 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 AE3 SN74AHC1G08DCKTG4 ACTIVE SC70 DCK 5 250 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 AE3 SN74AHC1G08DRLR ACTIVE SOT-5X3 DRL 5 4000 Green (RoHS & no Sb/Br) CU NIPDAU | CU NIPDAUAG Level-1-260C-UNLIM -55 to 125 (AEB, AES) SN74AHC1G08DRLRG4 ACTIVE SOT-5X3 DRL 5 4000 Green (RoHS & no Sb/Br) CU NIPDAU Level-1-260C-UNLIM -55 to 125 (AEB, AES) (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. Addendum-Page 1 Samples PACKAGE OPTION ADDENDUM www.ti.com 4-Apr-2019 PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
