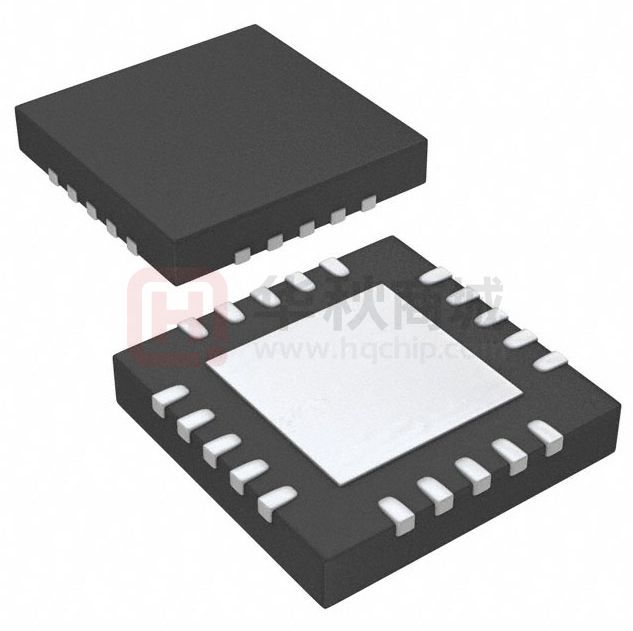

TPA2016D2RTJT

Product Folder Sample & Buy Technical Documents Support & Community Tools & Software TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 TPA2016D2 2.8-W/Ch Stereo Class-D Audio Amplifier With Dynamic Range Compression and Automatic Gain Control 1 Features 3 Description • • • • • • • • • • The TPA2016D2 device is a stereo, filter-free Class-D audio power amplifier with volume control, dynamic range compression (DRC), and automatic gain control (AGC). It is available in a 2.2 mm × 2.2 mm DSBGA package and 20-pin QFN package. 1 • • • • • • • • • • Filter-Free Class-D Architecture 1.7 W/Ch Into 8 Ω at 5 V (10% THD+N) 750 mW/Ch Into 8 Ω at 3.6 V (10% THD+N) 2.8 W/Ch Into 4 Ω at 5 V (10% THD+N) 1.5 W/Ch Into 4 Ω at 3.6 V (10% THD+N) Power Supply Range: 2.5 V to 5.5 V Flexible Operation With or Without I2C Programmable DRC and AGC Parameters Digital I2C Volume Control Selectable Gain from –28 dB to 30 dB in 1-dB Steps (When Compression is Used) Selectable Attack, Release, and Hold Times 4 Selectable Compression Ratios Low Supply Current: 3.5 mA Low Shutdown Current: 0.2 μA High PSRR: 80 dB Fast Start-Up Time: 5 ms AGC Enable or Disable Function Limiter Enable or Disable Function Short-Circuit and Thermal Protection Space-Saving Package – 2.2 mm × 2.2 mm Nano-Free™ DSBGA (YZH) 2 Applications • • • • • • • • Wireless or Cellular Handsets and PDAs Portable Navigation Devices Portable DVD Players Notebook PCs Portable Radios Portable Games Educational Toys USB Speakers The DRC and AGC function in the TPA2016D2 is programmable through a digital I2C interface. The DRC and AGC function can be configured to automatically prevent distortion of the audio signal and enhance quiet passages that are normally not heard. The DRC and AGC can also be configured to protect the speaker from damage at high power levels and compress the dynamic range of music to fit within the dynamic range of the speaker. The gain can be selected from –28 dB to +30 dB in 1-dB steps. The TPA2016D2 is capable of driving 1.7 W/Ch at 5 V or 750 mW/Ch at 3.6 V into 8-Ω load or 2.8 W/Ch at 5 V or 1.5 W/Ch at 3.6 V into 4-Ω load. The device features independent software shutdown controls for each channel and also provides thermal and shortcircuit protection. In addition to these features, a fast start-up time and small package size make the TPA2016D2 an ideal choice for cellular handsets, PDAs, and other portable applications. Device Information(1) PART NUMBER PACKAGE TPA2016D2 BODY SIZE (NOM) DSBGA (16) 2.20 mm × 2.20 mm QFN (20) 4.00 mm × 4.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Simplified Application Diagram To Battery 10 mF AVDD PVDDL PVDDR TPA2016D2 CIN 1 mF INL– Analog Baseband or Codec OUTL+ INL+ INR– INR+ OUTL– OUTR+ 2 I C Clock Digital Baseband 2 I C Data Master Shutdown OUTR– SCL SDA SDZ AGND PGND Copyright © 2016, Texas Instruments Incorporated 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 9 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Device Comparison Table..................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 4 4 5 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 5 5 5 5 6 6 6 7 8 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... I2C Timing Requirements.......................................... Dissipation Ratings ................................................... Operating Characteristics.......................................... Typical Characteristics .............................................. Parameter Measurement Information ................ 11 Detailed Description ............................................ 12 9.1 Overview ................................................................. 12 9.2 Functional Block Diagram ....................................... 12 9.3 9.4 9.5 9.6 Feature Description................................................. Device Functional Modes........................................ Programming........................................................... Register Maps ......................................................... 12 21 21 24 10 Application and Implementation........................ 29 10.1 Application Information.......................................... 29 10.2 Typical Applications .............................................. 29 11 Power Supply Recommendations ..................... 32 11.1 Power Supply Decoupling Capacitors................... 32 12 Layout................................................................... 32 12.1 Layout Guidelines ................................................. 32 12.2 Layout Examples................................................... 34 12.3 Efficiency and Thermal Considerations ................ 36 13 Device and Documentation Support ................. 37 13.1 13.2 13.3 13.4 13.5 Device Support...................................................... Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 37 37 37 37 37 14 Mechanical, Packaging, and Orderable Information ........................................................... 37 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision D (August 2009) to Revision E • Page Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section. ................................................................................................. 1 Changes from Revision C (October 2008) to Revision D Page • Added Feature: 2.8 W/Ch Into 4 Ω at 5 V (10% THD+N) ...................................................................................................... 1 • Added Feature: 1.5 W/Ch Into 4 Ω at 3.6 V (10% THD+N) ................................................................................................... 1 • Added the RTJ (QFN) pin out package .................................................................................................................................. 4 • Changed the RTJ Package Options to the Available Options Table...................................................................................... 4 • Changed ISWS Softwre shutdown 3.6V From: Max 60 to: 70 µA ............................................................................................ 6 • Changed ISWS Softwre shutdown 5.5V From: Max 100 to 110 µA ......................................................................................... 6 • Changed Output offset TYP From 0 mV To: 2 mV................................................................................................................. 6 • Added the RTJ (QFN) package to the Dissipation Ratings Table.......................................................................................... 6 • Deleted Table of Graphs from the Typical Characteristics..................................................................................................... 8 • Added 4Ω Efficiency Graph .................................................................................................................................................... 9 • Added 4Ω Total Power Dissipation Graph ............................................................................................................................. 9 • Added 4Ω Total Supply Current Graph .................................................................................................................................. 9 • Added QFN Output Power Graph......................................................................................................................................... 10 • Added text notes 4 and 5 to the Test Setup for Graphs....................................................................................................... 11 2 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Changes from Revision B (June 2008) to Revision C • Page Changed RLOADfrom 6.4 Ω to 3.2Ω ......................................................................................................................................... 5 Changes from Revision A (June 2008) to Revision B Page • Changed Feature High PSRR From: 75 dB at 217 Hz To: 80 dB.......................................................................................... 1 • Added 00 to Default column ................................................................................................................................................. 25 • Added 00 to Default column ................................................................................................................................................. 26 • Added 00 to Default column ................................................................................................................................................. 26 Changes from Original (June 2008) to Revision A • Page Changed From: 1.4 W/Ch Into 8 Ω at 5 V (10% THD+N) To: 1.7 W/Ch Into 8 Ω at 5 V (10% THD+N) ............................... 1 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 3 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 5 Device Comparison Table DEVICE NUMBER SPEAKER AMP TYPE SPECIAL FEATURE OUTPUT POWER (W) PSRR (dB) TPA2012D2 Class D — 2.1 71 TPA2016D2 Class D AGC/DRC 2.8 80 TPA2026D2 Class D AGC/DRC 3.2 80 6 Pin Configuration and Functions YZH Package 16-Pin DSBGA Top View C PVDDR PGND PVDDL D OUTR+ OUTR– OUTL– OUTL+ 16 SCL PVDDL 17 PVDDL SDZ 2 3 18 INL– AGND 14 13 INR– AVDD 4 12 PVDDR 5 11 PVDDR Thermal Pad 10 SDZ AGND INR+ OUTR+ SDA 15 9 SCL 1 OUTR– AVDD INL+ 8 INL– PGND INL+ SDA INR+ 19 INR– 7 4 OUTL– 3 20 2 6 B 1 OUTL+ A RTJ Package 20-Pin QFN Top View Pin Functions PIN NAME TYPE DESCRIPTION DSBGA QFN INR+ A2 15 I Right channel positive audio input INR– A1 14 I Right channel negative audio input INL+ A3 1 I Left channel positive audio input INL– A4 2 I Left channel negative audio input SDZ C2 18 I Shutdown terminal (active low) SDA B3 19 I/O I2C data interface SCL B2 17 I I2C clock interface OUTR+ D1 10 O Right channel positive differential output OUTR– D2 9 O Right channel negative differential output OUTL+ D4 6 O Left channel positive differential output OUTL– D3 7 O Left channel negative differential output AVDD B1 13 P Analog supply (must be the same as PVDDR and PVDDL) AGND B4 3 P Analog ground (all GND pins need to be connected) PVDDR C1 11, 12 P Right channel power supply (must be the same as AVDD and PVDDL) PGND C3 8 P Power ground (all GND pins need to be connected) PVDDL C4 4, 5 P Left channel power supply (must be the same as AVDD and PVDDR) 4 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted). (1) VDD Supply voltage Input voltage MIN MAX UNIT AVDD, PVDDR, PVDDL –0.3 6 V SDZ, INR+, INR–, INL+, INL– –0.3 VDD + 0.3 SDA, SCL –0.3 6 Continuous total power dissipation V See Dissipation Ratings TA Operating free-air temperature –40 85 °C TJ Operating junction temperature –40 150 °C RLOAD Minimum load resistance 3.2 Ω Tstg Storage temperature 150 °C (1) –65 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 7.2 ESD Ratings VALUE Electrostatic discharge V(ESD) (1) (2) Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) UNIT ±2000 Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) V ±500 JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions MIN MAX 5.5 VDD Supply voltage AVDD, PVDDR, PVDDL 2.5 VIH High-level input voltage SDZ, SDA, SCL 1.3 VIL Low-level input voltage SDZ, SDA, SCL TA Operating free-air temperature –40 UNIT V V 0.6 V +85 °C 7.4 Thermal Information TPA2016D2 THERMAL METRIC (1) YZH (DSBGA) RTJ (QFN) 16 PINS 20 PINS UNIT 71 33.3 °C/W RθJA Junction-to-ambient thermal resistance RθJC(top) Junction-to-case (top) thermal resistance 0.4 22.5 °C/W RθJB Junction-to-board thermal resistance 14.4 9.6 °C/W ψJT Junction-to-top characterization parameter 1.9 0.2 °C/W ψJB Junction-to-board characterization parameter 13.6 9.6 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance — 2.4 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 5 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 7.5 Electrical Characteristics at TA = 25°C, VDD = 3.6 V, SDZ = 1.3 V, and RL = 8 Ω + 33 μH (unless otherwise noted). PARAMETER VDD TEST CONDITIONS Supply voltage range ISDZ Shutdown quiescent current Software shutdown quiescent current ISWS IDD Supply current TYP MAX 2.5 UNIT 3.6 5.5 SDZ = 0.35 V, VDD = 2.5 V 0.1 1 SDZ = 0.35 V, VDD = 3.6 V 0.2 1 SDZ = 0.35 V, VDD = 5.5 V 0.3 1 SDZ = 1.3 V, VDD = 2.5 V 35 50 SDZ = 1.3 V, VDD = 3.6 V 50 70 SDZ = 1.3 V, VDD = 5.5 V 75 110 VDD = 2.5 V 3.5 4.5 VDD = 3.6 V 3.7 4.7 VDD = 5.5 V 4.5 5.5 300 325 kHz 1 µA fSW Class D Switching Frequency IIH High-level input current VDD = 5.5 V, SDZ = 5.8 V IIL Low-level input current VDD = 5.5 V, SDZ = –0.3 V tSTART Start-up time 2.5 V ≤ VDD ≤ 5.5 V no pop, CIN ≤ 1 μF POR Power on reset ON threshold POR Power on reset hysteresis 275 –1 2 CMRR Input common mode rejection Voo Output offset voltage VDD = 3.6 V, AV = 6 dB, RL = 8 Ω, inputs AC-grounded ZOUT Output Impedance in shutdown mode SDZ = 0.35 V Gain accuracy Compression and limiter disabled, Gain = 0 to 30 dB Power supply rejection ratio VDD = 2.5 V to 4.7 V V µA µA mA µA 5 RL = 8 Ω, Vicm = 0.5 V and Vicm = VDD – 0.8 V, differential inputs shorted PSRR MIN –10 ms 2.3 V 0.2 V –70 dB 2 10 2 –0.5 mV kΩ 0.5 –80 dB dB 7.6 I2C Timing Requirements For I2C Interface Signals Over Recommended Operating Conditions (unless otherwise noted) MIN fSCL Frequency, SCL No wait states tW(H) Pulse duration, SCL high tW(L) tSU(1) TYP MAX UNIT 400 kHz 0.6 μs Pulse duration, SCL low 1.3 μs Setup time, SDA to SCL 100 ns th1 Hold time, SCL to SDA 10 ns t(buf) Bus free time between stop and start condition 1.3 μs tSU2 Setup time, SCL to start condition 0.6 μs th2 Hold time, start condition to SCL 0.6 μs tSU3 Setup time, SCL to stop condition 0.6 μs 7.7 Dissipation Ratings (1) 6 PACKAGE (1) TA ≤ 25°C 16-ball DSBGA 1.25 W 20–pin QFN 5.2 W DERATING FACTOR TA = 70°C TA = 85°C 10 mW/°C 0.8 W 0.65 W 41.6 mW/°C 3.12 W 2.7 W Dissipations ratings are for a 2-side, 2-plane PCB. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 7.8 Operating Characteristics at TA = 25°C, VDD = 3.6V, SDZ = 1.3 V, RL = 8 Ω +33 μH, and AV = 6 dB (unless otherwise noted). MIN kSVR Power-supply ripple rejection ratio VDD = 3.6 Vdc with ac of 200 mVPP at 217 Hz TYP MAX –68 faud_in = 1 kHz; PO = 550 mW; VDD = 3.6 V 0.1% faud_in = 1 kHz; PO = 1 W; VDD = 5 V 0.1% UNIT dB THD+N Total harmonic distortion + noise NfonF Output integrated noise Av = 6 dB 44 μV NfoA Output integrated noise Av = 6 dB floor, A-weighted 33 μV FR Frequency response Av = 6 dB Pomax η Maximum output power Efficiency faud_in = 1 kHz; PO = 630 mW; VDD = 3.6 V 1% faud_in = 1 kHz; PO = 1.4 W; VDD = 5 V 1% 20 20000 Hz THD+N = 10%, VDD = 5 V, RL = 8 Ω 1.72 W THD+N = 10%, VDD = 3.6 V, RL = 8 Ω 750 mW THD+N = 10%, VDD = 5 V, RL = 4 Ω 2.8 W THD+N = 10% , VDD = 3.6 V, RL = 4 Ω 1.5 mW THD+N = 1%, VDD = 3.6 V, RL = 8 Ω, PO= 0.63 W 90% THD+N = 1%, VDD = 5 V, RL = 8 Ω, PO = 1.4 W 90% tw(L) tw(H) SCL t su1 th1 SDA Figure 1. SCL and SDA Timing SCL t(buf) th2 tsu2 tsu3 Start Condition Stop Condition SDA Figure 2. Start and Stop Conditions Timing Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 7 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 7.9 Typical Characteristics 10 100 8 80 IDD − Supply Current − µA IDD − Quiescent Supply Current − mA with C(DECOUPLE) = 1 μF, CI = 1 µF. 6 4 2 0 2.5 3.5 4.5 Output Level − dBV Output Level − dBV 10 0 −10 Limiter Limiter Limiter Limiter Limiter Limiter Limiter Limiter Limiter −50 −40 RL = 8 Ω + 33 µH VSupply = 5 V Fixed Gain = Max Gain = 30 dB Compression Ratio = 1:1 −30 −20 −10 Level Level Level Level Level Level Level Level Level 0 = −6.5 = −4.5 = −2.5 = −0.5 = 1.5 = 3.5 = 5.5 = 7.5 =9 −30 −50 −70 Fixed Gain = −27 Fixed Gain = −24 Fixed Gain = −21 Fixed Gain = −18 −50 −30 −30 Input Level − dBV −50 Fixed Gain = −15 Fixed Gain = −12 Fixed Gain = −9 Fixed Gain = −6 Fixed Gain = −3 Fixed Gain = 0 Fixed Gain = 3 Fixed Gain = 6 −10 0 10 G004 −10 −20 −30 −50 −70 Fixed Gain = −27 Fixed Gain = −24 Fixed Gain = −21 Fixed Gain = −18 Fixed Gain = −15 −50 −30 Input Level − dBV G005 Figure 7. Output Level vs Input Level With 4:1 Compression −10 Limiter Level = 9 dBV RL = 8 Ω + 33 µH VSupply = 5 V Compression Ratio = 8:1 Max Gain = 30 dB −40 10 −30 Figure 6. Output Level vs Input Level With 2:1 Compression 10 −20 Fixed Gain = −12 Fixed Gain = −9 Fixed Gain = −6 Fixed Gain = −3 Fixed Gain = 0 Fixed Gain = 3 Fixed Gain = 6 Fixed Gain = 9 Fixed Gain = 12 −20 20 −10 −40 −10 G003 Output Level − dBV 0 G002 Input Level − dBV Figure 5. Output Level vs Input Level With Limiter Enabled 10 0 −50 −70 10 Limiter Level = 9 dBV RL = 8 Ω + 33 µH VSupply = 5 V Compression Ratio = 4:1 Max Gain = 30 dB 5.5 Limiter Level = 9 dBV RL = 8 Ω + 33 µH VSupply = 5 V Fixed Gain (2:1) Compression Ratio = 2:1 Max Gain = 30 dB −40 Input Level − dBV 20 4.5 Figure 4. Supply Current vs Supply Voltage in Shutdown 10 −30 3.5 G001 20 −20 SDZ = 0 V 20 20 −40 Output Level − dBV 40 VDD − Supply Voltage − V Figure 3. Quiescent Supply Current vs Supply Voltage 8 60 0 2.5 5.5 VDD − Supply Voltage − V SDZ = VDD, SWS = 1 Fixed Gain = −12 Fixed Gain = −9 Fixed Gain = −6 Fixed Gain = −3 Fixed Gain = 0 Fixed Gain = 3 −10 10 G006 Figure 8. Output Level vs Input Level With 8:1 Compression Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Typical Characteristics (continued) 20 Output Level − dBV 10 0 Limiter Level = 9 dBV RL = 8 Ω + 33 µH VSupply = 5 V Fixed Gain = 0 dB Max Gain = 30 dB −10 −20 −30 Compression Compression Compression Compression −40 −50 −70 −50 −30 Ratio = 1:1 Ratio = 2:1 Ratio = 4:1 Ratio = 8:1 −10 10 Input Level − dBV THD+N − Total Harmonic Distortion + Noise − % with C(DECOUPLE) = 1 μF, CI = 1 µF. 0.01 PO = 1 W 0.001 20 100 PO = 0.25 W PO = 0.05 W 0.1 PO = 0.5 W 0.01 0.001 20 100 1k 10k 20k Gain = 6 dB RL = 8 Ω + 33 µH Right Channel −10 −20 −30 −40 −50 VSupply = 3.6 V VSupply = 5 V 0.1 PO − Output Power − W VCC = 5 V VCC = 2.5 V −60 −70 VCC = 3.6 V −80 20 100 1k 10k 20k G011 Figure 12. Supply Ripple Rejection Ratio 1 3 THD+N − Total Harmonic Distortion + Noise − % THD+N − Total Harmonic Distortion + Noise − % Gain = 6 dB RL = 8 Ω + 33 µH f = 1 kHz 0.1 G008 G009 100 0.01 0.01 20k 0 Figure 11. Total Harmonic Distortion + Noise vs Frequency 1 10k f − Frequency − Hz f − Frequency − Hz 10 1k f − Frequency − Hz KSVR − Supply Ripple Rejection Ratio − dB THD+N − Total Harmonic Distortion + Noise − % PO = 0.5 W PO = 0.1 W 0.1 1 Figure 10. Total Harmonic Distortion + Noise vs Frequency 10 1 Gain = 6 dB RL = 8 Ω + 33 µH VSupply = 3.6 V G007 Figure 9. Output Level vs Input Level Gain = 6 dB RL = 8 Ω + 33 µH VSupply = 5 V 10 100 10 Gain = 6 dB RL = 4 W + 33 mH QFN Only VDD = 3.6 V 1 VDD = 2.5 V 0.1 0.01 0.01 0.1 1 3 PO − Output Power − W G010 Figure 13. Total Harmonic Distortion + Noise vs Output Power VDD = 5 V Figure 14. Total Harmonic Distortion + Noise vs Output Power Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 9 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Typical Characteristics (continued) with C(DECOUPLE) = 1 μF, CI = 1 µF. 100 100 90 80 VDD = 2.5 V 60 VDD = 3.6 V 70 Efficiency − % Efficiency − % 80 VDD = 5 V 40 VDD = 3.6 V 60 50 40 fIN = 1 kHz Gain = 6 dB RL = 4 W + 33 mH QFN Only 30 Gain = 6 dB RL = 8 Ω + 33 µH f = 1 kHz 20 0 0.0 0.5 1.0 1.5 20 10 0 0.0 2.0 PO − Output Power (Per Channel) − W G012 1.5 2.0 2.5 3.0 1.0 Gain = 6 dB RL = 8 Ω + 33 µH f = 1 kHz 0.4 VDD = 3.6 V 0.3 VDD = 5 V VDD = 2.5 V 0.2 0.1 fIN = 1 kHz Gain = 6 dB RL = 4 W + 33 mH QFN Only 0.9 PD − Total Power Dissipation − W PD − Total Power Dissipation − W 1.0 Figure 16. Efficiency vs Output Power (Per Channel) 0.5 0.8 0.7 0.6 VDD = 3.6 V 0.5 VDD = 2.5 V 0.4 VDD = 5 V 0.3 0.2 0.1 0.0 0.0 0 1 2 3 PO − Total Output Power − W 0 4 1 2 3 4 5 6 PO − Total Output Power − W G013 Figure 17. Total Power Dissipation vs Total Output Power Figure 18. Total Power Dissipation vs Total Output Power 1.4 Gain = 6 dB RL = 8 Ω + 33 µH f = 1 kHz VDD = 3.6 V 0.8 0.6 IDD − Total Supply Current − A 1.0 IDD − Total Supply Current − A 0.5 PO − Output Power (Per Channel) − W Figure 15. Efficiency vs Output Power (Per Channel) VDD = 5 V VDD = 2.5 V 0.4 0.2 VDD = 5 V 1.2 VDD = 3.6 V 1.0 VDD = 2.5 V 0.8 0.6 fIN = 1 kHz Gain = 6 dB RL = 4 W + 33 mH QFN Only 0.4 0.2 0.0 0.0 0 1 2 3 PO − Total Output Power − W 4 0 1 2 3 4 5 6 PO − Total Output Power − W G014 Figure 19. Total Supply Current vs Total Output Power 10 VDD = 5 V VDD = 2.5 V Figure 20. Total Supply Current vs Total Output Power Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Typical Characteristics (continued) with C(DECOUPLE) = 1 μF, CI = 1 µF. 2.0 4.0 fIN = 1 kHz Gain = 6 dB RL = 8 W + 33 mH WCSP 3.5 PO − Output Power − W PO − Output Power − W 2.5 1.5 THD = 10% 1.0 THD = 1% 0.5 3.0 fIN = 1 kHz Gain = 6 dB QFN THD = 1%, 4 W 2.5 2.0 THD = 10%, 4 W 1.5 1.0 THD = 10%, 8 W 0.5 THD = 1%, 8 Ω 0.0 2.5 3.0 3.5 4.0 4.5 5.0 0.0 2.5 5.5 3.0 3.5 VCC − Supply Voltage − V Figure 21. Output Power vs Supply Voltage 1 4.5 5.0 5.5 Figure 22. Output Power vs Supply Voltage 1 Output SWS Disable 0.75 Output 0.75 SWS Enable 0.5 Voltage - V 0.5 Voltage - V 4.0 VCC − Supply Voltage − V 0.25 0 -0.25 0.25 0 -0.25 -0.5 -0.5 -0.75 -0.75 -1 -1 0 200m 400m 600m 800m 1m 1.2m 1.4m 1.6m 1.8m 2m 0 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m t - Time - s t - Time - s Figure 24. Start-Up Time Figure 23. Shutdown Time 8 Parameter Measurement Information All parameters are measured according to the conditions described in Specifications. Figure 25 shows the setup used for the typical characteristics of the test device. TPA2016D2 CI + Measurement Output – IN+ OUT+ Load CI IN– VDD + OUT– 30 kHz Low-Pass Filter + Measurement Input – GND 1 mF VDD – (1) All measurements were taken with a 1-μF CI (unless otherwise noted.) (2) A 33-μH inductor was placed in series with the load resistor to emulate a small speaker for efficiency measurements. (3) The 30-kHz low-pass filter is required, even if the analyzer has an internal low-pass filter. An RC low-pass filter (1 kΩ 4.7 nF) is used on each output for the data sheet graphs. (4) All THD + N graphs are taken with outputs out of phase (unless otherwise noted). All data is taken on left channel. (5) All data is taken on the DSBGA package unless otherwise noted. Figure 25. Test Setup for Graphs Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 11 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 9 Detailed Description 9.1 Overview The TPA2016D2 is a stereo Class-D audio power amplifier capable of driving 1.7 W/Ch at 5 V or 750 mW/Ch at 3.6 V into 8-Ω load, and 2.8 W/Ch at 5 V or 1.5 W/Ch at 3.6 V into 4-Ω load. The device features independent software shutdown controls for each channel and also provides thermal and short-circuit protection. In addition to these features, a fast start-up time and small package size make the TPA2016D2 an ideal choice for cellular handsets, PDAs, and other portable applications. 9.2 Functional Block Diagram SDA 2 I C Interface SCL IC shutdown 2 I C Interface & Control SDZ Bias and References AVDD PVDDL C IN OUTL+ INL- Differential INL+ Input Left Volume Control Class-D Modulator Power Stage OUTL- 1uF AGC AGC Reference PVDDR C IN OUTR+ INR- Differential INR+ Input Right Volume Control Class-D Modulator Power Stage OUTR- 1uF AGND PGND Copyright © 2016, Texas Instruments Incorporated 9.3 Feature Description 9.3.1 Operation With DACs and CODECs In using Class-D amplifiers with CODECs and DACs, sometimes there is an increase in the output noise floor from the audio amplifier. This occurs when mixing of the output frequencies of the CODEC/DAC mix with the switching frequencies of the audio amplifier input stage. The noise increase can be solved by placing a lowpass filter between the CODEC/DAC and audio amplifier. This filters off the high frequencies that cause the problem and allow proper performance (see Functional Block Diagram). If driving the TPA2016D2 input with 4th-order or higher ΔΣ DACs or CODECs, add an RC lowpass filter at each of the audio inputs (IN+ and IN–) of the TPA2016D2 to ensure best performance. The recommended resistor value is 100 Ω and the capacitor value of 47 nF. 9.3.2 Filter-Free Operation and Ferrite Bead Filters A ferrite bead filter can often be used if the design is failing radiated emissions without an LC filter and the frequency sensitive circuit is greater than 1 MHz. This filter functions well for circuits that just have to pass FCC and CE because FCC and CE only test radiated emissions greater than 30 MHz. When choosing a ferrite bead, choose one with high impedance at high frequencies, and low impedance at low frequencies. In addition, select a ferrite bead with adequate current rating to prevent distortion of the output signal. 12 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Feature Description (continued) Use an LC output filter if there are low-frequency (< 1 MHz), EMI-sensitive circuits or there are long leads from amplifier to speaker. Figure 26 shows typical ferrite bead and LC output filters. Ferrite Chip Bead OUTP 1 nF Ferrite Chip Bead OUTN 1 nF Figure 26. Typical Ferrite Bead Filter (Chip Bead Example: TDK: MPZ1608S221A) 9.3.3 Short-Circuit Protection TPA2016D2 goes to low duty cycle mode when a short circuit event happens. In order to go to normal duty cycle mode again, it is necessary to reset the device, the shutdown mode can be set through the SDZ pin or software shutdown with the SWS bit. FAULT bit (register 1, bit 3) set to high when short-circuit event happens. It requires a write to clear. This feature can protect the device without affecting the device’s long-term reliability. 9.3.4 Automatic Gain Control The Automatic Gain Control (AGC) feature provides continuous automatic gain adjustment to the amplifier through an internal PGA. This feature enhances the perceived audio loudness and at the same time prevents speaker damage from occurring (Limiter function). The AGC function attempts to maintain the audio signal gain as selected by the user through the Fixed Gain, Limiter Level, and Compression Ratio variables. Other advanced features included are Maximum Gain and Noise Gate Threshold. Table 1 describes the function of each variable in the AGC function. Table 1. TPA2016D2 AGC Variable Descriptions VARIABLE Maximum Gain DESCRIPTION The gain at the lower end of the compression region. The normal gain of the device when the AGC is inactive. Fixed Gain The fixed gain is also the initial gain when the device comes out of shutdown mode or when the AGC is disabled. Limiter Level The value that sets the maximum allowed output amplitude. Compression Ratio The relation between input and output voltage. Noise Gate Threshold Below this value, the AGC holds the gain to prevent breathing effects. Attack Time The minimum time between two gain decrements. Release Time The minimum time between two gain increments. Hold Time The time it takes for the very first gain increment after the input signal amplitude decreases. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 13 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com The AGC works by detecting the audio input envelope. The gain changes depending on the amplitude, the limiter level, the compression ratio, and the attack and release time. The gain changes constantly as the audio signal increases and/or decreases to create the compression effect. The gain step size for the AGC is 0.5 dB. If the audio signal has near-constant amplitude, the gain does not change. Figure 27 shows how the AGC works. INPUT SIGNAL Limiter threshold Limiter threshold B C D E A GAIN OUTPUT SIGNAL Limiter threshold Release Time Hold Time Attack Time Limiter threshold A. Gain decreases with no delay; attack time is reset. Release time and hold time are reset. B. Signal amplitude above limiter level, but gain cannot change because attack time is not over. C. Attack time ends; gain is allowed to decrease from this point forward by one step. Gain decreases because the amplitude remains above limiter threshold. All times are reset D. Gain increases after release time finishes and signal amplitude remains below desired level. All times are reset after the gain increase. E. Gain increases after release time is finished again because signal amplitude remains below desired level. All times are reset after the gain increase. Figure 27. Input and Output Audio Signal vs Time Because the number of gain steps is limited the compression region is limited as well. Figure 28 shows how the gain changes versus the input signal amplitude in the compression region. 14 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 Gain - dB www.ti.com VIN - dBV Figure 28. Input Signal Voltage vs Gain Thus the AGC performs a mapping of the input signal versus the output signal amplitude. This mapping can be modified according to the variables from Table 1. The following graphs and explanations show the effect of each variable to the AGC independently; consider them when choosing values. 9.3.4.1 Fixed Gain The fixed gain determines the initial gain of the AGC. Set the gain using the following variables: • Set the fixed gain to be equal to the gain when the AGC is disabled. • Set the fixed gain to maximize SNR. • Set the fixed gain such that it does not overdrive the speaker. Increasing Fixed Gain G xe d Decreasing Fixed Gain 1: 1 Fi VOUT - dBV ai n = 3 Fi xe dB d G ai n = 6 dB Figure 29 shows how the fixed gain influences the input signal amplitude versus the output signal amplitude state diagram. The dotted 1:1 line is displayed for reference. The 1:1 line means that for a 1-dB increase in the input signal, the output increases by 1 dB. VIN - dBV Figure 29. Output Signal vs Input Signal State Diagram Showing Different Fixed Gain Configurations If the Compression function is enabled, the Fixed Gain is adjustable from –28 dB to 30 dB. If the Compression function is disabled, the Fixed gain is adjustable from 0 dB to 30 dB. 9.3.4.2 Limiter Level The Limiter level sets the maximum amplitude allowed at the output of the amplifier. The limiter should be set with the following constraints in mind: • Below or at the maximum power rating of the speaker Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 15 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 • www.ti.com Below the minimum supply voltage in order to avoid clipping Figure 30 shows how the limiter level influences the input signal amplitude versus the output signal amplitude state diagram. Limiter Level= 630mW Limiter Level= 500mW VOUT - dBV Limiter Level = 400 mW Increasing Limiter Level Decreasing Limiter Level VIN - dBV Figure 30. Output Signal vs Input Signal State Diagram Showing Different Limiter Level Configurations The limiter level and the fixed gain influence each other. If the fixed gain is set high, the AGC has a large limiter range. The fixed gain is set low, the AGC has a short limiter range. Figure 31 illustrates the two examples: Small Fixed Gain 1: 1 VOUT - dBV Large Fixed Gain VIN - dBV Figure 31. Output Signal vs Input Signal State Diagram Showing Same Limiter Level Configurations With Different Fixed Gain Configurations 9.3.4.3 Compression Ratio The compression ratio sets the relation between input and output signal outside the limiter level region. The compression ratio compresses the dynamic range of the audio. For example if the audio source has a dynamic range of 60 dB and compression ratio of 2:1 is selected, then the output has a dynamic range of 30 dB. Most small form factor speakers have small dynamic range. Compression ratio allows audio with large dynamic range to fit into a speaker with small dynamic range. The compression ratio also increases the loudness of the audio without increasing the peak voltage. The higher the compression ratio, the louder the perceived audio. For example: • A compression ratio of 4:1 is selected (meaning that a 4-dB change in the input signal results in a 1-dB signal change at the output) • A fixed gain of 0 dB is selected and the maximum audio level is at 0 dBV. When the input signal decreases to –32 dBV, the amplifier increases the gain to 24 dB in order to achieve an output of –8 dBV. The output signal amplitude equation is: Output signal amplitude = 16 Input signal initial amplitude - |Current input signal amplitude| Compression ratio Submit Documentation Feedback (1) Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 In this example: -8dBV = 0dBV - | - 32 dBV| 4 (2) The gain change equation is: æ ö 1 Gain change = ç 1 ÷ × Input signal change Compression ratio ø è (3) 1ö æ 24 dB = ç 1 - ÷ × 32 4ø è (4) Consider the following when setting the compression ratio: • Dynamic range of the speaker • Fixed gain level • Limiter Level • Audio Loudness vs Output Dynamic Range. Figure 32 shows different settings for dynamic range and different fixed gain selected but no limiter level. Rotation Point@ higher gain 8 :1 4 :1 Increasing Fixed Gain 1 2: VOUT - dBV 1 Rotation Point@ lower gain :1 8 :1 Decreasing 4 :1 2: 1 1 :1 VIN - dBV Figure 32. Output Signal vs Input Signal State Diagram Showing Different Compression Ratio Configurations With Different Fixed Gain Configurations The rotation point is always at Vin = 10 dBV. The rotation point is not located at the intersection of the limiter region and the compression region. By changing the fixed gain the rotation point will move in the y-axis direction only, as shown in the previous graph. 9.3.4.4 Interaction Between Compression Ratio and Limiter Range The compression ratio can be limited by the limiter range. Note that the limiter range is selected by the limiter level and the fixed gain. For a setting with large limiter range, the amount of gain steps in the AGC remaining to perform compression are limited. Figure 33 shows two examples, where the fixed gain was changed. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 17 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 1. Small limiter range yielding a large compression region (small fixed gain). 2. Large limiter range yielding a small compression region (large fixed gain). Small Compression Region Large Limiter Range Rotation Point @ higher gain Large Compression Region 1: 1 VOUT - dBV Rotation Point @ lower gain Small Limiter Range VIN - dBV Figure 33. Output Signal vs Input Signal State Diagram Showing the Effects of the Limiter Range to the Compression Region 9.3.4.5 Noise Gate Threshold Input Signal Amplitude - Vrms The noise gate threshold prevents the AGC from changing the gain when there is no audio at the input of the amplifier. The noise gate threshold stops gain changes until the input signal is above the noise gate threshold. Select the noise gate threshold to be above the noise but below the minimum audio at the input of the amplifier signal. A filter is needed between delta-sigma CODEC/DAC and TPA2016D2 for effectiveness of the noise gate function. The filter eliminates the out-of-band noise from delta-sigma modulation and keeps the CODEC/DAC output noise lower than the noise gate threshold. No Audio Noise Gate Threshold time Gain - dB Gain does not change in this region time Figure 34. Time Diagram Showing the Relationship Between Input Signal Amplitude, Noise Gate Threshold and Gain Versus Time 9.3.4.6 Maximum Gain This variable limits the number of gain steps in the AGC. This feature is useful in order to accomplish a more advanced output signal vs input signal transfer characteristic. For example, to prevent the gain from going above a certain value, reduce the maximum gain. 18 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 However, this variable will affect the limiter range and the compression region. If the maximum gain is decreased, the limiter range and compression region is reduced. Figure 35 illustrates the effects. 1: 1 VOUT - dBV Max Gain Max Gain = 30dB = 22dB VIN - dBV Figure 35. Output Signal vs Input Signal State Diagram Showing Different Maximum Gains A particular application requiring maximum gain of 22 dB, for example. Thus, set the maximum gain at 22 dB. The amplifier gain will never have a gain higher than 22 dB; however, this will reduce the limiter range. 9.3.4.7 Attack, Release, and Hold Time • The attack time is the minimum time between gain decreases. • The release time is the minimum time between gain increases. • The hold time is the minimum time between a gain decrease (attack) and a gain increase (release). The hold time can be deactivated. Hold time is only valid if greater than release time. Successive gain decreases are never faster than the attack time. Successive gain increases are never faster than the release time. All time variables (attack, release, and hold) start counting after each gain change performed by the AGC. The AGC is allowed to decrease the gain (attack) only after the attack time finishes. The AGC is allowed to increase the gain (release) only after the release time finishes counting. However, if the preceding gain change was an attack (gain increase) and the hold time is enabled and longer than the release time, then the gain is only increased after the hold time. The hold time is only enabled after a gain decrease (attack). The hold time replaces the release time after a gain decrease (attack). If the gain needs to be increased further, then the release time is used. The release time is used instead of the hold time if the hold time is disabled. The attack time should be at least 100 times shorter than the release and hold time. The hold time should be the same or greater than the release time. It is important to select reasonable values for those variables in order to prevent the gain from changing too often or too slow. Figure 36 illustrates the relationship between the three time variables. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 19 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Input Signal Amplitue (Vrms) Gain dB Time end Attack time Time reset Release time Hold timer not used after first gain increase Hold time time Figure 36. Time Diagram Showing the Relation Between the Attack, Release, and Hold Time vs Input Signal Amplitude and Gain Figure 37 shows a state diagram of the input signal amplitude vs the output signal amplitude and a summary of how the variables from Table 1 affect them. Fixed Gain Rotation Point 8:1 ¥:1 1: 1 4:1 2:1 nR sio 1 :1 A tta R c el k ea Ti se m e Ti m e Noise Gate Threshold VOUT - dBV r es mp Co Limiter Level ion eg Maximum Gain VIN - dBV 10 dBV Figure 37. Output Signal vs Input Signal State Diagram 20 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 9.4 Device Functional Modes 9.4.1 TPA2016D2 AGC Operation The TPA2016D2 is controlled by the I2C interface. The correct start-up sequence is: 1. Apply the supply voltage to the AVDD and PVDD (L, R) pins. 2. Apply a voltage above VIH to the SDZ pin. The TPA2016D2 powers up the I2C interface and the control logic. By default, the device is in active mode (SWS = 0). After a few milliseconds the amplifier will enable the class-D output stage and become fully operational. 3. The amplifier starts at a gain of 0 dB and the AGC starts ramping the gain after the input signal exceeds the noise gate threshold. CAUTION Do not interrupt the start-up sequence after changing SDZ from VIL to VIH. Do not interrupt the start-up sequence after changing SWS from 1 to 0. The default conditions of TPA2016D2 allows audio playback without I2C control. See Table 4 for entire default conditions. There are several options to disable the amplifier: • Write SPK_EN_R = 0 and SPK_EN_L = 0 to the register (0x01, 6 and 0x01, 7). This write disables each speaker amplifier, but leaves all other circuits operating. • Write SWS = 1 to the register (0x01, 5). This action disables most of the amplifier functions. • Apply VIL to SDZ. This action shuts down all the circuits and has very low quiescent current consumption. This action resets the registers to its default values. CAUTION Do not interrupt the shutdown sequence after changing SDZ from VIH to VIL. Do not interrupt the shutdown sequence after changing SWS from 0 to 1. 9.4.2 TPA2016D2 AGC Recommended Settings Table 2. Recommended AGC Settings for Different Types of Audio Source (VDD = 3.6 V) AUDIO SOURCE COMPRESSION RATIO ATTACK TIME (ms/6 dB) RELEASE TIME (ms/6 dB) HOLD TIME (ms) FIXED GAIN (dB) LIMITER LEVEL (dBV) Pop Music 4:1 1.28 to 3.84 986 to 1640 137 6 7.5 Classical 2:1 2.56 1150 137 6 8 Jazz 2:1 5.12 to 10.2 3288 — 6 8 Rap / Hip Hop 4:1 1.28 to 3.84 1640 — 6 7.5 Rock 2:1 3.84 4110 — 6 8 Voice / News 4:1 2.56 1640 — 6 8.5 9.5 Programming 9.5.1 General I2C Operation The I2C bus employs two signals, SDA (data) and SCL (clock), to communicate between integrated circuits in a system. The bus transfers data serially one bit at a time. The address and data 8-bit bytes are transferred most significant bit (MSB) first. In addition, each byte transferred on the bus is acknowledged by the receiving device with an acknowledge bit. Each transfer operation begins with the master device driving a start condition on the bus and ends with the master device driving a stop condition on the bus. The bus uses transitions on the data terminal (SDA) while the clock is at logic high to indicate start and stop conditions. A high-to-low transition on Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 21 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Programming (continued) SDA indicates a start and a low-to-high transition indicates a stop. Normal data-bit transitions must occur within the low time of the clock period. Figure 38 shows a typical sequence. The master generates the 7-bit slave address and the read/write (R/W) bit to open communication with another device, and then waits for an acknowledge condition. The TPA2016D2 holds SDA low during the acknowledge clock period to indicate acknowledgment. When this acknowledgment occurs, the master transmits the next byte of the sequence. Each device is addressed by a unique 7-bit slave address plus R/W bit (1 byte). All compatible devices share the same signals via a bidirectional bus using a wired-AND connection. An external pullup resistor must be used for the SDA and SCL signals to set the logic high level for the bus. When the bus level is 5 V, use pullup resistors between 1 kΩ and 2 kΩ. 8- Bit Data for Register (N) 8- Bit Data for Register (N+1) Figure 38. Typical I2C Sequence There is no limit on the number of bytes that can be transmitted between start and stop conditions. When the last word transfers, the master generates a stop condition to release the bus. A generic data transfer sequence is shown in Figure 38. 9.5.2 Single- and Multiple-Byte Transfers The serial control interface supports both single-byte and multi-byte read or write operations for all registers. During multiple-byte read operations, the TPA2016D2 responds with data, one byte at a time, starting at the register assigned, as long as the master device continues to respond with acknowledgments. The TPA2016D2 supports sequential I2C addressing. For write transactions, if a register is issued followed by data for that register and all the remaining registers that follow, a sequential I2C write transaction has occurred. For I2C sequential write transactions, the register issued then serves as the starting point, and the amount of data subsequently transmitted, before a stop or start is transmitted, determines the number of registers written. 9.5.3 Single-Byte Write As Figure 39 shows, a single-byte data write transfer begins with the master device transmitting a start condition followed by the I2C device address and the read or write bit. The read or write bit determines the direction of the data transfer. For a write data transfer, the read/write bit must be set to '0'. After receiving the correct I2C device address and the read/write bit, the TPA2016D2 responds with an acknowledge bit. Next, the master transmits the register byte corresponding to the TPA2016D2 internal memory address being accessed. After receiving the register byte, the TPA2016D2 again responds with an acknowledge bit. Next, the master device transmits the data byte to be written to the memory address being accessed. After receiving the register byte, the TPA2016D2 again responds with an acknowledge bit. Finally, the master device transmits a stop condition to complete the single-byte data write transfer. Start Condition Acknowledge A6 A5 A4 A3 A2 A1 A0 I2C Device Address and Read/Write Bit Acknowledge R/W ACK A7 A6 A5 A4 A3 A2 A1 A0 ACK D7 Acknowledge D6 Register D5 D4 D3 Data Byte D2 D1 D0 ACK Stop Condition Figure 39. Single-Byte Write Transfer 22 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Programming (continued) 9.5.4 Multiple-Byte Write and Incremental Multiple-Byte Write A multiple-byte data write transfer is identical to a single-byte data write transfer except that multiple data bytes are transmitted by the master device to the TPA2016D2 as shown in Figure 40. After receiving each data byte, the TPA2016D2 responds with an acknowledge bit. Register Figure 40. Multiple-Byte Write Transfer 9.5.5 Single-Byte Read As Figure 41 shows, a single-byte data read transfer begins with the master device transmitting a start condition followed by the I2C device address and the read or write bit. For the data read transfer, both a write followed by a read are actually executed. Initially, a write is executed to transfer the address byte of the internal memory address to be read. As a result, the read or write bit is set to a 0. After receiving the TPA2016D2 address and the read or write bit, the TPA2016D2 responds with an acknowledge bit. The master then sends the internal memory address byte, after which the TPA2016D2 issues an acknowledge bit. The master device transmits another start condition followed by the TPA2016D2 address and the read or write bit again. This time the read/write bit is set to 1, indicating a read transfer. Next, the TPA2016D2 transmits the data byte from the memory address being read. After receiving the data byte, the master device transmits a not-acknowledge followed by a stop condition to complete the single-byte data read transfer. Repeat Start Condition Start Condition Acknowledge A6 A5 A1 A0 R/W ACK A7 I2C Device Address and Read/Write Bit Acknowledge A6 A5 A4 A0 ACK Not Acknowledge Acknowledge A6 A5 A1 A0 R/W ACK D7 D6 I2C Device Address and Read/Write Bit Register D1 D0 ACK Stop Condition Data Byte Figure 41. Single-Byte Read Transfer 9.5.6 Multiple-Byte Read A multiple-byte data read transfer is identical to a single-byte data read transfer except that multiple data bytes are transmitted by the TPA2016D2 to the master device as shown in Figure 42. With the exception of the last data byte, the master device responds with an acknowledge bit after receiving each data byte. Repeat Start Condition Start Condition Acknowledge A6 A0 R/W ACK A7 I2C Device Address and Read/Write Bit Acknowledge A6 A5 A0 ACK Acknowledge A6 A0 R/W ACK D7 I2C Device Address and Read/Write Bit Register Acknowledge D0 ACK D7 First Data Byte Acknowledge Not Acknowledge D0 ACK D7 D0 ACK Other Data Bytes Last Data Byte Stop Condition Figure 42. Multiple-Byte Read Transfer Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 23 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 9.6 Register Maps Table 3. TPA2016D2 Register Map REGISTER BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 1 SPK_EN_R SPL_EN_L SWS FAULT_R FAULT_L Thermal 1 NG_EN 2 0 0 ATK_time [5] ATK_time [4] ATK_time [3] ATK_time [2] ATK_time [1] ATK_time [0] 3 0 0 REL_time [5] REL_time [4] REL_time [3] REL_time [2] REL_time [1] REL_time [0] 4 0 0 Hold_time [5] Hold_time [4] Hold_tme [3] Hold_time [2] Hold_time [1] Hold_time [0] 5 0 0 FixedGain [5] FixedGain [4] FixedGain [3] FixedGain [2] FixedGain [1] FixedGain [0] 6 Output Limiter Disable NoiseGate Threshold [1] NoiseGate Threshold [2] Output Limiter Level [4] Output Limiter Output Limiter Level [3] Level [2] Output Limiter Level [1] Output Limiter Level [0] 7 Max Gain [3] Max Gain [2] Max Gain [1] Max Gain [0] 0 Compression Ratio [1] Compression Ratio [0] 0 The default register map values are given in Table 4. Table 4. TPA2016D2 Default Register Values Table REGISTER 0x01 0x02 0x03 0x04 0x05 0x06 0x07 Default C3h 05h 0Bh 00h 06h 3Ah C2h Any register above address 0x08 is reserved for testing and must not be written to because it may change the function of the device. If read, these bits may assume any value. Some of the default values can be reprogrammed through the I2C interface and written to the EEPROM. This function is useful to speed up the turnon time of the device and minimizes the number of I2C writes. If this is required, contact your local TI representative. The TPA2016D2 I2C address is 0xB0 (binary 10110000) for writing and 0xB1 (binary 10110001) for reading. If a different I2C address is required, please contact your local TI representative. See General I2C Operation for more details. The following tables show the details of the registers, the default values, and the values that can be programmed through the I2C interface. 24 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Table 5. IC Function Control (Address: 1) REGISTER ADDRESS 01 (01H) – IC Function Control I2C BIT LABEL DEFAULT DESCRIPTION 7 SPK_EN_R 1 (enabled) Enables right amplifier 6 SPK_EN_L 1 (enabled) Enables left amplifier 5 SWS 0 (enabled) Shutdown IC when bit = 1 4 FAULT_R 0 Changes to a 1 when there is a short on the right channel. Reset by writing a 0. 3 FAULT_L 0 Changes to a 1 when there is a short on the left channel. Reset by writing a 0 2 Thermal 0 Changes to a 1 when die temperature is above 150°C 1 UNUSED 1 0 NG_EN 1 (enabled) Enables Noise Gate function SPK_EN_R: Enable bit for the right-channel amplifier. Amplifier is active when bit is high. This function is gated by thermal and returns once the IC is below the threshold temperature. SPK_EN_L: Enable bit for the left-channel amplifier. Amplifier is active when bit is high. This function is gated by thermal and returns once the IC is below the threshold temperature SWS: Software shutdown control. The device is in software shutdown when the bit is 1 (control, bias and oscillator are inactive). When the bit is 0 the control, bias and oscillator are enabled. Fault_L: This bit indicates that an over-current event has occurred on the left channel with a 1. This bit is cleared by writing a 0 to it. Fault_R: This bit indicates that an over-current event has occurred on the right channel with a 1. This bit is cleared by writing a 0 to it. Thermal: This bit indicates a thermal shutdown that was initiated by the hardware with a 1. This bit is deglitched and latched, and can be cleared by writing a 0 to it. NG_EN: Enable bit for the Noise Gate function. This function is enabled when this bit is high. This function can only be enabled when the Compression ratio is not 1:1. Table 6. AGC Attack Control (Address: 2) REGISTER ADDRESS I2C BIT LABEL DEFAULT 7:6 00 Unused DESCRIPTION AGC Attack time (gain ramp down) 02 (02H) – AGC Control 5:0 ATK_time 000101 (6.4 ms/6 dB) Per Step Per 6 dB 90% Range 000001 0.1067 ms 1.28 ms 5.76 ms 000010 0.2134 ms 2.56 ms 11.52 ms 000011 0.3201 ms 3.84 ms 17.19 ms 000100 0.4268 ms 5.12 ms 23.04 ms (time increases by 0.1067 ms with every step) 111111 ATK_time 6.722 ms 80.66 ms 362.99 ms These bits set the attack time for the AGC function. The attack time is the minimum time between gain decreases. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 25 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Table 7. AGC Release Control (Address: 3) REGISTER ADDRESS I2C BIT LABEL DEFAULT 7:6 Unused 00 DESCRIPTION AGC Release time (gain ramp down) 03 (03H) – AGC Release 5:0 Control 001011 (1.81 sec/6 dB) REL_time Per Step Per 6 dB 90% Range 000001 0.0137 s 0.1644 s 0.7398 s 000010 0.0274 s 0.3288 s 1.4796 s 000011 0.0411 s 0.4932 s 2.2194 s 000100 0.0548 s 0.6576 s 2.9592 s 10.36 s 46.6 s (time increases by 0.0137 s with every step) 111111 0.8631 s These bits set the release time for the AGC function. The release time is the minimum time between gain increases. REL_time Table 8. AGC Hold Time Control (Address: 4) REGISTER ADDRESS I2C BIT LABEL DEFAULT 7:6 Unused 00 DESCRIPTION AGC Hold time Per Step 04 (04H) – AGC Hold Time Control 5:0 Hold_time 000000 (Disabled) 000000 Hold Time Disable 000001 0.0137 s 000010 0.0274 s 000011 0.0411 s 000100 0.0548 s (time increases by 0.0137 s with every step) 111111 Hold_time 26 0.8631 s These bits set the hold time for the AGC function. The hold time is the minimum time between a gain decrease (attack) and a gain increase (release). The hold time can be deactivated. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Table 9. AGC Fixed Gain Control (Address: 5) REGISTER ADDRESS I2C BIT LABEL DEFAULT 7:6 00 Unused DESCRIPTION Sets the fixed gain of the amplifier: two's compliment 05 (05H) – AGC Fixed Gain Control Gain 5:0 Fixed Gain 00110 (6dB) 100100 –28 dB 100101 –27 dB 100110 –26 dB (gain increases by 1 dB with every step) 111101 –3 dB 111110 –2 dB 111111 –1 dB 000000 0 dB 000001 1 dB 000010 2 dB 000011 3 dB (gain increases by 1dB with every step) Fixed Gain 011100 28 dB 011101 29 dB 011110 30 dB These bits are used to select the fixed gain of the amplifier. If the Compression is enabled, fixed gain is adjustable from –28 dB to 30 dB. If the Compression is disabled, fixed gain is adjustable from 0 dB to 30 dB. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 27 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Table 10. AGC Control (Address: 6) REGISTER ADDRESS I2C BIT LABEL 7 Output Limiter Disable DEFAULT DESCRIPTION 0 (enable) Disables the output limiter function. Can only be disabled when the AGC compression ratio is 1:1 (off) Select the threshold of the noise gate Threshold 6:5 NoiseGate Threshold 00 1 mVrms 01 4 mVrms 10 10 mVrms 11 20 mVrms Output Power (Wrms) Peak Output Voltage (Vp) dBV 00000 0.03 0.67 –6.5 00001 0.03 0.71 –6 00010 0.04 0.75 –5.5 01 (4 mVrms) Selects the output limiter level 06 (06H) – AGC Control 4:0 Output Limiter Level 11010 (6.5 dBV) (Limiter level increases by 0.5 dB with every step) 11101 0.79 3.55 8 11110 0.88 3.76 8.5 11111 0.99 3.99 9 Output Limiter Disable This bit disables the output limiter function when set to 1. Can only be disabled when the AGC compression ratio is 1:1 NoiseGate Threshold These bits set the threshold level of the noise gate. NoiseGate Threshold is only functional when the compression ratio is not 1:1 Output Limiter Level These bits select the output limiter level. Output Power numbers are for 8-Ω load. Table 11. AGC Control (Address: 7) REGISTER ADDRESS I2C BIT LABEL DEFAULT DESCRIPTION Selects the maximum gain the AGC can achieve Gain 7:4 Max Gain 1100 (30 dB) 0000 18 dB 0001 19 dB 0010 20 dB 1100 30 dB (gain increases by 1 dB with every step) 07 (07H) – AGC Control 3:2 Unused 00 Selects the compression ratio of the AGC Ratio 1:0 Compression Ratio 10 (4:1) 00 1:1 (off) 01 2:1 10 4:1 11 8:1 Compression Ratio These bits select the compression ratio. Output Limiter is enabled by default when the compression ratio is not 1:1. Max Gain These bits select the maximum gain of the amplifier. In order to maximize the use of the AGC, set the Max Gain to 30 dB 28 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 10 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 10.1 Application Information These typical connection diagrams highlight the required external components and system level connections for proper operation of the device. Each of these configurations can be realized using the Evaluation Modules (EVMs) for the device. These flexible modules allow full evaluation of the device in the most common modes of operation. Any design variation can be supported by TI through schematic and layout reviews. Visit e2e.ti.com for design assistance and join the audio amplifier discussion forum for additional information. 10.2 Typical Applications 10.2.1 TPA2016D2 With Differential Input Signal To power supply 10uF AVDD CI PVDDL PVDDR TPA2016D2 INL- Analog Baseband or CODEC OUTL+ OUTL- INL+ INRINR+ Digital Baseband I2C Clock SCL I2C Data SDA Master Shutdown OUTR+ OUTR- SDZ AGND PGND Copyright © 2016, Texas Instruments Incorporated Figure 43. Typical Application Schematic With Differential Input Signals Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 29 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com Typical Applications (continued) 10.2.1.1 Design Requirements For this design example, use the parameters listed in Table 12. Table 12. Design Parameters PARAMETER EXAMPLE VALUE Power supply Enable inputs Speaker 5V High > 1.3 V Low < 0.6 V 8Ω 10.2.1.2 Detailed Design Procedure 10.2.1.2.1 Surface Mount Capacitors Temperature and applied DC voltage influence the actual capacitance of high-K materials. Table 13 shows the relationship between the different types of high-K materials and their associated tolerances, temperature coefficients, and temperature ranges. Notice that a capacitor made with X5R material can lose up to 15% of its capacitance within its working temperature range. In an application, the working capacitance of components made with high-K materials is generally much lower than nominal capacitance. A worst-case result with a typical X5R material might be –10% tolerance, –15% temperature effect, and –45% DC voltage effect at 50% of the rated voltage. This particular case would result in a working capacitance of 42% (0.9 × 0.85 × 0.55) of the nominal value. Select high-K ceramic capacitors according to the following rules: 1. Use capacitors made of materials with temperature coefficients of X5R, X7R, or better. 2. Use capacitors with DC voltage ratings of at least twice the application voltage. Use minimum 10-V capacitors for the TPA2016D2. 3. Choose a capacitance value at least twice the nominal value calculated for the application. Multiply the nominal value by a factor of 2 for safety. If a 10-μF capacitor is required, use 20 µF. The preceding rules and recommendations apply to capacitors used in connection with the TPA2016D2. The TPA2016D2 cannot meet its performance specifications if the rules and recommendations are not followed. Table 13. Typical Tolerance and Temperature Coefficient of Capacitance by Material MATERIAL COG/NPO X7R X5R Typical tolerance ±5% ±10% 80 / –20% Temperature ±30 ppm ±15% 22 / –82% Temperature range, °C –55 to 125°C –55 to 125°C –30 to 85°C 10.2.1.2.2 Decoupling Capacitor, CS The TPA2016D2 is a high-performance Class-D audio amplifier that requires adequate power supply decoupling to ensure the efficiency is high and total harmonic distortion (THD) is low. For higher frequency transients, spikes, or digital hash on the line, a good low equivalent-series-resistance (ESR) 1-μF ceramic capacitor (typically) placed as close as possible to the device PVDD (L, R) lead works best. Placing this decoupling capacitor close to the TPA2016D2 is important for the efficiency of the Class-D amplifier, because any resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency. For filtering lowerfrequency noise signals, a 4.7-μF or greater capacitor placed near the audio power amplifier would also help, but it is not required in most applications because of the high PSRR of this device. 10.2.1.2.3 Input Capacitors, CI The input capacitors and input resistors form a high-pass filter with the corner frequency, fC, determined in Equation 5. 30 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com fC = SLOS524E – JUNE 2008 – REVISED MAY 2016 1 (2p ´ RI ´ CI ) (5) The value of the input capacitor is important to consider as it directly affects the bass (low frequency) performance of the circuit. Speakers in wireless phones cannot usually respond well to low frequencies, so the corner frequency can be set to block low frequencies in this application. Not using input capacitors can increase output offset. Equation 6 is used to solve for the input coupling capacitance. If the corner frequency is within the audio band, the capacitors must have a tolerance of ±10% or better, because any mismatch in capacitance causes an impedance mismatch at the corner frequency and below. 1 CI = (2p ´ RI ´ fC ) (6) 10.2.1.3 Application Curves For application curves, see the figures listed in Table 14. Table 14. Table of Graphs DESCRIPTION FIGURE NUMBER Output Level vs Input Level Figure 5 THD+N vs Frequency Figure 10 THD+N vs Output Power Figure 13 Output Power vs Supply Voltage Figure 21 10.2.2 TPA2016D2 With Single-Ended Input Signal To power supply 10uF AVDD CI PVDDL PVDDR TPA2016D2 INL- Analog Baseband or CODEC OUTL+ OUTL- INL+ INRINR+ Digital Baseband OUTR+ OUTR- I2C Clock SCL I2C Data SDA Master Shutdown SDZ AGND PGND Copyright © 2016, Texas Instruments Incorporated Figure 44. Typical Application Schematic With Single-Ended Input Signal Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 31 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 10.2.2.1 Design Requirements For this design example, use the parameters listed in Table 12. 10.2.2.2 Detailed Design Procedure For the design procedure see Detailed Design Procedure. 10.2.2.3 Application Curves For application curves, see the figures listed in Table 14. 11 Power Supply Recommendations The TPA2016D2 is designed to operate from an input voltage supply range between 2.5 V and 5.5 V. Therefore the output voltage range of the power supply must be within this range. The current capability of upper power must not exceed the maximum current limit of the power switch. 11.1 Power Supply Decoupling Capacitors The TPA2016D2 requires adequate power supply decoupling to ensure a high efficiency operation with low total harmonic distortion (THD). Place a low equivalent-series-resistance (ESR) ceramic capacitor, typically 0.1 µF, within 2 mm of the VDD/VCCOUT pin. This choice of capacitor and placement helps with higher frequency transients, spikes, or digital hash on the line. In addition to the 0.1-μF ceramic capacitor, is recommended to place a 2.2-µF to 10-µF capacitor on the VDD supply trace. This larger capacitor acts as a charge reservoir, providing energy faster than the board supply, thus helping to prevent any droop in the supply voltage. 12 Layout 12.1 Layout Guidelines 12.1.1 Component Location Place all the external components very close to the TPA2016D2. Placing the decoupling capacitor, CS, close to the TPA2016D2 is important for the efficiency of the Class-D amplifier. Any resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency. 12.1.2 Trace Width Recommended trace width at the solder balls is 75 μm to 100 μm to prevent solder wicking onto wider PCB traces. For high current pins (PVDD (L, R), PGND, and audio output pins) of the TPA2016D2, use 100-μm trace widths at the solder balls and at least 500-μm PCB traces to ensure proper performance and output power for the device. For the remaining signals of the TPA2016D2, use 75-μm to 100-μm trace widths at the solder balls. The audio input pins (INR± and INL±) must run side-by-side to maximize common-mode noise cancellation. 12.1.3 Pad Side In making the pad size for the DSBGA balls, TI recommends that the layout use non solder mask defined (NSMD) land. With this method, the solder mask opening is made larger than the desired land area, and the opening size is defined by the copper pad width. Figure 45 and Table 15 shows the appropriate diameters for a DSBGA layout. The TPA2016D2 evaluation module (EVM) layout is shown in the next section as a layout example. 32 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Layout Guidelines (continued) Table 15. Land Pattern Dimensions (1) (2) (3) (4) SOLDER PAD DEFINITIONS Non solder mask defined (NSMD) (1) (2) (3) (4) (5) (6) (7) COPPER PAD SOLDER MASK (5) OPENING COPPER THICKNESS STENCIL (6) (7) OPENING 275 μm (+0.0, –25 μm) 375 μm (+0.0, –25 μm) 1 oz max (32 μm) 275 μm × 275 μm Sq. (rounded 125 μm thick corners) STENCIL THICKNESS Circuit traces from NSMD defined PWB lands should be 75 μm to 100 μm wide in the exposed area inside the solder mask opening. Wider trace widths reduce device stand off and impact reliability. Best reliability results are achieved when the PWB laminate glass transition temperature is above the operating the range of the intended application. Recommend solder paste is Type 3 or Type 4. For a PWB using a Ni/Au surface finish, the gold thickness should be less 0.5 mm to avoid a reduction in thermal fatigue performance. Solder mask thickness should be less than 20 μm on top of the copper circuit pattern Best solder stencil performance is achieved using laser cut stencils with electro polishing. Use of chemically etched stencils results in inferior solder paste volume control. Trace routing away from DSBGA device should be balanced in X and Y directions to avoid unintentional component movement due to solder wetting forces. Figure 45. Land Pattern Dimensions Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 33 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 12.2 Layout Examples Decoupling capacitor placed as close as possible to the device INR- INR+ CI 10µF Input capacitors placed as close as possible to the device INL+ INL- CI 1µF A1 A2 A3 A4 B1 B2 B3 B4 SCL SDA C1 C2 C3 C4 D1 D2 D3 D4 SDZ TPA2016D2 10µF OUTR+ OUTR- OUTL- OUTL+ 1µF Decoupling capacitor placed as close as possible to the device Top Layer Ground Plane Top Layer Traces Pad to Top Layer Ground Plane Bottom Layer Traces Via to Ground Plane Via to Bottom Layer Via to Power Supply Plane Figure 46. TPA2016D2BGA Layout Recommendation 34 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 Layout Examples (continued) SDA SDZ SCL Input capacitors placed as close as possible to the device Input capacitors placed as close as possible to the device CI 20 19 18 17 CI 16 INR+ INL+ INLCI 1µF 1 15 2 14 3 13 4 12 5 11 6 10µF 7 8 9 INRCI 1µF 10 10µF TPA2016D2 Decoupling capacitor placed as close as possible to the device Decoupling capacitor placed as close as possible to the device OUTL+ OUTL- OUTR- OUTR+ Top Layer Ground Plane Top Layer Traces Pad to Top Layer Ground Plane Thermal Pad Via to Bottom Ground Plane Via to Power Supply Plane Figure 47. TPA2016D2QFN Layout Recommendation Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 35 TPA2016D2 SLOS524E – JUNE 2008 – REVISED MAY 2016 www.ti.com 12.3 Efficiency and Thermal Considerations The maximum ambient temperature depends on the heat-sinking ability of the PCB system. The derating factor for the packages are shown in the dissipation rating table. Converting this to θJA for the DSBGA package: 100°C/W (7) Given θJA of 100°C/W, the maximum allowable junction temperature of 150°C, and the maximum internal dissipation of 0.4 W (0.2 W per channel) for 1.5 W per channel, 8-Ω load, 5-V supply, from Figure 15, the maximum ambient temperature can be calculated with Equation 8. TA Max = TJMax - qJA PDMAX = 150 - 100 (0.4) = 110°C (8) Equation 8 shows that the calculated maximum ambient temperature is 110°C at maximum power dissipation with a 5-V supply and 8-Ω a load. The TPA2016D2 is designed with thermal protection that turns the device off when the junction temperature surpasses 150°C to prevent damage to the IC. Also, using speakers more resistive than 8-Ω dramatically increases the thermal performance by reducing the output current and increasing the efficiency of the amplifier. 36 Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 TPA2016D2 www.ti.com SLOS524E – JUNE 2008 – REVISED MAY 2016 13 Device and Documentation Support 13.1 Device Support 13.1.1 Third-Party Products Disclaimer TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE. 13.2 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 13.3 Trademarks Nano-Free, E2E are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. 13.4 Electrostatic Discharge Caution These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. 13.5 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 14 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Documentation Feedback Copyright © 2008–2016, Texas Instruments Incorporated Product Folder Links: TPA2016D2 37 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TPA2016D2RTJR ACTIVE QFN RTJ 20 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TPA 2016D2 TPA2016D2RTJT ACTIVE QFN RTJ 20 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TPA 2016D2 TPA2016D2YZHR ACTIVE DSBGA YZH 16 3000 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 85 CCJ TPA2016D2YZHT ACTIVE DSBGA YZH 16 250 RoHS & Green SNAGCU Level-1-260C-UNLIM -40 to 85 CCJ (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
