TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
TPL5010 Nano-Power System Timer With Watchdog Function
1 Features
3 Description
•
•
•
•
•
•
•
The TPL5010 Nano Timer is an ultra-low power timer
with a watchdog feature designed for system wake up
in duty-cycled, battery-powered applications such as
those in IoT. Many of these applications require the
use of a μC, so it is desirable to keep the μC in a low
power mode to maximize current savings, waking up
only during certain time intervals to collect data or
service an interrupt. Although the internal timer of the
μC can be used for system wake-up, it can singlehandedly consume microamps of total system
current.
1
Supply Voltage From 1.8 V to 5.5 V
Current Consumption at 2.5 V and 35 nA (Typical)
Selectable Time Intervals: 100 ms to 7200 s
Timer Accuracy: 1% (Typical)
Resistor Selectable Time Interval
Watchdog Functionality
Manual Reset
2 Applications
•
•
•
•
•
•
•
•
•
Consuming only 35 nA, the TPL5010 can replace the
functionality of the integrated μC timer. This allows
the μC to be placed in a much lower power mode,
with the internal timer off, returning only to active
mode upon an interrupt by the TPL5010. By offering
power savings of almost two orders of magnitude, the
TPL5010 enables the use of significantly smaller
batteries for energy harvesting or wireless sensor
applications. The TPL5010 provides selectable timing
intervals from 100 ms to 7200 s and is designed for
interrupt-driven applications. Some standards (such
as EN50271) require implementation of a watchdog
for safety and the TPL5010 realizes this watchdog
function at almost no additional power consumption.

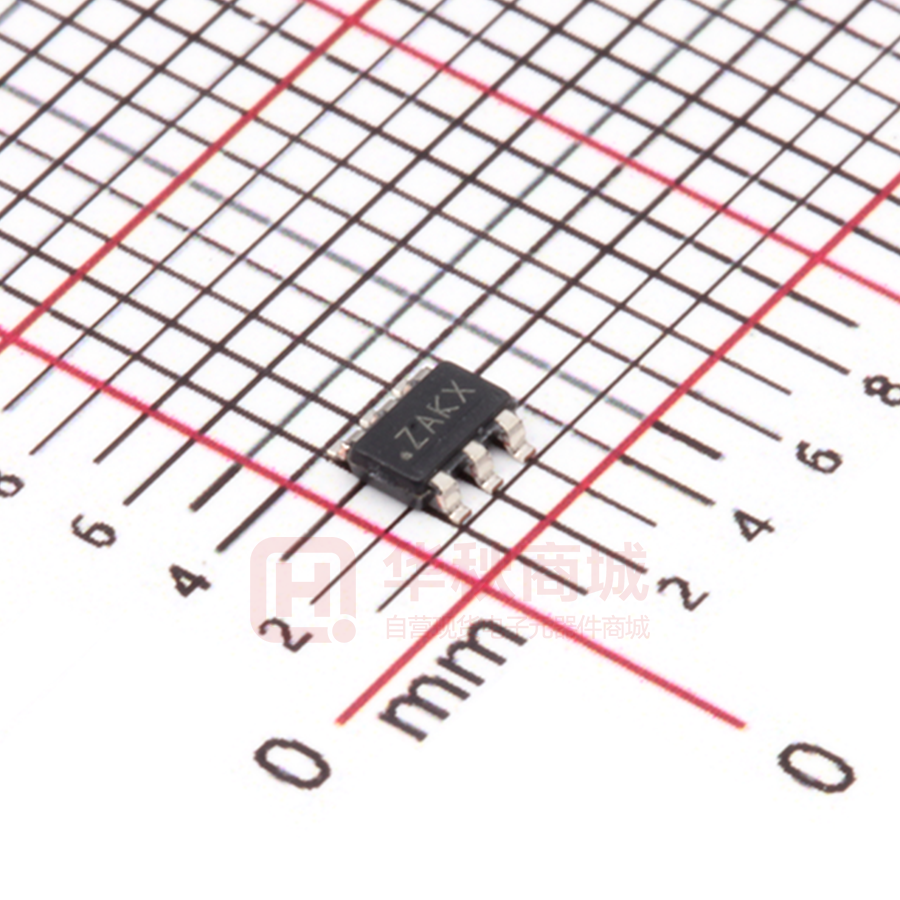

The TPL5010 is available in a 6-pin SOT23 package.
Battery-Powered Systems
Internet of Things (IoT)
Intruder Detection
Tamper Detection
Home Automation Sensors
Thermostats
Consumer Electronics
Remote Sensors
White Goods
Device Information(1)
PART NUMBER
TPL5010
PACKAGE
SOT23 (6)
BODY SIZE (NOM)
3.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Simplified Application Schematic
µC
VOUT
TPL5010
VIN
VDD
VDD
RSTn
RSTn
GND
WAKE
GPIO
DELAY/
M_RST
DONE
GPIO
+
Battery
Rp
POWER MANAGEMENT
-
GND
REXT
GND
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Device Comparison Table.....................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
5
7.1
7.2
7.3
7.4
7.5
7.6
7.7
5
5
5
5
6
7
8
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Ratings ...........................
Thermal Information .................................................
Electrical Characteristics...........................................
Timing Requirements ...............................................
Typical Characteristics ..............................................
Detailed Description .............................................. 9
8.1 Overview ................................................................... 9
8.2 Functional Block Diagram ......................................... 9
8.3 Feature Description................................................... 9
8.4 Device Functional Modes........................................ 10
8.5 Programming .......................................................... 10
9
Application and Implementation ........................ 16
9.1 Application Information............................................ 16
9.2 Typical Application ................................................. 16
10 Power Supply Recommendations ..................... 18
11 Layout................................................................... 18
11.1 Layout Guidelines ................................................. 18
11.2 Layout Example .................................................... 18
12 Device and Documentation Support ................. 19
12.1
12.2
12.3
12.4
12.5
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
19
19
19
19
19
13 Mechanical, Packaging, and Orderable
Information ........................................................... 19
4 Revision History
Changes from Original (January 2015) to Revision A
Page
•
Added TPL5x1x Family of Nano Timers table ....................................................................................................................... 3
•
Changed TADC and RD equations in the Quantization Error section ..................................................................................... 14
•
Added Receiving Notification of Documentation Updates section ....................................................................................... 19
2
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
5 Device Comparison Table
TPL5x1x Family of Nano Timers
PART NUMBER
Special Features
Output
Rating
TPL5010
Low Power Timer, Watchdog
Functionality
Active High
Catalog
TPL5010Q
Low Power Timer, Watchdog
Functionality
Active High
Automotive
TPL5111
Low Power Timer, Power
Gating MOS-Driver
Active High
Catalog
TPL5110
Low Power Timer, Power
Gating MOS-Driver
Active Low
Catalog
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
3
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
6 Pin Configuration and Functions
DDC Package
6-Lead SOT-23
Top View
TPL5010
1
VDD
RSTn
6
2
GND
WAKE
5
3
DELAY/
M_RST
DONE
4
Pin Functions
PIN
(1)
4
TYPE (1)
DESCRIPTION
APPLICATION INFORMATION
NO.
NAME
1
VDD
P
Supply voltage
2
GND
G
Ground
3
DELAY/
M_RST
I
Time Interval set and Manual Reset
Resistance between this pin and GND is used to
select the time interval. The reset switch is also
connected to this pin.
4
DONE
I
Logic Input for watchdog
functionality
Digital signal driven by the µC to indicate successful
processing of the WAKE signal.
5
WAKE
O
Timer output signal generated every Digital pulsed signal to wake up the µC at the end of
tIP period.
the programmed time interval.
6
RSTn
O
Reset Output (open drain output)
Digital signal to RESET the µC, pullup resistance is
required
G= Ground, P= Power, O= Output, I= Input.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
7 Specifications
7.1 Absolute Maximum Ratings (1)
MIN
MAX
UNIT
Supply Voltage (VDD-GND)
–0.3
6
V
Input Voltage at any pin (2)
–0.3
VDD + 0.3
V
–5
+5
mA
150
°C
150
°C
Input Current on any pin
Junction Temperature, TJ (3)
Storage Temperature, Tstg
(1)
(2)
(3)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The voltage between any two pins should not exceed 6V.
The maximum power dissipation is a function of TJ(MAX), θJA, and the ambient temperature, TA. The maximum allowable power
dissipation at any ambient temperature is PDMAX = (TJ(MAX) - TA)/ θJA. All numbers apply for packages soldered directly onto a
printed-circuit board (PCB).
7.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human Body Model, per ANSI/ESDA/JEDEC JS-001 (1)
±1000
Charged-device model (CDM), per JEDEC specification JESD22-101 (2)
±250
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Ratings
MIN
MAX
Supply Voltage (VDD-GND)
1.8
5.5
UNIT
V
Temperature
–40
105
°C
7.4 Thermal Information
TPL5010
THERMAL METRIC
(1)
DDC (SOT-23)
UNIT
6 PINS
RθJA
Junction-to-ambient thermal resistance
163
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
26
°C/W
RθJB
Junction-to-board thermal resistance
57
°C/W
ψJT
Junction-to-top characterization parameter
7.5
°C/W
ψJB
Junction-to-board characterization parameter
57
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
°C/W
(1)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report (SPRA953).
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
5
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
7.5 Electrical Characteristics (1)
Specifications are for TA= 25°C, VDD-GND = 2.5 V, unless otherwise stated.
PARAMETER
MIN (2)
TEST CONDITIONS
TYP (3)
MAX (2)
UNIT
POWER SUPPLY
Supply current (4)
IDD
Operation mode
35
50
nA
Digital conversion of external
resistance (Rext)
200
400
µA
1650 selectable
Time Intervals
Minimum time
interval
100
Maximum time
interval
7200
TIMER
tIP
Time Interval Period
Time Interval Setting Accuracy
(5)
Excluding the precision of Rext
Oscillator Accuracy
s
±0.6%
Timer Interval Setting Accuracy over 1.8 V ≤ VDD ≤ 5.5 V
supply voltage
tOSC
ms
±25
–0.5%
0.5%
Oscillator Accuracy over
temperature (6)
–40°C ≤ TA ≤ 105°C
±100
Oscillator Accuracy over supply
voltage
1.8 V ≤ VDD ≤ 5.5 V
±0.4
Oscillator Accuracy over life time (7)
ppm/V
±400 ppm/°C
%/V
0.24%
(6)
tDONE
DONE Pulse width
tRSTn
RSTn Pulse width
100
320
ms
ns
tWAKE
WAKE Pulse width
20
ms
t_Rext
Time to convert Rext
100
120
ms
DIGITAL LOGIC LEVELS
VIH
Logic High Threshold DONE pin
VIL
Logic Low Threshold DONE pin
VOH
Logic output High Level WAKE pin
VOL
Logic output Low Level WAKE pin
VOLRSTn
0.7 × VDD
V
0.3 ×
VDD
V
Iout = 100 µA
VDD – 0.3
V
Iout = 1 mA
VDD – 0.7
V
Iout = -100 µA
0.3
V
Iout = –1 mA
0.7
V
RSTn Logic output Low Level
IOL = –1 mA
0.3
IOHRSTn
RSTn High Level output current
VOHRSTn = VDD
VIHM_RST
Logic High Threshold
DELAY/M_RST pin
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6
1
1.5
V
nA
V
Electrical Characteristics values apply only for factory testing conditions at the temperature indicated. Factory testing conditions result in
very limited self-heating of the device such that TJ = TA. No specification of parametric performance is indicated in the electrical tables
under conditions of internal self-heating where TJ > TA. Absolute Maximum Ratings indicate junction temperature limits beyond which
the device may be permanently degraded, either mechanically or electrically.
Limits are specified by testing, design, or statistical analysis at 25°C. Limits over the operating temperature range are specified through
correlations using statistical quality control (SQC) method.
Typical values represent the most likely parametric norm as determined at the time of characterization. Actual typical values may vary
over time and will also depend on the application and configuration. The typical values are not tested and are not specified on shipped
production material.
The supply current excludes load and pullup resistor current. Input pins are at GND or VDD.
The accuracy for time interval settings below 1 second is ±100 ms.
This parameter is specified by design and/or characterization and is not tested in production.
Operational life time test procedure equivalent to 10 years.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
7.6 Timing Requirements
MIN (1)
trRSTn
Rise Time RSTn
tfRSTn
Fall Time RSTn
trWAKE
Rise Time WAKE
tfWAKE
Fall Time WAKE
(3)
(3)
(3)
(3)
DONE to RSTn or WAKE to DONE
delay
tM_RST
Valid Manual Reset
tDB
(1)
(2)
(3)
(4)
MAX (1)
UNIT
Capacitive load 50 pF, Rpullup 100 kΩ
11
µs
Capacitive load 50 pF, Rpullup 100 kΩ
50
ns
Capacitive load 50 pF
50
ns
Capacitive load 50 pF
tDDONE
NOM (2)
Minimum delay (4)
Maximum delay
(4)
Observation time 30 ms
50
ns
100
ns
tIP20ms
ms
20
De-bounce Manual Reset
ms
20
ms
Limits are specified by testing, design, or statistical analysis at 25°C. Limits over the operating temperature range are specified through
correlations using statistical quality control (SQC) method.
Typical values represent the most likely parametric norm as determined at the time of characterization. Actual typical values may vary
over time and will also depend on the application and configuration. The typical values are not tested and are not specified on shipped
production material.
This parameter is specified by design and/or characterization and is not tested in production.
In case of RSTn from its falling edge, or in case of WAKE from its rising edge.
VDD
ttWAKEt
trWAKE
WAKE
ttIPt
tDONE
tfWAKE
ttDDONEt
DONE
ttRSTn+ tIPt
trRSTn
ttRSTn+tDBt
ttRSTnt
RSTn
ttR_EXT + tRSTnt
tfRSTn
DELAY/
M_RST
ttM_RST
Figure 1. TPL5010 Timing
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
7
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
7.7 Typical Characteristics
80
80
TA= -40°C
TA= 25°C
TA= 70°C
TA= 105°C
70
Supply current (nA)
Supply current (nA)
70
VDD= 1.8V
VDD= 2.5V
VDD= 3.3V
VDD= 5.5V
60
50
40
60
50
40
30
30
20
1.5
1.9
2.3
2.7
3.1
3.5
3.9
4.3
4.7
5.1
20
-40
5.5
-25
-10
5
Figure 2. IDD vs. VDD
35
50
65
80
95
110
95
110
Figure 3. IDD vs. Temperature
2
2
TA= -40°C
TA= 25°C
TA= 70°C
TA= 105°C
VDD= 1.8V
VDD= 2.5V
VDD= 3.3V
VDD= 5.5V
1.5
Oscillator accuracy (%)
1.5
Oscillator accuracy (%)
20
Temperature (°C)
Supply Voltage (V)
1
0.5
0
1
0.5
0
-0.5
-0.5
-1
1.5
1.9
2.3
2.7
3.1
3.5
3.9
4.3
4.7
5.1
-1
-40
5.5
-25
-10
5
20
35
50
65
80
Temperature (°C)
Supply Voltage (V)
Figure 4. Oscillator Accuracy vs. VDD
Figure 5. Oscillator Accuracy vs. Temperature
1000
40%
POR
REXT READING
35%
30%
10
Frequency
Supply current (PA)
100
1
TIMER MODE
0.1
25%
20%
15%
10%
5%
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
Time (s)
0.8
0.9
1
0
-1
-0.8
-0.6
-0.2
0
0.2
0.4
0.6
0.8
Accuracy (%)
number of
observations
>20000
1s < tIP ≤ 7200s
Figure 7. Time Interval Setting Accuracy
Figure 6. IDD vs. Time
8
-0.4
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
8 Detailed Description
8.1 Overview
The TPL5010 is a system wake-up timer with a watchdog feature designed for low-power applications. The
TPL5010 can be used in interrupt-driven applications and provides selectable timing from 100 ms to 7200 s.
8.2 Functional Block Diagram
VDD
RSTn
LOW FREQUENCY
OSCILLATOR
FREQUENCY
DIVIDER
LOGIC
CONTROL
WAKE
DONE
DELAY/
M_RST
DECODER
&
MANUAL RESET
DETECTOR
GND
8.3 Feature Description
The DONE, WAKE and RSTn signals are used to implement the watchdog function. The TPL5010 is
programmed to issue a periodic WAKE pulse to a µC which is in sleep or standby mode. After receiving the
WAKE pulse, the µC must issue a DONE signal to the TPL5010 at least 20 ms before the rising edge of the next
WAKE pulse. If the DONE signal is not asserted, the TPL5010 asserts the RSTn signal to reset the µC. A
manual reset function is realized by momentarily pulling the DELAY/M_RST pin to VDD.
ttIPt
ttIPt
WAKE
DONE
MISSED
DONE
ttRSTn+ tIPt
RSTn
DELAY/
M_RST
Figure 8. Watchdog
8.3.1 WAKE
The WAKE pulse is sent out from the TPL5010 when the programmed time interval starts (except at the
beginning of the first cycle or if in the previous interval the DONE has not been received).
This signal is normally low.
8.3.2 DONE
The DONE pin is driven by a µC to signal successful processing of the WAKE signal. The TPL5010 recognizes a
valid DONE signal as a low to high transition. If two or more DONE signals are received within the time interval,
only the first DONE signal is processed.
The DONE signal resets the counter of the watchdog only. If the DONE signal is received when the WAKE is still
high, the WAKE will go low as soon as the DONE is recognized.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
9
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
Feature Description (continued)
8.3.3 RSTn
To implement the reset interface between the TPL5010 and the µC a pullup resistance is required. 100 KΩ is
recommended to minimize current.
During the POR and the reading of the REXT, the RSTn signal is LOW.
RSTn is asserted (LOW) for either one of the following conditions:
1. If the DELAY/M_RST pin is high for at least two consecutive cycles of the internal oscillator (approximately
20 ms).
2. At the beginning of a new time interval if DONE is not received at least 20 ms before the next WAKE rising
edge (see Figure 8).
8.4 Device Functional Modes
8.4.1 Start-Up
During start-up after POR, the TPL5010 executes a one-time measurement of the resistance attached to the
DELAY/M_RST pin to determine the desired time interval for WAKE. This measurement interval is tR_EXT. During
this measurement, a constant current is temporarily flowing into REXT.
ttR_EXT + tRSTn + tIPt
ttIPt
WAKE
DONE
RSTn
DELAY/
M_RST
POR
RESISTANCE
READING
Figure 9. Start-Up
8.4.2 Normal Operating Mode
During normal operating mode, the TPL5010 asserts periodic WAKE pulses in response to valid DONE pulses
from the µC. If either a manual reset is applied (logic HIGH on DELAY/M_RST pin), or the µC does not issue a
DONE pulse within the required time, the TPL5010 asserts the RSTn signal to the µC and restarts its internal
counters. See Figure 8 and Figure 10 .
8.5 Programming
8.5.1 Configuring the WAKE Interval With the DELAY/M_RST Pin
The time interval between two adjacent WAKE pulses (rising edges) is selectable through an external resistance
(REXT) between the DELAY/M_RST pin and ground. The value of the resistance REXT is converted one time after
POR. The allowable range of REXT is 500 Ω to 170 kΩ. At least a 1% precision resistance is recommended. See
section Timer Interval Selection Using External Resistance on how to set the WAKE pulse interval using REXT.
The time between two adjacent RESET signals (falling edges), or between a RESET (falling edge) and a WAKE
(rising edge), is given by the sum of the programmed time interval and the tRSTn (reset pulse width).
10
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
Programming (continued)
8.5.2 Manual Reset
If VDD is connected to the DELAY/M_RST pin, the TPL5010 recognizes this as a manual reset condition. In this
case, the time interval is not set. If the manual reset is asserted during the POR or during the reading procedure,
the reading procedure is aborted and is restarted as soon as the manual reset switch is released. A pulse on the
DELAY/M_RST pin is recognized as a valid manual reset only if it lasts at least 20 ms (observation time is 30
ms).
A valid manual reset resets all the counters inside the TPL5010. The counters restart only when the high digital
voltage at DELAY/M_RST is removed and the next tRSTn is elapsed.
ttIPt
WAKE
DONE
ttRSTn+ tIPt
RSTn
ANY RESET
ttM_RSTt
ttDBt
ttM_RSTt
DELAY/
M_RST
VALID M_RST
NOT VALID M_RST
Figure 10. Manual Reset
8.5.2.1 DELAY/M_RST
A resistance in the range between 500 Ω and 170 kΩ needs to be connected to select a valid time interval. At the
POR and during the reading of the resistance the DELAY/M_RST is connected to an analog signal chain though
a mux. After the reading of the resistance the analog circuit is switched off and the DELAY/RST is connected to
a digital circuit.
The manual reset detection is supported with a de-bounce feature which makes the TPL5010 insensitive to the
glitches on the DELAY/M_RST pin. When a valid manual reset signal is asserted on the DELAY/M_RST pin, the
RSTn signal is asserted LOW after a delay of tM_RST. It remains LOW after a valid manual reset is asserted + tDB
+ tRSTn. Due to the asynchronous nature of the manual reset signal and its arbitrary duration, the LOW status of
the RSTn signal maybe affected by an uncertainty of about ±5 ms.
A valid manual reset puts all the digital output signals at their default values:
• WAKE = LOW
• RSTn = asserted LOW
8.5.2.2 Circuitry
The manual reset may be implemented using a switch (momentary mechanical action). The TPL5010 offers two
possible approaches according to the power consumption constraints of the application.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
11
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
Programming (continued)
µC
VOUT
TPL5010
VIN
VDD
VDD
RSTn
RSTn
GND
WAKE
GPIO
DELAY/
M_RST
DONE
GPIO
+
Battery
Rp
POWER MANAGEMENT
-
REXT
GND
GND
Figure 11. Manual Reset With SPST Switch
For use cases that do not require the lowest power consumption, using a single-pole single-throw switch may
offer a lower-cost solution. The DELAY/M_RST pin may be directly connected to VDD with REXT in the circuit.
The current drawn from the supply voltage during the reset is given by VDD/REXT.
µC
VOUT
TPL5010
VIN
VDD
VDD
RSTn
RSTn
GND
WAKE
GPIO
DELAY/
M_RST
DONE
GPIO
+
Battery
Rp
POWER MANAGEMENT
-
REXT
GND
GND
Figure 12. Manual Reset With SPDT Switch
The reset function may also be asserted by switching DELAY/M_RST from REXT to VDD using a single-pole
double-throw switch, which will provide a lower power solution for the manual reset, because no current flows.
8.5.3 Timer Interval Selection Using External Resistance
To set the time interval, the external resistance REXT is selected according to Equation 1:
§
100 ¨
¨
©
R EXT
b
b 2 4 a c 100 T
2a
·
¸
¸
¹
where
•
•
•
12
T is the desired time interval in seconds.
REXT is the resistance value to use in Ω.
a, b, and c are coefficients depending on the range of the time interval.
Submit Documentation Feedback
(1)
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
Programming (continued)
Table 1. Coefficients for Equation 1
SET
Time interval
Range (s)
a
b
c
1
1 1000
0.3177
–136.2571
34522.4680
EXAMPLE
Required time interval: 8 s
The coefficient set to be selected is the number 2. The formula becomes Equation 2.
§ 46.9861
REXT 100¨
¨
©
46.98612 4*0.1284 2561.8889 100*8 ·¸
¸
2*0.1284
¹
(2)
The resistance value is 10.18 kΩ.
Table 2 and Table 3 contain example values of tIP and their corresponding value of REXT.
Table 2. First 9 Time Intervals
tIP (ms)
Resistance (Ω)
Closest Real Value (Ω)
Parallel of Two 1% Tolerance
Resistors, (kΩ)
1.0 // 1.0
100
500
500
200
1000
1000
-
300
1500
1500
2.43 // 3.92
400
2000
2000
-
500
2500
2500
4.42 // 5.76
600
3000
3000
5.36 // 6.81
700
3500
3500
4.75 // 13.5
800
4000
4000
6.19 // 11.3
900
4500
4501
6.19 // 16.5
Table 3. Most Common Time Intervals Between 1s to 2h
tIP
Calculated Resistance (kΩ)
Closest Real Value
(kΩ)
Parallel of Two 1% Tolerance Resistors,
(kΩ)
1s
5.20
5.202
7.15 // 19.1
2s
6.79
6.788
12.4 // 15.0
3s
7.64
7.628
12.7// 19.1
4s
8.30
8.306
14.7 // 19.1
5s
8.85
8.852
16.5 // 19.1
6s
9.27
9.223
18.2 // 18.7
7s
9.71
9.673
19.1 // 19.6
8s
10.18
10.180
11.5 // 8.87
9s
10.68
10.68
17.8 // 26.7
10s
11.20
11.199
15.0 // 44.2
20s
14.41
14.405
16.9 // 97.6
30s
16.78
16.778
32.4 // 34.8
40s
18.75
18.748
22.6 // 110.0
50s
20.047
20.047
28.7 // 66.5
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
13
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
Table 3. Most Common Time Intervals Between 1s to 2h (continued)
tIP
Calculated Resistance (kΩ)
Closest Real Value
(kΩ)
Parallel of Two 1% Tolerance Resistors,
(kΩ)
1min
22.02
22.021
40.2 // 48.7
2min
29.35
29.349
35.7 // 165.0
3min
34.73
34.729
63.4 // 76.8
4min
39.11
39.097
63.4 // 102.0
5min
42.90
42.887
54.9 // 196.0
6min
46.29
46.301
75.0 // 121.0
7min
49.38
49.392
97.6 // 100.0
8min
52.24
52.224
88.7 // 127.0
9min
54.92
54.902
86.6 // 150.0
10min
57.44
57.437
107.0 // 124.0
20min
77.57
77.579
140.0 // 174.0
30min
92.43
92.233
182.0 // 187.0
40min
104.67
104.625
130.0 // 536.00
50min
115.33
115.331
150.0 // 499.00
1h
124.91
124.856
221.0 // 287.00
1h30min
149.39
149.398
165.0 // 1580.0
2h
170.00
170.00
340.0 // 340.0
8.5.4 Quantization Error
The TPL5010 can generate 1650 discrete timer intervals in the range of 100 ms to 7200 s. The first 9 intervals
are multiples of 100 ms. The remaining 1641 intervals cover the range between 1 s to 7200 s. Because they are
discrete intervals, there is a quantization error associated with each value.
The quantization error can be evaluated according to Equation 3:
Err 100
TDESIRED TADC
TDESIRED
where
•
•
(
)
é 1
ù
2
+ bRD + c ú
TADC = INT ê
aRD
100
ë
û
REXT
RD =
100
(3)
REXT is the resistance calculated with Equation 1 and a, b, c are the coefficients of the equation listed in Table 1.
8.5.5 Error Due to Real External Resistance
REXT is a theoretical value and may not be available in standard commercial resistor values. It is possible to
closely approach the theoretical REXT using two or more standard values in parallel. However, standard values
are characterized by a certain tolerance. This tolerance will affect the accuracy of the time interval.
The accuracy can be evaluated using the following procedure:
1. Evaluate the min and max values of REXT (REXT_MIN, REXT_MAX with Equation 1 using the selected commercial
resistance values and their tolerances.
2. Evaluate the time intervals (TADC_MIN[REXT_MIN], TADC_MAX[REXT_MAX]) with the TADC equation mentioned in
Equation 3.
3. Find the errors using Equation 3 with TADC_MIN, TADC_MAX.
The results of the formula indicate the accuracy of the time interval.
14
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
The example below illustrates the procedure.
• Desired time interval, T_desired = 600 s,
• Required REXT from Equation 1, REXT= 57.44 kΩ.
From Table 3 REXT can be built with a parallel combination of two commercial values with 1% tolerance: R1 =
107 kΩ, R2 = 124 kΩ. The uncertainty of the equivalent parallel resistance can be found using Equation 4:
uR// R//
§ uR1 ·
¨ ¸
© R1 ¹
2
§ uR 2 ·
¨
¸
© R2 ¹
2
where
•
uRn (n=1,2) represent the uncertainty of a resistance (see Equation 5)
(4)
SPACER
u R n Rn
Tolerance
3
(5)
The uncertainty of the parallel resistance is 0.82%, which means the value of REXT may range between REXT_MIN
= 56.96 kΩ and REXT_MAX = 57.90 kΩ.
Using these value of REXT, the digitized timer intervals calculated by TADC equation mentioned in Equation 3 are
respectively TADC_MIN = 586.85 s and TADC_MAX = 611.3 s, giving an error range of –1.88% / +2.19%. The
asymmetry of the error range is due to the quadratic transfer function of the resistance digitizer.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
15
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
In battery-powered applications, one design constraint is the need for low current consumption. The TPL5010 is
designed for applications where there is a need to monitor environmental conditions at a fixed time interval. Often
in these applications a watchdog or other internal timer in a µC is used to implement a wake-up function. Using
the TPL5010 to implement the watchdog function will consume only tens of nA, significantly improving the power
consumption of the system.
9.2 Typical Application
The TPL5010 can be used in conjunction with environment sensors to build a low-power environment datalogger, such as an air quality data-logger. In this application, due to the monitored phenomena, the µC and the
front end of the sensor spend most of the time in the idle state, waiting for the next logging interval, usually a few
hundred of milliseconds. Figure 13 shows a data logging application based on a µC and a front end for a gas
sensor based on the LMP91000.
VOLTAGE
REFERENCE
VIN
VOUT
GND
µC
VOUT
VIN
+
Lithium
ion battery
TPL5010
Rp
100k
LMP91000
Rp
100k
VDD
Rp
100k
VDD
VREF
VDD
RSTn
RST
SDA
SCL
CE
GND
WAKE
GPIO
SCL
SDA
RE
CE
POWER MANAGEMENT
-
DELAY/
M_RST
DONE
GPIO
GND
Button
Button
ADC
VOUT
GND
GND
GPIO
GPIO
GPIO
GPIO
WE
MENB
RE
WE
GAS
SENSOR
Temp 29°C
CO 0PPM
TIME xx:xx
Date xx/xx/xxxx
Button
DISPLAY
KEYBOARD
Figure 13. Data-Logger
9.2.1 Design Requirements
The design is driven by the low-current consumption constraint. The data are usually acquired on a rate that
ranges between 1 s and 10 s. The highest necessity is the maximization of the battery life. The TPL5010 helps
achieve that goal because it allows putting the µC in its lowest power mode. The TPL5010 will take care of the
watchdog and the timing.
16
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
Typical Application (continued)
9.2.2 Detailed Design Procedure
When the main constraint is the battery life, the selection of a low power voltage reference, the µC, and the
display is mandatory. The first step in the design is the calculation of the power consumption of the devices in
their different mode of operations. For instance, the LMP91000 burns most of the power when in gas
measurement mode, then, according to the connected gas sensor, it has two idle states (standby and deep
sleep). The same is true for the µC, such as one of the MSP430 family, which can be placed in one of its lower
power modes, such as LMP3.5 or LMP4.5. In this case, the TPL5010 can be used to implement the watchdog
and wake-up timing functions.
After the power budget calculation, it is possible to select the appropriate time interval which satisfies the
application constraints and maximize the life of the battery.
9.2.3 Application Curve
Current consumption
Without TPL5010
With TPL5010
Time
Figure 14. Effect of TPL5010 on Current Consumption
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
17
TPL5010
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
www.ti.com
10 Power Supply Recommendations
The TPL5010 requires a voltage supply within 1.8 V and 5.5 V. A multilayer ceramic bypass X7R capacitor of 0.1
μF between VDD and GND pin is recommended.
11 Layout
11.1 Layout Guidelines
The DELAY/M_RST pin is sensitive to parasitic capacitance. TI suggests that the traces connecting the
resistance on this pin to GROUND be kept as short as possible to minimize parasitic capacitance. This
capacitance can affect the initial set up of the time interval. Signal integrity on the WAKE and RSTn pins is also
improved by keeping the trace length between the TPL5010 and the µC short to reduce the parasitic
capacitance.
11.2 Layout Example
Figure 15. Layout
18
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
TPL5010
www.ti.com
SNAS651A – JANUARY 2015 – REVISED SEPTEMBER 2018
12 Device and Documentation Support
12.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
12.5 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2015–2018, Texas Instruments Incorporated
Product Folder Links: TPL5010
19
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPL5010DDCR
ACTIVE
SOT-23-THIN
DDC
6
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 105
ZAKX
TPL5010DDCT
ACTIVE
SOT-23-THIN
DDC
6
250
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 105
ZAKX
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
