JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD

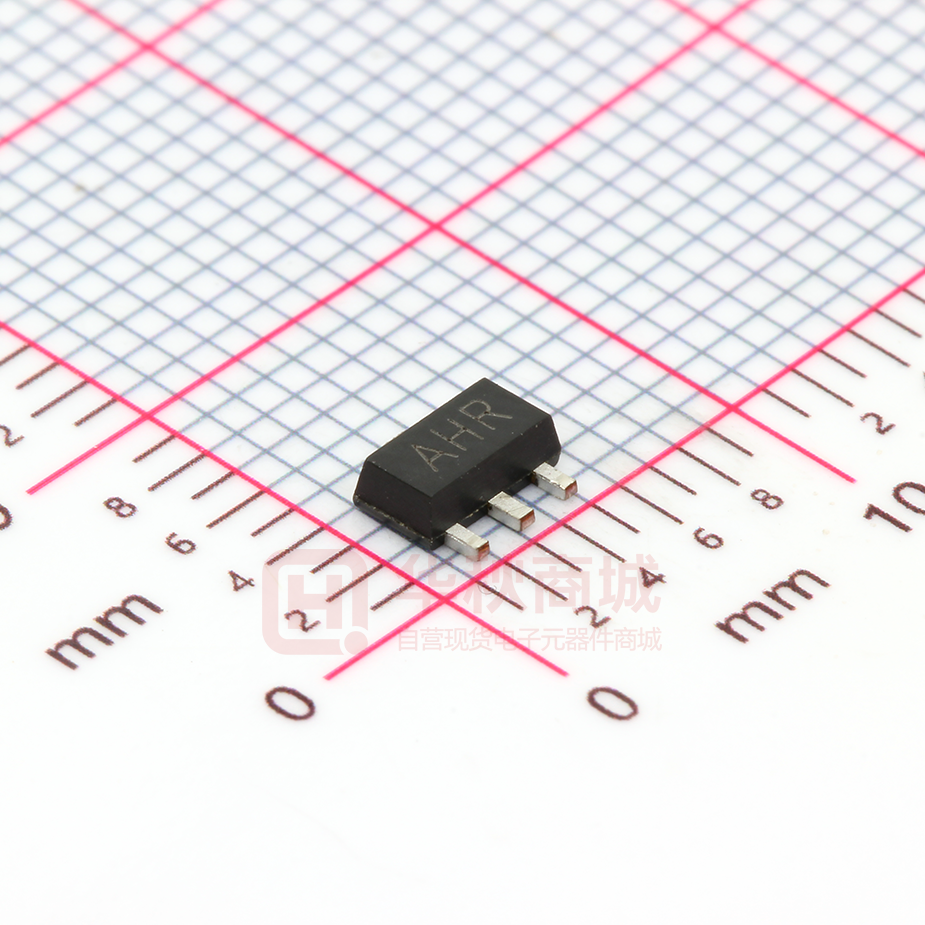

SOT-89-3L Plastic-Encapsulate Transistors
SOT-89-3L
2SD2098 FEATURES
z
Excellent DC current gain characteristics
z
Complements the 2SB1386
1. BASE
2. COLLECTOR
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
Parameter
Value
Unit
VCBO
Collector-Base Voltage
50
V
VCEO
Collector-Emitter Voltage
20
V
VEBO
Emitter-Base Voltage
6
V
IC
Collector Current -Continuous
5
A
PC
Collector Power Dissipation
500
mW
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~150
℃
1
2
3. EMITTER
3
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Min
Typ
Max
Unit
Collector-base breakdown voltage
V(BR)CBO
IC=50μA,IE=0
50
V
Collector-emitter breakdown voltage
V(BR)CEO
IC=1mA,IB=0
20
V
Emitter-base breakdown voltage
V(BR)EBO
IE=50μA, =0
6
V
Collector cut-off current
ICBO
VCB=40V,IE=0
0.5
μA
Emitter cut-off current
IEBO
VEB=5V,IC=0
0.5
μA
DC current gain
hFE
VCE=2V,IC=0.5A
VCE(sat)
IC=4A,IB=100mA
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
fT
Cob
120
390
1
V
VCE=6V,IC=50mA,f=100MHz
150
MHz
VCB=20V,IE=0,f=1MHz
30
pF
CLASSIFICATION OF hFE
Rank
Range
Marking
Q
R
120-270
180-390
AHQ
AHR
A,Jun,2011
