PZTA42T1G

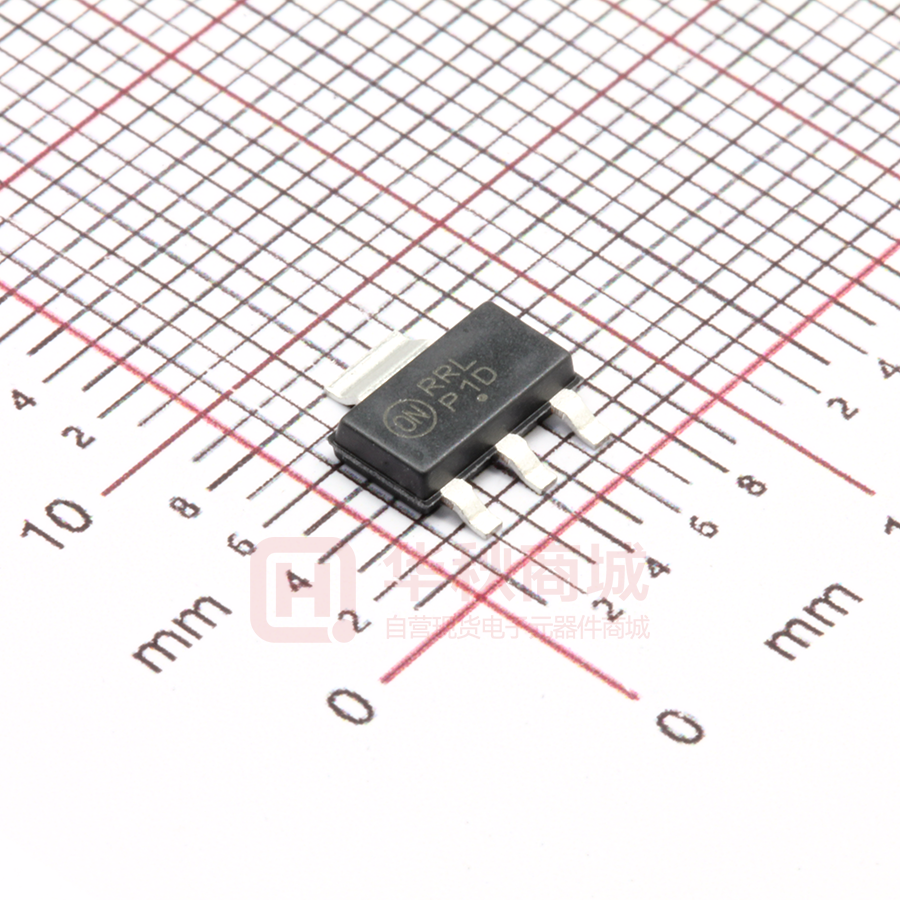

PZTA42T1G High Voltage Transistor Surface Mount NPN Silicon www.onsemi.com Features • PZTA42T1G is Complement to PZTA92T1G • S Prefix for Automotive and Other Applications Requiring Unique • Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant SOT−223 PACKAGE NPN SILICON HIGH VOLTAGE TRANSISTOR SURFACE MOUNT COLLECTOR 2, 4 MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Rating Symbol Collector−Emitter Voltage (Open Base) VCEO Collector−Base Voltage (Open Emitter) VCBO Emitter−Base Voltage (Open Collector) VEBO Collector Current (DC) IC Value BASE 1 Unit Vdc 300 EMITTER 3 Vdc 300 4 Vdc 6.0 500 1 3 W SOT−223 CASE 318E STYLE 1 Total Power Dissipation @ TA = 25°C (Note 1) PD Storage Temperature Range Tstg −65 to +150 °C Junction Temperature TJ 150 °C 1.5 MARKING DIAGRAM Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Device mounted on a FR−4 glass epoxy printed circuit board 1.575 in x 1.575 in x 0.0625 in; mounting pad for the collector lead = 0.93 sq in. AYW P1D G G 1 THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction−to−Ambient (Note 2) 2 mAdc Symbol RqJA Max Unit °C/W 83.3 2. Device mounted on a FR−4 glass epoxy printed circuit board 1.575 in x 1.575 in x 0.0625 in; mounting pad for the collector lead = 0.93 sq in. P1D A Y W G = Specific Device Code = Assembly Location = Year = Work Week = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping† PZTA42T1G SOT−223 (Pb−Free) 1,000 / Tape & Reel SPZTA42T1G SOT−223 (Pb−Free) 1,000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016 June, 2017 − Rev. 12 1 Publication Order Number: PZTA42T1/D PZTA42T1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Characteristics Min Max 300 − 300 − 6.0 − − 0.1 − 0.1 25 40 40 − − − 50 − − 3.0 − 0.5 − 0.9 Unit OFF CHARACTERISTICS Collector-Emitter Breakdown Voltage (Note 3) (IC = 1.0 mAdc, IB = 0) V(BR)CEO Collector-Base Breakdown Voltage (IC = 100 mAdc, IE = 0) V(BR)CBO Emitter-Base Breakdown Voltage (IE = 100 mAdc, IC = 0) V(BR)EBO Collector-Base Cutoff Current (VCB = 200 Vdc, IE = 0) ICBO Emitter-Base Cutoff Current (VBE = 6.0 Vdc, IC = 0) IEBO Vdc Vdc Vdc mAdc mAdc ON CHARACTERISTICS DC Current Gain (IC = 1.0 mAdc, VCE = 10 Vdc) (IC = 10 mAdc, VCE = 10 Vdc) (IC = 30 mAdc, VCE = 10 Vdc) hFE − DYNAMIC CHARACTERISTICS Current-Gain − Bandwidth Product (IC = 10 mAdc, VCE = 20 Vdc, f = 100 MHz) fT Feedback Capacitance (VCB = 20 Vdc, IE = 0, f = 1.0 MHz) Cre Collector-Emitter Saturation Voltage (IC = 20 mAdc, IB = 2.0 mAdc) VCE(sat) Base-Emitter Saturation Voltage (IC = 20 mAdc, IB = 2.0 mAdc) VBE(sat) MHz pF Vdc Vdc 3. Pulse Test Conditions, tp = 300 ms, d 0.02. 120 hFE , DC CURRENT GAIN VCE = 10 Vdc TJ = +125°C 100 80 25°C 60 40 -55°C 20 0 0.1 1.0 10 IC, COLLECTOR CURRENT (mA) Figure 1. DC Current Gain www.onsemi.com 2 100 PZTA42T1G 100 C, CAPACITANCE (pF) Ceb @ 1MHz 10 1.0 Ccb @ 1MHz 0.1 0.1 1.0 10 100 VR, REVERSE VOLTAGE (V) 1000 Figure 2. Capacitance 1.4 V, VOLTAGE (V) 1.2 VCE(sat) @ 25°C, IC/IB = 10 VCE(sat) @ 125°C, IC/IB = 10 VCE(sat) @ -55°C, IC/IB = 10 VBE(sat) @ 25°C, IC/IB = 10 1.0 0.8 VBE(sat) @ 125°C, IC/IB = 10 0.6 VBE(sat) @ -55°C, IC/IB = 10 VBE(on) @ 25°C, VCE = 10 V VBE(on) @ 125°C, VCE = 10 V VBE(on) @ -55°C, VCE = 10 V 0.4 0.2 0.0 0.1 1.0 10 IC, COLLECTOR CURRENT (mA) 100 1 100 IC, COLLECTOR CURRENT (A) f T, CURRENT−GAIN — BANDWIDTH (MHz) Figure 3. “ON” Voltages 10 0.1 1.0 s 0.1 10 ms 0.01 0.001 1 10 100 1 IC, COLLECTOR CURRENT (mA) 10 100 VCE, COLLECTOR−EMITTER VOLTAGE (V) Figure 4. Current Gain Bandwidth Product Figure 5. Safe Operating Area www.onsemi.com 3 1000 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOT−223 (TO−261) CASE 318E−04 ISSUE R DATE 02 OCT 2018 SCALE 1:1 q q DOCUMENT NUMBER: DESCRIPTION: 98ASB42680B SOT−223 (TO−261) Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com SOT−223 (TO−261) CASE 318E−04 ISSUE R STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR STYLE 2: PIN 1. 2. 3. 4. ANODE CATHODE NC CATHODE STYLE 6: PIN 1. 2. 3. 4. RETURN INPUT OUTPUT INPUT STYLE 7: PIN 1. 2. 3. 4. ANODE 1 CATHODE ANODE 2 CATHODE STYLE 11: PIN 1. MT 1 2. MT 2 3. GATE 4. MT 2 STYLE 3: PIN 1. 2. 3. 4. GATE DRAIN SOURCE DRAIN STYLE 8: STYLE 12: PIN 1. INPUT 2. OUTPUT 3. NC 4. OUTPUT CANCELLED DATE 02 OCT 2018 STYLE 4: PIN 1. 2. 3. 4. SOURCE DRAIN GATE DRAIN STYLE 5: PIN 1. 2. 3. 4. STYLE 9: PIN 1. 2. 3. 4. INPUT GROUND LOGIC GROUND STYLE 10: PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE DRAIN GATE SOURCE GATE STYLE 13: PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR GENERIC MARKING DIAGRAM* AYW XXXXXG G 1 A = Assembly Location Y = Year W = Work Week XXXXX = Specific Device Code G = Pb−Free Package (Note: Microdot may be in either location) *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. DOCUMENT NUMBER: DESCRIPTION: 98ASB42680B SOT−223 (TO−261) Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 2 OF 2 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
