STPSC40065C-Y
Automotive 650 V power Schottky silicon carbide diode
Datasheet - production data
Description
A1
K
The SiC diode is a high voltage power Schottky
diode. It is manufactured using a silicon carbide
substrate. The wide band gap material allows the
design of a Schottky diode structure with a 650 V
rating. Due to the Schottky construction, no
recovery is shown at turn-off and ringing patterns
are negligible. The minimal capacitive turn-off
behavior is independent of temperature.
A2
A2
Used as a freewheeling or output rectification
diode, this rectifier will enhance the performance
and form factor of the targeted power supply or
inverter.
K
A1

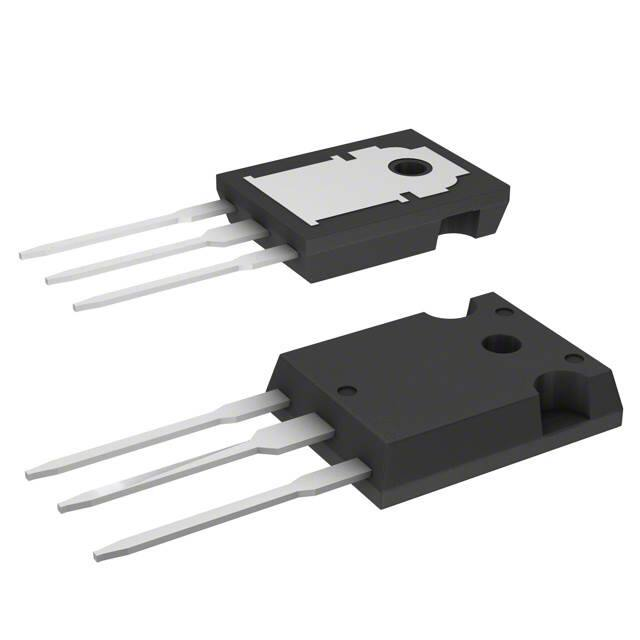

TO-247
Table 1: Device summary
Features
No reverse recovery charge in application
current range
Switching behavior independent of
temperature
Dedicated to PFC applications
AEC-Q101 qualified
PPAP capable
ECOPACK®2 compliant component
May 2016
DocID029263 Rev 2
This is information on a product in full production.
Symbol
Value
IF(AV)
2 x 20 A
VRRM
650 V
Tj (max.)
175 °C
VF (typ.)
1.30 V
1/9
www.st.com
Characteristics
1
STPSC40065C-Y
Characteristics
Table 2: Absolute ratings (limiting values, per diode, at 25 °C, unless otherwise specified)
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage (Tj = -40 °C to +175 °C)
650
V
IF(RMS)
Forward rms current
40
A
IF(AV)
Average forward current
IFRM
Repetitive peak forward
current
IFSM
Surge non repetitive
forward current
Tstg
Tc = 140 °C(1), DC, per diode
20
Tc = 130 °C(1), DC, per device
40
Tc =140 °C, Tj = 175 °C, δ = 0.1
87
tp = 10 ms sinusoidal, Tc = 25 °C
90
tp = 10 ms sinusoidal, Tc = 125 °C
70
tp = 10 µs square, Tc = 25 °C
400
A
Storage temperature range
Operating junction
Tj
temperature(2)
A
A
-55 to +175
°C
-40 to +175
°C
Value
Unit
Notes:
(1)Value
(2)(dP
based on Rth(j-c) max.
tot/dTj) < (1/Rth(j-a)) condition to avoid thermal runaway for a diode on its own heatsink.
Table 3: Thermal parameters
Symbol
Rth(j-c)
Parameter
Per diode
0.90
Total
0.60
Junction to case
Coupling
Rth(c)
°C/W
0.30
Table 4: Static electrical characteristics (per diode)
Symbol
Parameter
Test conditions
Tj = 25 °C
IR(1)
Reverse leakage current
Tj = 150 °C
Tj = 25 °C
VR = VRRM
VF
Forward voltage drop
Tj = 150 °C
IF = 20 A
Tj = 175 °C
Notes:
(1)Pulse
test: tp = 5 ms, δ < 2%
(2)Pulse
test: tp = 500 µs, δ < 2%
To evaluate the conduction losses use the following equation:
P = 1.02 x IF(AV) + 0.039 x IF2(RMS)
2/9
DocID029263 Rev 2
Typ.
Max.
-
30
300
-
280
2000
15
150
-
1.30
1.45
-
1.45
1.65
-
1.50
VR = 600 V
Tj = 25 °C
(2)
Min.
Unit
µA
V
STPSC40065C-Y
Characteristics
Table 5: Dynamic electrical characteristics (per diode)
Symbol
Parameter
QCj(1)
Total capacitive charge
Cj
Total capacitance
Test conditions
Min.
Typ.
Max.
Unit
VR = 400 V
-
62
-
nC
VR = 0 V, Tc = 25 °C, F = 1 MHz
-
1250
-
VR = 400 V, Tc = 25 °C, F = 1 MHz
-
100
-
pF
Notes:
(1)Most
𝑉
accurate value for the capacitive charge: 𝑄𝑐𝑗 = ∫0 𝑂𝑈𝑇 𝐶𝐽 (𝑉𝑅 ) • 𝑑𝑉𝑅
DocID029263 Rev 2
3/9
Characteristics
1.1
STPSC40065C-Y
Characteristics (curves)
Figure 1: Forward voltage drop versus forward
current (typical values, per diode)
Figure 2: Reverse leakage current versus reverse
voltage applied (typical values, per diode)
IF(A)
40
IR(µA)
1.E+03
Pulse test : tp =500µs
Tj=175 °C
35
1.E+02
30
Ta =100 °C
25
20
Tj=150 °C
1.E+01
Ta =150 °C
Ta =25 °C
1.E+00
Ta =175 °C
15
10
Tj=25 °C
1.E-01
5
Ta =-40 °C
VR(V)
VF(V)
1.E-02
0
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
0
2.4
Figure 3: Peak forward current versus case
temperature (per diode)
1400
T
δ=0.1
120
δ=tp/T
100 150 200 250 300 350 400 450 500 550 600 650
Figure 4: Junction capacitance versus reverse
voltage applied (typical values, per diode)
IM (A)
140
50
tp
100
Cj (pF)
F=1 MHz
VO S C =30 mV RMS
Tj=25 °C
1200
1000
δ=0.3
80
800
δ=0.5
60
600
400
40
δ=0.7
δ=1
200
20
VR(V)
TC(°C)
0
0
0
25
50
75
100
125
150
0.1
175
10.0
100.0
1000.0
Figure 6: Non-repetitive peak surge forward
current versus pulse duration (sinusoidal
waveform, per diode)
Figure 5: Relative variation of thermal impedance
junction to case versus pulse duration
1.0
1.0
Zth(j-c) /Rth(j-c)
1.E+03
IFSM(A)
0.9
0.8
Ta =25 °C
0.7
0.6
Ta =125 °C
0.5
1.E+02
0.4
0.3
0.2
Single pulse
0.1
t p(s)
0.0
1.E-05
t p (s)
1.E-04
1.E-03
1.E-02
1.E-01
1.E+00
1.E+01
1.E-05
4/9
DocID029263 Rev 2
1.E-04
1.E-03
1.E-02
STPSC40065C-Y
Characteristics
Figure 7: Total capacitive charges versus reverse voltage applied (typical values, per diode)
QCj (nC)
70
60
50
40
30
20
10
VR(V)
0
0
50
100
150
200
DocID029263 Rev 2
250
300
350
400
5/9
Package information
2
STPSC40065C-Y
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
2.1
Epoxy meets UL 94,V0
Recommended torque value: 0.8 N·m
Maximum torque value: 1 N·m
TO-247 package information
Figure 8: TO-247 package outline
6/9
DocID029263 Rev 2
STPSC40065C-Y
Package information
Table 6: TO-247 package mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
Inches
Max.
Min.
Typ.
Max.
A
4.85
5.15
0.191
0.203
A1
2.20
2.60
0.086
0.102
b
1.00
1.40
0.039
0.055
b1
2.00
2.40
0.078
0.094
b2
3.00
3.40
0.118
0.133
c
0.40
0.80
0.015
0.031
D(1)
19.85
20.15
0.781
0.793
E
15.45
15.75
0.608
0.620
e
5.30
5.60
0.209
L
14.20
14.80
0.559
0.582
L1
3.70
4.30
0.145
0.169
L2
5.45
18.50
0.215
0.220
0.728
ØP(2)
3.55
3.65
0.139
0.143
ØR
4.50
5.50
0.177
0.217
S
5.30
5.70
0.209
5.50
0.216
0.224
Notes:
(1)Dimension
(2)Resin
D plus gate protusion does not exceed 20.5 mm
thickness around the mounting hole is not less than 0.9 mm.
DocID029263 Rev 2
7/9
Ordering information
3
STPSC40065C-Y
Ordering information
Table 7: Ordering information
4
Order code
Marking
Package
Weight
Base qty.
Delivery mode
STPSC40065CWY
PSC40065CWY
TO-247
4.43 g
30
Tube
Revision history
Table 8: Document revision history
8/9
Date
Revision
Changes
11-May-2016
1
First issue.
12-May-2016
2
Updated cover page footnote.
DocID029263 Rev 2
STPSC40065C-Y
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved
DocID029263 Rev 2
9/9
