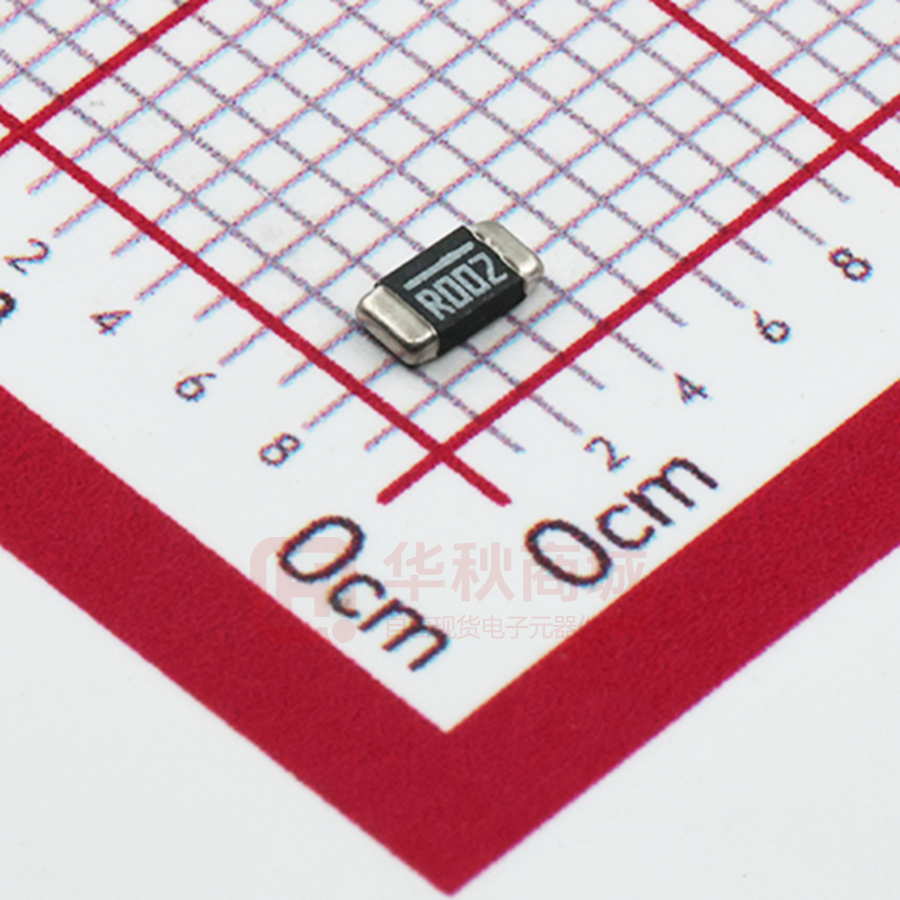

PA1206FRF470R002L

DATA SHEET CURRENT SENSOR - LOW TCR AUTOMOTIVE GRADE PA1206_L series 5%, 1% Product specification– July 24, 2017 V.2 RoHS compliant & Halogen free - Product specification Chip Resistor Surface Mount 2 10 SERIES PA1206_L SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER This specification describes PA series current sensor - low TCR with lead-free terminations made by metal substrate. Global part numbers are identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value. GLOBAL PART NUMBER PA XXXX X X X XX XXXX L (1) APPLICATIONS  Consumer goods  Computer  Telecom / Datacom  Industrial / Power supply  Alternative Energy  Car electronics FEATURES  AEC-Q200 qualified  Halogen-free Epoxy  RoHS compliant  Reduce environmentally hazardous wastes (2) (3) (4) (5) (6) (7) (1) SIZE 1206 (2) TOLERANCE D =± 0.5% (for 5mΩ and up) F = ± 1% J = ± 5% (3) PACKAGING TYPE R = Paper taping reel (4) TEMPERATURE COEFFICIENT OF RESISTANCE F = ± 100ppm/°C M = ± 75ppm/°C E= ± 50ppm/°C (5) TAPING REEL  High component and equipment reliability 07 = 7 inch dia. Reel & standard power (1/4W)  Non-forbidden materials used in products/production 47 = 7 inch dia. Reel & 4 x standard power (1W)  Low resistances applied to current sensing 7W = 7 inch dia. Reel & 2 x standard power (1/2W) 67 = 7 inch dia. Reel & 6 x standard power (1.5W) (6) RESISTANCE VALUE 1 mΩ to 50 mΩ (7) DEFAULT CODE Letter L is the system default code for ordering only. (Note) Resistance rule of global part number Resistance code rule Example 0RXXX (1 to 50mΩ) 0R001 = 1 mΩ 0R015 = 15 mΩ ORDERING EXAMPLE The ordering code of a PA1206 1/4W chip resistor, TC100, value 0.003Ω with ±1% tolerance, supplied in 7-inch tape reel is : PA1206FRF070R003L NOTE 1. All our RChip products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead-Free Process" www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 3 10 SERIES MARKING PA1206 4 digits The “R” is used as a decimal point; the other 3 digits are significant PA1206: 1mΩ Fig. 1 Fig. 2 Value = 1 mΩ Value = 5 mΩ 4 digits The “R” is used as a decimal point; the other 3 digits are significant PA1206: 2mΩ to 50mΩ CONSTRUCTION The resistors are constructed using outstanding TCR level material, which makes Yageo P A resistors excellent for current sensing application in battery charger circuit & DC -DC converter. The composition of the resistive material is adjusted to give the approximate required resistance and is covered with a protective coating. Marking is printe d on the top side of the resistor. Finally, the three external terminations (Cu / Ni / matte Tin) are added, as shown in Fig. 3. Outlines For dimensions, please refer to Table 1 Fig. 3 Chip resistor outlines www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 4 10 SERIES DIMENSION Table 1 For outlines, please refer to Fig. 3 TYPE RESISTANCE RANGE POWER RATING L (mm) W (mm) H (mm) I1 (mm) I2 (mm) 1/4W 1/2W 1W 1.5W (1~5mΩ) 3.20 ± 0.25 1.60±0.25 0.65±0.25 1.04±0.25 1.04±0.25 3.20 ± 0.25 1.60±0.25 0.65±0.25 0.64±0.25 0.64±0.25 3.20 ± 0.25 1.60±0.25 0.65±0.25 0.51±0.25 0.51±0.25 1mΩ PA1206 2mΩ ≤ R ≤ 5mΩ 6mΩ ≤ R ≤ 50mΩ Note: 1. For relevant physical dimensions, please refer to construction outlines. 2. Please contact with sales offices, distributors and representatives in your region before ordering. ELECTRICAL CHARACTERISTICS Table 2 SERIES SIZE POWER RATING TOLERANCE 1/4W 1/2W Fig. 4 PA Chip resistor outlines 1W 1206 ± 1% ± 5% 1.5W RESISTANCE RANGE TEMPERATURE COEFFICIENT OF RESISTANCE 1mΩ ≤ R ≤ 2mΩ ± 75ppm/°C, ± 100ppm/°C 3mΩ ≤ R ≤ 50mΩ ± 50ppm/°C, ± 75ppm/°C, ± 100ppm/°C 1mΩ ≤ R ≤ 2mΩ ± 75ppm/°C, ± 100ppm/°C 3mΩ ≤ R ≤ 5mΩ ± 50ppm/°C, ± 75ppm/°C, ± 100ppm/°C Note: Please contact with sales offices, distributors and representatives in your region before ordering. FUNCTIONAL DESCRIPTION OPERATING TEMPERATURE RANGE PA1206 Range: –55°C to +170°C POWER RATING Standard rated power at 70°C: For detail power value, please refer to Table 2. RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V = (PxR ) Where Fig. 4 Maximum dissipation (Pmax ) in percentage of rated power as a function of the operating ambient temperature (T amb) V = Continuous rated DC or AC (rms) working voltage (V) P = Rated power (W) R = Resistance value (Ω) www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 5 10 SERIES PACKING STYLE AND PACKAGING QUANTITY Table 3 Packing style and packaging quantity PACKING STYLE REEL DIMENSION PA1206 7" (178 mm) 4,000 Paper Taping Reel (R) EMBOSSED TAPE Fig. 5 Embossed Tape Table 4 Dimensions of embossed tape for relevant chip resistors size SIZE SYMBOL A0 Unit: mm B0 PA1206 1.90± 0.10 3.50± 0.10 W E F P0 P1 P2 Ø D0 Ø D1 T 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.55± 0.05 1.50± 0.10 1.50± 0.10 www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 6 10 SERIES REEL SPECIFICATION Fig. 6 Reel HBK039 Table 5 Dimensions of reel specification for relevant chip resistors size QUANTITY PER REEL SIZE PA1206 REEL SIZE 8 mm TAPE WIDE 12 mm TAPE WIDE -- 7" (Ø 178 mm) 4000 SYMBOL A 180.0+0/-3 Unit: mm N 60.0+1/-0 C 13.0± 0.2 D 21.0± 0.8 W1 W2 MAX. 8.4 +1/-0 12.4 LEADER/TRAILER TAPE SPECIFICATION Fig. 7 Leader/Trailer Tape CCB325 www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 7 10 SERIES FOOTPRINT AND SOLDERING PROFILES For recommended soldering profiles, please refer to data sheet “Chip resistors mounting”. FOOTPRINT Fig. 8 Single resistor chips recommended dimensions of footprints Table 6 Footprint dimensions Unit: mm SIZE RESISTANCE RANGE PA1206 1mΩ ≤ R ≤ 50mΩ A B C D 3.90 0.76 1.57 1.78 www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 8 10 SERIES TESTS AND REQUIREMENTS Table 7 Test condition, procedure and requirements TEST TEST METHOD Short time overload IEC60115-1 4.13 High Temperature Exposure MIL-STD-202-Method 108 PROCEDURE REQUIREMENT 5 times of rated power for 5 seconds at room temperature ± (0.5%+0.0005Ω) 1,000 hours at maximum operating temperature depending on specification, unpowered ± (1.0%+0.0005Ω) No visible damage No direct impingement of forced air to the parts Tolerances: 170± 3ºC Temperature Cycling JESD22-A104C 1,000 cycles, -55/+125ºC for 1 cycle per hour ± (0.5%+0.0005Ω) Moisture Resistance MIL-STD-202-Method 106 Each temperature / humidity cycle is defined at 8 hours (method 106F), 3 cycles / 24 hours for 10d with 25ºC / 65ºC 95% R.H, without steps 7a & 7b, unpowered ± (0.5%+0.0005Ω) Biased Humidity MIL-STD-202 Method 103 1,000 hours; 85ºC / 85% RH ± (0.5%+0.0005Ω) Operational Life/ Endurance MIL-STD-202-Method 108 10% of operating power 1,000 hours at 125± 3ºC, de-rated voltage applied for 1.5 hours on, 0.5 hour off, stillair required ± (1.0%+0.0005Ω) 1,000 hours at 70± 2ºC applied RCWV ± (1.0%+0.0005Ω) 1.5 hours on, 0.5 hour off, still air required Resistance to Solvents MIL-STD-202 Method 215 Immerse in isopropyl alcohol for 5 min with ultrasonic at room temperature No Visible damage Mechanical Shock MIL-STD-202 Method 213 Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen. ± (0.5%+0.0005Ω) Peak value: 100 g’s Duration: 6 ms Velocity change: 12.3 ft/s Waveform: Half sine Vibration MIL-STD-202 Method 204 5 g’s for 20 min., 12 cycles each of 3 orientations ± (0.5%+0.0005Ω) Test from 10-2000 Hz. Resistance to Soldering Heat MIL-STD-202-method 210 Condition B, no pre-heat of samples ± (0.5%+0.0005Ω) Leadfree solder, 260ºC, 10 seconds immersion time No visible damage Procedure 2 for SMD: devices fluxed and cleaned with isopropanol Thermal Shock MIL-STD-202 Method 107 -55/+125ºC, Number of cycles is 300. Devices mounted. ± (0.5%+0.0005Ω) No visible damage Maximum transfer time is 20 seconds. Dwell time is 15 minutes. Air -Air www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount TEST TEST METHOD Electrostatic Discharge AEC-Q200-002 Solderability - Wetting J-STD-002B test B PA1206_L PROCEDURE 9 10 SERIES REQUIREMENT Human Body Model, 1 pos + 1 neg. ± (1.0%+0.0005Ω) Discharges 1206=2KV No visible damage (a) Method B, aging 4 hours at 155ºC dry heat, dipping at 235± 3ºC for 5± 0.5 seconds. Well tinned (>95% covered) No visible damage (b) Method B, steam aging 8 hours, dipping at 215± 3ºC for 5± 0.5 seconds. (c) Method D, steam aging 8 hours, dipping at 260± 3 ºC for 7± 0.5 seconds. Flammability UL94 Try to inflame a specimen by a needle flame No ignition of specimen; V-0 Board Flex / Bending AEC-Q200-005 Chips mounted on a 90mm glass epoxy resin PCB (FR4), Bending for 1206=2 mm ± (1.0%+0.0005Ω) Holding time: Min.60 seconds Terminal Strength (SMD) AEC-Q200-006 Flame Retardance Temperature Coefficient of Resistance (T.C.R.) Applied a 17.7N (1.8Kg) for 60± 1 seconds. ± (1.0%+0.0005Ω) AEC-Q200-001 Apply voltage from 9V to 32V to increase the surface temp to 350ºC No flame, no explosion MIL-STD-202 Method 304 At +25/+150ºC Refer to table 2 No visible damage Formula: T.C.R= R 2  R1 x106(ppm/ºC) R1( t 2  t1) Where t1=+25ºC or specified room temperature t2=+150ºC test temperature R1=resistance at reference temperature in ohms R2=resistance at test temperature in ohms Flower-of-Sulfur (FOS) Modified ASTM B809-95 Sulfur 105ºC, 750 hours, unpowered. ± (1.0%+0.0005Ω) www.yageo.com Jul. 24, 2017 V.2 - Product specification Chip Resistor Surface Mount PA1206_L 10 10 SERIES REVISION HISTORY REVISION DATE Version 2TYPE Jul. 24, 2017 CHANGE NOTIFICATION - POWER DESCRIPTION TEMPERATURE COEFFICIENT RESISTANCE RANGE TOLERANCE - Add part number coding details for the relationship between taping reel OF RESISTANCE 3/10W, 2/5W, 1/2W 0603 1/10W, 1/5W, May 05, 2017 1/8W, 1/4W, 1/3W, 1/2W 0805 1/4W, 1/2W Version 01206 Mar. 31, 2017 Version 1 and rated power 5 mΩ ≦ R < 100 mΩ - Extend resistor value 4 mΩ ≦ R < 100 mΩ mΩ ≦ R < 100 mΩ current sensor –PA1206_L series. - New datasheet 3for automotive grade 1/2W, 1W PF The resistors are constructed using outstanding TCR level material, which makes Yageo PF resistors excellent for current sensing application in battery charger circuit & DC-DC converter. The composition of the resistive 2010 material is adjusted to give the approximate required resistance and is covered with a protective coating, which printed with the resistance value. Finally, the three external terminations (Ni / matte Tin) are added, as shown in Fig. 4. 2512 4527 ± 1% ± 2% 5 mΩ ≦ R < 100 mΩ ±75 ppm/°C ± 5% 1W, 2W 1 mΩ ≦ R < 100 mΩ 3W 1 mΩ ≦ R ≦ 50 mΩ 2W, 3W, 5W 6 mΩ ≦ R < 1Ω NOTE: 1. PLEASE CONTACT WITH SALES OFFICES, DISTRIBUTORS AND REPRESENTATIVES IN YOUR REGION BEFORE ORDERING “ Yageo reserves all the rights for revising the content of this datasheet without further notification, as long as the products itself are unchanged. Any product change will be announced by PCN.” www.yageo.com Jul. 24, 2017 V.2
