PRELIMINARY DATASHEET
SGM2523
Programmable Current Limit Switch
GENERAL DESCRIPTION
FEATURES
The SGM2523 is a compact, feature rich eFuse with a
● Wide Input Voltage Range from 2.5V to 24V
with Surge up to 30V
full suite of protection functions. The wide operating
● RDS(ON) Protection Switch: 78mΩ
precision ±10% current limit, at room temperature,
● Programmable Soft-Start Time
provides excellent accuracy and makes the SGM2523
● Programmable Current Limit from 100mA to 1.2A
well suited for many system protection applications.
● Short-Circuit Protection
● OCP Hiccup Protection
IA
The SGM2523 protects input from undesired shorts
SGM2523A: Limited Current Model
and transients coming from the output.
package and operates over a temperature range of
T
SGM2523B: Shutdown Model
● Thermal Shutdown Protection
N
The SGM2523 is available in a Green SOT-23-6
L
voltage allows control of many popular DC buses. The
SGM2523A: Auto-Recovery
E
-40℃ to +125℃.
SGM2523B: Latched-Off
Y
L D
C TX
O
N
FI
D
● Enable Interface Pin
● -40℃ to +125℃ Operating Temperature Range
APPLICATIONS
● Available in a Green SOT-23-6 Package
Hot Swap in Industry/Telecom
E-Meter
Automotive
USB Power Distribution
USB3.1 Power Delivery
R
A
Adapter Power Devices
B
IL
A
T
E
TYPICAL APPLICATION
IN
OUT
EN/nFAULT
SS
CSS
GND
SGM2523
ILIM
RILIM
Figure 1. Typical Application Circuit
SG Micro Corp
www.sg-micro.com
AUGUST 12, 2019
SGM2523
Programmable Current Limit Switch
PACKAGE/ORDERING INFORMATION
MODEL
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION

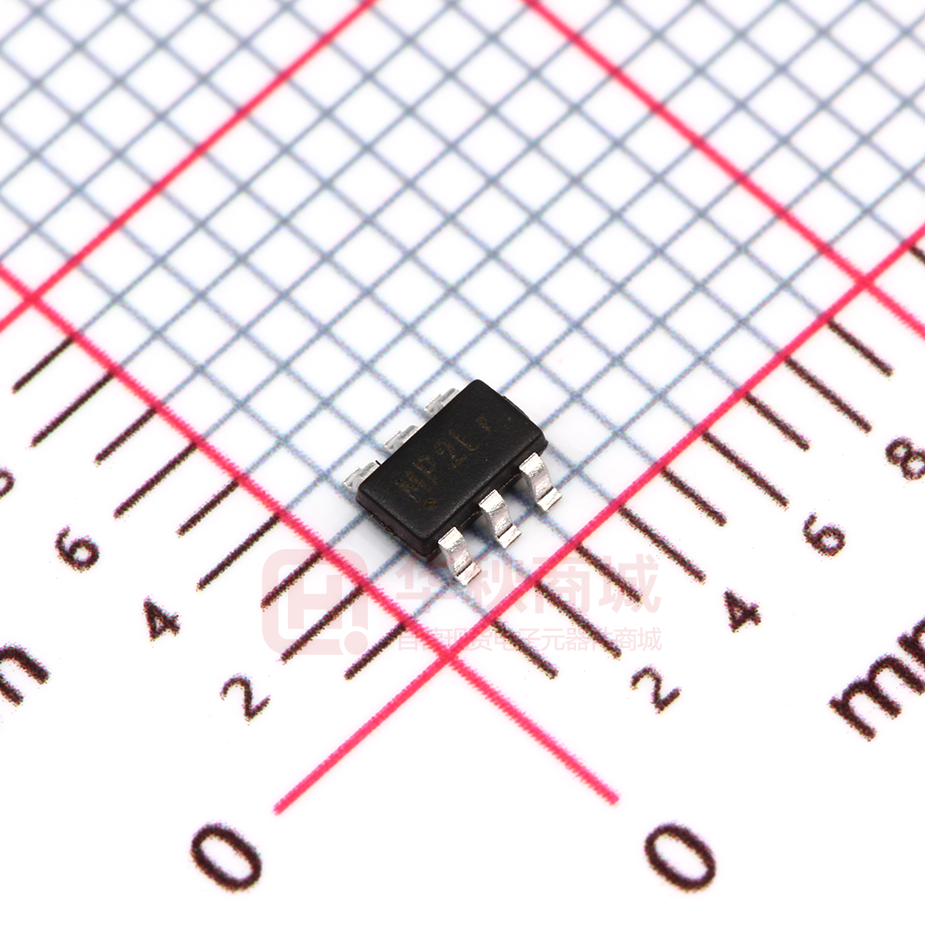

SGM2523A
SOT-23-6
-40℃ to +125℃
SGM2523AXN6G/TR
MP2XX
Tape and Reel, 3000
SGM2523B
SOT-23-6
-40℃ to +125℃
SGM2523BXN6G/TR
CJDXX
Tape and Reel, 3000
MARKING INFORMATION
NOTE: XX = Date Code.
YYY X X
IA
L
Date Code - Week
Date Code - Year
Serial Number
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged by ESD if you don’t
pay attention to ESD protection. SGMICRO recommends that
all integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause the
device not to meet its published specifications.
Y
L D
C TX
O
N
FI
D
IN, OUT, EN/nFAULT to GND ............................ -0.3V to 30V
SS, ILIM to GND .................................................. -0.3V to 6V
Package Thermal Resistance
SOT-23-6, θJA .......................................................... 220℃/W
Junction Temperature .................................................+150℃
Storage Temperature Range........................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM ............................................................................. 4000V
CDM ............................................................................ 1000V
E
ABSOLUTE MAXIMUM RATINGS
N
T
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
A
RECOMMENDED OPERATING CONDITIONS
SG Micro Corp reserves the right to make any change in
circuit design, or specifications without prior notice.
T
E
R
Supply Input Voltage ............................................2.5V to 24V
Operating Ambient Temperature Range....... -40℃ to +125℃
Operating Junction Temperature Range ...... -40℃ to +125℃
DISCLAIMER
A
OVERSTRESS CAUTION
B
IL
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
SG Micro Corp
www.sg-micro.com
AUGUST 2019
2
SGM2523
Programmable Current Limit Switch
PIN CONFIGURATION
SGM2523 (TOP VIEW)
IN
1
6
OUT
GND
2
5
ILIM
EN/nFAULT
3
4
SS
SOT-23-6
IN
2
GND
3
EN/nFAULT
4
SS
5
ILIM
6
OUT
IA
NAME
1
DESCRIPTION
Power Input Pin. Power input and supply voltage of the device.
T
PIN
L
PIN DESCRIPTION
Y
L D
C TX
O
N
FI
D
E
N
Ground.
Enable Input or Alert Output (OTP, OCP, UVP, SCP). Asserting EN/nFAULT pin high enables the
device. When any of over-temperature protection, over-current protection, under-voltage protection
or short-circuit protection occurs, the device sinks current from EN/nFAULT, pulling the pin down to
alert the host (pin as output port).
Soft-Start Pin. A capacitor from this pin to GND sets the ramp rate of output voltage at device
turn-on.
Current Limit Program Pin. A resistor from this pin to GND will set the over-load and short-circuit
limit. Do not float this pin.
Power Output Pin. Power output of the device.
FUNCTIONAL BLOCK DIAGRAM
1
A
IN
Current
Sense
+
1.39V
-
IL
Thermal OTP
Shutdown
S
2.31V
2.41V
SWEN
Q
R
B
Retry Timer
(SGM2523A)
+
6.2x
nSWEN
Fast-Trip Comp
ILIMIT
10μA
+
-
-
2
+
GND
4
ILIM
Gate
Control
1μA
SS
5
nUVLO
A
1.33V
OUT
I to V
EN
T
3
-
OTP/UVP
EN/nFAULT
6
78mΩ
Charge
Pump
+
E
R
OCP/SCP
IFAST-TRIP
Figure 2. Functional Block Diagram
SG Micro Corp
www.sg-micro.com
AUGUST 2019
3
SGM2523
Programmable Current Limit Switch
ELECTRICAL CHARACTERISTICS
(TJ = +25℃, VIN = 2.5V to 24V, VEN/nFAULT = 2V, RILIM = 95.3kΩ, CSS = Open, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
24
V
Supply Voltage and Internal Under-Voltage Lockout
Operating Input Voltage
VIN
UVLO Threshold Voltage, Rising
UVLO Hysteresis
2.5
VUVR
2.41
V
VUVHYS
103
mV
Supply Current, Enabled
IQ_ON
VEN/nFAULT = 2V, VIN = 12V
0.16
mA
Supply Current, Disabled
IQ_OFF
VEN/nFAULT = 0V, VIN = 12V
0.8
µA
Enable and Under-Voltage Lockout (En/nFAULT) Input
VENR
1.39
V
EN/nFAULT Threshold Voltage, Falling
VENF
1.33
V
EN/nFAULT Threshold Voltage to Reset
Thermal Fault, Falling
VENF_RST
0 ≤ VEN/nFAULT ≤ 18V
ISS
VSS = 0V
IA
IEN
GAINSS
Y
L D
C TX
O
N
FI
D
Current Limit Programming (ILIMIT)
ΔVOUT/ΔVSS
E
SS to OUT Gain
N
Soft-Start: Output Ramp Control (SS)
SS Charging Current
ILIM Pin Bias Current
IILIM
Current Limit
ILIMIT
6.2
V/V
10
µA
1.0
RILIM = 95.3kΩ, VIN - VOUT = 1V
1.0
RILIM = 150kΩ, VIN - VOUT = 1V
1.57
A
RILIM in kΩ
R
-40℃ ≤ TJ ≤ +85℃
VEN/nFAULT = 0V, VOUT = 0V (Sourcing)
ISINK_OUT
VEN/nFAULT = 0V, VOUT = 300mV (Sinking)
E
µA
RILIM = 95.3kΩ, VIN - VOUT = 1V, TJ = +25℃
ILKG_OUT
T
OUT Bias Current in Off State
1
0.479
IFAST-TRIP
RDS(ON)
nA
RILIM = 45.3kΩ, VIN - VOUT = 1V
VILIM_OPEN VILIM rising, RILIM = Open
Pass FET Output (OUT)
0
0.378
ILIM Open Resistor Detect Threshold
FET On-Resistance
V
RILIM = 35.7kΩ, VIN - VOUT = 1V
Fast-Trip Comparator Threshold
MOSFET-Power Switch
0.7
T
EN/nFAULT Input Leakage Current
L
EN/nFAULT Threshold Voltage, Rising
A
1.6 × ILIMIT
A
3.0
V
78
mΩ
0
0.05
µA
A
Fault Flag (EN/nFAULT): Active Low
IL
EN/nFAULT Pull-Down Resistance
EN/nFAULT Input Leakage Current
REN/nFAULT
Device in fault condition, VEN/nFAULT = 0V,
IEN/nFAULT = 100mA
Device not in fault condition, VEN/nFAULT = 0V,
18V
30
Ω
0
µA
TTSD
150
℃
TTSDHYS
20
℃
IEN/nFAULT
B
Thermal Shutdown (TSD)
Thermal Shutdown Threshold, Rising
Thermal Shutdown Hysteresis
SG Micro Corp
www.sg-micro.com
AUGUST 2019
4
SGM2523
Programmable Current Limit Switch
TIMING REQUIREMENTS
(TJ = +25℃, VIN = 12V, VEN/nFAULT = 2V, RILIM = 95.3kΩ, CSS = Open, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
Enable and Under-Voltage Lockout (EN/nFAULT) Input
Turn-Off Delay
tOFF_DLY
Turn-On Delay
tON_DLY
EN/nFAULT↓ to VOUT = 10.8V, COUT = 2.2µF
EN/nFAULT↑ to VOUT = 1V, CSS = Open, COUT =
2.2µF
83
µs
74
µs
Soft-Start: Output Ramp Control (SS)
Output Ramp Time
EN/nFAULT↑ to VOUT = 11V, with CSS = Open,
COUT = 2.2µF
EN/nFAULT↑ to VOUT = 11V, with CSS = 1.2nF,
COUT = 2.2µF
tSS
0.359
ms
2.24
tFAST-TRIP_DLY IOUT > IFAST-TRIP
Thermal Shutdown (TSD)
SGM2523A only, VIN = 12V
ms
700
SGM2523A only, VIN = 2.5V
750
T
tTSD_DLY
µs
Y
L D
C TX
O
N
FI
D
E
PARAMETRIC MEASUREMENT INFORMATION
N
Retry Delay after Thermal Shutdown
Recovery, TJ < [TTSD - 20℃]
0.3
IA
Fast-Trip Comparator Delay
L
Current Limit Programming (ILIM)
5V
VOUT
VEN/nFAULT
1V
90%
90%
VOUT
VIN
0
Time
tOFF_DLY
Time
T
E
R
tON_DLY
A
5V
10%
A
IFAST-TRIP
ILIMIT
B
IL
IIN
0
SG Micro Corp
www.sg-micro.com
tFAST-TRIP_DLY
Time
AUGUST 2019
5
SGM2523
Programmable Current Limit Switch
DETAILED DESCRIPTION
SGM2523 implements internal under-voltage lockout
(UVLO) circuitry on the IN pin. The device gets disabled
when the IN terminal voltage falls below internal UVLO
threshold VUVF.
SGM2523
IN
VIN
EN/nFAULT
EN
-
T
GND
+
IA
1.39V
1.33V
R2
L
R1
< 27V
Zener Diode
Figure 3. UVLO Thresholds Set by R1 and R2
When the switching voltage of SGM2523 is more than
15V, customer should add a no more than 27V (> 0.5W)
zener diode to prevent the input voltage spike from
damaging the SGM2523 (as shown in Figure 3).
Y
L D
C TX
O
N
FI
D
For hot-plug-in boards, the device provides in-rush
current control and programmable output ramp rate.
SGM2523 integrates over-current and short-circuit
protection. The precision over-current limit helps to
minimize over design of the input power supply, while
the fast response short-circuit protection immediately
isolates the load from input when a short-circuit case is
detected. The device allows the user to program the
over-current limit threshold between 0.1A and 1.2A via
an external resistor. Its threshold accuracy of 3%
ensures tight supervision of bus, eliminating the need
for a separate supply voltage supervisor chip.
SGM2523 is designed to protect systems such as white
goods, STBs, DTVs, smart meters and gas analyzers.
N
SGM2523 is a smart eFuse with enhanced built-in
protection circuitry. It provides robust protection for all
systems and applications powered from 2.5V to 24V.
is not needed, the EN/nFAULT pin should be
connected to the IN terminal. The EN/nFAULT terminal
should not be left floating.
E
Overview
The additional features include:
Over-temperature protection to safely shut down in
the event of an over-current event
Fault reporting for brown-out
A choice of latched-off or auto-recovery restart mode
Enable and Adjusting Under-Voltage
Lockout (UVLO)
R
A
The EN/nFAULT pin controls the on/off state of the
internal FET. A voltage VEN/nFAULT < VENF on this pin
turns off the internal FET, thus disconnecting IN from
OUT.
B
IL
A
T
E
Toggling the EN/nFAULT pin below VENF_RST resets the
SGM2523B that has latched-off due to a fault condition.
The internal de-glitch delay on EN/nFAULT falling edge
is kept low for quick detection of power failure. For
applications where a higher de-glitch delay on
EN/nFAULT is desired, or when the supply is
particularly noisy, it is recommended to use an external
filter capacitor from the EN/nFAULT terminal to GND.
The under-voltage lockout threshold can be
programmed by using an external resistor divider from
the supply IN terminal to the EN/nFAULT terminal to
GND as shown in Figure 3. When an under-voltage or
input power fail event is detected, the internal FET is
quickly turned off. If the under-voltage lockout function
SG Micro Corp
www.sg-micro.com
Hot-Plug-In and In-Rush Current Control
SGM2523 is designed to control the in-rush current
upon insertion of a card into a live backplane or other
"hot" power source. This limits the voltage sag on the
backplane’s supply voltage and prevents unintended
resets of the system power. A slew rate controlled
start-up (SS) also helps to eliminate conductive and
radiated interference. An external capacitor from the
SS pin to GND defines the slew rate of the output
voltage at power-on (as shown in Figure 4). The
equation governing slew rate at start-up is shown in
Equation 1:
=
ISS
CSS
dV
× OUT
GainSS
dt
where:
ISS = 1μA (TYP)
dVOUT/dt = Desired output slew rate
GAINSS = ΔVOUT/ΔVSS gain = 6.2
(1)
CSS (MAX) must be less than 1μF.
AUGUST 2019
6
SGM2523
Programmable Current Limit Switch
DETAILED DESCRIPTION (continued)
Over-Load Protection
For over-load conditions, the internal current limit
amplifier regulates the output current to ILIMIT. The
output voltage droops during current limit regulation,
resulting in increased power dissipation in the device.
SGM2523 allows ILIM pin floating operation. If ILIM pin
is floating, the current limit will be set as fixed 0.2A
internally.
SGM2523
1μA
SS
nSWEN
The total ramp time (tSS) of VOUT for 0 to VIN can be
calculated using Equation 2:
4
tSS = 16.1 × 10 × VIN × CSS
(2)
(3)
Short-Circuit Protection
During a transient short-circuit event, the current
through the device increases very rapidly. As current
limit amplifier cannot respond quickly to this event due
to its limited bandwidth, the device incorporates a
fast-trip comparator, with a threshold IFAST-TRIP. When
the current through the internal FET exceeds IFAST-TRIP
(IOUT > IFAST-TRIP), this comparator shuts down the pass
device within 0.3μs and terminates the rapid
short-circuit peak current. The IFAST-TRIP threshold is
dependent on programmed over-load current limit and
function of RILIM. See Equation 6 for the calculation.
Y
L D
C TX
O
N
FI
D
where CSS is in Farad.
The in-rush current, IIN-RUSH can be calculated as
V
IIN-RUSH
= COUT × IN
t SS
IA
L
Figure 4. Output Ramp Time tdVdT is Set by CdVdT
When the over-current limit condition lasts more than
2ms, the SGM2523A enters the hiccup mode with 2ms
on time and 700ms off time, whereas the SGM2523B
enters shutdown mode.
T
GND
N
CINT
E
CSS
The SS pin can be left floating to obtain a
predetermined slew rate (tSS) on the output. When
terminal is left floating, the device sets an internal ramp
rate of ~50V/ms for output (VOUT) ramp.
For systems where load is present during start-up, the
current never exceeds the over-current limit set by RILIM
resistor for the application.
A
Over-Load and Short-Circuit Protections
-3
T
E
R
At all times load current is monitored by sensing
voltage across an internal sense resistor. During
over-load events, current is limited to the current limit
(ILIMIT) programmed by RILIM resistor:
(6)
where:
IFAST-TRIP is fast-trip current limit in Ampere.
The fast-trip circuit holds the internal FET off for only a
few microseconds, after which the device attempts to
turn back on normally, allowing the current limit loop to
regulate the output current to ILIMIT. Then, device
behaves similar to over-load condition.
SGM2523 incorporates two distinct over-current
protection levels: the current limit (ILIMIT) and the
fast-trip threshold (IFAST-TRIP). The fast-trip and current
limit operations are shown in Figure 5.
Bias current on ILIM pin directly controls current limiting
behavior of the device, and PCB routing of this node
must be kept away from any noisy (switching) signals.
SG Micro Corp
www.sg-micro.com
IFAST-TRIP
Current (A)
B
IL
A
(4)
ILIMIT = 10.5 × 10 × RILIM
ILIMIT
(5)
RILIM =
10.5 × 10 −3
where:
ILIMIT is over-load current limit in Ampere.
RILIM is the current limit programming resistor in kΩ.
IFAST-TRIP = 1.6 × ILIMIT
IFAST-TRIP = 1.6 × ILIMIT
ILIMIT
Figure 5. Over-Current Protection Levels
AUGUST 2019
7
SGM2523
Programmable Current Limit Switch
DETAILED DESCRIPTION (continued)
Internal Control Logic
DO
EN/nFAULT
DI
Delay
A typical MCU IO block
UVLO
Shutdown Control
The internal FET and hence the load current can be
remotely switched off by taking the EN/nFAULT pin
below its VENF threshold.
Operational Overview of Device Functions
The device functionality for various conditions are
shown in Table 2.
E
ON
the thermal shutdown, the fault pin EN/nFAULT is
pulled low to signal a fault condition.
L
EN/nFAULT changes back to an input port, only after
the device is released from a protection action.
latches off the internal FET, whereas SGM2523A
commences
an
auto-recovery
cycle
tTSD_DLY
milliseconds after TJ drops below [TTSD - 20℃]. During
IA
When any of over-current protection, under-voltage
protection or over-temperature protection occurs, the
device sinks current from EN/nFAULT, pulling the pin
down to alert the host.
Internal over-temperature shutdown disables/turns off
the FET when TJ > 150℃ (TYP). The SGM2523B
T
EN/nFAULT as Output Port
Thermal Shutdown
N
Start-Up with Short on Output
During start-up into a short-circuit current is limited to
ILIMIT. This feature helps in quick fault isolation and
hence ensures stability of the DC bus.
GND
Y
L D
C TX
O
N
FI
D
Table 1. Operational Overview of Device Functions
P
UVP
OCP
SCP
OTP
Device
In-rush ramp controlled by capacitor at SS pin.
Start-Up
Figure 6. EN/nFAULT Application
If TJ > TTSD device shuts off.
R
A
The IN pin should be connected to the power source. A
ceramic bypass capacitor close to the device from IN to
GND is recommended to alleviate bus transients. The
recommended operating voltage range is 2.5V to 24V.
The OUT pin should be connected to the load. VOUT in
the ON condition, is calculated using the Equation 7:
E
(7)
T
where RDS(ON) is the on-resistance of the internal FET.
A
GND terminal is the most negative voltage in the circuit
and is used as a reference for all voltage reference
unless otherwise specified.
Power dissipation increases as VIN - VOUT grows.
Over-Current Device turns off when TJ > TTSD.
Response
SGM2523A will attempt restart tTSD_DLY ms after TJ <
[TTSD -20°C].
SGM2523B remains off.
Fast shut off when ILOAD > IFAST-TRIP.
Short-Circuit
Response Quick restart and current limited to ILIMIT, follows
standard start-up cycle.
The SGM2523 provides simple solutions for current
limiting, in-rush current control and supervision of
power rails for wide range of applications operating at
2.5V to 24V and delivering up to 1.2A.
B
IL
In-rush limited to ILIMIT level as set by RILIM.
Current is limited to ILIMIT level as set by RILIM.
IN, OUT and GND Pins
VOUT = VIN - (RDS(ON)×IOUT)
SGM2523
SG Micro Corp
www.sg-micro.com
AUGUST 2019
8
SGM2523
Programmable Current Limit Switch
SYSTEM EXAMPLES
Protection and Current Limiting for
Primary-Side Regulated Power Supplies
Many of the above applications require precision output
current limiting and secondary side protection, driving
the need for current sensing in the secondary side. This
needs additional circuit implementation using precision
operational amplifiers. This increases the complexity of
the solution and also results in sensing losses The
SGM2523 with their integrated low-ohmic N-channel
FET provides a simple and efficient solution. Figure 7
shows the typical implementation using SGM2523.
Primary-side regulated power supplies and adapters
are dominant today in many of the applications such as
smart-phones, portable hand-held devices, white goods,
set-top-box and gaming consoles. These supplies
provide efficient, low cost and low component count
solutions for power needs ranging from 5W to 30W. But,
these come with drawbacks of:
During short-circuit conditions, the internal fast
comparator of SGM2523 turns off the internal FET in
less than 0.3μs (TYP) as soon as current exceeds
IFAST-TRIP, set by the current limit RILIM resistor.
IA
L
• No secondary-side protection for immediate
termination of critical faults such as short-circuit
• Do not provide precision current limiting for over-load
transients
• Have poor output voltage regulation for sudden
change in AC input voltages, triggering output
over-voltage condition
VAC(IN)
Rectifier + Noise
Filter
Y
L D
C TX
O
N
FI
D
E
N
T
In addition to above, the SGM2523 provide in-rush
current limit when output is hot-plugged into any of the
system loads.
VDC
CB
CO
SGM2523
VOUT
ILIM
RILIM
RS
A
T
E
R
A
UVV287XX
Primary Regulater
Fly-back Controller
B
IL
Figure 7. Current Limiting and Protection for AC-DC Power Supplies
SG Micro Corp
www.sg-micro.com
AUGUST 2019
9
SGM2523
Programmable Current Limit Switch
SYSTEM EXAMPLES (continued)
Precision Current Limiting in Intrinsic
Safety Applications
Intrinsic Safety (IS) is becoming prominent need for
safe operation of electrical and electronic equipment in
hazardous areas. Intrinsic Safety requires that
equipment is designed such that the total amount of
energy available in the apparatus is simply not enough
to ignite an explosive atmosphere. The energy can be
electrical, in the form of a spark, or thermal, in the form
of a hot surface.
current limits are not exceeded for wide operating
temperature range and variable environmental
conditions. Applications such as gas analyzers,
medical equipment (such as electrocardiographs),
portal industrial equipment, cabled power distribution
systems and hand-held motor operated tools need to
meet these critical safety standards.
The SGM2523 device can be used as simple protection
solution for each of the internal rails. Figure 8 shows
the typical implementation using SGM2523.
Sync Buck
DC-DC Converter
LO
CB
IA
VIN
L
This calls for precision current limiting ensuring that set
VOUT
SGM2523
N
Y
L D
C TX
O
N
FI
D
E
RILIM
T
CO
VIN
VOUT
SGM2523
LDO
CO
CB
RILIM
Figure 8. Precision Current Limit and Protection of Internal Rails
Smart Load Switch
A
T
E
R
A
A smart load switch is a series FET used for switching
of the load (resistive or inductive). It also provides
protection during fault conditions. Typical discrete
implementation is shown in Figure 9. Discrete solutions
have higher component count and require complex
circuitry to implement each of the protection fault
needs.
IL
SGM2523 can be used as a smart power switch for
B
VIN
UVLO
Figure 9 shows typical implementation and usage as
load switch. This configuration can be used for driving a
solenoid and FAN control. It is recommended to use a
freewheeling diode across the load when load is highly
inductive.
Enable
VIN
CS
R1
applications ranging from 2.5V to 24V. SGM2523
provides programmable soft-start, programmable
current limits, over-temperature protection, a fault flag,
and under-voltage lockout.
Over-Current
Protection
EN/nFAULT
SGM2523
Load
ILIM
Disable
R2
RILIM
Q1
Figure 9. Smart Load Switch Implementation
SG Micro Corp
www.sg-micro.com
AUGUST 2019
10
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOT-23-6
D
e1
e
2.59
E
IA
L
E1
0.99
T
b
0.95
N
0.69
Y
L D
C TX
O
N
FI
D
E
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A
A2
R
c
Dimensions
In Inches
MIN
MAX
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
T
1.050
IL
A
A
Dimensions
In Millimeters
MIN
MAX
E
Symbol
0.2
0.100
0.200
0.004
0.008
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
B
c
D
e
0.950 BSC
0.037 BSC
e1
1.900 BSC
0.075 BSC
SG Micro Corp
www.sg-micro.com
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
TX00034.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
Q1
Q2
Q3
Q4
Q3
Q4
L
Q2
Q1
Q2
Q3
Q4
IA
Q1
B0
T
W
P0
E
N
Reel Diameter
Y
L D
C TX
O
N
FI
D
P1
Reel Width (W1)
A0
K0
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SOT-23-6
7″
9.5
3.17
3.23
1.37
4.0
4.0
2.0
8.0
Q3
B
IL
A
T
E
R
A
Reel
Diameter
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
T
IA
L
CARTON BOX DIMENSIONS
E
N
NOTE: The picture is only for reference. Please make the object as the standard.
7″ (Option)
368
7″
442
Width
(mm)
Height
(mm)
Pizza/Carton
227
224
8
410
224
18
B
IL
A
T
E
R
A
Length
(mm)
DD0002
Reel Type
Y
L D
C TX
O
N
FI
D
KEY PARAMETER LIST OF CARTON BOX
SG Micro Corp
www.sg-micro.com
TX20000.000
工商网监
湘ICP备2023018690号
