TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022

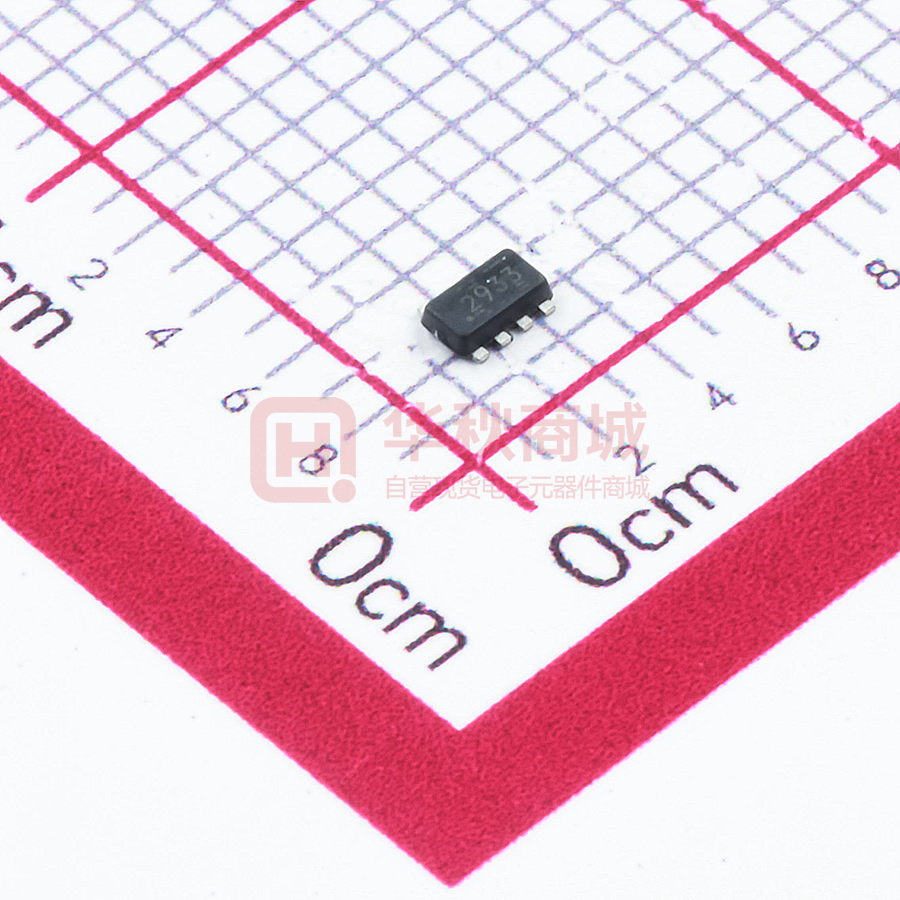

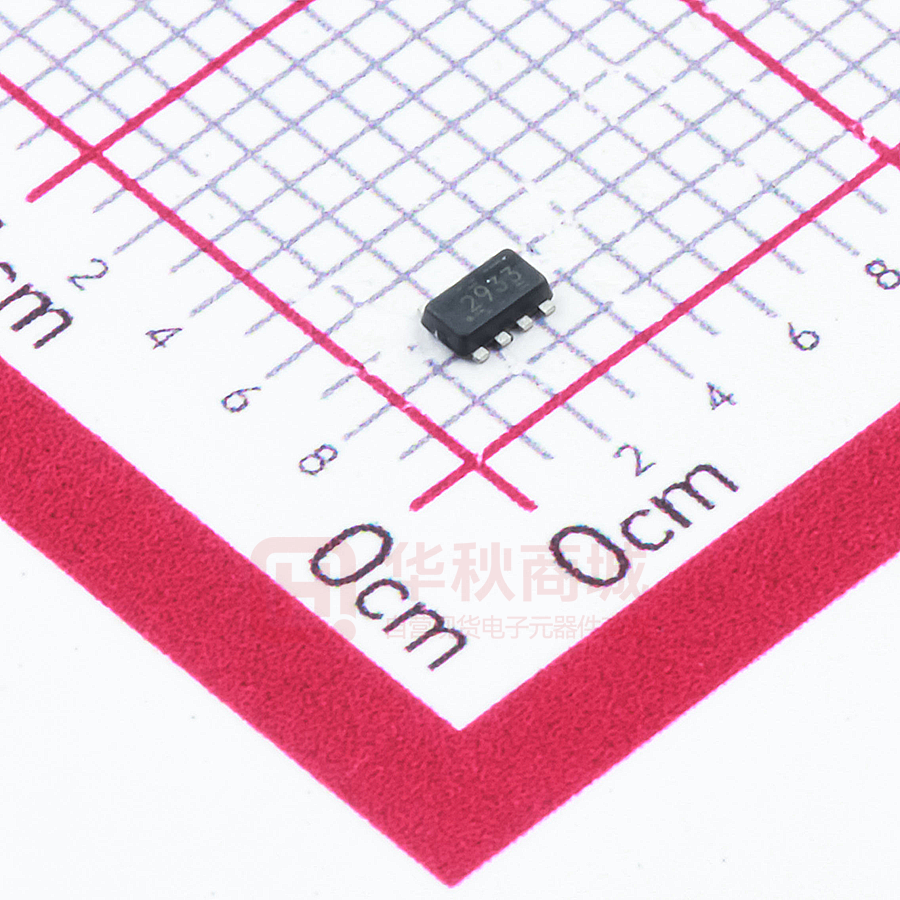

TPS6293x 3.8-V to 30-V, 2-A, 3-A Synchronous Buck Converters in a SOT583 Package
•
•
•
•
Configured for a wide range of applications
– 3.8-V to 30-V input voltage range
– 0.8-V to 22-V output voltage range
– Ultra-low quiescent current: 12 μA (TPS62932,
TPS62933, and TPS62933P)
– Integrated 76-mΩ and 32-mΩ MOSFETs
– 0.8 V ± 1% reference voltage (25°C)
– Maximum 98% duty cycle operation
– Precision EN threshold
– 2-A (TPS62932) and 3-A (TPS62933 and
TPS62933x) continuous output current
– –40°C to 150°C operating junction temperature
Numerous pin-compatible options
– TPS62932, TPS62933, and TPS62933F with
the SS pin for adjustable soft-start time
– TPS62933P and TPS62933O with the PG pin
for a power-good indicator
– TPS62932, TPS62933, and TPS62933P with
pulse frequency modulation (PFM) for high
light-load efficiency
– TPS62933F with forced continuous current
modulation (FCCM)
– TPS62933O with out-of-audio (OOA) feature
Ease of use and small solution size
– Peak current control mode with internal
compensation
– 200-kHz to 2.2-MHz selectable frequency
– EMI friendly with frequency spread spectrum
(TPS62932, TPS62933, TPS62933P and
TPS62933O)
– Supports start-up with prebiased output
– Cycle-by-cycle OC limit for both high-side and
low-side MOSFETs
– Non-latched protections for OTP, OCP, OVP,
UVP, and UVLO
– 1.6-mm × 2.1-mm SOT583 package
Create a custom design with the TPS6293x using
the WEBENCH® Power Designer
2 Applications
•
•
•
•
•
Building automation, appliances, industrial PC
Multifunction printers, enterprise projectors
Portable electronics, connected peripherals
Smart speakers, monitors
Distributed power systems with 5-V, 12-V, 19-V,
and 24-V input
range of 3.8 V to 30 V, and supports up to 2-A
(TPS62932) and 3-A (TPS62933 and TPS62933x)
continuous output current and 0.8-V to 22-V output
voltage.
The device employs fixed-frequency peak current
control mode for fast transient response and good
line and load regulation. The optimized internal
loop compensation eliminates external compensation
components.
The TPS62932, TPS62933, and TPS62933P operate
in pulse frequency modulation for high light load
efficiency. The TPS62933F operates in forced
continuous current modulation which maintains
lower output ripple during all load conditions. The
TPS62933O operates in out of audio mode to avoid
audible noise.
Device Information
(1)
Part Number
Package(1)
Body Size (NOM)
TPS6293x
SOT583 (8)
1.60 mm × 2.10 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
VIN
VIN
BST
CBST
CIN
L
GND
VOUT
SW
RFBT
EN
VEN
COUT
FB
RFBB
SS
RT
Simplified Schematic
100
80
Efficiency (%)
1 Features
60
40
20
0
0.001
VOUT=3.3V
VOUT=5V
VOUT=12V
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
TPS62933 Efficiency, VIN = 24 V, fSW = 500 kHz
3 Description
The TPS6293x is a high-efficiency, easy-to-use
synchronous buck converter with a wide input voltage
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Description (continued).................................................. 3
6 Device Comparison Table...............................................3
7 Pin Configuration and Functions...................................3
8 Specifications.................................................................. 5
8.1 Absolute Maximum Ratings........................................ 5
8.2 ESD Ratings............................................................... 5
8.3 Recommended Operating Conditions.........................5
8.4 Thermal Information....................................................6
8.5 Electrical Characteristics.............................................6
8.6 Typical Characteristics................................................ 9
9 Detailed Description......................................................16
9.1 Overview................................................................... 16
9.2 Functional Block Diagram......................................... 17
9.3 Feature Description...................................................18
9.4 Device Functional Modes..........................................26
10 Application and Implementation................................ 28
10.1 Application Information........................................... 28
10.2 Typical Application.................................................. 28
10.3 What to Do and What Not to Do............................. 38
11 Power Supply Recommendations..............................39
12 Layout...........................................................................40
12.1 Layout Guidelines .................................................. 40
12.2 Layout Example...................................................... 41
13 Device and Documentation Support..........................42
13.1 Device Support....................................................... 42
13.2 Receiving Notification of Documentation Updates..42
13.3 Support Resources................................................. 42
13.4 Trademarks............................................................. 42
13.5 Electrostatic Discharge Caution..............................42
13.6 Glossary..................................................................42
14 Mechanical, Packaging, and Orderable
Information.................................................................... 43
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision C (July 2022) to Revision D (August 2022)
Page
• Added the TPS62933O.......................................................................................................................................1
• Changed link of WEBENCH® Power Designer for TPS6293x........................................................................... 1
Changes from Revision B (February 2022) to Revision C (July 2022)
Page
• Added the TPS62933F....................................................................................................................................... 1
• Added the TPS62933P....................................................................................................................................... 1
2
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
5 Description (continued)
The ULQ (ultra-low quiescent) feature is beneficial for long battery lifetime. The switching frequency can be set
by the configuration of the RT pin in the range of 200 kHz to 2.2 MHz, which can optimize system efficiency,
solution size, and bandwidth. The soft-start time of the TPS62932, TPS62933, and TPS62933F can be adjusted
by the external capacitor at the SS pin. The TPS62932, TPS62933, TPS62933P and TPS62933O are featured
with frequency spread spectrum, which helps with lowering down EMI noise.
The TPS6293x is in a small SOT583 (1.6 mm × 2.1 mm) package with 0.5-mm pin pitch, and has an optimized
pinout for easy PCB layout and promotes good EMI performance.
6 Device Comparison Table
Part Number
Output Current
PFM or FCCM or OOA
SS or PG Pin
TPS62932
2A
PFM
SS
TPS62933
3A
PFM
SS
TPS62933F
3A
FCCM
SS
TPS62933P
3A
PFM
PG
TPS62933O
3A
OOA
PG
7 Pin Configuration and Functions
RT
1
8 FB
RT
1
8 FB
EN
2
7 SS
EN
2
7 PG
VIN
3
6 BST
VIN
3
6 BST
GND
4
5 SW
GND
4
5 SW
Figure 7-1. TPS62932, TPS62933, and TPS62933F
8-Pin SOT583 DRL Package (Top View)
Figure 7-2. TPS62933P and TPS62933O 8-Pin
SOT583 DRL Package (Top View)
Table 7-1. Pin Functions
Pin
Type(1)
Description
Name
NO.
RT
1
A
Frequency programming input. Float for 500 kHz, tie to GND for 1.2 MHz, or connect to an
RT timing resistor. See Section 9.3.5 for details.
EN
2
A
Enable input to the converter. Driving EN high or leaving this pin floating enables the
converter. An external resistor divider can be used to implement an adjustable VIN UVLO
function.
VIN
3
P
Supply input pin to internal LDO and high-side FET. Input bypass capacitors must be directly
connected to this pin and GND.
GND
4
G
Ground pin. Connected to the source of the low-side FET as well as the ground pin for the
controller circuit. Connect to system ground and the ground side of CIN and COUT. The path
to CIN must be as short as possible.
SW
5
P
Switching output of the convertor. Internally connected to the source of the high-side FET
and drain of the low-side FET. Connect to the power inductor.
BST
6
P
Bootstrap capacitor connection for high-side FET driver. Connect a high-quality, 100-nF
ceramic capacitor from this pin to the SW pin.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
3
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
Table 7-1. Pin Functions (continued)
Pin
Name
SS/PG
FB
(1)
4
Type(1)
NO.
A
TPS62932, TPS62933, and TPS62933F soft-start control pin. An external capacitor
connected to this pin sets the internal voltage reference rising time. See Section 9.3.7 for
details. A minimum 6.8-nF ceramic capacitor must be connected at this pin, which sets the
minimum soft-start time to approximately 1 ms. Do not float.
A
TPS62933P and TPS62933O open-drain power good indicator, which is asserted low if
output voltage is out of PG threshold, overvoltage, or if the device is under thermal
shutdown, EN shutdown, or during soft start.
A
Output feedback input. Connect FB to the tap of an external resistor divider from the output
to GND to set output voltage.
7
8
Description
A = Analog, P = Power, G = Ground
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8 Specifications
8.1 Absolute Maximum Ratings
Over the recommended operating junction temperature range of –40°C to +150°C , unless otherwise noted(1)
Input voltage
MIN
MAX
VIN
–0.3
32
EN
–0.3
6
FB
–0.3
6
SW, DC
–0.3
32
–3
33
BST
–0.3
SW + 6
BST–SW
–0.3
6
SS/PG
–0.3
6
RT
–0.3
6
Operating junction temperature(2)
–40
150
Storage temperature
–65
150
SW, transient < 10 ns
Output voltage
TJ
Tstg
(1)
(2)
UNIT
V
°C
Operation outside the Absolute Maximum Ratings may cause permanent device damage. Absolute Maximum Ratings do not imply
functional operation of the device at these or any other conditions beyond those listed under Recommended Operating Conditions.
If used outside the Recommended Operating Conditions but within the Absolute Maximum Ratings, the device may not be fully
functional, and this may affect device reliability, functionality, performance, and shorten the device lifetime.
Operating at junction temperatures greater than 150°C, although possible, degrades the lifetime of the device.
8.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC
JS-001, all pins(1)
±2000
Charged device model (CDM), per ANSI/ESDA/JEDEC
JS-002, all pins(2)
±500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
8.3 Recommended Operating Conditions
Over the recommended operating junction temperature range of –40°C to +150°C, unless otherwise noted(1)
MIN
Input voltage
NOM
MAX
VIN
3.8
30
EN
–0.1
5.5
FB
–0.1
5.5
PG
–0.1
5.5
VOUT
0.8
22
SW, DC
–0.1
30
Output voltage SW, transient < 10 ns
–3
32
BST
–0.1
SW + 5.5
BST-SW
Ouput current IOUT
–0.1
5.5
TPS62933, TPS62933x
0
3
TPS62932
0
2
–40
150
Temperature Operating junction temperature, TJ
(1)
UNIT
V
A
°C
The Recommended Operating Conditions indicate conditions for which the device is intended to be functional, but do not guarantee
specific performance limits. For compliant specifications, see the Electrical Characteristics.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
5
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.4 Thermal Information
TPS6293x
THERMAL
METRIC(1)
UNIT
DRL (SOT583), 8 PINS
JEDEC(2)
EVM(3)
RθJA
Junction-to-ambient thermal resistance
112.2
N/A
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
29.1
N/A
°C/W
RθJB
Junction-to-board thermal resistance
19.3
N/A
°C/W
ΨJT
Junction-to-top characterization parameter
1.6
N/A
°C/W
ΨJB
Junction-to-board characterization parameter
19.2
N/A
°C/W
RθJA_EVM
Junction-to-ambient thermal resistance on official
EVM board
N/A
60.2
°C/W
(1)
(2)
(3)
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
The value of RθJA given in this table is only valid for comparison with other packages and can not be used for design purposes. These
values were simulated on a standard JEDEC board. They do not represent the performance obtained in an actual application.
The real RθJA is tested on TI EVM (2 layer, 2-ounce copper thickness).
8.5 Electrical Characteristics
The electrical ratings specified in this section apply to all specifications in this document, unless otherwise noted. These
specifications are interpreted as conditions that do not degrade the device parametric or functional specifications for the life
of the product containing it. TJ = –40°C to +150°C, VIN = 3.8 V to 30 V, unless otherwise noted.
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
POWER SUPPLY (VIN PIN)
VIN
Operation input voltage
IQ
Nonswitching quiescent current
ISHDN
Shutdown supply current
VIN_UVLO
Input undervoltage lockout
thresholds
3.8
30
EN = 5 V, VFB = 0.85 V, TPS62932,
TPS62933, and TPS62933P
12
EN = 5 V, VFB = 1 V, TPS62933F
125
EN = 5 V, VFB = 1 V, TPS62933O
45
VEN = 0 V
2
V
µA
µA
Rising threshold
3.4
3.6
3.8
V
Falling threshold
3.1
3.3
3.5
V
Hysteresis
300
mV
ENABLE (EN PIN)
VEN_RISE
Enable threshold
Rising enable threshold
VEN_FALL
Disable threshold
Falling disable threshold
Ip
EN pullup current
Ih
EN pullup hysteresis current
1.21
1.1
1.28
V
1.17
V
VEN = 1.0 V
0.7
µA
VEN = 1.5 V
1.4
µA
VOLTAGE REFERENCE (FB PIN)
VFB
FB voltage
IFB
Input leakage current
TJ = 25°C
792
800
808
mV
TJ = 0°C to 85°C
788
800
812
mV
TJ = –40°C to 150°C
784
800
816
mV
0.15
μA
VFB = 0.8 V
INTEGRATED POWER MOSFETS
RDSON_HS
High-side MOSFET on-resistance
TJ = 25°C, VBST – SW = 5 V
76
mΩ
RDSON_LS
Low-side MOSFET on-resistance
TJ = 25°C
32
mΩ
CURRENT LIMIT
IHS_LIMIT
6
High-side MOSFET current limit
Submit Document Feedback
TPS62933 and TPS62933x
4.2
5
5.8
TPS62932
2.8
3.4
4
A
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.5 Electrical Characteristics (continued)
The electrical ratings specified in this section apply to all specifications in this document, unless otherwise noted. These
specifications are interpreted as conditions that do not degrade the device parametric or functional specifications for the life
of the product containing it. TJ = –40°C to +150°C, VIN = 3.8 V to 30 V, unless otherwise noted.
PARAMETER
ILS_LIMIT
Low-side MOSFET current limit
ILS_NOC
Reverse current limit
IPEAK_MIN
Minimum peak inductor current
TEST CONDITIONS
TPS62933 and TPS62933x
TPS62932
TPS62933F
MIN
TYP
MAX
2.9
3.8
4.5
2
2.5
3
1.2
2.4
3.6
TPS62933, TPS62933P, and TPS62933O
0.75
TPS62932
0.53
UNIT
A
A
A
SOFT START (SS PIN)
ISS
Soft-start charge current
TPS62932, TPS62933, and TPS62933F
TSS
Fixed internal soft-start time
TPS62933P and TPS62933O
4.5
5.5
6.5
2
μA
ms
POWER GOOD (PG PIN)
VPGTH
PG threshold, VFB percentage
VFB falling, PG high to low
85%
VFB rising, PG low to high
90%
VFB falling, PG low to high
110%
VFB rising, PG high to low
115%
TPG_R
PG delay time
PG from low to high
70
μs
TPG_F
PG delay time
PG from high to low
18
μs
VIN_PG_VALID
Minimum VIN for valid PG output
Measured when PG < 0.5 V with 100-kΩ
pullup to external 5 V
2
VPG_OL
PG output low-level voltage
IPG = 0.5 mA
IPG_LK
PG leakage current when open
drain is high
VPG = 5.5 V
–1
RT = floating
450
500
550
RT = GND
1000
1200
1350
2.5
V
0.3
V
1
μA
OSCILLATOR FREQUENCY (RT PIN)
fSW
Switching center frequency
fSW_min
Minimum switching frequency
tON_MIN
(1)
kHz
RT = 71.5 kΩ
310
RT = 9.09 kΩ
2100
TPS62933O
30
kHz
Minimum ON pulse width
70
ns
tOFF_MIN (1)
Minimum OFF pulse width
140
ns
(1)
Maximum ON pulse width
7
μs
tON_MAX
OUTPUT OVERVOLTAGE AND UNDERVOLTAGE PROTECTION
OVP detect (L→H)
112%
115%
118%
VOVP
Output OVP threshold
VUVP
Output UVP threshold
thiccup_ON
UV hiccup ON time before entering
hiccup mode after soft start ends
256
μs
thiccup_OFF
UV hiccup OFF time before restart
10.5 ×
tSS
s
Shutdown temperature
165
°C
Hysteresis
30
°C
fSW /
128
kHz
Hysteresis
5%
UVP detect (H→L)
65%
THERMAL SHUTDOWN
TSHDN (1)
Thermal shutdown threshold
THYS (1)
SPREAD SPECTRUM FREQUENCY
fm
Modulation frequency
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
7
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.5 Electrical Characteristics (continued)
The electrical ratings specified in this section apply to all specifications in this document, unless otherwise noted. These
specifications are interpreted as conditions that do not degrade the device parametric or functional specifications for the life
of the product containing it. TJ = –40°C to +150°C, VIN = 3.8 V to 30 V, unless otherwise noted.
PARAMETER
fspread
(1)
8
Internal spread oscillator frequency
TEST CONDITIONS
MIN
TYP
MAX
UNIT
±6%
Not production tested, specified by design.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
5
18
17
4
16
ISHDN (µA)
IQ (µA)
15
14
13
3
2
12
1
11
10
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
0
-40
160
Figure 8-1. TPS62933 Quiescent Current vs Junction
Temperature
20
40
60
80 100
Junction Temperature (°C)
120
140
160
50
45
RDSON_LS (mohm)
120
RDSON_HS (mohm)
0
Figure 8-2. Shutdown Current vs Junction Temperature
140
100
80
60
40
-40
-20
40
35
30
25
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
20
-40
160
Figure 8-3. High-Side RDSON vs Junction Temperature
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-4. Low-Side RDSON vs Junction Temperature
820
1.35
815
1.3
805
VEN_RISE (V)
VFB (mV)
810
800
795
1.25
1.2
790
1.15
785
780
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
Figure 8-5. Feedback Voltage vs Junction Temperature
Copyright © 2022 Texas Instruments Incorporated
160
1.1
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-6. Enable Threshold vs Junction Temperature
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
9
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
1.3
3.65
1.25
3.6
VIN UVLO RISE (V)
VEN_FALL (V)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
1.2
1.15
3.55
3.5
1.1
1.05
-40
3.45
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
Figure 8-7. Disable Threshold vs Junction Temperature
3.5
600
3.45
575
3.4
550
3.35
3.3
3.25
3.2
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
525
500
475
450
3.15
3.1
-40
-20
Figure 8-8. VIN UVLO Rising Threshold vs Junction Temperature
fSW at RT floating (kHz)
VIN UVLO FALL (V)
3.4
-40
160
425
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
400
-40
160
Figure 8-9. VIN UVLO Falling Threshold vs Junction
Temperature
0
40
80
Junction Temperature (°C)
120
160
Figure 8-10. Switching Frequency (RT Floating) vs Junction
Temperature
4
5.2
5.15
3.9
3.8
5.05
ILS_LIMIT (A)
IHS_LIMIT (A)
5.1
5
4.95
3.7
3.6
4.9
3.5
4.85
4.8
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-11. TPS62933 High-Side Current Limit vs Junction
Temperature
10
Submit Document Feedback
3.4
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-12. TPS62933 Low-Side Current Limit vs Junction
Temperature
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
3.6
2.8
3.5
2.7
3.4
2.6
ILS_LIMIT (A)
IHS_LIMIT (A)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
3.3
2.5
3.2
2.4
3.1
2.3
3
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
2.2
-40
160
Figure 8-13. TPS62932 High-Side Current Limit vs Junction
Temperature
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-14. TPS62932 Low-Side Current Limit vs Junction
Temperature
117
66
116
VUVP (%)
VOVP (%)
65
115
64
114
113
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
63
-40
160
Figure 8-15. OVP Threshold vs Junction Temperature
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-16. UVP Threshold vs Junction Temperature
100
5.8
95
5.7
90
Efficiency (%)
ISS (µA)
85
5.6
5.5
80
75
70
65
5.4
Vin=6V
Vin=12V
Vin=19V
Vin=24V
60
55
5.3
-40
-20
0
20
40
60
80 100
Junction Temperature (°C)
120
140
160
Figure 8-17. Soft-Start Charge Current vs Junction Temperature
Copyright © 2022 Texas Instruments Incorporated
50
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-18. TPS62933 Efficiency, VOUT = 3.3 V,
fSW = 500 kHz, L = 4.7 µH
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
11
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
100
100
95
95
90
90
85
85
Efficiency (%)
Efficiency (%)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
80
75
70
65
80
75
70
65
Vin=6V
Vin=12V
Vin=19V
Vin=24V
60
55
50
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
60
50
0.001
2 3
100
100
90
90
80
80
70
70
60
50
40
30
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
60
50
40
30
Vin=6V
Vin=12V
Vin=19V
Vin=24V
20
10
0
0.0001
0.001
0.01
0.05
I-Load (A)
0.2
0.5 1
10
0
0.001
2
0.8
80
0.6
70
60
50
40
30
Vin=6V
Vin=12V
Vin=19V
Vin=24V
0
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
Figure 8-23. TPS62933O Efficiency, VOUT = 5 V,
fSW = 500 kHz, L = 6.8 µH
Submit Document Feedback
2 3
Load Regulation (%)
1
90
10
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-22. TPS62933F Efficiency, VOUT = 5 V,
fSW = 500 kHz, L = 6.8 µH
100
20
Vin=6V
Vin=12V
Vin=19V
Vin=24V
20
Figure 8-21. TPS62932 Efficiency, VOUT = 5 V,
fSW = 500 kHz, L = 10 µH
Efficiency (%)
0.005
Figure 8-20. TPS62933 Efficiency, VOUT = 12 V,
fSW = 500 kHz, L = 12 µH
Efficiency (%)
Efficiency (%)
Figure 8-19. TPS62933 Efficiency, VOUT = 3.3 V,
fSW = 1200 kHz, L = 2.2 µH
12
Vin=19V
Vin=24V
55
0.4
0.2
0
-0.2
-0.4
Vin=6V
Vin=12V
Vin=19V
Vin=24V
-0.6
-0.8
-1
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-24. TPS62933 Load Regulation,
VOUT = 3.3 V, fSW = 500 kHz
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
1
1
0.8
0.8
0.6
0.6
Load Regulation (%)
Load Regulation (%)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
0.4
0.2
0
-0.2
-0.4
Vin=6V
Vin=12V
Vin=19V
Vin=24V
-0.6
-0.8
-1
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
0.4
0.2
0
-0.2
-0.4
-0.6
-1
0.001
2 3
1
1
0.8
0.8
0.6
0.6
0.4
0.2
0
-0.2
-0.4
Vin=6V
Vin=12V
Vin=19V
Vin=24V
-0.8
-1
0.0001
0.001
0.01
0.05
I-Load (A)
0.2
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
0.5 1
0.4
0.2
0
-0.2
-0.4
Vin=6V
Vin=12V
Vin=19V
Vin=24V
-0.6
-0.8
-1
0.001
2
Figure 8-27. TPS62932 Load Regulation,
VOUT = 5 V, fSW = 500 kHz
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-28. TPS62933F Load Regulation,
VOUT = 5 V, fSW = 500 kHz
1
1
Vin=6V
Vin=12V
Vin=19V
Vin=24V
0.8
0.4
0.2
0
-0.2
-0.4
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.6
-0.8
-0.8
-1
0.0001
Iout=0A
Iout=0.03A
Iout=0.3A
Iout=1.5A
Iout=3A
0.8
Line Regulation (%)
0.6
Load Regulation (%)
0.005
Figure 8-26. TPS62933 Load Regulation,
VOUT = 12 V, fSW = 500 kHz
Load Regulation (%)
Load Regulation (%)
Figure 8-25. TPS62933 Load Regulation,
VOUT = 3.3 V, fSW = 1200 kHz
-0.6
Vin=19V
Vin=24V
-0.8
-1
0.001
0.01
0.05
I-Load (A)
0.2
0.5 1
Figure 8-29. TPS62933O Load Regulation,
VOUT = 5 V, fSW = 500 kHz
Copyright © 2022 Texas Instruments Incorporated
2 3
5
7.5
10
12.5
15
17.5 20
Vin (V)
22.5
25
27.5
30
Figure 8-30. TPS62933 Line Regulation,
VOUT = 3.3 V, fSW = 500 kHz
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
13
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
1
1
Line Regulation (%)
0.6
0.4
0.2
0
-0.2
-0.4
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.6
-0.8
-0.8
-1
12
Iout=0.02A
Iout=2A
-1
14
16
18
20
22
Vin (V)
24
26
28
30
Figure 8-31. TPS62933 Line Regulation,
VOUT = 12 V, fSW = 500 kHz
5
1
1
0.8
0.8
0.6
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
12.5
15
17.5 20
Vin (V)
22.5
25
27.5
30
0.4
0.2
0
-0.2
-0.4
Iout=0A
Iout=3A
-0.8
-1
-1
6
8
10
12
14
16
18 20
Vin (V)
22
24
26
28
30
6
Figure 8-33. TPS62933F Line Regulation,
VOUT = 5 V, fSW = 500 kHz
400
1200
300
200
12
14
16
18 20
Vin (V)
22
24
26
28
30
1000
Vin=6V
Vin=12V
Vin=19V
Vin=24V
Vin=30V
800
600
400
100
0
0.001
10
1400
Vin=6V
Vin=12V
Vin=19V
Vin=24V
Vin=30V
Frequency (kHz)
500
8
Figure 8-34. TPS62933O Line Regulation,
VOUT = 5 V, fSW = 500 kHz
600
Frequency (kHz)
10
-0.6
Iout=0A
Iout=3A
-0.8
200
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-35. TPS62933 Switching Frequency vs Load Current,
VOUT = 3.3 V, fSW = 500 kHz
(RT Floating)
14
7.5
Figure 8-32. TPS62932 Line Regulation, VOUT = 5 V, fSW = 500
kHz
Line Regulation (%)
Line Regulation (%)
0.8
Line Regulation (%)
Iout=0A
Iout=0.03A
Iout=0.3A
Iout=1.5A
Iout=3A
0.8
Submit Document Feedback
0
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
2 3
Figure 8-36. TPS62933 Switching Frequency vs Load Current,
VOUT = 3.3 V, fSW = 1200 kHz
(RT to GND)
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
8.6 Typical Characteristics (continued)
TJ = –40°C to 150°C, VIN = 12 V, unless otherwise noted.
1400
Frequency (kHz)
1200
1000
800
600
400
200
fSW=500kHz
fSW=1200kHz
0
4
6
8
10 12 14 16 18 20 22 24 26 28 30
Vin (V)
Figure 8-37. TPS62933 Switching Frequency vs VIN, VOUT = 3.3 V, IOUT = 3 A
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
15
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
9 Detailed Description
9.1 Overview
The TPS62932 and TPS62933x are a 30-V, 2-A and 3-A, synchronous buck (step-down) converters with two
integrated n-channel MOSFETs. They employ fixed-frequency peak current control mode for fast transient
response and good line and load regulation. With the optimized internal loop compensation, the devices
eliminate the external compensation components over a wide range of output voltage and switching frequency.
The integrated 76-mΩ and 32-mΩ MOSFETs allow for high-efficiency power supply designs with continuous
output currents up to 2 A (TPS62932) or 3 A (TPS62933 and TPS62933x). The feedback reference voltage is
designed at 0.8 V. The output voltage can be stepped down from 0.8 V to 22 V. The devices are ideally suited for
systems powered from 5-V, 12-V, 19-V, and 24-V power-bus rails.
The TPS6293x has been designed for safe monotonic start-up into prebiased loads. The default start-up is at
VIN equal to 3.8 V. After the device is enabled, the output rises smoothly from 0 V to its regulated voltage. The
TPS6293x has low operating current when not switching under no load, especially the TPS62932, TPS62933,
and TPS62933P whose operating current is 12 μA (typical). When the TPS6293x is disabled, the supply current
is approximately 2 µA (typical). These features are extremely beneficial for long battery life time in low-power
operation.
Pulse frequency modulation (PFM) mode allows the TPS62932, TPS62933, and TPS62933P to maximize the
light-load efficiency. Continuous current mode allows the TPS62933F to have low output ripple in all load
conditions. The TPS62933O operates in out of audio mode which can avoid the audible noise.
The EN pin has an internal pullup current that can be used to adjust the input voltage undervoltage lockout
(UVLO) with two external resistors. In addition, the EN pin can be floating for the device to operate with the
internal pullup current.
The switching frequency can be set by the configuration of the RT pin in the range of 200 kHz to 2.2 MHz, which
allows for efficiency and solution size optimization when selecting the output filter components. The TPS62932,
TPS62933, TPS62933P, and TPS62933O also have a frequency spread spectrum feature, which helps with
lowering down EMI noise.
A small value capacitor or resistor divider is connected to the SS pin of the TPS62932, TPS62933, and
TPS62933F for soft-start time setting or voltage tracking. The TPS62933P and TPS62933O indicate power good
through PG pin.
The devices have the on-time extension function with a maximum on time of 7 μs (typical). During low dropout
operation, the high-side MOSFET can turn on up to 7 μs, then the high-side MOSFET turns off and the low-side
MOSFET turns on with a minimum off time of 140 ns (typical). The devices support the maximum 98% duty
cycle.
The devices reduce the external component count by integrating the bootstrap circuit. The bias voltage for the
integrated high-side MOSFET is supplied by a capacitor between the BST and SW pins. A UVLO circuit monitors
the bootstrap capacitor voltage, VBST-SW. When it falls below a preset threshold of 2.5 V (typical), the SW pin is
pulled low to recharge the bootstrap capacitor.
Cycle-by-cycle current limiting on the high-side MOSFET protects the device in overload situations and is
enhanced by a low-side sourcing current limit, which prevents current runaway. The TPS6293x provides output
undervoltage protection (UVP) when the regulated output voltage is lower than 65% of the nominal voltage due
to overcurrent being triggered, approximately 256-μs (typical) deglitch time later, both the high-side and low-side
MOSFET turn off, the device steps into hiccup mode.
The devices minimize excessive output overvoltage transient by taking advantage of the overvoltage
comparator. When the regulated output voltage is greater than 115% of the nominal voltage, the overvoltage
comparator is activated, and the high-side MOSFET is turned off and masked from turning on until the output
voltage is lower than 110%.
Thermal shutdown disables the devices when the die temperature, TJ, exceeds 165°C and enables the devices
again after TJ decreases below the hysteresis amount of 30°C.
16
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
9.2 Functional Block Diagram
EN
VCC
Enable
ISS
LDO
VIN
Precision
Enable
PG
BST
HSI Sense
SS
SS/PG
REF
EA
FB
–
+
RC
TSD
UVLO
CC
PWM CONTROL LOGIC
PFM
Detector
SW
Slope
Comp
Ton_min/Toff_min
Detector
Freq
Foldback
HICCUP
Detector
Zero
Cross
LSI Sense
Oscillator
FB
GND
RT
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
17
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
9.3 Feature Description
9.3.1 Fixed Frequency Peak Current Mode
The following operation description of the TPS6293x refers to the functional block diagram and to the waveforms
in Figure 9-1. The TPS6293x is a synchronous buck converter with integrated high-side (HS) and low-side (LS)
MOSFETs (synchronous rectifier). The TPS6293x supplies a regulated output voltage by turning on the HS
and LS NMOS switches with controlled duty cycle. During high-side switch on time, the SW pin voltage swings
up to approximately VIN, and the inductor current, iL, increases with linear slope (VIN – VOUT) / L. When the
HS switch is turned off by the control logic, the LS switch is turned on after an anti-shoot–through dead time.
Inductor current discharges through the low-side switch with a slope of –VOUT / L. The control parameter of a
buck converter is defined as Duty Cycle D = tON / tSW, where tON is the high-side switch on time and tSW is
the switching period. The converter control loop maintains a constant output voltage by adjusting the duty cycle
D. In an ideal buck converter where losses are ignored, D is proportional to the output voltage and inversely
proportional to the input voltage: D = VOUT / VIN.
VSW
SW Voltage
VIN
D = tON/ TSW
tOFF
tON
t
0
TSW
iL
Inductor Current
ILPK
IOUT
¨LL
0
t
Figure 9-1. SW Node and Inductor Current Waveforms in Continuous Conduction Mode (CCM)
The TPS6293x employs the fixed-frequency peak current mode control. A voltage feedback loop is used to
get accurate DC voltage regulation by adjusting the peak current command based on voltage offset. The peak
inductor current is sensed from the HS switch and compared to the peak current threshold to control the on
time of the HS switch. The voltage feedback loop is internally compensated, which allows for fewer external
components, makes it easy to design, and provides stable operation with almost any combination of output
capacitors.
9.3.2 Pulse Frequency Modulation
The TPS62932, TPS62933, and TPS62933P are designed to operate in pulse frequency modulation (PFM)
mode at light load currents to boost light load efficiency.
When the load current is lower than half of the peak-to-peak inductor current in CCM, the devices operate in
discontinuous conduction mode (DCM). In DCM operation, the low-side switch is turned off when the inductor
current drops to ILS_ZC to improve efficiency. Both switching losses and conduction losses are reduced in DCM,
compared to forced CCM operation at light load.
At even lighter current load, pulse frequency modulation (PFM) mode is activated to maintain high-efficiency
operation. When either the minimum high-side switch on time, tON_MIN, or the minimum peak inductor current
IPEAK_MIN is reached, the switching frequency decreases to maintain regulation. In PFM mode, the switching
frequency is decreased by the control loop to maintain output voltage regulation when load current reduces.
18
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
Switching loss is further reduced in PFM operation due to less frequent switching actions. Since the integrated
current comparator catches the peak inductor current only, the average load current entering PFM mode varies
with the applications and external output LC filters.
In PFM mode, the high-side MOSFET is turned on in a burst of one or more pulses to provide energy to
the load. The duration of the burst depends on how long it takes the feedback voltage catches VREF. The
periodicity of these bursts is adjusted to regulate the output, while zero current crossing detection turns off the
low-side MOSFET to maximize efficiency. This mode provides high light-load efficiency by reducing the amount
of input supply current required to regulate the output voltage at small loads. This trades off very good light-load
efficiency for larger output voltage ripple and variable switching frequency.
9.3.3 Voltage Reference
The internal reference voltage, VREF, is designed at 0.8 V (typical). The negative feedback system of converter
produces a precise ±2% feedback voltage, VFB, over full temperature by scaling the output of a temperaturestable internal band-gap circuit.
9.3.4 Output Voltage Setting
A precision 0.8-V reference voltage, VREF, is used to maintain a tightly regulated output voltage over the entire
operating temperature range. The output voltage is set by a resistor divider from the output voltage to the FB
pin. TI recommends using 1% tolerance resistors with a low temperature coefficient for the FB divider. Select the
bottom-side resistor, RFBB, for the desired divider current and use Equation 1 to calculate the top-side resistor,
RFBT. Lower RFBB increases the divider current and reduces efficiency at very light load. Larger RFBB makes the
FB voltage more susceptible to noise, so larger RFBB values require a more carefully designed feedback path on
the PCB. Setting RFBB = 10 kΩ and RFBT in the range of 10 kΩ to 300 kΩ is recommended for most applications.
The tolerance and temperature variation of the resistor dividers affect the output voltage regulation.
VOUT
RFBT
FB
RFBB
Figure 9-2. Output Voltage Setting
R FBT =
V OUT - V REF
V REF
× R FBB
(1)
where
• VREF is the 0.8 V (the internal reference voltage).
• RFBB is 10 kΩ (recommended).
9.3.5 Switching Frequency Selection
The switching frequency is set by the condition of the RT input. The condition of this input is detected when the
device is first enabled. Once the converter is running, the switching frequency selection is fixed and cannot be
changed until the next power-on cycle or EN toggle. Table 9-1 shows the selection programming. In adjustable
frequency mode, the switching frequency can be set between 200 kHz and 2200 kHz by proper selection of RT
resistor. See Equation 2.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
19
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
(2)
where
• RT is the value of RT timing resistor in kΩ.
• fSW is the switching frequency in kHz.
Table 9-1. RT Pin Resistor Settings
RT Pin
Resistance
Switching Frequency
Floating
> 280 kΩ
500 kHz
GND
< 1 kΩ
1200 kHz
RT to GND
8.9 kΩ to 111 kΩ
200 kHz to 2200 kHz
Figure 9-3 indicates the required resistor value for RT to set a desired switching frequency.
2200
2000
1800
1600
fSW (kHz)
1400
1200
1000
800
600
400
200
0
8
18
28
38
48
58 68 78
RT (kohm)
88
98
108 118
Figure 9-3. Switching Frequency vs RT
There are four cases where the switching frequency does not conform to the condition set by the RT pin:
•
•
•
•
Light load operation (PFM mode)
Low dropout operation
Minimum on-time operation
Current limit tripped
Under all of these cases, the switching frequency folds back, meaning it is less than that programmed by the RT
pin. During these conditions, the output voltage remains in regulation, except for current limit operation.
9.3.6 Enable and Adjusting Undervoltage Lockout
The EN pin provides electrical ON and OFF control of the device. When the EN pin voltage exceeds the enable
threshold voltage, VEN_RISE, the TPS6293x begins operation. If the EN pin voltage is pulled below the disable
threshold voltage, VEN_FALL, the converter stops switching and enters shutdown mode.
The EN pin has an internal pullup current source, which allows the user to float the EN pin to enable the device.
If an application requires control of the EN pin, use an open-drain or open-collector or GPIO output logic to
interface with the pin.
The TPS6293x implements internal undervoltage-lockout (UVLO) circuitry on the VIN pin. The device is disabled
when the VIN pin voltage falls below the internal VIN_UVLO threshold. The internal VIN_UVLO threshold has a
hysteresis of typical 300 mV. If an application requires a higher UVLO threshold on the VIN pin, the EN pin can
20
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
be configured as shown in Figure 9-4. When using the external UVLO function, setting the hysteresis at a value
greater than 500 mV is recommended.
The EN pin has a small pullup current, Ip, which sets the default state of the EN pin to enable when no external
components are connected. The pullup hysteresis current, Ih, is used to control the hysteresis voltage for the
UVLO function when the EN pin voltage crosses the enable threshold. Use Equation 3 and Equation 4 to
calculate the values of R1 and R2 for a specified UVLO threshold. Once R1 and R2 are settled down, VEN can
be calculated by Equation 5, which must be lower than 5.5 V with the maximum VIN.
VIN
R1
Device
Ip
Ih
EN
R2
Figure 9-4. Adjustable VIN Undervoltage Lockout
(3)
R2
VEN
R1 u VEN_FALL
VSTOP
VEN_FALL
R1 u Ip
R2 u VIN +R1 u R2 u Ip
Ih
(4)
Ih
R1+R2
(5)
where
•
•
•
•
•
•
Ip is 0.7 µA.
Ih is 1.4 µA.
VEN_FALL is 1.17 V.
VEN_RISE is 1.21 V.
VSTART is the input voltage enabling the device.
VSTOP is the input voltage disabling the device.
9.3.7 External Soft Start and Prebiased Soft Start
The SS pin of TPS62932, TPS62933, and TPS62933F are used to minimize inrush current when driving
capacitive load. The devices use the lower voltage of the internal voltage reference, VREF, or the SS pin voltage
as the reference voltage and regulates the output accordingly. A capacitor on the SS pin to ground implements
a soft-start time. The device has an internal pullup current source that charges the external soft-start capacitor.
Use Equation 6 to calculate the soft-start time (tSS, 0% to 100%) and soft-start capacitor (CSS).
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
21
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
t SS
CSS u VREF
ISS
(6)
where
•
•
VREF is 0.8 V (the internal reference voltage).
ISS is 5.5 µA (typical), the internal pullup current.
If the output capacitor is prebiased at start-up, the devices initiate switching and start ramping up only after the
internal reference voltage becomes greater than the feedback voltage, VFB. This scheme makes sure that the
converters ramp up smoothly into regulation point.
A resistor divider connected to the SS pin can implement voltage tracking of the other power rail.
9.3.8 Power Good
The TPS62933P and TPS62933O have a built-in power good (PG) function to indicate whether the output
voltage has reached its appropriate level or not. The PG signal can be used for start-up sequencing of
multiple rails. The PG pin is an open-drain output that requires a pullup resistor to any voltage below 5.5 V.
TI recommends a pullup resistor of 10 kΩ – 100 kΩ. The device can sink approximately 4 mA of current and
maintain its specified logic low level. After the FB pin voltage is between 90% and 110% of the internal reference
voltage (VREF) and after a deglitch time of 70 μs, the PG turns to high impedance status. The PG pin is pulled
low after a deglitch time of 18 μs when FB pin voltage is lower than 85% of the internal reference voltage or
greater than 115% of the internal reference voltage, or in events of thermal shutdown, EN shutdown, or UVLO
conditions. VIN must remain present for the PG pin to stay low.
Table 9-2. PG Status
PG Logic Status
Device State
High Impedance
VFB does not trigger VPGTH
Enable (EN = High)
Low
√
VFB triggers VPGTH
√
Shutdown (EN = Low)
√
UVLO
2.5 V < VIN < VUVLO
√
Thermal shutdown
TJ > TSD
√
Power supply removal
VIN < 2.5 V
√
9.3.9 Minimum On Time, Minimum Off Time, and Frequency Foldback
Minimum on time (tON_MIN) is the smallest duration of time that the high-side switch can be on. tON_MIN is typically
70 ns in the TPS6293x. Minimum off time (tOFF_MIN) is the smallest duration that the high-side switch can be off.
tOFF_MIN is typically 140 ns. In CCM operation, tON_MIN, and tOFF_MIN, limit the voltage conversion range without
switching frequency foldback.
The minimum duty cycle without frequency foldback allowed is:
DMIN = t ON _MIN × fSW
(7)
The maximum duty cycle without frequency foldback allowed is:
DMAX = 1 F t OFF _MIN × fSW
(8)
Given a required output voltage, the maximum VIN without frequency foldback is:
VIN_MAX =
22
fSW
VOUT
× t ON _MIN
Submit Document Feedback
(9)
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
The minimum VIN without frequency foldback is:
VIN_MIN =
VOUT
1 F fSW × t OFF _MIN
(10)
In TPS6293x, a frequency foldback scheme is employed once tON_MIN or tOFF_MIN is triggered, which can extend
the maximum duty cycle or lower the minimum duty cycle.
The on time decreases while VIN voltage increases. Once the on time decreases to tON_MIN, the switching
frequency starts to decrease while VIN continues to go up, which lowers the duty cycle further to keep VOUT in
regulation according to Equation 7.
The frequency foldback scheme also works once larger duty cycle is needed under low VIN condition. The
frequency decreases once the device hits its tOFF_MIN, which extends the maximum duty cycle according to
Equation 8. A wide range of frequency foldback allows the TPS6293x output voltage to stay in regulation with a
much lower supply voltage VIN, which allows a lower effective dropout.
With frequency foldback, VIN_MAX is raised, and VIN_MIN is lowered by decreased fSW.
1300
1500
1200
1250
Frequency (kHz)
fSW (kHz)
1100
1000
900
800
1000
750
500
700
600
500
12
Iout=3A
Iout=1.5A
250
Iout=1.5A
Iout=3A
0
14
16
18
20
22
Vin (V)
24
26
28
Figure 9-5. Frequency Foldback at tON_MIN,
VOUT = 1.8 V, fSW = 1200 kHz
30
4
5
6
7
8
Vin (V)
9
10
11
12
Figure 9-6. Frequency Foldback at tOFF_MIN,
VOUT = 5 V, fSW = 1200 kHz
9.3.10 Frequency Spread Spectrum
To reduce EMI, the TPS62932, TPS62933, TPS62933P, and TPS62933O introduce frequency spread spectrum.
The jittering span is typically Δfc = ±6% of the switching frequency with the modulation frequency of fm =
fSW / 128. The purpose of spread spectrum is to eliminate peak emissions at specific frequencies by spreading
emissions across a wider range of frequencies than a part with fixed frequency operation. Figure 9-7 shows the
frequency spread spectrum modulation. Figure 9-8 shows the energy is spread out at the center frequency, fc.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
23
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
fmax = fc * (1 + 6%)
Center Frequency fc
fmin = fc * (1 - 6%)
Modulation Frequency fm = fsw/128
Figure 9-7. Frequency Spread Spectrum Diagram
Energy
fm
fc
Frequency
Figure 9-8. Energy vs Frequency
9.3.11 Overvoltage Protection
The device incorporates an output overvoltage protection (OVP) circuit to minimize output voltage overshoot.
The OVP feature minimizes the overshoot by comparing the FB pin voltage to the OVP threshold. If the FB pin
voltage is greater than the OVP threshold of 115%, the high-side MOSFET is turned off, which prevents current
from flowing to the output and minimizes output overshoot. When the FB pin voltage drops lower than the OVP
threshold minus hysteresis, the high-side MOSFET is allowed to turn on at the next clock cycle. This function is
non-latch operation.
9.3.12 Overcurrent and Undervoltage Protection
The TPS6293x incorporates both peak and valley inductor current limits to provide protection to the device from
overloads and short circuits and limit the maximum output current. Valley current limit prevents inductor current
run-away during short circuits on the output, while both peak and valley limits work together to limit the maximum
output current of the converter. Hiccup mode is also incorporated for sustained short circuits.
The high-side switch current is sensed when it is turned on after a set blanking time (tON_MIN), the peak current
of high-side switch is limited by the peak current threshold, IHS_LIMIT. The current going through low-side switch
is also sensed and monitored. When the low-side switch turns on, the inductor current begins to ramp down.
As the device is overloaded, a point is reached where the valley of the inductor current cannot reach below
ILS_LIMIT before the next clock cycle, then the low-side switch is kept on until the inductor current ramps below
24
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
the valley current threshold, ILS_LIMIT, then the low-side switch is turned off and the high-side switch is turned
on after a dead time. When this occurs, the valley current limit control skips that cycle, causing the switching
frequency to drop. Further overload causes the switching frequency to continue to drop, but the output voltage
remains in regulation. As the overload is increased, both the inductor current ripple and peak current increase
until the high-side current limit, IHS_LIMIT, is reached. When this limit is tripped, the switch duty cycle is reduced
and the output voltage falls out of regulation. This represents the maximum output current from the converter
and is given approximately by Equation 11. The output voltage and switching frequency continue to drop as the
device moves deeper into overload while the output current remains at approximately IOMAX. There is another
situation, if the inductor ripple current is large, the high-side current limit can be tripped before the low-side limit
is reached. In this case, Equation 12 gives the approximate maximum output current.
IOMAX |
IHS _ LIMIT +ILS _ LIMIT
IOMAX | IHS _ LIMIT
(11)
2
(VIN -VOUT ) VOUT
u
2 u L u fSW
VIN
(12)
Furthermore, if a severe overload or short circuit causes the FB voltage to fall below the VUVP threshold, 65%
of the VREF, and triggering current limit, and the condition occurs for more than the hiccup on time (typical
256 μs), the converter enters hiccup mode. In this mode, the device stops switching for hiccup off time, 10.5
× tSS, and then goes to a normal restart with soft-start time. If the overload or short-circuit condition remains,
the device runs in current limit and then shuts down again. This cycle repeats as long as the overload or
short-circuit condition persists. This mode of operation reduces the temperature rise of the device during a
sustained overload or short circuit condition on the output. Once the output short is removed, the output voltage
recovers normally to the regulated value.
For FCCM version, the inductor current is allowed to go negative. When this current exceed the LS negative
current limit ILS_NEG, the LS switch is turned off and HS switch is turned on immediately, which is used to protect
the LS switch from excessive negative current.
9.3.13 Thermal Shutdown
The junction temperature (TJ) of the device is monitored by an internal temperature sensor. If TJ exceeds 165°C
(typical), the device goes into thermal shutdown, both the high-side and low-side power FETs are turned off.
When TJ decreases below the hysteresis amount of 30°C (typical), the converter resumes normal operation,
beginning with a soft start.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
25
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
9.4 Device Functional Modes
9.4.1 Modes Overview
The TPS6293x moves between CCM, DCM, PFM, OOA and FCCM mode as the load changes. Depending on
the load current, the TPS6293x is in one of below modes:
•
•
•
•
•
Continuous conduction mode (CCM) with fixed switching frequency when load current is above half of the
peak-to-peak inductor current ripple
Discontinuous conduction mode (DCM) with fixed switching frequency when load current is lower than half of
the peak-to-peak inductor current ripple in CCM operation
Pulse frequency modulation mode (PFM) when switching frequency is decreased at very light load
Out of audio (OOA) mode when switching frequency is decreased but is always above 30 kHz at very light
load
Forced continuous conduction mode (FCCM) with fixed switching frequency even at light load
9.4.2 Heavy Load Operation
The TPS6293x operates in continuous conduction mode (CCM) when the load current is higher than half of
the peak-to-peak inductor current. In CCM operation, the output voltage is regulated by switching at a constant
frequency and modulating the duty cycle to control the power to the load. Regulating the output voltage provides
excellent line and load regulation and minimum output voltage ripple, and the maximum continuous output
current of 2 A or 3 A can be supplied by the TPS6293x.
9.4.3 Light Load Operation
The TPS62932, TPS62933, and TPS62933P are designed to operate in pulse frequency modulation (PFM)
mode at light load currents to boost light load efficiency.
When the load current is lower than half of the peak-to-peak inductor current in CCM, the device operates in
discontinuous conduction mode (DCM), also known as diode emulation mode (DEM). In DCM operation, the LS
switch is turned off when the inductor current drops to ILS_ZC to improve efficiency. Both switching losses and
conduction losses are reduced in DCM, compared to forced CCM operation at light load.
At even lighter current load, pulse frequency modulation (PFM) mode is activated to maintain high efficiency
operation. When either the minimum on time, tON_MIN, or the minimum peak inductor current, IPEAK_MIN (750
mA typical), is reached, the switching frequency decreases to maintain regulation. In PFM mode, switching
frequency is decreased by the control loop to maintain output voltage regulation when load current reduces.
Switching loss is further reduced in PFM operation due to less frequent switching actions. The output current
for mode change depends on the input voltage, inductor value, and the programmed switching frequency. For
applications where the switching frequency must be known for a given condition, the transition between PFM
and CCM must be carefully tested before the design is finalized.
9.4.4 Out of Audio Operation
TPS62933O implements the out of audio (OOA) mode which is a unique control feature that keeps the switching
frequency above audible frequency (20 Hz to 20 kHz) even at no load condition. When operates in OOA mode,
the minimum switching frequency is clamped above 30 kHz which avoids the audible noise in the system. The
loading to enter OOA mode depends on output LC filter.
9.4.5 Forced Continuous Conduction Operation
The TPS62933F is designed to operate in forced continuous conduction mode (FCCM) under light load
conditions. During FCCM, the switching frequency is maintained at a constant level over the entire load range,
which is suitable for applications requiring tight control of the switching frequency and output voltage ripple at
the cost of lower efficiency under light load. For some audio applications, this mode can help avoid switching
frequency drop into audible range that can introduce some noise.
9.4.6 Dropout Operation
The dropout performance of any buck converter is affected by the RDSON of the power MOSFETs, the DC
resistance of the inductor, and the maximum duty cycle that the controller can achieve. As the input voltage level
26
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
approaches the output voltage, the off time of the high-side MOSFET starts to approach the minimum value.
Beyond this point, the switching frequency becomes erratic and the output voltage can fall out of regulation. To
avoid this problem, the TPS6293x automatically reduces the switching frequency (on-time extension function) to
increase the effective duty cycle and maintain in regulation until the switching frequency reach to the lowest limit
of about 140 kHz, the period is equal to tON_MAX + tOFF_MIN (7.14 μS typical). In this condition, the difference
voltage between VIN and VOUT is defined as dropout voltage. The typical overall dropout characteristics can be
found as Figure 9-9.
5.5
Vout (V)
5
4.5
4
3.5
Io=0.5A
Io=3A
3
4
4.5
5
5.5
6
Vin (V)
6.5
7
7.5
8
Figure 9-9. Overall Dropout Characteristic, VOUT = 5 V
9.4.7 Minimum On-Time Operation
Every switching converter has a minimum controllable on time dictated by the inherent delays and blanking
times associated with the control circuits, which imposes a minimum switch duty cycle and, therefore, a minimum
conversion ratio. The constraint is encountered at high input voltages and low output voltages. To help extend
the minimum controllable duty cycle, the TPS6293x automatically reduces the switching frequency when the
minimum on-time limit is reached. This way, the converter can regulate the lowest programmable output voltage
at the maximum input voltage. Use Equation 13 to find an estimate for the approximate input voltage for a given
output voltage before frequency foldback occurs. The values of tON_MIN and fSW can be found in Section 8.5.
VIN ”
VOUT
tON_MIN × fSW
(13)
As the input voltage is increased, the switch on time (duty-cycle) reduces to regulate the output voltage. When
the on time reaches the minimum on time, tON_MIN, the switching frequency drops while the on time remains
fixed.
9.4.8 Shutdown Mode
The EN pin provides electrical ON and OFF control for the device. When VEN is below typical 1.1 V, the
TPS6293x is in shutdown mode. The device also employs VIN UVLO protection. If VIN voltage is below their
respective UVLO level, the converter is turned off too.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
27
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
10 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification,
and TI does not warrant its accuracy or completeness. TI’s customers are responsible for
determining suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
10.1 Application Information
The TPS62933 is a highly integrated, synchronous, step-down, DC-DC converter. This device is used to convert
a higher DC input voltage to a lower DC output voltage, with a maximum output current of 3 A.
10.2 Typical Application
The application schematic of Figure 10-1 was developed to meet the requirements of the device. This circuit is
available as the TPS62933EVM evaluation module. The design procedure is given in this section.
Figure 10-1. TPS62933 5-V Output, 3-A Reference Design
BST
U1
VIN = 5.5V to 30V
VIN
VIN
C1
10µF
GND
C2
10µF
C3
100nF
GND
JP1
R1
511k
3
2
1
3
EN
2
SS
7
RT
1
VIN
BST
EN
SW
SS
FB
RT
GND
6
5
R4
C5
0
100nF
1
2
VOUT = 5V/3A
VOUT
6.8uH
C6
22uF
SW
8
FB
4
GND
C7
22uF
C8
100nF
R6
53.6k
GND
C9
R7
10.2k
TPS62933DRLR
C4
33nF
L1
R5
DNP
49.9
10pF
JP2
R2
88.7k
GND
R3
GND
GND
0
GND
GND
10.2.1 Design Requirements
Table 10-1 shows the design parameters for this application.
Table 10-1. Design Parameters
Parameter
VIN
Input voltage
VOUT
Output voltage
IOUT
Output current rating
Conditions
Load step from 0.5 A→2.5
A→0.5 A, 0.8-A/μS slew rate
MIN
TYP
MAX
Unit
5.5
24
30
V
5
V
3
A
±5% ×
VOUT
V
400
mV
ΔVOUT
Transient response
VIN(ripple)
Input ripple voltage
VOUT(ripple)
Output ripple voltage
30
mV
FSW
Switching frequency
RT = floating
500
kHz
tSS
Soft-start time
CSS = 33 nF
5
mS
VSTART
Start input voltage (Rising VIN)
8
V
VSTOP
Stop input voltage (Falling VIN)
7
V
TA
Ambient temperature
25
°C
28
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
10.2.2 Detailed Design Procedure
10.2.2.1 Custom Design With WEBENCH® Tools
Create a custom design with the TPS6293x using the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance
• Run thermal simulations to understand board thermal performance
• Export customized schematic and layout into popular CAD formats
• Print PDF reports for the design, and share the design with colleagues
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
10.2.2.2 Output Voltage Resistors Selection
The output voltage is set with a resistor divider from the output node to the FB pin. TI recommends using 1%
tolerance or better divider resistors. Referring to the application schematic of Figure 10-1, start with 10.2 kΩ for
R7 and use Equation 14 to calculate R6 = 53.6 kΩ. To improve efficiency at light loads, consider using larger
value resistors. If the values are too high, the converter is more susceptible to noise and voltage errors from the
FB input leakage current are noticeable.
R6
VOUT VREF
u R7
VREF
(14)
Table 10-2 shows the recommended components value for common output voltages.
10.2.2.3 Choosing Switching Frequency
The choice of switching frequency is a compromise between conversion efficiency and overall solution size.
Higher switching frequency allows the use of smaller inductors and output capacitors, and hence, a more
compact design. However, lower switching frequency implies reduced switching losses and usually results in
higher system efficiency, so the 500-kHz switching frequency was chosen for this example, remove the jumper
on JP2 and leave RT pin floating.
Please note the switching frequency is also limited by the following as mentioned in Section 9.3.9:
•
•
•
•
Minimum on time of the integrated power switch
Input voltage
Output voltage
Frequency shift limitation
10.2.2.4 Soft-Start Capacitor Selection
The large CSS can reduce inrush current when driving large capacitive load. 33 nF is chosen for C4, which sets
the soft-start time, tSS, to approximately 5 ms.
In addition, the SS pin cannot be floated, so a minimum 6.8-nF capacitor must be connected at this pin.
10.2.2.5 Bootstrap Capacitor Selection
A 0.1-µF ceramic capacitor must be connected between the BST to SW pins for proper operation. TI
recommends to use a ceramic capacitor with X5R or better grade dielectric. The capacitor C5 must have a
16-V or higher voltage rating.
In addition, adding one BST resistor R4 to reduce the spike voltage on the SW node, TI recommends the
resistance smaller than 10 Ω be used between BST to the bootstrap capacitor.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
29
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
10.2.2.6 Undervoltage Lockout Setpoint
The undervoltage lockout (UVLO) can be adjusted using the external voltage divider network of R1 and R2. R1
is connected between VIN and the EN pin and R2 is connected between EN and GND. The UVLO has two
thresholds: one for power up when the input voltage is rising and one for power down or brownouts when the
input voltage is falling. For the example design, the supply turns on and starts switching when the input voltage
increases above 8 V (VSTART). After the converter starts switching, it continues to do so until the input voltage
falls below 7 V (VSTOP). Equation 3 and Equation 4 can be used to calculate the values for the upper and lower
resistor values. For the stop voltages specified, the nearest standard resistor value for R1 is 511 kΩ and for R2 is
80.7 kΩ.
10.2.2.7 Output Inductor Selection
The most critical parameters for the inductor are the inductance, saturation current, and the RMS current. The
inductance is based on the desired peak-to-peak ripple current, ΔiL, which can be calculated by Equation 15.
¿IL =
VOUT
VIN_MAX F VOUT
×
VIN_MAX
L × fSW
(15)
Usually, define K coefficient represents the amount of inductor ripple current relative to the maximum output
current of the device, a reasonable value of K is 20% to 60%. Experience shows that the best value of K is 40%.
Since the ripple current increases with the input voltage, the maximum input voltage is always used to calculate
the minimum inductance L. Use Equation 16 to calculate the minimum value of the output inductor.
L
(VIN -VOUT )
V
u OUT
fSW u K u IOUT _ MAX
VIN
(16)
where
•
K is the ripple ratio of the inductor current (ΔIL / IOUT_MAX).
In general, it is preferable to choose lower inductance in switching power supplies, because it usually
corresponds to faster transient response, smaller DCR, and reduced size for more compact designs. Too low of
an inductance can generate too large of an inductor current ripple such that overcurrent protection at the full load
can be falsely triggered. The device also generates more inductor core loss since the current ripple is larger.
Larger inductor current ripple also implies larger output voltage ripple with the same output capacitors.
After inductance L is determined, the maximum inductor peak current and RMS current can be calculated by
Equation 17 and Equation 18.
IL_PEAK = IOUT +
¿IL
2
IL_RMS = ¨IOUT 2 +
(17)
¿IL 2
12
(18)
Ideally, the saturation current rating of the inductor is at least as large as the high-side switch current limit,
IHS_LIMIT (see Section 8.5). This ensures that the inductor does not saturate even during a short circuit on
the output. When the inductor core material saturates, the inductance falls to a very low value, causing the
inductor current to rise very rapidly. Although the valley current limit, ILS_LIMIT, is designed to reduce the risk of
current runaway, a saturated inductor can cause the current to rise to high values very rapidly, this can lead to
component damage, so do not allow the inductor to saturate. In any case, the inductor saturation current must
not be less than the maximum peak inductor current at full load.
For this design example, choose the following values:
•
•
30
K = 0.4
VIN_MAX = 30 V
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
•
•
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
fSW = 500 kHz
IOUT_MAX = 3 A
The inductor value is calculated to be 6.94 μH. Choose the nearest standard value of 6.8 μH, which gives a
new K value of 0.408. The maximum IHS_LIMIT is 5.8 A, the calculated peak current is 3.61 A, and the calculated
RMS current is 3.02 A. The chosen inductor is a Würth Elektronik, 74439346068, 6.8 μH, which has a saturation
current rating of 10 A and a RMS current rating of 6.5 A.
The maximum inductance is limited by the minimum current ripple required for the peak current mode control to
perform correctly. To avoid subharmonic oscillation, as a rule-of-thumb, the minimum inductor ripple current must
be no less than approximately 10% of the device maximum rated current (3 A) under nominal conditions.
10.2.2.8 Output Capacitor Selection
The device is designed to be used with a wide variety of LC filters, so it is generally desired to use as little output
capacitance as possible to keep cost and size down. Choose the output capacitance, COUT, with care since it
directly affects the following specifications:
•
•
•
Steady state output voltage ripple
Loop stability
Output voltage overshoot and undershoot during load current transient
The output voltage ripple is essentially composed of two parts. One is caused by the inductor current ripple
going through the Equivalent Series Resistance (ESR) of the output capacitors:
¿VOUT _ESR = ¿IL × ESR = K × IOUT × ESR
(19)
The other is caused by the inductor current ripple charging and discharging the output capacitors:
¿VOUT _C =
¿IL
K × IOUT
=
8 × fSW × COUT 8 × fSW × COUT
(20)
where
•
K is the ripple ratio of the inductor current (ΔIL / IOUT_MAX).
The two components in the voltage ripple are not in phase, so the actual peak-to-peak ripple is smaller than the
sum of the two peaks.
Output capacitance is usually limited by the load transient requirements rather than the output voltage ripple
if the system requires tight voltage regulation with presence of large current steps and fast slew rate. When a
large load step happens, output capacitors provide the required charge before the inductor current can slew up
to the appropriate level. The control loop of the converter usually needs eight or more clock cycles to regulate
the inductor current equal to the new load level. The output capacitance must be large enough to supply the
current difference for about eight clock cycles to maintain the output voltage within the specified range. Equation
21 shows the minimum output capacitance needed for specified VOUT overshoot and undershoot.
COUT t
fSW
ª
º
'IOUT
K2
( 2 D)»
u «(1 D) u (1 K)
12
u 'VOUT u K ¬«
»¼
(21)
where
•
•
•
D is VOUT / VIN, duty cycle of steady state.
ΔVOUT is the output voltage change.
ΔIOUT is the output current change.
For this design example, the target output ripple is 30 mV. Presuppose ΔVOUT_ESR = ΔVOUT_C = 30 mV and
choose K = 0.4. Equation 19 yields ESR no larger than 25 mΩ and Equation 20 yields COUT no smaller
than 10 μF. For the target overshoot and undershoot limitation of this design, ΔVOUT_SHOOT < 5% × VOUT
= 250 mV for an output current step of ΔIOUT = 1.5 A. COUT is calculated to be no smaller than 25 μF
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
31
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
by Equation 21. In summary, the most stringent criterion for the output capacitor is 25 μF. Considering the
ceramic capacitor has DC bias de-rating, it can be achieved with a bank of 2 × 22-μF, 35-V, ceramic capacitor
C3216X5R1V226M160AC in the 1206 case size.
More output capacitors can be used to improve the load transient response. Ceramic capacitors can easily meet
the minimum ESR requirements. In some cases, an aluminum electrolytic capacitor can be placed in parallel
with the ceramics to build up the required value of capacitance. When using a mixture of aluminum and ceramic
capacitors, use the minimum recommended value of ceramics and add aluminum electrolytic capacitors as
needed.
The recommendations given in Table 10-2 provide typical and minimum values of output capacitance for the
given conditions. These values are the effective figures. If the minimum values are to be used, the design must
be tested over all of the expected application conditions, including input voltage, output current, and ambient
temperature. This testing must include both bode plot and load transient assessments. The maximum value
of total output capacitance can be referred to COUT selection and CFF selection in the TPS62933 Thermal
Performance with SOT583 Package Application Report. Large values of output capacitance can adversely affect
the start-up behavior of the converter as well as the loop stability. If values larger than noted here must be used,
then a careful study of start-up at full load and loop stability must be performed.
In practice, the output capacitor has the most influence on the transient response and loop phase margin. Load
transient testing and bode plots are the best way to validate any given design and must always be completed
before the application goes into production. In addition to the required output capacitance, a small ceramic
placed on the output can reduce high frequency noise. Small case size ceramic capacitors in the range of 1 nF
to 100 nF can help reduce spikes on the output caused by inductor and board parasitics.
Table 10-2 shows the recommended LC combination.
Table 10-2. Recommended LC Combination for TPS62933
VOUT(V)
3.3
5
fSW (kHz)
RTOP(kΩ) RDOWN(kΩ)
500
1200
500
1200
12
500
31.3
Typical Inductor L (μH)
Typical Effective COUT (μF)
Minimum Effective COUT
(μF)
4.7
40
15
2.2
30
10
6.8
20
10
3.3
20
10
12
15
10
10.0
52.5
10.0
140.0
10.0
10.2.2.9 Input Capacitor Selection
The TPS6293x device requires an input decoupling capacitor and, depending on the application, a bulk input
capacitor. The typical recommended value for the decoupling capacitor is 10 μF, and an additional 0.1-µF
capacitor from the VIN pin to ground is recommended to provide high frequency filtering.
The value of a ceramic capacitor varies significantly over temperature and the amount of DC bias applied to the
capacitor. X5R and X7R ceramic dielectrics are recommended because they have a high capacitance-to-volume
ratio and are fairly stable over temperature. The capacitor must also be selected with the DC bias taken into
account. The effective capacitance value decreases as the DC bias increases.
The capacitor voltage rating needs to be greater than the maximum input voltage. The capacitor must also have
a ripple current rating greater than the maximum input current ripple. The input ripple current can be calculated
using Equation 22.
ICIN _ RMS
IOUT u
VIN_MIN VOUT
VOUT
u
VIN_MIN
VIN_MIN
(22)
For this example design, two TDK CGA5L1X7R1H106K160AC (10-μF, 50-V, 1206, X7R) capacitors have been
selected. The effective capacitance under input voltage of 24 V for each one is 3.45 μF. The input capacitance
value determines the input ripple voltage of the converter. The input voltage ripple can be calculated using
32
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
Equation 23. Using the design example values, IOUT_MAX = 3 A, CIN_EFF = 2 × 3.45 = 6.9 μF, and fSW = 500 kHz,
yields an input voltage ripple of 222 mV and a RMS input ripple current of 1.22 A.
'VIN
IOUT _ MAX u 0.25
CIN u fSW
(IOUT _ MAX u RESR _ MAX )
(23)
where
•
RESR_MAX is the maximum series resistance of the input capacitor, which is approximately 1.5 mΩ of two
capacitors in paralleled.
10.2.2.10 Feedforward Capacitor CFF Selection
In some cases, a feedforward capacitor can be used across RFBT to improve the load transient response or
improve the loop phase margin. This is especially true when values of RFBT > 100 kΩ are used. Large values
of RFBT in combination with the parasitic capacitance at the FB pin can create a small signal pole that interferes
with the loop stability. A CFF helps mitigate this effect. Use lower values to determine if any advantage is gained
by the use of a CFF capacitor.
The Optimizing Transient Response of Internally Compensated DC-DC Converters with Feedforward Capacitor
Application Report is helpful when experimenting with a feedforward capacitor.
For this example design, a 10-pF capacitor C9 can be mounted to boost load transient performance.
10.2.2.11 Maximum Ambient Temperature
As with any power conversion device, the TPS6293x dissipates internal power while operating. The effect of
this power dissipation is to raise the internal temperature of the converter above ambient. The internal die
temperature (TJ) is a function of the following:
•
•
•
•
Ambient temperature
Power loss
Effective thermal resistance, RθJA, of the device
PCB combination
The maximum internal die temperature must be limited to 150°C. This establishes a limit on the maximum
device power dissipation and, therefore, the load current. Equation 24 shows the relationships between the
important parameters. It is easy to see that larger ambient temperatures (TA) and larger values of RθJA reduce
the maximum available output current. The converter efficiency can be estimated by using the curves provided in
this data sheet. Note that these curves include the power loss in the inductor. If the desired operating conditions
cannot be found in one of the curves, then interpolation can be used to estimate the efficiency. Alternatively, the
EVM can be adjusted to match the desired application requirements and the efficiency can be measured directly.
The correct value of RθJA is more difficult to estimate. As stated in the Semiconductor and IC Package Thermal
Metrics Application Report, the value of RθJA given in the Thermal Information table is not valid for design
purposes and must not be used to estimate the thermal performance of the application. The values reported in
that table were measured under a specific set of conditions that are rarely obtained in an actual application. The
data given for RθJC(bott) and ΨJT can be useful when determining thermal performance. See the Semiconductor
and IC Package Thermal Metrics Application Report for more information and the resources given at the end of
this section.
IOUT _ MAX
(TJ -TA )
K
1
u
u
1 K VOUT
RTJA
(24)
where
•
ŋ is efficiency.
The effective RθJA is a critical parameter and depends on many factors such as the following:
•
Power dissipation
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
33
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
•
•
•
•
•
34
Air temperature and flow
PCB area
Copper heat-sink area
Number of thermal vias under the package
Adjacent component placement
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
10.2.3 Application Curves
VIN = 24 V, VOUT = 5 V, L1= 6.8 µH, COUT = 44 µF, TA = 25°C (unless otherwise noted)
1
95
0.8
90
0.6
Load Regulation (%)
100
Efficiency (%)
85
80
75
70
65
Vin=6V
Vin=12V
Vin=19V
Vin=24V
60
55
50
0.001
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
1
Vin=6V
Vin=12V
Vin=19V
Vin=24V
0.4
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
0.001
2 3
Figure 10-2. Efficiency
600
0.8
550
Frequency (kHz)
Line Regulation (%)
450
0.4
0.2
0
-0.2
Iout=0A
Iout=0.03A
Iout=0.3A
Iout=1.5A
Iout=3A
-0.4
-0.6
-0.8
400
12.5
15
17.5 20
Vin (V)
1
2 3
1
2 3
300
250
200
150
100
50
22.5
25
27.5
0
0.001
30
Figure 10-4. Line Regulation
0.005
0.02
0.05 0.1 0.2
I-Load (A)
0.5
Figure 10-5. Switching Frequency vs Load Current
90
300
1200
60
200
1000
30
100
Magnitude (dB)
1400
800
600
0
0
-30
-100
-60
400
200
Fsw=500kHz
Fsw=1200kHz
0
6
9
12
15
18
Vin (A)
21
24
27
30
-90
100 200
Mag (dB)
Phase (deg)
500 1000
10000
Frequency (Hz)
100000
Phase (degree)
fSW (kHz)
0.5
350
-1
10
0.05 0.1 0.2
I-Load (A)
Vin=6V
Vin=12V
Vin=19V
Vin=24V
Vin=30V
500
0.6
7.5
0.02
Figure 10-3. Load Regulation
1
5
0.005
-200
-300
1000000
Figure 10-7. Loop Frequency Response, IOUT = 3 A,
BW = 49.4 kHz, PM = 57°, GM = –12 dB
Figure 10-6. Switching Frequency vs VIN, VOUT = 5
V
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
35
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
VIN = 10V/div
VOUT = 2V/div
SS = 2V/div
IL = 2A/div
Figure 10-8. Case Temperature, VIN = 24 V, IOUT = 3
A, fSW = 500 kHz
4mS/div
Figure 10-9. Start-Up Relative to VIN, IOUT = 3 A
VIN = 10V/div
EN = 2V/div
VOUT = 2V/div
VOUT = 2V/div
SS = 2V/div
SS = 2V/div
IL = 2A/div
IL = 2A/div
4mS/div
Figure 10-10. Shutdown Relative to VIN, IOUT = 3 A
EN = 2V/div
2mS/div
Figure 10-11. Start-Up Through EN, IOUT = 3 A
VOUT = 20mV/div (AC coupled)
VOUT = 2V/div
SS = 2V/div
IL = 500mA/div
IL = 2A/div
2mS/div
Figure 10-12. Shutdown Through EN, IOUT = 3 A
36
Submit Document Feedback
4mS/div
Figure 10-13. Steady State, IOUT = 0 A
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
VOUT = 20mV/div (AC coupled)
VOUT = 20mV/div (AC coupled)
IL = 500mA/div
IL = 500mA/div
2uS/div
4uS/div
Figure 10-14. Steady State, IOUT = 0.1 A
VOUT = 20mV/div (AC coupled)
Figure 10-15. Steady State, IOUT = 0.5 A
VOUT = 20mV/div (AC coupled)
IL = 1A/div
IL = 500mA/div
2uS/div
Figure 10-16. Steady State, IOUT = 1 A
VOUT = 20mV/div (AC coupled)
2uS/div
Figure 10-17. Steady State, IOUT = 2 A
VOUT = 200mV/div (AC coupled)
IOUT = 2A/div
IL = 1A/div
2uS/div
Figure 10-18. Steady State, IOUT = 3 A
Copyright © 2022 Texas Instruments Incorporated
100uS/div
Figure 10-19. Load Transient Response, 0.5 to 2.5
A, Slew Rate = 0.8 A/μS
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
37
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
VIN = 10V/div
VOUT = 200mV/div (AC coupled)
VOUT = 2V/div
SS = 2V/div
IL = 2A/div
IOUT = 2A/div
100uS/div
20mS/div
Figure 10-20. Load Transient Response, 1 to 3 A,
Slew Rate = 0.8 A/μS
Figure 10-21. VOUT Hard Short Protection
VIN = 10V/div
VOUT = 2V/div
SS = 2V/div
IL = 2A/div
20mS/div
Figure 10-22. VOUT Hard Short Recovery
10.3 What to Do and What Not to Do
•
•
•
•
•
•
•
•
38
Do not exceed the Absolute Maximum Ratings.
Do not exceed the Recommended Operating Conditions.
Do not exceed the ESD Ratings.
Do not allow the SS pin floating.
Do not allow the output voltage to exceed the input voltage, nor go below ground.
Do not use the value of RθJA given in the Thermal Information table to design your application. See Section
10.2.2.11.
Follow all the guidelines and suggestions found in this data sheet before committing the design to production.
TI application engineers are ready to help critique your design and PCB layout to help make your project a
success.
Use a 100-nF capacitor connected directly to the VIN and GND pins of the device. See Section 10.2.2.9 for
details.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
11 Power Supply Recommendations
The devices are designed to operate from an input voltage supply range between 3.8 V and 30 V. This input
supply must be well regulated and compatible with the limits found in the specifications of this data sheet. In
addition, the input supply must be capable of delivering the required input current to the loaded converter. The
average input current can be estimated with Equation 25.
IIN
VOUT u IOUT
VIN u K
(25)
where
•
ŋ is efficiency.
If the converter is connected to the input supply through long wires or PCB traces, special care is required to
achieve good performance. The parasitic inductance and resistance of the input cables can have an adverse
effect on the operation of the converter. The parasitic inductance, in combination with the low-ESR, ceramic
input capacitors, can form an under-damped resonant circuit, resulting in overvoltage transients at the input to
the converter. The parasitic resistance can cause the voltage at the VIN pin to dip whenever a load transient
is applied to the output. If the application is operating close to the minimum input voltage, this dip can cause
the converter to momentarily shutdown and reset. The best way to solve these kind of issues is to reduce the
distance from the input supply to the converter and use an aluminum or tantalum input capacitor in parallel with
the ceramics. The moderate ESR of these types of capacitors help damp the input resonant circuit and reduce
any overshoots. A value in the range of 20 μF to 100 μF is usually sufficient to provide input damping and help
hold the input voltage steady during large load transients.
TI recommends that the input supply must not be allowed to fall below the output voltage by more than 0.3
V. Under such conditions, the output capacitors discharges through the body diode of the high-side power
MOSFET. The resulting current can cause unpredictable behavior, and in extreme cases, possible device
damage. If the application allows for this possibility, then use a Schottky diode from VIN to VOUT to provide a
path around the converter for this current.
In some cases, a transient voltage suppressor (TVS) is used on the input of converters. One class of this
device has a snap-back characteristic (thyristor type). The use of a device with this type of characteristic is not
recommended. When the TVS fires, the clamping voltage falls to a very low value. If this voltage is less than the
output voltage of the converter, the output capacitors discharges through the device, as mentioned above.
Sometimes, for other system considerations, an input filter is used in front of the converter, which can lead to
instability as well as some of the effects mentioned above, unless it is designed carefully. The AN-2162 Simple
Success with Conducted EMI from DCDC Converters User's Guide provides helpful suggestions when designing
an input filter for any switching converter.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
39
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
12 Layout
12.1 Layout Guidelines
The PCB layout of any DC/DC converter is critical to the optimal performance of the design. Bad PCB layout
can disrupt the operation of a good schematic design. Even if the converter regulates correctly, bad PCB layout
can mean the difference between a robust design and one that cannot be mass produced. Furthermore, the
EMI performance of the converter is dependent on the PCB layout to a great extent. In a buck converter, the
most critical PCB feature is the loop formed by the input capacitors and power ground, as shown in Figure 12-1.
This loop carries large transient currents that can cause large transient voltages when reacting with the trace
inductance. These unwanted transient voltages disrupt the proper operation of the converter. Because of this,
the traces in this loop must be wide and short, and the loop area as small as possible to reduce the parasitic
inductance.
TI recommends a 2-layer board with 2-oz copper thickness of top and bottom layer, and proper layout provides
low current conduction impedance, proper shielding, and lower thermal resistance. Figure 12-2 and Figure 12-3
show the recommended layouts for the critical components of the TPS62933.
•
•
•
•
•
•
•
Place the inductor, input and output capacitors, and the IC on the same layer.
Place the input and output capacitors as close as possible to the IC. The VIN and GND traces must be as
wide as possible and provide sufficient vias on them to minimize trace impedance. The wide areas are also of
advantage from the view point of heat dissipation.
Place a 0.1-µF ceramic decoupling capacitor or capacitors as close as possible to VIN and GND pins, which
is key to EMI reduction.
Keep the SW trace as physically short and wide as practical to minimize radiated emissions.
Place a BST capacitor and resistor close to the BST pin and SW node. A > 10-mil width trace is
recommended to reduce the parasitic inductance.
Place the feedback divider as close as possible to the FB pin. A > 10-mil width trace is recommended for heat
dissipation. Connect a separate VOUT trace to the upper feedback resistor. Place the voltage feedback loop
away from the high-voltage switching trace. The voltage feedback loop preferably has ground shield.
Place the SS capacitor and RT resistor close to the IC and routed with minimal lengths of trace. A > 10-mil
width trace is recommended for heat dissipation.
VIN
CIN
KEEP
CURRENT
LOOP
SMALL
SW
GND
Figure 12-1. Current Loop With Fast Edges
40
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
12.2 Layout Example
Figure 12-2. TPS62933 Top Layout Example
Figure 12-3. TPS62933 Bottom Layout Example
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
41
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
13 Device and Documentation Support
13.1 Device Support
13.1.1 Third-Party Products Disclaimer
TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT
CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES
OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER
ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE.
13.1.2 Development Support
13.1.2.1 Custom Design With WEBENCH® Tools
Create a custom design with the TPS6293x using the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance
• Run thermal simulations to understand board thermal performance
• Export customized schematic and layout into popular CAD formats
• Print PDF reports for the design, and share the design with colleagues
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
13.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on
Subscribe to updates to register and receive a weekly digest of any product information that has changed. For
change details, review the revision history included in any revised document.
13.3 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
13.4 Trademarks
TI E2E™ is a trademark of Texas Instruments.
WEBENCH® is a registered trademark of Texas Instruments.
All trademarks are the property of their respective owners.
13.5 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
13.6 Glossary
TI Glossary
42
This glossary lists and explains terms, acronyms, and definitions.
Submit Document Feedback
Copyright © 2022 Texas Instruments Incorporated
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
TPS62933, TPS62932, TPS62933F, TPS62933P, TPS62933O
www.ti.com
SLUSEA4D – JUNE 2021 – REVISED AUGUST 2022
14 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2022 Texas Instruments Incorporated
Submit Document Feedback
Product Folder Links: TPS62933 TPS62932 TPS62933F TPS62933P TPS62933O
43
PACKAGE OPTION ADDENDUM
www.ti.com
24-Sep-2022
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
Samples
(4/5)
(6)
TPS62932DRLR
ACTIVE
SOT-5X3
DRL
8
4000
RoHS & Green
Call TI | SN
Level-1-260C-UNLIM
-40 to 150
2932
Samples
TPS62933DRLR
ACTIVE
SOT-5X3
DRL
8
4000
RoHS & Green
Call TI | SN
Level-1-260C-UNLIM
-40 to 150
2933
Samples
TPS62933FDRLR
ACTIVE
SOT-5X3
DRL
8
4000
RoHS & Green
Call TI | SN
Level-1-260C-UNLIM
-40 to 150
933F
Samples
TPS62933ODRLR
ACTIVE
SOT-5X3
DRL
8
4000
RoHS & Green
Call TI | SN
Level-1-260C-UNLIM
-40 to 150
933O
Samples
TPS62933PDRLR
ACTIVE
SOT-5X3
DRL
8
4000
RoHS & Green
Call TI | SN
Level-1-260C-UNLIM
-40 to 150
933P
Samples
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
