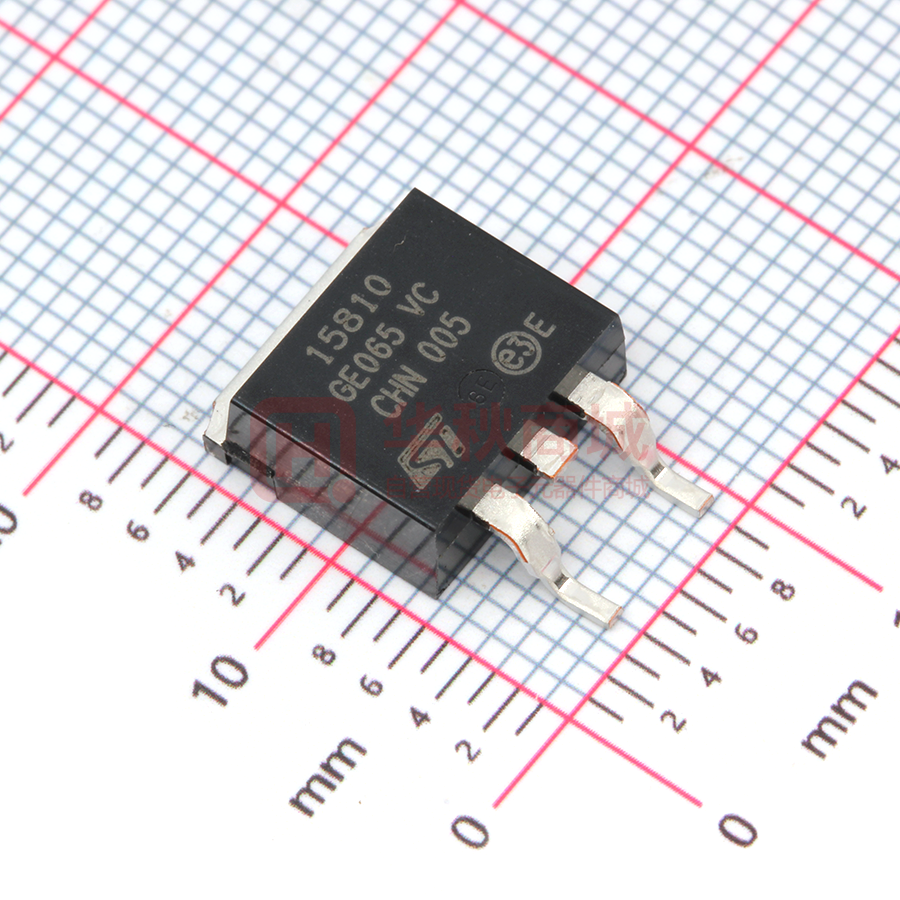

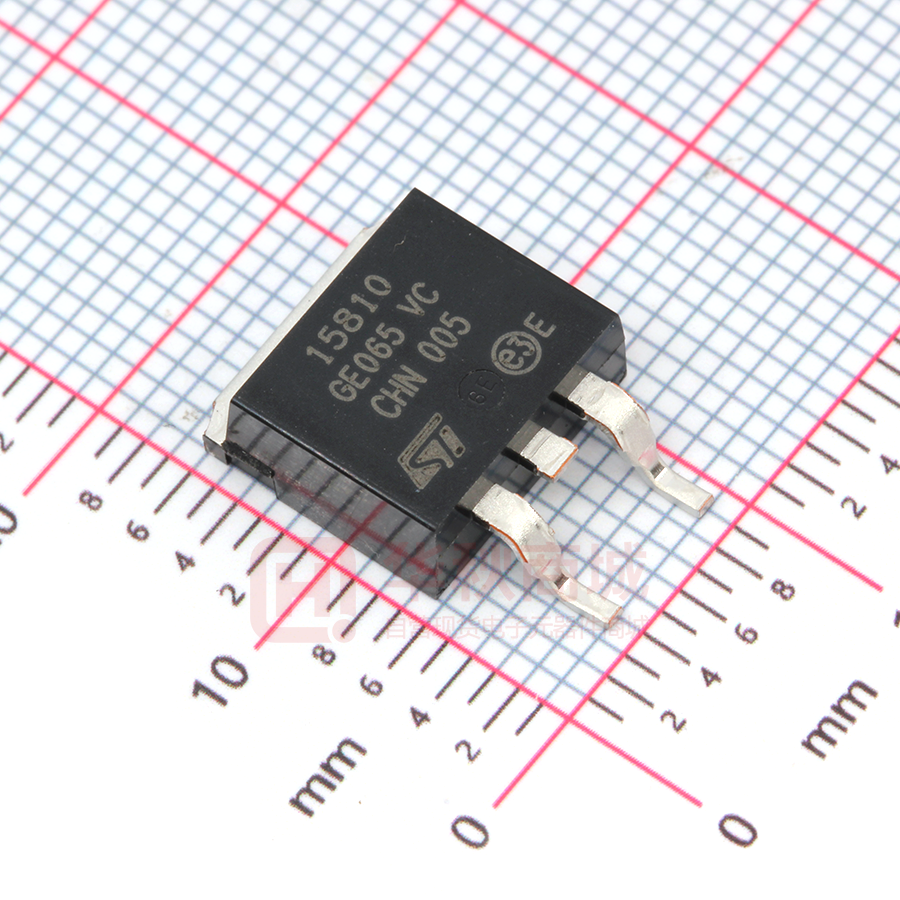

STB15810
N-channel 100 V, 3.4 mΩ typ., 110 A, STripFET™ F7
Power MOSFET in a D²PAK package
Datasheet - custom data
Features
TAB
Order code
VDS
RDS(on)max
ID
PTOT
STB15810
100 V
3.9 mΩ
110 A
250 W
2
3
1
100% avalanche tested
Ultra low on-resistance
Applications
D²PAK
Switching applications
Description
Figure 1: Internal schematic diagram
This N-channel Power MOSFET utilizes
STripFET™ F7 technology with an enhanced
trench gate structure that results in very low
on-state resistance, while also reducing internal
capacitance and gate charge for faster and more
efficient switching.
Table 1: Device summary
Order code
Marking
Package
Packaging
STB15810
15810
D²PAK
Tape and reel
March 2017
DocID030395 Rev 1
This is a document intended for a specific customer. It must not be
released without first contacting Division marketing.
1/14
www.st.com
Contents
STB15810
Contents
1
Electrical ratings ............................................................................. 3
2
Electrical characteristics ................................................................ 4
2.1
Electrical characteristics (curves) ...................................................... 6
3
Test circuits ..................................................................................... 8
4
Package information ....................................................................... 9
5
2/14
4.1
D²PAK (TO-263) type B package information ................................... 9
4.2
D²PAK type B packing information .................................................. 11
Revision history ............................................................................ 13
DocID030395 Rev 1
STB15810
1
Electrical ratings
Electrical ratings
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source voltage
100
V
VGS
Gate- source voltage
±20
V
ID
Drain current (continuous) at TC = 25 °C
110
A
ID
Drain current (continuous) at TC = 100 °C
110
A
Drain current (pulsed) TC = 25 °C
440
A
PTOT
Total dissipation at TC = 25 °C
250
W
EAS(2)
Single pulse avalanche energy
495
mJ
-55 to 175
°C
Value
Unit
IDM
(1)
TJ
Operating junction temperature range
Tstg
Storage temperature range
Notes:
(1)Pulse
width is limited by safe operating area.
(2)Starting
Tj = 25 °C, ID = 30 A, VDD = 50 V
Table 3: Thermal data
Symbol
Parameter
Rthj-case
Thermal resistance junction-case
0.6
°C/W
Rthj-pcb(1)
Thermal resistance junction-pcb
35
°C/W
Notes:
(1)
When mounted on 1 inch² FR-4 board, 2 oz Cu
DocID030395 Rev 1
3/14
Electrical characteristics
2
STB15810
Electrical characteristics
(TC = 25 °C unless otherwise specified)
Table 4: On /off states
Symbol
V(BR)DSS
Parameter
Test conditions
Drain-source breakdown
voltage
VGS = 0 V, ID = 250 µA
Min.
Typ.
Max.
100
Unit
V
VGS = 0 V, VDS = 100 V
1
µA
VGS = 0 V, VDS = 100 V,
TC = 125 °C(1)
100
µA
Gate-body leakage
current
VDS = 0 V, VGS = 20 V
100
nA
VGS(th)
Gate threshold voltage
VDS = VGS, ID = 250 µA
4.5
V
RDS(on)
Static drain-source
on- resistance
VGS = 10 V, ID = 55 A
3.4
3.9
mΩ
Min.
Typ.
Max.
Unit
-
8115
-
pF
-
1510
-
pF
-
67
-
pF
-
117
-
nC
-
47
-
nC
-
26
-
nC
IDSS
Zero gate voltage
drain current
IGSS
2.5
Notes:
(1)Defined
by design, not subject to production test.
Table 5: Dynamic
Symbol
4/14
Parameter
Ciss
Input capacitance
Coss
Output capacitance
Crss
Reverse transfer
capacitance
Qg
Total gate charge
Qgs
Gate-source charge
Qgd
Gate-drain charge
Test conditions
VDS = 50 V, f = 1 MHz,
VGS = 0 V
VDD = 50 V, ID = 110 A,
VGS = 0 to 10 V
(see Figure 14: "Test circuit for
gate charge behavior")
DocID030395 Rev 1
STB15810
Electrical characteristics
Table 6: Switching times
Symbol
td(on)
Parameter
Turn-on delay time
tr
Rise time
td(off)
Turn-off delay time
tf
Fall time
Test conditions
Min.
Typ.
Max.
Unit
VDD = 50 V, ID = 55 A,
RG = 4.7 Ω, VGS = 10 V
(see Figure 13: "Test circuit for
resistive load switching times"
and Figure 18: "Switching time
waveform")
-
33
-
ns
-
57
-
ns
-
72
-
ns
-
33
-
ns
Min.
Typ.
Max.
Unit
Table 7: Source drain diode
Symbol
Parameter
Test conditions
ISD
Source-drain current
-
110
A
ISDM(1)
Source-drain current
(pulsed)
-
440
A
VSD (2)
Forward on voltage
ISD = 110 A, VGS = 0
-
1.2
V
ISD = 110 A, di/dt = 100 A/µs,
VDD = 80 V, TJ =150 °C
(see Figure 15: "Test circuit for
inductive load switching and
diode recovery times")
-
70
ns
-
165
nC
-
4.7
A
trr
Reverse recovery time
Qrr
Reverse recovery charge
IRRM
Reverse recovery current
Notes:
(1)Pulse
width is limited by safe operating area.
(2)Pulsed:
pulse duration = 300 µs, duty cycle 1.5%.
DocID030395 Rev 1
5/14
Electrical characteristics
2.1
STB15810
Electrical characteristics (curves)
Figure 2: Safe operating area
Figure 3: Thermal impedance
AM18051v1
ID
(A)
100
is
ea n)
ar S(o
D
is
h
t
R
in ax
n
tio y m
b
ra
e
d
p ite
O
Lim
10
100µs
1ms
1
Tj=175°C
Tc=25°C
Single pulse
0.1
0.1
1
10ms
VDS(V)
10
Figure 4: Output characteristics
Figure 5: Transfer characteristics
AM18042v1
ID(A)
VGS=10V
400
8V
AM18043v1
ID
(A)
VDS=4V
300
350
7V
300
250
200
250
200
150
6V
150
100
100
50
50
5V
0
0
4
2
6
8
VDS(V)
Figure 6: Gate charge vs gate-source voltage
AM18044v1
VGS
(V)
VDD=50V
ID=110A
12
0
0
2
4
8
6
VGS(V)
Figure 7: Static drain-source on-resistance
RDS(on)
(mΩ)
3.430
VGS=10V
3.420
10
3.410
8
3.400
6
3.390
4
3.380
2
3.370
3.360
0
0
6/14
40
80
120
Qg(nC)
DocID030395 Rev 1
0
20
40
60
80
100 ID(A)
STB15810
Electrical characteristics
Figure 9: Normalized gate threshold voltage vs
temperature
Figure 8: Capacitance variations
AM18047v1
VGS(th)
(norm)
ID=250µA
1.1
1
0.9
0.8
0.7
0.6
0.5
0.4
-75
Figure 10: Normalized on-resistance vs temperature
25
75
125
TJ(°C)
Figure 11: Normalized V(BR)DSS vs temperature
AM18048v1
RDS(on)
-25
AM18049v1
V(BR)DSS
(norm)
(norm)
ID=55A
2
1.04
1.8
1.03
1.6
1.02
1.4
1.01
1.2
1
1
0.99
0.8
0.98
ID=1mA
0.6
0.97
0.4
-75
0.96
-75
-25
25
75
TJ(°C)
125
-25
25
75
125
TJ(°C)
Figure 12: Source-drain diode forward characteristics
AM18055v1
VSD(V)
TJ=-55°C
1
0.9
TJ=25°C
0.8
0.7
TJ=175°C
0.6
0.5
0.4
0.3
0
20
40
60
80
DocID030395 Rev 1
100 ISD(A)
7/14
Test circuits
3
8/14
STB15810
Test circuits
Figure 13: Test circuit for resistive load
switching times
Figure 14: Test circuit for gate charge
behavior
Figure 15: Test circuit for inductive load
switching and diode recovery times
Figure 16: Unclamped inductive load test
circuit
Figure 17: Unclamped inductive waveform
Figure 18: Switching time waveform
DocID030395 Rev 1
STB15810
4
Package information
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
4.1
D²PAK (TO-263) type B package information
Figure 19: D²PAK (TO-263) type B package outline
0079457_23_B
DocID030395 Rev 1
9/14
Package information
STB15810
Table 8: D²PAK (TO-263) type B mechanical data
mm
Dim.
Min.
Max.
A
4.36
4.56
A1
0
0.25
b
0.70
0.90
b1
0.51
0.89
b2
1.17
1.37
b3
1.36
1.46
c
0.38
0.694
c1
0.38
0.534
c2
1.19
1.34
D
8.60
9.00
D1
6.90
7.50
E
10.15
10.55
E1
8.10
8.70
e
2.54 BSC
H
15.00
15.60
L
1.90
2.50
L1
1.65
L2
1.78
L3
L4
10/14
Typ.
0.25
4.78
DocID030395 Rev 1
5.28
STB15810
Package information
Figure 20: D²PAK (TO-263) type B recommended footprint (dimensions are in mm)
4.2
D²PAK type B packing information
Figure 21: D2PAK type B tape outline
DocID030395 Rev 1
11/14
Package information
STB15810
Figure 22: D2PAK type B reel outline
Table 9: D²PAK type B reel mechanical data
mm
Dim.
Min.
A
330
B
1.5
C
12.8
D
20.2
G
24.4
N
100
T
12/14
Max.
13.2
26.4
30.4
DocID030395 Rev 1
STB15810
5
Revision history
Revision history
Table 10: Document revision history
Date
Revision
07-Mar-2017
1
Changes
First release
DocID030395 Rev 1
13/14
STB15810
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2017 STMicroelectronics – All rights reserved
14/14
DocID030395 Rev 1
