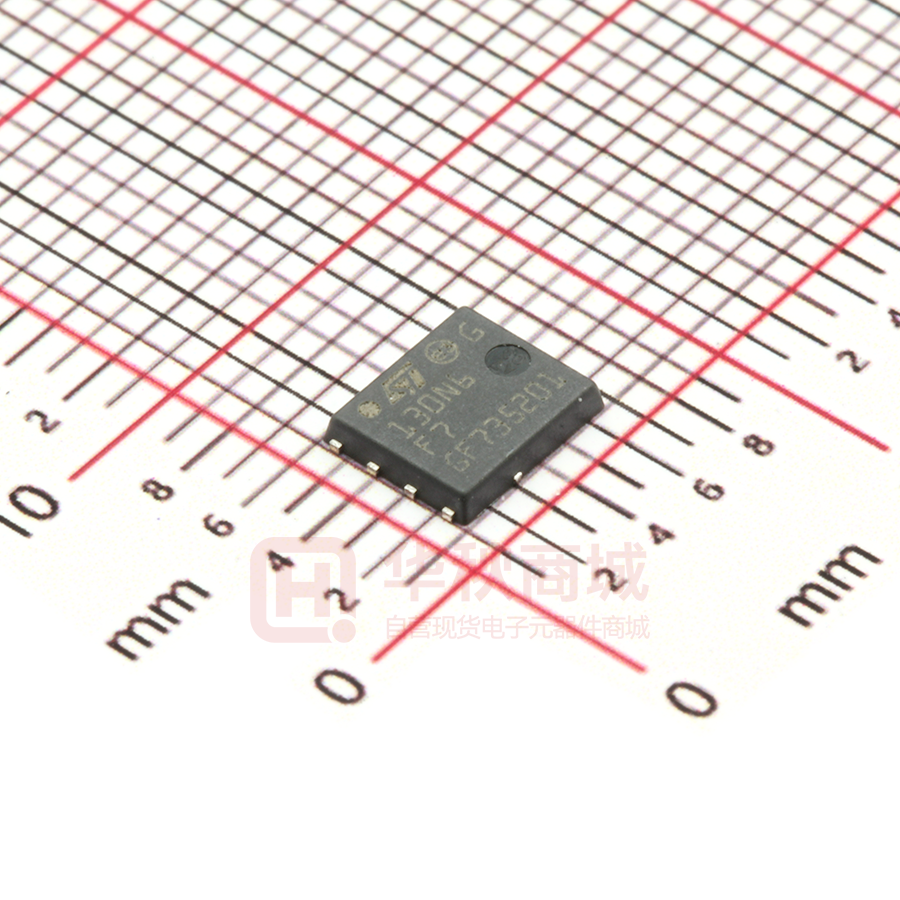

STL130N6F7
N-channel 60 V, 0.003 Ω typ., 130 A STripFET™ F7
Power MOSFET in a PowerFLAT™ 5x6 package
Datasheet - production data
Features
Order code
VDS
RDS(on) max
ID
STL130N6F7
60 V
0.0035 Ω
130 A
Among the lowest RDS(on) on the market
Excellent figure of merit (FoM)
Low Crss/Ciss ratio for EMI immunity
High avalanche ruggedness
Applications
Figure 1: Internal schematic diagram
Switching applications
Description
This N-channel Power MOSFET utilizes
STripFET™ F7 technology with an enhanced
trench gate structure that results in very low onstate resistance, while also reducing internal
capacitance and gate charge for faster and more
efficient switching.
Table 1: Device summary
Order code
STL130N6F7
June 2015
Marking
Package
130N6F7
TM
PowerFLAT
DocID027519 Rev 3
This is information on a product in full production.
Packaging
5x6
Tape and reel
1/14
www.st.com
Contents
STL130N6F7
Contents
1
Electrical ratings ............................................................................. 3
2
Electrical characteristics ................................................................ 4
2.1
Electrical characteristics (curves) ...................................................... 5
3
Test circuits ..................................................................................... 7
4
Package mechanical data ............................................................... 8
5
2/14
4.1
PowerFLAT™ 5x6 type C package information ................................ 9
4.2
PowerFLAT™ 5x6 packing information ........................................... 11
Revision history ............................................................................ 13
DocID027519 Rev 3
STL130N6F7
1
Electrical ratings
Electrical ratings
Table 2: Absolute maximum ratings
Symbol
Parameter
Value
Unit
VDS
Drain-source voltage
60
V
VGS
Gate-source voltage
± 20
V
(1)
ID
Drain current (continuous) at TC = 25 °C
130
A
(1)
ID
Drain current (continuous) at TC = 100 °C
95
A
(1)(2)
IDM
Drain current (pulsed)
520
A
(3)
ID
Drain current (continuous) at Tpcb = 25 °C
26
A
(3)
ID
Drain current (continuous) at Tpcb = 100 °C
19
A
(2)(3)
IDM
Drain current (pulsed)
104
A
PTOT
(1)
Total dissipation at TC = 25 °C
125
W
PTOT
(3)
Total dissipation at Tpcb = 25 °C
4.8
W
-55 to 175
°C
Tj
Operating junction temperature
Tstg
Storage temperature
Notes:
(1)
(2)
(3)
This value is rated according to Rthj-c
Pulse width limited by safe operating area
This value is rated according to Rthj-pcb
Table 3: Thermal data
Symbol
Rthj-pcb
(1)
Rthj-case
Parameter
Value
Unit
Thermal resistance junction-pcb max.
31.3
°C/W
Thermal resistance junction-case max.
1.2
°C/W
Notes:
(1)
When mounted on FR-4 board of 1 inch², 2oz Cu, t < 10 sec
DocID027519 Rev 3
3/14
Electrical characteristics
2
STL130N6F7
Electrical characteristics
(TC = 25 °C unless otherwise specified)
Table 4: On /off states
Symbol
Parameter
Test conditions
Drain-source breakdown
voltage
ID = 1 mA, VGS = 0 V
IDSS
Zero gate voltage drain current
VGS = 0 V
VDS = 60 V
IGSS
Gate-body leakage current
VGS = 20 V, VDS = 0 V
VGS(th)
Gate threshold voltage
VDS = VGS, ID = 250 μA
RDS(on)
Static drain-source onresistance
VGS = 10 V, ID = 13 A
V(BR)DSS
Min.
Typ.
Max.
60
Unit
V
1
µA
100
nA
4
V
0.0035
Ω
2
0.003
Table 5: Dynamic
Symbol
Ciss
Parameter
Test conditions
Min.
Typ.
Max.
Unit
-
2600
-
pF
-
1200
-
pF
-
115
-
pF
-
42
-
nC
-
13.6
-
nC
-
13
-
nC
Input capacitance
VDS = 25 V, f = 1 MHz,
VGS = 0 V
Coss
Output capacitance
Crss
Reverse transfer capacitance
Qg
Total gate charge
Qgs
Gate-source charge
Qgd
Gate-drain charge
VDD = 30 V, ID = 26 A,
VGS = 10 V
Table 6: Switching times
Symbol
td(on)
tr
td(off)
tf
Parameter
Test conditions
Min.
Typ.
Max.
Unit
Turn-on delay time
-
24
-
ns
Rise time
-
44
-
ns
-
62
-
ns
-
24
-
ns
VDD = 30 V, ID = 26 A,
RG = 4.7 Ω, VGS = 10 V
Turn-off delay time
Fall time
Table 7: Source-drain diode
Symbol
(1)
VSD
Parameter
Test conditions
Forward on voltage
ISD =26 A, VGS = 0 V
trr
Reverse recovery time
Qrr
Reverse recovery charge
IRRM
Reverse recovery current
ID = 26 A, di/dt = 100 A/µs
VDD = 48 V
Notes:
(1)
4/14
Pulsed: pulse duration = 300 µs, duty cycle 1.5%
DocID027519 Rev 3
Min.
Typ.
-
Max.
Unit
1.2
V
-
50
ns
-
56
nC
-
2.2
A
STL130N6F7
2.1
Electrical characteristics
Electrical characteristics (curves)
Figure 3: Thermal impedance
Figure 2: Safe operating area
GIPD110520151416FSR
ID
(A)
100
is
ea
ar on)
is RDS(
h
t
in ax
n
m
tio y
ra d b
e
p ite
O im
L
10µs
100µs
10
1ms
Tj < 175°C
Tc = 25°C
Single pulse
1
0.1
10ms
10
1
VDS(V)
Figure 5: Transfer characteristics
Figure 4: Output characteristics
ID
(A)
160
GIPD28042015 1144FSR
ID
(A)
GIPD28042015 1137FSR
VGS= 7, 8, 9, 10 V
VDS = 6 V
6V
150
5V
120
100
80
4V
50
40
0
0
3V
2
4
6
8
Figure 6: Gate charge vs gate-source
voltage
GIPD280420151205FSR
VGS
(V)
0
0
VDS(V)
4
6
8
VGS(V)
Figure 7: Static drain-source on-resistance
GIPD2804201512 11FSR
RDS(on)
(mΩ)
VDD = 30 V
ID = 26 A
12
2
VGS= 10V
3.20
10
3.12
8
3.04
6
4
2.96
2
0
0
10
20
30
40
50
Qg(nC)
DocID027519 Rev 3
2.88
5
10
15
20
25
ID(A)
5/14
Electrical characteristics
STL130N6F7
Figure 9: Normalized gate threshold voltage vs
temperature
Figure 8: Capacitance variations
GIPD280420151219FSR
C
(pF)
f= 1MHz
10000
Ciss
1000
Coss
100
Crss
10
0.1
1
10
VDS(V)
Figure 11: Normalized V(BR)DSS vs
temperature
Figure 10: Normalized on-resistance vs
temperature
GIPD280420151227FSR
RDS(on)
(norm)
2.2
GIPD280420151232FSR
V(BR)DSS
(norm)
ID= 1mA
1.04
VGS= 10V
ID= 13A
1.8
1.02
1.4
1.00
1.0
0.98
0.6
0.2
-75
-25
25
75
125
0.96
-75
175 Tj(°C)
-25
25
75
Figure 12: Source-drain diode forward characteristics
GIPD280420151236FSR
VSD
(V)
Tj= -55°C
0.9
0.8
Tj= 25°C
0.7
0.6
0.5
6/14
Tj= 175°C
5
10
15
20
DocID027519 Rev 3
25
ISD(A)
125
175 Tj(°C)
STL130N6F7
3
Test circuits
Test circuits
Figure 13: Switching times test circuit for resistive
load
Figure 14: Gate charge test circuit
Figure 15: Test circuit for inductive load switching
and diode recovery times
Figure 16: Unclamped inductive load test circuit
Figure 17: Unclamped inductive waveform
Figure 18: Switching time waveform
DocID027519 Rev 3
7/14
Package mechanical data
4
STL130N6F7
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
8/14
DocID027519 Rev 3
STL130N6F7
4.1
Package mechanical data
PowerFLAT™ 5x6 type C package information
Figure 19: PowerFLAT™ 5x6 type C package outline
DocID027519 Rev 3
9/14
Package mechanical data
STL130N6F7
Table 8: PowerFLAT™ 5x6 type C mechanical data
mm
Dim.
Min.
Typ.
Max.
A
0.80
1.00
A1
0.02
0.05
A2
b
0.25
0.30
D
0.50
5.20
E
6.15
D2
4.11
4.31
E2
3.50
3.70
e
1.27
e1
0.65
L
0.715
1.015
K
1.05
1.35
E3
2.35
2.55
E4
0.40
0.60
E5
0.08
0.28
Figure 20: PowerFLAT™ 5x6 recommended footprint (dimensions are in mm)
10/14
DocID027519 Rev 3
STL130N6F7
4.2
Package mechanical data
PowerFLAT™ 5x6 packing information
Figure 21: PowerFLAT™ 5x6 tape (dimensions are in mm)
Figure 22: PowerFLAT™ 5x6 package orientation in carrier tape
DocID027519 Rev 3
11/14
Package mechanical data
STL130N6F7
Figure 23: PowerFLAT™ 5x6 reel
12/14
DocID027519 Rev 3
STL130N6F7
5
Revision history
Revision history
Table 9: Document revision history
Date
Revision
Changes
17-Feb-2015
1
First release.
11-May-2015
2
Updated and Section 2: "Electrical characteristics"
Added Section 2.1: "Electrical characteristics (curves)"
Updated Section 4: "Package mechanical data"
Minor text changes.
30-Jun-2015
3
Document status promoted from preliminary to production data.
DocID027519 Rev 3
13/14
STL130N6F7
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
14/14
DocID027519 Rev 3
