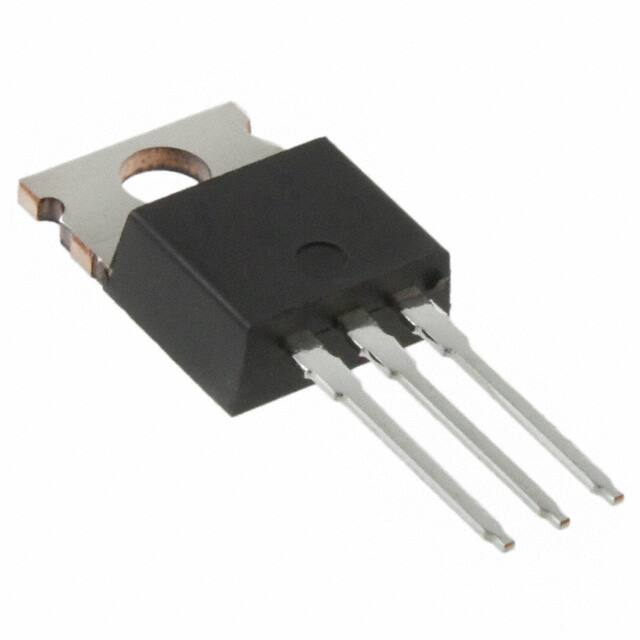

SQP100N04-3M6_GE3

SQP100N04-3m6 www.vishay.com Vishay Siliconix Automotive N-Channel 40 V (D-S) 175 °C MOSFET FEATURES PRODUCT SUMMARY VDS (V) • • • • • 40 RDS(on) () at VGS = 10 V 0.0036 ID (A) 100 Configuration Single Package TO-220 TrenchFET® power MOSFET Package with low thermal resistance AEC-Q101 qualified d 100 % Rg and UIS tested Material categorization:  for definitions of compliance please see www.vishay.com/doc?99912 TO-220AB D G Top View G D S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER Drain-Source Voltage SYMBOL VDS LIMIT 40 Gate-Source Voltage VGS ± 20 Continuous Drain Current TC = 25 °C a TC = 125 °C Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b L = 0.1 mH TC = 25 °C TC = 125 °C Operating Junction and Storage Temperature Range ID 74 100 IDM 400 IAS 60 EAS 180 TJ, Tstg V 100 IS PD UNIT 120 40 A mJ W -55 to +175 °C SYMBOL LIMIT UNIT RthJA 40 RthJC 1.25 THERMAL RESISTANCE RATINGS PARAMETER Junction-to-Ambient Junction-to-Case (Drain) PCB Mount c °C/W Notes a. Package limited. b. Pulse test; pulse width  300 μs, duty cycle  2 %. c. When mounted on 1" square PCB (FR-4 material). d. Parametric verification ongoing. S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 1 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com Vishay Siliconix SPECIFICATIONS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. VDS VGS = 0 V, ID = 250 μA 40 - - VGS(th) VDS = VGS, ID = 250 μA 2.5 3.0 3.5 VDS = 0 V, VGS = ± 20 V UNIT Static Drain-Source Breakdown Voltage Gate-Source Threshold Voltage Gate-Source Leakage Zero Gate Voltage Drain Current On-State Drain Current a Drain-Source On-State Resistance a Forward Transconductance b IGSS IDSS ID(on) RDS(on) gfs - - ± 100 VGS = 0 V VDS = 40 V - - 1 VGS = 0 V VDS = 40 V, TJ = 125 °C - - 50 VGS = 0 V VDS = 40 V, TJ = 175 °C - - 250 VGS = 10 V VDS5 V 50 - - VGS = 10 V ID = 30 A - 0.0030 0.0036 VGS = 10 V ID = 30 A, TJ = 125 °C - - 0.0060 VGS = 10 V ID = 30 A, TJ = 175 °C - - 0.0072 - 200 - - 5700 7200 VDS = 15 V, ID = 30 A V nA μA A  S Dynamic b Input Capacitance Ciss Output Capacitance Coss - 600 750 Reverse Transfer Capacitance Crss - 264 330 Total Gate Charge c Qg - 90 135 Gate-Source Charge c Gate-Drain Charge c Gate Resistance Turn-On Delay Time c Rise Time c Turn-Off Delay Time c Fall Time c Qgs VGS = 0 V VGS = 10 V VDS = 25 V, f = 1 MHz VDS = 20 V, ID = 50 A - 25 - - 15 - f = 1 MHz 0.7 1.5 2.8 - 12 18 VDD = 20 V, RL = 0.4  ID  50 A, VGEN = 10 V, Rg = 1  - 10 15 - 35 53 - 9 14 - - 400 A - 0.9 1.5 V Qgd Rg td(on) tr td(off) pF tf nC  ns Source-Drain Diode Ratings and Characteristics b Pulsed Current a ISM Forward Voltage VSD IF = 70 A, VGS = 0 V Notes a. Pulse test; pulse width  300 μs, duty cycle  2 %. b. Guaranteed by design, not subject to production testing. c. Independent of operating temperature.     Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 2 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 100 100 V GS = 10 V thru 5 V 80 ID - Drain Current (A) ID - Drain Current (A) 80 60 40 V GS = 4 V 20 60 40 T C = 25 °C 20 T C = 125 °C T C = - 55 °C 0 0 0 3 6 9 12 0 15 2 4 6 8 VDS - Drain-to-Source Voltage (V) VGS - Gate-to-Source Voltage (V) Output Characteristics Transfer Characteristics 350 10 0.010 TC = - 55 °C TC = 25 °C 0.008 RDS(on) - On-Resistance (Ω) gfs - Transconductance (S) 280 210 TC = 125 °C 140 70 0.006 0.004 VGS = 10 V 0.002 0 0.000 0 14 28 42 56 70 ID - Drain Current (A) 0 40 60 ID - Drain Current (A) Transconductance On-Resistance vs. Drain Current 80 100 10 VGS - Gate-to-Source Voltage (V) 8000 Ciss C - Capacitance (pF) 20 6000 4000 2000 Coss ID = 50 A VDS = 20 V 8 6 4 2 Crss 0 0 0 8 16 24 32 VDS - Drain-to-Source Voltage (V) Capacitance S15-2651-Rev. B, 16-Nov-15 40 0 20 40 60 80 100 Q g - Total Gate Charge (nC) Gate Charge Document Number: 63547 3 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) 100 V GS = 10 V ID = 20 A 1.7 10 IS - Source Current (A) RDS(on) - On-Resistance (Normalized) 2.0 V GS = 6 V 1.4 1.1 0.8 T J = 150 °C 1 T J = 25 °C 0.1 0.01 0.5 0.001 -50 -25 0 25 50 75 100 125 150 175 0 0.2 On-Resistance vs. Junction Temperature 0.6 0.8 1.0 1.2 Source Drain Diode Forward Voltage 0.025 0.7 0.020 0.2 VGS(th) Variance (V) RDS(on) - On-Resistance (Ω) 0.4 VSD - Source-to-Drain Voltage (V) TJ - Junction Temperature (°C) 0.015 0.010 -0.3 ID = 250 μA -0.8 ID = 5 mA TJ = 150 °C -1.3 0.005 TJ = 25 °C 0.000 0 2 4 6 8 10 -1.8 -50 -25 0 25 50 75 100 125 150 175 TJ - Temperature (°C) VGS - Gate-to-Source Voltage (V) On-Resistance vs. Gate-to-Source Voltage Threshold Voltage VDS - Drain-to-Source Voltage (V) 54 ID = 10 mA 52 50 48 46 44 42 -50 -25 0 25 50 75 100 125 TJ - Junction Temperature (°C) 150 175 Drain Source Breakdown vs. Junction Temperature S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 4 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com Vishay Siliconix THERMAL RATINGS (TA = 25 °C, unless otherwise noted) 1000 IDM Limited ID - Drain Current (A) 100 100 μs 1 ms ID Limited 10 10 ms 100 ms, 1 s,10 s, DC 1 Limited by RDS(on)* BVDSS Limited 0.1 TC = 25 °C Single Pulse 0.01 0.01 0.1 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified Safe Operating Area Normalized Effective Transient Thermal Impedance 1 0.1 0.01 0.001 0.0001 10-4 10-3 10-2 10-1 1 10 100 1000 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Ambient S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 5 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com Vishay Siliconix THERMAL RATINGS (TA = 25 °C, unless otherwise noted) 2 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10- 5 10- 4 10- 3 10- 2 Square Wave Pulse Duration (sec) 10- 1 1 3 Normalized Thermal Transient Impedance, Junction-to-Case Note • The characteristics shown in the two graphs - Normalized Transient Thermal Impedance Junction-to-Ambient (25 °C) - Normalized Transient Thermal Impedance Junction-to-Case (25 °C) are given for general guidelines only to enable the user to get a “ball park” indication of part capabilities. The data are extracted from single pulse transient thermal impedance characteristics which are developed from empirical measurements. The latter is valid for the part mounted on printed circuit board - FR4, size 1" x 1" x 0.062", double sided with 2 oz. copper, 100 % on both sides. The part capabilities can widely vary depending on actual application parameters and operating conditions.                                    Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?63547. S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 6 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQP100N04-3m6 www.vishay.com REVISION HISTORY REVISION B DATE 04-Nov-15 Vishay Siliconix a DESCRIPTION OF CHANGE • Changed capacitance, gate charge, gate resistance, and rise time Note a. As of Apr 2014 S15-2651-Rev. B, 16-Nov-15 Document Number: 63547 7 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix TO-220AB MILLIMETERS A E F D H(1) Q ØP 3 2 L(1) 1 M* L b(1) INCHES DIM. MIN. MAX. MIN. MAX. A 4.25 4.65 0.167 0.183 b 0.69 1.01 0.027 0.040 b(1) 1.20 1.73 0.047 0.068 c 0.36 0.61 0.014 0.024 D 14.85 15.49 0.585 0.610 D2 12.19 12.70 0.480 0.500 E 10.04 10.51 0.395 0.414 e 2.41 2.67 0.095 0.105 e(1) 4.88 5.28 0.192 0.208 F 1.14 1.40 0.045 0.055 H(1) 6.09 6.48 0.240 0.255 0.115 J(1) 2.41 2.92 0.095 L 13.35 14.02 0.526 0.552 L(1) 3.32 3.82 0.131 0.150 ØP 3.54 3.94 0.139 0.155 Q 2.60 3.00 0.102 0.118 ECN: T14-0413-Rev. P, 16-Jun-14 DWG: 5471 Note * M = 1.32 mm to 1.62 mm (dimension including protrusion) Heatsink hole for HVM C b e J(1) e(1) D2 Document Number: 71195 1 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Revison: 16-Jun-14 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
