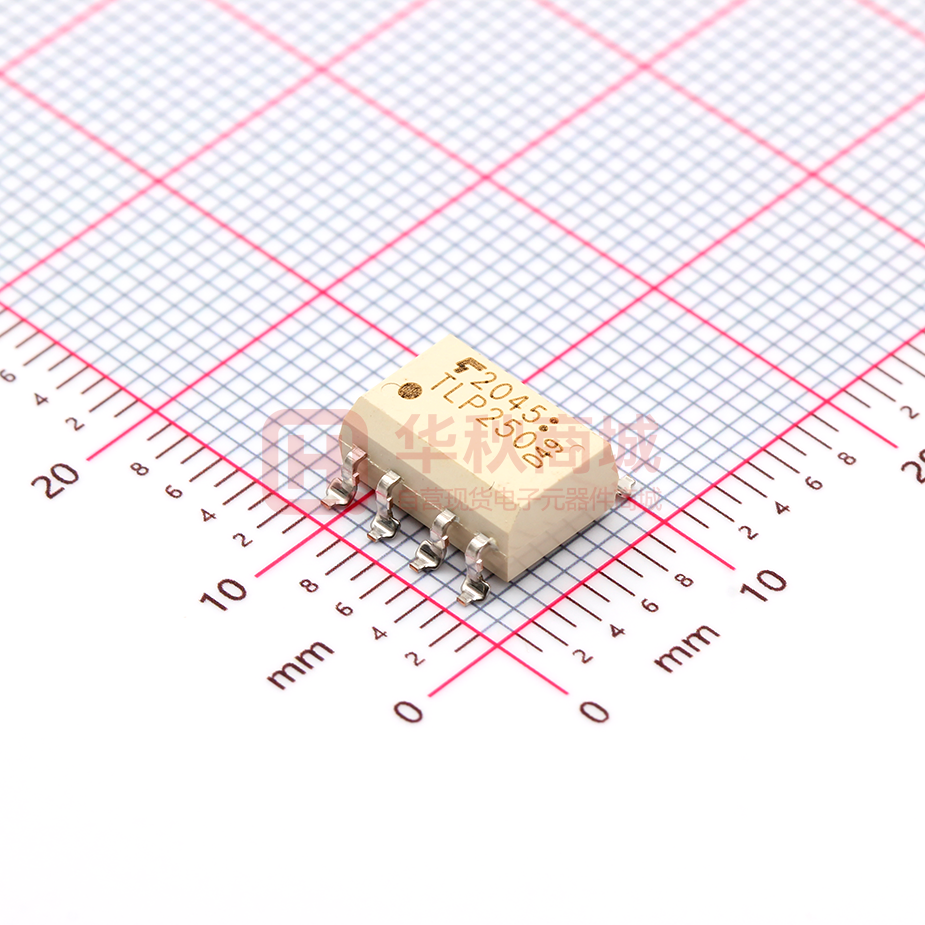

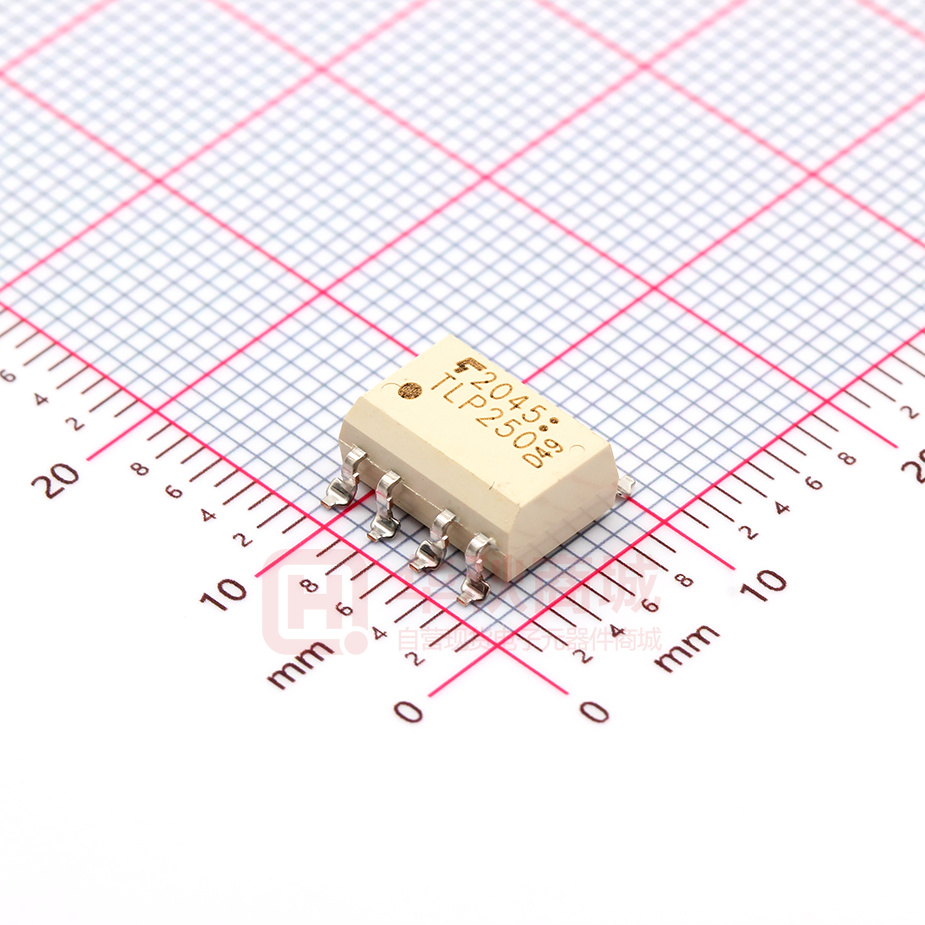

TLP250(TP1,F)

TLP250 TOSHIBA Photocoupler IRED & Photo-IC TLP250 Industrial Inverter Inverter For Air Conditioner IGBT Gate Drive Power MOS FET Gate Drive Unit: mm The TOSHIBA TLP250 consists of an infrared emitting diode and a integrated photodetector. This unit is 8-lead DIP package. TLP250 is suitable for gate driving circuit of IGBT or power MOS FET. • Input threshold current: 5mA(max) • Supply current : 11mA(max) • Supply voltage : 10-35V • Output current : ±1.5A (max) • Switching time tpLH/tpHL): 0.5μs(max) • Isolation voltage: 2500Vrms(min) • UL-recognized: UL 1577, File No.E67349 • cUL-recognized: CSA Component Acceptance Service No.5A TOSHIBA 11-10C4S Weight: 0.54 g (typ.) File No.E67349 • VDE-Approved: EN 60747-5- 5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option(D4). Truth Table Input LED Tr1 Tr2 On On Off Off Off On Schmatic IF Pin Configuration (top view) I CC (Tr 1) 2+ 8 7 VF 3IO (Tr 2) A 0.1μF bypass capcitor must be connected between pin 8 and 5 (See Note 5). 6 5 1 8 2 7 3 6 4 5 VCC VO 1 : N.C. 2 : Anode 3 : Cathode 4 : N.C. VO 5 : GND 6 : V O (Output) 7 : VO 8 : VCC GND Start of commercial production 1990-11 © 2019 Toshiba Electronic Devices & Storage Corporation 1 2019-06-17 TLP250 Absolute Maximum Ratings (Ta = 25°C) Characteristic Forward current Forward current derating (Ta ≥ 70°C) LED Peak transient forward curent (Note 1) Rating Unit IF 20 mA ΔIF / ΔTa -0.36 mA / °C IFPT 1 A Reverse voltage VR 5 V Diode power dissipation PD 40 mW △PD /°C -0.72 mW / °C Tj 125 °C (Note 2) IOPH -1.5 A (Note 2) IOPL +1.5 A Diode power dissipation derating (Ta≥70°C) Junction temperature “H”peak output current (PW ≤ 2.5μs,f ≤ 15kHz) “L”peak output current (PW ≤ 2.5μs,f ≤ 15kHz) (Ta ≤ 70°C) Output voltage Detector Symbol (Ta ≤ 85°C) (Ta ≤ 70°C) Supply voltage (Ta ≤ 85°C) 35 VO 24 VCC 35 24 V V Output voltage derating (Ta ≥ 70°C) ΔVO / ΔTa -0.73 V / °C Supply voltage derating (Ta ≥ 70°C) ΔVCC / ΔTa -0.73 V / °C PC 800 mW ΔPC / °C -14.5 mW / °C Tj 125 °C f 25 kHz Power dissipation Power dissipation derating (Ta ≥ 70°C) Junction temperature Operating frequency (Note 3) Operating temperature range Topr -20 to 85 °C Storage temperature range Tstg -55 to 125 °C Lead soldering temperature (10 s) Isolation voltage (AC, 60 s., R.H.≤ 60 %) (Note 4) Tsol 260 °C BVS 2500 Vrms Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: Pulse width PW ≤ 1 μs, 300 pps Note 2: Exporenential wavefom Note 3: Exporenential wavefom, IOPH ≤ -1.0 A( ≤ 2.5 μs), IOPL ≤ +1.0 A( ≤ 2.5 μs) Note 4: Device considerd a two terminal device: Pins 1, 2, 3 and 4 shorted together, and pins 5, 6, 7 and 8 shorted together. Recommended Operating Conditions Symbol Min Typ. Max Unit Input current, on Characteristic IF(ON) 7 8 10 mA Input voltage, off VF(OFF) 0 ― 0.8 V VCC 15 ― 30 V IOPH/IOPL ― ― ±0.5 A Topr -20 25 85 °C Supply voltage Peak output current Operating temperature Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the device. Additionally, each item is an independent guideline respectively. In developing designs using this product, please confirm specified characteristics shown in this document. Note : A ceramic capacitor(0.1 μF) should be connected from pin 8 to pin 5 to stabilize the operation of the high gain linear amplifier. Failure to provide the bypassing may impair the switching proparty. The total lead length between capacitor and coupler should not exceed 1 cm. Note : Input signal rise time(fall time) 0 V ― 1.2 5 mA Threshold input voltage “Output H→L” VFHL ― VCC1 = +15 V, VEE1 = -15 V RL = 200 Ω, VO < 0 V 0.8 ― ― V VCC ― － 10 ― 35 V Capacitance (input-output) CS ― VS = 0 V, f = 1 MHz Ta = 25 °C ― 1.0 2.0 pF Resistance(input-output) RS ― VS = 500 V , Ta = 25 °C R.H.≤ 60 % 1×1012 1014 ― Ω Supply voltage * All typical values are at Ta = 25°C Note 1: Duration of IO time ≤ 50μs © 2019 Toshiba Electronic Devices & Storage Corporation 3 2019-06-17 TLP250 Switching Characteristics (Ta = -20 to 70°C, unless otherwise specified) Characteristic Propagation delay time Symbol L→H tpLH H→L tpHL Common mode transient immunity at high level output CMH Common mode transient immunity at low level output CML Test Circuit Test Condition Min Typ. Max 5 IF = 8 mA VCC1 = +15 V, VEE1 = -15 V RL = 200 Ω ― 0.15 0.5 ― 0.15 0.5 VCM = 600 V, IF = 8 mA VCC = 30 V, Ta = 25 °C -5000 ― ― V / μs VCM = 600 V, IF = 0 mA VCC = 30 V, Ta = 25 °C 5000 ― ― V / μs Unit μs 6 Note: All typical values are at Ta = 25°C Test Circuit 1 : IOPH 1 Test Circuit 2 : IOPL 8 1 8 VCC 0.1μF 0.1μF V8-6 IF IOPH 4 8 1 VCC1 8 VCC1 0.1μF VF RL 4 V6-5 Test Circuit 4 : VOL 0.1μF IF IOPL 4 Test Circuit 3 : VOH 1 VCC A A RL V VOH V 4 VEE1 VEE1 © 2019 Toshiba Electronic Devices & Storage Corporation VOL 4 2019-06-17 TLP250 Test Circuit 5: tpLH, tpHL, tr tf 8 IF IF 0.1μF tr tf VCC1 VOH VO RL VO GND VOL tpLH 100Ω 80% 80% tpHL VEE1 Test Circuit 6: CMH, CML 8 1 SW IF A 0.1μF VCC B VO 4 VCM + VCM - 600V 90% 10% tf tr CML = 480 (V) tr (μs) SW: A(IF=8mA) CMH VO 3V 26V SW: B(IF=0) CMH = 480 (V) tf (μs) CHL CML(CMH) is the maximum rate of rise (fall) of the common mode voltage that can be sustained with the output voltage in the low (high) state. © 2019 Toshiba Electronic Devices & Storage Corporation 5 2019-06-17 TLP250 I F – VF (mA) 50 30 ΔVF / ΔTa – IF -2.6 Ta = 25 °C Forward voltage temperature coefficient ΔVF / ΔTa (mV / °C) 100 10 Forward current IF 5 3 1 0.5 0.3 0.1 0.05 0.03 0.01 1.0 1.4 1.2 1.8 1.6 Forward voltage VF -2.4 -2.2 -2.0 -1.8 -1.6 -1.4 0.1 2.0 0.3 0.5 (V) 1 Forward current IF – Ta 3 5 IF (mA) 10 30 VCC – Ta 40 30 Allowable supply voltage VCC Allowable forward current IF (mA) (V) 40 20 10 0 0 20 40 60 80 30 20 10 0 100 Ambient temperature Ta (°C) 0 20 40 60 80 100 Ambient temperature Ta (°C) IOPH, IOPL – Ta Allowable peak output current IOPH, IOPL (A) PW ≤ 2.5 μs, f ≤ 15 KHz 2 1 0 0 20 40 60 80 100 Ambient Temperature Ta (°C) NOTE: The above characteristics curves are presented for reference only and not guaranteed by production test, unless otherwise noted. © 2019 Toshiba Electronic Devices & Storage Corporation 6 2019-06-17 TLP250 RESTRICTIONS ON PRODUCT USE Toshiba Corporation and its subsidiaries and affiliates are collectively referred to as “TOSHIBA”. Hardware, software and systems described in this document are collectively referred to as “Product”. • TOSHIBA reserves the right to make changes to the information in this document and related Product without notice. • This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's written permission, reproduction is permissible only if reproduction is without alteration/omission. • Though TOSHIBA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS. • PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, lifesaving and/or life supporting medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, and devices related to power plant. IF YOU USE PRODUCT FOR UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your TOSHIBA sales representative or contact us via our website. • Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part. • Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations. • The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise. • ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT. • GaAs (Gallium Arsenide) is used in Product. GaAs is harmful to humans if consumed or absorbed, whether in the form of dust or vapor. Handle with care and do not break, cut, crush, grind, dissolve chemically or otherwise expose GaAs in Product. • Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations. • Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. https://toshiba.semicon-storage.com/ © 2019 Toshiba Electronic Devices & Storage Corporation 7 2019-06-17
