AV series
Anti-vandal and security pushbutton switches
Distinctive features
❑ Attractive, robust and durable
UG1410A
• Irremovable
• Anti-jamming construction : reduced travel to prevent insertion of foreign parts
• Contact and mechanism protected against crushing
• Fire resistant
• Long life
❑ Different bushing sizes and actuator shapes
❑ Sealed versions
❑ Degree of protection of sealed versions (switches mounted on
vertical panels) : IP65 to IP67 or IP69K depending on models
B2
❑ UL/CSA approved models
The AV series is a large range of very robust pushbutton switches, consisting of 2 families :
ANTI-VANDAL PUSHBUTTON SWITCHES (pages 77-79)
• Great robustness (impact resistance IK08 (Ø 19 mm) and IK10 (Ø 22 mm)
• Actuator and bushing : stainless steel
• Bushing Ø 19 mm (.748) or 22 mm (.866
SECURITY PUSHBUTTON SWITCHES (pages 80-106)
• Large variety of models
• Actuator and bushing : nickel plated, chrome plated or polished varnished brass, stainless steel
• Bushing diameter 16 mm (.629), 19 mm (.748), 22 mm (.866) or 24 mm (.944)
• Marking, illumination, tactile feedback
• Numerous electrical functions (momentary or maintained)
EXAMPLES OF MOUNTING FOR SEALED VERSIONS
Preferred
For thin panels
➞
Gasket
With boot U2187 (sect. H)
Dimensions : first dimensions are in mm while inches are shown as bracketed numbers.
Packaging unit : specified on the following pages.
Mounting accessories : Standard and special hardware are presented in section I.
Sealing boots are available for models with Ø 19 mm (.748) bushing. See Section H.
The company reserves the right to change specifications without notice.
B2-76
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page77
AV series
Anti-vandal pushbutton switches
Distinctive features and specifications
❑ Very robust
Impact resistance IK08 for model Ø 19 mm (.748)
and IK10 for model Ø 22 mm (.866)
❑ Stainless steel actuator and bushing
❑ UL-CSA approved (long case only)
B2
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- A contacts : 4A 12VDC, 500.000 cycles
- C contacts : 2A 48 VDC, 10.000 cycles
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
2.000 Vrms 50 Hz min. between terminals
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 11 mm (.433) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Hand soldering : 300°C, 3 sec. max.
• Packaging unit : 20 pieces (models Ø 22) or 40 pieces (models Ø 19)
ROBUSTNESS
Model Ø 19 mm (.748)
Degree of protection
according to
EN 50102, June 95
(NFC 20-015)
1.7 Kg
29.5 cm
Hammer radius 25 mm
CUT-OUT
• Panel cut-out :
Ø 19,2 mm (.755)
or Ø 22,2 mm (.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
SEALING
Model Ø 22 mm (.866)
5 Kg
IK08
Striking energy:
5 joules
(5Nm)
• Case : PBT
• Contacts : silver (A)
or brass, silver plated (C)
• Bushing : stainless steel
• Actuator : stainless steel
40 cm
Hammer radius 50 mm
( OPTION T )
2
IK10
Striking energy:
20 joules
(20Nm)
Increased impact resistance provided by a nut or mechanical stop.
1
Front panel sealing (IP65)
➀ internal gasket ➁ external gasket
Option N does not include ➀ nor ➁.
APEM
www.apem.com
B2-77
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page78
AV series
Anti-vandal pushbutton switches Ø 19 mm (.748)
Momentary (NO)
ORDER FORMAT
AV
3
SERIES
NO
(function 3)
Case
000 Long
100 Short
Function
3 NO
A
C
Contacts
Silver
Brass,
silver pl.
Terminals
9 Screw
2 Quickconnect
Bush./act.
material
40 Stainless
steel
N
T
Sealing
No
Sealed
In the following model numbers, replace • with elements selected in the above order format.
Hex nut 22 (.866) across flats
7.30
(.287)
5.00
(.196)
ø22.00
(.866DIA)
2.80
(.110)
2.80x0.5
(.110x.019)
ø15.00
(.590DIA)
Solder lug /
quick-connect term.
AV091003•240•
ø19.00x1.00 SI
(.748DIAx1.00 IS)
ø22.00
(.866DIA)
Screw terminals
AV091003•940•
3.00
(.118)
1.20
(.047)
Flat actuator - short case - 48VDC - AV09100
Screw terminals for wires 1,5 mm2 max.
9.50
(.374)
2.00
(.078)
6.50
(.255)
3.00
(.118)
EPOXY
Hex nut 22 (.866) across flats
Flat actuator - long case - 4A 250VAC/8A125VAC - UL/CSA - AV09000
3.00
(.118)
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
Ø22.00
(.866DIA)
Ø22.00
(.866DIA)
Screw terminals
AV090003A940•
Ø15.00
(.590DIA)
5.00
(.196)
To order switches marked UL-CSA, add
“UU”at the end of model number.
2.00
(.078)
Screw terminals for wires 1,5 mm2 max.

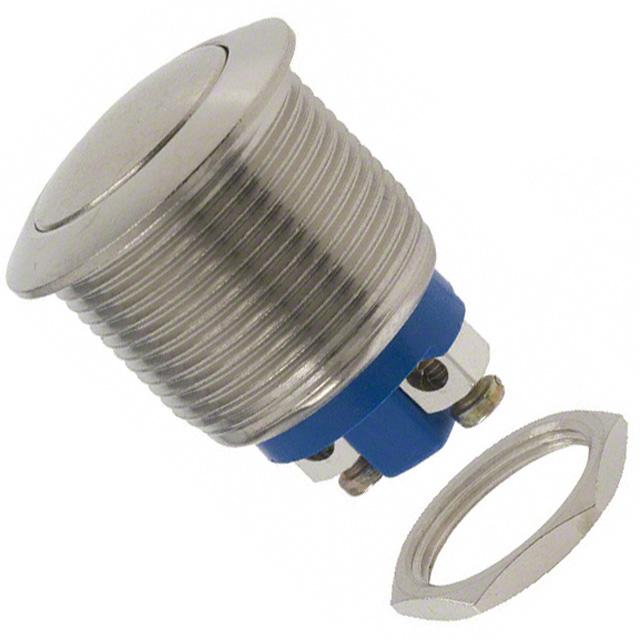

Curved actuator - AV19
Ø22.00
(.866DIA)
Ø22.00
(.866DIA)
Screw terminals
AV19•003•940•
Solder lug/quick-connect term. (short case)
AV191003•240•
B2-78
7.20
(.283)
Flush model - AV9D
Ø22.20 Mini
(.874DIA Min.)
1.30 Mini
(.051 Min.)
1.20
(.047)
Ø15.00
(.590DIA)
6.50
(.255)
11.60
(.456)
2.00
(.078)
3.60
(.141)
B2
Actuator type
09 Flat
19 Curved
9D Flush
40
Screw terminals
AV9D•003•940•
Solder lug / quick-connect terminals (short case only)
AV9D1003•240•
www.apem.com
Ø19.20
(.755DIA)
Panel cut-out
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page79
AV series
Anti-vandal pushbutton switches Ø 22 mm (.866)
Momentary (NO)
ORDER FORMAT
AV
3
SERIES
NO
(function 3)
40
Bushing/act.
Case
Function
configuration 000 Long 3 NO
03 Flat act.
100 Short
02 Curved act.
M3 Flat act +
flatted bush.
M2 Curved act.+
flatted bush.
A
C
Contacts
Silver
Brass,
silver pl.
Terminals
9 Screw
2 Quickconnect
Bush./act.
material
40 Stainless
steel
N
T
Sealing
No
Sealed
B2
In the following model numbers, replace • with elements selected in the above order format.
Hex nut 25 (.984) across flats
Flat actuator - short case - 48VDC - AV03100
ø22.00x1.00 SI
(.866DIAx1.00 IS)
2.00
(.078)
1.20
(.047)
2.80
(.110)
Solder lug /
quick-connect term.
AV031003•240•
12.70
(.500)
Screw terminals for wires 1,5 mm max.
2
6.30
(.248)
2.80x0.5
(.110x.019)
ø15.00
(.59DIA)
ø25.00
(.984DIA)
Screw terminals
AV031003•940•
7.30
(.287)
3.00
(.118)
EPOXY
5.00
(.196)
Hex nut 25 (.984) across flats
Flat actuator - long case - 4A 250VAC/8A125VAC - UL/CSA - AV03000
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
2.00
(.078)
Ø15.00
(.59DIA)
Ø25.00
(.984DIA)
Screw terminals
AV030003A940•
3.00
(.118)
To order switches marked UL-CSA, add
“UU” at the end of model number.
15.00
(.590)
Screw terminals for wires 1,5 mm2 max.
Curved actuator - AV02
Ø15.00
(.590DIA)
Flatted bushing - AVM3 and AVM2
Ø15.00
(.590DIA)
Screw terminals
AV02•003•940•
Solder lug / quick-connect (short case)
AV021003•240•
APEM
5.00
(.196)
Ø25.00
(.984DIA)
2.00
(.078)
3.60
(.141)
Ø25.00
(.984DIA)
10.00
(.248)
Flat actuator, screw terminals
AVM3•003•940•
Curved actuator, screw terminals
AVM2•003•940•
www.apem.com
Ø22.20
(.874DIA)
10.00
(.393 )
Panel cut-out
B2-79
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page80
AV series
Snap action security pushbutton switches Ø 16 mm (.629)
Momentary (NO)
ORDER FORMAT
AV
3
Bushing/act. configur.
Function
3 NO
SERIES 06 Flat actuator
16
08
07
6P
6B
NO
(function 3)
Curved actuator
Curved act.+chamfer
Flat act.+chamfer
Flat act.+knurled nut
Curved act.+knurled nut
0
0
Case
Short
C
9
OPTIONS
Contacts
C Brass,
silver pl.
Terminals
9 Screw
See “Options”
page.
SPECIFICATIONS
• Travel : 1,60 mm (.063) ± 0,3 mm (.011)
• Max. current/voltage rating with resistive load :
200mA 48 VDC - 100mA 48VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 50.000 cycles at 200mA 48VDC
100.000 cycles at 100mA 48VDC
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Packaging unit : 60 pieces
• Case : PBT
• Contacts : brass, silver plated (C)
• Bushing and actuator : see
“Options” page
CUT-OUT
• Panel cut-out : Ø 16,2 mm
(.637)
• Min. pitch for matrix mounting :
24 mm x 24 mm (.944 x .944)
(AV6P & AV6B : 20 mm x 20 mm)
To order a product, select a basic model below and add the desired options.
BASIC MODEL
Hex nut 19 (.748) across flats
Flat or curved actuator - screw terminals
Curved actuator
AV1630C9
Ø12.00
(.472DIA)
Ø18.00
(.708DIA)
Flat actuator
AV0630C9
Ø16.00X1.00 SI
(.629DIAX1.00 IS)
3.00
(.118)
3.00
(.118)
1.50
(.059)
11.20
(.440)
9.50
(.374)
Screw terminals for wires 1,5 mm2 max.
With knurled nut for matrix mounting 20 x 20 - AV6P and AV6B
Ø18.00
(.708DIA)
Ø18.00
(.708DIA)
Ø12.00
(.472DIA)
Ø12.00
(.472DIA)
Ø18.00
(.708DIA)
Ø18.00
(.708DIA)
20.00
(.787)
20.00
(.787)
20.00
(.787)
2.00
(.078)
With chamfer
1.50
(.059)
B2
MATERIALS
Curved actuator
AV0830C9
B2-80
Flat actuator
AV0730C9
Flat actuator
AV6P30C9
www.apem.com
Curved actuator
AV6B30C9
Wrench available
under P/N U1990.
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page81
AV series
Security pushbutton switches Ø 16 mm (.629)
Latching action
ORDER FORMAT
AV
1
Actuator
06 Flat
16 Curved
SERIES
ON
OFF
1
1
Function
Off-On
1
A
Case
Long
OPTIONS
Contacts
A Silver
See “Options”
page.
Terminals
2 Solder
4 PC
8 Quickconnect
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load : 1A 24VDC
• Initial contact resistance : 50mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.500 Vrms 50 Hz min. between terminals
1 000 Vrms 50 Hz between terminals and frame
• Electrical life : 40.000 cycles
• Torque : 5 Nm min. - 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 200.000 cycles
• Hand soldering : 300°C, 5 sec. max.
• Packaging unit : 25 pieces
• Case : PA-6T, UL94-V0
• Contacts : silver (A)
Gold plated silver (AD) on request
• Bushing and actuator : see
“Options” page
CUT-OUT
• Panel cut-out : Ø 16,2 mm (.637)
• Min. pitch for matrix mounting :
24 mm x 24 mm (.944 x .944)
To order a product, select a basic model below and add the desired options.
BASIC MODEL
Hex nut 19 (.748) across flats
Flat or curved actuator - solder lug terminals
3.40
(.133)
OFF
-
ON
Ø16.00X1.00 SI
(.629DIAX1.00 IS)
Curved actuator
AV1611A2
1.40
(.055)
ON
2.30
(.090)
Ø12.00
(.472DIA)
-
Ø18.00
(.708DIA)
OFF
3.00
(.118)
Ø12.00
(.472DIA)
Flat actuator
AV0611A2
Ø18.00
(.708DIA)
3.00
(.118)
EPOXY
1.50
(.059)
15.20
(.598)
Quick-connect terminals
5.08
(.200)
EPOXY
EPOXY
1.10
(.043)
0.50
(.019)
1.20
(.047)
2.40
(.094)
0.50
(.019)
8.00
(.314)
3.50
(.137)
Straight PC terminals
9.00
(.354)
2.80
(.047)
Flat actuator
AV0611A4
APEM
Curved actuator
AV1611A4
Flat actuator
AV0611A8
Curved actuator
AV1611A8
www.apem.com
B2-81
B2
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page82
AV series
Security pushbutton switches Ø 16 mm (.629)
Options
After selecting basic model number,
fill in last 2 boxes
with desired options.
Bushing/act.
material
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
Flat or curved metal actuator
CODE
BUSHING
ACTUATOR
00 (standard)
10
40
Nickel plated brass
Nickel plated brass
Stainless steel
Nickel plated brass
Stainless steel
Stainless steel
B2
SEALING
Blank
No sealing
K
Front panel sealing (IP65)
B2-82
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page83
AV series
Security pushbutton switches Ø 19 mm (.748)
Momentary (NO)
ORDER FORMAT
AV
3
SERIES
09
19
9P
9B
NO
(function 3)
Bushing/act. config.
Case
Flat actuator
000 Long
Curved actuator
100 Short
Flat act., knurled nut
Curved act., knurled nut
Function
3 NO
OPTIONS
A
C
Contacts
Terminals See “Options”
page.
Silver
9 Screw
Brass
2 Quicksilver pl.
connect
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- A contacts : 4A 12VDC, 500.000 cycles
- C contacts : 2A 48 VDC, 10.000 cycles
• Approved ratings of models with long case and A contacts (AV..000) :
UL-CSA : 4A 250VAC - 8A 125VAC - 6.000 cycles
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
2.000 Vrms 50 Hz min. between terminals
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 11 mm (.433) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Hand soldering : 300°C, 3 sec. max.
• Packaging unit : 40 pieces
• Case : PBT
• Contacts : silver (A)
or brass, silver plated (C)
• Bushing and actuator : see
“Options” page
B2
CUT-OUT
• Panel cut-out : Ø 19,2 mm
(.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
(AV9P & AV9B : 25 mm x 25 mm)
To order a product, select a basic model below and add the desired options.
BASIC MODEL
Hex nut 22 (.866) across flats
Flat actuator - short case - 48VDC - AV09100
Solder lug /
quick-connect term.
AV091003•2
Screw terminals for wires 1,5 mm2 max.
2.80
(.110)
13.50
(.531)
5.50
(.216)
2.80x0.5
(.110x.019)
ø15.00
(.590DIA)
ø22.00
(.866DIA)
Screw terminals
AV091003•9
7.30
(.287)
3.00
(.118)
1.20
(.047)
2.00
(.078)
ø19.00x1.00 SI
(.748DIAx1.00 IS)
5.00
(.196)
EPOXY
Contacts : remplace • with A (silver) or C (silver plated brass).
Screw terminals
AV191003•9
Solder lug / quick-connect terminals
AV191003•2
APEM
With knurled nut for matrix mounting 25 x 25 - AV9P and AV9B
Ø22.00
(.866DIA)
Ø22.00
(.866DIA)
Ø15.00
(.590DIA)
25.00
(.984)
Flat actuator, screw terminals
AV9P1003•9
Flat actuator, solder lug term.
AV9P1003•2
Curved actuator, screw terminals
AV9B1003•9
Curved actuator, solder lug term.
AV9B1003•2
www.apem.com
25.00
(.984)
25.00
(.984)
Ø15.00
(.590DIA)
4.50
(.177)
Ø15.00
(.590DIA)
2.00
(.078)
3.60
(.141)
Ø22.00
(.866DIA)
4.50
(.177)
Curved actuator - short case
Wrench available
under P/N U1929
B2-83
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page84
AV series
Security pushbutton switches Ø 19 mm (.748)
Momentary (NO)
Hex nut 22 (.866) across flats
Flat actuator - long case - 4A 250VAC/8A 125VAC - UL/CSA - AV09000
3.00
(.118)
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
Ø22.00
(.866DIA)
Screw terminals
AV090003A9
Ø15.00
(.590DIA)
5.00
(.196)
To order switches marked UL-CSA, add
“UU” at the end of model number.
2.00
(.078)
14.80
(.582)
10.50
(.413)
Screw terminals for wires 1,5 mm2 max.
Screw terminals
AV190003A9
B2-84
With knurled nut for matrix mounting 25 x 25 - AV9P and AV9B
Ø22.00
(.866DIA)
Ø22.00
(.866DIA)
Ø15.00
(.590DIA)
25.00
(.984)
Ø15.00
(.590DIA)
Flat actuator, screw terminals
AV9P0003A9
www.apem.com
25.00
(.984)
25.00
(.984)
Ø15.00
(.590DIA)
2.00
(.078)
3.60
(.141)
Ø22.00
(.866DIA)
4.50
(.177)
Curved actuator - long case
4.50
(.177)
B2
Curved actuator, screw terminals
AV9B0003A9
Wrench available
under P/N U1929.
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page85
AV series
Security pushbutton switches Ø 19 mm (.748)
Options
After selecting basic model number,
fill in last 3 boxes
with desired options.
Bush./actuator
material
Marking
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
Flat or curved metal actuator
CODE
BUSHING
ACTUATOR
00 (standard)
10
12
20
30
40
80
Nickel plated brass
Nickel plated brass
Nickel plated brass
Chrome plated brass
Chrome plated brass
Stainless steel
Varnished polished brass
Nickel plated brass
Stainless steel
Chrome plated brass
Chrome plated brass
Stainless steel
Stainless steel
Varnished polished brass
CODE
BUSHING
ACTUATOR COLOUR
0• (standard)
2•
8•
Nickel plated brass
Chrome plated brass
Varnished polished brass
Replace • with one of the following codes.
B2
Flat thermoplastic actuator
Select an option from each of the two tables below.
MARKING
- By engraving on flat or curved
brass actuator (stainless steel on
request)
- by hot stamping on flat
thermoplastic actuator
Ø15.00
(0.590DIA)
8.00
(0.314)
1 : blue - 1/4 : dark blue - 2 : black - 3 : green
4 : grey - 5 : yellow - 6 : red - 7/1: white
9 : orange
1.50
(0.059)
TYPE OF MARKING
CODE
TYPE
0 to 9
X
Y
A to N
P to W
0
Numbers 0 to 9
Symbol *
Symbol #
Letters A to N
Letters P to W
Letter O
Letter O : same code and same design as
number 0.
For special symbols, consult factory.
Minimum order : 500 pieces
COLOUR OF MARKING
CODE
Brass actuator
0 (standard)
2
COLOUR
Same as finish
Black
Note : a finished product supplied in
version “0” cannot be modified to
version "2".
Thermoplastic actuator
2
Black
7
White
SEALING
Blank
No sealing
2
1
K
Frontal panel sealing (IP65)
APEM
➀ internal gasket
➁ external gasket
www.apem.com
B2-85
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page86
AV series
Security pushbutton switches Ø 19 mm (.748)
Momentary (NC/NO)
ORDER FORMAT
3
1
2
Series
Bushing
diameter
Bush./act.
config.
AV
19
L
Actuator
style
40
P
B
4
Bush./act. Contact/
matl
terminals
7
See below
Combined NC/NO
SPECIFICATIONS
• Max. current/voltage rating with resistive load :
5A 250VAC - 5A 125VAC - 6.000 cycles
5A 15VDC - 3A 30VDC - 50.000 cycles
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between term. and frame
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 9 mm (.354) max.
• Operating temperature : -20°C to +85°C
• Low level or mechanical life : 1.000.000 cycles
• Front panel sealing : IP65 and IP69K
• Packaging unit : 20 pieces
• Case : PA 6/6
• Contacts : silver
• Bushing : stainless steel (std)
• Actuator : stainless steel (std)
CUT-OUT
• Panel cut-out : Ø 19,2 mm (.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
All model numbers below are for switches with standard bushing/actuator material.
BASIC MODEL
Hex nut 22 (.866) across flats
➞ O-ring
Solder lug terminals - AV19..407
2.00
(.078)
3
1
2
Ø15.00
(.590)
Ø22.00
(.866DIA)
Curved actuator
AV19LB407
Ø15.00
(.590)
4
Flat actuator
AV19LP407
0.50
(.019)
Ø19.00X1.00 SI
(.748DIAX1.00 IS)
1.50
(.059)
2.00
(.078)
3.60
(.141)
Ø22.00
(.866DIA)
B2
MATERIALS
13.10
(.515)
BUSHING/ACTUATOR MATERIALS
3.60
(.141)
For non-standard material, replace 40 with one of the following codes.
CODE
BUSHING
ACTUATOR
00
20
Nickel plated brass
Chrome plated brass
Nickel plated brass
Chrome plated brass
B2-86
12.60
(.496)
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page87
AV series
Security pushbutton switches Ø 19 mm (.748)
With illuminated ring - momentary (NC/NO)
ORDER FORMAT
Options : see next page.
2
AV
9
SERIES
Bushing dia. 19 mm
0
1
2
4
LED colour
0 : no LED - 1 : blue - V : green
5 : yellow - 6 : red - 7 : white - 9 : amber
SPECIFICATIONS
• Case : polyamide, glass filled
• Contacts : silver
• Bushing : see next page
• Actuator : see next page
• Elastomeric membrane : silicone
• LED
B2
CUT-OUT
• Panel cut-out : Ø 19,2 mm (.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired LED
colour and voltage. Then select the
desired options on next page.
** Resistor value = supply voltage - LED forward voltage
LED forward current
Hex nut 22 (.866) across flats
Flat actuator - solder lug terminals
2.20
(.086)
NC
2.80x0.50
(.110x.019)
Ø22.00
(.866DIA)
+
-
-
3.00
(.118)
NO
Illuminated (select LED colour above) *
AV9•022
ON - MOM
ON
Terminals
2 Solder /
quick-connect
F Flying leads
C Cable
MATERIALS
• Travel : 2 mm ± 0,3 mm (.003)
• Max. current/voltage rating with resistive load : 1A 30VDC
• LED voltage : 12VDC, 24VDC or 48VDC
(If not supplied by APEM, a resistor must be series-connected by the user)**
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 10 MΩ min. at 500VDC
• Dielectric strength : 500 Vrms 50 Hz min. between terminals
1.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 250.000 cycles at full load
• Operating force : 5N ± 2N
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Low level or mechanical life : 1.000.000 cycles
• Operating temperature : -30°C to +85°C
• Hand soldering : 350°C, 5 seconds max.
• Packaging unit : flying lead/cable models : 1 piece - other models : 40 pieces
Non-illuminated
AV90022
Contacts
2 Silver
MOM
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
NC/NO
LED resistor
No resistor supplied
12VDC resistor
24VDC resistor
48VDC resistor
NC
NO
11.60
(.456)
22.00
(.866)
12.10
(.476)
8.30
(.326)
* No LED resistor supplied on this model.
Hex nut 22 (.866) across flats
Flat actuator - flying lead terminals
Illuminated (select LED colour & resistor
above)
AV9••2F
ON - MOM
Non-illuminated
AV9002F
ON
-
3.00
(.118)
Ø15.00
(.590DIA)
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
Ø22.00
(.866DIA)
2.20
(.086)
MOM
11.60
(.456)
12.10
(.476)
200
(7.874)
Ø12.00
(.472DIA)
Wire colours : black: NC, orange: NO, red: LED anode (+), blue : LED cathode (-)
APEM
www.apem.com
B2-87
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page88
AV series
Security pushbutton switches Ø 19 mm (.748)
With illuminated ring - momentary (NC/NO)
Hex nut 22 (.866) across flats
Flat actuator - cable terminals
2.20
(.086)
3.00
(.118)
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
Non-illuminated
AV9002C
ON
-
MOM
Ø22.00
(.866DIA)
Illuminated (select colour & resistor)
AV9••2C
ON - MOM
11.60
(.456)
200
(7.874)
12.10
(.476)
B2
After selecting basic model No.,
fill in last 5 boxes
with desired options.
Flying lead
protection
Flying lead/
cable length
Ring
colour
Bushing /
plunger mat.
Sealing
BASIC MODEL
FLYING LEAD PROTECTION
No protection and/or no flying leads
Heat-shrink sleeves
Tube + epoxy
0
1
2
FLYING LEAD/CABLE LENGTH
No flying leads / no cable
Length 20 cm (standard)
Length in centimeters
000
020
XXX
RING COLOURS
BUSHING/PLUNGER MATERIALS
CODE COLOUR
CODE
BUSHING
ACTUATOR
00
40
4A
4B
70
Nickel plated brass
Stainless steel 303
Stainless steel 304
Stainless steel 316
Chrome pl. brass, black
Nickel plated brass
Stainless steel 303
Stainless steel 304
Stainless steel 316
Chrome pl. brass, black
1
2
3
4
5
Blue
Black *
Green
Grey *
Yellow
CODE COLOUR
6
7
8
9
Red
Opal white (std)
Translucent
Orange
* non-illuminated only
Other : on request.
SEALING
Blank
No sealing
2
1
K
Front panel sealing (IP67)
B2-88
➀ internal membrane
➁ external gasket
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page89
AV series
Security pushbutton switches Ø 19 mm (.748)
Illuminated and non-illuminated - latching
ORDER FORMAT
AV
1
Bush./act.
config.
Actuator type
09 Flat
19 Curved
SERISE
E
Illumin.
0 No
L Illum.
0
1
3
5
6
LED colour
No LED
Blue
Green
Yellow
Red
A
OPTIONS
See next
page.
Function
Terminals
2 Solder
Contacts 4 PC
8 Quickconnect
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load : 2A 48 VDC
• LED voltage and consumption : blue 3,5V 10mA, green : 2V 10mA
yellow & red : 2V 20mA (a resistor must be series-connected by the user)**
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 1 000 Vrms 50 Hz min. between terminals
500 Vrms 50 Hz min. between terminals and frame
• Electrical life : 500.000 cycles at 2A 48VDC
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 9 mm (.354) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Hand soldering : 300°C, 4 seconds max.
• Packaging unit : 20 pieces
• Case : PA6T UL94-V0
• Contacts : silver
• Bushing and actuator : see
next page
• LED
CUT-OUT
• Panel cut-out : Ø 19,2 mm (.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181 x 1.181)
To order a product, select a basic
model below and add the desired
options selected on next page.
** Resistor value = supply voltage - LED forward voltage
LED forward current
Standard actuator position : the actuator is flush in the non-latched position and recessed in the latched position.
Hex nut 22 (.866) across flats
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
3.60
(.141)
3.00
(.118)
2.00
(.078)
NC
ON
Curved actuator
AV19100EA2
ON
-
ON
NO
1.40
(.055)
-
Ø15.00
(.590DIA)
ON
Ø22.00
(.866DIA)
2.30
(.090)
Flat actuator *
AV09100EA2
0.50
(.019)
Non-illuminated - solder lug terminals
NC
13.50
(.531)
10.70
(.421)
2.80
(.110)
* Also available with prominent actuator in the non-latched position
Hex nut 22 (.866) across flats
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
3.00
(.118)
2.00
(.078)
2.30
(.090)
ON
Ø3.20
(.125DIA)
NO
1.40
(.055)
-
Ø15.00
(.590DIA)
ON
Ø22.00
(.866DIA)
Flat actuator
AV091L•EA2
NC
0.50
(.019)
Illuminated - solder lug terminals
NC
13.50
(.531)
10.70
(.421)
2.80
(.110)
Replace • with desired LED colour.
APEM
www.apem.com
B2-89
B2
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page90
AV series
Security pushbutton switches Ø 19 mm (.748)
Latching - Options
Quick-connect terminals
8.00
(.314)
3.40
(.133)
Straight PC terminals
1.20
(.047)
2.40
(.094)
1.10
(.043)
2.80
(.110)
Replace 2 with 4 at the end of the model
numbers shown on previous page.
Replace 2 with 8 at the end of the model
numbers shown on previous page.
B2
After selecting basic model number,
fill in last 2 boxes
with desired options.
Bushing/
act. material
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
CODE
BUSHING
ATUATOR
00 (std)
10
40
50
Nickel plated brass
Nickel plated brass
Stainless steel
Stainless steel
Nickel plated brass
Stainless steel
Stainless steel
Nickel plated brass
SEALING
Blank
No sealing
1
K
2
Frontal panel sealing (IP65)
B2-90
➀ elastomeric membrane
➁ external gasket
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page91
AV series
Tactile security pushbutton switches Ø 19 mm (.748)
Illuminated and non-illuminated - momentary (NO)
ORDER FORMAT
AV
SERIES
NO
(function 3)
C7
3
Case
Actuator type
09 Flat
19 Curved
0
L
D
OPTIONS
Function
Illumin.
No
Illum.
Contact
Terminals
2 Solder
9 Screw
SPECIFICATIONS
See next
page
MATERIALS
• Travel : 0,7 mm (.027) ±0,1 mm (.003)
• Max. current/voltage rating with resistive load : 50mA 24VDC
• LED voltage and consumption : 2-colour LED : 2V (3V max.) 20mA
Other colours : 2V (3V max.) 10mA
A resistor must be series-connected by the user **
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 500 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 1.000.000 cycles at full load
• Operating force : 7 N ±-2N
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -30°C to +70°C
• Hand soldering : 270°C, 3 seconds max.
• Packaging unit : 40 pieces
• Case : PBT UL94-V0
• Terminals : brass, gold plated
• Contacts : gold plated dome
• Bushing and actuator : see next page
• LED
CUT-OUT
• Panel cut-out : Ø 19,2 mm
(.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired
options selected on next page.
** Resistor value = supply voltage - LED forward voltage
LED forward current
Hex nut 22 (.866) across flats
Flat actuator - non-illuminated
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
2.00
(.078)
2.00
(.078)
3.00
(.118)
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
Screw terminals
AV09C703D9
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
1.10
(.043)
Solder lug terminals
AV09C703D2
1.90
(.074)
EPOXY
4.15
(.163)
13.50
(.531)
Also available with curved actuator :
AV19C703D2 or AV19C703D9
3.90
(.153)
13.50
(.531)
13.20
(.519)
Hex nut 22 (.866) across flats
Flat actuator - illuminated
Ø19.00x1.00 SI
(.748DIAx1.00 IS)
2.00
(.078)
2.00
(.078)
3.00
(.118)
Ø10.00
(.393DIA)
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
-
Ø15.00
(.590DIA)
+
Ø22.00
(.866DIA)
Screw terminals
AV09C7L3D9
1.10
(.043)
Solder lug terminals
AV09C7L3D2
1.90
(.074)
EPOXY
4.15
(.163)
13.50
(.531)
APEM
www.apem.com
13.20
(.519)
13.50
(.531)
3.90
(.153)
B2-91
B2
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page92
AV series
Tactile security pushbutton switches Ø 19 mm (.748)
Options
Bushing/act.
material
After selecting basic model no.,
fill in last 4 boxes
with desired options.
LED
colour
Marking
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
Non-illuminated models
CODE
BUSHING
ACTUATOR
CODE
BUSHING
ACTUATOR
00 (std)
10
30
40
80
Nickel plated brass
Nickel plated brass
Chrome plated brass
Stainless steel
Varnished polished brass
Nickel plated brass
Stainless steel
Stainless steel
Stainless steel
Varnished polished brass
00 (std)
20
40
50
80
Nickel plated brass
Chrome plated brass
Stainless steel
Stainless steel
Varnished polished brass
Nickel plated brass
Chrome plated brass
Stainless steel
Nickel plated brass
Varnished polished brass
LED COLOURS
No LED
Blank
1: Blue - 3 : Green - 5 : Yellow - 6 : Red - 7 : White - 9 : Amber - 2 : Red/green
Select an option from each of the two tables below.
MARKING
For flat or curved actuator.
TYPE OF MARKING
- by engraving on non-illuminated
brass actuator (stainless steel on
request).
- by hot stamping on thermoplastic
insert (illuminated actuators)
Ø10.00
(0.393DIA)
8.00
(0.314)
B2
Illuminated models
1.00
(0.039)
1.50
(0.059)
CODE
TYPE
0 to 9
X
Y
A to N
P to W
0
Numbers 0 to 9
Symbol *
Symbol #
Letters A to N
Letters P to W
Letter O
Letter O : same code and same design as
number 0.
For special symbols, consult factory.
Minimum order : 500 pieces
COLOUR OF MARKING
CODE
COLOUR
Non-illuminated actuators
0 (standard) Same as finish
2
Black
Note : a finished product supplied in
version “0” cannot be modified to
version "2".
Illuminated actuators
2
Black (on white)
SEALING
Blank
No sealing
2
1
K
Front panel sealing (IP65)
B2-92
➀ internal gasket
➁ external gasket
www.apem.com
APEM
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page93
AV series
Tactile security pushbuttons Ø 19 mm (.748) with overmolded actuator
Illuminated and non-illuminated - momentary (NO)
ORDER FORMAT
AV
9
SERIES
Bush./act.
configuration
NO
(function 3)
D
Illumination
S0 No
SL Illum.
Contacts
OPTIONS
See next
page
Terminals
2 Solder
9 Screw
SPECIFICATIONS
MATERIALS
• Travel : 0,7 mm (.027) ± 0,1 mm (.003)
• Max. current/voltage rating with resistive load : 50mA 24VDC
• LED voltage and consumption : 2-colour LED : 2V (3V max.) 20mA
Other colours : 2V (3V max.) 10mA
(a resistor must be series-connected by the user)**
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 500 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 1.000.000 cycles at full load
• Operating force : 7 N ±2N - Sealing option K will increase the operating force.
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -30°C to +70°C
• Hand soldering : 270°C, 3 sec. max.
• Packaging unit : 16 pieces
** Resistor value = supply voltage - LED forward voltage
LED forward current
• Case : PBT UL94-V0
• Terminals : brass, gold plated
• Contacts : gold plated dome
• Bushing : see next page
• Actuator : stainless steel, with
thermoplastic overmolding
• LED
CUT-OUT
• Panel cut-out : Ø 19,2 mm (.755)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired
options selected on next page.
Hex nut 22 (.866) across flats
Flat actuator - solder lug terminals
2.00
(.078)
3.00
(.118)
2.00
(.078)
1.90
(.074)
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
1.10
(.043)
Illuminated
AV9SLD2
Non-illuminated
AV9S0D2
B2
4.15
(.163)
4.30
(.169)
9.80
(.385)
Also available with bushing Ø 22 (.866) : on request.
Hex nut 22 (.866) across flats
Flat actuator - screw terminals
2.00
(.078)
9.00
(.354)
Ø15.00
(.590DIA)
Ø22.00
(.866DIA)
Ø15.00
(.590DIA)
Non-illuminated
AV9S0D9
Ø22.00
(.866DIA)
Illuminated
AV9SLD9
3.00
(.118)
2.00
(.078)
9.80
(.385)
4.30
(.169)
Also available with bushing Ø 22 (.866) : on request.
APEM
www.apem.com
B2-93
14-Serie AV-1-A_18-Serie AV-A 31/10/14 09:02 Page94
AV series
Tactile security pushbuttons Ø 19 mm (.748) with overmolded actuator
Options
Bushing
material
After selecting basic model no.,
fill in last 5 boxes
with desired options.
B2
Overmolding
LED
colour
Actuator
type
Sealing
BASIC MODEL
BUSHING MATERIALS
OVERMOLDING COLOURS
LED COLOURS
CODE
MATERIAL
CODE
COLOUR
CODE COLOUR
CODE
0 (std)
2
4
5
6
7
8
9
Nickel plated brass
Chrome plated brass
Stainless steel
Gold plated brass
Chrome plated brass, satin
Chrome pl. brass, black
Varnished polished brass
Polished brass
1
2
3
4
5
Blue
Black *
Green
Grey *
Yellow
6
7
8
9
Red
White
Translucent
Orange
Blank
1
2
3 **
V **
5
6
7
9
* non-illuminated only
COLOUR
No LED
Blue
Red/green
Green
Green, high intensity
Yellow
Red
White
Amber
** To order a green LED for actuator style 002, always use code V.
Other actuator styles can be ordered with LED code 3 or V.
ACTUATOR STYLES
The ring and symbols are obtained by photochemical engraving of a stainless steel insert.
The insert is then overmolded in the desired colour.
The following actuator styles are available. For other types, consult factory.
CODE
001
002
003
004
005
DESCRIPTION
Illuminated
ring and disc
Illuminated
ring
Arrow
Loudspeaker
OFF
Opening
CODE
006
008
009
010
011
DESCRIPTION
Validation
Closing
Standby
Cancel
Power
RING/SYMBOL
SYMBOL
SEALING
Blank
No sealing
Recommended panel mounting for IP69K
2
1
K
Front panel sealing (IP67)
B2-94
➀ internal membrane
➁ external gasket
www.apem.com
K
Front panel sealing (IP69K)
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page95
AV series
Tactile security pushbuttons Ø 22 mm (.866) with overmolded actuator
Illuminated and non-illuminated - momentary (NO)
UG1410A
ORDER FORMAT
AV
3
SERIES
Bush./act.
configuration
NO
(function 3)
D
Illumination
S0 No
SL Illum.
Contacts
OPTIONS
See next
page
Terminals
2 Solder
9 Screw
SPECIFICATIONS
MATERIALS
• Travel : 0,7 mm (.027) ± 0,1 mm (.003)
• Max. current/voltage rating with resistive load : 50mA 24VDC
• LED voltage and consumption : 2-colour LED : 2V (3V max.) 20mA
Other colours : 2V (3V max.) 10mA
(a resistor must be series-connected by the user)**
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 500 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 1.000.000 cycles at full load
• Operating force : 7 N ±2N - sealing option K will increase the operating force.
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -30°C to +70°C
• Hand soldering : 270°C, 3 sec. max.
• Packaging unit : 16 pieces
** Resistor value = supply voltage - LED forward voltage
LED forward current
• Case : PBT UL94-V0
• Terminals : brass, gold plated
• Contacts : gold plated dome
• Bushing : see next page
• Actuator : stainless steel, with
thermoplastic overmolding
• LED
CUT-OUT
• Panel cut-out : Ø 22,2 mm (.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired
options selected on next page.
Hex nut 25 (.984) across flats
Flat actuator - solder lug terminals
2.00
(.078)
4.00
(.157)
2.00
(.078)
1.90
(.074)
Ø15.00
(.590DIA)
Ø25.00
(.984DIA)
Ø15.00
(.590DIA)
Ø25.00
(.984DIA)
1.10
(.043)
Illuminated
AV3SLD2
Non-illuminated
AV3S0D2
B2
EPOXY
4.15
(.163)
4.80
(.188)
9.30
(.366)
Hex nut 25 (.984) across flats
Flat actuator - screw terminals
2.00
(.078)
4.00
(.157)
2.00
(.078)
9.00
(.354)
Ø15.00
(.590DIA)
Ø25.00
(.984DIA)
Ø15.00
(.590DIA)
Non-illuminated
AV3S0D9
Ø25.00
(.984DIA)
Illuminated
AV3SLD9
9.30
(.366)
APEM
www.apem.com
4.80
(.188)
B2-95
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page96
AV series
Tactile security pushbuttons Ø 22 mm (.866) with overmolded actuator
Options
Bushing
material
After selecting basic model no.,
fill in last 5 boxes
with desired options.
B2
Overmolding
LED
colour
Actuator
type
Sealing
BASIC MODEL
BUSHING MATERIALS
OVERMOLDING COLOURS
LED COLOURS
CODE
MATERIAL
CODE
COLOUR
CODE COLOUR
CODE
0 (std)
2
4
5
6
7
8
9
Nickel plated brass
Chrome plated brass
Stainless steel
Gold plated brass
Chrome plated brass, satin
Chrome pl. brass, black
Varnished polished brass
Polished brass
1
2
3
4
5
Blue
Black *
Green
Grey *
Yellow
6
7
8
9
Red
White
Translucent
Orange
Blank
1
2
3 **
V **
5
6
7
9
* non-illuminated only
COLOUR
No LED
Blue
Red/green
Green
Green, high intensity
Yellow
Red
White
Amber
** To order a green LED for actuator style 002, always use code V.
Other actuator styles can be ordered with LED code 3 or V.
ACTUATOR STYLES
The ring and symbols are obtained by photochemical engraving of a stainless steel insert.
The insert is then overmolded in the desired colour.
The following actuator styles are available. For other types, consult factory.
CODE
001
002
003
004
005
DESCRIPTION
Illuminated
ring and disc
Illuminated
ring
Arrow
Loudspeaker
OFF
Opening
CODE
006
008
009
010
011
DESCRIPTION
Validation
Closing
Standby
Cancel
Power
RING/SYMBOL
SYMBOL
SEALING
Blank
No sealing
Recommended panel mounting for IP69K
2
1
K
Front panel sealing (IP67)
B2-96
➀ internal membrane
➁ external gasket
www.apem.com
K
Front panel sealing (IP69K)
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page97
AV series
Security pushbutton switches Ø 22 mm (.866)
Momentary (NO)
ORDER FORMAT
AV
SERIES
NO
(function 3)
3
Bushing/act. configuration
03 Flat actuator
02 Curved actuator
M2 Curved act.+flatted bush.
M3 Flat act.+flatted bush.
Case
000 Long
100 Short
Function
3 NO
OPTIONS
A
C
Contacts
Silver
Brass,
silver pl.
SPECIFICATIONS
9
2
Terminals
Screw
Quickconnect
See “Options”
page.
MATERIALS
• Max. current/voltage rating with resistive load :
- A contacts : 4A 12VDC, 500.000 cycles
- C contacts : 2A 48 VDC, 10.000 cycles
• Approved ratings of models with long case and A contacts (AV..000) :
UL-CSA : 4A 250VAC - 8A 125VAC - 6.000 cycles
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
2.000 Vrms 50 Hz min. between terminals
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 11 mm (.433) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Hand soldering : 300°C, 3 sec. max.
• Packaging unit : 20 pieces
• Case : PBT
• Contacts : silver (A) or
brass, silver plated (C)
• Bushing and actuator : see
“Options” page
B2
CUT-OUTS
• Panel cut-out : Ø 22,2 mm
(.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic model below or on next page and add the desired options.
BASIC MODEL
Hex nut 25 (.984) across flats
Flat actuator - short case - 48VDC - AV03100
ø22.00x1.00 SI
(.866DIAx1.00 IS)
2.00
(.078)
1.20
(.047)
2.80
(.110)
12.70
(.500)
Screw terminals for wires 1,5 mm2 max.
6.30
(.248)
2.80x0.5
(.110x.019)
ø15.00
(.59DIA)
Solder lug /
quick-connect term.
AV031003•2
ø25.00
(.984DIA)
Screw terminals
AV031003•9
7.30
(.287)
3.00
(.118)
EPOXY
5.00
(.196)
Contacts : remplace • with A (silver) or C (silver plated brass).
Curved actuator - short case
Ø15.00
(.590DIA)
Ø15.00
(.590DIA)
Screw terminals
AV021003•9
Solder lug / quick-connect terminals
AV021003•2
APEM
Flatted bushing - short case - AVM3 and AVM2
Ø25.00
(.984DIA)
2.00
(.078)
3.60
(.141)
Ø25.00
(.984DIA)
Flat actuator, screw terminals
AVM31003•9
Curved actuator, screw terminals
AVM21003•9
www.apem.com
Ø22.20
(.874DIA)
10.00
(.393 )
B2-97
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page98
AV series
Security pushbutton switches Ø 22 mm (.866)
Momentary (NO) - momentary (NC) - alternate action
Hex nut 25 (.984) across flats
Flat actuator - long case - 4A 250VAC/8A 125VAC - UL/CSA - AV03000
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
2.00
(.078)
Ø15.00
(.59DIA)
Ø25.00
(.984DIA)
Screw terminals
AV030003A9
3.00
(.118)
To order switches marked UL-CSA, add
“UU” at the end of model number.
15.00
(.590)
Screw terminals for wires 1,5 mm2 max.
B2
Curved actuator - long case
Ø15.00
(.590DIA)
Ø25.00
(.984DIA)
2.00
(.078)
3.60
(.141)
5.00
(.196)
Flatted bushing - long case - AVM3 and AVM2
Ø25.00
(.984DIA)
Ø15.00
(.590DIA)
10.00
(.248)
Ø22.20
(.874DIA)
Flat actuator, screw terminals
AVM30003•9
Curved actuator, screw terminals
AVM20003•9
Screw terminals
AV020003A9
10.00
(.393 )
MOMENTARY NORMALLY CLOSED MODEL (NC)
Hex nut 25 (.984) across flats
Bushing Ø 22 (.866) - AV..1200
ON
-
13.20
(.519)
Ø15.00
(.59DIA)
7.00
(.275)
Hex nut 25 (.984) across flats
3.00
(.118)
8.40
(.330)
Ø15.00
(.59DIA)
3.60
(.141)
ON
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
15.40
(.606)
5.80
(.228)
1.60
(.063)
14.00
(.551)
Ø25.00
(.984DIA)
• Double pole, solder lug/quick-connect term., curved actuator
• Silver contacts
• Max. current/voltage rating with resistive load :
3(1,5)A 250VAC - 6A 125VAC - 3A 24VAC or DC
• Dielectric strength :
3.000 Vrms min. between terminals and frame
• Electrical life : 10.000 cycles at full load
50.000 cycles at 1A 24VAC or DC
• Mechanical life : 100.000 cycles
• Packaging unit : 10 pieces
Ø3.00x0.50
(.118DIAx.0.50)
Ø25.00
(.984DIA)
3.60
(.141)
Curved actuator
AV021202C900
Bushing Ø 22 (.866) - alternate action - AV..4700
AV044746A200
3.00
(.118)
0.50x2.80
(.019x.110)
Flat actuator
AV031202C900
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
2.00
(.078)
Ø15.00
(.59DIA)
• Single pole, screw terminals, without marking
• Silver plated copper contacts (C)
• Max. current/voltage rating with resistive load :
2A 250VAC - 3A 125VAC - 2,5A 24VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. betw. term. and frame
2.000 Vrms. 50 Hz min. between terminals
• Electrical life : 100.000 cycles at 0,3A 24VAC or DC
10.000 cycles at full load
• Packaging unit : 20 pieces
14.00
(.551)
20.60
(.811)
7.20
(.283)
Further specifications : see previous page. Bushing/actuator materials, marking and sealing : see ”options” on next page.
B2-98
www.apem.com
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page99
AV series
Security pushbutton switches Ø 22 mm (.866)
Options
After selecting basic model number,
fill in last 3 boxes
with desired options.
Bush./actuator
material
Marking
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
Flat or curved metal actuator
CODE
BUSHING
ACTUATOR
00 (standard)
10
12
20
30
40
80 **
Nickel plated brass
Nickel plated brass
Nickel plated brass
Chrome plated brass
Chrome plated brass
Stainless steel
Varnished polished brass
Nickel plated brass
Stainless steel
Chrome plated brass
Chrome plated brass
Stainless steel
Stainless steel
Varnished polished brass
CODE
BUSHING
ACTUATOR COLOUR
0• (standard)
2•
8•
Nickel plated brass
Chrome plated brass
Varnished polished brass
Replace • with one of the following codes.
B2
Flat thermoplastic actuator
Select an option from each of the two tables below.
MARKING
- By engraving on flat or curved
brass actuator (stainless steel on
request)
- by hot stamping on flat
thermoplastic actuator
Ø15.00
(0.590DIA)
8.00
(0.314)
1 : blue - 1/4 : dark blue - 2 : black - 3 : green
4 : grey - 5 : yellow - 6 : red - 7/1: white
9 : orange
1.50
(0.059)
TYPE OF MARKING
CODE
TYPE
0 to 9
X
Y
A to N
P to W
0
Numbers 0 to 9
Symbol *
Symbol #
Letters A to N
Letters P to W
Letter O
Letter O : same code and same design as
number 0.
For special symbols, consult factory.
Minimum order : 500 pieces
COLOUR OF MARKING
CODE
Brass actuator
0 (standard)
2
COLOUR
Same as finish
Black
Note : a finished product supplied in
version “0” cannot be modified to
version "2".
Thermoplastic actuator
2
Black
7
White
SEALING
Blank
No sealing
2
1
K
Frontal panel sealing (IP65)
APEM
➀ internal gasket
➁ external gasket
www.apem.com
B2-99
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page100
AV series
Security pushbutton switches Ø 22 mm (.866)
With illuminated ring - momentary (NC/NO)
ORDER FORMAT
Options : see next page.
2
AV
3
SERIES
Bushing dia. 22 mm
LED colour
0 : no LED - 1 : blue - V : green
5 : yellow - 6 : red - 7 : white - 9 : amber
NC/NO
LED resistor
No resistor supplied
12VDC resistor
24VDC resistor
48VDC resistor
0
1
2
4
SPECIFICATIONS
MATERIALS
• Travel : 2 mm ± 0,3 mm (.003)
• Max. current/voltage rating with resistive load : 1A 30VDC
• LED voltage : 12VDC, 24VDC or 48VDC
(If not supplied by APEM, a resistor must be series-connected by the user)**
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 10 MΩ min. at 500VDC
• Dielectric strength : 500 Vrms 50 Hz min. between terminals
1.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 250.000 cycles at full load
• Operating force : 5N ± 2N
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Low level or mechanical life : 1.000.000 cycles
• Operating temperature : -30°C to +85°C
• Hand soldering : 350°C, 5 seconds max.
• Packaging unit : flying lead/cable models : 1 piece - other models : 40 pieces
• Case : polyamide, glass filled
• Contacts : silver
• Bushing : see next page
• Actuator : see next page
• Elastomeric membrane : silicone
• LED
CUT-OUT
• Panel cut-out : Ø 22,2 mm (.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired LED
colour and voltage. Then select the
desired options on next page.
** Resistor value = supply voltage - LED forward voltage
LED forward current
Hex nut 25 (.984) across flats
Flat actuator - solder lug terminals
4.00
(.157)
2.20
(.086)
-
ON
-
MOM
NO
NC
11.60
(.456)
25.00
(.984)
12.10
(.476)
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
+
Ø25.00
(.984DIA)
Illuminated (select LED colour above) *
AV3•022
ON - MOM
2.80x0.50
(.110x.019)
NO
NC
Non-illuminated
AV30022
Terminals
2 Solder /
quick-connect
F Flying leads
C Cable
8.30
(.326)
* No LED resistor supplied on this model.
Hex nut 25 (.984) across flats
Flat actuator - flying lead terminals
2.20
(.086)
Illuminated (select LED colour & resistor
above)
AV3••2F
ON - MOM
Non-illuminated
AV3002F
ON
-
4.00
(.157)
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
Ø15.00
(.590DIA)
Ø25.00
(.984DIA)
B2
Contacts
2 Silver
MOM
11.60
(.456)
12.10
(.476)
200
(7.874)
Ø12.00
(.472DIA)
Wire colours : black: NC, orange: NO, red: LED anode (+), blue : LED cathode (-)
B2-100
www.apem.com
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page101
AV series
Security pushbutton switches Ø 22 mm (.866)
With illuminated ring - momentary changeover (NC/NO)
Hex nut 25 (.984) across flats
Flat actuator - cable terminals
2.20
(.086)
4.00
(.157)
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
Non-illuminated
AV3002C
ON
-
Ø25.00
(.984DIA)
Illuminated (select colour & resistor)
AV3••2C
ON - MOM
MOM
12.10
(.476)
11.60
(.456)
200
(7.874)
B2
Flying lead
protection
After selecting basic model No.,
fill in last 5 boxes
with desired options.
Flying lead/
cable length
Ring
colour
Bushing /
plunger mat.
Sealing
BASIC MODEL
FLYING LEAD PROTECTION
No protection and/or no flying leads
Heat-shrink sleeves
Tube + epoxy
0
1
2
WIRE/CABLE LENGTH
No flying leads / no cable
Length 20 cm (7.874) - standard
Length in centimeters
000
020
XXX
RING COLOURS
BUSHING/PLUNGER MATERIALS
CODE COLOUR
CODE
BUSHING
ACTUATOR
00
40
4A
4B
70
Brass, nickel plated
Stainless steel 303
Stainless steel 304
Stainless steel 316
Chrome pl. brass, black
Brass, nickel plated
Stainless steel 303
Stainless steel 304
Stainless steel 316
Chrome pl. brass, black
1
2
3
4
5
Blue
Black *
Green
Grey *
Yellow
CODE COLOUR
6
7
8
9
Red
Opal white (std)
Translucent
Orange
* non-illuminated only
Other : on request.
SEALING
Blank
No sealing
2
1
K
Front panel sealing (IP67)
APEM
➀ internal membrane
➁ external gasket
www.apem.com
B2-101
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page102
AV series
Security pushbutton switches Ø 22 mm (.866)
Illuminated and non-illuminated - latching
ORDER FORMAT
AV
1
Actuator type
03 Flat
02 Curved
SERIES
Bush./act.
config.
E
Illumin.
0 No
L Illum.
0
1
3
5
6
LED colour
No LED
Blue
Green
Yellow
Red
A
See next
page.
Function
Terminals
2 Solder
Contacts 4 PC
8 Quickconnect
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load : 2A 48 VDC
• LED voltage and consumption : blue 3,5V 10mA, green : 2V 10mA
yellow & red : 2V 20mA (a resistor must be series-connected by the user)**
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 1 000 Vrms 50 Hz min. between terminals
500 Vrms 50 Hz min. between terminals and frame
• Electrical life : 500.000 cycles at 2A 48VDC
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 9 mm (.354) max.
• Operating temperature : -30°C to +70°C
• Low level or mechanical life : 1.000.000 cycles
• Hand soldering : 300°C, 4 seconds max.
• Packaging unit : 20 pieces
• Case : PA6T UL94-V0
• Contacts : silver
• Actuator and bushing : see
next page
• LED
CUT-OUT
• Panel cut-out : Ø 22,2 mm (.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic
model below and add the desired
options selected on next page.
** Resistor value = supply voltage - LED forward voltage
LED forward current
Standard actuator position : the actuator is flush in the non-latched position and recessed in the latched position.
Hex nut 25 (.984) across flats
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
ON
Curved actuator
AV02100EA2
ON
-
ON
2.30
(.090)
NO
1.40
(.055)
-
NC
Ø15.00
(.590DIA)
ON
Ø25.00
(.984DIA)
Flat actuator *
AV03100EA2
3.00
(.118)
2.00
(.078)
3.80
(.149)
0.50
(.019)
Non-illuminated - solder lug terminals
NC
12.70
(.500)
2.80
(.110)
11.50
(.045)
* Also available with prominent actuator in the non-latched position
Hex nut 25 (.984) across flats
Ø22.00x1.00 SI
(.866DIAx1.00 IS)
3.00
(.118)
2.00
(.078)
-
ON
Ø3.20
(.125DIA)
NO
1.40
(.055)
ON
2.30
(.090)
Ø15.00
(.590DIA)
Flat actuator
AV031L•EA2
NC
0.50
(.019)
Illuminated - solder lug terminals
Ø25.00
(.984DIA)
B2
OPTIONS
NC
12.70
(.500)
11.50
(.045)
2.80
(.110)
Replace • with desired LED colour.
B2-102
www.apem.com
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page103
AV series
Security pushbutton switches Ø 22 mm (.866)
Illuminated and non-illuminated - latching
Quick-connect terminals
8.00
(.314)
3.40
(.133)
Straight PC terminals
1.20
(.047)
2.40
(.094)
1.10
(.043)
2.80
(.110)
Replace 2 with 4 at the end of the model
numbers shown on previous page.
Replace 2 with 8 at the end of the model
numbers shown on previous page.
B2
After selecting basic model number,
fill in last 2 boxes
with desired options.
Bushing/
act. material
Sealing
BASIC MODEL
BUSHING/ACTUATOR MATERIALS
CODE
BUSHING
ACTUATOR
00 (std)
10
40
50
Nickel plated brass
Nickel plated brass
Stainless steel
Stainless steel
Nickel plated brass
Stainless steel
Stainless steel
Nickel plated brass
SEALING
Blank
No sealing
1
K
2
Frontal panel sealing (IP65)
APEM
➀ elastomeric membrane
➁ external gasket
www.apem.com
B2-103
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page104
AV series
Security pushbutton switches Ø 22 mm (.866) or 24 mm (.944) with large actuator
Momentary (combined NC+NO)
ORDER FORMAT
AV
SERIES
Combined NC+NO
L
Bushing
diameter
22 22 mm
24 24 mm
OPTIONS
Bush./act.
config.
P
B
C
Act. style
Flat
Curved
Recessed
Bush./actuator
material
See next page
SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load : 5A 250VAC
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 1.000.000 cycles at 1A 250VAC
100.000 cycles at full load
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -20°C to +55°C
• Low level or mechanical life : 3.000.000 cycles
• Front panel sealing : IP65
• Hand soldering : 300°C, 5 sec. max.
• Packaging unit : 20 pieces (except black chrome plated : 16 pieces)
• Case : polyester, glass filled
• Contacts : silver/nickel alloy
• Bushing and actuator :
see next page.
CUT-OUT
• Panel cut-out : Ø 22,2 mm
(.874) or Ø 24,2 mm (.952)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
or 33 mm x 33 mm (1.299x1.299)
To order a product, select a basic model below or on next page and add the desired bushing/actuator materials.
BASIC MODEL
Flat actuator - AV22LP
Hex nut 25 (.984) across flats
➞ O-ring
3.60
(.141)
3.00
(.118)
Curved actuator - AV22LB
Quick-connect terminals
AV22LB••4
Solder lug terminals
AV22LB••2
B2-104
12.50
(.492)
12.80
(.503)
2.80X0.50
(.110X.019)
1.30
(.051)
Ø22.00X1.00 SI
(.866DIAX1.00 IS)
Solder lug terminals
AV22LP••2
0.50
(.019)
Quick-connect terminals
AV22LP••4
Ø20.00
(.787DIA)
7.10
(.279)
4.00
(.157)
Ø26.00
(1.023DIA)
B2
Terminals
Quickconnect
2 Solder lug
4
2.40
(.250)
Recessed actuator - AV22LC
Quick-connect terminals
AV22LC••4
Solder lug terminals
AV22LC••2
www.apem.com
APEM
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page105
AV series
Security pushbutton switches Ø 22 mm (.866) or 24 mm (.944) with large actuator
Momentary (combined NC+NO)
BASIC MODEL
Hex nut 27 (1.062) across flats
➞ O-ring
Flat actuator - low profile - AV24LP
4.00
(.157)
Quick-connect terminals
AV24LB••4
Solder lug terminals
AV24LB••2
1.30
(.051)
2.80X0.50
(.110X.019)
2.40
(.250)
1.30
(.051)
Curved actuator - AV24LB
Ø24.00X1.00 SI
(.944DIAX1.00 IS)
Solder lug terminals
AV24LP••2
0.50
(.019)
Ø30.00
(1.181DIA)
Quick-connect terminals
AV24LP••4
Ø20.00
(.787DIA)
7.10
(.279)
3.60
(.141)
14.20
(.559)
B2
13.00
(.511)
Recessed actuator - AV24LC
Quick-connect terminals
AV24LC••4
Solder lug terminals
AV24LC••2
BUSHING/ACTUATOR MATERIALS
Models with non-anodized actuator
CODE
BUSHING
40 (standard) Stainless steel
20
Chrome plated brass
ACTUATOR
Stainless steel
Chrome plated brass
Models with anodized actuator
CODE
BUSHING
ACTUATOR COLOUR
1•
2•
4•
Black chrome plated brass
Chrome plated brass
Stainless steel
Replace • with one of the following codes :
1 : blue - 2 : black - 3 : pale green - 3F : dark green - 4 : natural - 5 : gold yellow
APEM
6 : red - 6B : maroon
www.apem.com
B2-105
14bis-Serie AV-2-A_18-Serie AV-A 31/10/14 09:01 Page106
AV series
Mushroom head security pushbutton switches Ø 22 mm (.866)
Momentary (combined NC+NO)
ORDER FORMAT
AV
22
SERIES
Bushing
diameter
PNA
OPTIONS
Bush./act.
config.
Actuator colour
See below
Combined NC+NO
Terminals
Quickconnect
2 Solder lug
4
SPECIFICATIONS
• Max. current/voltage rating with resistive load : 5A 250VAC
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 1.000.000 cycles at 1A 250VAC
50.000 cycles at full load
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Operating temperature : -20°C to +55°C
• Low level or mechanical life : 1.000.000 cycles
• Front panel sealing : IP65
• Hand soldering : 300°C, 5 sec. max.
• Packaging unit : 16 pieces
• Case : polyester, glass filled
• Contacts : silver/nickel alloy
• Bushing : brass, nickel plated
• Actuator : aluminium, anodized
CUT-OUT
• Panel cut-out : Ø 22,2 mm
(.874)
• Min. pitch for matrix mounting :
30 mm x 30 mm (1.181x1.181)
To order a product, select a basic model below and add the desired actuator colour.
BASIC MODEL
Mushroom head actuator - AV22PNA
Hex nut 25 (.984) across flats
➞ O-ring
10.80
(.425)
8.60
(.338)
Ø22.00X1.00 SI
(.866DIAX1.00 IS)
12.80
(.503)
2.80X0.50
(.110X.019)
1.30
(.051)
Solder lug terminals
AV22PNA•2
0.50
(.019)
Quick-connect terminals
AV22PNA•4
3.60
(.141)
7.10
(.279)
4.00
(.157)
Ø30.00
(1.181DIA)
B2
MATERIALS
2.40
(.250)
ACTUATOR ANODIZATION COLOURS
1 : blue - 2 : black - 3 : pale green - 3F : dark green - 4 : natural - 5 : gold yellow - 6 : red - 6B : maroon
B2-106
www.apem.com
APEM
工商网监
湘ICP备2023018690号
