SUD25N15-52
Vishay Siliconix
N-Channel 150-V (D-S) 175_C MOSFET
PRODUCT SUMMARY
VDS (V)
150
FEATURES
ID (A)
25 23
rDS(on) (W)
0.052 @ VGS = 10 V 0.060 @ VGS = 6 V
D D D D
TrenchFETr Power MOSFET 175_C Junction Temperature PWM Optimized 100% Rg Tested
APPLICATIONS
D Primary Side Switch

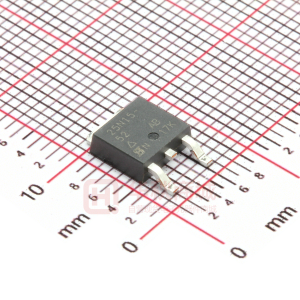

TO-252
D
Drain Connected to Tab G D S
G
Top View Ordering Information: SUD25N15-52 SUD25N15-52—E3 (Lead Free)
S N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED)
Parameter
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C)b Pulsed Drain Current Continuous Source Current (Diode Conduction) Avalanche Current Repetitive Avalanche Energy (Duty Cycle v 1%) Maximum Power Dissipation Operating Junction and Storage Temperature Range L = 0.1 mH TC = 25_C TA = 25_C TC = 25_C TC = 125_C
Symbol
VDS VGS ID IDM IS IAR EAR PD TJ, Tstg
Limit
150 "20 25 14.5 50 25 25 31 136b 3a −55 to 175
Unit
V
A
mJ W _C
THERMAL RESISTANCE RATINGS
Parameter
Junction-to-Ambienta J ti t A bi t Junction-to-Case (Drain) Notes a. Surface Mounted on 1” x1” FR4 Board. b. See SOA curve for voltage derating. Document Number: 71768 S-40272—Rev. C, 23-Feb-04 www.vishay.com t v 10 sec Steady State
Symbol
RthJA RthJC
Typical
15 40 0.85
Maximum
18 50 1.1
Unit
_C/W
1
SUD25N15-52
Vishay Siliconix
SPECIFICATIONS (TJ = 25_C UNLESS OTHERWISE NOTED)
Parameter Static
Drain-Source Breakdown Voltage Gate Threshold Voltage Gate-Body Leakage V(BR)DSS VGS(th) IGSS VGS = 0 V, ID = 250 mA VDS = VGS, ID = 250 mA VDS = 0 V, VGS = "20 V VDS = 150 V, VGS = 0 V Zero Gate Voltage Drain Current g On-State Drain Currentb IDSS ID(on) VDS = 150 V, VGS = 0 V, TJ = 125_C VDS = 150 V, VGS = 0 V, TJ = 175_C VDS = 5 V, VGS = 10 V VGS = 10 V, ID = 5 A Drain-Source On-State Drain Source On State Resistanceb rDS( ) DS(on) VGS = 10 V, ID = 5 A, TJ = 125_C VGS = 10 V, ID = 5 A, TJ = 175_C VGS = 6 V, ID = 5 A Forward Transconductanceb gfs VDS = 15 V, ID = 25 A 0.047 40 50 0.042 0.052 0.109 0.145 0.060 S W 150 2 4 "100 1 50 250 A mA V nA
Symbol
Test Condition
Min
Typa
Max
Unit
Dynamica
Input Capacitance Output Capacitance Reverse Transfer Capacitance Total Gate Chargec Gate-Source Chargec Ciss Coss Crss Qg Qgs Qgd Rg td(on) tr td(off) tf VDD = 50 V, RL = 3 W V, ID ^ 25 A, VGEN = 10 V, Rg = 2.5 W 1 15 70 25 60 VDS = 75 V, VGS = 10 V, ID = 25 A , , VGS = 0 V, VDS = 25 V, F = 1 MHz 1725 216 100 33 9 12 3 25 100 40 40 ns W 40 nC pF
Gate-Drain Chargec Gate Resistance Turn-On Delay Rise Timec Turn-Off Delay Timec Fall Timec Timec
Source-Drain Diode Ratings and Characteristic (TC = 25_C)
Pulsed Current Diode Forward Voltageb Source-Drain Reverse Recovery Time ISM VSD trr IF = 25 A, VGS = 0 V IF = 25 A, di/dt = 100 A/ms 0.9 95 50 1.5 140 A V ns
Notes a. Guaranteed by design, not subject to production testing. b. Pulse test; pulse width v 300 ms, duty cycle v 2%. c. Independent of operating temperature.
www.vishay.com
2
Document Number: 71768 S-40272—Rev. C, 23-Feb-04
SUD25N15-52
Vishay Siliconix
TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
Output Characteristics
50 VGS = 10 thru 7 V 40 I D − Drain Current (A) I D − Drain Current (A) 6V 50
Transfer Characteristics
40
30
30
20 5V 4V 0 0 2 4 6 8 10 VDS − Drain-to-Source Voltage (V)
20
TC = 125_C 25_C
10
10 −55_C 0 0 1 2 3 4 5 6 7 VGS − Gate-to-Source Voltage (V)
Transconductance
60 50 g fs − Transconductance (S) 40 30 20 10 0 0 10 20 30 40 50 TC = −55_C 25_C r DS(on)− On-Resistance ( W ) 0.10
On-Resistance vs. Drain Current
0.08
125_C
0.06
VGS = 6 V
0.04 VGS = 10 V 0.02
0.00 0 10 20 30 40 50
ID − Drain Current (A) 2500
ID − Drain Current (A) 20 VDS = 75 V ID = 25 A
Capacitance
Gate Charge
2000 C − Capacitance (pF) Ciss 1500
V GS − Gate-to-Source Voltage (V)
16
12
1000
8
500
Crss
4
Coss
0 0 30 60 90 120 150 VDS − Drain-to-Source Voltage (V)
0 0 10 20 30 40 50 60 Qg − Total Gate Charge (nC)
Document Number: 71768 S-40272—Rev. C, 23-Feb-04
www.vishay.com
3
SUD25N15-52
Vishay Siliconix
TYPICAL CHARACTERISTICS (25_C UNLESS NOTED)
On-Resistance vs. Junction Temperature
3.0 2.5 rDS(on) − On-Resiistance (Normalized) 2.0 1.5 1.0 0.5 0.0 −50 VGS = 10 V ID = 5 A I S − Source Current (A) 100
Source-Drain Diode Forward Voltage
TJ = 150_C 10
TJ = 25_C
−25
0
25
50
75
100
125
150
175
1 0 0.3 0.6 0.9 1.2 VSD − Source-to-Drain Voltage (V)
TJ − Junction Temperature (_C)
THERMAL RATINGS
Maximum Avalanche Drain Current vs. Case Temperature
30 25 I D − Drain Current (A) I D − Drain Current (A) 20 15 10 5 0 0 25 50 75 100 125 150 175 TC − Case Temperature (_C) 10 1 ms 10 ms TC = 25_C Single Pulse 100 ms 1 s, dc 100
Safe Operating Area
10 ms 100 ms
Limited by rDS(on)
1
0.1
0.1
1
10
100
1000
VDS − Drain-to-Source Voltage (V)
2 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 0.1 0.1 0.02 0.05 Single Pulse 0.01 10−4 10−3
Normalized Thermal Transient Impedance, Junction-to-Case
10−2
10−1 Square Wave Pulse Duration (sec)
1
10
30
www.vishay.com
4
Document Number: 71768 S-40272—Rev. C, 23-Feb-04
