TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
TMUX1204 5-V, 4:1, General Purpose Analog Multiplexer
1 Features
3 Description
•
•
•
•
•
•
•
•
•
•
•
The TMUX1204 is a modern complementary metaloxide semiconductor (CMOS) analog multiplexer
(MUX)
in
a
4:1
single-ended
(1-channel)
configuration. The TMUX1204 works with a single
supply (1.08 V to 5.5 V) which allows for use in a
broad array of applications from personal electronics
to building automation systems. A low supply current
of 10 nA enables use in portable applications.
1
Rail to rail operation
Bidirectional signal path
1.8 V Logic compatible
Fail-safe logic
Low on-resistance: 5 Ω
Wide supply range: 1.08 V to 5.5 V
-40°C to +125°C Operating temperature
Low supply current: 10 nA
Transition time: 14 ns
Break-before-make switching
ESD protection HBM: 2000 V
All logic inputs have 1.8 V logic compatible
thresholds, ensuring both TTL and CMOS logic
compatibility when operating in the valid supply
voltage range. Fail-Safe Logic circuitry allows
voltages on the control pins to be applied before the
supply pin, protecting the device from potential
damage.
2 Applications
•
•
•
•
•
•
•
•
•
•
•
•
•
Analog and digital multiplexing or demultiplexing
Motor drives
Servo drive control module
Building automation
Barcode scanner
Analog input module
Power delivery
Smoke detectors
Video surveillance
Thermal imaging camera
Electronic point of sale
Appliances
Consumer audio
Device Information(1)
PART NUMBER
TMUX1204
VDD
BODY SIZE (NOM)
3.00 mm × 3.00 mm

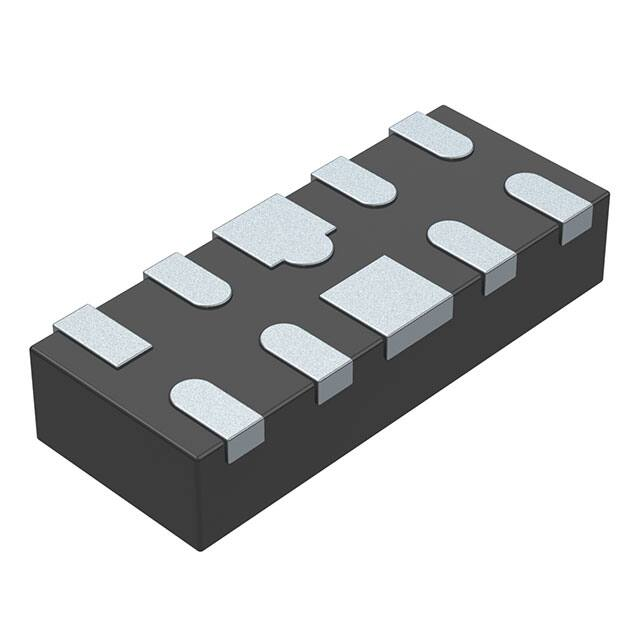

USON (10) (DQA)
2.50 mm x 1.00 mm
(1) For all available packages, see the package option addendum
at the end of the data sheet.
SPACER
SPACER
Application Example
VDD
PACKAGE
VSSOP (10) (DGS)
TMUX1204 Block Diagram
VDD
VI/O
TMUX120 4
EN
S1
MCU
LDO #1
S1
RAM
LDO #2
S3
Integrated
12-bit ADC
S3
S4
S4
LM20
Analog Temp.
Sensor
GND
System Inputs
and Sensors
S2
D1
D
LM20
Analog Temp.
Sensor
FLASH
S2
Port I/O
A0
TIMERS
1-of-4
Decoder
A1
1.8V Logic
I/O
EN
A1
A0
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
Table of Contents
1
2
3
4
5
6
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
7
1
1
1
2
3
4
Absolute Maximum Ratings ...................................... 4
ESD Ratings.............................................................. 4
Recommended Operating Conditions....................... 4
Thermal Information .................................................. 4
Electrical Characteristics (VDD = 5 V ±10 %) ............ 5
Electrical Characteristics (VDD = 3.3 V ±10 %) ......... 7
Electrical Characteristics (VDD = 1.8 V ±10 %) ......... 9
Electrical Characteristics (VDD = 1.2 V ±10 %) ....... 11
Typical Characteristics ............................................ 13
Parameter Measurement Information ................ 14
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
On-Resistance ........................................................
Off-Leakage Current ...............................................
On-Leakage Current ...............................................
Transition Time .......................................................
Break-Before-Make .................................................
tON(EN) and tOFF(EN)..................................................
Charge Injection ......................................................
Off Isolation .............................................................
Crosstalk .................................................................
14
14
15
15
16
16
17
17
18
7.10 Bandwidth ............................................................. 18
8
Detailed Description ............................................ 19
8.1
8.2
8.3
8.4
9
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
Truth Tables ............................................................
19
19
20
20
Application and Implementation ........................ 21
9.1
9.2
9.3
9.4
9.5
Application Information............................................
Typical Application .................................................
Design Requirements..............................................
Detailed Design Procedure .....................................
Application Curve ....................................................
21
21
21
22
22
10 Power Supply Recommendations ..................... 22
11 Layout................................................................... 23
11.1 Layout Guidelines ................................................. 23
11.2 Layout Example .................................................... 23
12 Device and Documentation Support ................. 24
12.1
12.2
12.3
12.4
12.5
12.6
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
24
24
24
24
24
24
13 Mechanical, Packaging, and Orderable
Information ........................................................... 24
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Original (April 2019) to Revision A
Page
•
Deleted Product preview from the DQA package in the Device Information table................................................................. 1
•
Deleted Product preview from the DQA package in the Pin Configuration and Functions section........................................ 3
•
Added Note 2 to the Pin Functions table ............................................................................................................................... 3
2
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
5 Pin Configuration and Functions
DGS Package
10-Pin VSSOP
Top View
DQA Package
10-Pin USON
Top View
A0
1
10
A1
S1
2
9
S2
GND
3
8
D
S3
4
7
S4
EN
5
6
VDD
A0
1
10
A1
S1
2
9
S2
GND
3
8
D
S3
4
7
S4
EN
5
6
VDD
Not to scale
Not to scale
Pin Functions
PIN
NAME
DGS, DQA
TYPE (1)
DESCRIPTION (2)
A0
1
I
S1
2
I/O
GND
3
P
S3
4
I/O
EN
5
I
Active high logic enable. When this pin is low, all switches are turned off. When this pin is high, the
A[1:0] logic inputs determine which switch is turned on.
VDD
6
P
Positive power supply. This pin is the most positive power-supply potential. For reliable operation,
connect a decoupling capacitor ranging from 0.1 µF to 10 µF between VDD and GND.
S4
7
I/O
Source pin 4. Can be an input or output.
D
8
I/O
Drain pin. Can be an input or output.
S2
9
I/O
Source pin 2. Can be an input or output.
A1
10
I
(1)
(2)
Address line 0. Controls the switch configuration as shown in Table 1.
Source pin 1. Can be an input or output.
Ground (0 V) reference
Source pin 3. Can be an input or output.
Address line 1. Controls the switch configuration as shown in Table 1.
I = input, O = output, I/O = input and output, P = power
For unused pins, refer to the Device Functional Modes
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
3
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1) (2) (3)
MIN
MAX
VDD
Supply voltage
–0.5
6
V
VSEL or VEN
Logic control input pin voltage (EN, A0, A1)
–0.5
6
V
ISEL or IEN
Logic control input pin current (EN, A0, A1)
–30
30
mA
VS or VD
Source or drain voltage (Sx, D)
–0.5
VDD+0.5
IS or ID (CONT)
Source or drain continuous current (Sx, D)
–30
30
mA
Tstg
Storage temperature
–65
150
°C
TJ
Junction temperature
150
°C
(1)
(2)
(3)
UNIT
V
Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
All voltages are with respect to ground, unless otherwise specified.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1)
±2000
Charged device model (CDM), per JEDEC specification JESD22-C101
or ANSI/ESDA/JEDEC JS-002, all pins (2)
±750
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
VDD
Positive power supply voltage
VS or VD
NOM
MAX
UNIT
1.08
5.5
V
Signal path input/output voltage (source or drain pin) (Sx, D)
0
VDD
V
VSEL or
VEN
Logic control input pin voltage (EN, A0, A1)
0
5.5
V
TA
Ambient temperature
–40
125
°C
6.4 Thermal Information
TMUX1204
THERMAL METRIC
(1)
DGS (VSSOP)
DQA (USON)
10 PINS
10 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
193.9
173.0
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
83.1
99.7
°C/W
RθJB
Junction-to-board thermal resistance
116.5
73.5
°C/W
ΨJT
Junction-to-top characterization parameter
22.0
8.9
°C/W
ΨJB
Junction-to-board characterization parameter
114.6
73.0
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
N/A
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
6.5 Electrical Characteristics (VDD = 5 V ±10 %)
at TA = 25°C, VDD = 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
ANALOG SWITCH
RON
On-resistance
ΔRON
RON
On-resistance matching between
channels
On-resistance flatness
FLAT
IS(OFF)
ID(OFF)
ID(ON)
IS(ON)
Source off leakage current (1)
Drain off leakage current (1)
Channel on leakage current
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VDD = 5 V
Switch Off
VD = 4.5 V / 1.5 V
VS = 1.5 V / 4.5 V
Refer to Off-Leakage Current
25°C
VDD = 5 V
Switch Off
VD = 4.5 V / 1.5 V
VS = 1.5 V / 4.5 V
Refer to Off-Leakage Current
25°C
VDD = 5 V
Switch On
VD = VS = 4.5 V / 1.5 V
Refer to On-Leakage Current
25°C
5
Ω
–40°C to +85°C
7
Ω
–40°C to +125°C
9
Ω
0.15
Ω
–40°C to +85°C
1
Ω
–40°C to +125°C
1
Ω
1.5
Ω
–40°C to +85°C
2
Ω
–40°C to +125°C
3
Ω
±75
nA
–40°C to +85°C
–150
150
nA
–40°C to +125°C
–175
175
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
LOGIC INPUTS (EN, A0, A1)
VIH
Input logic high
–40°C to +125°C
1.49
5.5
V
VIL
Input logic low
–40°C to +125°C
0
0.87
V
IIH
IIL
Input leakage current
25°C
IIH
IIL
Input leakage current
–40°C to +125°C
CIN
Logic input capacitance
25°C
CIN
Logic input capacitance
–40°C to +125°C
±0.005
µA
±0.10
1
µA
pF
2
pF
POWER SUPPLY
IDD
(1)
VDD supply current
Logic inputs = 0 V or 5.5 V
25°C
–40°C to +125°C
0.01
µA
2
µA
When VS is 4.5 V, VD is 1.5 V or when VS is 1.5 V, VD is 4.5 V.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
5
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
Electrical Characteristics (VDD = 5 V ±10 %) (continued)
at TA = 25°C, VDD = 5 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
DYNAMIC CHARACTERISTICS
tTRAN
tOPEN
Transition time between channels
Break before make time
(BBM)
tON(EN)
Enable turn-on time
tOFF(EN) Enable turn-off time
QC
OISO
XTALK
Charge Injection
Off Isolation
Crosstalk
VS = 3 V
RL = 200 Ω, CL = 15 pF
Refer to Transition Time
25°C
VS = 3 V
RL = 200 Ω, CL = 15 pF
Refer to Break-Before-Make
25°C
VS = 3 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
VS = 3 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
14
–40°C to +85°C
–40°C to +125°C
ns
21
ns
22
ns
8
ns
–40°C to +85°C
1
ns
–40°C to +125°C
1
ns
14
ns
–40°C to +85°C
20
ns
–40°C to +125°C
20
ns
5
ns
–40°C to +85°C
20
ns
–40°C to +125°C
20
ns
VS = 1 V
RS = 0 Ω, CL = 1 nF
Refer to Charge Injection
25°C
±9
pC
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Off Isolation
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Off Isolation
25°C
–42
dB
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Crosstalk
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Crosstalk
25°C
–42
dB
BW
Bandwidth
RL = 50 Ω, CL = 5 pF
Refer to Bandwidth
25°C
125
MHz
CSOFF
Source off capacitance
f = 1 MHz
25°C
13
pF
CDOFF
Drain off capacitance
f = 1 MHz
25°C
38
pF
CSON
CDON
On capacitance
f = 1 MHz
25°C
42
pF
6
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
6.6 Electrical Characteristics (VDD = 3.3 V ±10 %)
at TA = 25°C, VDD = 3.3 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
ANALOG SWITCH
RON
On-resistance
ΔRON
RON
On-resistance matching between
channels
On-resistance flatness
FLAT
IS(OFF)
ID(OFF)
ID(ON)
IS(ON)
Source off leakage current (1)
Drain off leakage current (1)
Channel on leakage current
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
9
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
3
Ω
–40°C to +85°C
5
Ω
–40°C to +125°C
6
Ω
VDD = 3.3 V
Switch Off
VD = 3 V / 1 V
VS = 1 V / 3 V
Refer to Off-Leakage Current
25°C
VDD = 3.3 V
Switch Off
VD = 3 V / 1 V
VS = 1 V / 3 V
Refer to Off-Leakage Current
25°C
VDD = 3.3 V
Switch On
VD = VS = 3 V / 1 V
Refer to On-Leakage Current
25°C
Ω
–40°C to +85°C
15
Ω
–40°C to +125°C
17
Ω
0.15
Ω
–40°C to +85°C
1
Ω
–40°C to +125°C
1
Ω
±75
nA
–40°C to +85°C
–150
150
nA
–40°C to +125°C
–175
175
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
LOGIC INPUTS (EN, A0, A1)
VIH
Input logic high
–40°C to +125°C
1.35
5.5
V
VIL
Input logic low
–40°C to +125°C
0
0.8
V
IIH
IIL
Input leakage current
25°C
IIH
IIL
Input leakage current
–40°C to +125°C
CIN
Logic input capacitance
25°C
CIN
Logic input capacitance
–40°C to +125°C
±0.005
µA
±0.10
1
µA
pF
2
pF
POWER SUPPLY
IDD
(1)
VDD supply current
Logic inputs = 0 V or 5.5 V
25°C
–40°C to +125°C
0.01
µA
1.3
µA
When VS is 3 V, VD is 1 V or when VS is 1 V, VD is 3 V.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
7
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
Electrical Characteristics (VDD = 3.3 V ±10 %) (continued)
at TA = 25°C, VDD = 3.3 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
DYNAMIC CHARACTERISTICS
tTRAN
tOPEN
Transition time between channels
Break before make time
(BBM)
tON(EN)
Enable turn-on time
tOFF(EN) Enable turn-off time
QC
OISO
XTALK
Charge Injection
Off Isolation
Crosstalk
VS = 2 V
RL = 200 Ω, CL = 15 pF
Refer to Transition Time
25°C
VS = 2 V
RL = 200 Ω, CL = 15 pF
Refer to Break-Before-Make
25°C
VS = 2 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
VS = 2 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
14
–40°C to +85°C
–40°C to +125°C
ns
25
ns
25
ns
8
ns
–40°C to +85°C
1
ns
–40°C to +125°C
1
ns
14
ns
–40°C to +85°C
25
ns
–40°C to +125°C
25
ns
7
ns
–40°C to +85°C
13
ns
–40°C to +125°C
13
ns
VS = 1 V
RS = 0 Ω, CL = 1 nF
Refer to Charge Injection
25°C
±7
pC
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Off Isolation
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Off Isolation
25°C
–42
dB
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Crosstalk
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Crosstalk
25°C
–42
dB
BW
Bandwidth
RL = 50 Ω, CL = 5 pF
Refer to Bandwidth
25°C
125
MHz
CSOFF
Source off capacitance
f = 1 MHz
25°C
13
pF
CDOFF
Drain off capacitance
f = 1 MHz
25°C
38
pF
CSON
CDON
On capacitance
f = 1 MHz
25°C
42
pF
8
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
6.7 Electrical Characteristics (VDD = 1.8 V ±10 %)
at TA = 25°C, VDD = 1.8 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
ANALOG SWITCH
RON
On-resistance
ΔRON
IS(OFF)
ID(OFF)
ID(ON)
IS(ON)
On-resistance matching between
channels
Source off leakage current (1)
Drain off leakage current (1)
Channel on leakage current
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
VDD = 1.98 V
Switch Off
VD = 1.8 V / 1 V
VS = 1 V / 1.8 V
Refer to Off-Leakage Current
25°C
VDD = 1.98 V
Switch Off
VD = 1.8 V / 1 V
VS = 1 V / 1.8 V
Refer to Off-Leakage Current
25°C
VDD = 1.98 V
Switch On
VD = VS = 1.8 V / 1 V
Refer to On-Leakage Current
25°C
40
Ω
–40°C to +85°C
80
Ω
–40°C to +125°C
80
Ω
0.15
Ω
–40°C to +85°C
1.5
Ω
–40°C to +125°C
1.5
Ω
±75
nA
–40°C to +85°C
-150
150
nA
–40°C to +125°C
-175
175
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
LOGIC INPUTS (EN, A0, A1)
VIH
Input logic high
–40°C to +125°C
1.07
5.5
V
VIL
Input logic low
–40°C to +125°C
0
0.68
V
IIH
IIL
Input leakage current
25°C
IIH
IIL
Input leakage current
–40°C to +125°C
CIN
Logic input capacitance
25°C
CIN
Logic input capacitance
–40°C to +125°C
±0.005
µA
±0.10
1
µA
pF
2
pF
POWER SUPPLY
IDD
(1)
VDD supply current
Logic inputs = 0 V or 5.5 V
25°C
–40°C to +125°C
0.005
µA
0.95
µA
When VS is 1.8 V, VD is 1 V or when VS is 1 V, VD is 1.8 V.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
9
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
Electrical Characteristics (VDD = 1.8 V ±10 %) (continued)
at TA = 25°C, VDD = 1.8 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
DYNAMIC CHARACTERISTICS
tTRAN
tOPEN
Transition time between channels
Break before make time
(BBM)
tON(EN)
Enable turn-on time
tOFF(EN) Enable turn-off time
QC
OISO
XTALK
Charge Injection
Off Isolation
Crosstalk
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to Transition Time
25°C
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to Break-Before-Make
25°C
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
28
–40°C to +85°C
–40°C to +125°C
ns
48
ns
48
ns
16
ns
–40°C to +85°C
1
ns
–40°C to +125°C
1
ns
28
ns
–40°C to +85°C
48
ns
–40°C to +125°C
48
ns
16
ns
–40°C to +85°C
27
ns
–40°C to +125°C
27
ns
VS = 1 V
RS = 0 Ω, CL = 1 nF
Refer to Charge Injection
25°C
–2
pC
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Off Isolation
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Off Isolation
25°C
–42
dB
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Crosstalk
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Crosstalk
25°C
–42
dB
BW
Bandwidth
RL = 50 Ω, CL = 5 pF
Refer to Bandwidth
25°C
125
MHz
CSOFF
Source off capacitance
f = 1 MHz
25°C
13
pF
CDOFF
Drain off capacitance
f = 1 MHz
25°C
38
pF
CSON
CDON
On capacitance
f = 1 MHz
25°C
42
pF
10
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
6.8 Electrical Characteristics (VDD = 1.2 V ±10 %)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
ANALOG SWITCH
RON
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
On-resistance matching between
channels
VS = 0 V to VDD
ISD = 10 mA
Refer to On-Resistance
25°C
25°C
Source off leakage current (1)
VDD = 1.32 V
Switch Off
VD = 1.2 V / 1 V
VS = 1 V / 1.2 V
Refer to Off-Leakage Current
VDD = 1.32 V
Switch Off
VD = 1.2 V / 1 V
VS = 1 V / 1.2 V
Refer to Off-Leakage Current
25°C
VDD = 1.32 V
Switch On
VD = VS = 1.2 V / 1 V
Refer to On-Leakage Current
25°C
On-resistance
ΔRON
IS(OFF)
ID(OFF)
ID(ON)
IS(ON)
Drain off leakage current (1)
Channel on leakage current
70
–40°C to +85°C
–40°C to +125°C
Ω
105
Ω
105
Ω
0.15
–40°C to +85°C
Ω
1.5
–40°C to +125°C
1.5
±75
Ω
Ω
nA
–40°C to +85°C
–150
150
nA
–40°C to +125°C
–175
175
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
±200
nA
–40°C to +85°C
–500
500
nA
–40°C to +125°C
–750
750
nA
LOGIC INPUTS (EN, A0, A1)
VIH
Input logic high
–40°C to +125°C
0.96
5.5
V
VIL
Input logic low
–40°C to +125°C
0
0.36
V
IIH
IIL
Input leakage current
25°C
IIH
IIL
Input leakage current
–40°C to +125°C
CIN
Logic input capacitance
25°C
CIN
Logic input capacitance
–40°C to +125°C
±0.005
µA
±0.10
1
µA
pF
2
pF
POWER SUPPLY
IDD
(1)
VDD supply current
Logic inputs = 0 V or 5.5 V
25°C
–40°C to +125°C
0.005
µA
0.8
µA
When VS is 1 V, VD is 1.2 V or when VS is 1.2 V, VD is 1 V.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
11
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
Electrical Characteristics (VDD = 1.2 V ±10 %) (continued)
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
DYNAMIC CHARACTERISTICS
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to Transition Time
25°C
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to Break-Before-Make
25°C
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
tOFF(EN) Enable turn-off time
VS = 1 V
RL = 200 Ω, CL = 15 pF
Refer to tON(EN) and tOFF(EN)
25°C
QC
VS = 1 V
RS = 0 Ω, CL = 1 nF
Refer to Charge Injection
25°C
±2
pC
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Off Isolation
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Off Isolation
25°C
–42
dB
RL = 50 Ω, CL = 5 pF
f = 1 MHz
Refer to Crosstalk
25°C
–62
dB
RL = 50 Ω, CL = 5 pF
f = 10 MHz
Refer to Crosstalk
25°C
–42
dB
tTRAN
tOPEN
Transition time between channels
Break before make time
(BBM)
tON(EN)
OISO
XTALK
Enable turn-on time
Charge Injection
Off Isolation
Crosstalk
60
ns
–40°C to +85°C
210
ns
–40°C to +125°C
210
ns
28
–40°C to +85°C
1
–40°C to +125°C
1
ns
ns
ns
60
–40°C to +85°C
–40°C to +125°C
ns
190
ns
190
ns
45
ns
–40°C to +85°C
150
ns
–40°C to +125°C
150
ns
BW
Bandwidth
RL = 50 Ω, CL = 5 pF
Refer to Bandwidth
25°C
125
MHz
CSOFF
Source off capacitance
f = 1 MHz
25°C
13
pF
CDOFF
Drain off capacitance
f = 1 MHz
25°C
38
pF
CSON
CDON
On capacitance
f = 1 MHz
25°C
42
pF
12
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
6.9 Typical Characteristics
at TA = 25°C, VDD = 5 V (unless otherwise noted)
80
10
VDD = 1.08V
8
On Resistance (:)
On Resistance (:)
60
40
VDD = 1.62V
20
VDD = 3V
TA = +125qC
TA = +85qC
6
4
2
VDD = 4.5V
TA = -40qC
0
TA = +25qC
0
0
0.5
1
1.5
2
2.5
3
3.5
Source or Drain Voltage (V)
4
4.5
5
0
0.5
1
1.5
2
2.5
Source or Drain Voltage (V)
D001
TA = 25°C
3
3.5
D002
VDD = 3 V
Figure 1. On-Resistance vs Source or Drain Voltage
Figure 2. On-Resistance vs Source or Drain Voltage
20
26
24
22
16
TON
18
Time (ns)
Time (ns)
20
TON
16
14
12
12
TOFF
8
10
4
TOFF
8
6
4
1.5
2
2.5
3
3.5
4
4.5
VDD - Supply Voltage (V)
5
5.5
0
-60
6
-30
0
D003
TA = 25°C
120
150
D004
VDD = 3.3 V
Figure 3. TON (EN) and TOFF (EN) vs Supply Voltage
Figure 4. TON (EN) and TOFF (EN) vs Temperature
1400
0
1200
-1
1000
-2
Gain (dB)
Supply Current (PA)
30
60
90
TA - Temperature (qC)
800
600
VDD = 3.3 V
VDD = 5 V
-3
-4
400
-5
200
-6
0
0
0.5
1
1.5
2
2.5
3
3.5
Logic Voltage (V)
4
4.5
5
D005
TA = 25°C
1M
10M
Frequency (Hz)
100M
D006
TA = 25°C
Figure 5. Supply Current vs Logic Voltage
Figure 6. Frequency Response
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
13
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
7 Parameter Measurement Information
7.1 On-Resistance
The on-resistance of a device is the ohmic resistance between the source (Sx) and drain (D) pins of the device.
The on-resistance varies with input voltage and supply voltage. The symbol RON is used to denote on-resistance.
The measurement setup used to measure RON is shown in Figure 7. Voltage (V) and current (ISD) are measured
using this setup, and RON is computed with RON = V / ISD:
V
ISD
Sx
D
VS
Figure 7. On-Resistance Measurement Setup
7.2 Off-Leakage Current
There are two types of leakage currents associated with a switch during the off state:
1. Source off-leakage current
2. Drain off-leakage current
Source leakage current is defined as the leakage current flowing into or out of the source pin when the switch is
off. This current is denoted by the symbol IS(OFF).
Drain leakage current is defined as the leakage current flowing into or out of the drain pin when the switch is off.
This current is denoted by the symbol ID(OFF).
The setup used to measure both off-leakage currents is shown in Figure 8.
Is (OFF)
VDD
VDD
VDD
VDD
S1
S1
A
ID (OFF)
S2
S2
VS
D
D
S3
A
S3
S4
S4
VS
VD
VD
GND
GND
Figure 8. Off-Leakage Measurement Setup
14
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
7.3 On-Leakage Current
Source on-leakage current is defined as the leakage current flowing into or out of the source pin when the switch
is on. This current is denoted by the symbol IS(ON).
Drain on-leakage current is defined as the leakage current flowing into or out of the drain pin when the switch is
on. This current is denoted by the symbol ID(ON).
Either the source pin or drain pin is left floating during the measurement. Figure 9 shows the circuit used for
measuring the on-leakage current, denoted by IS(ON) or ID(ON).
VDD
VDD
VDD
S1
N.C.
VDD
IS (ON)
S1
A
ID (ON)
S2
S2
D
S3
D
A
N.C.
S4
S8
Vs
VS
VS
VD
GND
GND
Figure 9. On-Leakage Measurement Setup
7.4 Transition Time
Transition time is defined as the time taken by the output of the device to rise or fall 10% after the address signal
has risen or fallen past the logic threshold. The 10% transition measurement is utilized to provide the timing of
the device. System level timing can then account for the time constant added from the load resistance and load
capacitance. Figure 10 shows the setup used to measure transition time, denoted by the symbol tTRANSITION.
VDD
0.1…F
VDD
VDD
ADDRESS
DRIVE
(VSEL)
S1
tf < 5ns
tr < 5ns
VS
VIH
VIL
S2
0V
D
OUTPUT
S3
RL
S4
CL
tTRANSITION
tTRANSITION
A0
90%
A1
OUTPUT
VSEL
10%
GND
0V
Figure 10. Transition-Time Measurement Setup
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
15
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
7.5 Break-Before-Make
Break-before-make delay is a safety feature that prevents two inputs from connecting when the device is
switching. The output first breaks from the on-state switch before making the connection with the next on-state
switch. The time delay between the break and the make is known as break-before-make delay. Figure 11 shows
the setup used to measure break-before-make delay, denoted by the symbol tOPEN(BBM).
VDD
0.1…F
VDD
VDD
VS
ADDRESS
DRIVE
(VSEL)
tr < 5ns
S2
tf < 5ns
D
OUTPUT
S3
0V
RL
S4
CL
90%
Output
tBBM 1
A0
tBBM 2
0V
A1
VSEL
tOPEN (BBM) = min ( tBBM 1, tBBM 2)
GND
Figure 11. Break-Before-Make Delay Measurement Setup
7.6 tON(EN) and tOFF(EN)
Turn-on time is defined as the time taken by the output of the device to rise to 10% after the enable has risen
past the logic threshold. The 10% measurement is utilized to provide the timing of the device. System level
timing can then account for the time constant added from the load resistance and load capacitance. Figure 12
shows the setup used to measure turn-on time, denoted by the symbol tON(EN).
Turn-off time is defined as the time taken by the output of the device to fall to 90% after the enable has fallen
past the logic threshold. The 90% measurement is utilized to provide the timing of the device. System level
timing can then account for the time constant added from the load resistance and load capacitance. Figure 12
shows the setup used to measure turn-off time, denoted by the symbol tOFF(EN).
VDD
0.1…F
VDD
VDD
ENABLE
DRIVE
(VEN)
tf < 5ns
tr < 5ns
VS
VIH
S2
VIL
D
OUTPUT
S3
0V
RL
S4
CL
tOFF (EN)
tON (EN)
EN
A0
90%
A1
OUTPUT
VEN
10%
GND
0V
Figure 12. Turn-On and Turn-Off Time Measurement Setup
16
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
7.7 Charge Injection
The TMUX1204 has a transmission-gate topology. Any mismatch in capacitance between the NMOS and PMOS
transistors results in a charge injected into the drain or source during the falling or rising edge of the gate signal.
The amount of charge injected into the source or drain of the device is known as charge injection, and is denoted
by the symbol QC. Figure 13 shows the setup used to measure charge injection from source (Sx) to drain (D).
VDD
0.1…F
VDD
VDD
VS
VEN
S2
OUTPUT
D
0V
S3
CL
S4
Output
VOUT
VOUT
VS
QC = CL ×
VOUT
A0
EN
A1
VEN
GND
Figure 13. Charge-Injection Measurement Setup
7.8 Off Isolation
Off isolation is defined as the ratio of the signal at the drain pin (D) of the device when a signal is applied to the
source pin (Sx) of an off-channel. Figure 14 shows the setup used to measure, and the equation used to
calculate off isolation.
0.1µF
NETWORK
VDD
VS
ANALYZER
50Q
S
VSIG
D
VOUT
RL
50Q
SX
GND
RL
50Q
Figure 14. Off Isolation Measurement Setup
Off Isolation
§V
·
20 ˜ Log ¨ OUT ¸
© VS ¹
(1)
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
17
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
7.9 Crosstalk
Crosstalk is defined as the ratio of the signal at the drain pin (D) of a different channel, when a signal is applied
at the source pin (Sx) of an on-channel. Figure 15 shows the setup used to measure, and the equation used to
calculate crosstalk.
0.1µF
NETWORK
VDD
ANALYZER
S1
VOUT
RL
D
50Q
VS
RL
S2
50Q
50Q
VSIG
SX
RL
GND
50Q
Figure 15. Crosstalk Measurement Setup
§V
·
20 ˜ Log ¨ OUT ¸
© VS ¹
Channel-to-Channel Crosstalk
(2)
7.10 Bandwidth
Bandwidth is defined as the range of frequencies that are attenuated by less than 3 dB when the input is applied
to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (D) of the device. Figure 16
shows the setup used to measure bandwidth.
0.1µF
NETWORK
VDD
VS
ANALYZER
50Q
S
VSIG
D
VOUT
RL
SX
50Q
GND
RL
50Q
Figure 16. Bandwidth Measurement Setup
18
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
8 Detailed Description
8.1 Functional Block Diagram
The TMUX1204 is a 4:1, single-ended (1-ch.), mux. Each channel is turned on or turned off based on the state of
the address lines and the enable pin.
TMUX120 4
S1
S2
D1
S3
S4
1-of-4
Decoder
EN
A1
A0
Figure 17. TMUX1204 Functional Block Diagrams
8.2 Feature Description
8.2.1 Bidirectional Operation
The TMUX1204 conducts equally well from source (Sx) to drain (D) or from drain (D) to source (Sx). Each
channel has very similar characteristics in both directions and supports both analog and digital signals.
8.2.2 Rail to Rail Operation
The valid signal path input/output voltage for TMUX1204 ranges from GND to VDD.
8.2.3 1.8 V Logic Compatible Inputs
The TMUX1204 has 1.8-V logic compatible control for all logic control inputs. The logic input thresholds scale
with supply but still provide 1.8-V logic control when operating at 5.5 V supply voltage. 1.8-V logic level inputs
allows the TMUX1204 to interface with processors that have lower logic I/O rails and eliminates the need for an
external translator, which saves both space and BOM cost. For more information on 1.8 V logic implementations
refer to Simplifying Design with 1.8 V logic Muxes and Switches
8.2.4 Fail-Safe Logic
The TMUX1204 supports Fail-Safe Logic on the control input pins (EN, A0, A1) allowing for operation up to 5.5
V, regardless of the state of the supply pin. This feature allows voltages on the control pins to be applied before
the supply pin, protecting the device from potential damage. Fail-Safe Logic minimizes system complexity by
removing the need for power supply sequencing on the logic control pins. For example, the Fail-Safe Logic
feature allows the select pins of the TMUX1204 to be ramped to 5.5 V while VDD = 0 V. Additionally, the feature
enables operation of the TMUX1204 with VDD = 1.2 V while allowing the select pins to interface with a logic level
of another device up to 5.5 V.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
19
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
8.3 Device Functional Modes
When the EN pin of the TMUX1204 is pulled high, one of the switches is closed based on the state of the
address lines. When the EN pin is pulled low, all the switches are in an open state irrespective of the state of the
address lines. The EN pin can be connected to VDD (as high as 5.5 V).
The TMUX1204 can be operated without any external components except for the supply decoupling capacitors.
Unused logic control pins should be tied to GND or VDD in order to ensure the device does not consume
additional current as highlighted in Implications of Slow or Floating CMOS Inputs. Unused signal path inputs (Sx
or D) should be connected to GND.
8.4 Truth Tables
and Table 1 show the truth tables for the TMUX1204, respectively.
Table 1. TMUX1204 Truth Table
(1)
20
EN
A1
A0
Selected Channel
Connected To Drain (D) Pin
0
X (1)
X (1)
All channels are off
1
0
0
Channel S1
1
0
1
Channel S2
1
1
0
Channel S3
1
1
1
Channel S4
X denotes don't care.
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TMUX12xx family offers good system performance across a wide operating supply (1.08V to 5.5V). These
devices include 1.8V logic compatible control input pins that enable operation in systems with 1.8V I/O rails.
Additionally, the control input pins support Fail-Safe Logic which allows for operation up to 5.5V, regardless of
the state of the supply pin. This protection stops the logic pins from back-powering the supply rail. These
features make the TMUX12xx a family of general purpose multiplexers and switches that can reduce system
complexity, board size, and overall system cost.
9.2 Typical Application
One useful application to take advantage of the TMUX1204 features is multiplexing various signals into an ADC
that is integrated into a MCU. Utilizing an integrated ADC in a MCU allows a system to minimize cost with a
potential tradeoff of system performance when compared to an external ADC. The multiplexer allows for multiple
inputs/sensors to be monitored with a single ADC pin of the device, which is critical in systems with limited I/O.
VDD
VDD
VDD
VI/O
EN
MCU
LDO #1
S1
RAM
LDO #2
S2
Integrated
12-bit ADC
D
LM20
Analog Temp.
Sensor
FLASH
S3
S4
LM20
Analog Temp.
Sensor
GND
Port I/O
A0
TIMERS
A1
1.8V Logic
I/O
System Inputs
and Sensors
Figure 18. Multiplexing Signals to Integrated ADC
9.3 Design Requirements
For this design example, use the parameters listed in Table 2.
Table 2. Design Parameters
PARAMETERS
VALUES
Supply (VDD)
5.0 V
I/O signal range
0 V to VDD (Rail to Rail)
Control logic thresholds
1.8 V compatible
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
21
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
9.4 Detailed Design Procedure
The TMUX1204 can be operated without any external components except for the supply decoupling capacitors. If
the parts desired power-up state is disabled, the enable pin should have a weak pull-down resistor and be
controlled by the MCU via GPIO. All inputs being muxed to the ADC of the MCU must fall within the recommend
operating conditions of the TMUX1204 including signal range and continuous current. For this design with a
supply of 5 V the signal range can be 0 V to 5 V and the max continuous current can be 30 mA.
9.5 Application Curve
80
VDD = 1.08V
On Resistance (:)
60
40
VDD = 1.62V
20
VDD = 3V
VDD = 4.5V
0
0
0.5
1
1.5
2
2.5
3
3.5
Source or Drain Voltage (V)
4
4.5
5
D001
TA = 25°C
Figure 19. On-Resistance vs Source or Drain Voltage
10 Power Supply Recommendations
The TMUX1204 operates across a wide supply range of 1.08 V to 5.5 V. Do not exceed the absolute maximum
ratings because stresses beyond the listed ratings can cause permanent damage to the devices.
Power-supply bypassing improves noise margin and prevents switching noise propagation from the VDD supply to
other components. Good power-supply decoupling is important to achieve optimum performance. For improved
supply noise immunity, use a supply decoupling capacitor ranging from 0.1 μF to 10 μF from VDD to ground.
Place the bypass capacitors as close to the power supply pins of the device as possible using low-impedance
connections. TI recommends using multi-layer ceramic chip capacitors (MLCCs) that offer low equivalent series
resistance (ESR) and inductance (ESL) characteristics for power-supply decoupling purposes. For very sensitive
systems, or for systems in harsh noise environments, avoiding the use of vias for connecting the capacitors to
the device pins may offer superior noise immunity. The use of multiple vias in parallel lowers the overall
inductance and is beneficial for connections to ground planes.
22
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
TMUX1204
www.ti.com
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
11 Layout
11.1 Layout Guidelines
11.1.1 Layout Information
When a PCB trace turns a corner at a 90° angle, a reflection can occur. A reflection occurs primarily because of
the change of width of the trace. At the apex of the turn, the trace width increases to 1.414 times the width. This
increase upsets the transmission-line characteristics, especially the distributed capacitance and self–inductance
of the trace which results in the reflection. Not all PCB traces can be straight and therefore some traces must
turn corners.Figure 20 shows progressively better techniques of rounding corners. Only the last example (BEST)
maintains constant trace width and minimizes reflections.
BETTER
BEST
2W
WORST
1W min.
W
Figure 20. Trace Example
Route high-speed signals using a minimum of vias and corners which reduces signal reflections and
impedance changes. When a via must be used, increase the clearance size around it to minimize its
capacitance. Each via introduces discontinuities in the signal’s transmission line and increases the chance of
picking up interference from the other layers of the board. Be careful when designing test points, throughhole pins are not recommended at high frequencies.
Figure 21 illustrates an example of a PCB layout with the TMUX1204. Some key considerations are:
•
•
•
•
Decouple the VDD pin with a 0.1-µF capacitor, placed as close to the pin as possible. Make sure that the
capacitor voltage rating is sufficient for the VDD supply.
Keep the input lines as short as possible.
Use a solid ground plane to help reduce electromagnetic interference (EMI) noise pickup.
Do not run sensitive analog traces in parallel with digital traces. Avoid crossing digital and analog traces if
possible, and only make perpendicular crossings when necessary.
11.2 Layout Example
A0
A1
TMUX120 4
S1
S2
GND
D
S3
S4
EN
VDD
Via to
GND p lane
C
Wide (low inductance)
trace for power
Figure 21. TMUX1204 Layout Example
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
23
TMUX1204
SCDS393A – APRIL 2019 – REVISED OCTOBER 2019
www.ti.com
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
Texas Instruments, Simplifying Design with 1.8 V logic Muxes and Switches.
Texas Instruments, QFN/SON PCB Attachment.
Texas Instruments, Quad Flatpack No-Lead Logic Packages.
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Community Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
12.5 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
12.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
24
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
Product Folder Links: TMUX1204
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TMUX1204DGSR
ACTIVE
VSSOP
DGS
10
2500
RoHS & Green
NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
1F6
TMUX1204DQAR
ACTIVE
USON
DQA
10
3000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 125
204
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
